Presentation Transcript


Sound approximations to diffie hellman using rewrite rules l.jpg

Sound Approximations to Diffie-Hellman using Rewrite Rules

Christopher Lynch

Catherine Meadows

Naval Research Lab

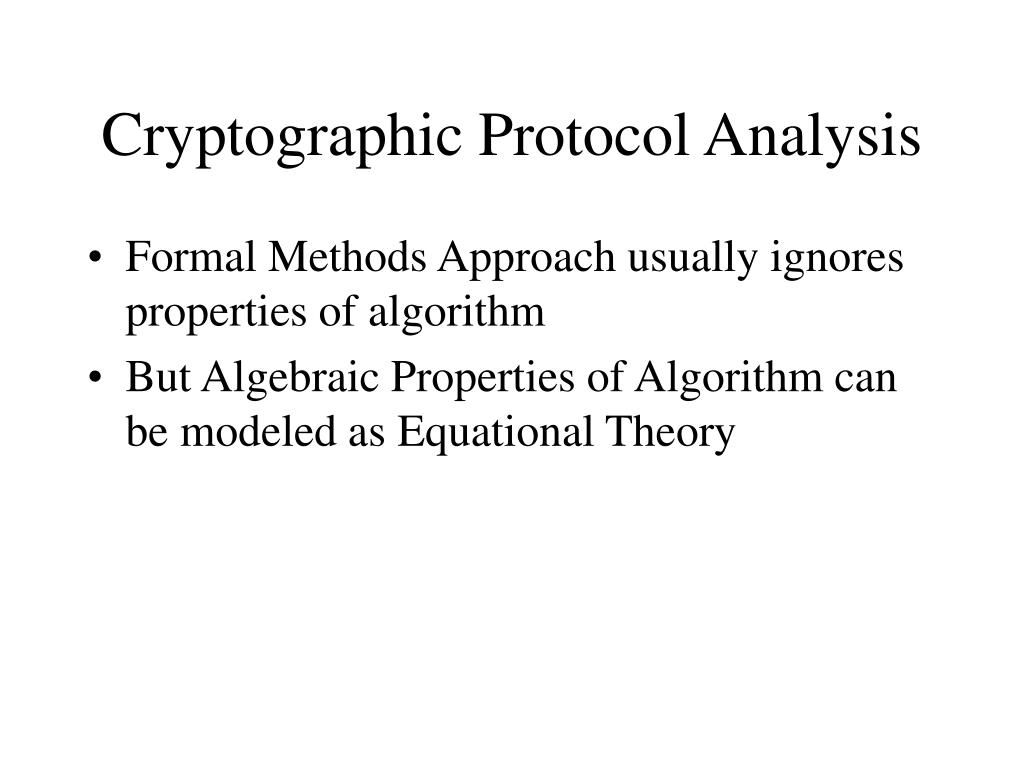

Cryptographic protocol analysis l.jpg

Cryptographic Protocol Analysis

  • Formal Methods Approach usually ignores properties of algorithm

  • But Algebraic Properties of Algorithm can be modeled as Equational Theory


Example dh protocol l.jpg

Example: DH Protocol

  • A ! B: gnA

  • B ! A: gnB

  • A ! B: e(h(exp(g,nB¢ nA)),m)

  • B ! A: e(h(exp(g,nA¢ nB)),m’)

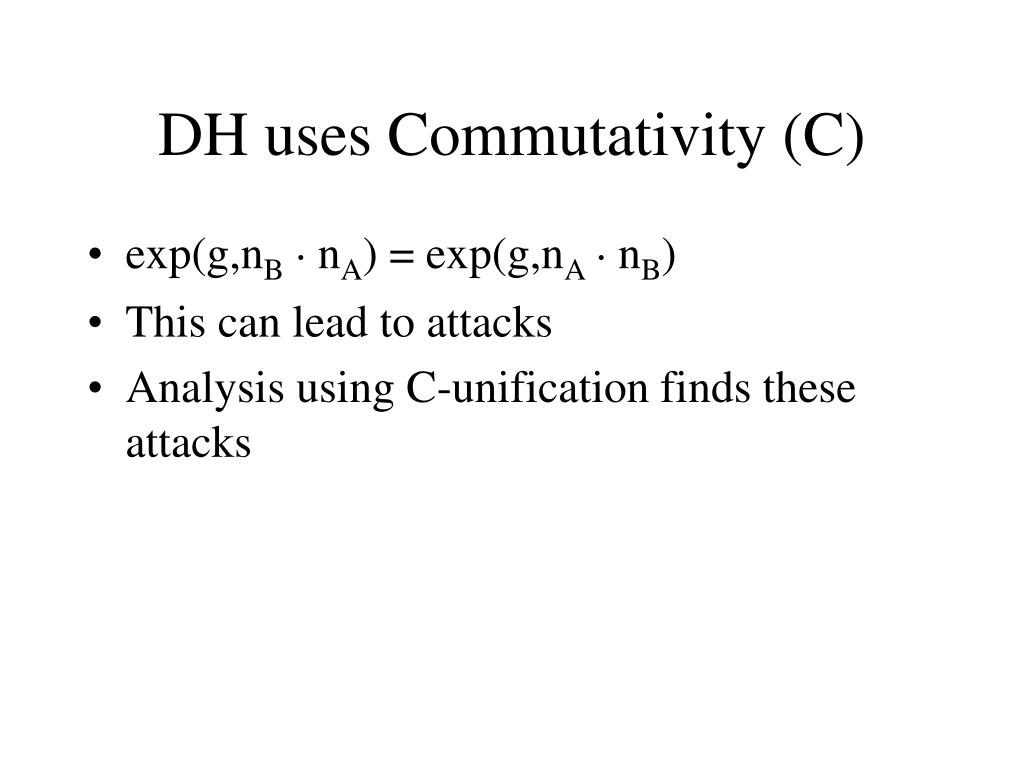

Dh uses commutativity c l.jpg

DH uses Commutativity (C)

  • exp(g,nB¢ nA) = exp(g,nA¢ nB)

  • This can lead to attacks

  • Analysis using C-unification finds these attacks


C unification l.jpg

C-Unification

  • exp(g,X ¢ Y) = exp(g,nA¢ nB) has two solutions

  • Solution 1: [X  nA, Y  nB]

  • Solution 2: [X  nB, Y  nA]


C unification is exponential l.jpg

C-unification is Exponential

  • exp(g,X1 Xn) = exp(g,c1 cn) has 2n solutions

  • Let d1,,dn be a permutation of c1,,cn

    • 2n permutations exist

  • Then [X1 d1,,Xn dn] is a solution

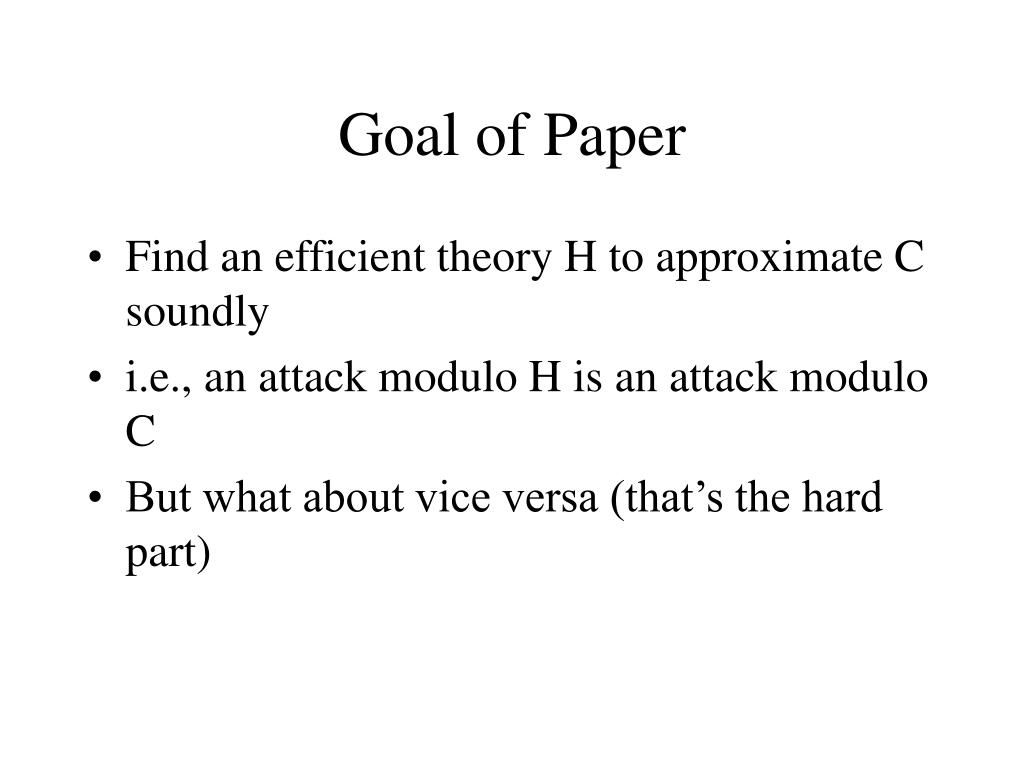

Goal of paper l.jpg

Goal of Paper

  • Find an efficient theory H to approximate C soundly

  • i.e., an attack modulo H is an attack modulo C

  • But what about vice versa (that’s the hard part)


Our results l.jpg

Our Results

  • We found an efficient theory H which approximates C soundly

  • We gave simple properties for a DH protocol to satisfy

  • We showed that if a protocol has these properties then a C-attack can be converted to an H-attack


Basic properties l.jpg

Basic Properties

  • symmetric keys of form h(exp(g,nA¢ nB))

  • An honest principal can send exp(g,n)

  • h-terms appear nowhere else, exponent nonces appear nowhere else, exp-terms appear nowhere else


Properties preventing role confusion attacks l.jpg

Properties preventing Role Confusion Attacks

  • Messages encrypted with DH-key from Initiator and Responder must be of different form

  • Messages encrypted with DH-key must contain a unique strand id


Intruder l.jpg

Intruder

  • As usual, the intruder can see all messages, and modify, delete and create messages

  • Of course, the intruder does not have to obey any of these rules


About the properties l.jpg

About the Properties

  • Most DH-protocols for two principals satisfy these properties

  • They are syntactic, so it is easy to check if a protocol meets them


Who cares l.jpg

Who Cares?

  • A Protocol Developer: A protocol with these properties will have no attack based on commutativity

  • A Protocol Analyzer: If a protocol has these properties, analyze it using efficient H-theory. Only if it does not, then use C.

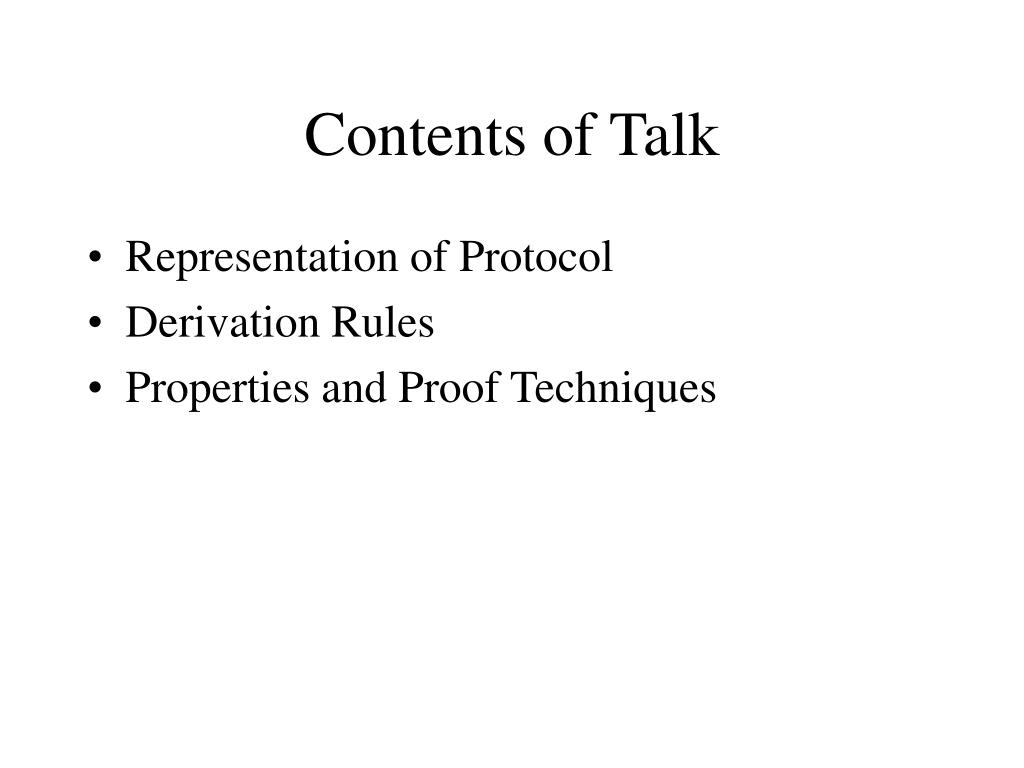

Contents of talk l.jpg

Contents of Talk

  • Representation of Protocol

  • Derivation Rules

  • Properties and Proof Techniques


Example of dh protocol l.jpg

Example of DH Protocol

  • A ! B: [exp(g,nA), nonce]

  • B ! A: [exp(g,nB),

    e(h(exp(g,nB¢ nA)),exp(g,nA))]

  • A ! B: e(h(exp(g,nA¢ nB)),ok)


Specification of protocol rules l.jpg

Specification of Protocol Rules

  • A: ! [exp(g,nA), nonce]

  • B: [Y, nonce] !

    [exp(g,nB), e(h(Y,nB),Y)]

  • A: [Z, e(h(exp(Z,nA),exp(g,nA))]

    ! e(h(exp(Z,nA),ok)


Instantiation of specification l.jpg

Instantiation of Specification

  • A: ! [exp(g,nA), nonce]

  • B: [exp(g,nA), nonce] ! [exp(g,nB),

    e(h(exp(g,nA¢ nB)),exp(g,nA))]

  • A:[exp(g,nB),

    e(h(exp(g,nB¢ nA)),exp(g,nA))]

    ! e(h(exp(g,nB¢ nA),ok)

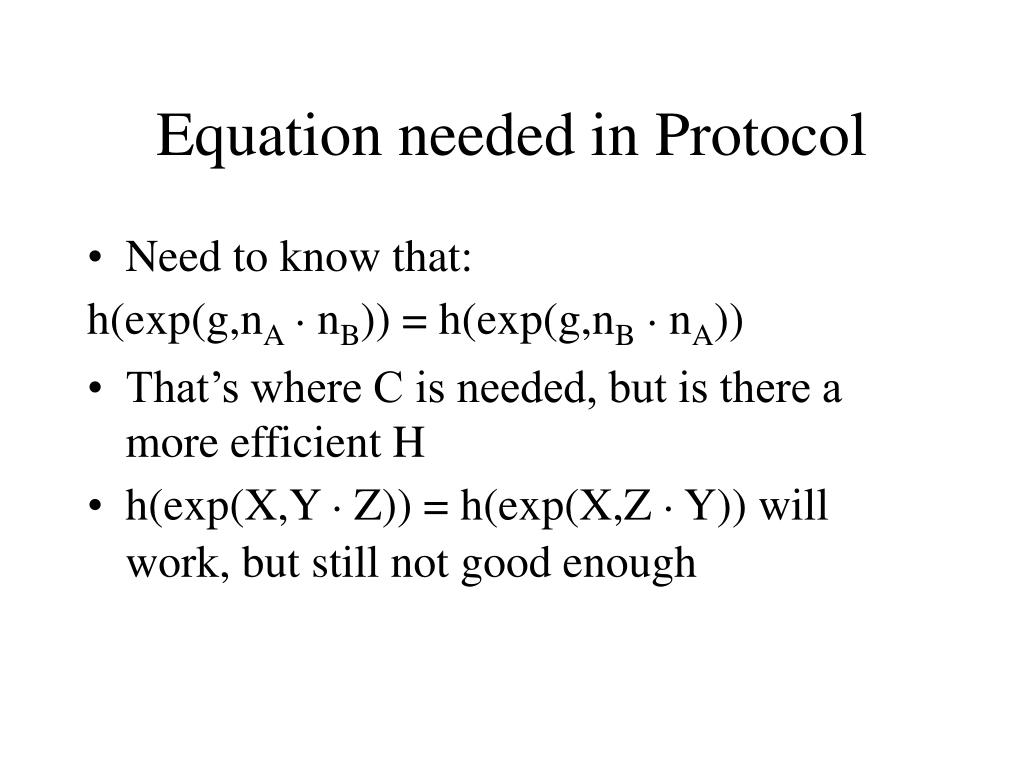

Equation needed in protocol l.jpg

Equation needed in Protocol

  • Need to know that:

    h(exp(g,nA¢ nB)) = h(exp(g,nB¢ nA))

  • That’s where C is needed, but is there a more efficient H

  • h(exp(X,Y ¢ Z)) = h(exp(X,Z ¢ Y)) will work, but still not good enough


Modification of dh protocol l.jpg

Modification of DH Protocol

  • Assume inititiator uses function h1 and responder uses h2

  • A ! B: [exp(g,nA), nonce]

  • B ! A: [exp(g,nB),

    e(h2(exp(g,nB¢ nA)),exp(g,nA))]

  • A ! B: e(h1(exp(g,nA¢ nB)),ok)


New specification l.jpg

New Specification

  • A: ! [exp(g,nA), nonce]

  • B: [Y, nonce] !

  • [exp(g,nB), e(h2(Y,nB),Y)]

  • A: [Z, e(h1(exp(Z,nA),exp(g,nA))]

    ! e(h1(exp(Z,nA),ok)


New instantiation l.jpg

New Instantiation

  • A: ! [exp(g,nA), nonce]

  • B: [exp(g,nA), nonce] ! [exp(g,nB),

    e(h2(exp(g,nA¢ nB)),exp(g,nA))]

  • A:[exp(g,nB),

    e(h1(exp(g,nB¢ nA)),exp(g,nA))]

    ! e(h1(exp(g,nB¢ nA),ok)


Equation we now need l.jpg

Equation we now need

  • h2(exp(x,nA¢ nB)) = h1(exp(x,nB¢ nA))

  • So theory H will be

    h2(exp(X,Y ¢ Z)) = h1(exp(X,Z ¢ Y))


How efficient is h l.jpg

How Efficient is H

Using results from [LM01], we see that:

  • In H, all unifiable terms have a most general unifier

  • Complexity of H-unification is quadratic (usually linear in practice)

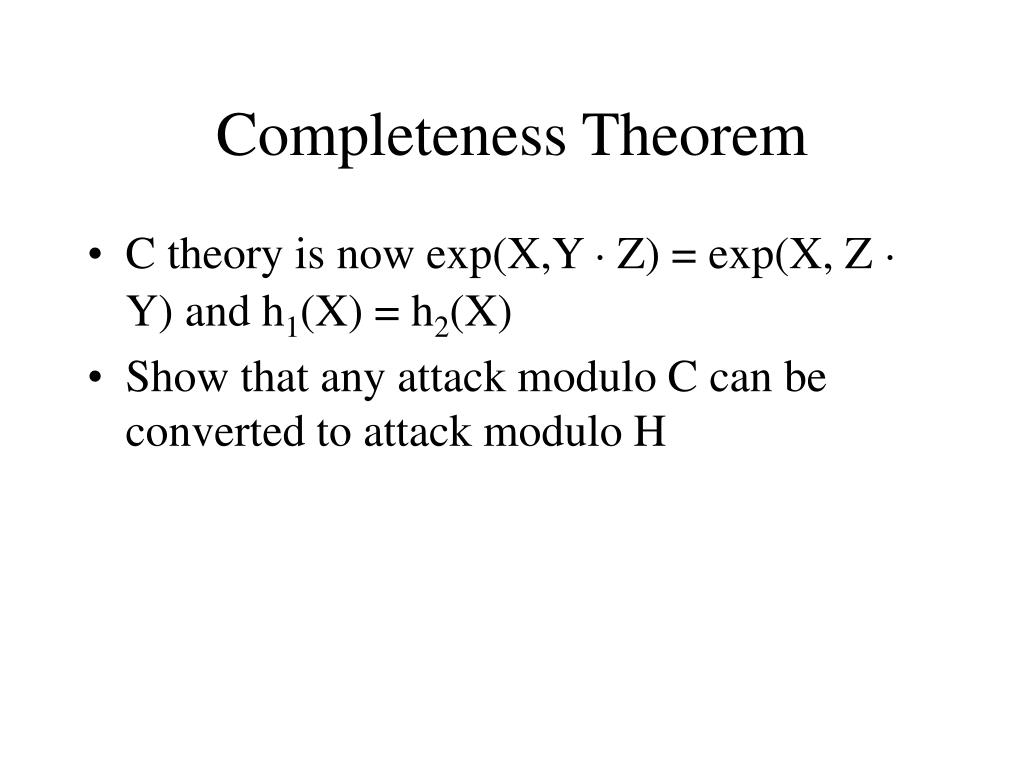

Completeness theorem l.jpg

Completeness Theorem

  • C theory is now exp(X,Y ¢ Z) = exp(X, Z ¢ Y) and h1(X) = h2(X)

  • Show that any attack modulo C can be converted to attack modulo H


Differences between h and c l.jpg

Differences between H and C

  • h1(exp(g, n1¢ n2)) equals h2(exp(g,n1¢ n2)) modulo H but not modulo C

  • h1(exp(g, n1¢ n2)) equals h1(exp(g, n2¢ n1)) modulo H but not modulo C

  • h1(exp(x, n1¢ n2¢ n3)) equals h2(exp(x, n3¢ n2¢ n1)) modulo H but not modulo C


Protocol instance l.jpg

Protocol Instance

A Protocol Instance has 2 parts

  • Protocol Rules

  • Derivation Rules to represent Intruder


Derivation rules l.jpg

Derivation Rules

  • [X,Y] ` X

  • [X,Y] ` Y

  • X, Y ` [X,Y]

  • privkey(A), enc(pubkey(A), X) ` X

  • pubkey(A), enc(privkey(A), X) ` X


More derivation rules l.jpg

More Derivation Rules

  • X, Y ` enc(X,Y)

  • X, Y ` e(X,Y)

  • X ` hi(X)

  • X, e(X,Y) ` Y

  • X,Y ` exp(X,Y)


Derivation modulo c l.jpg

Derivation modulo C

  • Recall rule X, e(X,Y) ` Y

  • Derivation modulo C:

    • X1 e(X2,Y) `CH Y

      if X1 =C X2


Example l.jpg

Example

  • h1(exp(x,nB¢ nI¢ nA)),

    e(h2(exp(x,nA¢ nI¢ nB)),m) `C m

  • But not h1(exp(x,nB¢ nI¢ nA)),

    e(h2(exp(x,nA¢ nI¢ nB)),m) `H m

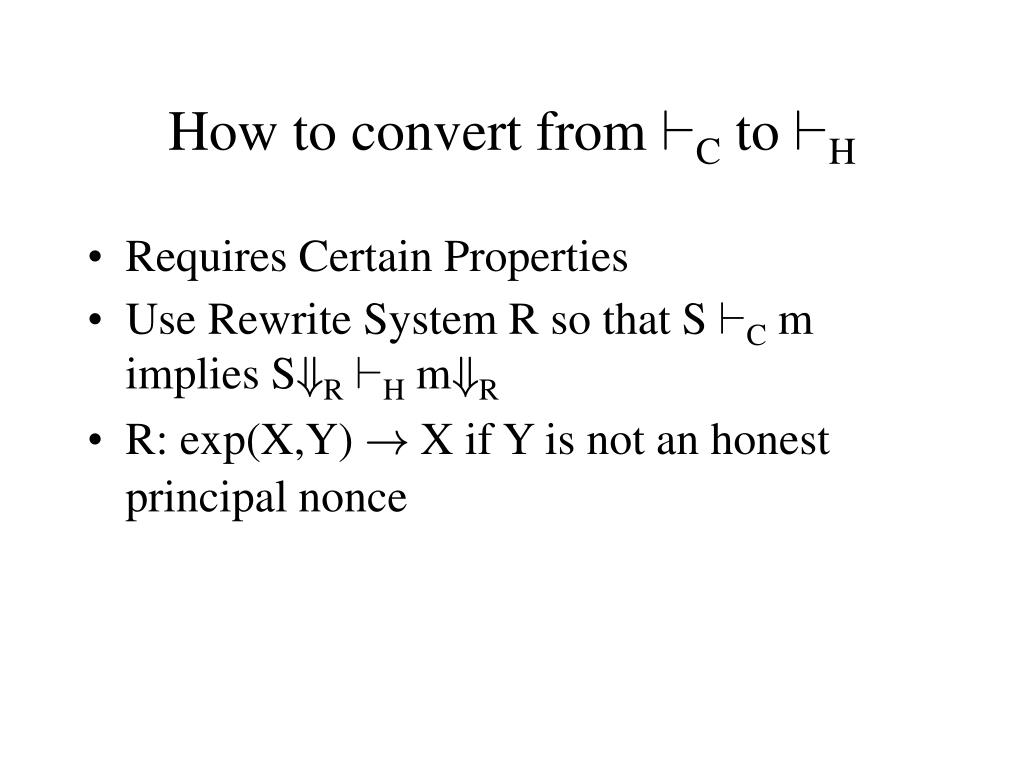

How to convert from c to h l.jpg

How to convert from `C to `H

  • Requires Certain Properties

  • Use Rewrite System R so that S `C m implies S+R`H m+R

  • R: exp(X,Y) ! X if Y is not an honest principal nonce


Properties of protocol l.jpg

Properties of Protocol

  • hashed symmetric keys are of the form h(exp(X ¢ n)), where X eventually unifies with a term exp(g,n’)

  • h-terms appear nowhere else, exponent nonces appear nowhere else, exp-terms appear nowhere else


More interesting properties l.jpg

More Interesting Properties

  • A message encrypted with h1-term on RHS of protocol cannot unify with message encrypted with h2-term on LHS

    • Avoids role confusion attacks

  • Messages encrypted with hashed term must include a strand id in message

    • Avoids attacks involving different instances of same protocol or different protocols


Properties of derivable terms l.jpg

Properties of Derivable Terms

  • Honest Principals follow Protocol Rules

  • But Intruder can use derivation rules to create terms which disobey properties

  • Nevertheless, we show that there are certain properties that are preserved by derivation and protocol rules


Example properties of derivable terms l.jpg

Example Properties of Derivable Terms

  • There is a set N (honest principal nonces)

  • Elements of N only appear as exponent

  • If a term exp(g,t1 tn) is derivable

    • t1 and tn are in N or are derivable

    • t2,,tn-1 are derivable

    • if term is not a key, then tn derivable


More properties l.jpg

More Properties

  • There are many more properties

  • Some quite complicated

  • And many lemmas and theorems to prove them


Properties imply l.jpg

Properties Imply

  • Every term will reduce by R to a term with at most two exponents (all exponents not in N are removed by rewrite rules)

  • This and other properties imply that if s and t C-unify then s+R and t+R H-unify

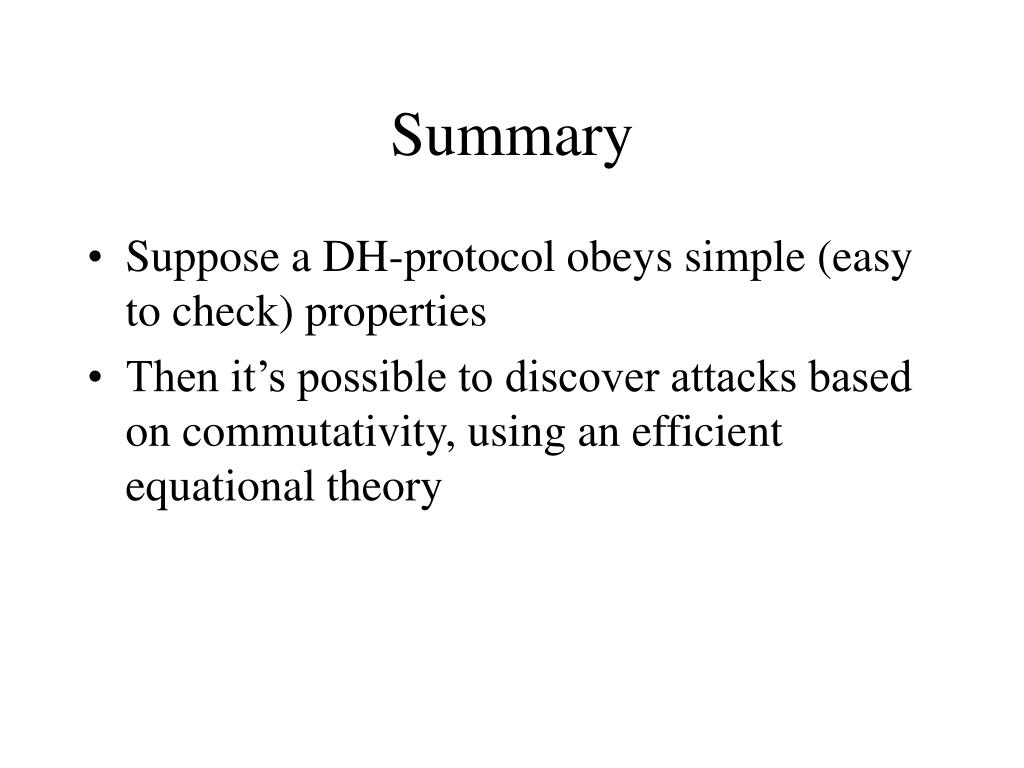

Summary l.jpg

Summary

  • Suppose a DH-protocol obeys simple (easy to check) properties

  • Then it’s possible to discover attacks based on commutativity, using an efficient equational theory


Related work l.jpg

Related Work

  • Properties so that attacks modeling cancellation of encryption/decryption rules are found with free algebra

    • Symmetric Key [Millen 03]

    • Public Key [LM 04]


Future work l.jpg

Future Work

  • Other DH work

    • Don’t assume base is known

    • What about inverses?

    • Group DH-protocols

  • Hierarchy of Protocol Models [Meadows 03]
