Presentation Transcript

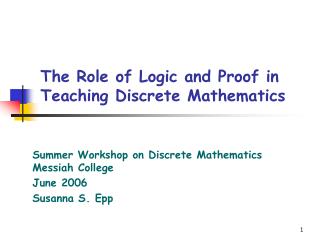

The role of logic and proof in teaching discrete mathematics l.jpg

The Role of Logic and Proof in Teaching Discrete Mathematics

Summer Workshop on Discrete Mathematics Messiah College

June 2006

Susanna S. Epp


Why discrete math l.jpg
Why Discrete Math?

  • The most important difference [between the demands of computer science and those of traditional scientific or engineering disciplines] on mathematics is that, to a much greater extent than in other disciplines, abstraction is an essential tool of every computer scientist, not just of the theoretician. The computer scientist is not simply a user of mathematical results: he must use his mathematical tools in much the same way as a mathematician does. . . The most important contribution a mathematics curriculum can make to computer science is the one least likely to be encapsulated as an individual course: A deep appreciation of the modes of thought that characterize mathematics.

  • W. Scherlis and M. Shaw, “Mathematics curriculum and the needs of computer science,” in The Future of College Mathematics, A. Ralston and G. Young, eds., Springer-Verlag, 1983.


The role of proof l.jpg
The Role of Proof

What is learned when a person becomes able to understand and develop basic mathematical proofs?

  • Thepower of certain abstract logical principles(e.g., modus ponens, modus tollens, universal instantiatiation, generalizing from the generic particular, …)

  • How tothink with symbolsrather than specific, concrete objects

  • Respect for the meanings of words, careful use of language

  • How todeal with multiple levels of abstraction,to move back and forth between the abstract and the particular

  • Thenecessity of being able to give a valid reasonfor the correctness of each statement in a chain

  • How to understand and build a logically connected chain of statements -think in a tightly disciplined way


Quote l.jpg
Quote

“[P]rogramming reliably - must be an activity of an

undeniably mathematical nature. . . You see, mathematics is about thinking, and doing mathematics is always trying to think as well as possible.”

Edsger W. Dijkstra (1981) "Why correctness must be

a mathematical concern." In The Correctness Problem

in Computer Science, Robert S. Boyer and J. Strother

Moore, eds., Academic Press, 1981.


Quote5 l.jpg
Quote

The mathematics profession as a whole has seriously underestimated the difficulty of teaching mathematics.

Ramesh GangolliMER WorkshopMay 31, 1991


The mathematical register l.jpg
The Mathematical Register

“Mathematicians speak and write in a special ‘register’ suited for communicating mathematical arguments…[This] register uses special words as well as ordinary words, phrases and grammatical constructions with special meanings … .”

Charles Wells

The Handbook of Mathematical Discourse

www.cwru.edu/artsci/math/wells/pub/abouthbk.html


Slide7 l.jpg

“…at least most of the time most mathematicians would agree on the meaning of most statements made in the [mathematical] register. Students have various other interpretations of particular constructions used in the mathematical register, and one of their (nearly always unstated) tasks is to learn how to extract the standard interpretation from what is said and written. One of the tasks of instructors is to teach them how to do that.”

Charles Wells

The Handbook of Mathematical Discourse

www.cwru.edu/artsci/math/wells/pub/abouthbk.html


Relation between math meaning and everyday meaning l.jpg
Relation between “Math Meaning” and “Everyday Meaning”

Example:

Promise: If you eat your dinner, then you'll get

dessert.

Threat: If you don’t eat your dinner, then you won’t get dessert.

Intended interpretation:

Same for both: You will get dessert if and only if you eat your dinner.


Mathematical meaning of if then l.jpg
Mathematical Meaning of If-then Meaning”

“If p then q” is not logically equivalentto

“If not p then not q”

or to

“If q then p.”

Example:

Statement: If a geometric figure is a square then it has four sides.

Converse: If a geometric figure has four sides then it is a square.

Inverse: If a geometric figure is not a square then it does not have four sides.


Relation between math meaning and everyday meaning10 l.jpg
Relation between “Math Meaning” and “Everyday Meaning”

  • In formal mathematics the words and phrases “if- then,” “and,” “or,” “not,” “only if,” “for all,” and “there exists” always have only one meaning and there is just one set of conventions for their usages.

  • In everyday language, these words and phrases sometimes have meanings and usages that are the same as their mathematical meanings and usages; other times they have different meanings and usages.

  • Example (same meaning): The Red Sox will win the World Series only if they win the pennant.


Slide11 l.jpg

Another example (same meaning): Meaning”Jacob was supposed to go with his father to get his hair cut.

Jacob:What will you give me if I get my hair cut?

Jacob’s mother:Jacob, if you get your hair cut, I’ll let you live.

Jacob (wide-eyed):Does that mean that if I don’t get my hair cut you won’t let me live?

Jacob’s mother:Of course not!


Slide12 l.jpg

“Most mathematics classes are conducted in a mixture of the registers of ordinary and mathematical English, and failure to distinguish between these two can result in incongruous errors and breakdowns in communication.”

David Pimm

Speaking Mathematically: Communication in the Mathematics Classroom

Routledge, 1990 (paperback)


More examples a sample l.jpg
More Examples: A Sample the registers of ordinary and mathematical English, and failure to distinguish between these two can result in incongruous errors and breakdowns in communication.”

  • “All that glisters is not gold.”

  • “There is a time for every purpose under heaven.”

  • Actual occurrence: All the students left early.

    True or false? Some students left early.

  • Write down all string of three 0’s and 1’s in which all the 0’s lie to the left of all the 1’s: Should I include 000? 111?

  • Someone says “All mathematicians wear glasses.”

    What does it mean for this to be false?


Sometimes things get tricky even for us l.jpg
Sometimes Things Get Tricky – Even for Us the registers of ordinary and mathematical English, and failure to distinguish between these two can result in incongruous errors and breakdowns in communication.”

Example: “I’ll go unless it rains.” What does this mean?

a) If it doesn’t rain, I’ll go.

b) If it rains, I won’t go.

c) I’ll go if, and only if, it doesn’t rain.


However in general l.jpg
However – in general the registers of ordinary and mathematical English, and failure to distinguish between these two can result in incongruous errors and breakdowns in communication.”

The way logic and language are used in the mathematical register is closely related to the way they are used in high-level work in general scientific and other academic disciplines and in the law.


Some specifics negations l.jpg
Some Specifics: Negations the registers of ordinary and mathematical English, and failure to distinguish between these two can result in incongruous errors and breakdowns in communication.”

  • To be able to reason with a (mathematical) statement, a person needs to know what it means for the statement to be true and what it means for it to be false.

  • Importance of being able to formulate negations.

  • Examples:

  • Write a negation for 1 < x < 5.

  • Proof by contradiction, Proof by contraposition

  • Meaning of one-to-one and onto for functions

  • Show that a general (universal) statement is false by finding a counterexample

answer:1 ≥x ≥5

ouch!


Universal instantiation l.jpg
Universal Instantiation the registers of ordinary and mathematical English, and failure to distinguish between these two can result in incongruous errors and breakdowns in communication.”

Well Duh!

Logical Principle: If a property is true for all elements of a set, then it is true for any particular element of the set.

But! We use this principle every time we apply a rule from algebra.

Example (comes up in a standard induction problem):

Simplify

(k2k+2 + 2) + (k + 2)2k+2

Etc. (several additional uses of the principle before one is finished)

= (k + (k + 2))2k+2 + 2


Generalizing from the generic particular l.jpg
Generalizing from the Generic Particular the registers of ordinary and mathematical English, and failure to distinguish between these two can result in incongruous errors and breakdowns in communication.”

“Mathematics, as a science, commenced when first someone, probably a Greek, proved propositions about ‘any’ things or about ‘some’ things without specification of definite particular things.”

Alfred North Whitehead (1861-1947)


Example l.jpg
Example the registers of ordinary and mathematical English, and failure to distinguish between these two can result in incongruous errors and breakdowns in communication.”

Prove: The square of any odd integer is odd.

“Proof”:

(2k+1)2= 4k2 + 4k + 1 = 2(2k2+ 2k) + 1


What s really going on l.jpg

a sum of products of integers, the registers of ordinary and mathematical English, and failure to distinguish between these two can result in incongruous errors and breakdowns in communication.”  an integer

What’s really going on?

Prove: The square of any odd integer is odd.

Proof:

Suppose n is any [particular but arbitrarily chosen] odd integer. [Show that n2 is odd.]

By definition of odd, n = 2k+1 for some integer k. Then

n2 = (2k+1)2 by substitution

= 4k2 + 4k + 1

= 2(2k2+ 2k) + 1

But 2k2+ 2k is an integer. So by definition of odd, n2 is odd [as was to be shown].

Note: Both the “if” and the “only if” aspects of the definition are used.


Goal of my course l.jpg
Goal of My Course the registers of ordinary and mathematical English, and failure to distinguish between these two can result in incongruous errors and breakdowns in communication.”

Provide foundation for math and cs courses

  • Learn specific mathematical topics

  • Learn how to support claims with effective arguments – demonstrate things with mathematical certainty

  • Improve general reasoning skills –

    “Don’t just code, sit there!”


Discrete mathematics i ii depaul syllabi quarter courses l.jpg
Discrete Mathematics I & II: the registers of ordinary and mathematical English, and failure to distinguish between these two can result in incongruous errors and breakdowns in communication.” DePaul Syllabi – Quarter Courses

These courses are intended to provide a solid foundation for further study of mathematics, programming languages, database theory, data structures, and analysis of algorithms.

An aim of both courses is to develop facility with the basic principles of logical reasoning and to learn how to apply them to formulate and explore the truth and falsity of a variety of statements in mathematics and computer science. Proof, disproof, and conjecture all figure prominently, and there is a continuing emphasis on written and oral communication.


Discrete mathematics i syllabus l.jpg
Discrete Mathematics I: Syllabus the registers of ordinary and mathematical English, and failure to distinguish between these two can result in incongruous errors and breakdowns in communication.”


Discrete mathematics ii syllabus l.jpg
Discrete Mathematics II: Syllabus the registers of ordinary and mathematical English, and failure to distinguish between these two can result in incongruous errors and breakdowns in communication.”


Summary of student responses in a discrete mathematics course l.jpg
Summary of Student Responses in a Discrete Mathematics Course

Problem from first test (62 students): Prove that the difference of any odd integer minus any even integer is odd.


Examples of student responses in a discrete mathematics course l.jpg
Examples of Student Responses in a CourseDiscrete Mathematics Course

Problem from first test (19 students): Write the following statement in the form “ __ x, if __ then __”:

The negative of any rational number is rational.


Examples of student responses in a discrete mathematics course for teachers l.jpg
Examples of Student Responses in a CourseDiscrete Mathematics Course for Teachers

“Give-away” problem from final exam (34 students): Write the following statement in the form “ __ x, if __ then __”:

The negative of any rational number is rational.

BUT:Almost all students did very well on other, “harder” problems where greater emphasis was placed on providing models for correct solutions.


Quote28 l.jpg
Quote Course

For the human soul is hospitable, and will entertain conflicting sentiments and contradictory opinions with much impartiality.

George Eliot, Proem to Romola (1862-63)


Excerpt from article l.jpg
Excerpt from Article Course

  • Very few of my students had an intuitive feel for the equivalence between a statement and its contrapositive or realized that a statement can be true and its converse false.

  • Most students did not understand what it means for an if-then statement to be false, and many also were inconsistent about taking negations of “and” and “or” statements.

  • Large numbers used the words "neither-nor" incorrectly, and hardly any interpreted the phrases "only if" or "necessary" and "sufficient" according to their definitions in logic.


Excerpt from article30 l.jpg
Excerpt from Article Course

  • All aspects of the use of quantifiers were poorly understood, especially the negation of quantified statements and the interpretation of multiply-quantified statements.

  • Students neither were able to apply universal statements in abstract settings to draw conclusions about particular elements nor did they know what processes must be followed to establish the truth of universally (or even existentially) quantified statements.

  • Specifically, the technique of showing that something is true in general by showing that it is true in a particular but arbitrarily chosen instance did not come naturally to most of my students.

  • Nor did many students understand that to show the existence of an object with a certain property, one should try to find the object.


Examples l.jpg
Examples Course

1. Knowing that

“If an integer n is not divisible by any prime number less than or equal to the square root of n, then n is prime”

means the same as

“If an integer n is not prime, then n is divisible by some prime number less than or equal to n.”

2. Knowing that

“The negative of any irrational number is irrational”

means the same as

“No matter what irrational number you pick, if you multiply it by –1, the result will also be irrational.”

And understanding that

This is false if you can find an irrational number whose negative is rational.


Examples32 l.jpg
Examples Course

3.Student says: “An integer is even if it equals 2k.”

My response: Is 1 an even number?

Does 1 = 2k ?

But

So it’s pretty important for k to be an integer!

4.Ask student: Is 0 even? Is 0 positive? Is irrational?

In fact, what is a real number? an integer? a rational number?


Summary l.jpg
Summary Course

Thesis: The primary value of a discrete math course that is specifically addressed to freshman and sophomore students is that it can be structured so as to address students' fundamental misconceptions and difficulties with logical reasoning and improve their general analytical abilities.

However:It is not easy to change students' deeply embedded mental habits!


My philosophy in a nutshell l.jpg
My Philosophy in a Nutshell Course

  • Teach logical reasoning, not just logic as a subject

  • Be conscious of the tension between covering topics and developing students' understanding

  • Don't rush to present topics from an advanced perspective

  • Be aware that most students today are not very good at algebra

  • In general: Much miscommunication occurs because of unjustified assumptions


Ok really in a nutshell l.jpg
OK - Really in a Nutshell Course

Interaction!

Interaction!

Interaction!


Why discrete math36 l.jpg
Why Discrete Math? Course

  • The most important difference [between the demands of computer science and those of traditional scientific or engineering disciplines] on mathematics is that, to a much greater extent than in other disciplines, abstraction is an essential tool of every computer scientist, not just of the theoretician. The computer scientist is not simply a user of mathematical results: he must use his mathematical tools in much the same way as a mathematician does. . . The most important contribution a mathematics curriculum can make to computer science is the one least likely to be encapsulated as an individual course: A deep appreciation of the modes of thought that characterize mathematics.

  • W. Scherlis and M. Shaw, “Mathematics curriculum and the needs of computer science,” in The Future of College Mathematics, A. Ralston and G. Young, eds., Springer-Verlag, 1983.


Uses of web resources a few examples l.jpg
Uses of Web Resources Course& a Few Examples

  • As demonstrations/motivation/efficient way to bring certain concepts and/or situations to life

    --Tower of Hanoi--sieve of Eratosthenes--vegetarians and cannibals, wolf-goat-cabbage--comparison of sorting algorithms--Euclidean algorithm--RSA cryptography

  • For extra practice

    --online exercises (e.g., tilominos, Ensley, Velleman)

  • For self-study/tutorial/course projects/extra credit

    --Logic Café, slogic

  • As basis for a laboratory

    --Chinese remainder theorem webpage

    --Doug Baldwin’s website
