Presentation Transcript


Slide1 l.jpg

SMS 2.0 Software Distribution Details and Advanced InformationWally MeadProgram ManagerSMS Product GroupMicrosoft Corporation


Session agenda l.jpg

Session Agenda

  • An overview of Systems Management Server (SMS) 2.0 software distribution

  • Package distribution flow

    • Package location selection

  • Collection creation and update flow

  • Advertisement creation flow

  • Running advertised programs at the client

    • Detecting advertisements flow

    • Running an advertised program flow

  • Tracking package and advertisement status

  • Troubleshooting software distribution


Software distribution misconception l.jpg

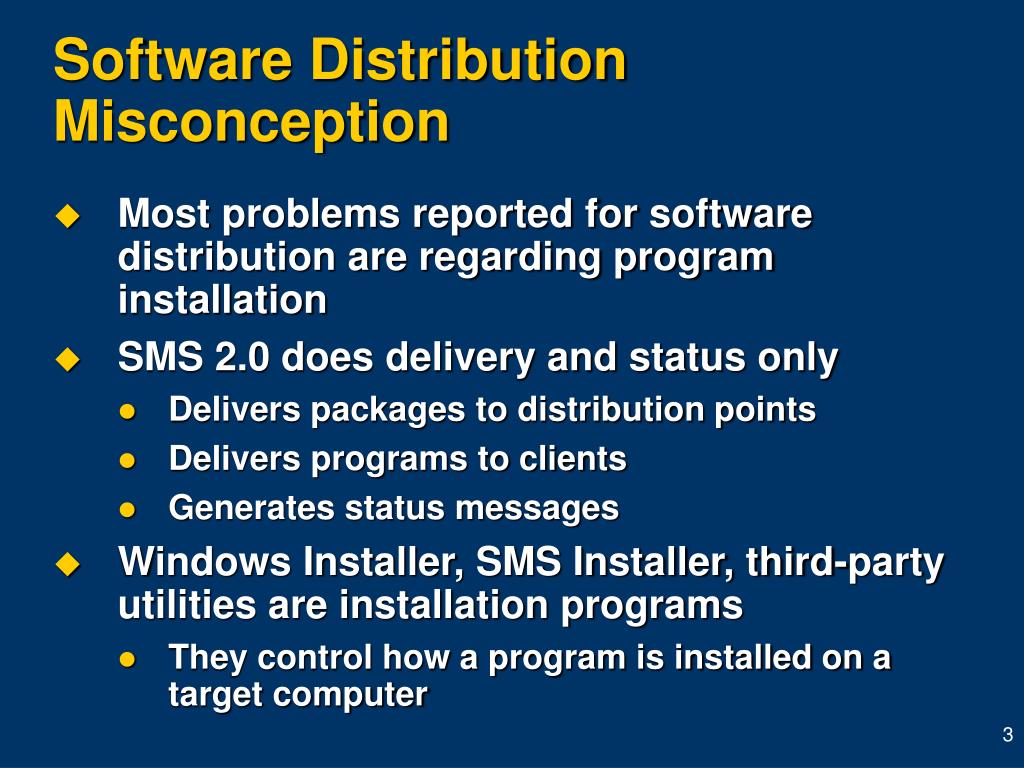

Software Distribution Misconception

  • Most problems reported for software distribution are regarding program installation

  • SMS 2.0 does delivery and status only

    • Delivers packages to distribution points

    • Delivers programs to clients

    • Generates status messages

  • Windows Installer, SMS Installer, third-party utilities are installation programs

    • They control how a program is installed on a target computer


The software distribution process l.jpg

Site Server

Advertisements

Packages

CAP

Distribution Point

Target Clients

The Software Distribution Process


Package tidbits l.jpg

Package Tidbits

  • No source packages useful for utilities already installed on client

    • Don’t need to resend the advertised program

  • Create compressed version if source is not permanent

    • Original source files on CD

    • SMS automatically creates compressed version for child sites

  • Share distribution folder uses syntax of Share\Folder

    • Only one package can use a share otherwise

  • Priority is only for distribution to child sites


Program tidbits l.jpg

Program Tidbits

  • If necessary, have SMS restart computer

    • If program restarts computer, may experience unreliable success status messages

  • Configuration of user context

    • Most confusing aspect of software distribution

  • Advertised programs can be chained

    • The programs don’t need to be advertised, but must be created in the appropriate package

  • When program is assigned

    • For each user, or computer only

  • Disabling an advertisement quickly

    • “Disable this program on computers where it is advertised” check box


Program run user contexts l.jpg

Program Run User Contexts

  • Running programs in user versus administrator mode

    • By default, program runs under logged on user context

  • If program requires administrative rights

    • Can use logged on user or SMS account

  • SMS does not check to see if user is an administrator

    • Runs with administrative rights uses SMSCliToknAcct&

    • Use Windows NT® client software installation account uses configured account


Sms administrator contexts l.jpg

SMS Administrator Contexts

  • SMSCliToknAcct& is not a local administrator

    • SMSApm adds SMSCliToknAcct& to local Administrators group for program execution

    • It is removed from the local Administrators group after the program terminates

  • Windows NT client software installation account

    • Encrypted in client’s SAM

    • Added to local Administrators group for program execution

    • It is removed after program terminates

    • Only required if program requires access to remote resources (server other than where it is being run from)


Package distribution l.jpg

SMS SQL

Monitor

Distribution

Point

Site

Database

sender

Distribution

Manager

Replication

Manager

Scheduler

Inbox

Manager

CAP

Package Distribution

  • If required, compresses package files

  • Chooses drive on distribution point

  • Copies package source files

  • Creates .pkg, .nal files

If there are child sites


Location of distributed packages l.jpg

Location of Distributed Packages

  • Packages directory: Smspkgx$

    • Drive with most available space

    • SMS may choose a new drive with each new package

  • Specifying the target directory

    • For an individual package:

      • Specify target share during package creation

    • For all packages:

      • Create distribution point as a Windows NT share instead of Windows NT Server


Tracing package creation l.jpg

Tracing Package Creation

  • SMS Status System

    • SMS Distribution Manager

      • 2300, 2301, and 2311 for package creation or modification

      • 2343, 2329, and 2330 for distribution to DP

    • SMS Replication Manager, SMS Scheduler, SMS Lan Sender – sending data to child sites

  • SMS log files

    • Smsdbmon.log – creation of .pkn files

    • Distmgr.log – creation of package, distribution to DP, sends to child sites

    • Inboxmgr.log – replication of files to CAPs

    • Replmgr.log, Sched.log, Sender.log – sending files to child sites

    • Despool.log, Replmgr.log, Distmgr.log – receiving files at child site


Updating a collection l.jpg

Collection Evaluator

All Windows® 98

All Windows NT

Offer Manager

  • Windows NT

  • Service Pack 6a

Updating a Collection

Computer 6

Computer 12

Computer 22

2

3

Site Server

1

Add

4

Service Pack 6a

Windows NT

Computer 22


How collections are updated l.jpg

SMS SQL

Monitor

Collection

Evaluator

sender

Replication

Manager

Scheduler

Site Server

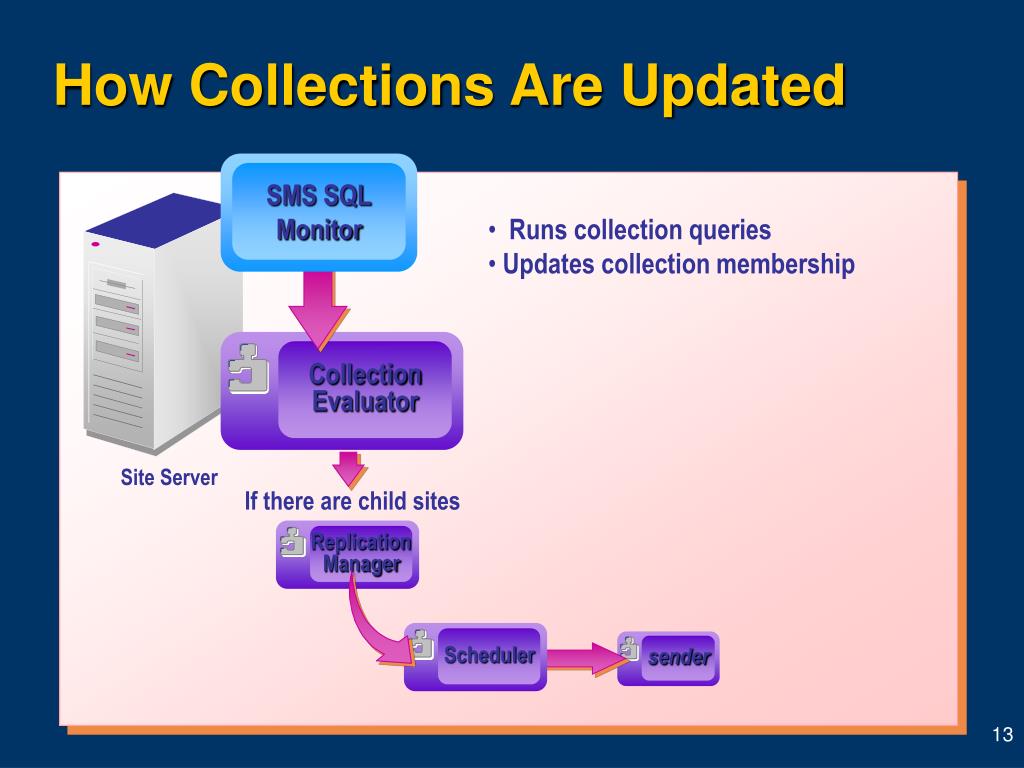

How Collections Are Updated

  • Runs collection queries

  • Updates collection membership

If there are child sites


Collection tidbits l.jpg

Collection Tidbits

  • Collection definitions automatically sent to child sites

    • As soon as new collection is created

    • When a new child attaches

    • On a scheduled basis (weekly by default)

  • Collections are updated on a schedule, not when a new resource is discovered

    • Hourly for built-in collections

    • Administrator scheduled

    • Administrator forced

  • Be careful with collections using custom data

    • May cause Collection Evaluator errors


Tracing collection processing l.jpg

Tracing Collection Processing

  • SMS Status System

    • SMS Collection Evaluator

      • 2513 and 2516 for collection creation and membership update

    • SMS Replication Manager, SMS Scheduler, SMS Lan Sender – sending data to child sites

  • SMS log files

    • Smsdbmon.log – creation of .adc, .udc, .dc files

    • Colleval.log – creation of collection, update of collections, replication to child sites

    • Replmgr.log, Sched.log, Sender.log – sending files to child sites

    • Despool.log, Replmgr.log, Colleval.log – receiving files at child site


Implementing advertisements l.jpg

SMS SQL

Monitor

Offer

Manager

Inbox

Manager

sender

Replication

Manager

Scheduler

CAP

Site Server

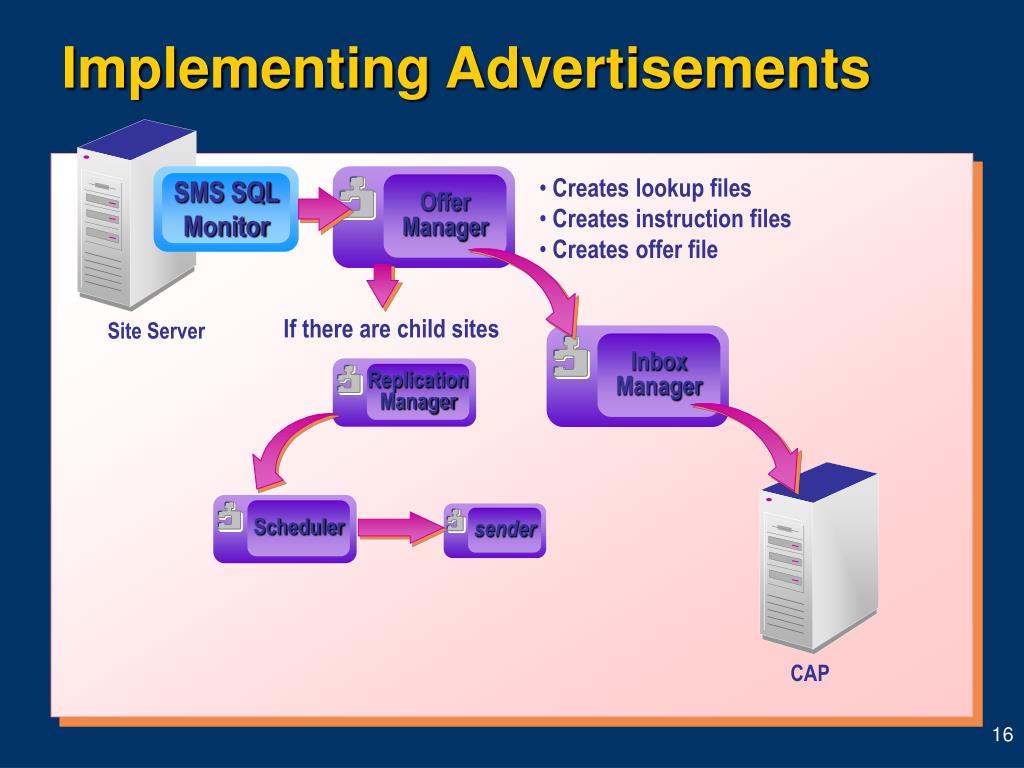

Implementing Advertisements

  • Creates lookup files

  • Creates instruction files

  • Creates offer file

If there are child sites


Advertisement lookup files l.jpg

Advertisement Lookup Files

  • Advertisements can sent be to computers, users, or user groups

  • Each target class receives unique lookup file

    • Computers (systems) - ???Systm.lkp

    • Users - ???User.lkp

    • User groups - ???Usrgp.lkp

  • Offer Manager creates each as necessary

  • Offer Data Providers (ODPs) on client look for each unique file


Advertisement tidbits l.jpg

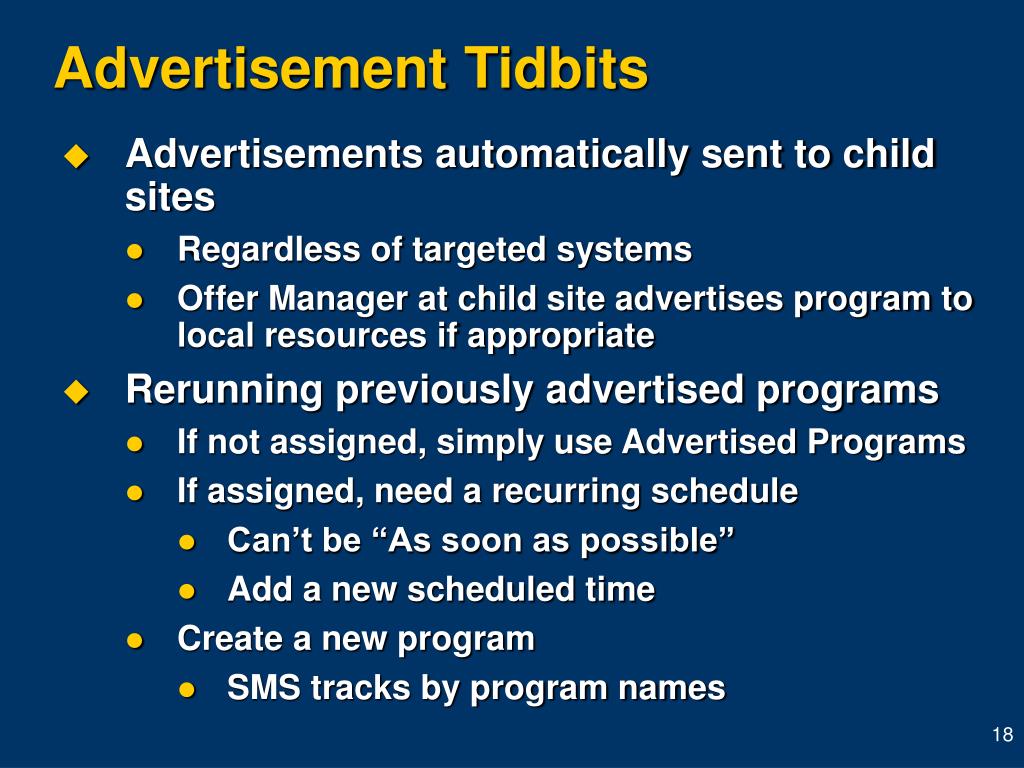

Advertisement Tidbits

  • Advertisements automatically sent to child sites

    • Regardless of targeted systems

    • Offer Manager at child site advertises program to local resources if appropriate

  • Rerunning previously advertised programs

    • If not assigned, simply use Advertised Programs

    • If assigned, need a recurring schedule

      • Can’t be “As soon as possible”

      • Add a new scheduled time

    • Create a new program

      • SMS tracks by program names


Tracing advertisement creation l.jpg

Tracing Advertisement Creation

  • SMS Status System

    • SMS Offer Manager

      • 3900 for advertisement creation

    • SMS Replication Manager, SMS Scheduler, SMS Lan Sender – sending data to child sites

  • SMS log files

    • Smsdbmon.log – creation of ofn files

    • Offermgr.log – verification the package is ready, enumerating members, presenting offers to members, replication to child sites

    • Inboxmgr.log – replication of files to CAPs

    • Replmgr.log, Sched.log, Sender.log – sending files to child sites

    • Despool.log, Replmgr.log, Offermgr.log – receiving files at child site, creating local files


Software distribution files l.jpg

Software Distribution Files

  • Check for these files if problems occur

  • Site Server:

    • Sms\Inboxes\Pkginfo.box - package and NAL files

    • Sms\Inboxes\Offerinf.box - lookup files, offer files, and instruction files

    • Smspkgs - compressed package files

  • CAP:

    • CAP_site\Pkginfo.box - package and NAL files

    • CAP_site\Offerinf.box - lookup files, offer files, and instruction files

  • Distribution Point:

    • Smspkgx$\PackageID - package source files


The advertised programs monitor l.jpg

The Advertised Programs Monitor

  • Accessed from Control Panel

  • Allows user to view programs for status or schedule

  • User will see:

    • Scheduled programs

    • Programs that have already been run

  • Unscheduled programs that are available to run are displayed in Advertised Programs Wizard


Running programs at the client l.jpg

Offer Data

Providers

Advertised

Programs

Manager

Launch32

Client

Status

Messages

Running Programs at the Client

  • Check lookup files

  • Check instruction file

  • Check offer file

CAP


Advertised programs tidbits l.jpg

Advertised Programs Tidbits

  • All clients detect advertised programs at scheduled intervals

    • No such thing as “right now” deployment

    • Interval is hourly by default (configurable at the site level or at each client)

    • Can force offer data providers to search

  • If multiple advertisements are available for a single program

    • SMSAPM merges the offers into a single offer

      • Earliest start time, latest expiration time

  • Create multiple advertisements of single program to multiple collections

    • Balances load at one point in time

    • Controls which group of recipients runs program


Tracking package status l.jpg

Tracking Package Status

  • Package creation

  • Program creation

  • Distribution point assignment

  • Advertisement creation

  • Package processing


Tracking advertisement status l.jpg

Tracking Advertisement Status

  • Advertisement creation

  • Advertisement processed by Offer Manager

  • Client receipt of advertisement

  • Program run by client

  • Program run successfully

  • AdvertView tool

    • Support utility to offer more detailed look at advertisement status


Site hierarchy issues l.jpg

Site Hierarchy Issues

  • These flow down to children automatically:

    • Package definitions

    • Collection definitions

    • Advertisement data

  • Package data only goes down to child if requested

    • Parent targets child distribution point

    • Child targets own distribution point

  • Status flows up the hierarchy automatically

    • Package and advertisement status

  • All site-to-site communications are compressed and scheduled, and the bandwidth is throttled

  • Courier Sender helps in slow link environments

    • Uses tapes, CDs, floppy disks as source media to child

  • Package routing can help control link usage

    • Package uses existing path and intermediate site


Additional resources l.jpg

Additional Resources

  • SMS 2.0 Administrator’s Guide

    • Hard copy can be ordered (part no. 271-00617)

  • SMS 2.0 Resource Guide

    • Microsoft® BackOffice® Resource Kit 4.5

  • SMS Security Essentials white paper

    • SMS 2.0 SP2 CD and Web site

  • Microsoft Systems Management Web site

    • http://www.microsoft.com/smsmgmt/

    • Product information, white papers, downloads

  • Microsoft product newsgroups

    • msnews.microsoft.com

      • microsoft.public.sms


Summary l.jpg

Summary

  • Software distribution is the most used feature of SMS

  • SMS 2.0 adds new and improved features to software distribution

    • Has new administrative controls

    • Is able to target computers, users, and user groups

    • Can automatically send advertised program to new recipients

    • Is able to chain programs

  • Tracing the distribution process can be done through flow charts, log files, status messages, and files


ad
  • Login
