Robot Paintings Evolved Using Simulated Robots

EvoMUSART ‘06

Gary R. Greenfield

University of Richmond, USA


Outline l.jpg

Outline

  • Motivation

  • Background

  • S-Robots

  • Evolutionary Framework

  • Assessment Parameters

  • Evolved S-Robot Paintings

  • On Autonomous Evaluation

  • Conclusions


Motivation l.jpg

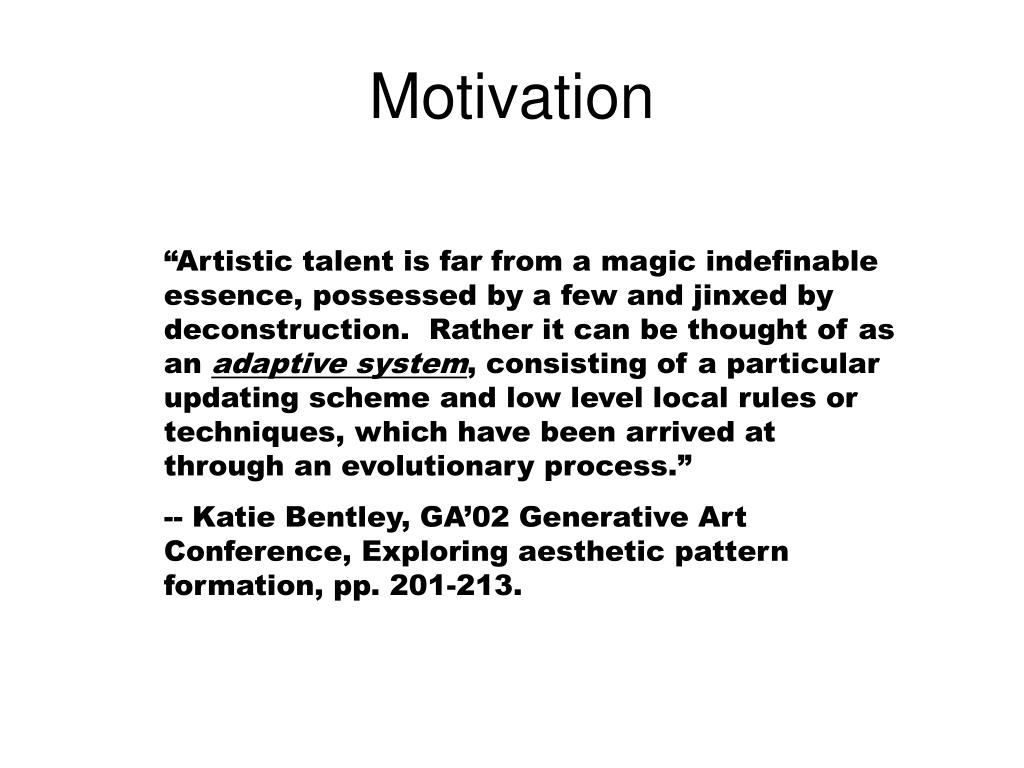

Motivation

“Artistic talent is far from a magic indefinable essence, possessed by a few and jinxed by deconstruction. Rather it can be thought of as an adaptive system, consisting of a particular updating scheme and low level local rules or techniques, which have been arrived at through an evolutionary process.”

-- Katie Bentley, GA’02 Generative Art Conference, Exploring aesthetic pattern formation, pp. 201-213.


Leonel moura artsbot l.jpg

Leonel Moura: ArtSBot


J mccormack evomusart 05 l.jpg

J. McCormack: EvoMUSART ‘05

  • Open Problem #3: “To create EMA systems that produce art recognized by humans for its artisticcontribution (as opposed to any purely technical fetish or fascination).”

  • Open Problem #5: “To create artificial ecosystems where agents create and recognize their own creativity.”

  • My Observation: To recognize their creative efforts agents must be able to evaluate their creative efforts.


Background l.jpg

Background

-- V. Ramos and F. Almeida (2000), Artificial ant colonies in digital image habitats – a mass behavior effect study on pattern recognition.

-- L. Moura and H. Pereira (2002), Artistic Swarm Robots (ArtSBot).

-- N. Monmarche et al (2003), Interactive evolution of ant colony paintings.

-- G. Greenfield (2005), Evolutionary methods for ant colony paintings.


Slide8 l.jpg

Monmarche Greenfield


S robot design l.jpg

S-Robot Design

  • Loosely modeled after Khepera robots

(Binary valued) proximity sensor

(Tristimulus) color sensor


S robot specifications l.jpg

S-Robot Specifications

  • Center position (rx, ry).

  • Unit vector direction heading (dx, dy).

  • Three forward proximity sensors, and one rear proximity sensor, sensitive to a radial distance of 20 units.

  • Forward “field of vision” -90 deg. to +90 deg.

  • Rear “field of vision” -60 deg. to +60 deg.

  • All proximity sensors are binary valued.

  • Center-mounted tristimulus color sensor.

  • Two center mounted “pens” which, when working in tandem, make a mark five units wide.


S robot commands l.jpg

S-Robot Commands

  • MOV <arg> -- move <arg> units

  • SWI <arg> -- swivel <arg> degrees

  • SPD <arg> -- set speed <arg> micro-units per time step

  • SNP <arg> -- sense proximity by updating values of the proximity vector

  • SNC <arg> -- sense color by updating values of the color vector

  • PUP <arg> -- pen #<arg> up

  • PDN <arg> -- pen #<arg> down

    Notes: Discrete event simulation determines number of time steps needed when trying to complete a move or when trying to complete a swivel.


S robot on board controller l.jpg

S-Robot “On-Board” Controller

  • Queues a command sequence then sleeps until sequence is executed. Sequences can include “motifs”.

    if (sensed red component == target value)

    qzigzag(q); /* schedule “zigzag” motif */

    q.put(SWI), q.put(-55);

    else

    q.put(SWI), q.put(20); q.put(PDN), q.put(P1);

    q.put(SPD), q.put(750); q.put(MOV), q.put(12);

    q.put(SWI), q.put(-10); q.put(PUP), q.put(P1)

    q.put(SNC), q.put(0);


S robot testing wall avoidance l.jpg

S-Robot Testing…Wall Avoidance


Collisions periodicity l.jpg

…Collisions ...Periodicity


Pens colors motifs l.jpg

…Pens …Colors …Motifs


Evolutionary framework l.jpg

Evolutionary Framework

  • GOAL: Using two hand-crafted controllers, evolve starting positions (sx, sy), where 0 < sx, sy < L, and initial true compass headings d, where -180 < d < 180, for either TWO or FOUR S-Robots.

  • Grid Side Length: L = 200.

  • Number of time steps: T = 150,000.

  • Population Size: P = 16.

  • Number of Generations: G = 30.

  • Replacement: P/2 individuals using P/4 “breeding pairs”.

  • Recombination: One-point crossover.

  • Mutation: Non-elitest (!) point mutation.

  • Culling Interval: Every I = 5 generations.


Assessment parameters l.jpg

Assessment Parameters

  • Np – the number of squares of the grid that were painted.

  • Nb – the number of times an S-Robot reacted in response to a forward proximity bit set, but rear proximity bit clear.

  • Ns – the number of an S-Robot reacted in response to a forward proximity bit set and rear proximity bit set.

  • Nc – the number of times an S-Robot found a desired color through color sensing.


Evolved s robot paintings l.jpg

Evolved S-Robot Paintings

  • Fitness F = Np + 1000Nb + 100Ns using two Type A controllers which do NOT make use of the SNC color sense command.


Slide19 l.jpg

  • Fitness F = Np, again using two Type A controllers which do NOT make use of the SNC color sense command.

  • Generations 10, 20, and 30:


Slide20 l.jpg

  • Generations 10, 20, and 30:


Slide21 l.jpg

  • Fitness F = Np -100Ns +1000Nc, using two Type A controllers which do NOT make use of the SNC color sense command.

  • Generations 5, 10, and 15:


Using type a and b controllers l.jpg

Using Type A and B Controllers

  • Fitness F = Np-Nb+100Ns+1000Nc.

  • Generations 0, 15, and 20.


Slide23 l.jpg

  • Generations 10, 20, and 30 after changing one of the selected motifs.


Slide24 l.jpg

  • Fitness F = Nb*Nc, which selects for tightly coupled following behavior.

  • Generations 0, 10, and 20.


Slide25 l.jpg

  • Fitness F = Nb*Nc + Np*Ns, which again selects for following behavior but also tries to increase canvas coverage.

  • Generations 5, 15, and 30.


On autonomous evaluation l.jpg

On Autonomous Evaluation

  • S-Robots maintain a history of their previous starting positions and headings.

  • S-Robots maintain their current Nb, Nc, and Ns values.

  • After T time steps, an elected S-Robot “sweeps” the canvas to calcuate Np.

  • By sharing data, each S-Robot calculates the fitness F.

  • By comparing with previous saved fitness values S-Robots decides which saved genomes to recombine for the next generation.

  • Via a PRNG new genomes are self-generated and S-Robots re-position and re-orient themselves for the next generation’s painting.


Conclusions l.jpg

Conclusions

  • Fitness functions can induce aesthetics for evolved S-Robot paintings.

  • S-Robots can collectively evaluate their own creative efforts.

  • S-Robot behaviors that (indirectly) influence aesthetics can be evolved.


Slide28 l.jpg

Thank-you!

http://www.mathcs.richmond.edu/~ggreenfi/

[email protected]

…. Questions?
