CIS 234: Graphics & Applets

Dr. Ralph D. Westfall

February, 2002


Graphics l.jpg
Graphics

  • back in the "good old days," computers only worked with text

    • no images

    • no input boxes

    • no mouse

  • Palo Alto Research Center (PARC) created first GUI in 1970s, Apple copied it in 1980s, Microsoft copied in 1990s


Advantages of graphics l.jpg
Advantages of Graphics

  • easier to work with

    • click "icon" rather than type program name

  • less training required

  • more fun to use programs with graphics

  • more fun to write graphics programs


Java graphics the internet l.jpg
Java Graphics & the Internet

  • can use Java graphics in regular Java applications

    • (may be) easier to start using graphics with Java that runs in a web browser

  • to run in a browser, Java needs to be coded into an Applet that runs in a HTML web page


What is html l.jpg
What Is HTML?

  • Hyper Text Markup Language

    • hyper means much greater

    • hypertext has hotlinks to other material

  • markup language

    • tells computer how/where to display material

    • word processing programs use their own markup languages

      • formerly visible (show codes), now hidden


Html tags l.jpg

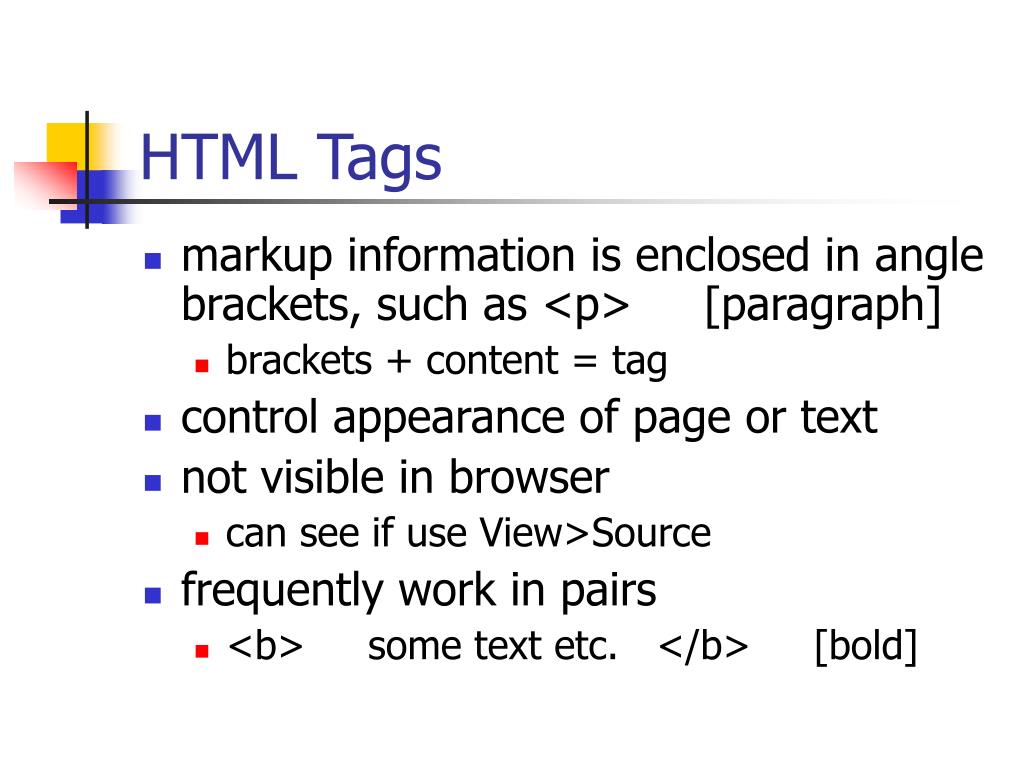

HTML Tags

  • markup information is enclosed in angle brackets, such as <p> [paragraph]

    • brackets + content = tag

  • control appearance of page or text

  • not visible in browser

    • can see if use View>Source

  • frequently work in pairs

    • <b> some text etc. </b> [bold]


Java applet l.jpg
Java Applet

  • a Java class that runs in a window in a HTML page in a web browser instead of in a DOS window

  • HTML has special tags for applets

    • also has tags for parameters (arguments) that can be used as inputs to the applet


Java graphics capabilities l.jpg
Java Graphics Capabilities

  • place text on an Applet

  • draw geometric figures: straight line, curve, rectangle, oval, etc.

  • add color to graphic items


Applet graphics methods l.jpg
Applet Graphics Methods

  • applets use an init() method rather than main method at start

    • could be implicit (not visible)

  • in addition to init() etc., all Applets have

    • paint method – puts graphics objects on the Applet

    • repaint method – "refreshes" Applet to reflect any changes (possibly implicit)


Coordinates l.jpg
Coordinates

  • values to identify position on screen

    • x (first) how many pixels to right

    • y (2nd) how many pixels down

    • 0, 0 is upper left corner

    • 800, 600 is toward lower right

      • actual position depends on width/height of screen (e.g., is in middle of 1600 x 1200 screen)


Using java with html l.jpg
Using Java with HTML

  • <applet code = "MyApplet.class" width = 250 height = 200>

  • </applet>

  • displays MyApplet in window in browser

    • window = 250 pixels wide, 200 pixels high

    • can change width and height

    • most screens are 800 x 600 or larger


Drawstring method l.jpg
drawString Method

  • puts a String (text) on Applet

  • 3 arguments: string, x, y (coordinates)

  • can use it in a paint method

  • public void paint(Graphics g) // g

    {g.drawString("Hi", 10, 20);} // g

    • Java automatically supplies a graphics object; can call it g or anything else


Setfont method l.jpg
setFont Method

  • declaring

    • Font myFont = new Font("Helvetica", Font.ITALIC, 24);

      • Courier, Helvetica and TimesRoman

      • BOLD, ITALIC or PLAIN

      • # of points (10 or 12 typical in Word doc)

  • using in a paint method

    • g.setFont(myFont);


Setting colors l.jpg
Setting Colors

  • Color class has 13 constants (p. 160)

    • Color.blue, Color.red, Color.darkGrey, etc.

  • setColor sets foreground color

  • setBackground sets Applet background

  • using in a paint method

    • g.setColor(Color.green); // graphics object

    • this.setBackground(Color. yellow);

    • // this = Applet


Creating a graphics object l.jpg
Creating a Graphics Object

  • paint method automatically gets a graphic object

  • most other methods don't get a graphics object

    • need to use getGraphics method to create graphics object within other methods

    • Graphics g = getGraphics();

      g.drawString("Hello", 5, 50);


Drawline method l.jpg
drawLine Method

  • arguments are 2 pairs of coordinates

    • x, y for 1 point and x, y for other end

  • g.drawLine(10, 10, 40, 10); // ?

  • g.drawLine(10, 10, 10, 40); // ?

  • g.drawLine(10, 10, 40, 40); // ?


Rectangle methods l.jpg
Rectangle Methods

  • arguments are upper left corner coordinates (x, y), and width and height

  • g.drawRect(10, 100, 80, 30); // outline

    • corner = 10, 100; width = 80; height= 30

  • g.fillRect(100,100,30,80); // solid color

  • g.clearRect(105, 105, 20, 70);

    // inside is same color as background


Rounded rectangles l.jpg
Rounded Rectangles

  • takes 6 arguments: corner coordinates, rectangle width and height, plus width and height of corner ovals

    • with larger widths and heights, corners get more rounded

  • g.drawRoundRect(5, 5, 30, 30, 2, 2);

  • g.drawRoundRect(5, 5, 30, 30, 4, 6);


Ovals l.jpg
Ovals

  • oval methods draw ovals that would fit in a rectangle of same size

  • g.drawOval(10, 10, 80, 30); // outline

  • g.fillOval (10, 10, 30, 80); // solid color

  • g.clearOval(10, 10, 80, 30);

    // inside is same color as background
