Christian Loza

Srikanth Palla

Liqin Zhang

  • Introduction
  • Background
  • Measurement
  • Methods
  • Compare different methods
  • Conclusions

If you use email, it\'s likely that you\'ve recently been visited by a piece of Spam- an unsolicited, unwanted messag, sent to you with out your permission.Sending spam violates the Acceptable Use Policy (AUP)of almost all ISP\'s and can lead to the termination of the sender\'s account.As the recipient directly bears the cost of delivery, storage, and processing, one could regard spam as the electronic equivalent of "postage-due" junk mail.


Spammers frequently engage in deliberate fraud to send out their messages. Spammers often use false names, addresses, phone numbers, and other contact information to set up "disposable" accounts at various Internet service providers. They also often use falsified or stolen credit card numbers to pay for these accounts. This allows them to move quickly from one account to the next as the host ISPs discover and shut down each one.

  • In recent years, the spam has show no signals of stopping growth
  • This is mainly because it does work
  • The advantage is that is a cheap way to increase the customer base.

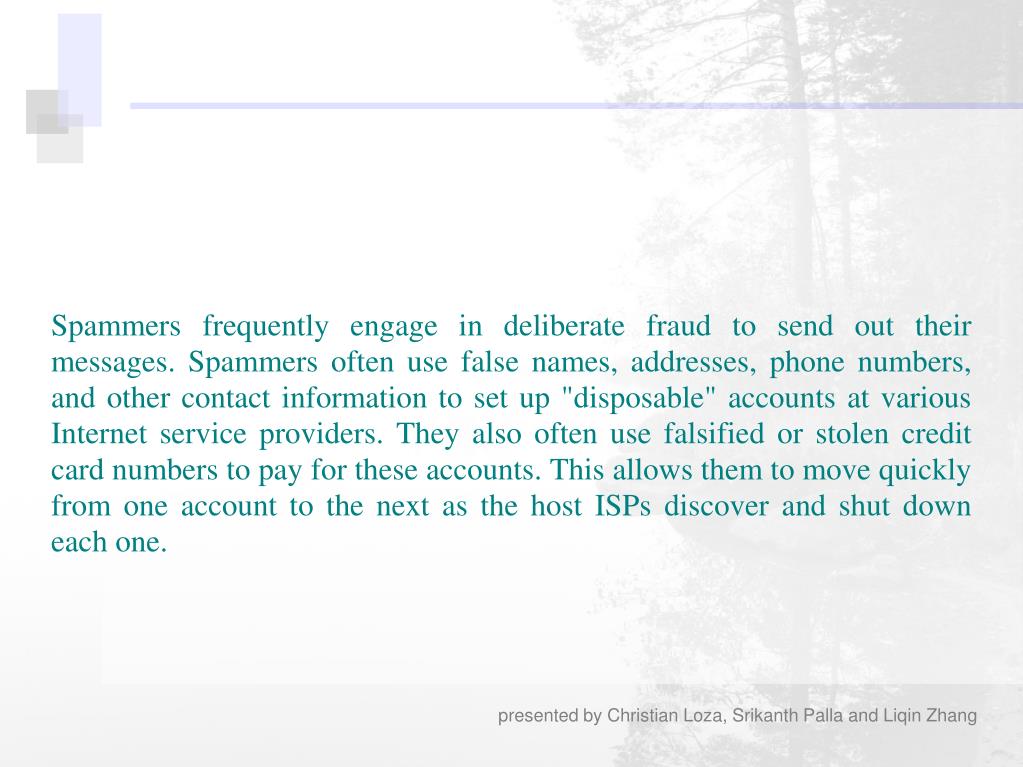

Spammers frequently engage in deliberate fraud to send out their messages. Spammers often use false names, addresses, phone numbers, and other contact information to set up "disposable" accounts at various Internet service providers. They also often use falsified or stolen credit card numbers to pay for these accounts. This allows them to move quickly from one account to the next as the host ISPs discover and shut down each one.


Spammers frequently go to great lengths to conceal the origin of their messages. They do this by spoofing e-mail addresses . The spammer hacks the email protocol SMTP so that a message appears to originate from another email address. Some ISPs and domains require the use of SMTP AUTHallowing positive identification of the specific account from which an e-mail originates.


One cannot completely spoof an e-mail address chain, since the receiving mailserver records the actual connection from the last mailserver\'s IP address; however, spammers can forge the rest of the ostensible history of the mailservers the e-mail has ostensibly traversed. Spammers frequently seek out and make use of vulnerable third-party systems such as open mail relays and open proxy servers.

address collection

Spammers may harvest e-mail addresses from a number of sources. A popular method uses e-mail addresses which their owners have published for other purposes. Usenet posts, especially those in archives such as Google groups, frequently yield addresses. Simply searching the Web for pages with addresses ― such as corporate staff directories ― can yield thousands of addresses, most of them deliverable.

Address Collection
address collection10

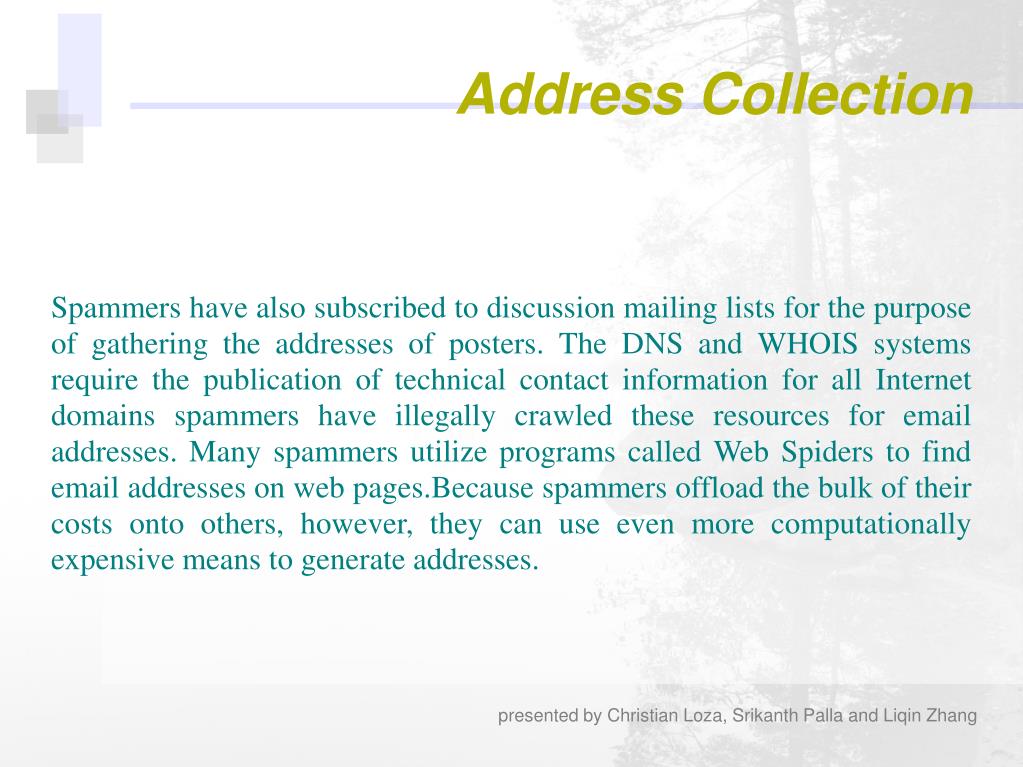

Spammers have also subscribed to discussion mailing lists for the purpose of gathering the addresses of posters. The DNS and WHOIS systems require the publication of technical contact information for all Internet domains spammers have illegally crawled these resources for email addresses. Many spammers utilize programs called Web Spiders to find email addresses on web pages.Because spammers offload the bulk of their costs onto others, however, they can use even more computationally expensive means to generate addresses.

Address Collection
address collection11

A dictionary attack consists of an exhaustive attempt to gain access to a resource by trying all possible credentials ― usually, usernames and passwords. Spammers have applied this principle to guessing email addresses ― as by taking common names and generating likely email addresses for them at each of thousands of domain names.Spammers sometimes use various means to confirm addresses as deliverable. For instance, including a Web bug in a spam message written in HTML may cause the recipient\'s mail client to transmit the recipient\'s address, or any other unique key, to the spammer\'s Web site.

Address Collection

To better understand the concepts in this presentation let us consider the following terminology.

Mail User Agent (MUA). This refers to the program used by the client to

send and receive e-mail from. It is usually referred to as the "mail client."

An example of this is Pine or Eudora.

Mail Transfer Agent (MTA). This refers to the program used running on the

server to store and forward e-mail messages. It is usually referred to as the

"mail server program." An example of this is sendmail or the Microsoft

Exchange server.


In a normal configuration, sendmail sits in the background waiting for new messages. When a new connection arrives, a child process is invoked to handle the connection, while the parent process goes back to listening for new connections.

When a message is received, the sendmail child process puts it into the mail queue (usually stored in /var/spool/mqueue). If it is immediately deliverable, it is delivered and removed from the queue. If it is not immediately deliverable, it will be left in the queue and the process will terminate.

Messages left in the queue will stay there until the next time the queue is processed. The parent sendmail will usually fork a child process to attempt to deliver anything left in the queue at regular intervals.

structure of e mail message

Email messages are compose of two parts:

1. Headers (lines of the form "field: value" which contain information about the message, such as "To:", "From:", "Date:", and "Message- ID:")

2. Body (the text of the message)

Structure of E-mail Message

From [email protected] Mon Jul 5 23:46:19 1999

Received: (from [email protected])

by (8.9.3/8.9.3) id LAA05394;

Mon, 5 Jul 1999 23:46:18 -0500

Received: from ( [])

by (8.9.3/8.9.3) id XAA24214;

Mon, 5 Jul 1999 23:46:25 -0500

Date: Mon, 5 Jul 1999 23:46:18 -0500

From: John Doe <[email protected]>

To: John Smith <[email protected]>

Message-Id: <[email protected]>

Subject: This is a subject header.

This is the message body. It is seperated from the headers by a blank


The message body can span multiple lines.


Here is an example SMTP transaction:

1. Client connects to server\'s SMTP port (25).

2. Server: 220 ESMTP Sendmail 8.10.0/8.10.0 ready; Mon, 13 Mar 2000 14:54:08 -0600

3. Client: helo

4. Server: 250 Hello [email protected] [], pleased to meet you

5. Client: mail from: [email protected]

6. Server: 250 2.1.0 [email protected] Sender ok

7. Client: rcpt to: [email protected]

8. Server: 250 2.1.5 [email protected] Recipient ok

9. Client: data

10. Server: 354 Enter mail, end with "." on a line by itself

11. Client:

Received: (from [email protected])

by (8.9.3/8.9.3) id LAA05394;

Mon, 5 Jul 1999 23:46:18 -0500

Date: Mon, 5 Jul 1999 23:46:18 -0500

From: John Doe <[email protected]>

To: John Smith <[email protected]>

Message-Id: <[email protected]>

Subject: This is a subject header.

This is the message body. It is seperated from the headers by a blank

line.The message body can span multiple lines.

12. Server: 250 2.0.0 e2DKuDw34528 Message accepted for delivery

13. Client: quit

14. Server: 221 2.0.0 closing connection

The sender and recipient addresses used in the SMTP transaction are called the Message Envelope. Note that these addresses do not need to have any similarity to the addresses in the message headers!

delivering spam messages

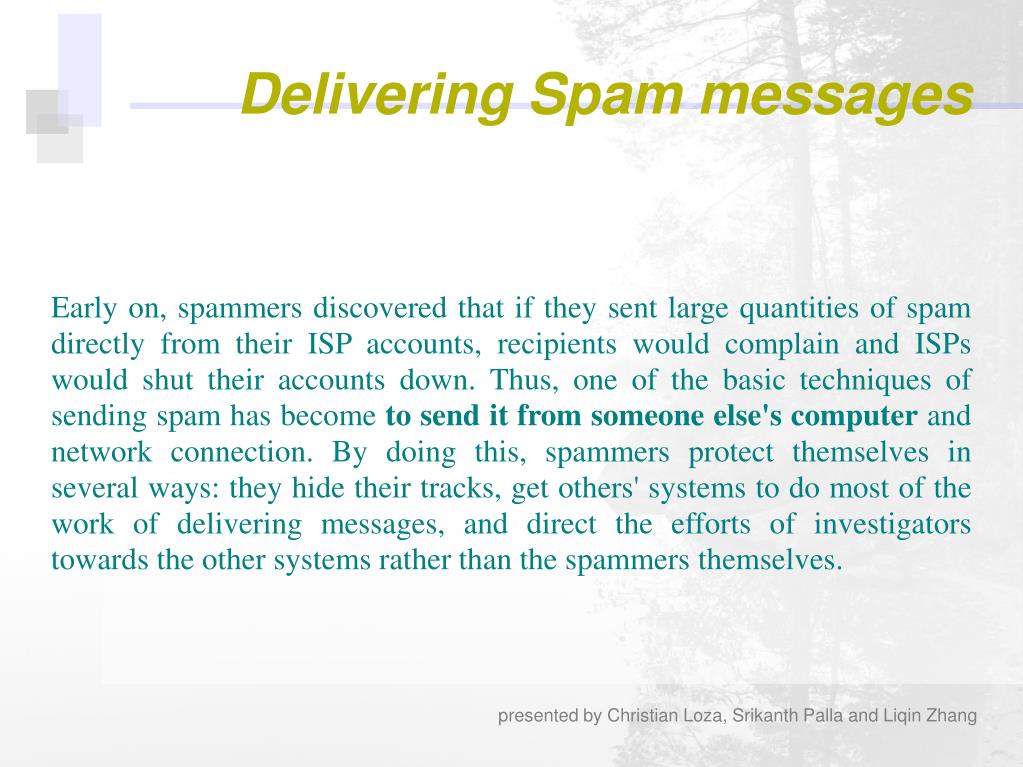

Early on, spammers discovered that if they sent large quantities of spam directly from their ISP accounts, recipients would complain and ISPs would shut their accounts down. Thus, one of the basic techniques of sending spam has become to send it from someone else\'s computer and network connection. By doing this, spammers protect themselves in several ways: they hide their tracks, get others\' systems to do most of the work of delivering messages, and direct the efforts of investigators towards the other systems rather than the spammers themselves.

Delivering Spam messages
mail filters

A mail filter is a piece of software which takes an input of an email message. For its output, it might pass the message through unchanged for delivery to the user\'s mailbox, it might redirect the message for delivery elsewhere, or it might even throw the message away. Some mail filters are able to edit messages during processing.

Mail filters


Hi, this is your opportunity to buy a house with new mortage rates.

To find more about this, just click here.

  • Application of Text Categorization
  • The Spam classification is defined as a binary problem: Email is Spam OR is not Spam.
  • Automatic text categorization assigns emails to one of the above categories, using different methods
  • One of this methods is the Centroid-based classification

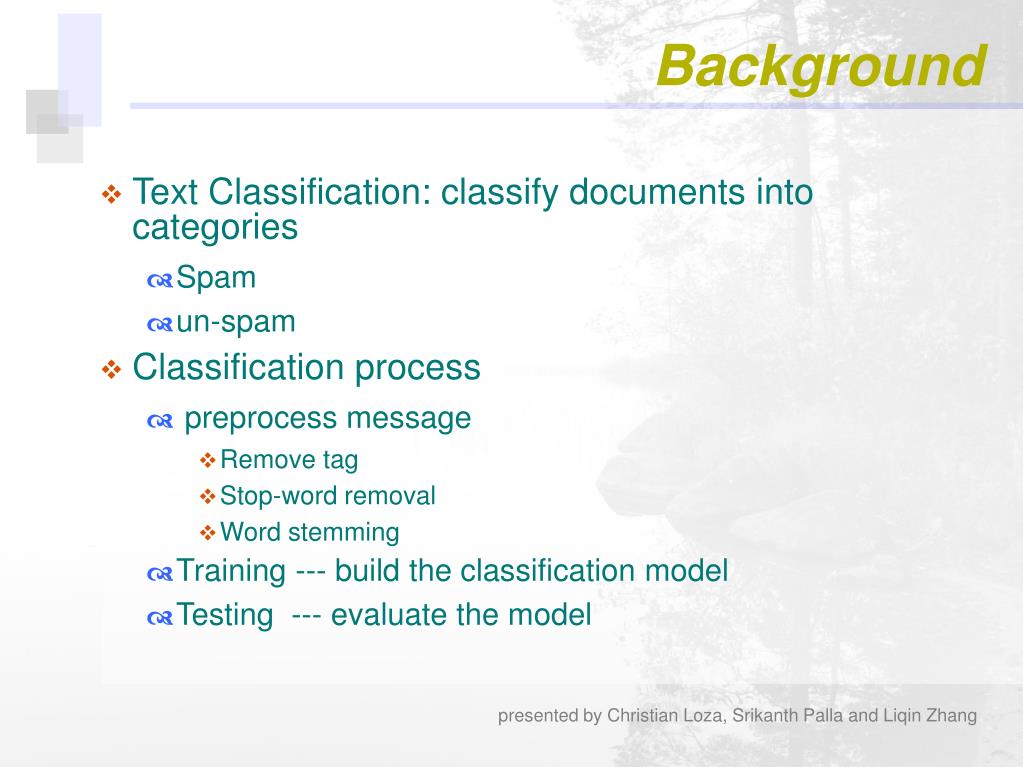

  • Text Classification: classify documents into categories
    • Spam
    • un-spam
  • Classification process
    • preprocess message
      • Remove tag
      • Stop-word removal
      • Word stemming
    • Training --- build the classification model
    • Testing --- evaluate the model
  • Bayes-Naives
  • Centroid-Based
  • Content-based

Is the philosophical tenet that the mathematical theory of probability applies to the degree of plausibility of a statement. This also applies to the degree of believability contained within the rational agents of a truth statement. Additionally, when a statement is used with Bayes\' theorem, it then becomes a Bayesian inference.

baye s rule

If A and B are two separate but possibly dependent random events, then:

Probability of A and B occurring together = Pr[(A,B)]

The conditional probability of A, given that B occurs = Pr[(A|B)]

The conditional probability of BB, given that AA occurs = Pr[(B|A)]

Baye\'s Rule

From elementary rules of probability :

Pr[(A,B)] = Pr[(A|B)]Pr[(B)] = Pr[(B|A)]Pr[(A)]

Dividing the right-hand pair of expressions by Pr[(B)] gives Bayes\' rule:

Pr[A|B] = Pr[B|A]Pr[A]




In problems of probabilistic inference, we are often trying to estimate the most probable underlying model for a random process, based on some observed data or evidence. If AA represents a given set of model parameters, and BB represents the set of observed data values, then the terms in equation are given the following terminology:

Pr[A] is the prior probability of the model A (in the absence of any evidence)

Pr[B] is the probability of the evidence B

Pr[B|A] is the likelihood that the evidence B was produced, given that the model was A

Pr[A|B] is the posterior probability of the model being A, given that the evidence is B.


Mathematically, Bayes\' rule states

likelihood * prior

posterior = ------------------------------

marginal likelihood

representing e mail for statistical algorithms

All statistical algorithms for spam filtering begin with a vector representation of individual e-mail messages.

The length of the term vector is the number of distinct words in all the e-mail messages in the training data. The entry for a particular word in the term vector for a particular e-mail message is usually he number of occurences of the word in the e-mail message.

Representing E-mail for statistical Algorithms
training data comprising four labeled e mail messages

Table below presents toy training data comprising four e-mail messages. These data contain ten distinct words: the, quick, brown, fox, rabbit, ran, and, run, at, and rest.

# Message Spam

1 The quick brown fox no

2 The quick rabbit ran and ran yes

3 rabbit run run run no

4 rabbit at rest yes

Training data comprising four labeled e-mail messages

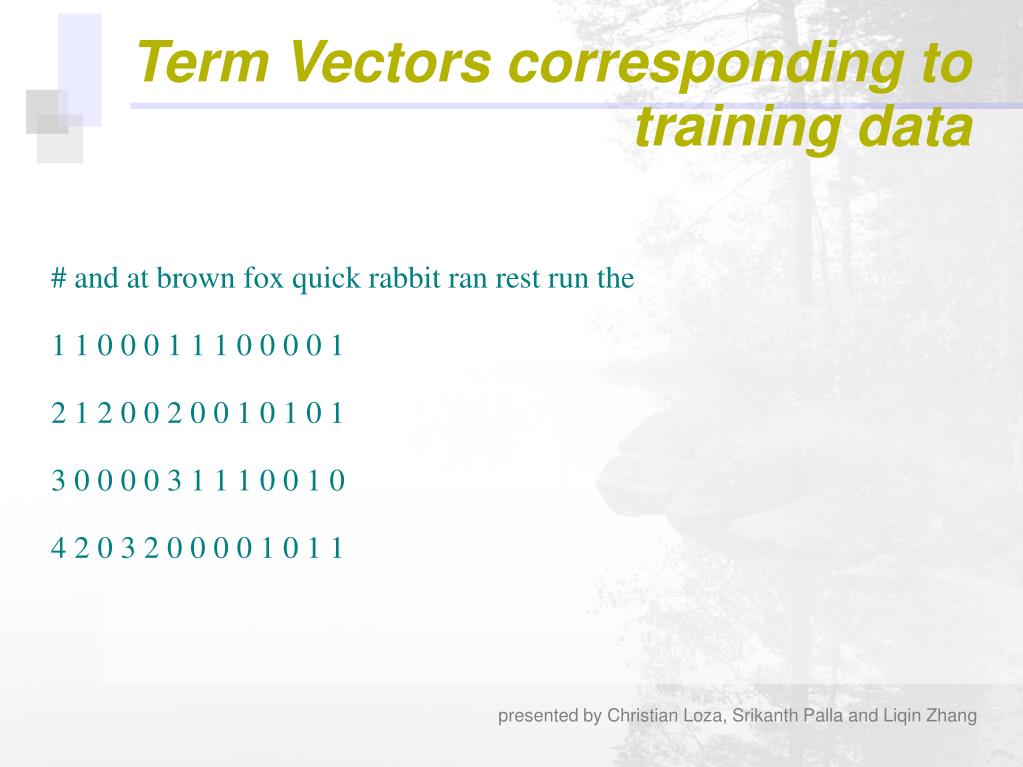

term vectors corresponding to training data

# and at brown fox quick rabbit ran rest run the

1 1 0 0 0 1 1 1 0 0 0 0 1

2 1 2 0 0 2 0 0 1 0 1 0 1

3 0 0 0 0 3 1 1 1 0 0 1 0

4 2 0 3 2 0 0 0 0 1 0 1 1

Term Vectors corresponding to training data

If the training data comprise thousands of e-mail messages, the number of distinct words often exceeds 10,000. Two simple strategies to reduce the size of the term vector somewhat are to remove “stop words” (words like and, of, the, etc.) and to reduce words to their root form, a process known as stemming (so, for example, “ran” and “run” reduce to “run”). Table 3 shows the reduced term vectors along with the spam label.

term vectors after stemming and stop word removal spam label coded as 0 no 1 yes

X1 X2 X3 X4 X5 X6 Y

# brown fox quick rabbit rest run Spam

1 1 1 1 0 2 1 0

2 0 1 1 0 3 0 1

3 0 0 1 0 0 1 0

4 0 0 0 1 1 2 1

Term vectors after stemming and stop word removal, spam label coded as 0=no,1=yes
navie bayes for spam

Let X = (X1,. .., Xd) denote the term vector for a random e-mail message, where d is the number of distinct words in the training data, after stemming and stopword removal. Let Y denote the corresponding spam label. The Naive Bayes model seeks to build a model for:

Pr(Y = 1|X1= x1,. .., Xd= xd).

From Bayes theorem, we have:

Pr(Y = 1|X1= x1,. .., Xd= xd) = Pr(Y = 1) * Pr(X1=x1,. .., Xd= xd|Y = 1)


Pr(X1= x1,. .., Xd= xd)

Navie Bayes for Spam
centroid based method
Centroid-based method
  • The documents are represented using a Vector-space model.
  • Each document is represented as a Term Frequency vector (TF)







centroid based method35

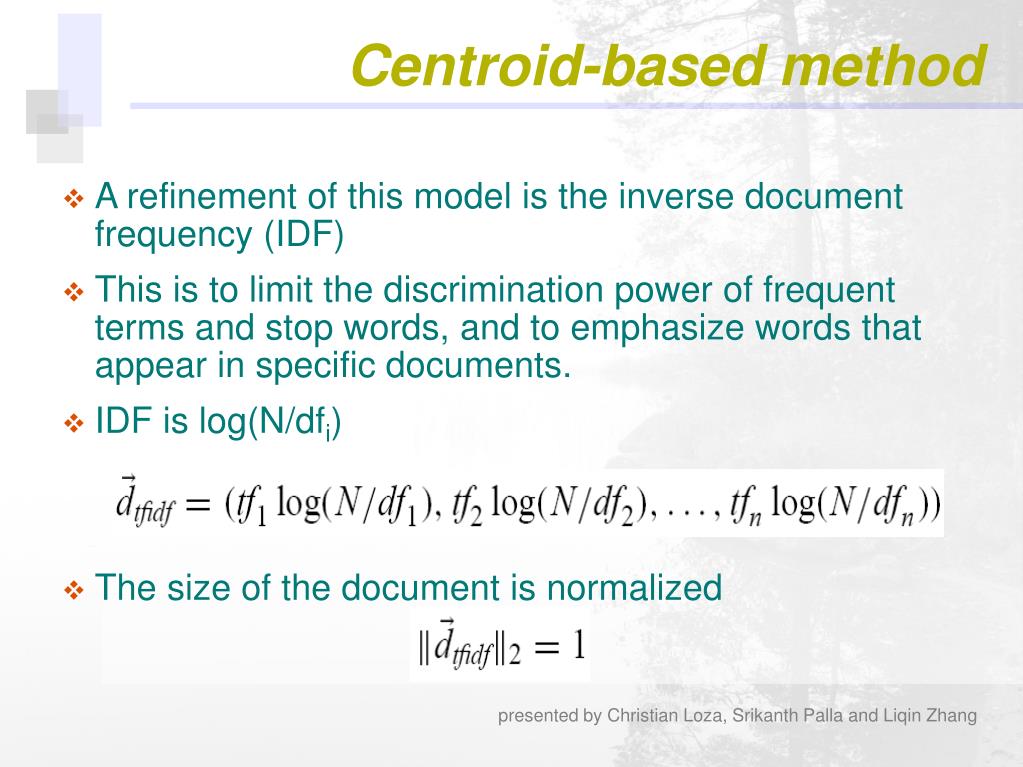

Centroid-based method
  • A refinement of this model is the inverse document frequency (IDF)
  • This is to limit the discrimination power of frequent terms and stop words, and to emphasize words that appear in specific documents.
  • IDF is log(N/dfi)
  • The size of the document is normalized
centroid based method36

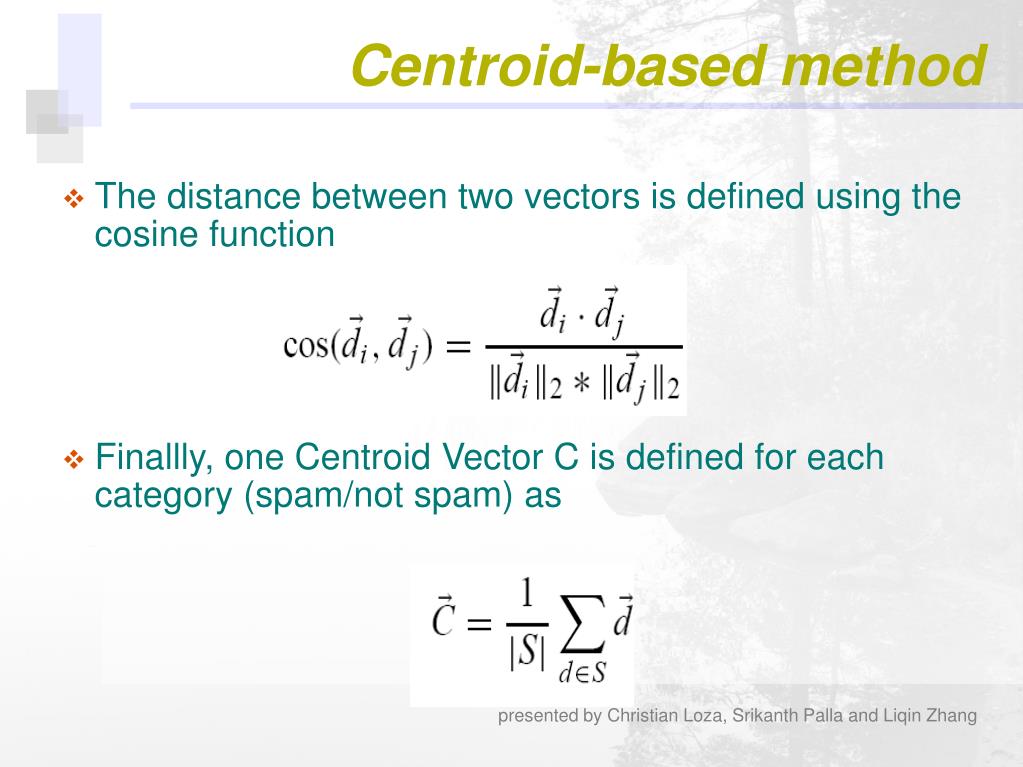

Centroid-based method
  • The distance between two vectors is defined using the cosine function
  • Finallly, one Centroid Vector C is defined for each category (spam/not spam) as
centroid based method37
Centroid-based method
  • We can measure the similarity between one document and the Centroid of the category with the following function
steps centroid based method
Steps: Centroid-based Method

Determine the document vectors using TD/IDF.











steps centroid based method39
Steps: Centroid-based Method

Calculate the centroid for the categories SPAM and NOT SPAM













steps centroid based method40
Steps: Centroid-based Method

Given a new document dn, calculate the document vector representation (like in the training stage)




steps centroid based method41
Steps: Centroid-based Method

Measure the distance between the vector dn and the Centroids of the Categories SPAM / NOT SPAM






steps centroid based method42
Steps: Centroid-based Method

Measure the distance between the vector dn and the Centroids of the Categories SPAM / NOT SPAM






steps centroid based method43
Steps: Centroid-based Method

Obtain the maximum similarity between the document and the Centroids of SPAM and NOT SPAM

for i=1,2 where 1=SPAM and 2=NOT SPAM

analysis of results
Analysis of Results
  • The standard methodology for measuring performance of text classification methods are the Precision and Recall

n. of correctly predicted positives

N of predicted positive examples


n. of correctly predicted positives

N of all positive examples


analysis of results45
Analysis of Results
  • None Precision or Recall can give a good measure by themselves. To have an idea of the performance, we have to combine them.







some results

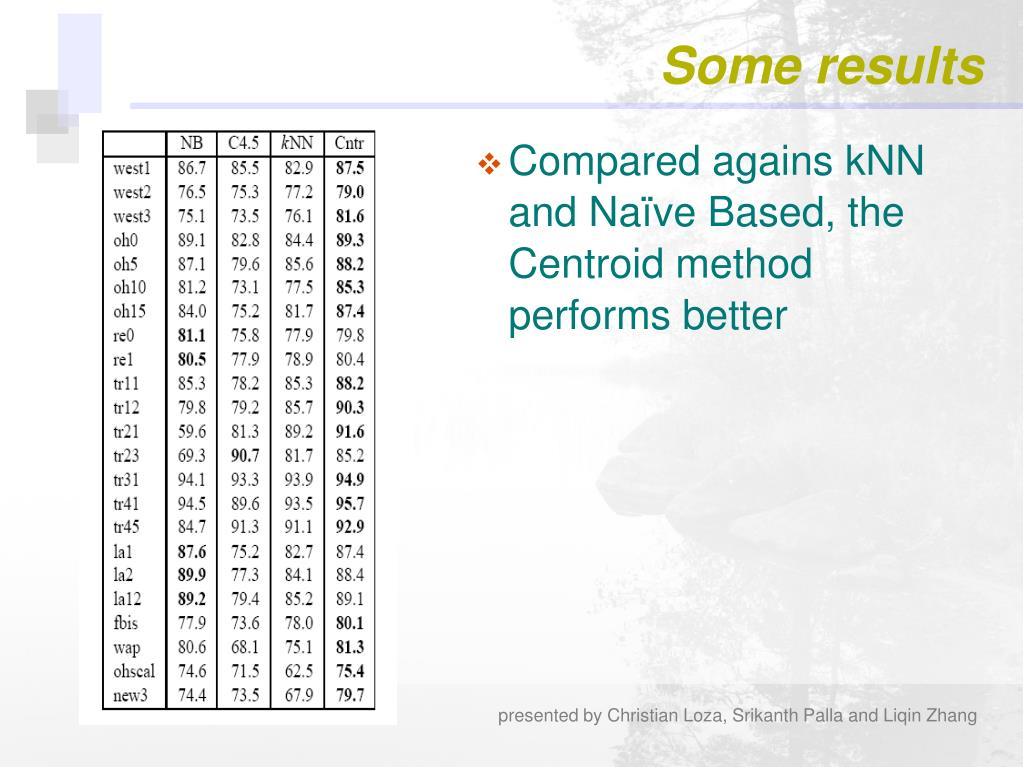

Some results
  • Compared agains kNN and Naïve Based, the Centroid method performs better
content based approach
Content Based Approach
  • Spam can be detected
    • before reading the message --- non-content based:
      • Based on special protocol [3] – voip protocol
      • Based on address book[1] – build an email network
      • Based on IP address [4]
      • …..
    • After process the content of the email --- content based
content based approach48

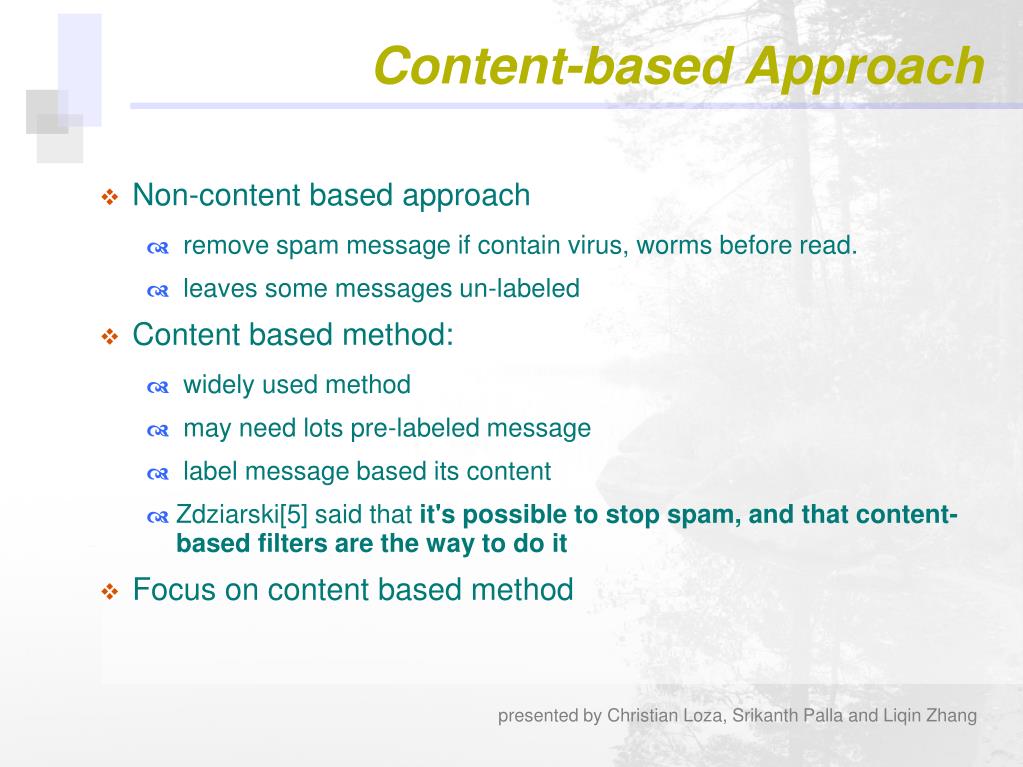

Content-based Approach
  • Non-content based approach
    • remove spam message if contain virus, worms before read.
    • leaves some messages un-labeled
  • Content based method:
    • widely used method
    • may need lots pre-labeled message
    • label message based its content
    • Zdziarski[5] said that it\'s possible to stop spam, and that content-based filters are the way to do it
  • Focus on content based method
method of content based
Method of content-based
  • Bayesian based method [6]
  • Centroid-based method[7]
  • Machine learning method [8]
    • Latent Semantic indexing LSI
    • Contextual Network Graphs (CNG)
  • Rule based method[9]
    • ripper rule: a list of predefined rules that can be changed by hand
  • Memory based method[10]
    • saving cost
  • Accuracy: the percentage of correct classified correct/(correct + un-correct)
  • False positive: if a message is a spam, but misclassify to un-spam.
    • Goal:
      • Improve accuracy
      • Prevent false positive




No spam

False positive


retrieved & irrelevant

Not retrieved & irrelevant

Entire document collection


Relevant documents

Retrieved documents

retrieved & relevant

not retrieved but relevant



not retrieved


rule based method
Rule-based method
  • A list of predefined rules that can be changed by hand
    • ripper rule
  • Each rule/test associated with a score
  • If an email fails a rule, its score increased
  • After apply all rules, if the score is above a certain threshold, it is classified as spam
rule based method53
Rule-based method
  • Advantage:
    • able to employ diverse and specific rule to check spam
      • Check size of the email
      • Number of pictures it contains
    • no training messages are needed
  • Disadvantage:
    • rules have to be entered and maintained by hand --- can’t be automatically
latent semantic indexing
Latent Semantic indexing
  • Keyword
    • important word for text classification
    • High frequent word in a message
    • Can used as an indicator for the message
  • Why LSI?
    • Polysemy: word can be used in more than one category
      • ex: Play
    • Synonymous: if two words have identical meaning
  • Based on nearest neighbors based algorithm
latent semantic indexing55
Latent semantic indexing
  • consider semantic links between words
    • Search keyword over the semantic space
    • Two words have the same meaning are treated as one word
    • eliminate synonymous
  • Consider the overlap between different message, this overlap may indicate:
    • polysemy or stop-word
    • two messages in same category
latent semantic indexing56
Latent semantic indexing
  • Step1: build a term-document matrix X from the input documents

Doc1: computer science department

Doc2: computer science and engineering science

Doc3: engineering school

Computer science department and engineering school

Doc1 1 1 1 0 0 0

Doc2 1 2 0 1 1 0

Doc3 0 0 0 0 1 1

latent semantic indexing57
Latent semantic indexing
  • Step2: Singular value Decomposition (SVD) is performed on matrix X
    • To extract a set of linearly independent FACTORS that describe the matrix
    • Generalize the terms have the same meaning
    • Three new matrices TSD are produced to reduce the vocabulary’s size
latent semantic indexing58
Latent Semantic indexing
  • Two document can be compared by finding the distance between two document vector, stored in matrix X1
  • Text classification is done by finding the nearest neighbors – assign to category with max document
latent semantic indexing60
Latent Semantic Indexing
  • Advantage:
    • Entire training set can be learned at same time
    • No intermediate model need to be build
    • Good for the training set is predefined
  • Disadvantage:
    • When new document added, matrix X changed, and TSD need to be re-calculated
    • Time consuming
    • Real classifier need the ability to change training set
contextual network graphs
Contextual network Graphs
  • A weighted, bipartite, undirected graph of term and document nodes

t1: W11+w21 = 1

d1: w11+w12+w13 = 1












At any time, for each node, the sum of the weigh is 1

contextual network graphs62
Contextual network graphs
  • When new document d is added, energizing the weights at node d, and may need re-balance the weights at the connected node
  • The document is classified to the one with maximum of energy (weight) average for each class
comparison bayesian lsi cng centroid rule based








Generalization/contextual data

Energy re-balancing

Cosine similarity


Predefined rules


Update statistics

Recalculation matrices

Addition nodes to graph

Recalculation of centroid

Test against rule







Automatic update model






Comparison Bayesian, LSI,CNG, centroid, rule-based
result and conclusion
Result and conclusion:
  • LSI & CNG super Bayesian approach 5% accuracy, and reduce false positive and negatives up to 71%
  • LSI & CNG shows better performance even with small document set
comparison content based and non content based
Comparison content based and non-content based
  • Non-content based:
    • dis-adv:
      • depends on special factor like email address, IP address, special protocol,
      • leaves some un-classified
    • Adv: detect spam before reading message with high accuracy
Content based:
    • Disadvantage:
      • need some training message
      • not 100% correct classified due to the spammer also know the anti-spam tech.
    • Advantage:
      • leaves no message unclassified
improvement for spam
Improvement for spam
  • Combine both method
    • [1] proposes an email network based algorithm, which with 100% accuracy, but leaves 47% unclassified, if combine with content based method, can improve the performance.
  • Build up multi-layers[11]

[11] Chris Miller, A layered Approach to enterprise antispam

data set for spam
Data set for spam:
  • Non-content based:
    • Email network:
      • One author’s email corpus, formed by 5,486 messages
    • IP address: -- none
  • Content based:
data set for spam70
Data set for spam
  • LSI & CNG:
    • Corpus of varying size (250 ~ 4000)
    • Spam and un-spam emails in equal amount
  • Bayesian based:
    • Corpus of 1789 email
    • 211 spam, 1578 non-spam
  • Cetroid based:
    • Totally 200 email message
    • 90 spam, 110 non-spam
most recently used benchmarks
Most recently used Benchmarks:
  • Reuters:
    • About 7700 training and 3000 test documents, 30000 terms,135 categories, 21MB.
    • each category has about 57 instances
    • collection of newswire stories
  • 20NG:
    • About 18800 total documents, 94000 terms, 20 topics, 25MB.
    • Each category has about 1000 instances
  • WebKB:
    • About 8300 documents, 7 categories, 26 MB.
    • Each category has about 1200 instances
    • 4 university website data
  • Above three are well-known in recently IR with small in size and used to test the performance and CPU scalability
    • 348566 document, 230000 terms and 308511 topics, 400 MB.
    • Each category has about 1 instance
    • Abstract from medical journals
  • Dmoz:
    • 482 topics, 300 training document for each topic, 271MB
    • Each category has less than 1 instance
    • taken from Dmoz( topic tree
  • Large dataset, used to test the memory scalability of a model
some facts
Some facts
  • Spam is a growing problem, and the research on this topic has become more relevant the last years
  • Spam grows because it works.
  • Many commercial products try to fight spam. Most of them rely on the exposed techniques, or combination of them
  • Spam damages economy, more than hackers or viruses
some facts74
Some facts
  • Damages attributed to Spam are calculated around 10.4 billion in 2003, 58 – 112 billion in 2004, and is projected to cross 200 billion worldwide in 2005.
  • 1.6 trillion unsolicited messages were sent in 2004.
  • Spam is a problem that causes a great impact of global business
  • We presented three methods for Spam classification.
  • The benchmarks on this three methods suggest that combination of the methods perform better than the methods alone
  • Spam classifiers can be Content Based, and Non Content Based
  • Content Based: Rules, Naïve Bayes, Centroid
  • Non content work without reading the content of the mail
  • Researchers have found ways to increase the accuracy of all the methods, using heuristics and combining them
  • Spammers also learn how to avoid spam filters
  • No single method is perfect in all situations
  • Slide 1, image: ttp://
  • Slide 1, image: ttp://
  • Anti-spam Filtering: A centroid-based Classification Approach, Nuanwan Soonthornphisaj, Kanokwan Chaikulseriwat, Piyan Tang-On, 2002
  • Centroid-Based Document Classification: Analysis & Experimental Results, Eui-Hong (Sam) and George Karypis, 2000
  • Multi-dimensional Text classification, Thanaruk Theeramunkog, 2002
  • Improving centroid-based text classification using term-distribution-based weighting system and clustering, Thanaruk Theeramunkog and Verayuth Lertnattee
  • Combining Homogeneous Classifiers for Centroid-based text classifications, Verayuth Lertnattee and Thanaruk Theeramunkog

[1] P Oscar Boykin and Vwani Roychowdhury, Personal Email Networks: An Effective Anti-Spam Tool, IEEE COMPUTER, volume 38, 2004

[2] Andras A. Benczur and Karoly Csalogany and Tamas Sarlos and Mate Uher, SpamRank - Fully Automatic Link Spam Detection,

[3]. R. Dantu, P. Kolan, “Detecting Spam in VoIP Networks”, Proceedings of USENIX, SRUTI (Steps for Reducing Unwanted Traffic on the Internet) workshop, July 05(accepted)

[4]. IP addresses in email clients ttp://

[5] Plan for Spam ttp://


[6] M. Sahami, S. Dumais, D. Heckerman, and E. Horvitz. 1998, “A Bayesian Approach to Filtering Junk E-Mail”, Learning for Text Categorization – Papers from the AAAI Workshop, pages 55–62, Madison Wisconsin. AAAI Technical Report WS-98-05

[7] N. Soonthornphisaj, K. Chaikulseriwat, P Tang-On, “Anti-Spam Filtering: A Centroid Based Classification Approach”, IEEE proceedings ICSP 02

[8] Spam Filtering Using Contextual Networking Graphs

[9] W.W. Cohen, “Learning Rules that Classify e-mail”, In Proceedings of the AAAI Spring Symposium on Machine Learning in Information Access, 1996

[10] G. Sakkis, I. Androutsopoulos, G. Paliouras, V. Karkaletsis, C.D. Spyropoulos, P. Stamatopoulos, “A memory based approach to anti-spam filtering for mailing lists”, Information Retrieval 2003
