Presentation Transcript
Acid deposition l.jpg
ACID DEPOSITION

  • the wet or dry deposition of acid

  • “Acid rain”

    1. Acid rain refers to all types of precipitation--rain, snow, sleet, hail, fog--that is acidic in nature

    2. precipitation that is polluted by sulphur dioxide (SO2) and nitrogen oxides (NOX)


Slide3 l.jpg

  • Link to the Fossil Fuels

    • Combustion of fossil fuels

      • sulphur is harmful in excessive amounts

      • Much of Europe and North America are suffering from sulphur deposition that exceeds critical loads as a result of the large amounts of such compounds generated by human activity

      • http://imgur.com/a/CnXGL


Slide4 l.jpg

Currently 30% higher than since last 650,000 years

Mauna Loa , Hawaii (13,677 ft = 4169 m)


Acid deposition5 l.jpg

Reactions to convert to acid take place in ~2 days - travel 1000 miles

Down wind - Acid rain

Dry Dep. vs Wet Dep.

Dry Deposition

50 % of total

Can react with plants - strip nutrients

Tree dieback

Acid Deposition



Slide9 l.jpg

Forests affected by Acid Rain 1000 miles

Northeast US

Canada

Northern Europe

Asia


Acid rain and buildings l.jpg
Acid Rain and Buildings 1000 miles

Many buildings are made of concrete and or stone

These compounds act as bases and react with acid

The building technically “weathers” very fast, or

Non technically “crumbles”


Slide11 l.jpg

Europe 1000 miles

The US Capitol


Slide12 l.jpg

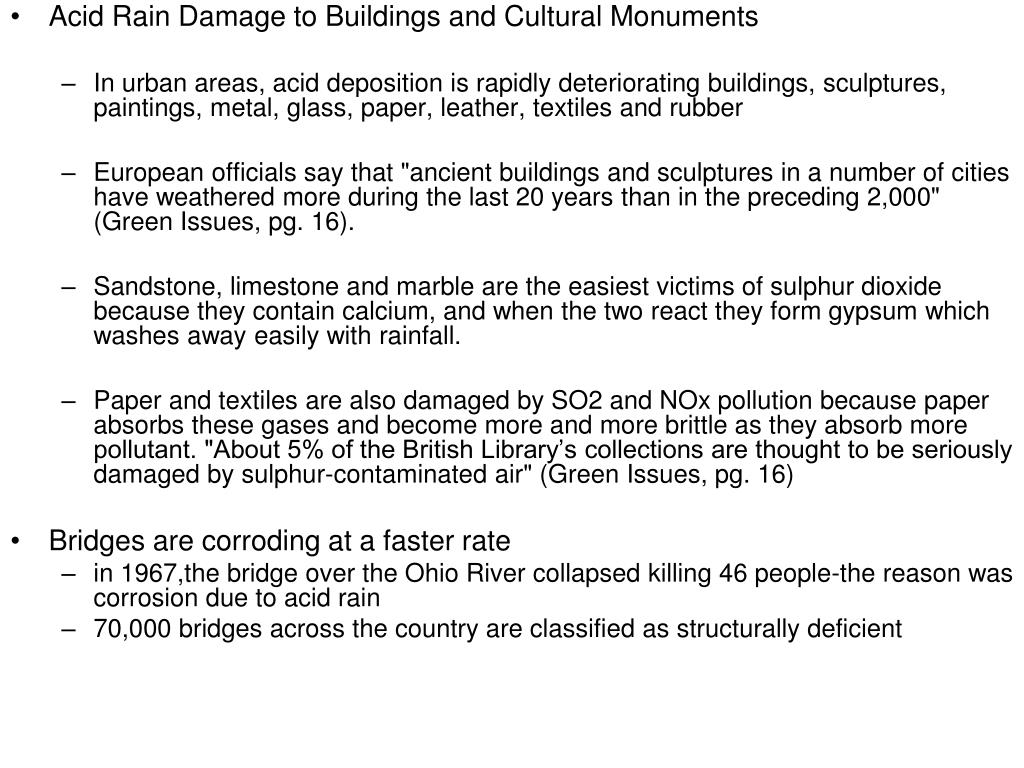

  • Acid Rain Damage to Buildings and Cultural Monuments 1000 miles

    • In urban areas, acid deposition is rapidly deteriorating buildings, sculptures, paintings, metal, glass, paper, leather, textiles and rubber

    • European officials say that "ancient buildings and sculptures in a number of cities have weathered more during the last 20 years than in the preceding 2,000" (Green Issues, pg. 16).

    • Sandstone, limestone and marble are the easiest victims of sulphur dioxide because they contain calcium, and when the two react they form gypsum which washes away easily with rainfall.

    • Paper and textiles are also damaged by SO2 and NOx pollution because paper absorbs these gases and become more and more brittle as they absorb more pollutant. "About 5% of the British Library’s collections are thought to be seriously damaged by sulphur-contaminated air" (Green Issues, pg. 16)

  • Bridges are corroding at a faster rate

    • in 1967,the bridge over the Ohio River collapsed killing 46 people-the reason was corrosion due to acid rain

    • 70,000 bridges across the country are classified as structurally deficient


Slide13 l.jpg

  • How atmospheric acids form 1000 miles

    1. S + O2-->SO2 and N + O2-->NO2 and CO2

    2. In the atmosphere, sulphur dioxide reacts with oxygen to produce sulphur trioxide gas:

    2SO2 + O2-->2SO2

    3. Some of this sulphur trioxide dissolves into water droplets in the atmosphere to produce tiny beads of sulphuric acid

    i. SO3+ H2O-->H2SO4

    ii. NO3 + H20 –> H2NO4

    iii. CO2 + H20  H2CO3


Slide14 l.jpg

  • What causes the problem 1000 miles

    • Public power generation. These are, in general, large plants burning fossil fuel to generate electricity.

    • Commercial, Institutional, Residential Combustion Plant

    • Industrial Combustion Plant and Processes with Combustion - pulp mills, metal smelters (when metal sulfide ores such as lead sulfide are roasted or smelted to convert the metal ore to free metal), refineries, heating boilers.

    • Extraction and Distribution of Fossil Fuels

    • Road Transport

    • Natural Sources - volcanic eruptions, oxidation of sulfur-containing by-products of decomposition of organic matter


Slide15 l.jpg

  • Other hazards of Sulphur pollution: Sulphurous smogs 1000 miles

    1. Produced by high output of SO2, converted to acids on contact with atmospheric moisture. Very prevalent in Europe and North American cities during first part of 20th Century

    2. London. 4-10th December 1952: Cold, high-pressure conditions trapped coal smoke in foggy air. Output of smoke increased by cold. Sulphuric acid droplets resulted in pH estimated as 1.4 to 1.9: as acidic as car battery acid. Visibility reduced to 5m at times. Smog lasted for 5 days, eventually extending over 50km radius. Approx. 4,000 people died as result of inhaling pollution, mainly old and sick and those with chest problems.


Slide16 l.jpg

  • Donora 1000 miles, USA: October 1948: industrial town of 14,000, with zinc smelter, steel mill, and sulphuric acid plant, all of which introduced sulphuric acid into atmosphere. Anticyclonic conditions trapped emissions, which continued to be produced. Air became highly acidic, with sickening smell of sulphur. Over five day period, over half of population suffered ill effects, and 22 died


Slide17 l.jpg

  • Effects on Ecosphere 1000 miles

    1. Terrestrial Ecosystems

    i. Acid rain damages the protective waxy coating of leaves and allows acids to diffuse into them

    ii. interrupts the evaporation of water and gas exchange so that the plant no longer can breathe

    iii. This stops the plant's conversion of nutrients and water into a form useful for plant growth and affects crop yields.

    (1) acid precipitation destroys, overall, $1.3 billion annually in the eastern part of the nation

    (2) $1.75 billion yearly in forest damage, $8.3 billion in crop damage in the Ohio River basin alone by about the year 2000

    2. $40 million in health costs in the State of Minnesota


Slide18 l.jpg

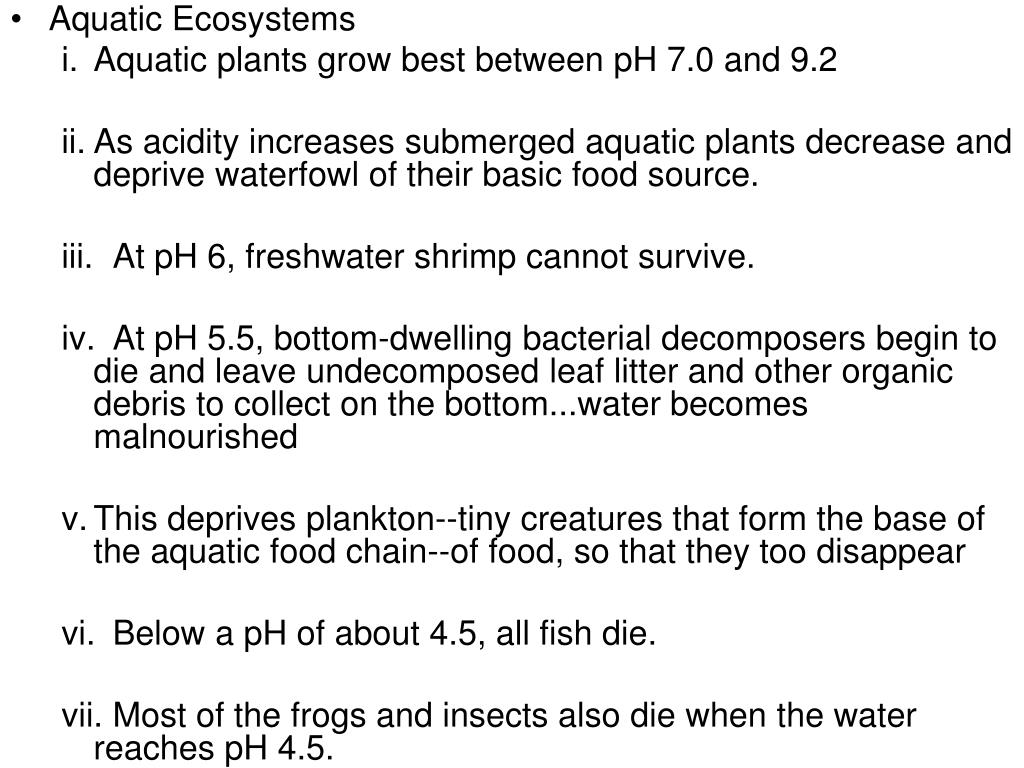

  • Aquatic Ecosystems 1000 miles

    i. Aquatic plants grow best between pH 7.0 and 9.2

    ii. As acidity increases submerged aquatic plants decrease and deprive waterfowl of their basic food source.

    iii. At pH 6, freshwater shrimp cannot survive.

    iv. At pH 5.5, bottom-dwelling bacterial decomposers begin to die and leave undecomposed leaf litter and other organic debris to collect on the bottom...water becomes malnourished

    v. This deprives plankton--tiny creatures that form the base of the aquatic food chain--of food, so that they too disappear

    vi. Below a pH of about 4.5, all fish die.

    vii. Most of the frogs and insects also die when the water reaches pH 4.5.


Slide19 l.jpg

  • Key concepts: 1000 miles

    • 2. The chemistry of the ocean is dependent on the chemistry of the atmosphere


Slide20 l.jpg

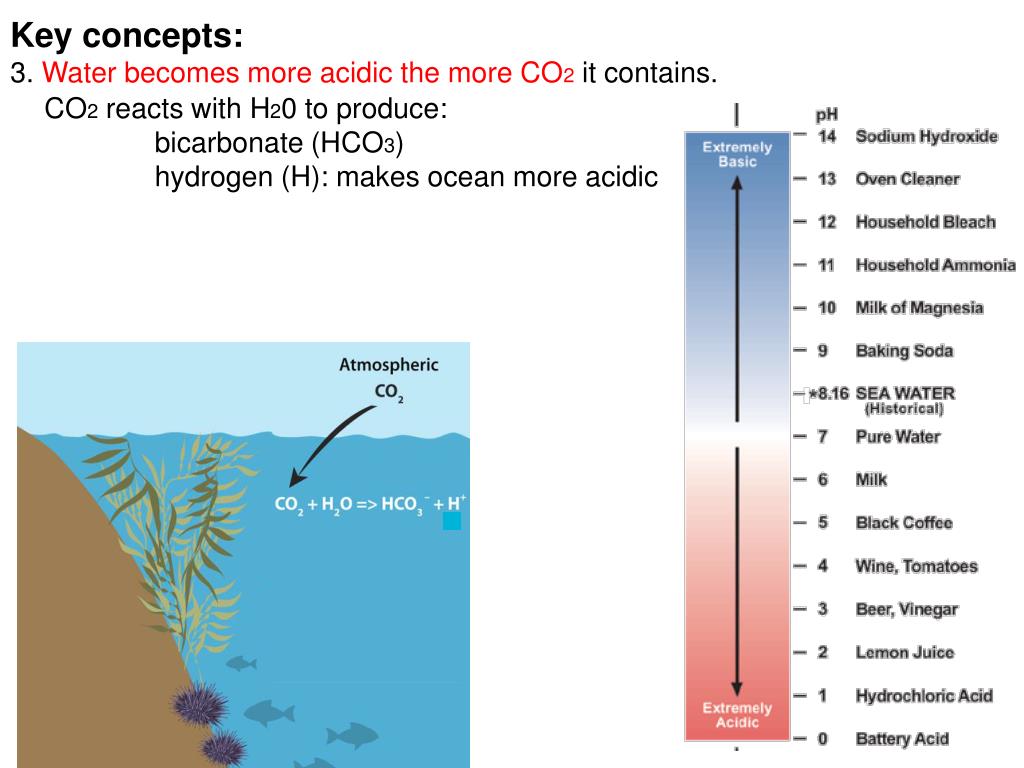

  • Key concepts: 1000 miles

    • 3. Water becomes more acidic the more CO2it contains.

CO2 reacts with H20 to produce:

bicarbonate (HCO3)

hydrogen (H): makes ocean more acidic


Slide21 l.jpg

Key concepts: 1000 miles

4. Increased ocean acidity affects marine organisms’ abilities to make and keep their hard parts. Hard parts = calcium carbonate (CaCO3) shells, skeletons, etc.


Slide22 l.jpg

Key concepts: 1000 miles

4. Increased ocean acidity affects marine organisms’ abilities to make and keep their hard parts. Hard parts = calcium carbonate (CaCO3) shells, skeletons, etc.

  • Many marine organisms have CaCO3 hard parts

    • They use their ATP (energy) to make their hard parts using calcium (Ca) and carbonate (CO3) they get from the sea water


Slide23 l.jpg

Key concepts: 1000 miles

4. Increased ocean acidity affects marine organisms’ abilities to make and keep their hard parts. Hard parts = calcium carbonate (CaCO3) shells, skeletons, etc.

  • Many marine organisms have CaCO3 hard parts

    • They use their ATP (energy) to make their hard parts using calcium (Ca) and carbonate (CO3) they get from the sea water

  • BUT, hydrogen also naturally reacts with CO3


Slide24 l.jpg

Key concepts: 1000 miles

4. Increased ocean acidity affects marine organisms’ abilities to make and keep their hard parts. Hard parts = calcium carbonate (CaCO3) shells, skeletons, etc.

  • Many marine organisms have CaCO3 hard parts

    • They use their ATP (energy) to make their hard parts using calcium (Ca) and carbonate (CO3) they get from the sea water

  • BUT, hydrogen also naturally reacts with CO3

    • The more acidic the ocean, the more CO3 reacts with hydrogen, and the LESS CO3 left for marine organisms to convert into their hard parts


Slide25 l.jpg

Key concepts: 1000 miles

4. Increased ocean acidity affects marine organisms’ abilities to make and keep their hard parts. Hard parts = calcium carbonate (CaCO3) shells, skeletons, etc.

  • Many marine organisms have CaCO3 hard parts

    • They use their ATP (energy) to make their hard parts using calcium (Ca) and carbonate (CO3) they get from the sea water

  • BUT, hydrogen also naturally reacts with CO3

    • The more acidic the ocean, the more CO3 reacts with hydrogen, and the LESS CO3 left for marine organisms to convert into their hard parts

  • “Battle” for carbonate!

  • Organisms must use more energy or make less hard part material

  • Existing hard parts dissolve (chemical reaction goes “the wrong way”)


Slide26 l.jpg

Ocean acidification: Impacts on individual marine organisms 1000 miles

  • Thinner, smaller and weaker shells in shellfish

    • Especially larval stages, which already have thin shells

Mussels

Mussel larva

Normal

Really acidic

Acidic

Gaylord et al. 2011


Slide27 l.jpg

Ocean acidification: Impacts on individual marine organisms 1000 miles

  • Reduced hearing ability in anemone fish (clown fish) larvae

    • Deformed morphology of CaCO3 fish ear bones (otoliths)?

    • Disruption of acid-base balance in neuro-sensory system?

    • Fitness effect: lower survival due to higher predation.

Normal Acidic

Simpson et al. 2011


Slide28 l.jpg

Ocean acidification: Impacts on individual marine organisms 1000 miles

  • Non-calcifying marine algae: Increased photosynthesis and growth

    • Lower pH means more dissolved CO2 for photosynthesis to fuel growth

    • Fitness effect: higher survival and pop’n growth

Photosynthesis

Growth

Chen & Durbin 1994

Lots Little

Lots Little

Amount of dissolved carbon


Slide29 l.jpg

Hoegh-Guldberg et al. 2007


Slide30 l.jpg

High coral growth

Earth’s two most recent mass extinction events

Both associated with high CO2 levels

First modern corals

Million years ago

Present

Veron 2008


Slide31 l.jpg

Borrowed Heavily From: 1000 mileshttp://oceanacidification.msi.ucsb.edu/resources/educators/CrowWhite_OA_Lecture.ppt/view
