matrix transpose results with hybrid openmp mpi

Matrix Transpose Resultswith Hybrid OpenMP / MPI

O. Haan

Gesellschaft für wissenschaftliche DatenverarbeitungGöttingen, Germany( GWDG )

SCICOMP 2000, SDSC, La Jolla

overview
Overview
  • Hybrid Programming Model
  • Distributed Matrix Transpose
  • Performance Measurements
  • Summary of Results

O. Haan, Matrix Transpose Results, SCICOMP 2000

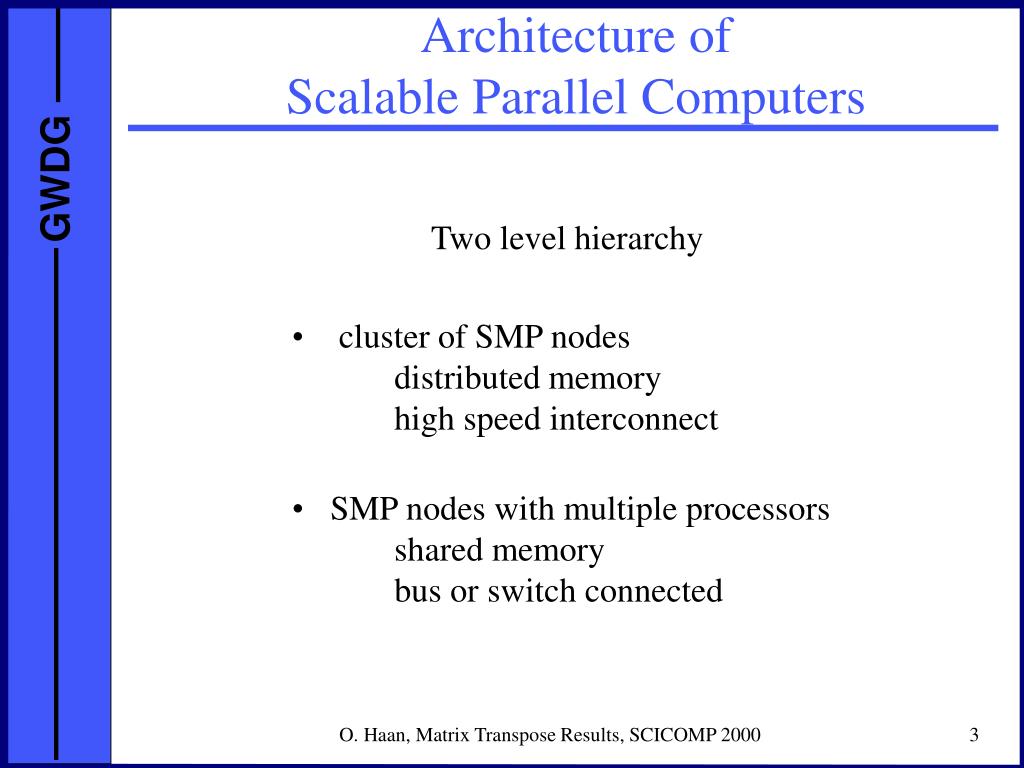

architecture of scalable parallel computers
Architecture of Scalable Parallel Computers

Two level hierarchy

  • cluster of SMP nodes distributed memory high speed interconnect
  • SMP nodes with multiple processors shared memory bus or switch connected

O. Haan, Matrix Transpose Results, SCICOMP 2000

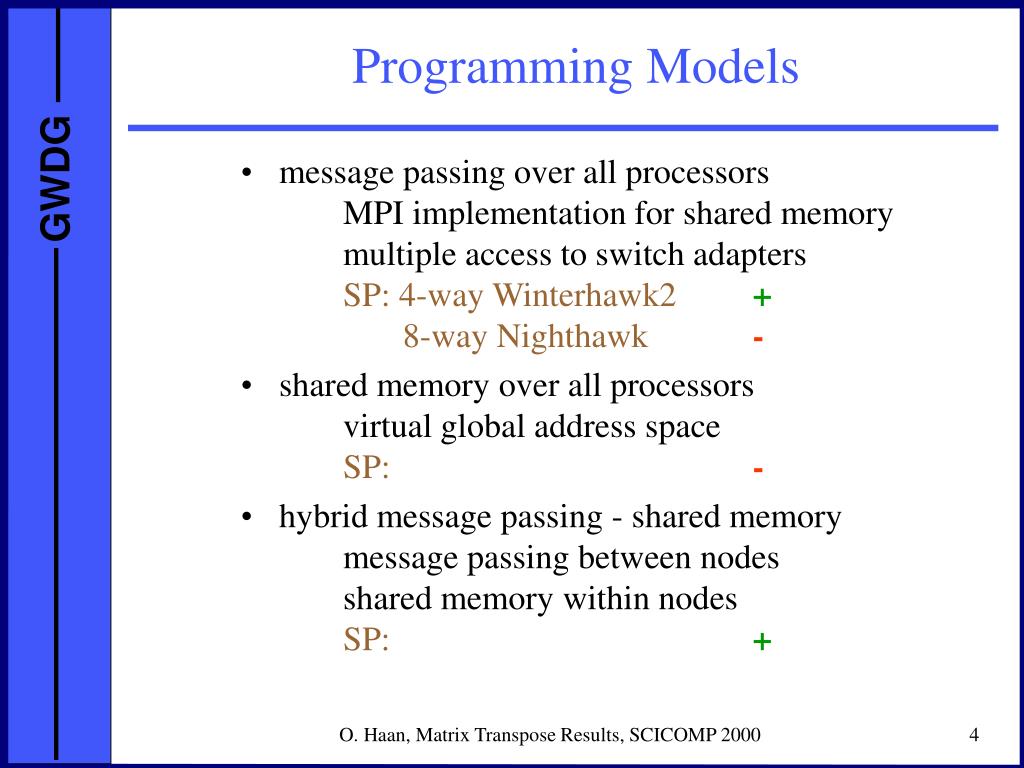

programming models
Programming Models
  • message passing over all processors MPI implementation for shared memory multiple access to switch adaptersSP: 4-way Winterhawk2+8-way Nighthawk-
  • shared memory over all processors virtual global address space SP: -
  • hybrid message passing - shared memory message passing between nodes shared memory within nodesSP:+

O. Haan, Matrix Transpose Results, SCICOMP 2000

hybrid programming model
Hybrid Programming Model

SPMD programwith MPI tasksOpenMP threadswithin each taskcommunicationbetween MPI tasks

O. Haan, Matrix Transpose Results, SCICOMP 2000

example of hybrid program
Example of Hybrid Program

program hybrid_example

include “mpif.h“

com = MPI_COMM_WORLD

call MPI_INIT(ierr)

call MPI_COMM_SIZE(com,nk,ierr)

call MPI_COMM_RANK(com,my_task,ierr)

kp = OMP_GET_NUM_PROCS()

!$OMP PARALLEL PRIVATE(my_thread)

my_thread = OMP_GET_THREAD_NUM()

call work(my_thread,kp,my_task,nk,thread_res)

!$OMP END PARALLEL

do i = 0 , kp-1

node_res = node_res + thread_res(i)

end do

call MPI_REDUCE(node_res,glob_res,1,

: MPI_REAL,MPI_SUM,0,com,ierr)

call MPI_FINALIZE(ierr)

stop

end

O. Haan, Matrix Transpose Results, SCICOMP 2000

hybrid programming vs pure message passing
Hybrid Programming vs.Pure Message Passing

+

  • works on all SP configuration
  • coarser internode communication granularity
  • faster intranode communication

-

  • larger programming effort
  • additional synchronization steps
  • reduced reuse of cached data

the net score depends on the problem

O. Haan, Matrix Transpose Results, SCICOMP 2000

distributed matrix transpose
Distributed Matrix Transpose

O. Haan, Matrix Transpose Results, SCICOMP 2000

3 step transpose
3-step Transpose

n1 x n2 matrix A( i1 , i2 ) --> n2 x n1 matrix B( i2 , i1 )

decompose n1, n2 in local and global parts:

n1 = n1l * np n2 = n2l * np

write matrices A, B as 4-dim arrays:

A( i1l , i1g , i2l ; i2g ) , B( i2l , i2g , i1l ; i1g )

step 1 : local reorder

A( i1l , i1g , i2l ; i2g ) -> a1( i1l , i2l , i1g ; i2g )

step 2 : global reorder

a1( i1l , i2l , i1g ; i2g ) -> a2( i1l , i2l , i2g ; i1g )

step 3 : local transpose

a2( i1l , i2l , i2g ; i1g ) -> B( i2l , i2g , i1l ; i1g )

O. Haan, Matrix Transpose Results, SCICOMP 2000

local steps copy with reorder
Local Steps: Copy with Reorder
  • data in memory:speed limited by performance of bus and memory subsystemsWinterhawk2 : all processors share the same bus bandwidth : 1.6 GB/s
  • data in cache:speed limited by processor performanceWinterhawk2 : one load plus one store per cyclebandwidth : 8 MB / (1/375) s = 3 GB / s

O. Haan, Matrix Transpose Results, SCICOMP 2000

copy data in memory

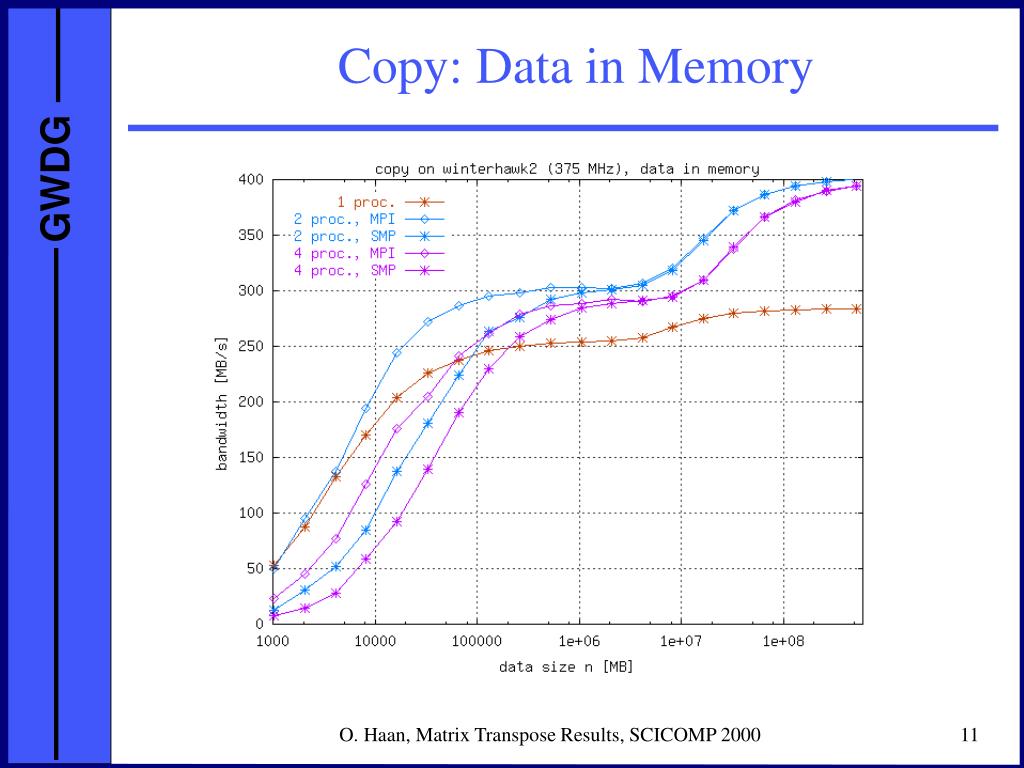

Copy: Data in Memory

O. Haan, Matrix Transpose Results, SCICOMP 2000

copy prefetch

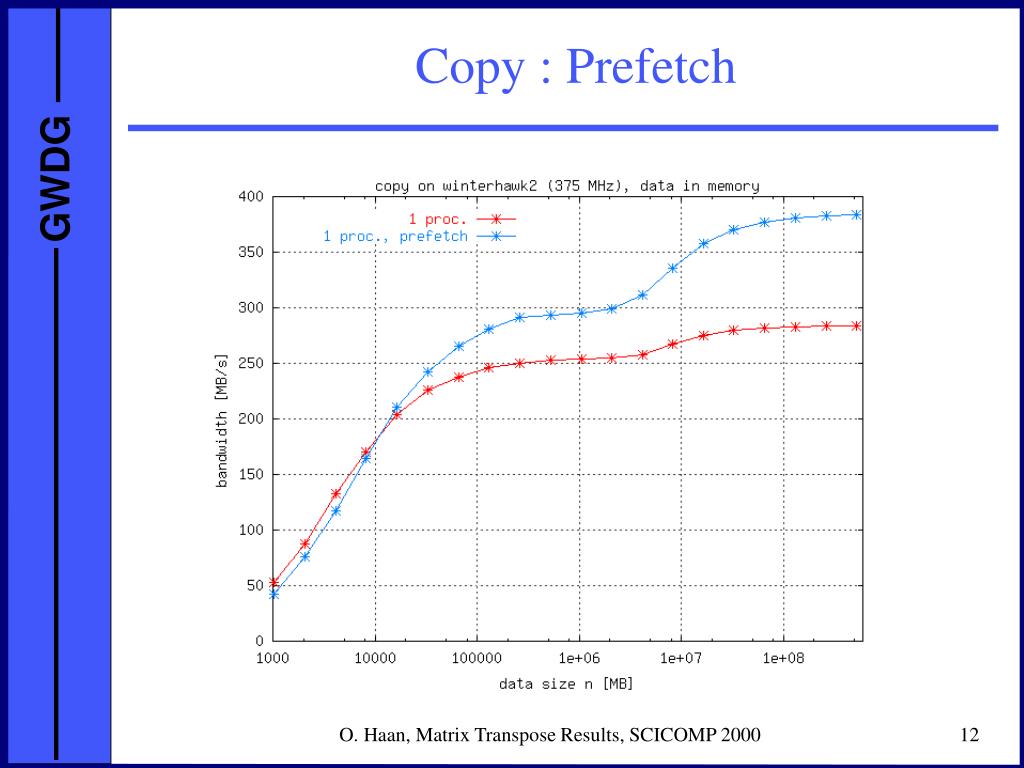

Copy : Prefetch

O. Haan, Matrix Transpose Results, SCICOMP 2000

copy data in cache

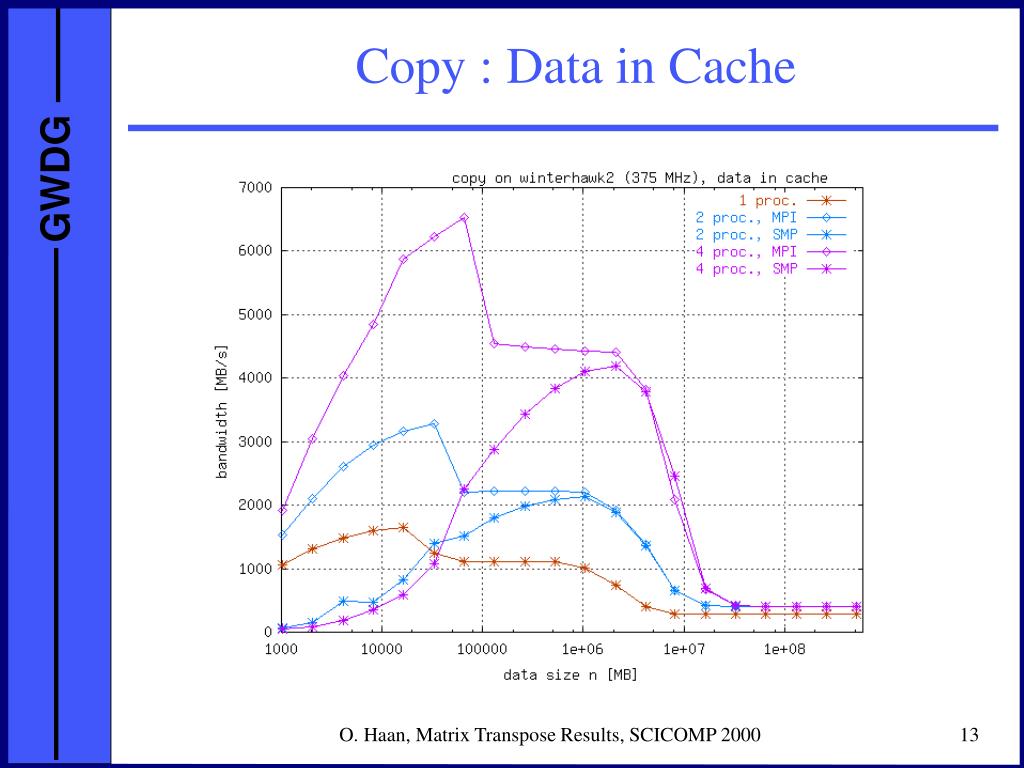

Copy : Data in Cache

O. Haan, Matrix Transpose Results, SCICOMP 2000

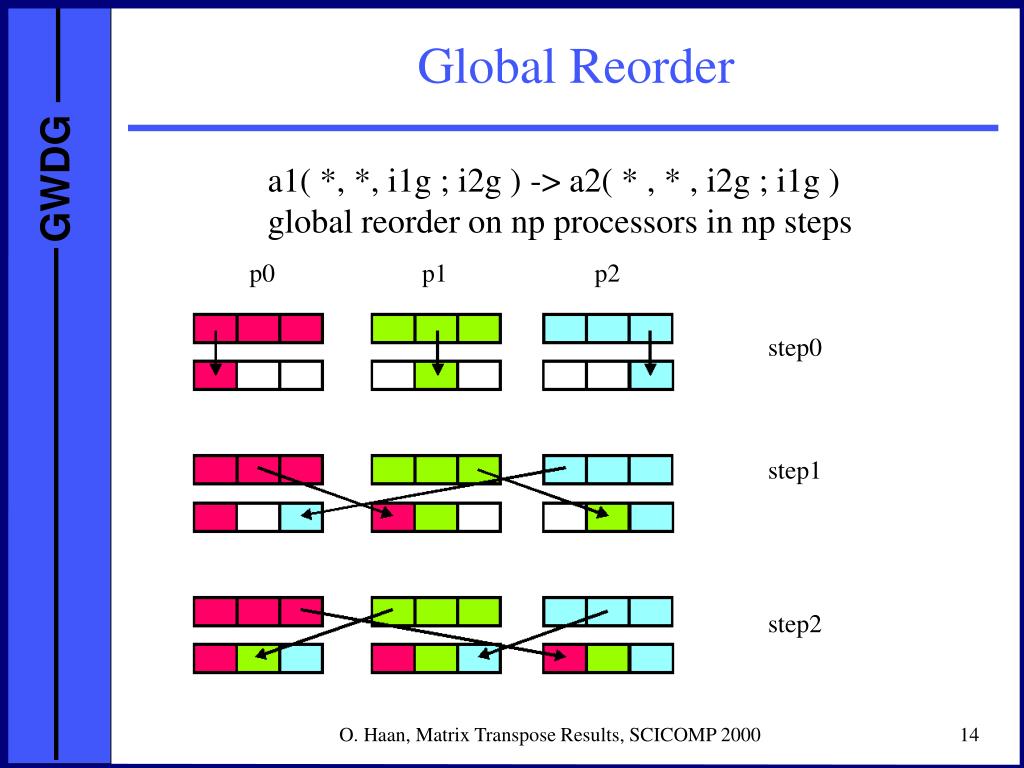

global reorder
Global Reorder

a1( *, *, i1g ; i2g ) -> a2( * , * , i2g ; i1g )

global reorder on np processors in np steps

p0 p1 p2

step0

step1

step2

O. Haan, Matrix Transpose Results, SCICOMP 2000

performance modelling
Performance Modelling

Hardware model: nk nodes with kp procs each

np = nk * kp is total procs count

Switch model: nk concurrent links between nodes

latency tlat , bandwidth c

execution model for Hybrid: reorder on nk nodes:

nk steps with n1*n2 / nk**2 data per node

execution model for MPI: reorder on np processors:

np steps with n1*n2 / np**2 data per node switch links shared between kp procs

O. Haan, Matrix Transpose Results, SCICOMP 2000

performance modelling1
Performance Modelling

Hybrid timing model:

MPI timing model:

O. Haan, Matrix Transpose Results, SCICOMP 2000

timing of global reorder internode part

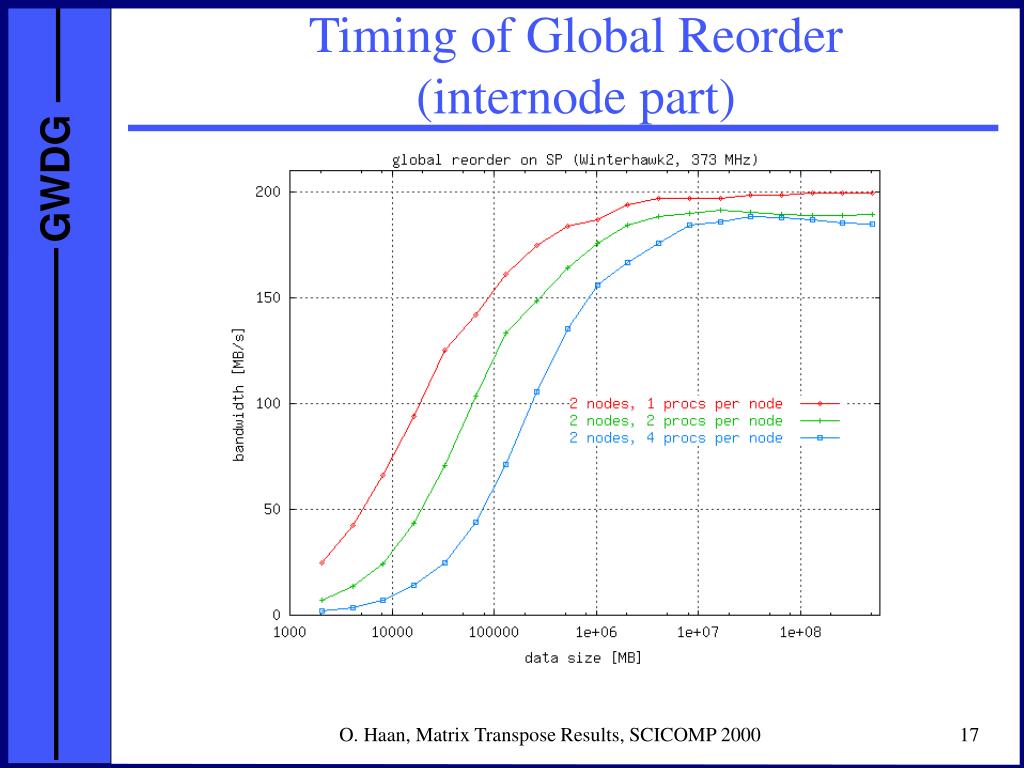

Timing of Global Reorder (internode part)

O. Haan, Matrix Transpose Results, SCICOMP 2000

timing of global reorder internode part1
Timing of Global Reorder (internode part)

O. Haan, Matrix Transpose Results, SCICOMP 2000

timing of global reorder
Timing of Global Reorder

O. Haan, Matrix Transpose Results, SCICOMP 2000

timing of transpose
Timing of Transpose

O. Haan, Matrix Transpose Results, SCICOMP 2000

scaling of transpose
Scaling of Transpose

O. Haan, Matrix Transpose Results, SCICOMP 2000

timing of transpose steps
Timing of Transpose Steps

O. Haan, Matrix Transpose Results, SCICOMP 2000

summary of results hardware

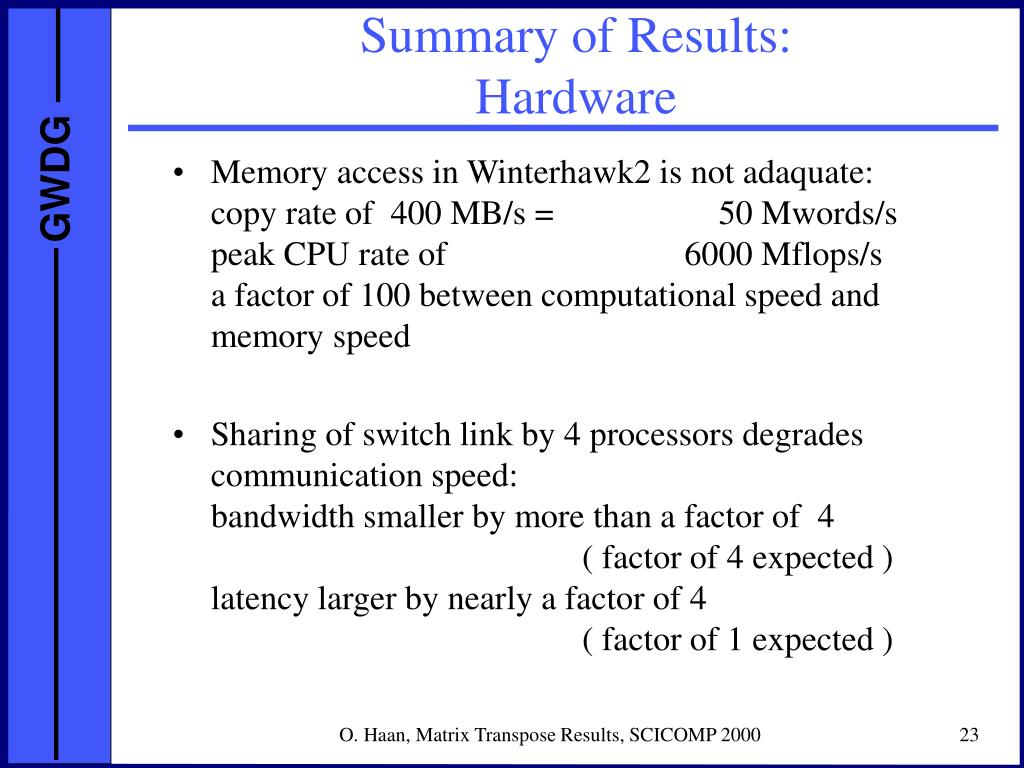

Summary of Results: Hardware
  • Memory access in Winterhawk2 is not adaquate:copy rate of 400 MB/s = 50 Mwords/s peak CPU rate of 6000 Mflops/sa factor of 100 between computational speed and memory speed
  • Sharing of switch link by 4 processors degrades communication speed:bandwidth smaller by more than a factor of 4 ( factor of 4 expected )latency larger by nearly a factor of 4 ( factor of 1 expected )

O. Haan, Matrix Transpose Results, SCICOMP 2000

summary of results hybrid vs mpi

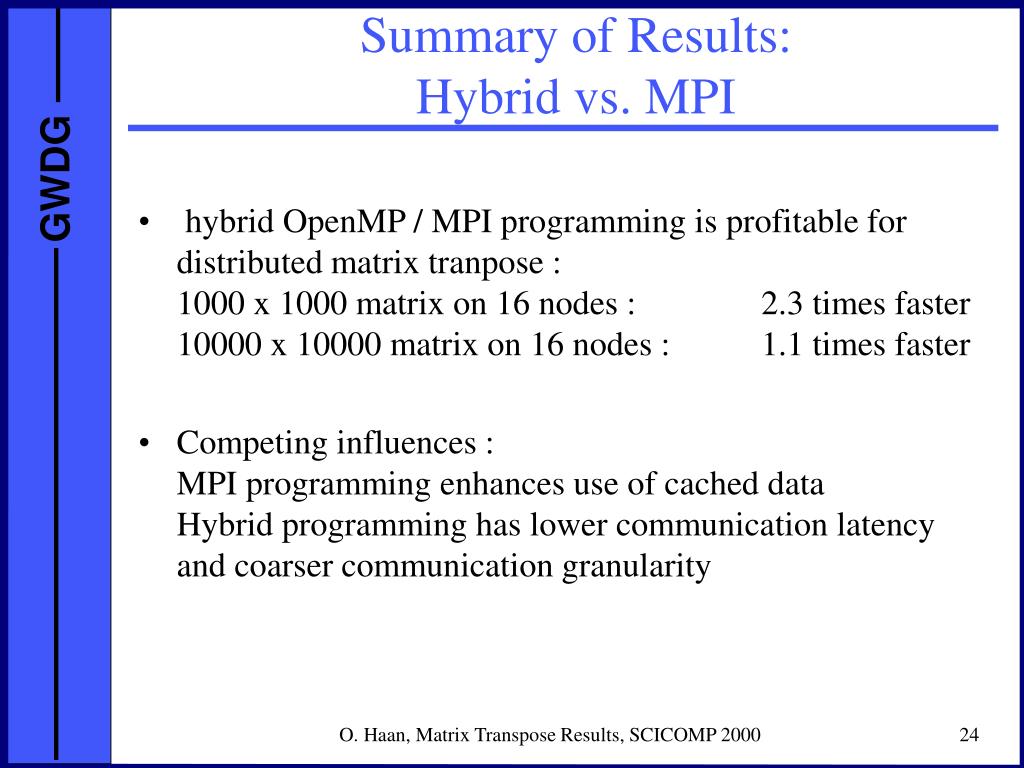

Summary of Results: Hybrid vs. MPI
  • hybrid OpenMP / MPI programming is profitable for distributed matrix tranpose :1000 x 1000 matrix on 16 nodes : 2.3 times faster10000 x 10000 matrix on 16 nodes : 1.1 times faster
  • Competing influences :MPI programming enhances use of cached dataHybrid programming has lower communication latency and coarser communication granularity

O. Haan, Matrix Transpose Results, SCICOMP 2000

summary of results use of transpose in fft

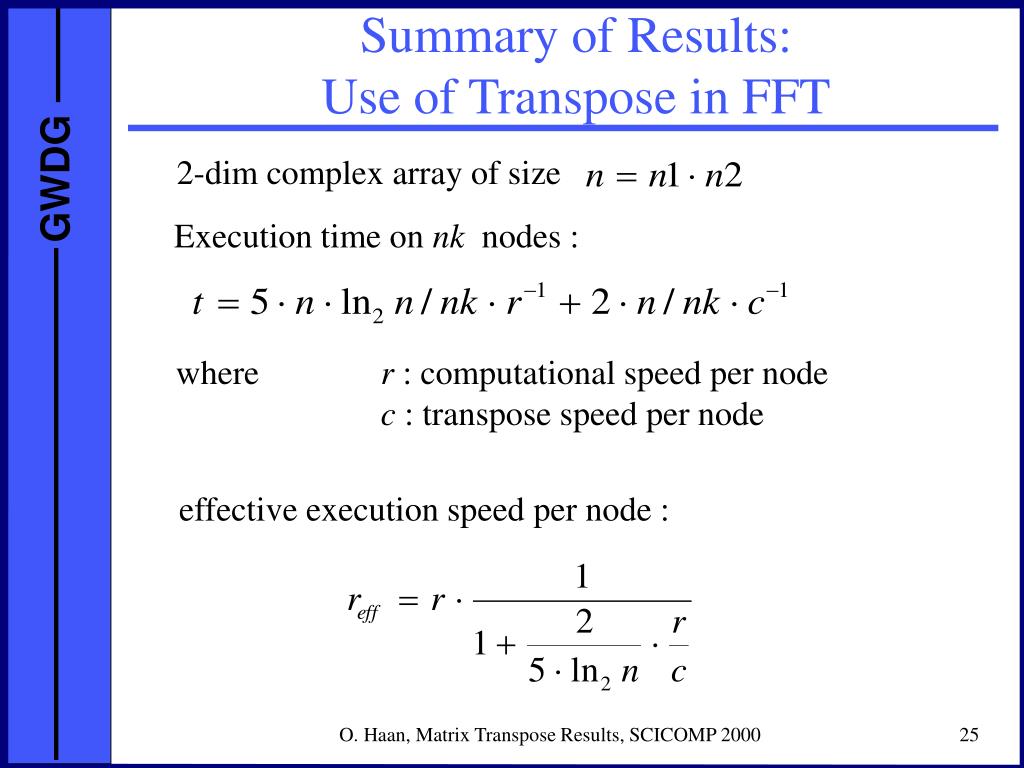

Summary of Results: Use of Transpose in FFT

2-dim complex array of size

Execution time on nk nodes :

where r : computational speed per nodec : transpose speed per node

effective execution speed per node :

O. Haan, Matrix Transpose Results, SCICOMP 2000

summary of results use of transpose in fft example sp

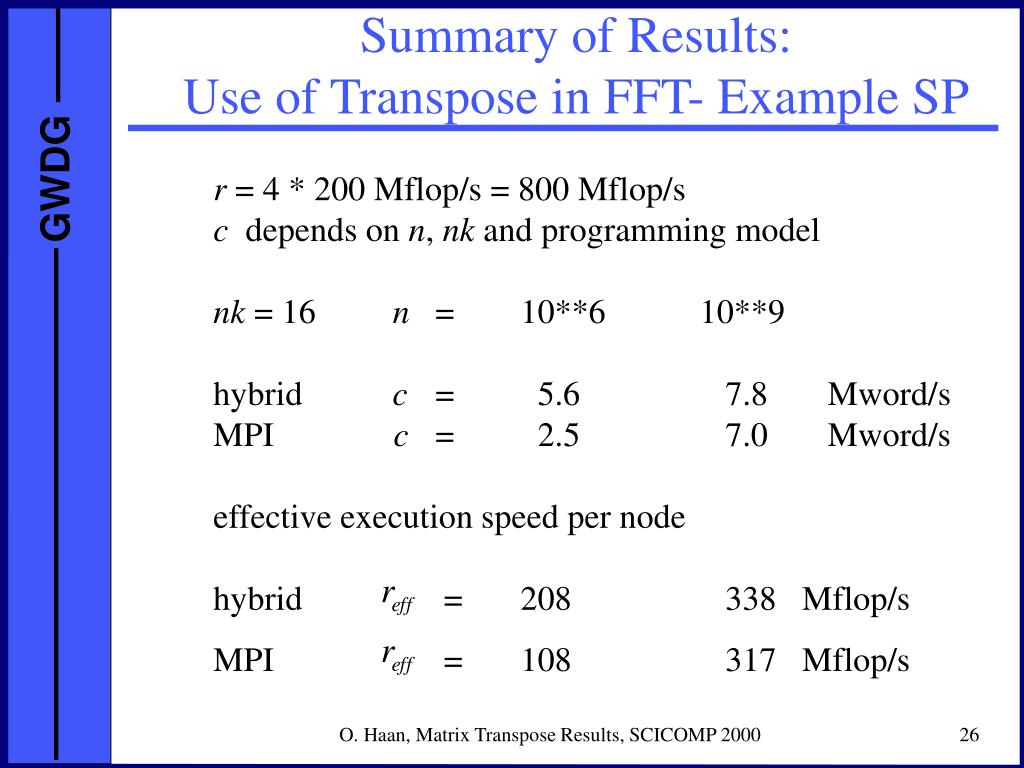

Summary of Results: Use of Transpose in FFT- Example SP

r = 4 * 200 Mflop/s = 800 Mflop/sc depends on n, nk and programming model

nk = 16 n = 10**6 10**9

hybrid c = 5.6 7.8 Mword/sMPI c = 2.5 7.0 Mword/s

effective execution speed per node

hybrid = 208 338 Mflop/s

MPI = 108 317 Mflop/s

O. Haan, Matrix Transpose Results, SCICOMP 2000
