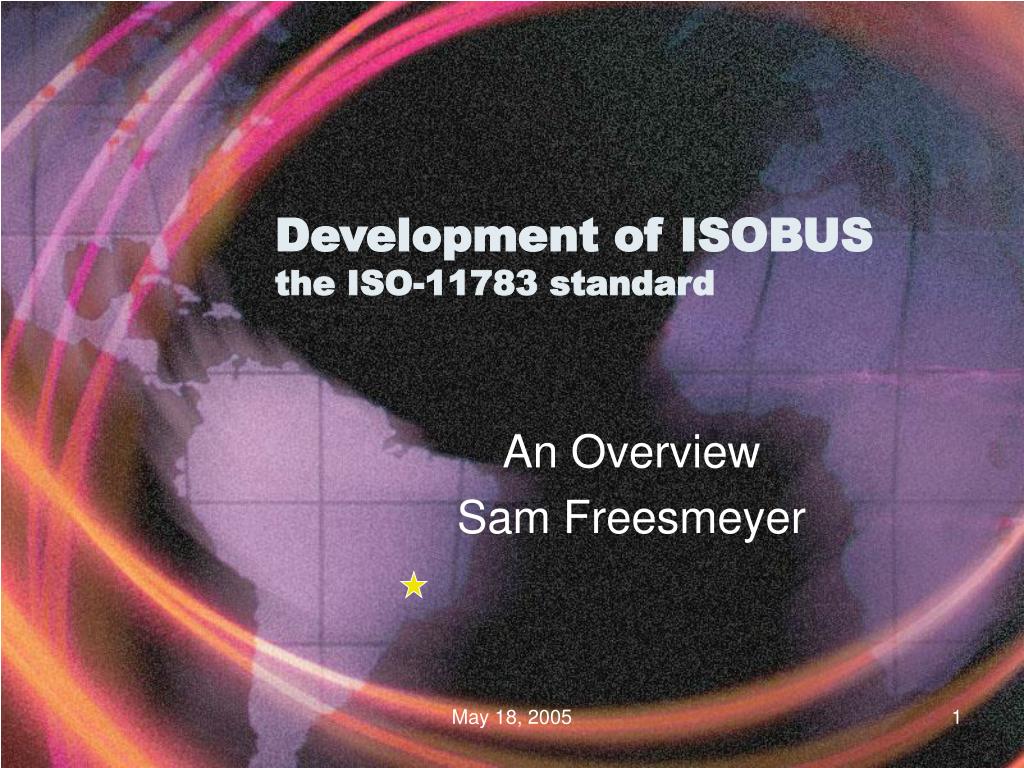

  1. Development of ISOBUS the ISO-11783 standard An Overview Sam Freesmeyer May 18, 2005

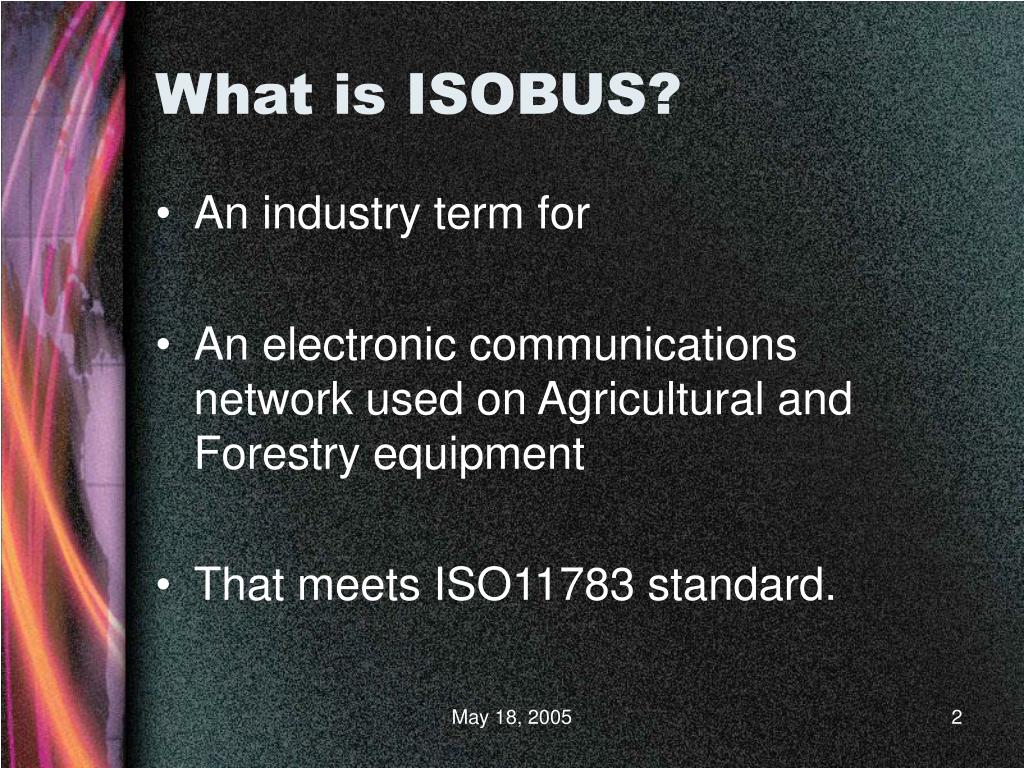

  2. What is ISOBUS? • An industry term for • An electronic communications network used on Agricultural and Forestry equipment • That meets ISO11783 standard. May 18, 2005

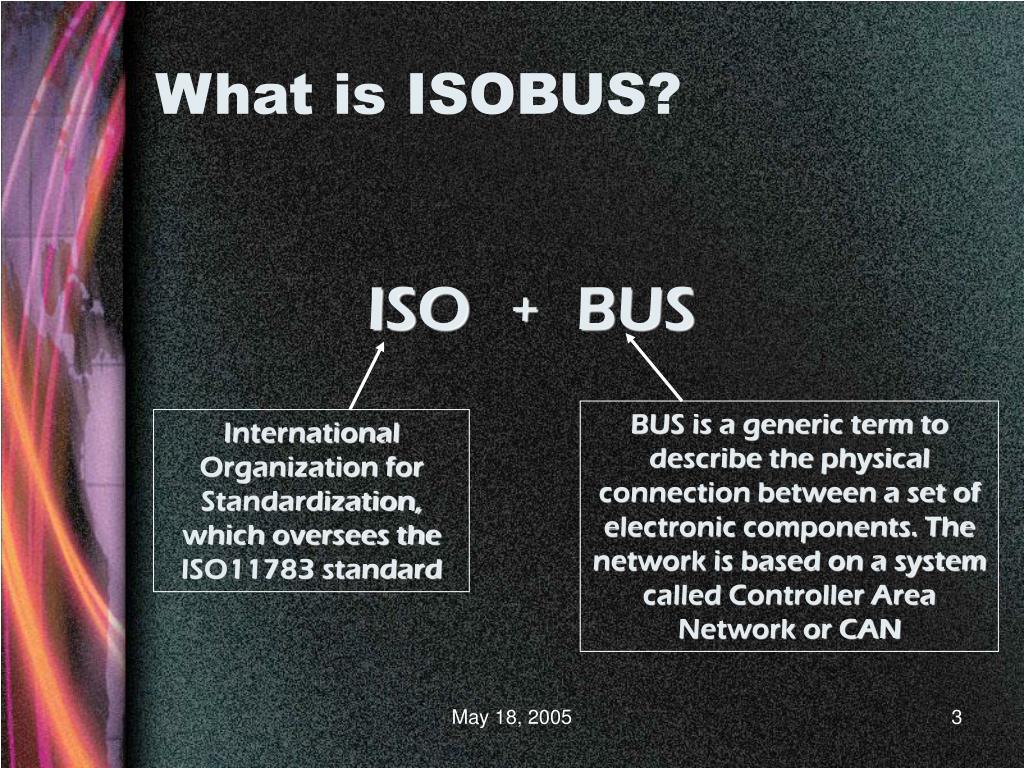

  3. International Organization for Standardization, which oversees the ISO11783 standard BUS is a generic term to describe the physical connection between a set of electronic components. The network is based on a system called Controller Area Network or CAN What is ISOBUS? ISO BUS + May 18, 2005

  4. Interconnectivity between different manufacturers So that you can go from this . . . To This To This To This To This Without swapping out harnesses and monitors May 18, 2005

  5. Farm Mgmt Info System Task Controller GPS Receiver What makes up an ISOBUS System? Implement Bus Virtual Terminal Tractor ECU Implement Controllers Breakaway Connector Tractor Bus May 18, 2005

  6. History of ISO-11783 • 1980’s – The need is recognized • LBS Standard developed in Germany • ASAE Investigating CAN Standards in the USA • 1990’s – Standardization begins • ISO TC23 / SC19 Ag Electronics formed • LAV in Germany presented DIN 9684 (LBS) • Con Ag Multiplexing Task Force in US, promoted J1939 • February 1991, WG1 was formed and began to work on the new communications protocol… ISO-11783 May 18, 2005

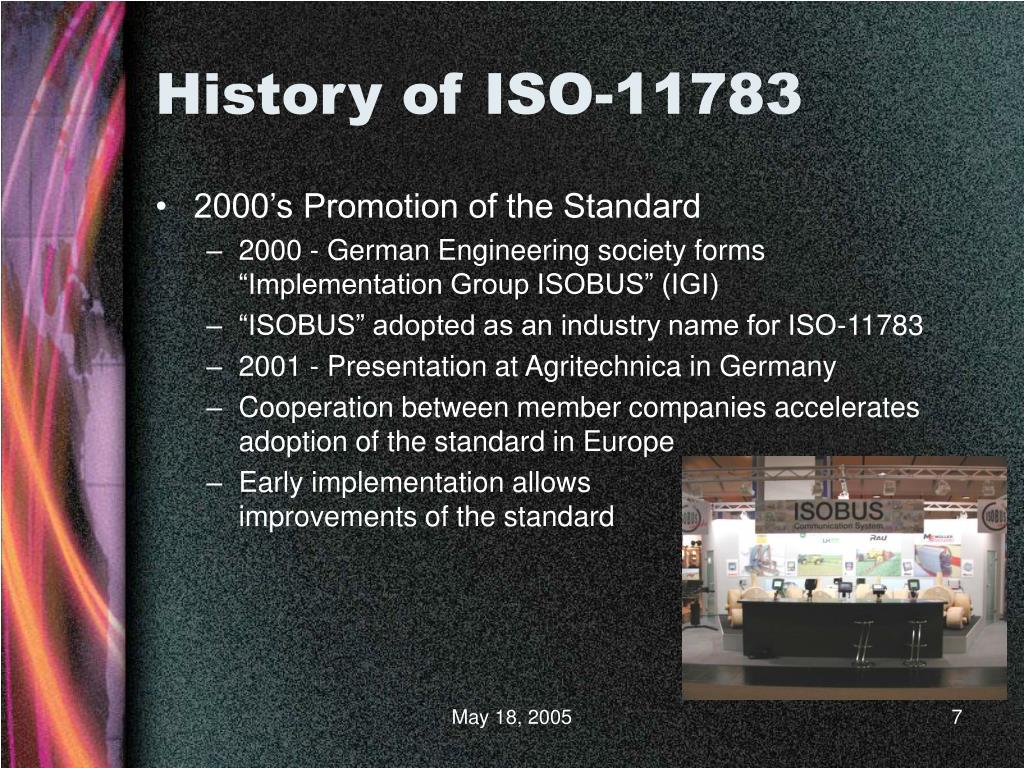

  7. History of ISO-11783 • 2000’s Promotion of the Standard • 2000 - German Engineering society forms “Implementation Group ISOBUS” (IGI) • “ISOBUS” adopted as an industry name for ISO-11783 • 2001 - Presentation at Agritechnica in Germany • Cooperation between member companies accelerates adoption of the standard in Europe • Early implementation allowsimprovements of the standard May 18, 2005

  8. History of ISO-11783 • 2000’s Promotion of the Standard • 2002 - Promotion in North America launched at AMC • Engineers from several companies form “North American ISOBUS Implementation Task Force” (NAIITF) • NAIITF and IGI formalize cooperation May 18, 2005

  9. History of ISO-11783 • 2003-2005 Interoperability • Plugfests pave the way for interoperability • Manufacturers begin to introduce ISOBUS May 18, 2005

  10. Your Logo Here May 6, 7, & 8, 2003 Cedar Rapids, Iowa Agricultural Machinery Conference May 18, 2005

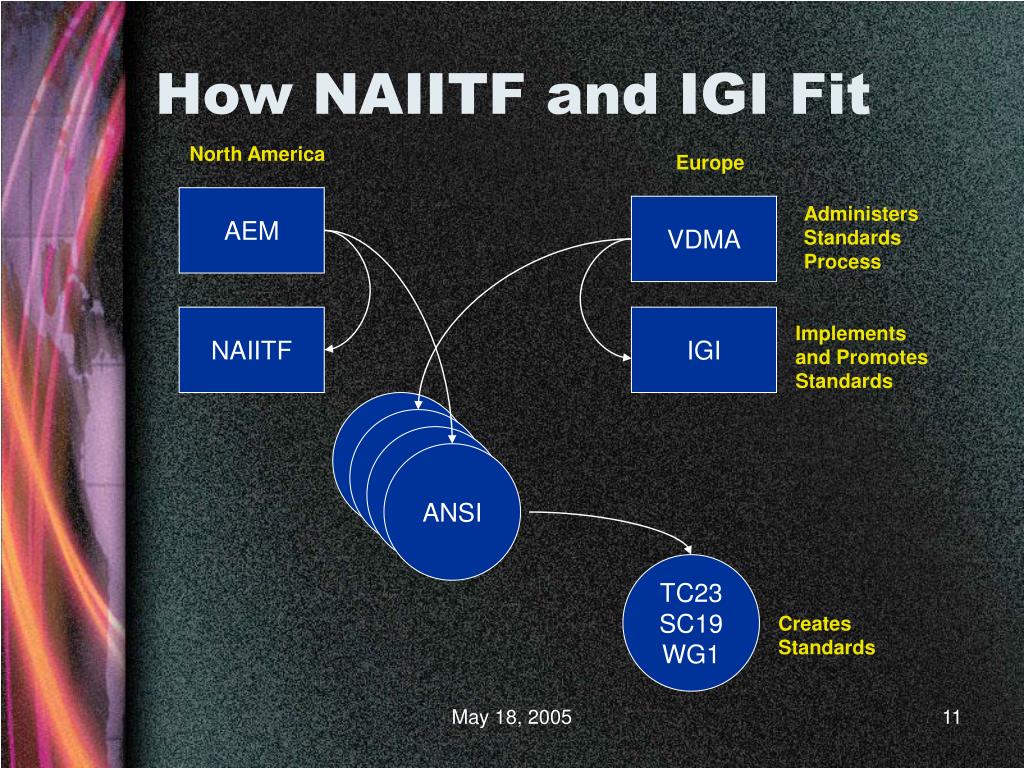

  11. How NAIITF and IGI Fit North America Europe AEM VDMA Administers Standards Process NAIITF IGI Implements and Promotes Standards ANSI ANSI ANSI ANSI TC23 SC19 WG1 Creates Standards May 18, 2005

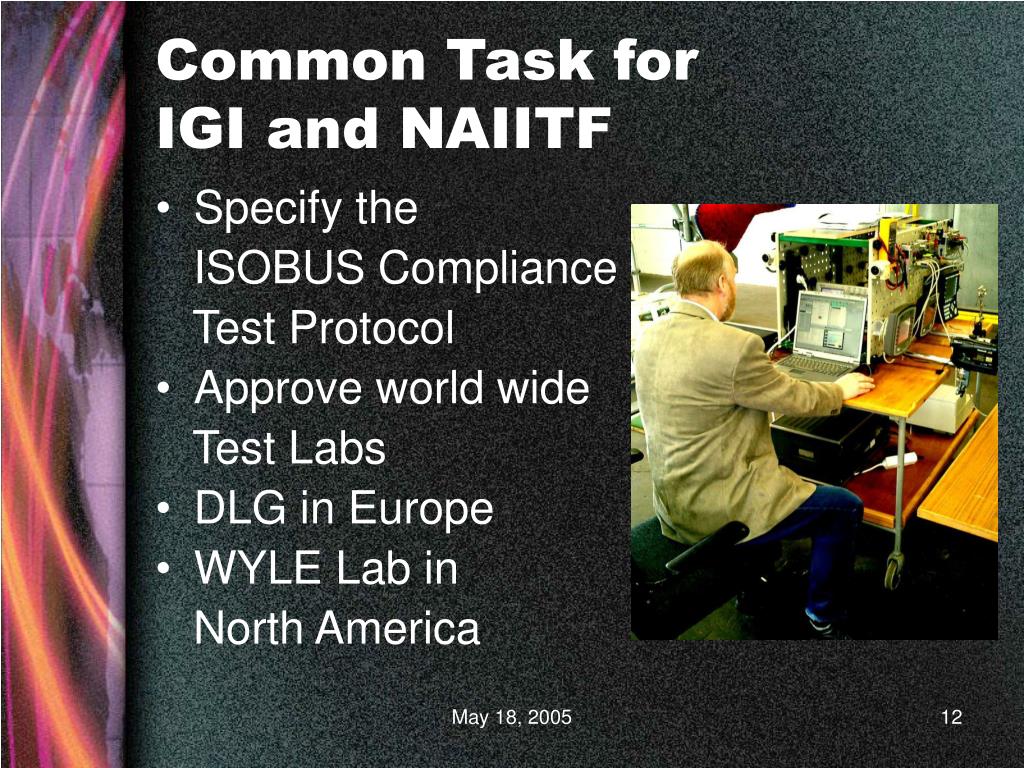

  12. Common Task for IGI and NAIITF • Specify the ISOBUS Compliance Test Protocol • Approve world wide Test Labs • DLG in Europe • WYLE Lab in North America May 18, 2005

  13. Implementation Group ISOBUS(IGI) North American ISOBUS Implementation Task Force (NAIITF) May 18, 2005

  14. Name and Organization • Name: Implementation Group ISOBUS (IGI) • Focused on Western European Market, but open to all • Organization Type: Working Group under VDMA • German VDMA provides administrative resources, website, and organizational oversight • VDMA is the German Engineering Federation and official secretariat for ISO/TC23/SC19 • Name: North American ISOBUS Implementation Task Force (NAIITF) • Focused on North American applications, but open to all • Organization Type: a Task Force under AEM • AEM provides administrative resources, website, and organizational oversight • AEM is an International Association of Equipment Manufacturers May 18, 2005

  15. Role and Responsibility(IGI in Western Europe, and NAIITF in North America) • Interoperability activities • Coordinate ISOBUS implementation for multi-brand markets • Plugfest planning • Tools for development support • Promoting Awareness • Tradeshows • Promotion and Advertising • Certification and Voluntary Compliance • Test Lab and protocol development • Certification and recognition May 18, 2005

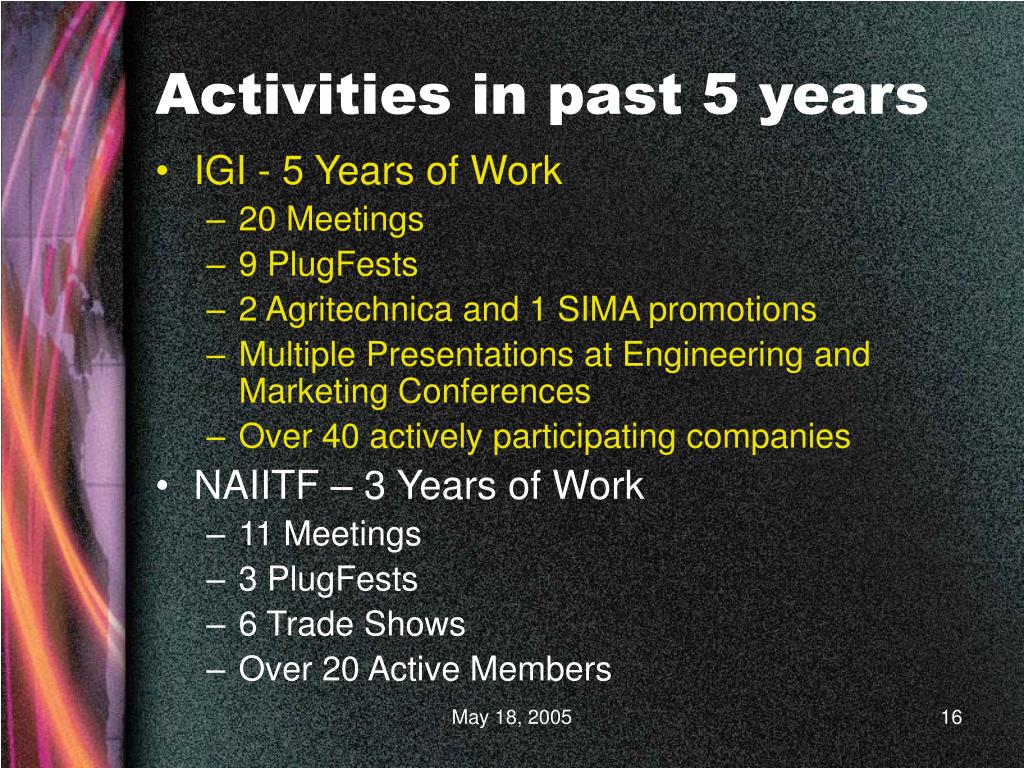

  16. Activities in past 5 years • IGI - 5 Years of Work • 20 Meetings • 9 PlugFests • 2 Agritechnica and 1 SIMA promotions • Multiple Presentations at Engineering and Marketing Conferences • Over 40 actively participating companies • NAIITF – 3 Years of Work • 11 Meetings • 3 PlugFests • 6 Trade Shows • Over 20 Active Members May 18, 2005

  17. May 18, 2005

  18. May 18, 2005

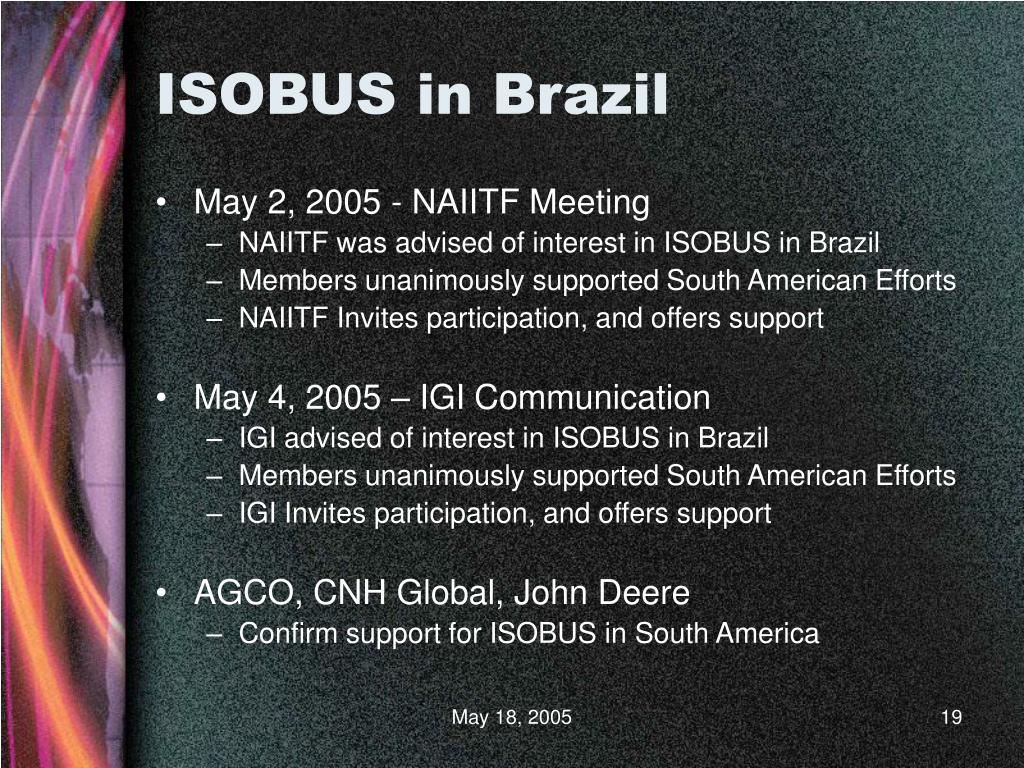

  19. ISOBUS in Brazil • May 2, 2005 - NAIITF Meeting • NAIITF was advised of interest in ISOBUS in Brazil • Members unanimously supported South American Efforts • NAIITF Invites participation, and offers support • May 4, 2005 – IGI Communication • IGI advised of interest in ISOBUS in Brazil • Members unanimously supported South American Efforts • IGI Invites participation, and offers support • AGCO, CNH Global, John Deere • Confirm support for ISOBUS in South America May 18, 2005

  20. Força Tarefa ISOBUS Brasil • Divulgar a ISOBUS e seus benefícios • promover a sinergia e orientar os grupos interessados na sua adoção. • compartilhar as experiências na implementação dos protocolos nos diversos níveis • Promover e certificar a compatibilidade • Criar norma ABNT-ISO

  21. Ações da Força tarefa ISOBUS Brasil • Apresentação e lançamento: Agrishow, Ribeirão Preto, 18.05.05 • 100+ participantes (indústria, academia, usuários) • J.P. Molin (ESALQ-USP) • R.Y. Inamasu (Embrapa) • C.E. Cugnasca (Poli-USP) • A.M. Saraiva (Poli-USP) • Sam Friesmeyer (NAIITF - EUA) • ABNT • ABIMAQ

  22. Ações da Força tarefa ISOBUS Brasil • Reunião: CONBEA, Canoas, RS, em julho/05. • Criação da Comissão de Estudos na ABNT – CB-04. • CE-04:015.05 • Objetivo: criar norma ABNT-ISO • 1ª. Reunião 15/08/05 - Abimaq-(SP) • 2ª. Reunião 12/09/05 - Abimaq-(SP) • 3ª. Reunião 29/09/05 - Londrina

  23. Força Tarefa ISOBUS Brasil Ações futuras • Normalização dentro da ABNT • Eventos para divulgação • Plug fests • Laboratórios de teste

  24. Força Tarefa ISOBUS Brasil Necessidades • Recursos para cobrir os custos • tradução da norma, • realização dos eventos e reuniões. • Recursos humanos para trabalhar na norma

  25. Força Tarefa ISOBUS Brasil Vantagens • Domínio dos conceitos e fundamentos da norma • Acesso direto e antecipado à norma em projeto de criação no Brasil, a partir da norma internacional. • Possibilidade de discutir com especialistas e colegas os aspectos da norma. • Antecipação e competitividade • Recebimento sem custo de uma cópia legal da norma, quando publicada.
