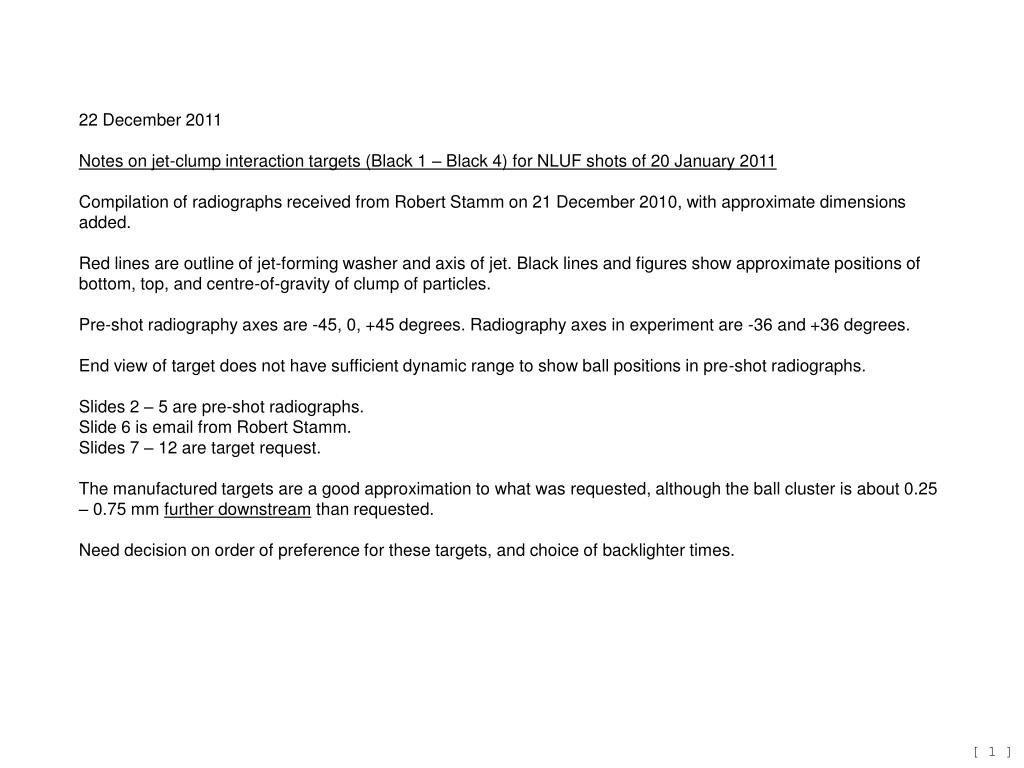

  1. 22 December 2011 Notes on jet-clump interaction targets (Black 1 – Black 4) for NLUF shots of 20 January 2011 Compilation of radiographs received from Robert Stamm on 21 December 2010, with approximate dimensions added. Red lines are outline of jet-forming washer and axis of jet. Black lines and figures show approximate positions of bottom, top, and centre-of-gravity of clump of particles. Pre-shot radiography axes are -45, 0, +45 degrees. Radiography axes in experiment are -36 and +36 degrees. End view of target does not have sufficient dynamic range to show ball positions in pre-shot radiographs. Slides 2 – 5 are pre-shot radiographs. Slide 6 is email from Robert Stamm. Slides 7 – 12 are target request. The manufactured targets are a good approximation to what was requested, although the ball cluster is about 0.25 – 0.75 mm further downstream than requested. Need decision on order of preference for these targets, and choice of backlighter times.

  2. 0.3 0.3 2.5 1.2 Black_1_RF101018-3(C-2) 2X -45Deg.jpg Black_1_RF101018-3(C-2) 2X 0Deg.jpg Black_1_RF101018-3(C-2) 2X 45Deg.jpg Black_1_RF101018-3(C-2) 4X Hohlraum.jpg Black_1_RF101018-3(C-2) 4X Sphere.jpg

  3. 0.4 1.6 1.1 Black_2_RF101022-5(C-4) 2X -45Deg.jpg Black_2_RF101022-5(C-4) 2X 0Deg.jpg Black_2_RF101022-5(C-4) 2X 45Deg.jpg Black_2_RF101022-5(C-4) 4X Hohlraum.jpg Black_2_RF101022-5(C-4) 4X Sphere.jpg

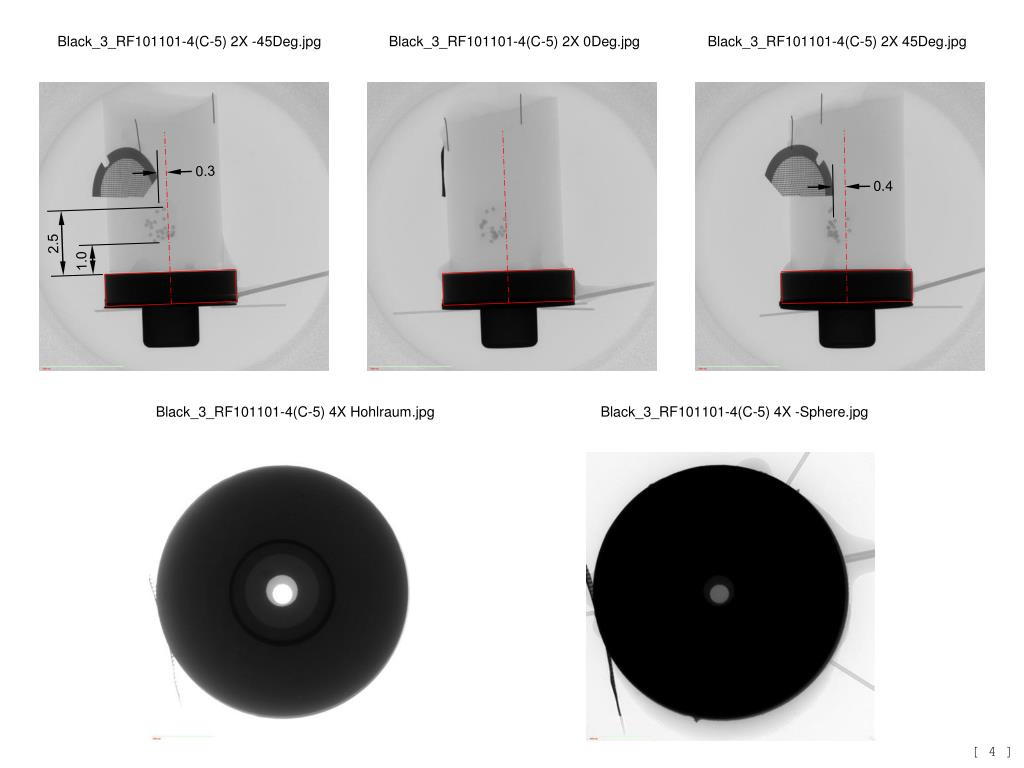

  4. 0.3 0.4 2.5 1.0 Black_3_RF101101-4(C-5) 2X -45Deg.jpg Black_3_RF101101-4(C-5) 2X 0Deg.jpg Black_3_RF101101-4(C-5) 2X 45Deg.jpg Black_3_RF101101-4(C-5) 4X Hohlraum.jpg Black_3_RF101101-4(C-5) 4X -Sphere.jpg

  5. 0.3 0.2 2.5 1.0 Black_4_RF101018-4(C-3) 2X -45Deg.jpg Black_4_RF101018-4(C-3) 2X 0Deg.jpg Black_4_RF101018-4(C-3) 2X 45Deg.jpg Black_4_RF101018-4(C-3) 4X Hohlraum.jpg Black_4_RF101018-4(C-3) 4X Sphere.jpg Black_4_RF101018-4(C-3) 4X -Sphere85keV.jpg

  6. Email from Robert Stamm, 21 December 2010 Stamm, Robert M [rmstamm@sandia.gov] Hi John, Attached are the radiographs of the “Type A” 300 um offset foam assemblies (Jet and multi-ball interaction : OMG-ASM-0164 (nominally 4 targets with approx 25 balls, set 300 um off center) : Use components C-2, C-3, C-4, C-5. It was difficult to penetrate through the titanium and gold ablators to see the offset balls in the foam. Let me know if these are acceptable. If not, we can try a much longer exposure when we come back the week of 1/3/11 after the holiday shutdown and see if that will work. I will be out of office 12/22 through 1/3/11. We will send the rest with the QA report to you by ~ 1/12/11. Thanks, Robert Stamm Schafer Corporation at Sandia National Labs 1515 Eubank SE RM.1241 BLDG.962 MS1196 Albuquerque, NM 87123 Desk 505 284 8385 Pager 505 951 5605 FAX 505 844 0573 http://www.schafercorp.com/Company/sl/icf.htm

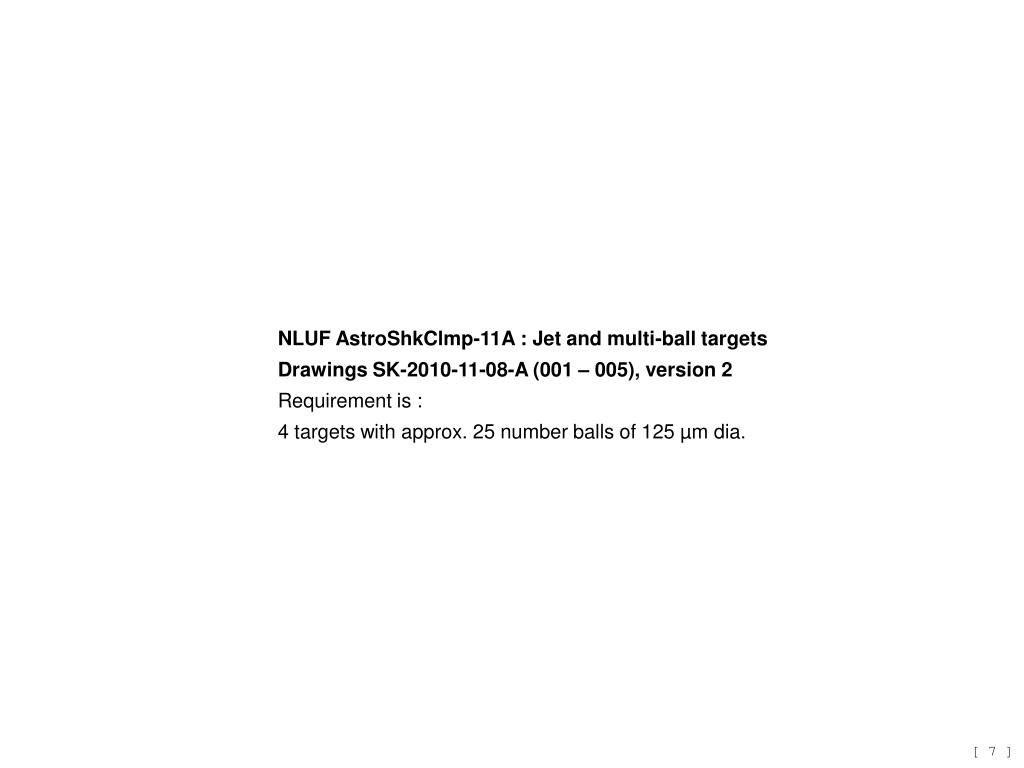

  7. NLUF AstroShkClmp-11A : Jet and multi-ball targets Drawings SK-2010-11-08-A (001 – 005), version 2 Requirement is : 4 targets with approx. 25 number balls of 125 µm dia.

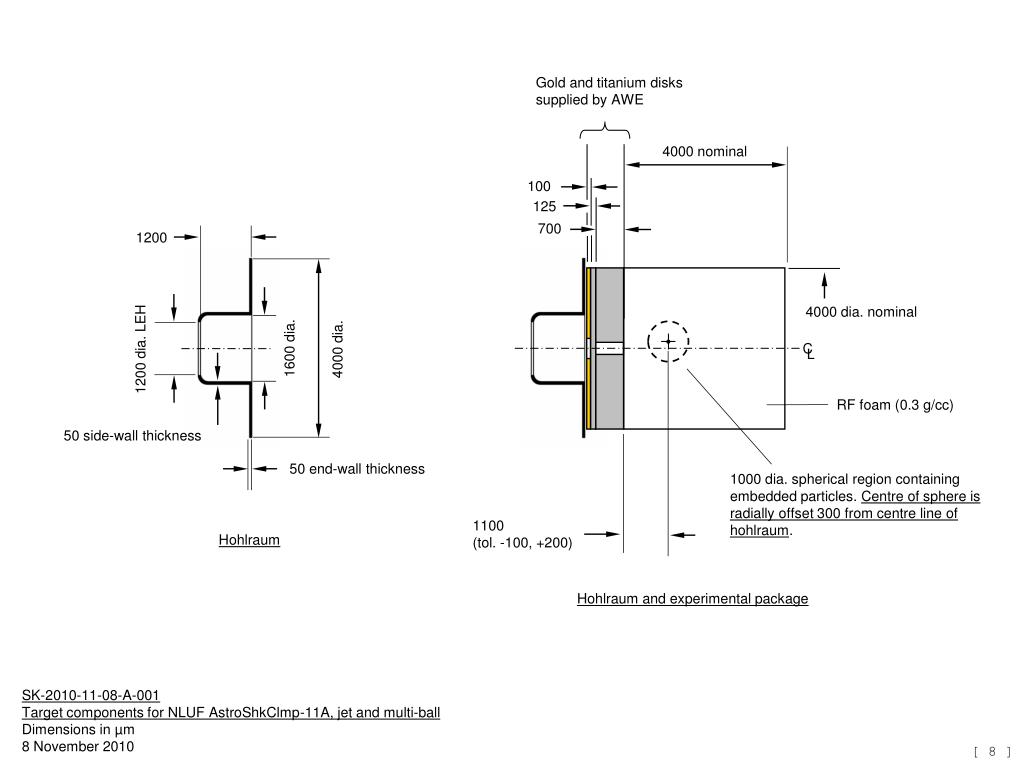

  8. C L Gold and titanium disks supplied by AWE 4000 nominal 100 125 700 1200 4000 dia. nominal 1600 dia. 1200 dia. LEH 4000 dia. RF foam (0.3 g/cc) 50 side-wall thickness 50 end-wall thickness 1000 dia. spherical region containing embedded particles. Centre of sphere is radially offset 300 from centre line of hohlraum. 1100 (tol. -100, +200) Hohlraum Hohlraum and experimental package SK-2010-11-08-A-001 Target components for NLUF AstroShkClmp-11A, jet and multi-ball Dimensions in µm 8 November 2010

  9. H2 A 10.8° Mounting stalk Alignment fibres, 3 positions as shown. Confirm fibres are visible in XTVS and YTVS views (see SK-2010-11-08-A-005) 45.0° 45.0° B P6 P7 1.5 mm (3 positions, as shown) Fiducial grid A View on B Section AA SK-2010-11-08-A-002-ver2 Target components for NLUF AstroShkClmp-11A, jet and multi-ball : alignment fibre positions Third angle projection Dimensions in µm 9 November 2010

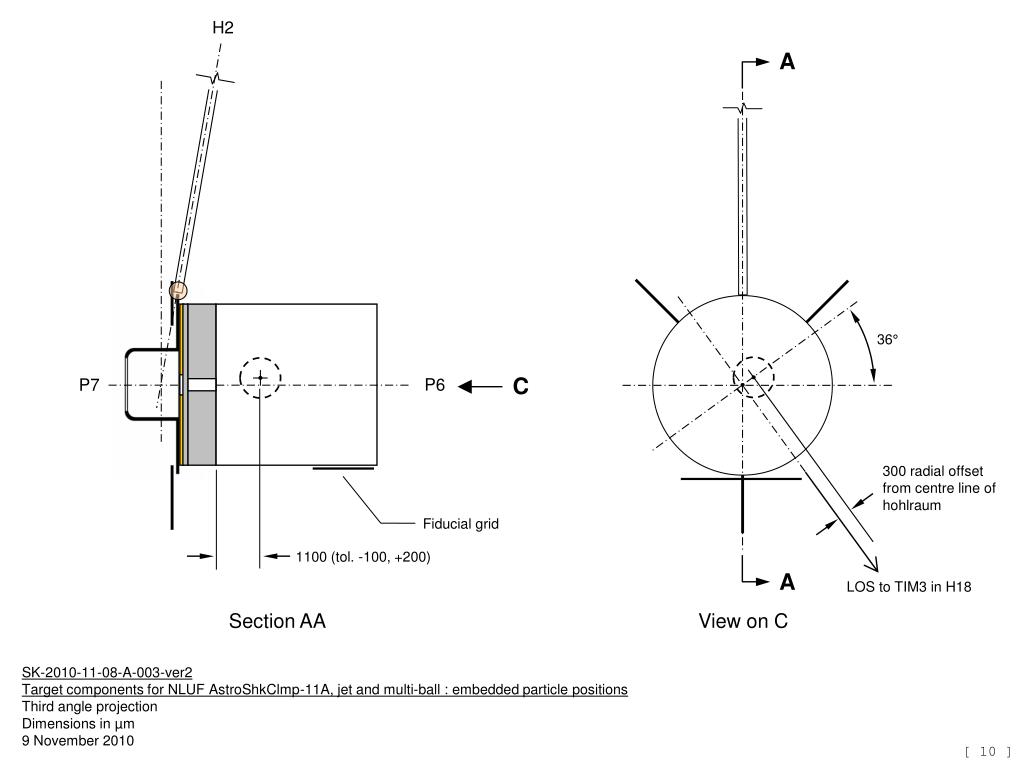

  10. H2 A 36° C P6 P7 300 radial offset from centre line of hohlraum Fiducial grid 1100 (tol. -100, +200) A LOS to TIM3 in H18 Section AA View on C SK-2010-11-08-A-003-ver2 Target components for NLUF AstroShkClmp-11A, jet and multi-ball : embedded particle positions Third angle projection Dimensions in µm 9 November 2010

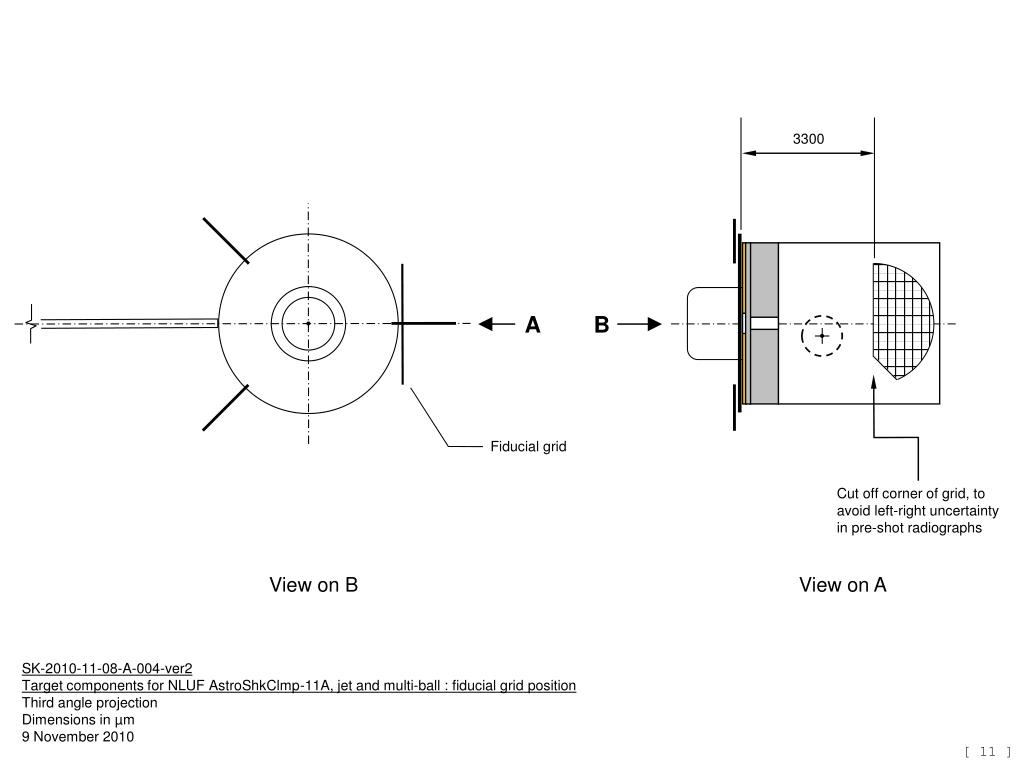

  11. 3300 A B Fiducial grid Cut off corner of grid, to avoid left-right uncertainty in pre-shot radiographs View on B View on A SK-2010-11-08-A-004-ver2 Target components for NLUF AstroShkClmp-11A, jet and multi-ball : fiducial grid position Third angle projection Dimensions in µm 9 November 2010

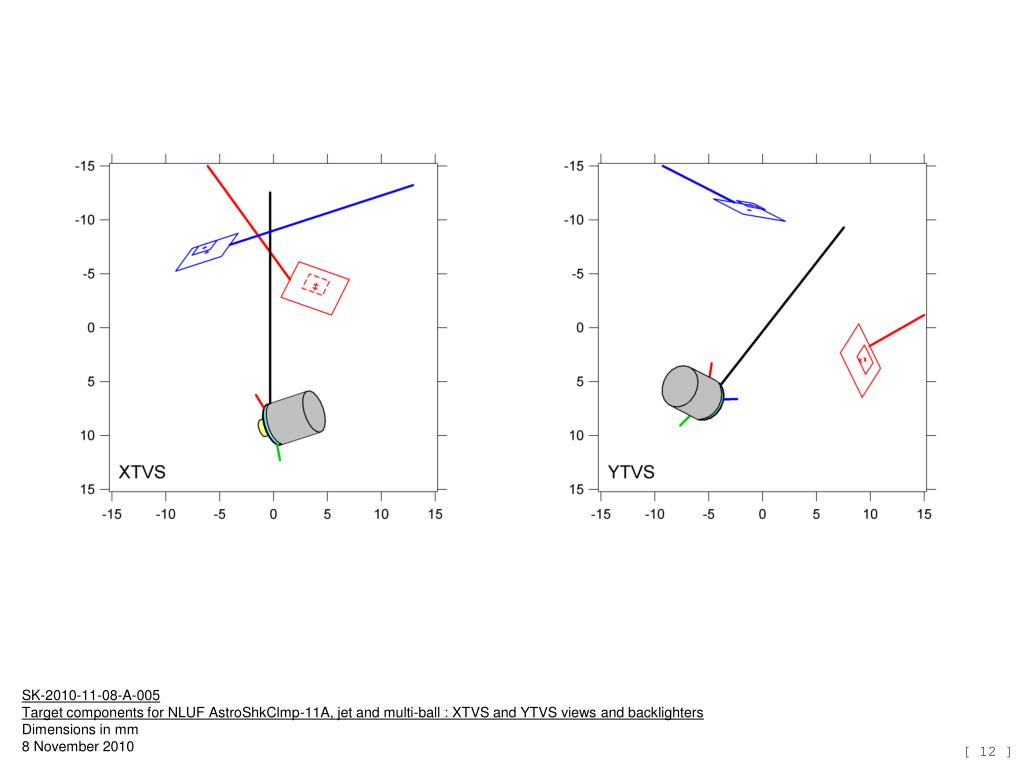

  12. SK-2010-11-08-A-005 Target components for NLUF AstroShkClmp-11A, jet and multi-ball : XTVS and YTVS views and backlighters Dimensions in mm 8 November 2010
