Earthwork

Earthwork

Cross Section and Borrow Pit Methods


Earthwork

  • This lecture covers:

    • Readings: 26-1 to 26-6, 26-8 to 26-10.

    • Figures: 26-1 to 26-4, 26-6, and 26-7

    • Plate B-5 page 893, and B-2 page 890

    • Examples:26-1 and 26-3


Earthwork

Volumes

  • Usage:

    • Quantities of earthwork and concrete

    • Capacities of some structures: tanks,..

    • Quantities of water discharged by streams per unit time

  • Units:

    • 1 yd3 = 27ft3

    • 1 m3 = 35.315ft3

    • Acre-foot: volume of an acre of 1 foot depth


The cross section method

The Cross Section Method

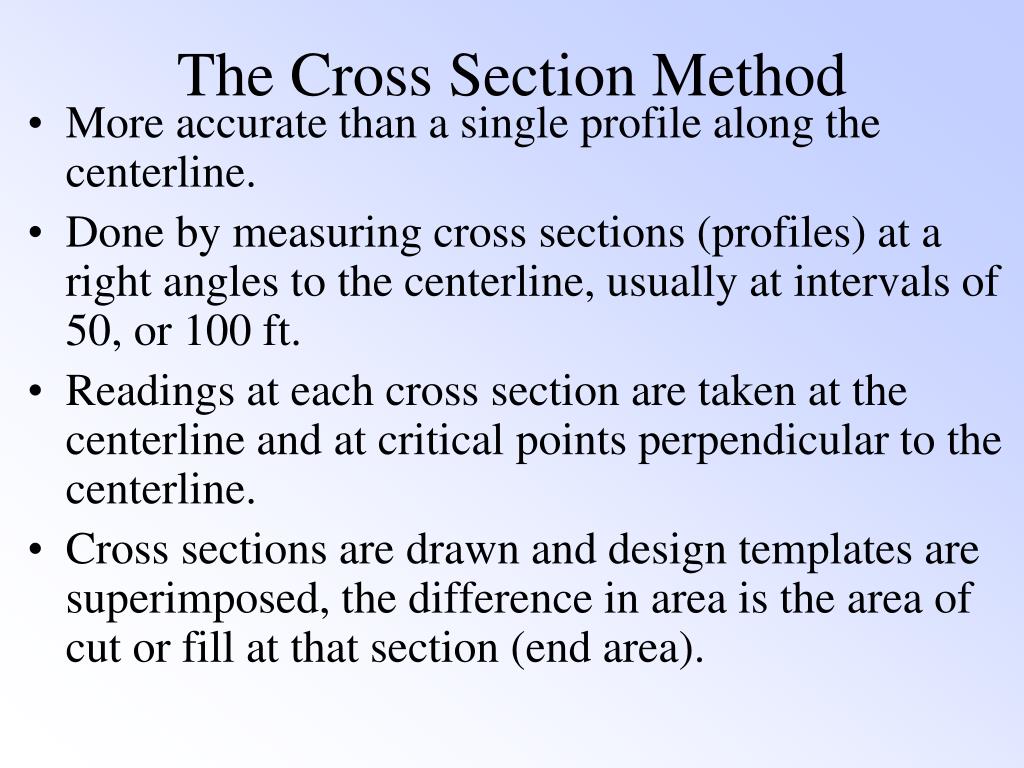

  • More accurate than a single profile along the centerline.

  • Done by measuring cross sections (profiles) at a right angles to the centerline, usually at intervals of 50, or 100 ft.

  • Readings at each cross section are taken at the centerline and at critical points perpendicular to the centerline.

  • Cross sections are drawn and design templates are superimposed, the difference in area is the area of cut or fill at that section (end area).


Earthwork

  • End areas can be cut, fill, or transition (both).

  • Use the areas to compute volumes, knowing the distance between the sections.

  • The whole work can be done with photogrammetry and a computer software.


Data recording

Data Recording

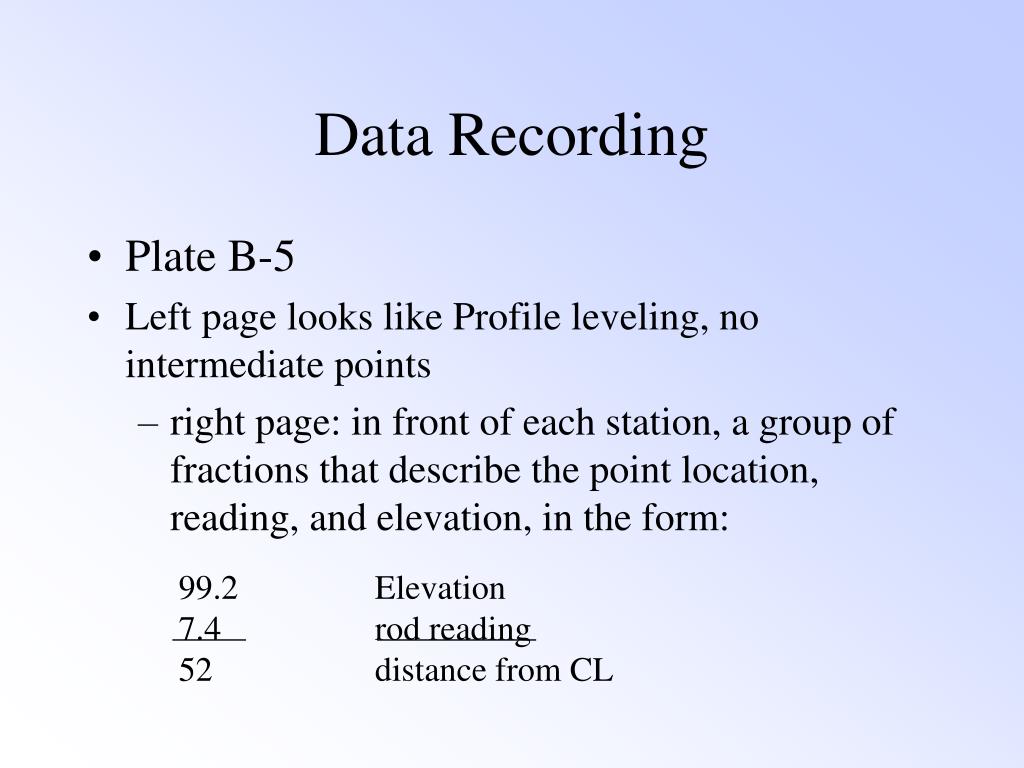

  • Plate B-5

  • Left page looks like Profile leveling, no intermediate points

    • right page: in front of each station, a group of fractions that describe the point location, reading, and elevation, in the form:

99.2

7.4

52

Elevation

rod reading

distance from CL


End area computation

End Area Computation

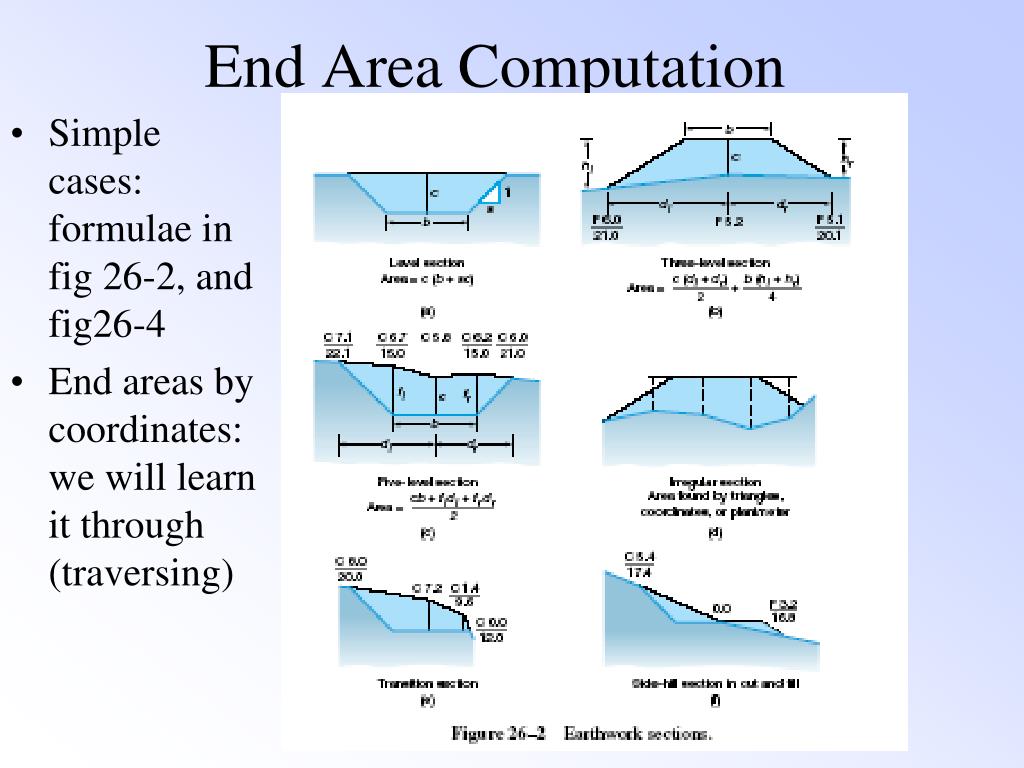

  • Simple cases: formulae in fig 26-2, and fig26-4

  • End areas by coordinates: we will learn it through (traversing)


End area computation1

End Area Computation

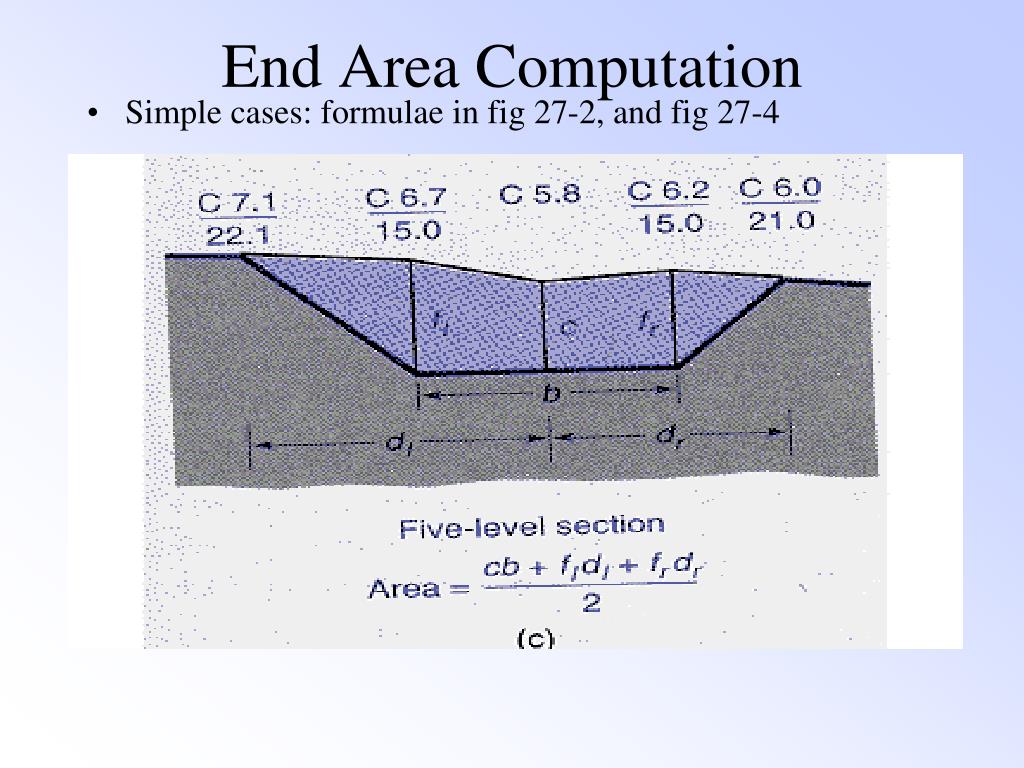

  • Simple cases: formulae in fig 27-2, and fig 27-4


Earthwork

compute individual areas and add them up. After computing the

elevation at critical points, form a table:(mistakes!)

station H L C D E R G

24+00 0 C12.5 C15.8 C18.0 C10.1 C12.2 0

15 1533.8 20 0 33.3 15

Compute the areas and add them up.


Volume computation

Volume Computation

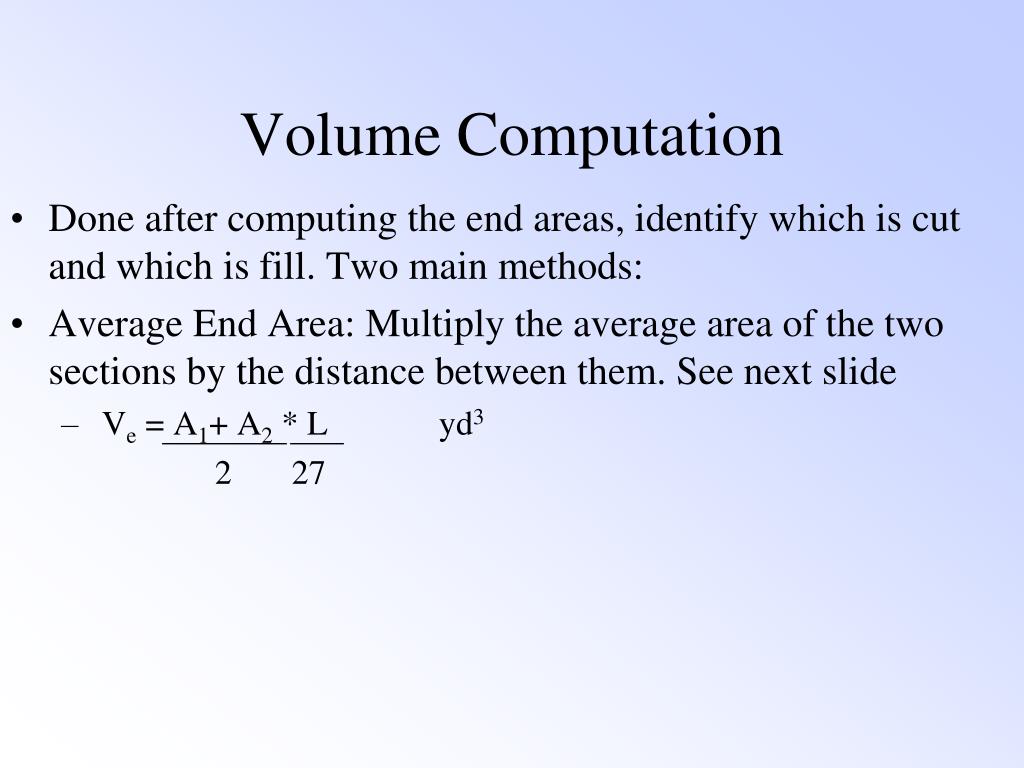

  • Done after computing the end areas, identify which is cut and which is fill. Two main methods:

  • Average End Area: Multiply the average area of the two sections by the distance between them. See next slide

    • Ve = A1+ A2 * L yd3

      2 27


Earthwork

  • Prismoidal Formula

  • What is a prismoid? A solid with parallel ends joined by a plane or continuously wrapped surfaces

  • Fits most earthwork problems

  • VP = L(A1+4AM+A2)yd3

  • 6*27

  • Where AM is the area of computed section midway between stations.

  • Prismodial Formula is more accurate, The difference is called CP: Prismoidal correction


Volume computation1

Volume Computation

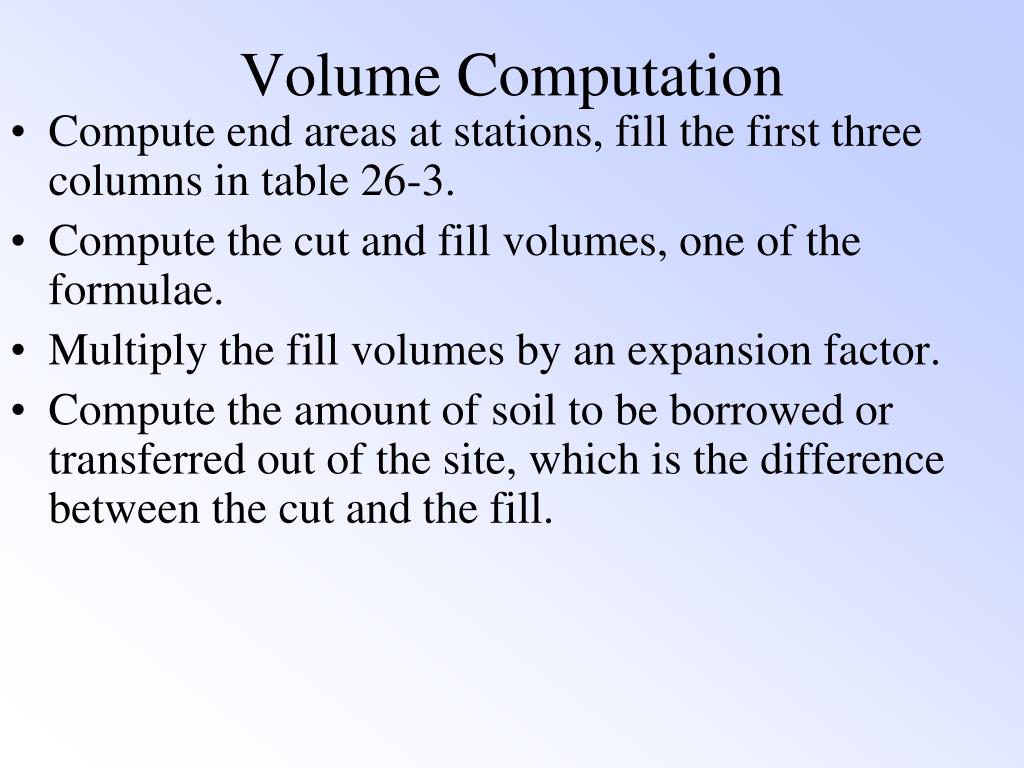

  • Compute end areas at stations, fill the first three columns in table 26-3.

  • Compute the cut and fill volumes, one of the formulae.

  • Multiply the fill volumes by an expansion factor.

  • Compute the amount of soil to be borrowed or transferred out of the site, which is the difference between the cut and the fill.


Borrow pit method

Borrow-Pit Method

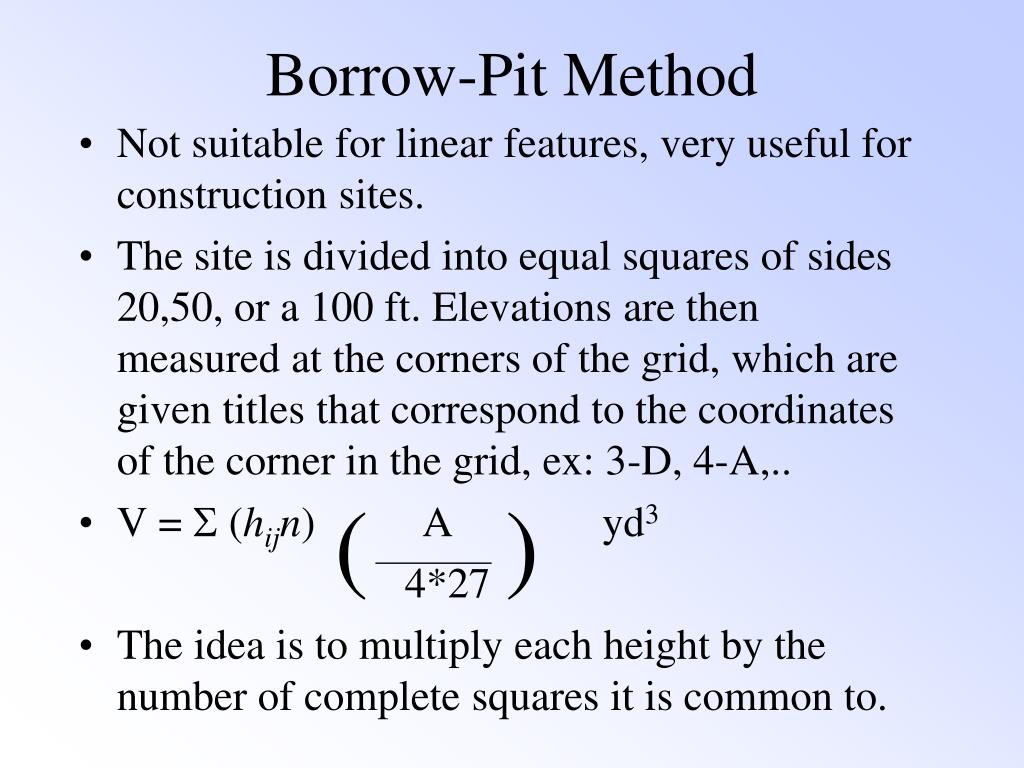

  • Not suitable for linear features, very useful for construction sites.

  • The site is divided into equal squares of sides 20,50, or a 100 ft. Elevations are then measured at the corners of the grid, which are given titles that correspond to the coordinates of the corner in the grid, ex: 3-D, 4-A,..

  • V =  (hijn) A yd3

    4*27

  • The idea is to multiply each height by the number of complete squares it is common to.

(

)


Plate b 2

Plate B.2


Earthwork

The volume of any square, or part of a square is equal to the average

height(elevation difference) at the corners, times the area.

To compute the volume:

1- draw a line between the cut and the fill areas

2- compute the total volume

of all the complete cut squares,

do the same for the fill, use

the previous formula

3- Compute the

incomplete squares

separately and add them to the

squares.

4- Compute the difference

between the cut and the fill.,

pay attention to the expansion

factor.


Earthwork

Site 1

Site 3

Site 2


Project 1 instructions

PROJECT 1Instructions


Earthwork

36


Earthwork

Assumed 36 for piles

200 ft


Earthwork

20


Earthwork

C

D

B

A
