  1. Don’t Forget the Memory… Dean Klein, VP Memory System Development Micron Technology, Inc.

  2. Memory is Everywhere

  3. One size DOES NOT fit all…

  4. Question: • How many different memories does your computer use? At least 5

  5. The Evolving Memory Hierarchy Level 1 Cache Level 3 Cache Level 2 Cache Main Memory Disk NAND Flash Boot ROM

  6. Question: • How many different memories does your cell phone use? At least 4

  7. The Cell Phone Memory Hierarchy Instruction Cache Data Cache PSRAM or LPDRAM uSD Card NAND Boot ROM MCP NAND Flash

  8. What is the Ideal Memory? • Fast – to keep pace with processors • Reliable – not susceptible to corruption • Low cost – pennies per mm2 • Small – helps with low cost, but also for new platforms • Embeddable – ability to be integrated with logic • Low power – for dense systems and un-tethered systems • Non-volatile – no power required to retain data

  9. Industry Reported Cell Sizes

  10. Benefit of Shrinking • The ability to fit more bits on a wafer, thereby reducing the cost of those bits. • The ability to add features to a product, thereby increasing performance. • The ability to lower the power of the device.

  11. DRAM Operation

  12. NAND Flash Memory • The “ideal” memory? • Non-volatile • Small cells – Under 6F2 • Low cost process • Scaleable? • Wear issues? • Slow writes • Ideal for some applications

  13. NAND Operation • Control Gate traps electrons injected by Fowler-Nordheim tunneling. • Voltages of up to 20V exist during cell programming. ControlGate Source Drain p-well N-well p-sub

  14. NAND Programming Operation ControlGate 20V • Control Gate traps electrons injected by Fowler-Nordheim tunneling. • Voltages of up to 20V exist during cell programming. Source Open Drain 0V p-well 0V 0V 0V N-well p-sub Cell is programmed to “0”

  15. NAND Storage Operation ControlGate • Control Gate traps electrons injected by Fowler-Nordheim tunneling. • Voltages of up to 20V exist during cell programming. Source Drain p-well N-well p-sub Cell retains its “0” state

  16. NAND Read Operation ControlGate 0V • Control Gate traps electrons injected by Fowler-Nordheim tunneling. • Voltages of up to 20V exist during cell programming. Source Reads 0V Drain 4.5V p-well 0V 0V 0V N-well p-sub Cell read in “0” state

  17. NAND Read Operation ControlGate 0V • Control Gate traps electrons injected by Fowler-Nordheim tunneling. • Voltages of up to 20V exist during cell programming. Source Reads >0V Drain 4.5V p-well 0V 0V 0V N-well p-sub Cell read in “1” state

  18. Questions: • In 1982, as the personal computer became successful, how many memory bits were there in a standard memory chip? • In 2010 how many memory bits are in a leading edge standard NAND Flash memory chip? 64K bits 64 Billion bits

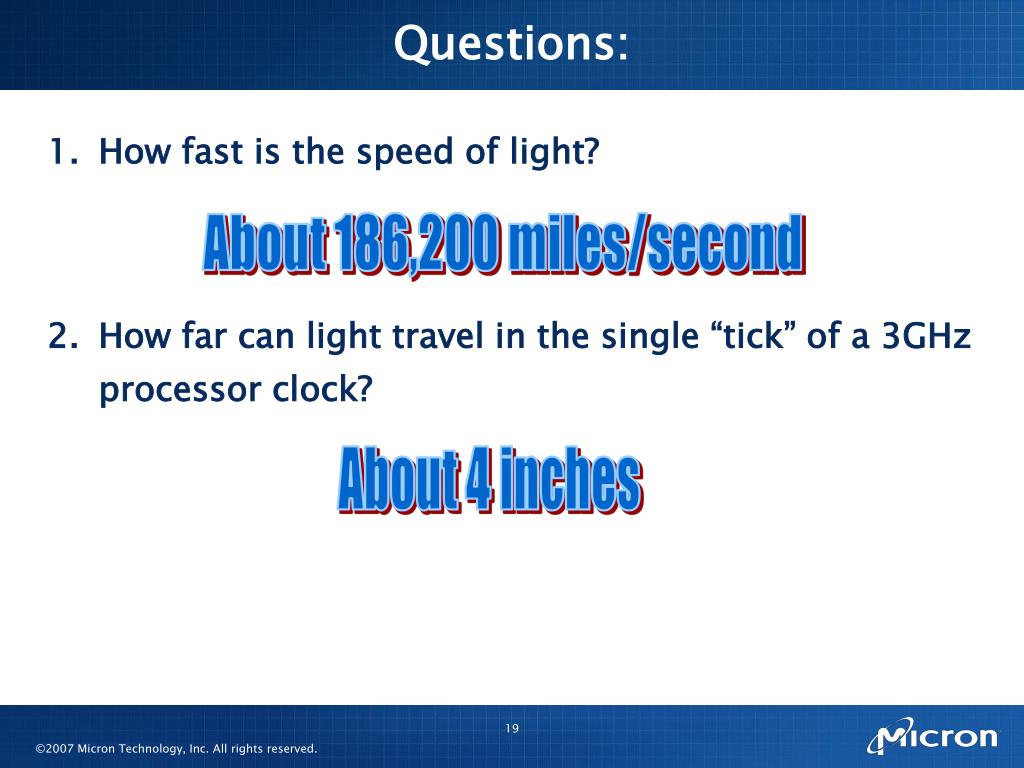

  19. Questions: • How fast is the speed of light? • How far can light travel in the single “tick” of a 3GHz processor clock? About 186,200 miles/second About 4 inches

  20. Question: • How many ticks of the 3GHz processor clock does it take to access the average piece of data on a 7200RPM hard drive? About 25 million!

  21. Why SSD’s? • Performance

  22. SSDs in Computing NAND CPU RelativeLatency RelativeCost/bit NAND Flash Closes the Latency Gap Cost/bit Data as of November 2007

  23. Why SSD’s? • Performance • Power

  24. Notebooks: SSD’s Can Improve Battery Life Power consumption decreases when solid state drives are used in today’s notebook computers. Power HDD SSD

  25. SSD: Power and Performance SSDs do more with less power

  26. Why SSD’s? • Performance • Power • Reliability

  27. HDD & SSD in the Enterprise Server Market

  28. Why SSD’s? • Performance • Power • Reliability • New Form Factors

  29. Innovative Platforms

  30. Memory Research Areas • DRAM: • New materials, High-K gates, Low-K dielectrics • New structures: 3D transistors, lattices • New features: Ultra-high bandwidth, lower power • New types: • MRAM • FeRAM • Polymer • Programmable conductor • Phase Change memory • ‘Nano’ (?) • Micromechanical/nano (Millipede)

  31. Dean's Top 10

  32. Top 10 Reasons You Want to Be an Engineer • For the great memories! • It rationalizes why you always took things apart as a kid • You always were fascinated by trains • It sure beats flippin’ burgers! • You love calculus, differential equations, numerical analysis… • At least your computer listens to you • You would have been a doctor or a lawyer, but where’s the challenge? • You believe anything is possible • You’re going to get rich off that cold fusion project you have going in your bathtub • It’s logical

  33. Final Advice: Be a “T” person!

  34. Questions?
