Presentation Transcript


Selection of rankine cycles for various resources l.jpg

Selection of Rankine Cycles for Various Resources

P M V Subbarao

Professor

Mechanical Engineering Department

Match the Cycle and Resource …


Slide2 l.jpg

Improved thermal efficiency, feeding the turbine with ~340 °C (15 MPa) steam instead of ~285 °C   (7MPa)


Thermohydraulic considerations l.jpg

Thermohydraulic considerations

  • A thermal design criterion for a PWR reactor core is the limit of the fuel temperature (melting point of UO2 about 2800 °C), being the design temperatures 2000 °C at rated power and 2350 °C at a maximum linear fuel rating of 54 kW/m.

  • According to this criterion, recent PWR cores have an average linear fuel rating of 17.9 kW/m and maximum linear fuel rating of 44 kW/m. For a BWR, the maximum allowable temperature at the center of a fuel rod is 2500 °C in an emergency and 1850 °C during normal operation .


Thermohydraulic considerations6 l.jpg

Thermohydraulic considerations

  • Following this criterion, a HP-BWR with a thermal power of ~2700 MW, and an electrical power output of ~1000 MW, may have a core with an average linear fuel rating of 13.6 kW/m and a maximum linear fuel rating of 44 kW/m.

  • Without any fuel modifications, the temperature at the center of a fuel rod during normal operation is slightly higher and has been estimated to be 1885 °C.

  • The maximum temperature of the Zircaloy-2 fuel cladding is around 491 °C, which is lower than the allowed maximum temperature of 550 °C.


Hardware modifications for creation of better cycle conditions l.jpg

Hardware Modifications for Creation of Better Cycle Conditions

Fossil Fuel Based Systems


Role of sg in rankine cycle l.jpg

Role of SG in Rankine Cycle

Using Natural resources of energy.

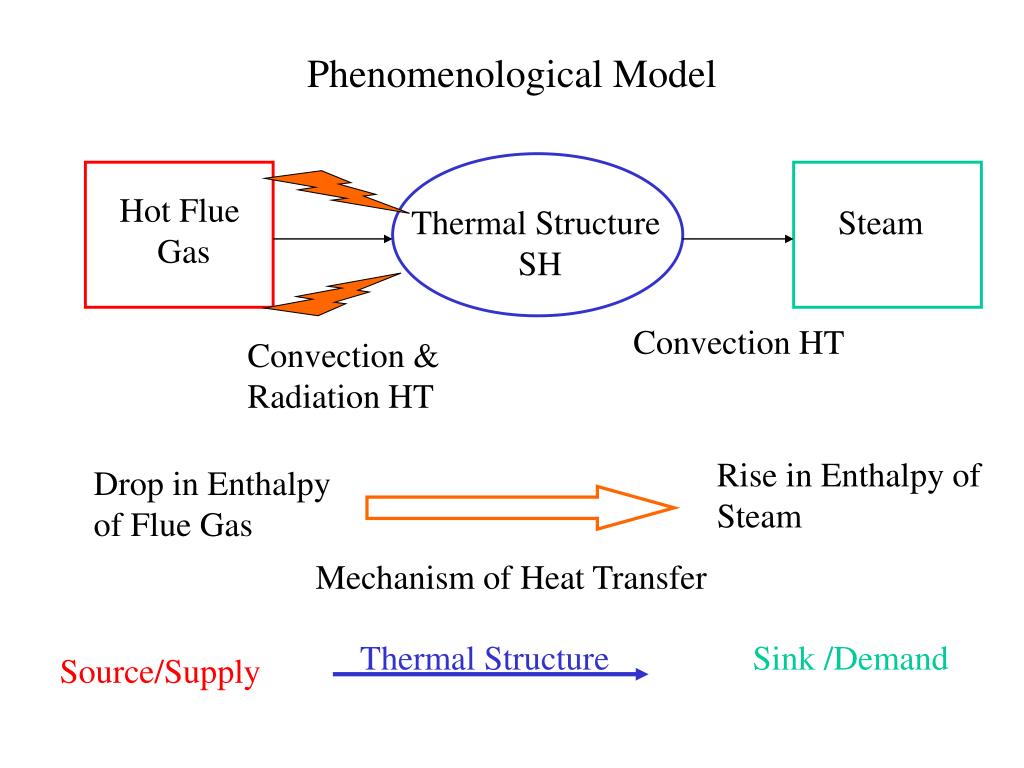

Phenomenological model l.jpg

Hot Flue

Gas

Thermal Structure

SH

Steam

Rise in Enthalpy of

Steam

Convection HT

Drop in Enthalpy

of Flue Gas

Convection &

Radiation HT

Mechanism of Heat Transfer

Thermal Structure

Sink /Demand

Source/Supply

Phenomenological Model


Gas to liquid heat exchange l.jpg

Gas to Liquid Heat Exchange

Liquid Heating


Mechanism of heat transfer generalized newton s law of cooling l.jpg

Thot gas,in

Thot gas,out

Tcold steam,out

Tcold steam,in

Mechanism of Heat Transfer :Generalized Newton’s Law of Cooling

  • Rate of heat transfer from hot gas to cold steam is proportional to:

  • Surface area of heat transfer

  • Mean Temperature difference between Hot Gas and Cold Steam.


Slide12 l.jpg

Thot gas,in

Thot gas,out

Tcold steam,out

Tcold steam,in

Thot gas,in

Thot gas,out

Tcold steam,out

Tcold steam,in

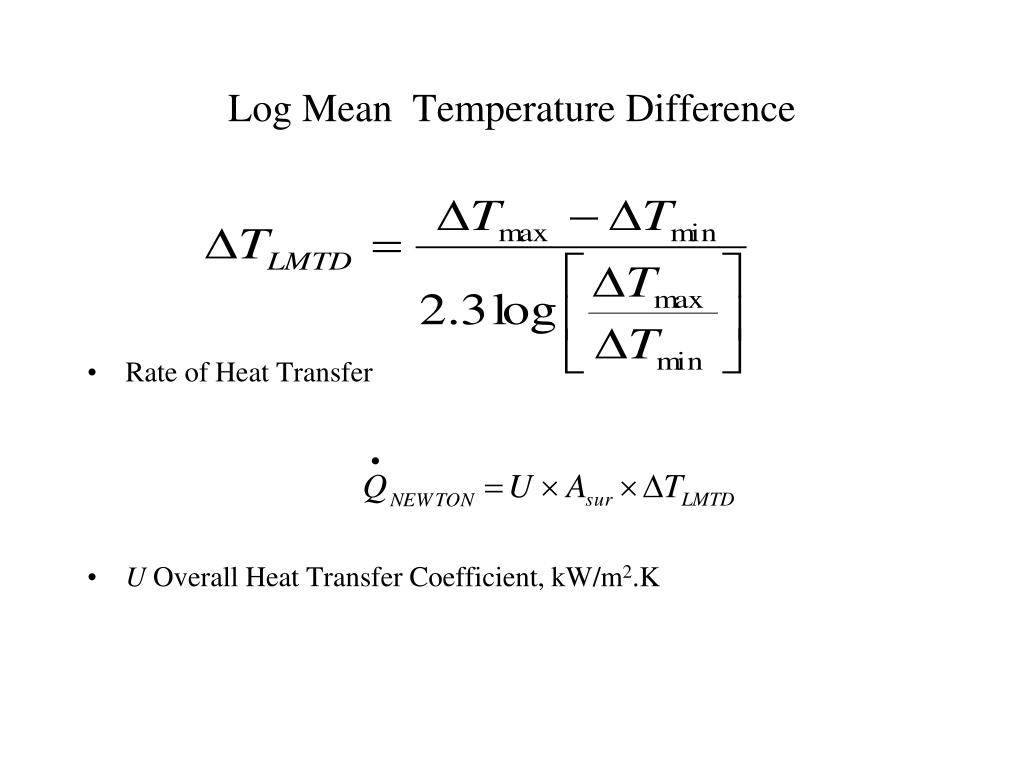

Log mean temperature difference l.jpg

Log Mean Temperature Difference

  • Rate of Heat Transfer

  • U Overall Heat Transfer Coefficient, kW/m2.K


Impact cycle on construction of steam generator l.jpg

Impact cycle on Construction of Steam Generator


Steam generator water wall furnace l.jpg

Steam Generator : Water Wall Furnace
