Presentation Transcript
Slide1 l.jpg

An Introductory Overview to Multi Criteria Evaluation

GEOG 5161: Research Design

Professor Kenneth E. Foote

Petra Norlund

2010


Slide2 l.jpg

Outline

  • Introduction and Background

  • Definitions

  • What is multi criteria evaluation?

  • How and when is it useful?

  • How does it work? Case study to show how it is implemented

  • Pros and cons of the method.

  • Why should we use it?


Slide3 l.jpg

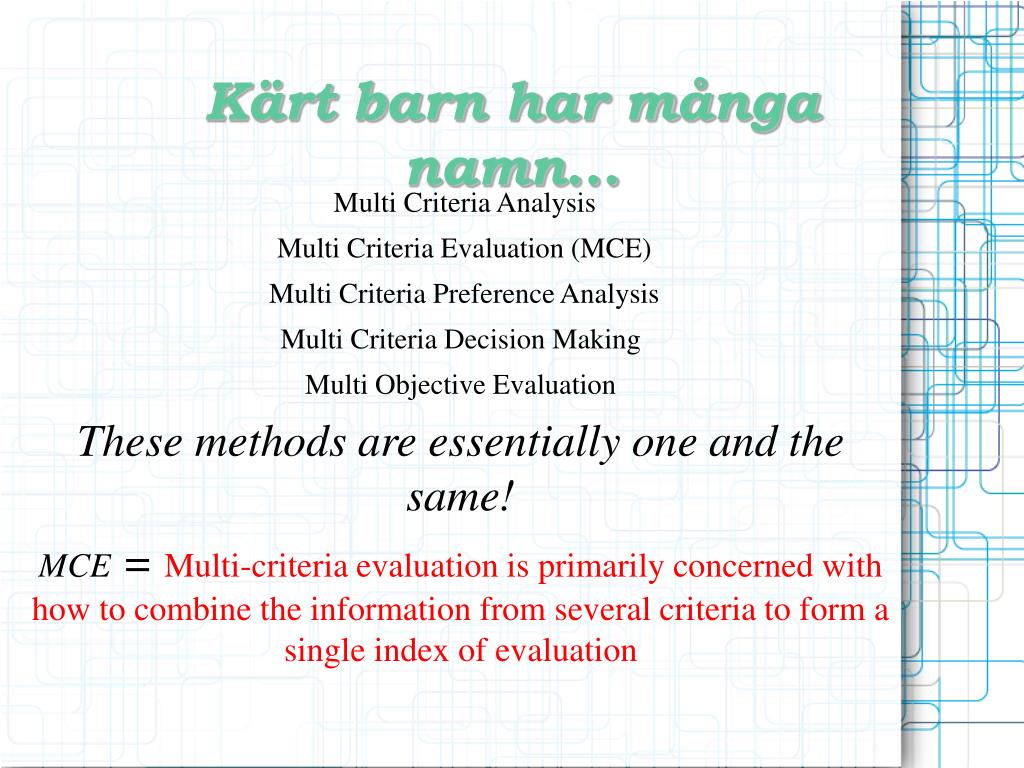

Kärt barn har många namn...

Multi Criteria Analysis

Multi Criteria Evaluation (MCE)

Multi Criteria Preference Analysis

Multi Criteria Decision Making

Multi Objective Evaluation

These methods are essentially one and the same!

MCE = Multi-criteria evaluation is primarily concerned with how to combine the information from several criteria to form a single index of evaluation


Slide4 l.jpg

Introduction

  • Land is a scarce resource:

    • Identifying suitability for

      • Where to build a dam

        • Water flow

        • Mountainous?

      • Where to place a hospital

        • Costs

        • Access

        • Greatest need

  • Criteria can be based on human or physical geography factors


Slide5 l.jpg

Background

  • Early methods (pre computers):

    • Ian McHarg (1969) Design with Nature

      • Used for suitability analysis

      • Tracing paper overlays

      • Limited to simple Boolean analysis: AND, OR, NOT

See demo!


Slide6 l.jpg

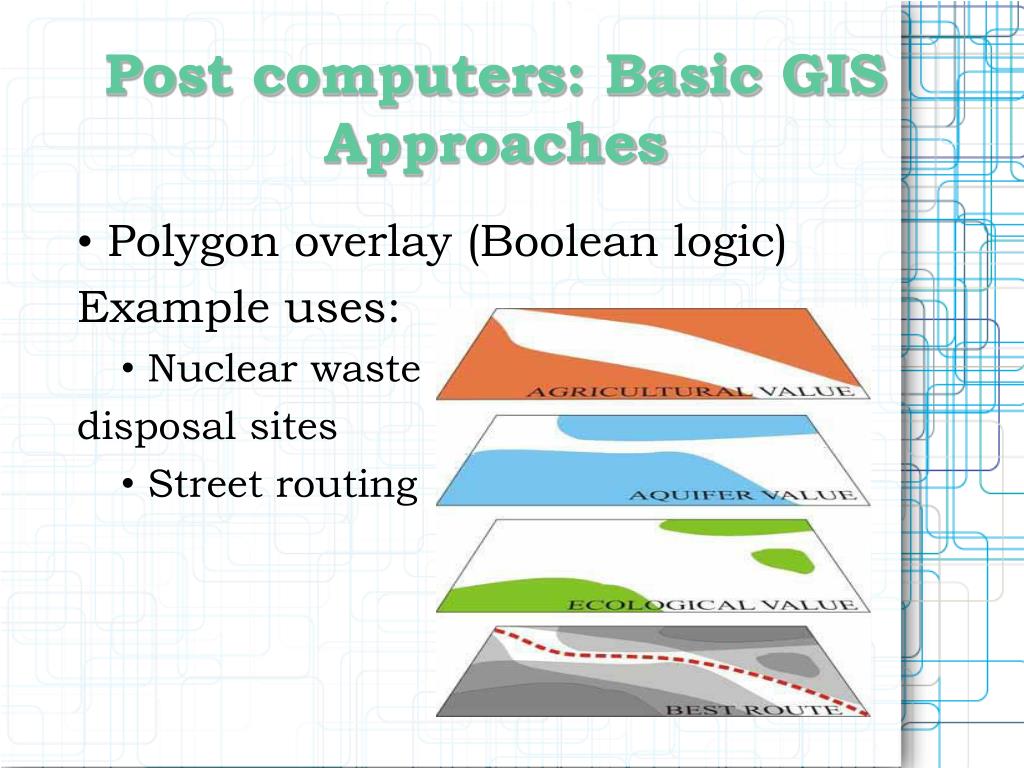

Post computers: Basic GIS Approaches

  • Polygon overlay (Boolean logic)

    Example uses:

    • Nuclear waste

      disposal sites

    • Street routing


Slide7 l.jpg

Definitions

  • Decisions: a choice between alternatives

  • Criterion: some basis for a decision. Two main classes:

    • Factor: enhances or detracts from the suitability of a land use alternative (e.g. distance from a road)

    • Constraint: limits the alternatives

  • Goal or target: some characteristic that the solution must possess (a positive constraint)



Slide9 l.jpg

What is it used for?

  • Decision making

    • Dispute resolution

    • Water resource management

    • Sustainable development

    • etc


Slide10 l.jpg

Principles of MCE

  • Methodology:

    • Determine criteria (factors/constraints) to be included

    • Determining the weights for each factor

    • Sensitivity analysis of results


Slide11 l.jpg

1st Step: Determine the criteria to be included

  • Criteria determine the alternatives

  • Oversimplification of the decision problem could lead to too few criteria being used

  • Using a large number of criteria reduces the influence of any one criteria

  • Often proxies must be used since the criteria of interest may not be determinable


Slide12 l.jpg

Example: Case study of a suitable dam and reservoir site

  • Criteria used:

  • River

  • Urban

  • Forest

  • Accumulated water flow

  • Existing reservoir

  • Watershed boundary

  • City

  • Hydraulic head

  • Undulation


Slide15 l.jpg

Determine the weights

  • A decision is the result of a comparison of one or more alternatives with respect to one or more criteria that we consider relevant for the task at hand.

  • Among the relevant criteria we consider some as more important and some as less important; this is equivalent to assigning weights to the criterion according to their relative importance.


Slide16 l.jpg

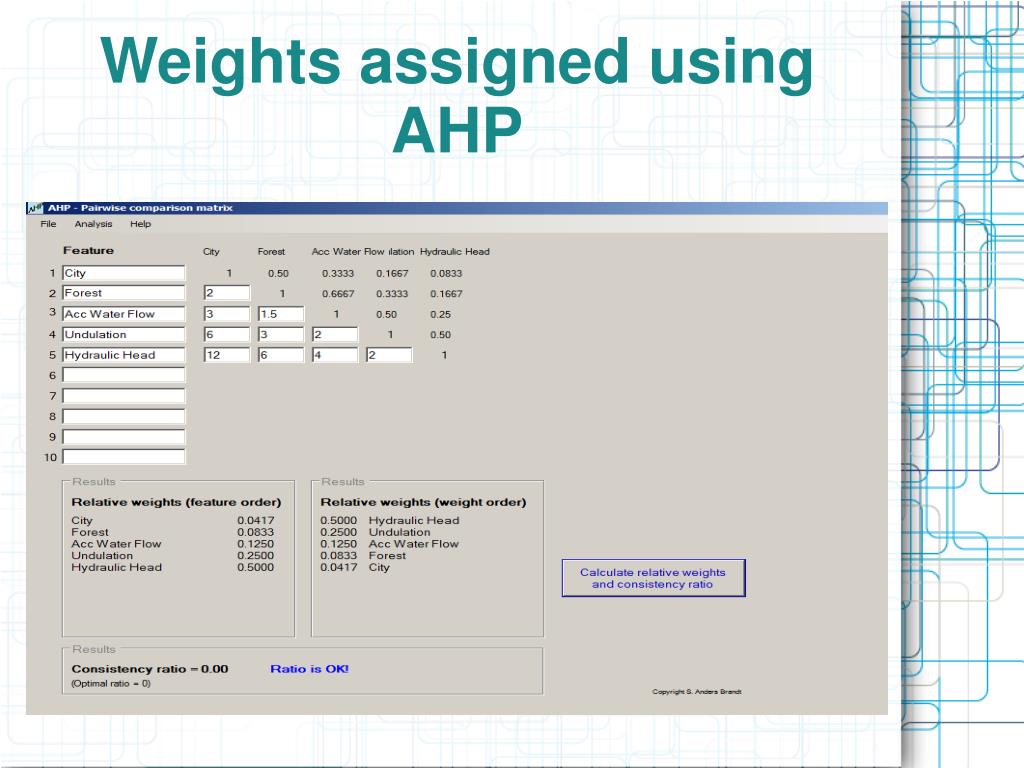

2nd stage, assigning weights




Slide20 l.jpg

Sensitivity analysis

  • → sensitivity analysis: vary the scores/weights of the factors to determine the sensitivity of the solution to minor changes

  • Choice of criteria (e.g. why included?)

  • Assesses the reliability of data: how stable is the final result?

    • Choice for weighting factors is subjective

    • Will the overall solution change if you use other weighing factors?


Slide21 l.jpg

MCE – pros and cons

  • Cons:

    • Dynamic problems strongly simplified into a linear model

    • Static, lacks the time dimension

    • Controversial method – too subjective?

  • Pros:

    • Gives a structured and traceable analysis.

    • Possibility to use different evaluation factors makes it a good tool for discussion.

    • Copes with large amounts of information.

    • It works!


Slide22 l.jpg

Conclusion

  • Good for any complex decision problem.

  • Allows decision makers to show their thinking.

  • Useful in any GIS analysis where several criteria are incorporated.

  • Includes the ability to weigh criteria.

  • Often used for land allocation.
