Presentation Transcript


The recent solar minimum how unprecedent is the sun s behavior

University of Bern, 17th November 2010

The recent solar minimumHow unprecedent is the Sun's behavior?

Andrea Opitz

CESR (CNRS-UPS)

University of Toulouse, France


Solar terrestrial relations

Solar - terrestrial relations


Solar activity cycles

Solar activity cycles

SOHO (NASA/ESA)


Solar activity cycles1

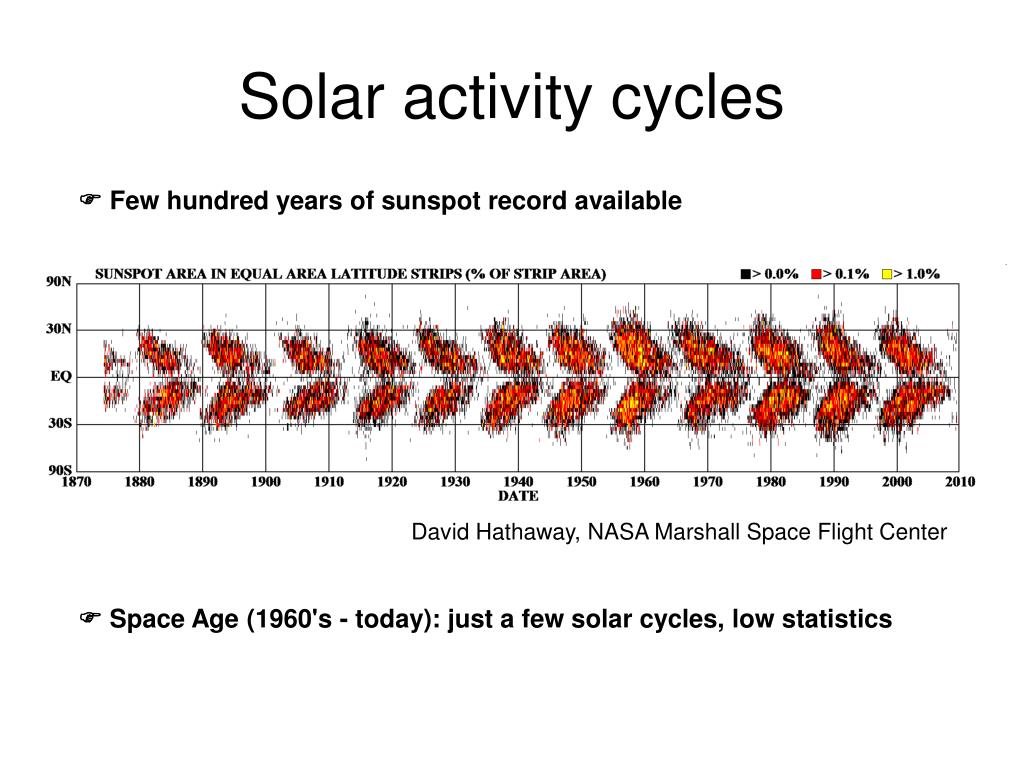

Solar activity cycles

 Few hundred years of sunspot record available

David Hathaway, NASA Marshall Space Flight Center

 Space Age (1960's - today): just a few solar cycles, low statistics


The recent solar minimum how unprecedent is the sun s behavior

SOHO/EIT (ESA/NASA)


The recent solar minimum how unprecedent is the sun s behavior

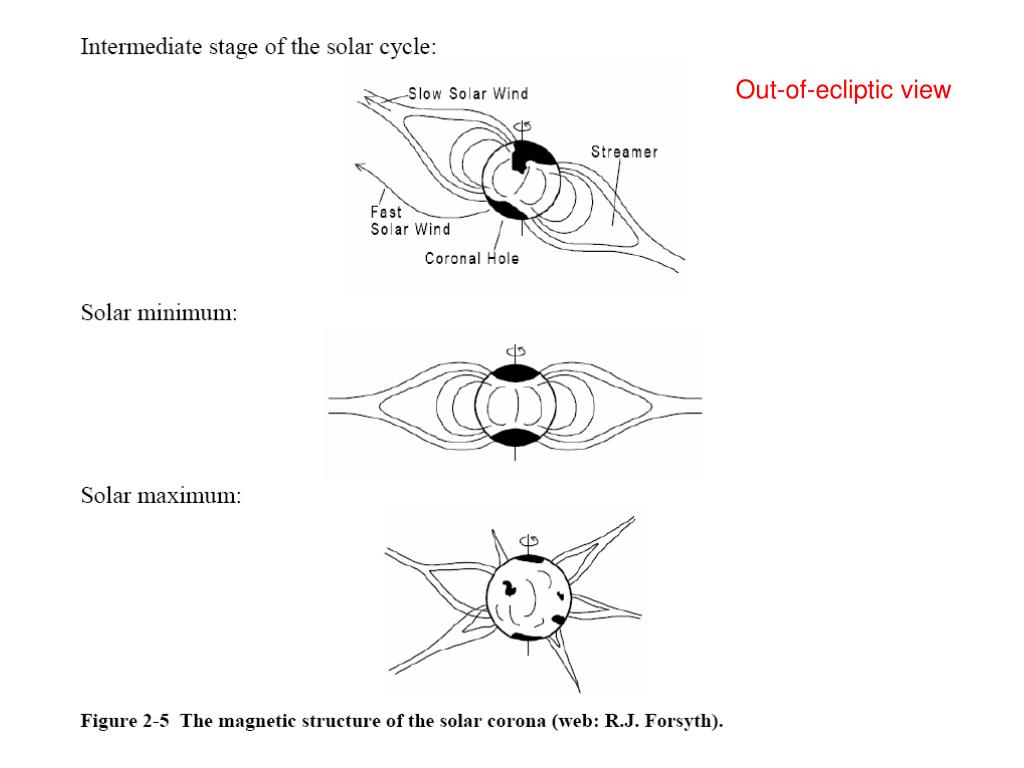

Out-of-ecliptic view


Sw velocity vs latitude

SW velocity vs. latitude

Solar minimum

Solar maximum

Now

McComas et al. GRL 2008


The recent solar minimum how unprecedent is the sun s behavior

In-ecliptic view

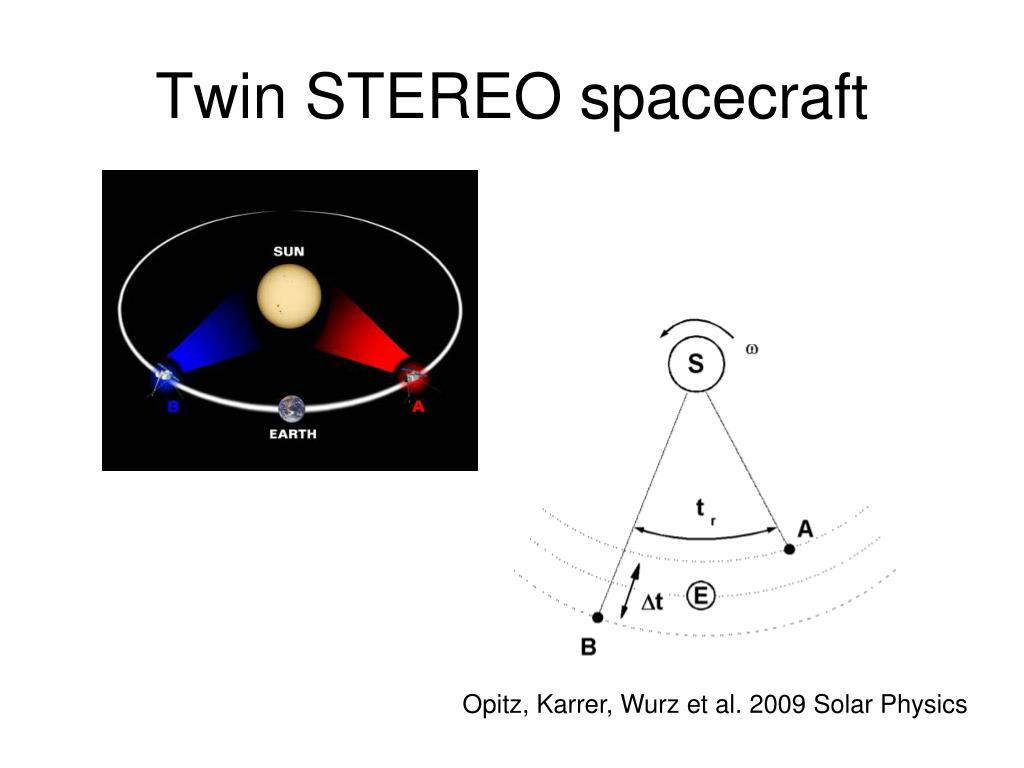

Twin stereo spacecraft

Twin STEREO spacecraft

Opitz, Karrer, Wurz et al. 2009 Solar Physics


Stereo plastic

STEREO PLASTIC

 SW bulk velocity

 SW temperature

 SW density

Group:

P. Bochsler, P. Wurz, R. Karrer, A. Opitz, L. Blush, H. Daoudi, J. Fischer, M. Sigrist et al. (UoBe)

A. B. Galvin, L. Kistler et al. (UNH)


The recent solar minimum how unprecedent is the sun s behavior

Temporal evolution of the solar wind

Opitz et al. 2009, Solar Physics

PLASTIC proton velocity 

0.5 day: ~0.95

2 days: ~0.85

STA STB

Opitz et al. 2010, Solar Physics

SWEA electron density 

0.5 day: ~0.80

2 days: ~0.65

STA STB

SWEA

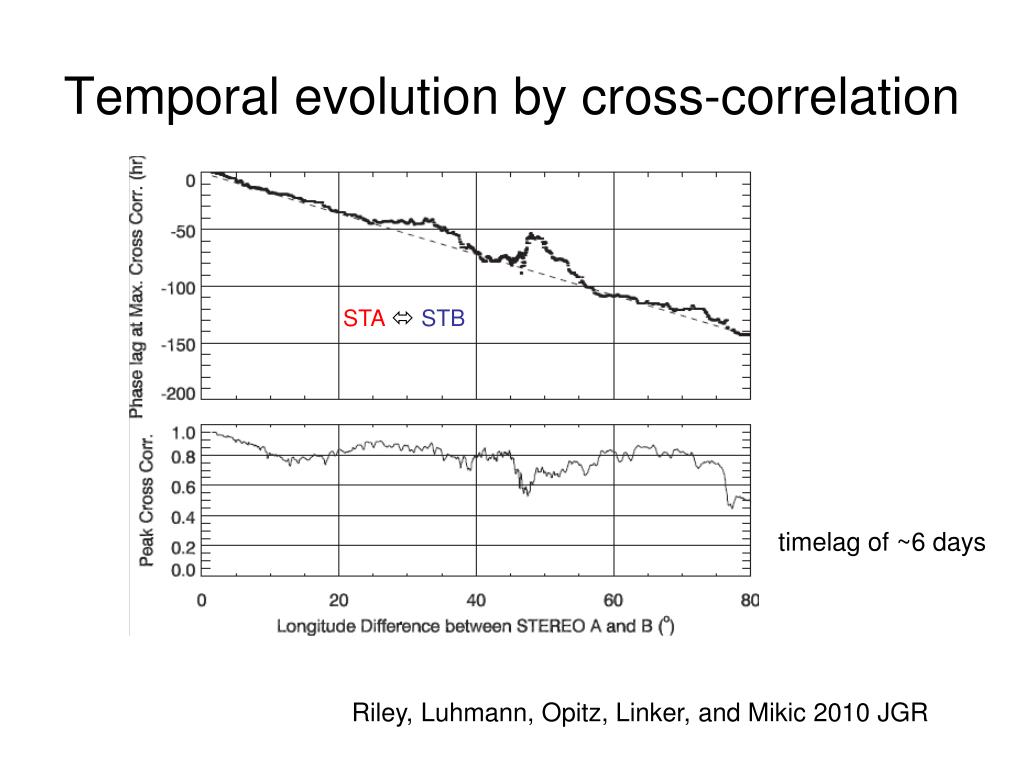

Temporal evolution by cross correlation

Temporal evolution by cross-correlation

STA STB

timelag of ~6 days

Riley, Luhmann, Opitz, Linker, and Mikic 2010 JGR

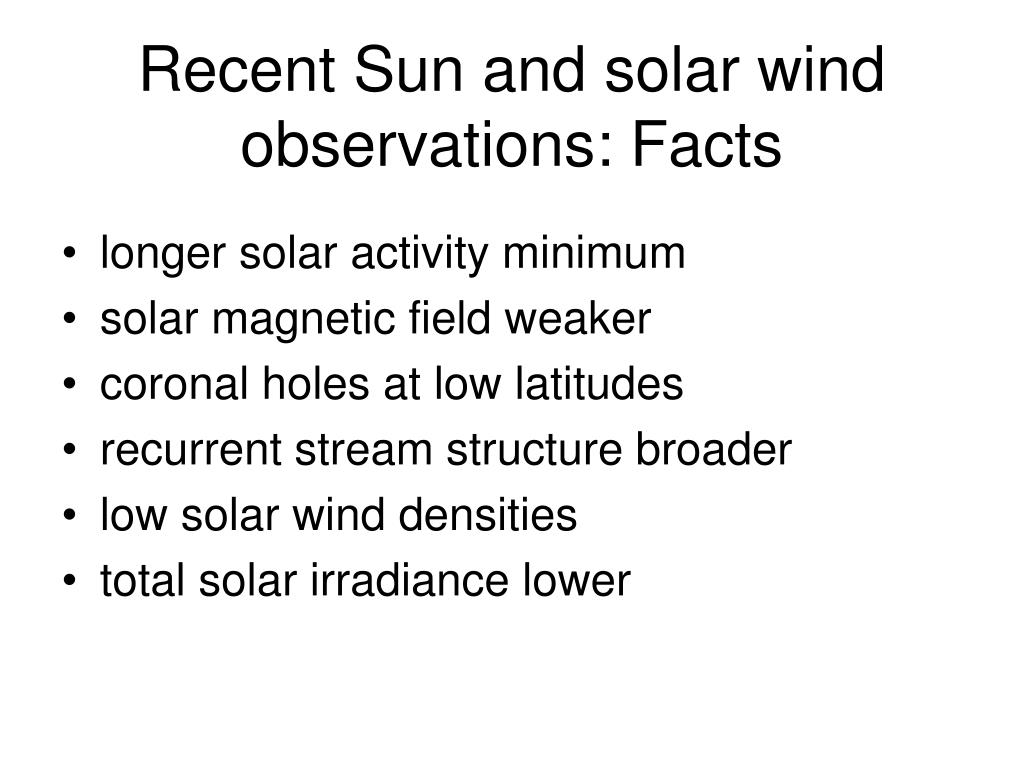

Recent sun and solar wind observations facts

Recent Sun and solar wind observations: Facts

  • longer solar activity minimum

  • solar magnetic field weaker

  • coronal holes at low latitudes

  • recurrent stream structure broader

  • low solar wind densities

  • total solar irradiance lower

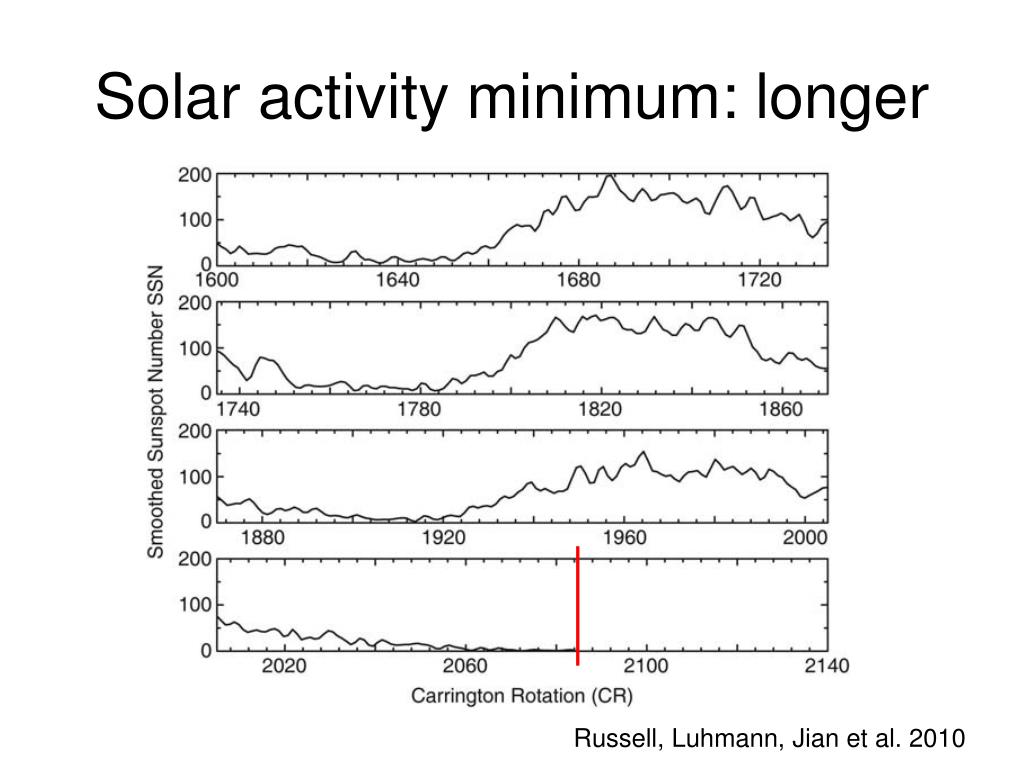

Solar activity minimum longer

Solar activity minimum: longer

Russell, Luhmann, Jian et al. 2010

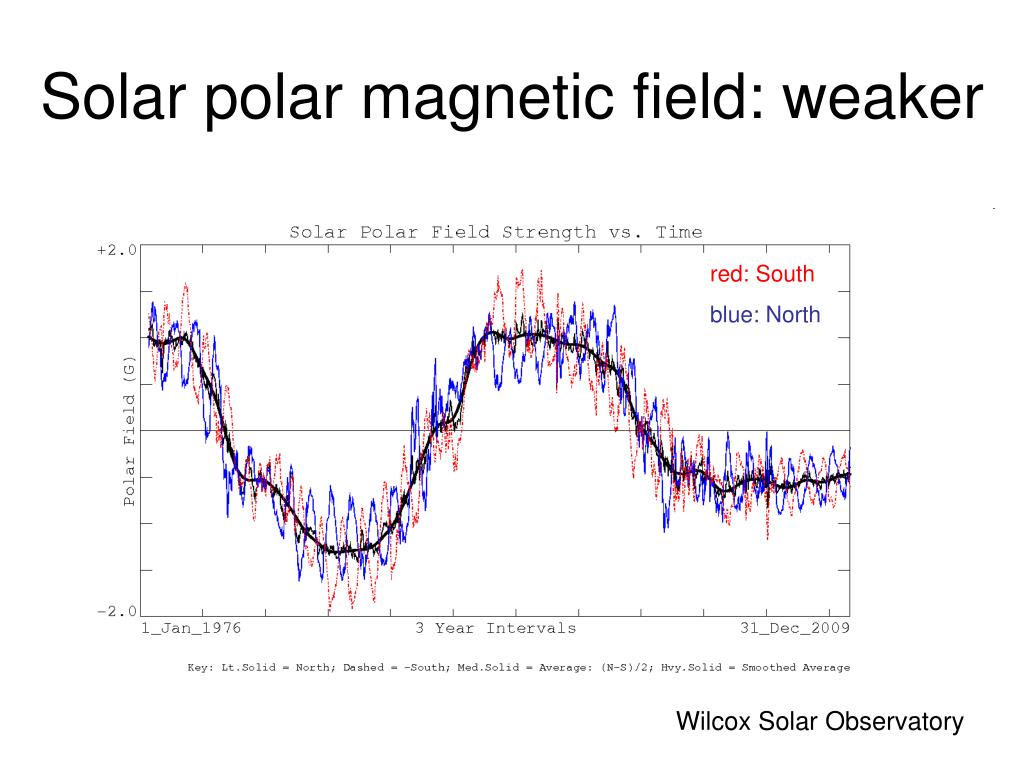

Solar polar magnetic field weaker

Solar polar magnetic field: weaker

red: South

blue: North

Wilcox Solar Observatory

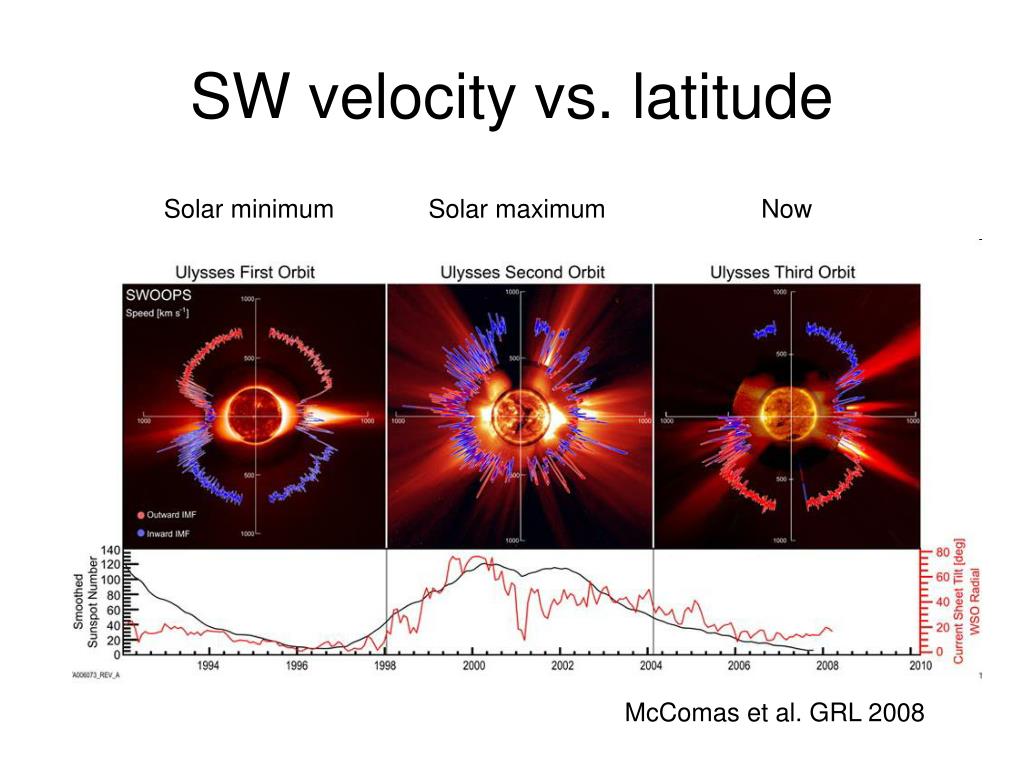

Sw velocity vs latitude1

SW velocity vs. latitude

Solar minimum

Solar maximum

Now

McComas et al. GRL 2008

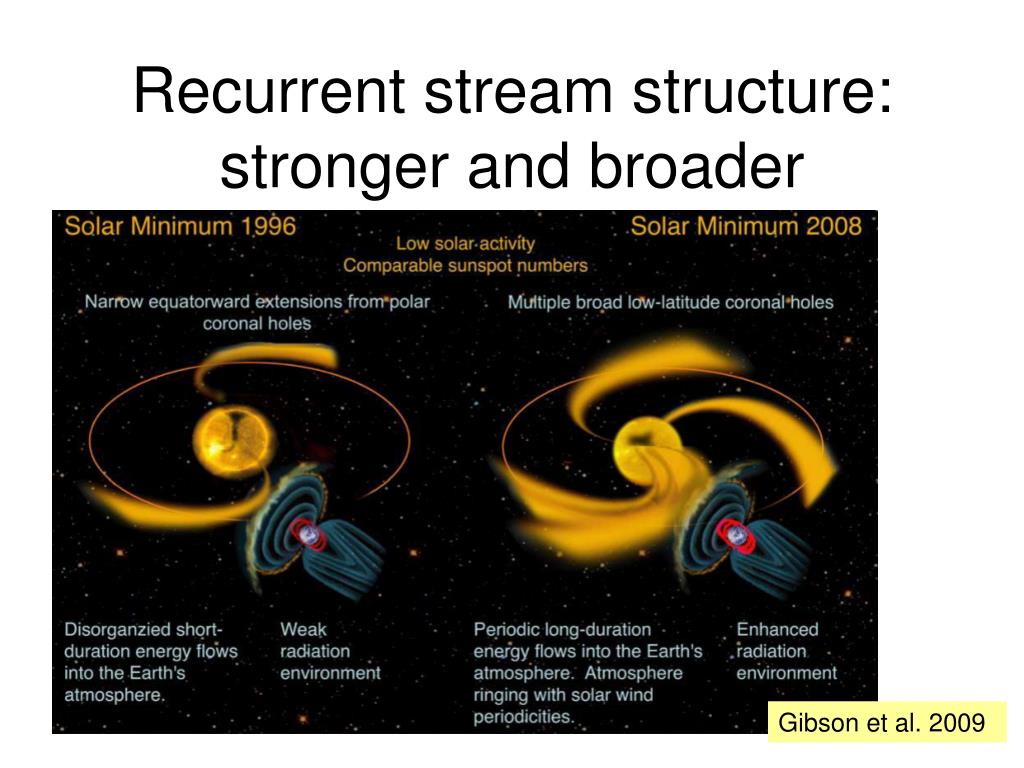

Recurrent stream structure stronger and broader

Recurrent stream structure:stronger and broader

Gibson et al. 2009


The recent solar minimum how unprecedent is the sun s behavior

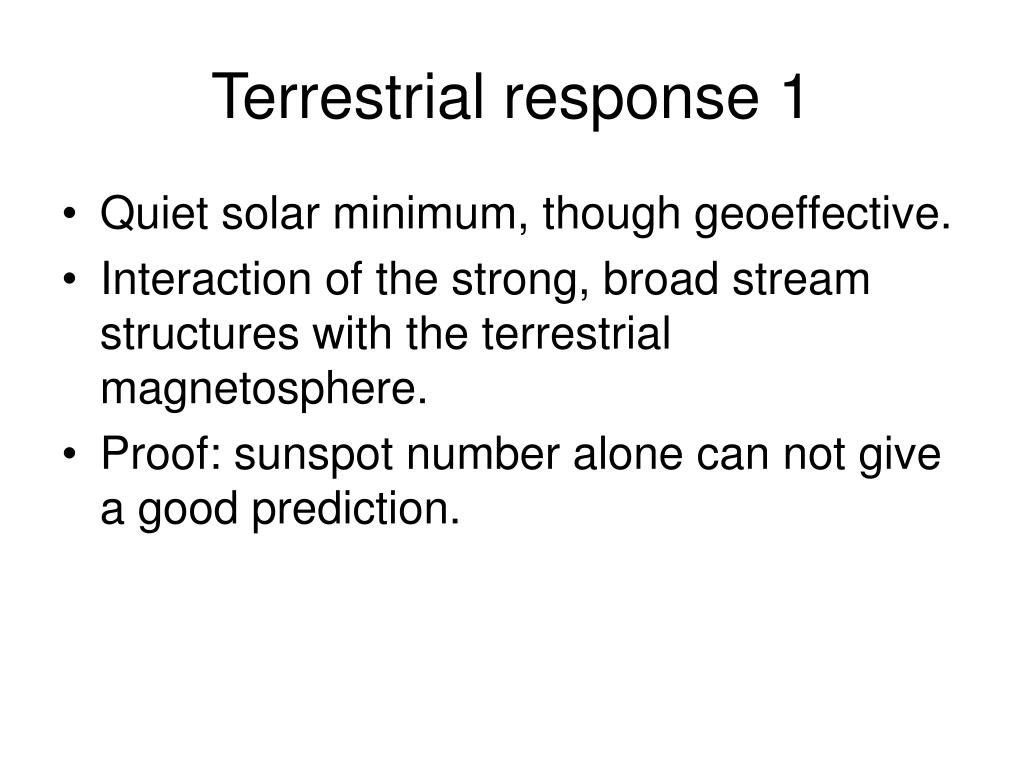

Terrestrial response 1

  • Quiet solar minimum, though geoeffective.

  • Interaction of the strong, broad stream structures with the terrestrial magnetosphere.

  • Proof: sunspot number alone can not give a good prediction.

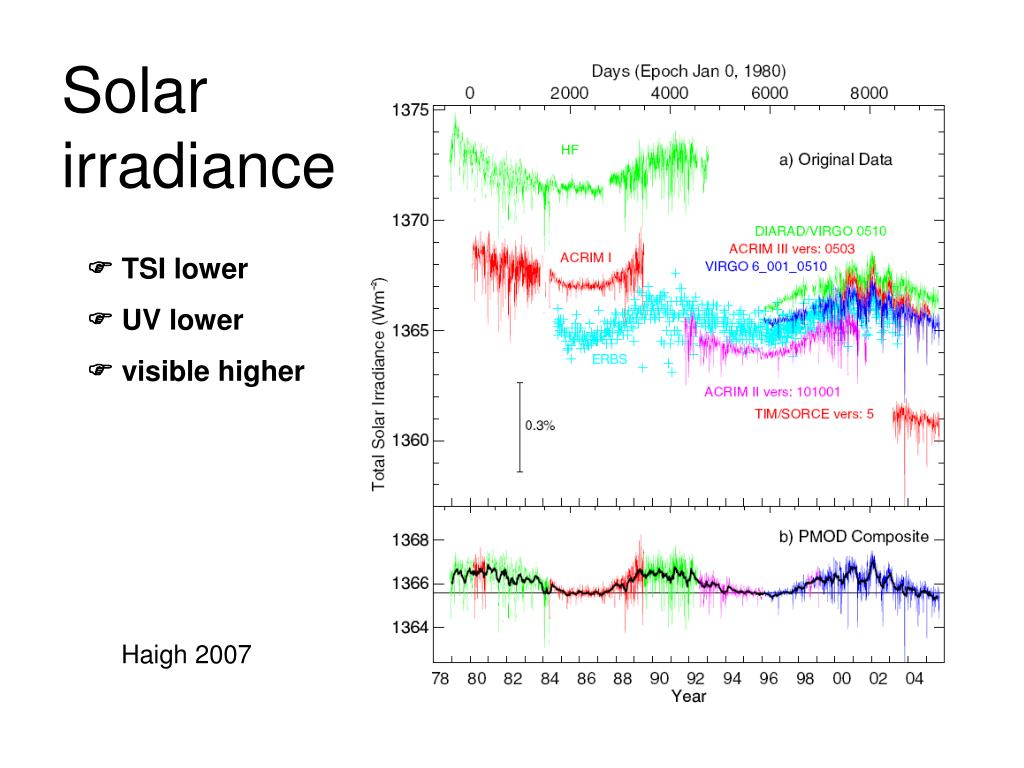

Solar irradiance

Solar irradiance

 TSI lower

 UV lower

 visible higher

Haigh 2007

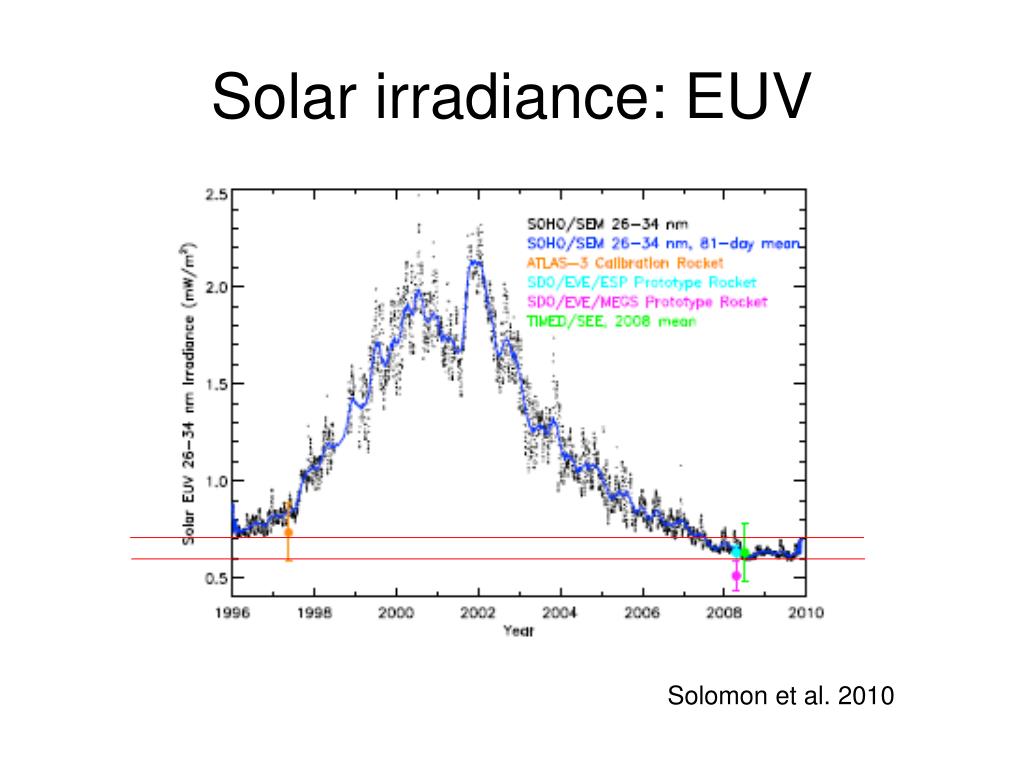

Solar irradiance euv

Solar irradiance: EUV

Solomon et al. 2010

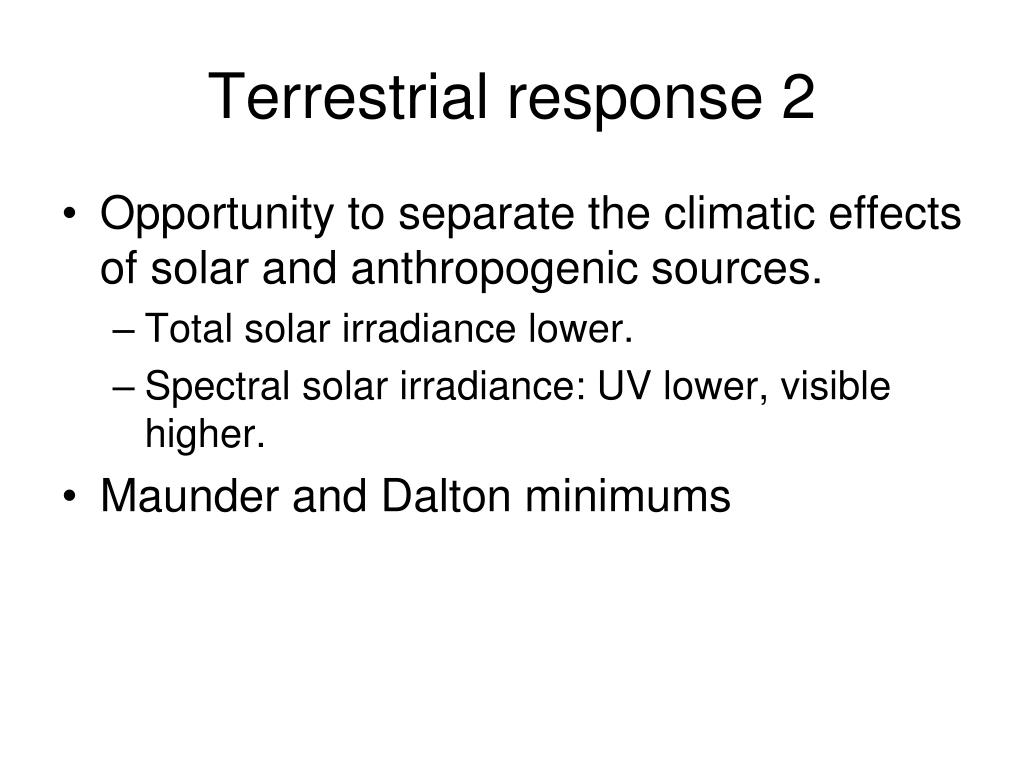

Terrestrial response 2

Terrestrial response 2

  • Opportunity to separate the climatic effects of solar and anthropogenic sources.

    • Total solar irradiance lower.

    • Spectral solar irradiance: UV lower, visible higher.

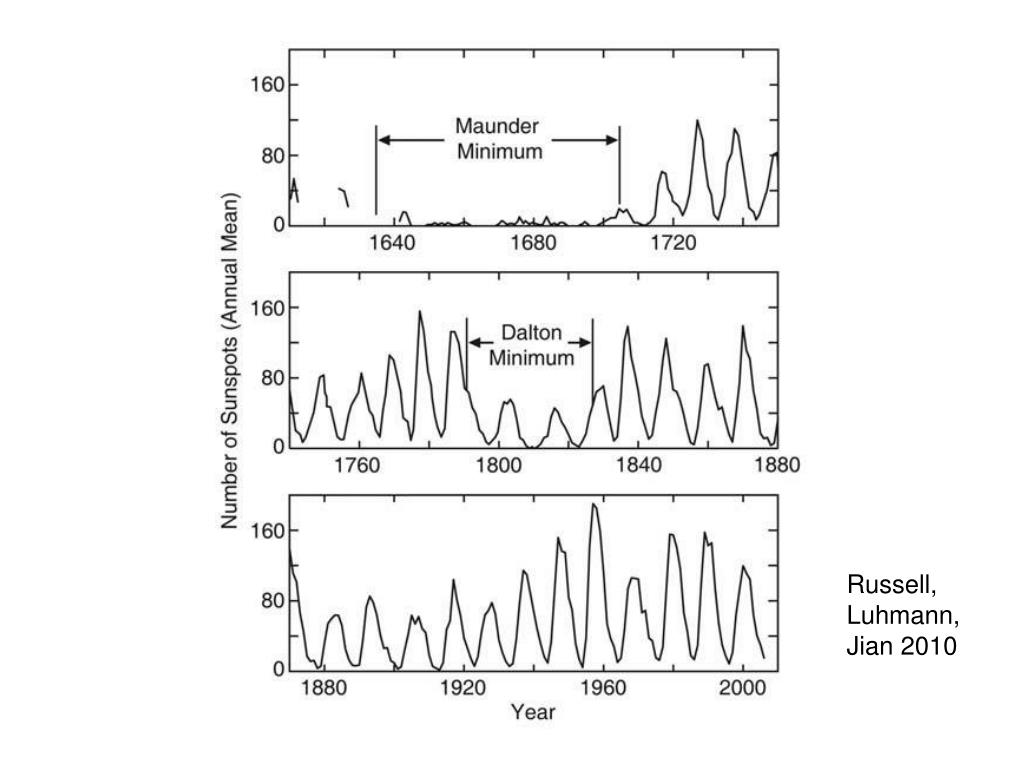

  • Maunder and Dalton minimums


The recent solar minimum how unprecedent is the sun s behavior

Russell, Luhmann, Jian 2010

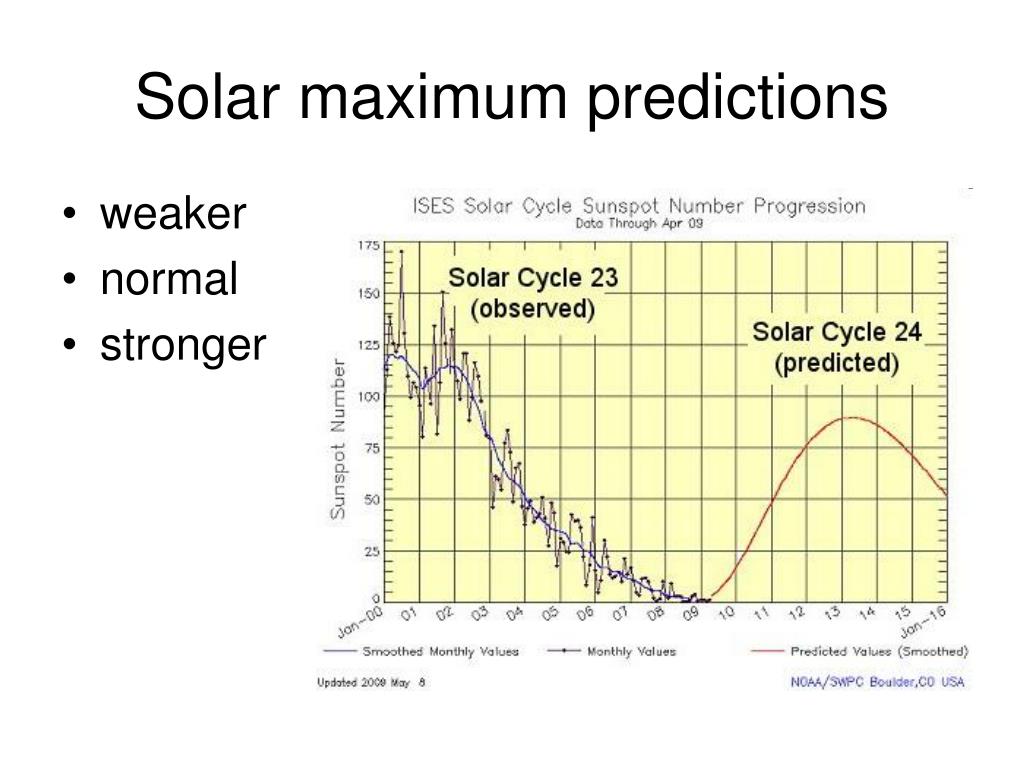

Solar maximum predictions

Solar maximum predictions

  • weaker

  • normal

  • stronger

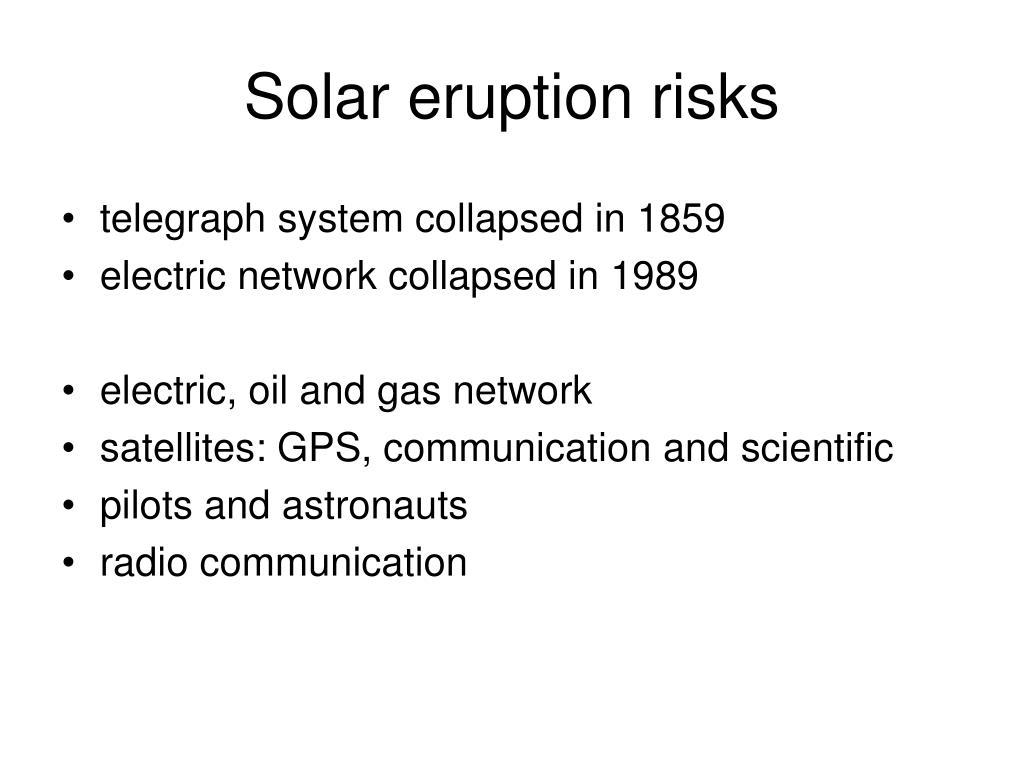

Solar eruption risks

Solar eruption risks

  • telegraph system collapsed in 1859

  • electric network collapsed in 1989

  • electric, oil and gas network

  • satellites: GPS, communication and scientific

  • pilots and astronauts

  • radio communication

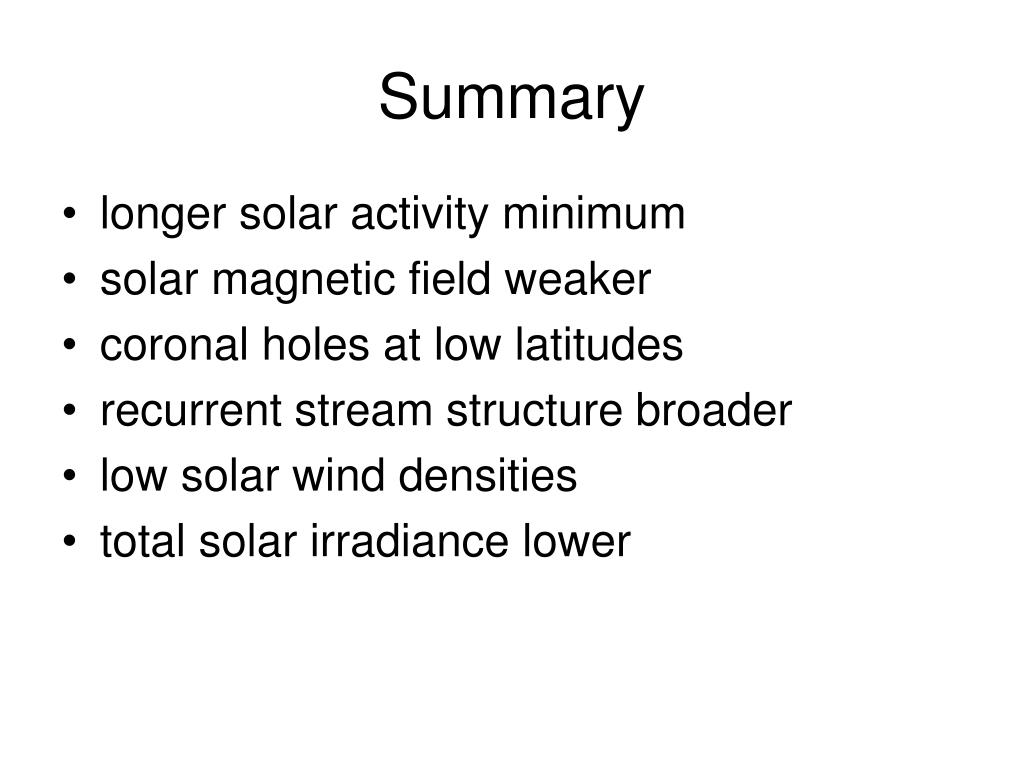

Summary

Summary

  • longer solar activity minimum

  • solar magnetic field weaker

  • coronal holes at low latitudes

  • recurrent stream structure broader

  • low solar wind densities

  • total solar irradiance lower

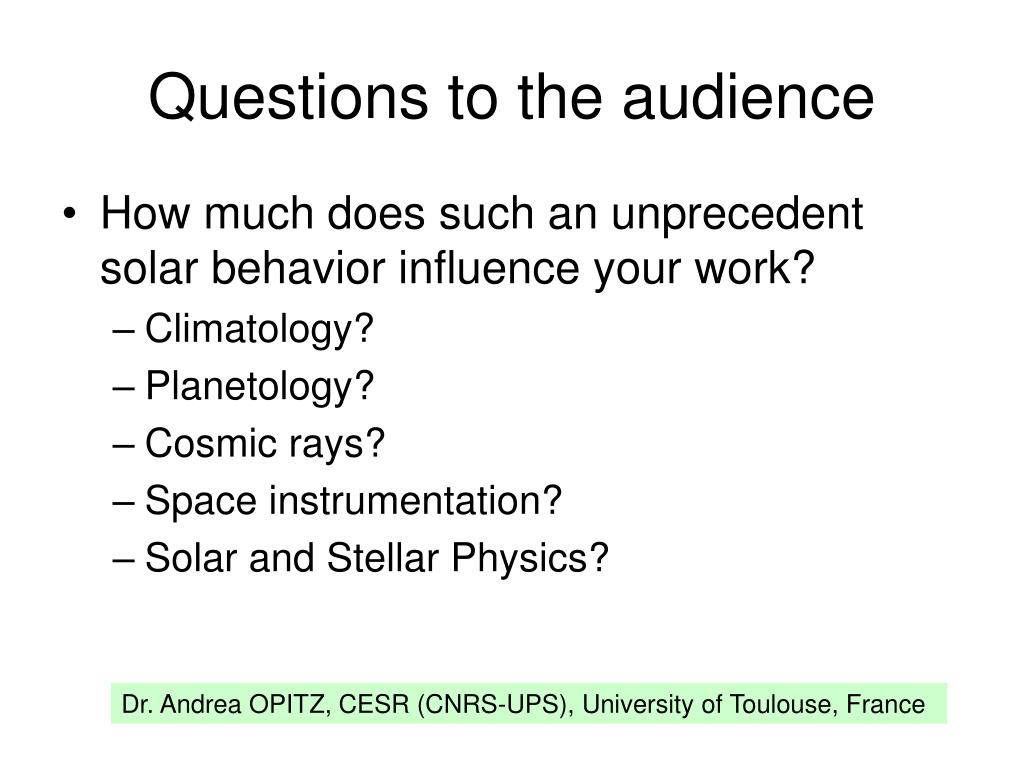

Questions to the audience

Questions to the audience

  • How much does such an unprecedent solar behavior influence your work?

    • Climatology?

    • Planetology?

    • Cosmic rays?

    • Space instrumentation?

    • Solar and Stellar Physics?

Dr. Andrea OPITZ, CESR (CNRS-UPS), University of Toulouse, France


Acknowledgements

Acknowledgements

  • Cecile Bonneau: 'Science et vie' -> Nov/Dec 2010

  • Janet Luhmann: solar wind structures

  • STEREO PLASTIC: P. Bochsler, P. Wurz, R. Karrer, A. Opitz, L. Blush et al. (UoBe) + UNH
