  1. Distribution ED01 English Code : STM#120 OfficeServ 7200 Hardware Description Samsung Electronics Co., Ltd.

  2. Contents Cabinet and Power Supply Processor Modules Voice Trunk Modules Subscriber Stations Data Modules Terminals

  3. Cabinet and Power Supply

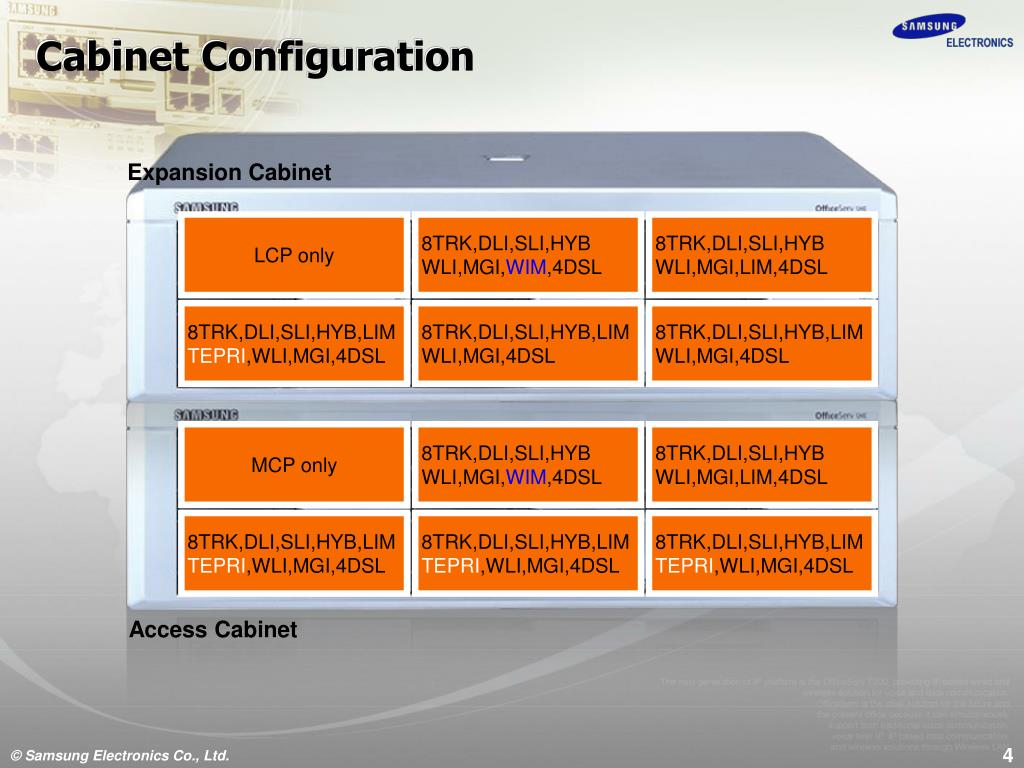

  4. Cabinet Configuration Expansion Cabinet LCP only 8TRK,DLI,SLI,HYB WLI,MGI,WIM,4DSL 8TRK,DLI,SLI,HYB WLI,MGI,LIM,4DSL 8TRK,DLI,SLI,HYB,LIM TEPRI,WLI,MGI,4DSL 8TRK,DLI,SLI,HYB,LIM WLI,MGI,4DSL 8TRK,DLI,SLI,HYB,LIM WLI,MGI,4DSL MCP only 8TRK,DLI,SLI,HYB WLI,MGI,WIM,4DSL 8TRK,DLI,SLI,HYB WLI,MGI,LIM,4DSL 8TRK,DLI,SLI,HYB,LIM TEPRI,WLI,MGI,4DSL 8TRK,DLI,SLI,HYB,LIM TEPRI,WLI,MGI,4DSL 8TRK,DLI,SLI,HYB,LIM TEPRI,WLI,MGI,4DSL Access Cabinet

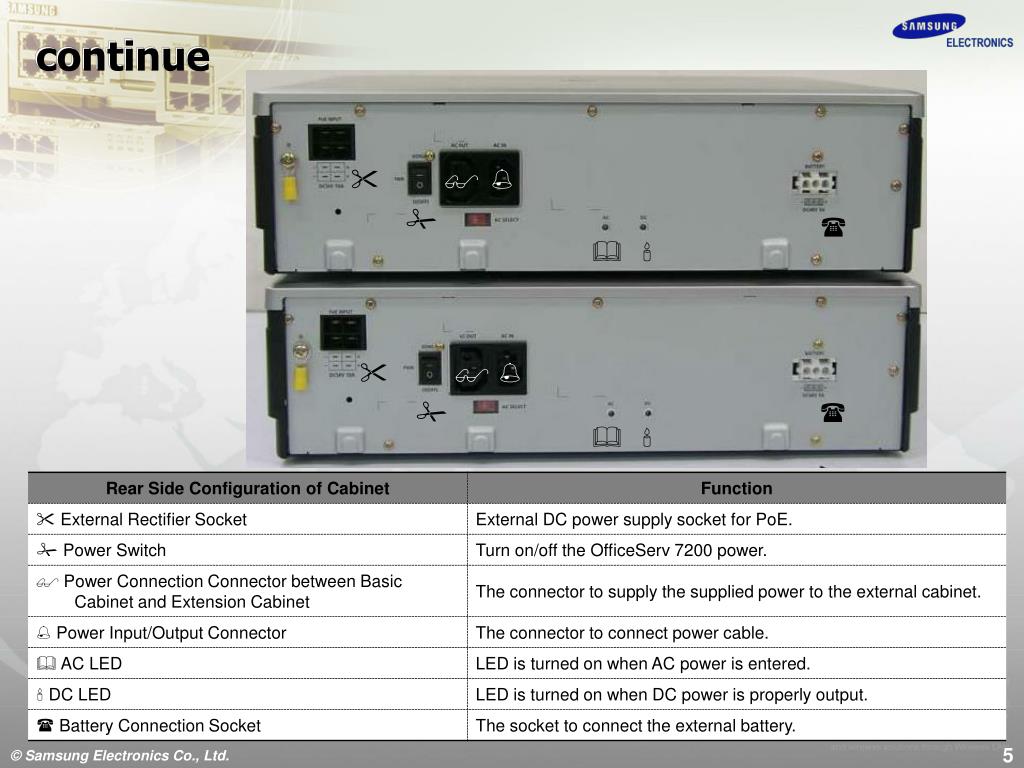

  5. continue              

  6. PSU (Power Supply Unit) • Features • 1 PSU per chassis • Mounted on back plane • Supports 80 devices per chassis • Power is controlled by a thermal sensor • After 24hrs of cooling fan failure, PSU will stop!

  7. Processor Boards

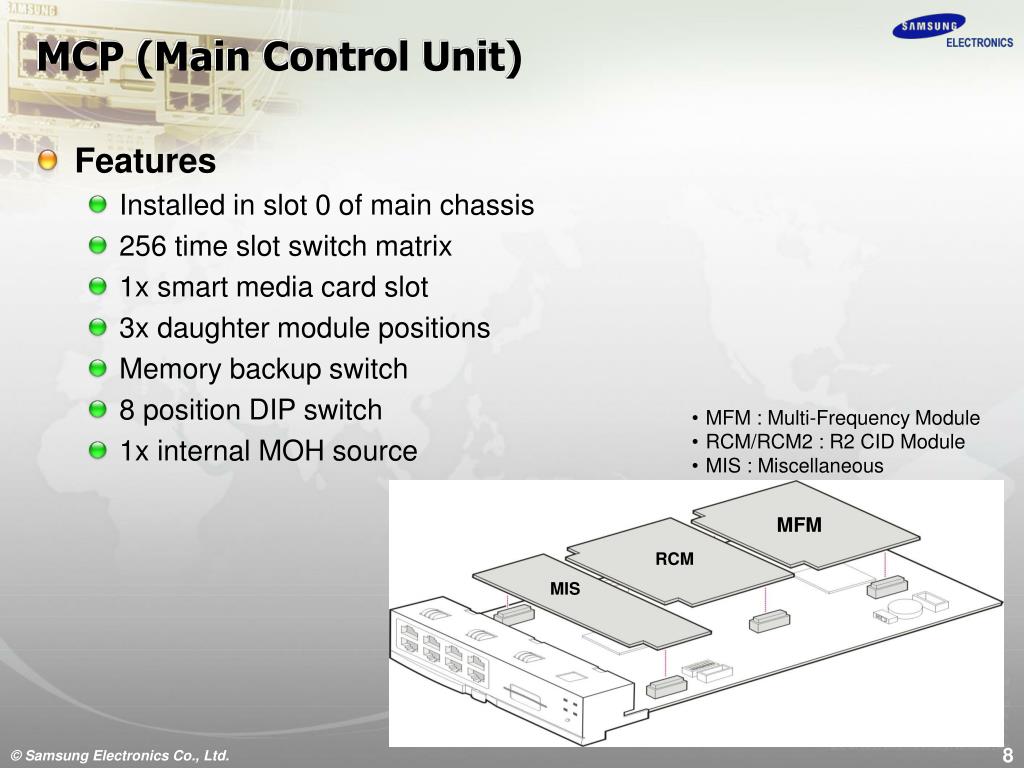

  8. MFM RCM MIS MCP (Main Control Unit) • Features • Installed in slot 0 of main chassis • 256 time slot switch matrix • 1x smart media card slot • 3x daughter module positions • Memory backup switch • 8 position DIP switch • 1x internal MOH source • MFM : Multi-Frequency Module • RCM/RCM2 : R2 CID Module • MIS : Miscellaneous

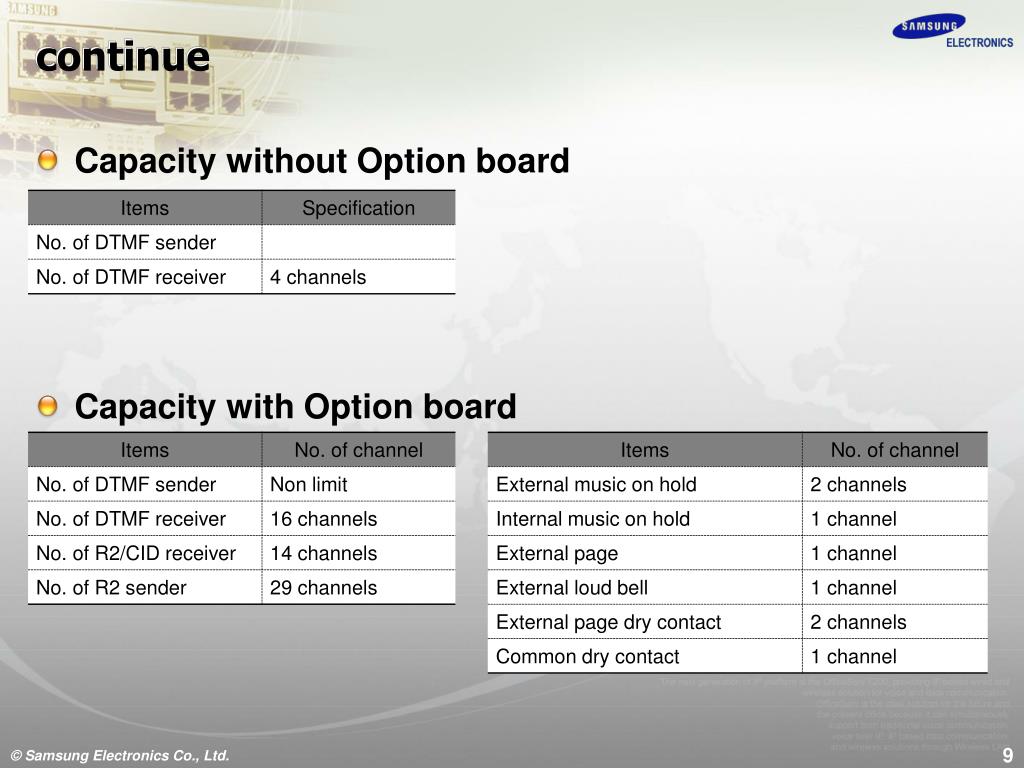

  9. continue • Capacity without Option board • Capacity with Option board

  10. continue • Sets DIP switch S2 S3 CHARGE Off

  11. continue • Front View

  12. Daughter boards for MCP • MFM (Multi-Frequency Module) • Installed in any position on MCP module • Only 1 per system • 12 DSPs for DTMF and tone detection

  13. continue • RCM (R2 CID Module) • Installed on MCP module • Only 1 per system • RCM1 • R2 signalling send (30 channels) and receive (8 channels) or CID detection (14 channels) by DIP switch on RCM. • RCM2 • R2 signalling send ( channels) and receive (8 channels) or CID detection (14 channels) by DIP switch on RCM.

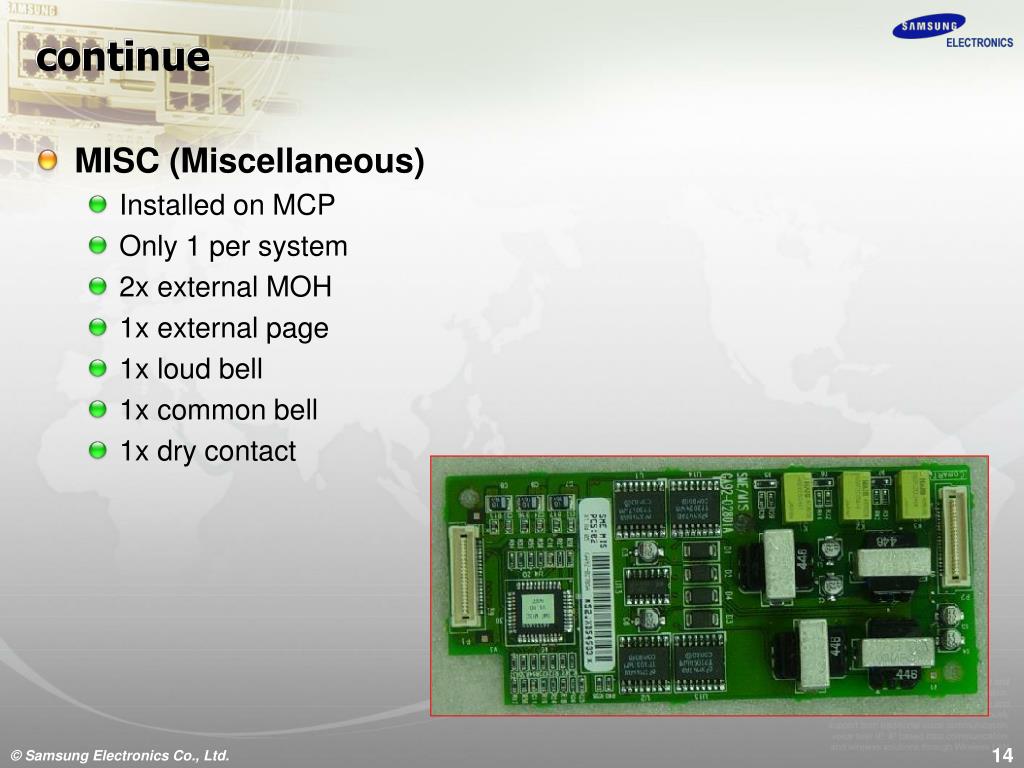

  14. continue • MISC (Miscellaneous) • Installed on MCP • Only 1 per system • 2x external MOH • 1x external page • 1x loud bell • 1x common bell • 1x dry contact

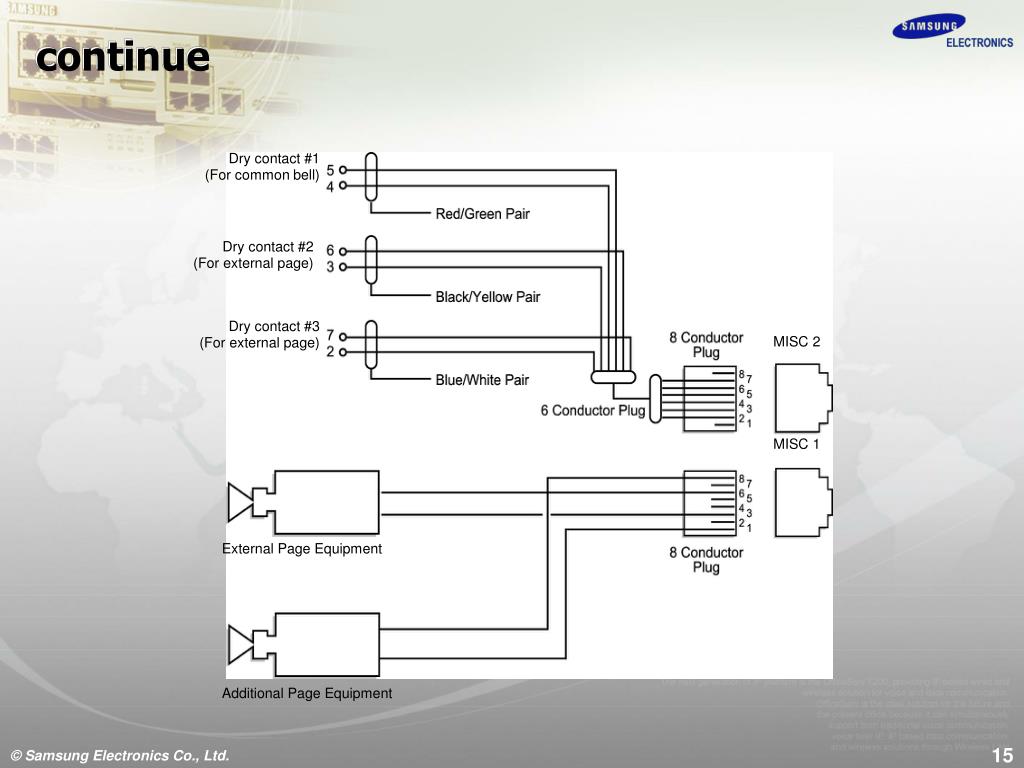

  15. Dry contact #1 (For common bell) Dry contact #2 (For external page) Dry contact #3 (For external page) External Page Equipment Additional Page Equipment MISC 2 MISC 1 continue

  16. LCP (Local Control Processor) • Features • Installed in slot 0 expansion chassis • 3x link cable RJ45 ports, for connection to MCP • 2x status LEDs

  17. continue • Front View

  18. Voice Trunk Modules

  19. Voice Trunk Module (TEPRI) • Features • Same as OS500 operation. • Only installed in slots 3 – 5 of Access cabinet or slot 3 of Expansion cabinet. • T1/E1 signals by programming. • Resistor Terminations for T1 line(100 W) and E1 line(120 W). • 8 position DIP switch.

  20. continue • DIP switch Setting

  21. SYNC ASI IPC TP1 RST LOS L2 CLK TP2 SIO T1/E1/PRI TEPRI continue • Front View

  22. Voice Trunk Module (8TRK) • Features • 8 trunk loop start module • 8 caller ID path support • Performs Polarity Reverse Sensing (PRS), (Option) • Performs Metering Pulse Detection (MPD), (Option)

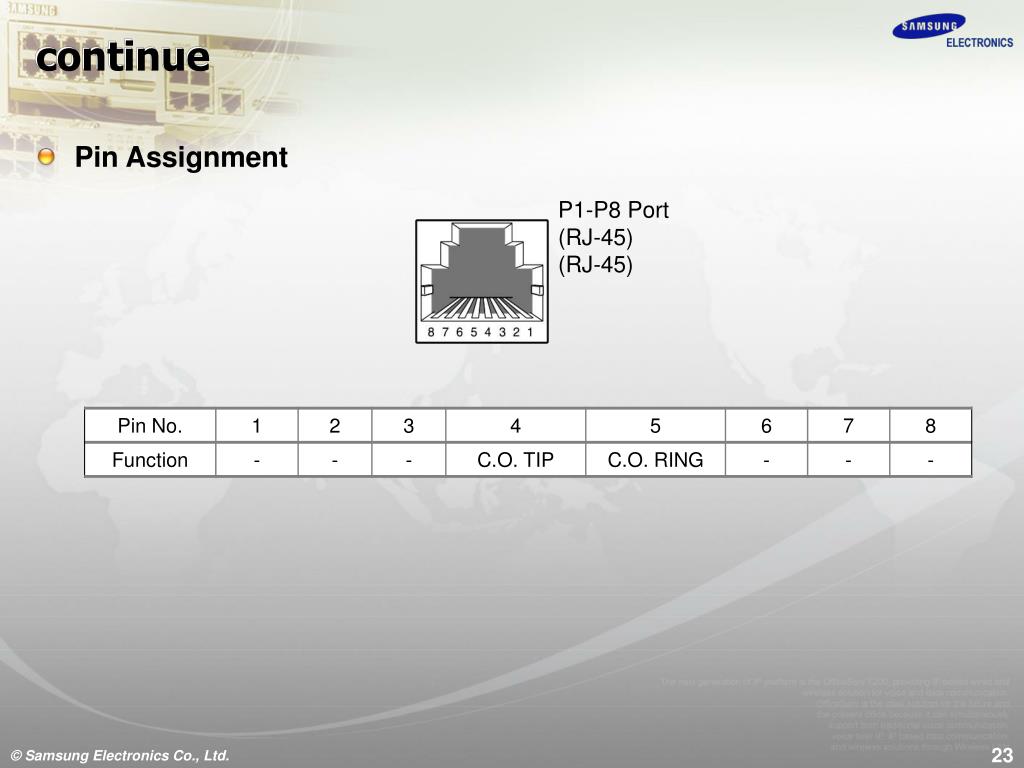

  23. P1-P8 Port (RJ-45) (RJ-45) continue • Pin Assignment

  24. P1 P2 P3 P4 P1 P2 P3 P4 P5 P6 P7 P8 P5 P6 P7 P8 8TRK continue • Front View

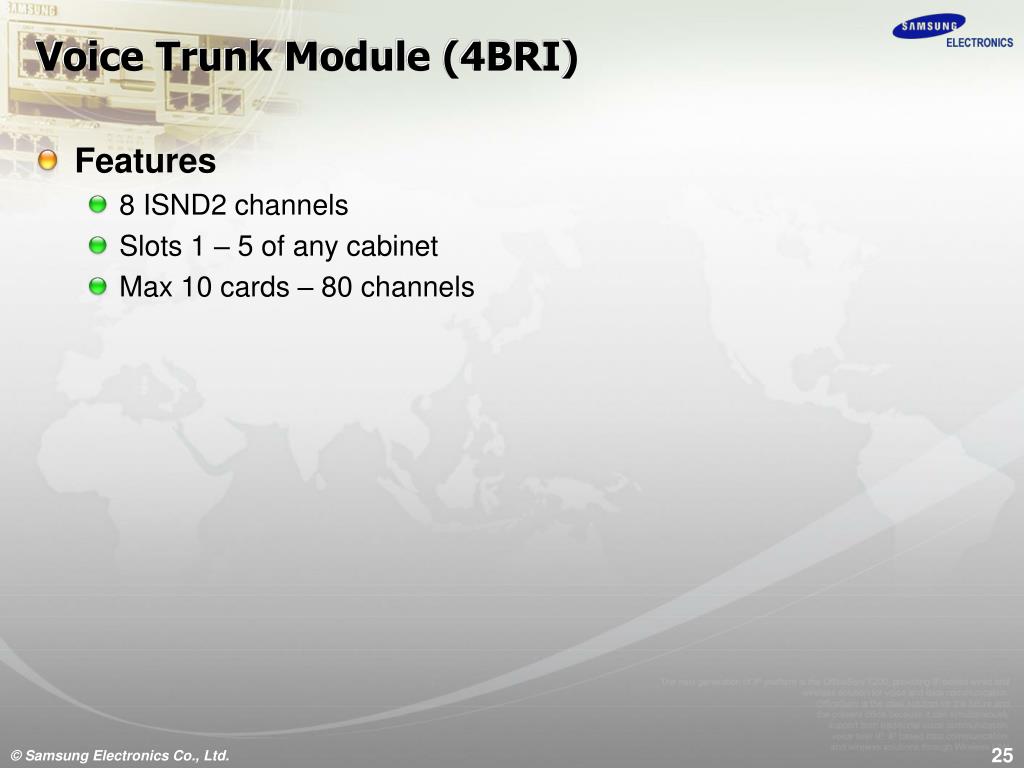

  25. Voice Trunk Module (4BRI) • Features • 8 ISND2 channels • Slots 1 – 5 of any cabinet • Max 10 cards – 80 channels

  26. P1-T P2-T P3-T P4-T RUN ACT P1-S P2-S P3-S P4-S 4BRI continue • Front View

  27. MGI (Media Gateway Interface) • Features • MGI2 – carrier module has NO MGI channels • MGI2 daughter modules added to provide 4 – 16 channels. • Installed in any subscriber slot. • G.729,G.723.G.726.G.711

  28. Option1 MGI2D Option2 MGI2D Option3 MGI2D Option4 MGI2D continue • Option board • Option board provide 4 channels.

  29. Subscriber Stations

  30. Analog Station (8/16SLI) • Features • SLI (Subscriber Line Interface) • Functions • Ring generation • DTMF/Dial pulse detection • Hook on/off detection • Tone generation • Board types • 8 SLI : 8 SLI ports • 16 SLI : 16 SLI ports • 16 MWSLI : 16 SLI with message wait • Power fail transfer relays

  31. P1/P9 P2/P10 P3/P111 P4/P12 P1 P9 P2 P10 P3 P11 P4 P12 P5 P13 P6 P14 P7 P15 P8 P16 P1 P2 P3 P4 P5/P13 P6/P14 P7/P15 P8/P16 P1 P2 P3 P4 16SLI P5 P6 P7 P8 P5 P6 P7 P8 8SLI continue • Front View

  32. continue • Pin Assignment P1 port Ports from P2 to P8

  33. Digital Station (8/16DLI) • Features • DLI (Digital Line Interface) • Types • 8 DLI : 8 DLI ports 2B+D • 16 DLI : 16 DLI ports 1B+D • Max 8 large display phones per module

  34. P1 P2 P3 P4 P1/P9 P2/P10 P3/P11 P4/P12 P1 P9 P2 P10 P3 P11 P4 P12 P1 P2 P3 P4 P5 P6 P7 P8 P5 P13 P6 P14 P7 P15 P8 P16 P5 P6 P7 P8 P5/P13 P6/P14 P7/P15 P8/P16 8DLI 16DLI continue • Front View

  35. continue • Pin Assignment

  36. Hybrid Station (8HYB/8Combo) • Features • Ring generation • DTMF/Dial pulse detection • Hook on/off detection • Tone generation • Specifications • 8 SLI ports • 8 DLI ports

  37. P1/P9 P2/P10 P3/P11 P4/P12 P1 P9 P2 P10 P3 P11 P4 P12 P5 P13 P6 P14 P7 P15 P8 P16 P5/P13 P6/P14 P7/P15 P8/P16 8HYB continue • Front View

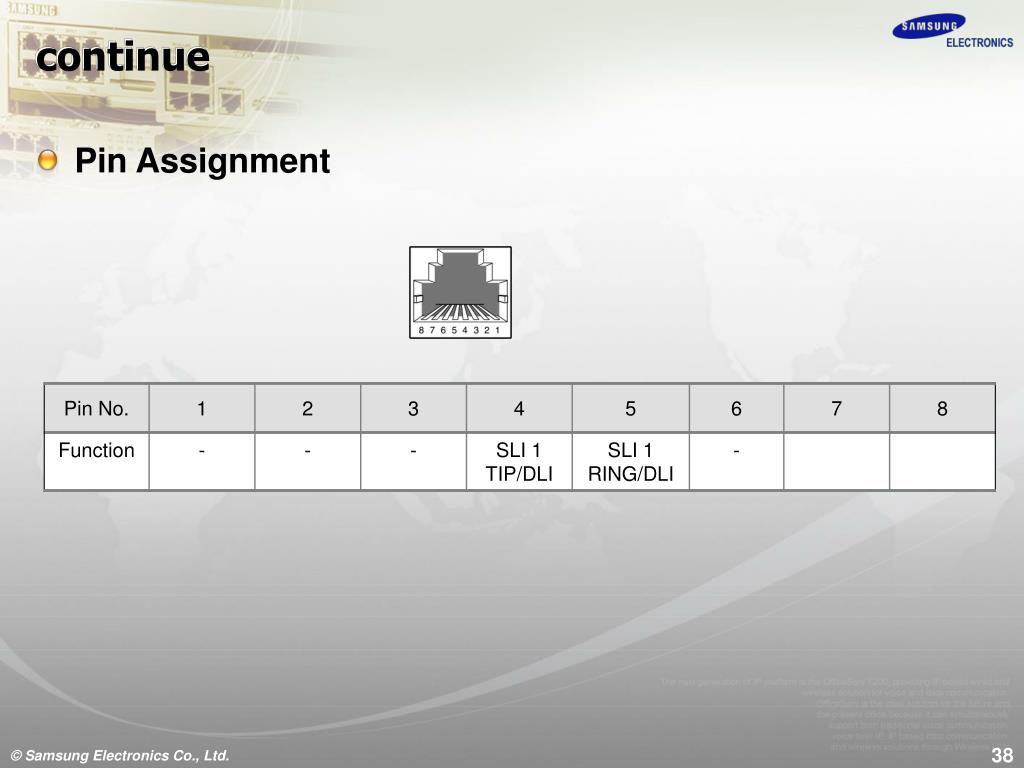

  38. continue • Pin Assignment

  39. Voice Mail System (SVMi-20E) • Features • Same position rules as station modules • Default card has 4 ports • Scalable to 20 ports? • Modem daughter card (and yes, it works!)

  40. VM1 VM2 VM3 HDD LRT SDN PGD LAT RST LAN SIO SVMi-20E continue • Front View

  41. Data Modules

  42. Router Module (WIM) • Features • WIM : WAN Interface Module • Functions • Only 1 per system • Only installed in slot 1 of main chassis • 1x LAN port • 2x WAN ports (RJ45) • 1x WAN port (V.35 serial) • 1x DMZ • SIO for configuration • WIMD – daughter board for VPN

  43. DMZ LAN LAN RUN DMZ SERIAL SERIALL • WAN1 WAN2 RST • WAN1 • WAN2 SIO WIM continue • Front View

  44. continue • WIM to LIM connection • The Method of LAN port connection • Managed LIM : Slot2 LIM with WIM • Unmanaged LIM : Slot 3,4,5 • Using the Ethernet port of the front panel, • Through back panel, connect with the LIM board of slot 2.

  45. Switch Module (LIM/PLIM) • LIM : LAN Interface Module • Features • Installed in slots 2 ~ 5 of any chassis • Max 8 per system (128 ports) • When in slot 2 of main chassis it’s a managed switch • If in any other slot it’s unmanaged • 16x 10/100 base T Ethernet ports • PLIM provides the Power over Ethernet (PoE) function • Functions • Detects 10/100 BASE-T, or full/half duplex automatically. • Offers the VLAN for supporting QoS. • Functions as a switching hub.

  46. P1 P2 P3 P4 P9 P10 P11 P12 P5 P6 P7 P8 P13 P14 P15 P16 LIM continue • Front View

  47. Wireless Modules

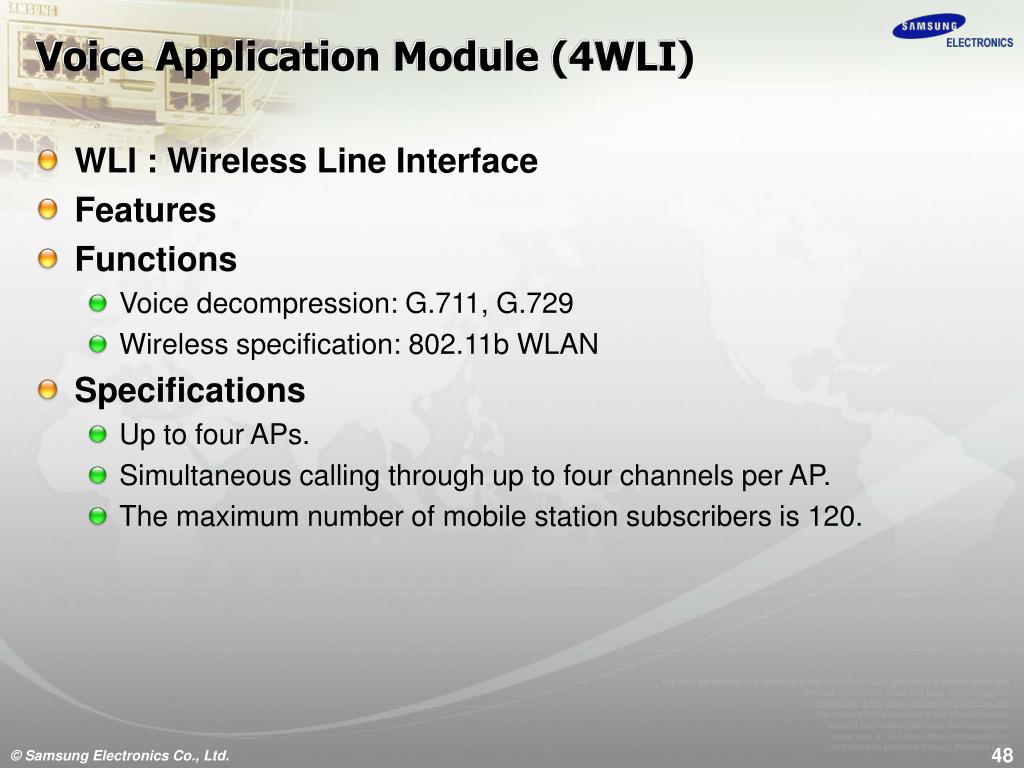

  48. Voice Application Module (4WLI) • WLI : Wireless Line Interface • Features • Functions • Voice decompression: G.711, G.729 • Wireless specification: 802.11b WLAN • Specifications • Up to four APs. • Simultaneous calling through up to four channels per AP. • The maximum number of mobile station subscribers is 120.

  49. P1 P2 P3 P4 RUN SW1 SW2 SW3 SIO 4WLI continue • Front View

  50. Terminals
