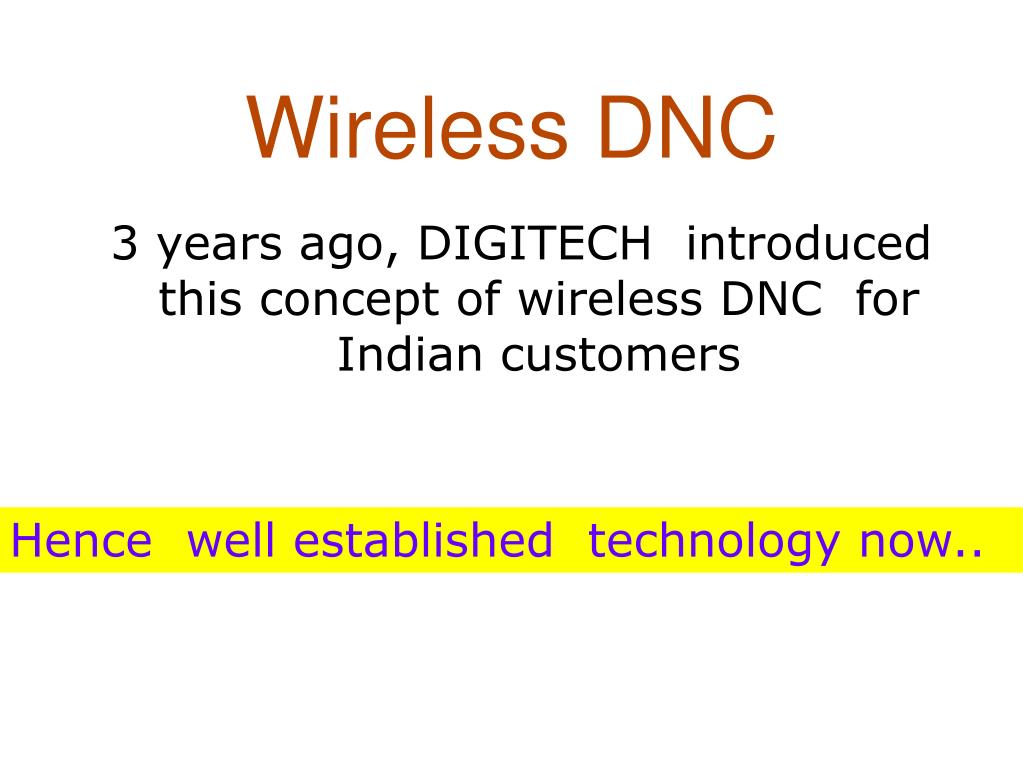

  1. Wireless DNC 3 years ago, DIGITECH introduced this concept of wireless DNC for Indian customers Hence well established technology now..

  2. Wireless DNC • Wireless communication between a PC & CNC is preferred by one & all • The prime reason is safety of RS-232 port of CNC. • Other reason is low cost. • With only one pair of wireless device, many CNCs can get the PC connectivity, one at a time.

  3. Wireless DNC Functions : a) Data transfer : PC to CNC & CNC to PC by RS-232 b) PLC data transfer from PC to CNC by RS-232 c) NC data transfer : PC to CNC & CNC to PC d) CNC to CNC data transfer, NO PC in between

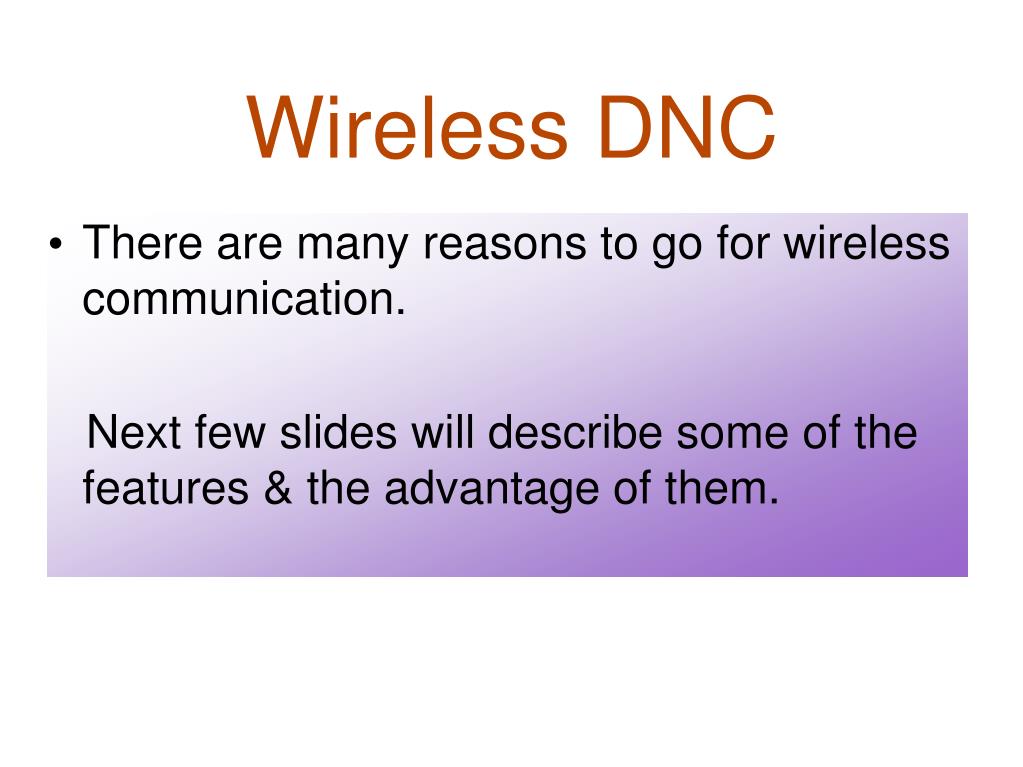

  4. Wireless DNC • There are many reasons to go for wireless communication. Next few slides will describe some of the features & the advantage of them.

  5. Wireless DNC • Practically zero maint. cost, as no data cables between PC & CNC • No Software settings in BT-100* wireless DNC • Plug N Play modules from Korea are used * BT-100 is a small wireless device. Converts RS-232 to Radio Freq. Advantage: Better Productivity on CNC Shop

  6. Wireless DNC BT-100 is certified by CE / FCC / MIC / TELEC

  7. Wireless BT-100 Advantage: Small, Simple, & Safe device for CNC

  8. Wireless BT-100 • BT-100 is SENA (Korea) make SD100 hardware with DIGITECH DNC Software Advantage: Imported unit, with local tech. support

  9. Default stub antenna covers 100 meters range Wireless DNC • Industrial wireless using RF of 2.4 GHz • Encryption of data Patch antenna for 500 Meters.. ! Advantage: Safe & secure data transfer on CNC

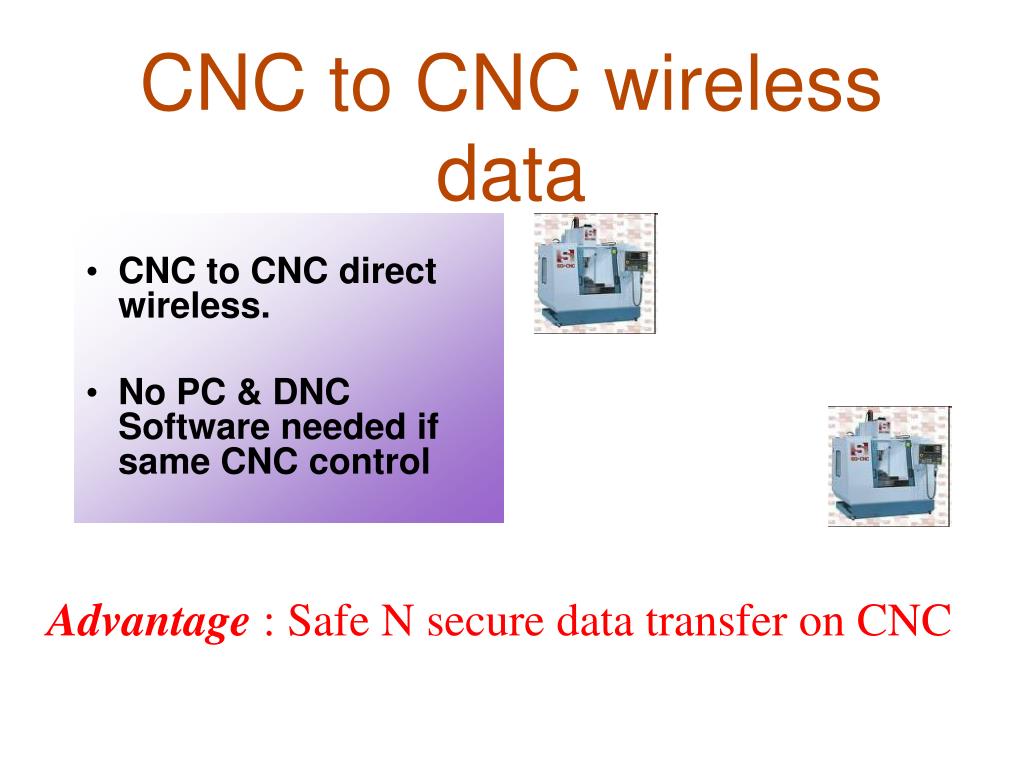

  10. CNC to CNC wireless data • CNC to CNC direct wireless. • No PC & DNC Software needed if same CNC control Advantage: Safe N secure data transfer on CNC

  11. Low Power BT-100 • Low power device (5 V DC) • Battery power option available BT-100 is Compatible for TNCremoNT Software for Heidenhain Advantage: CNC is 100 % safe. No Isolators.

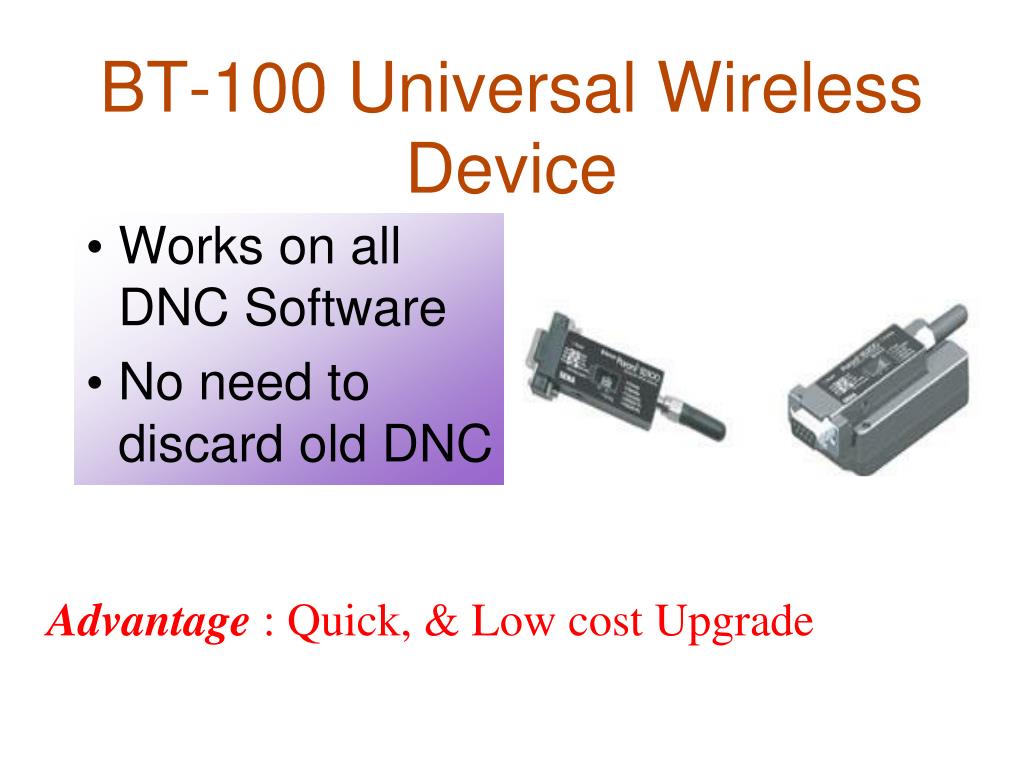

  12. BT-100 Universal Wireless Device • Works on all DNC Software • No need to discard old DNC Advantage: Quick, & Low cost Upgrade

  13. BT-100 Wireless DNC • Compact hardware • Low cost Advantage: Easy sanctioning, Quick installation

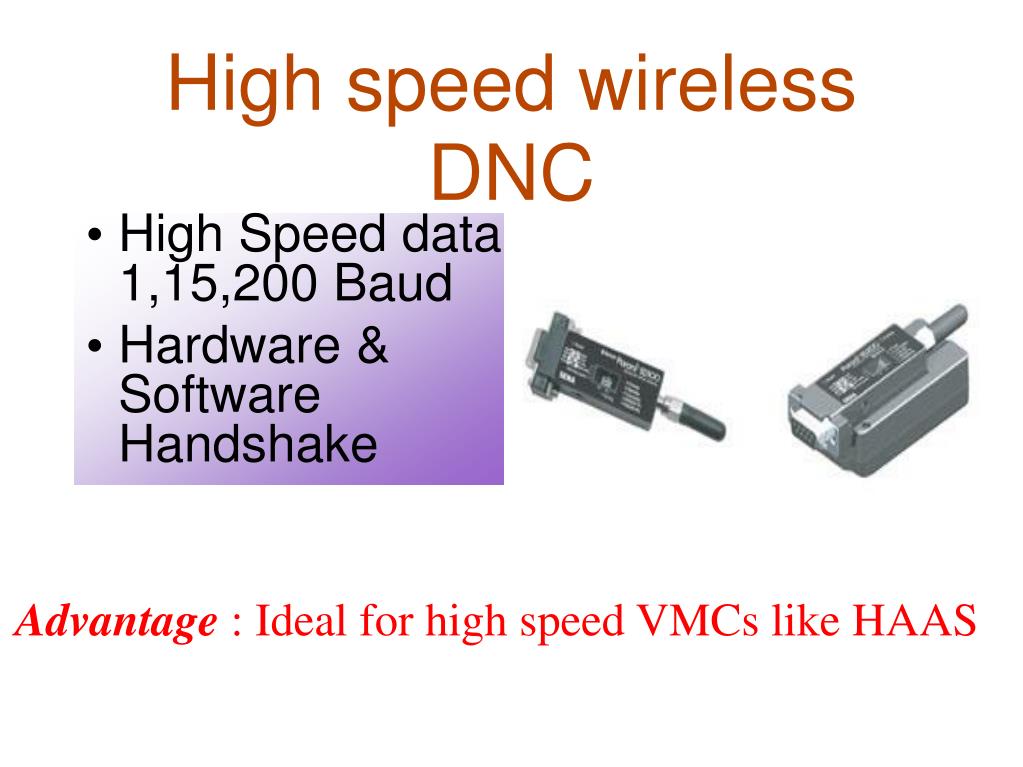

  14. High speed wireless DNC • High Speed data 1,15,200 Baud • Hardware & Software Handshake Advantage: Ideal for high speed VMCs like HAAS

  15. ISM band wireless DNC • Wireless Range100 mtrs default & extended to 500 mtrs by patch antenna • ISM Band. No license needed for using RF Frequency Patch antenna Advantage: Sufficient range for CNC Shop ISM band is reserved for Industrial-Scientific-Medical & is 2.4 GHz.

  16. Low cost wireless DNC • Cost effective & yet very reliable DNC solution Advantage: Save money. Better Profits from CNC

  17. Multiple BT-100 units ?Yes ! • Option available • Expansion of network by USB to 16 Port RS-232 Advantage : Low cost network

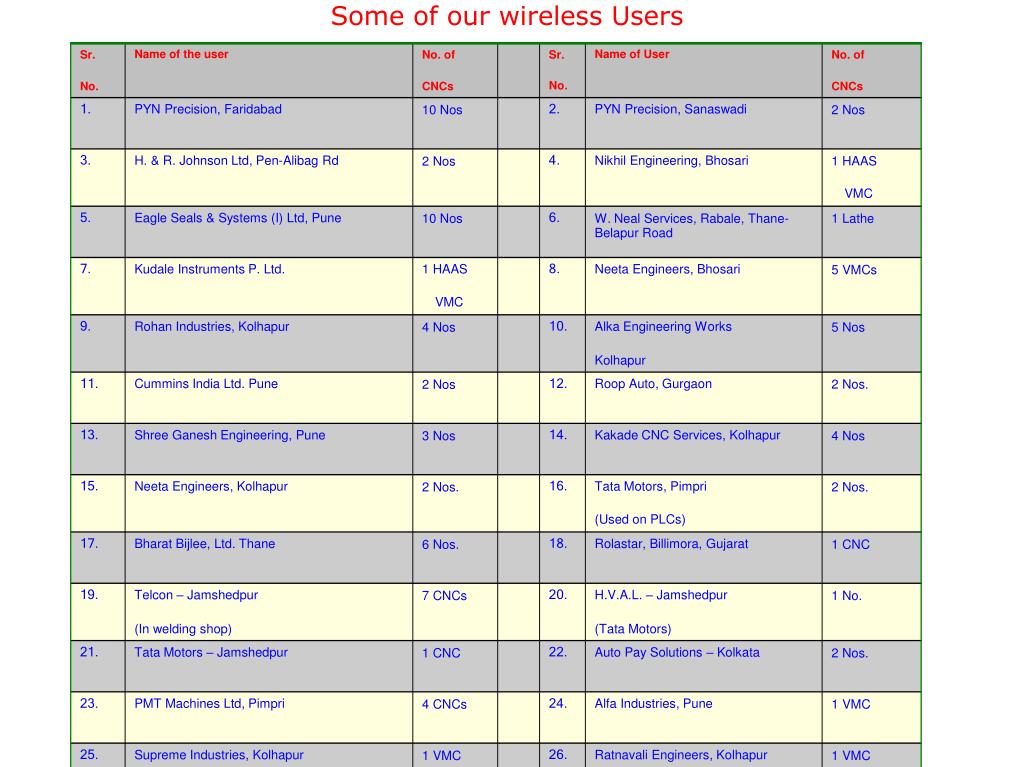

  18. Some of our wireless Users

  19. BT-100 Wireless DNC Call now : 094235 86171 Or write digitechpune@gmail.com
