  1. Hello World on the Android Platform

  2. Getting the Tools Setup • Need to Install… • Eclipse (the IDE) • Android SDK • Java JDK (not just the JRE) • Quick Start Guide is Here: http://developer.android.com/sdk/index.html

  3. Integration • Then you need to integrate Eclipse and The Android Developer Toolkit http://developer.android.com/sdk/eclipse-adt.html

  4. Android SDK Versions • You then need to download SDK versions of Android to run your program against • The Android SDK Manager in Eclipse will do this • You don’t need the latest version – it’s slow • API 7 (Android 2.1) is good & compatible with most devices

  5. The AVD • An Android Virtual Device (a simulator) needs to be created. • You will specify this in Eclipse • Includes the features that this virtual phone will have, such as touch screen, etc.

  6. The Tutorial http://developer.android.com/resources/tutorials/hello-world.html

  7. The Result • Android Virtual Device can be a little quirky and take time to load

  8. Android Application Fundamentals

  9. Getting the Tools Setup • Assuming you have Eclipse • And the SDK setup

  10. Android Online Tutorial • http://developer.android.com/guide/topics/fundamentals.html

  11. App Fundamentals • Apps are stored in an .apk file • Components in a Program • Activities – most important part • Services • Broadcast Receivers • Content Providers • Intents – a message that is sent • Widgets • Notifications

  12. Activities • A GUI element • An activity can contain views such as buttons or check boxes • One Activity is designated (in the Manifest) as where to “start” the application • These are the “forms” of the application – the presentation layer

  13. Services • Not part of the GUI • A background process • Playing audio • Network communication • Can be spawned in another thread

  14. Broadcast Receivers • A “listener” that receives announcements • From the system – battery is low • Broadcast Receivers could notify the user of something, for example • A broadcast receiver receives an “Intent” – a message, and respond to create an event-driven application

  15. Content Providers • A method of interprocess communication to make data from your app available to other apps • Or, vice-versa • Implemented through a ContentProvider and a ContentResolver (to get the data). • Example: The Contacts list in the phone – your application could access this.

  16. Intents • The actual message that is sent • An Intent to a Broadcast Receiver might announce that a picture has been taken • You can send an Intent to another application as well. • Intents are commonly used to launch a second Activity (screen)

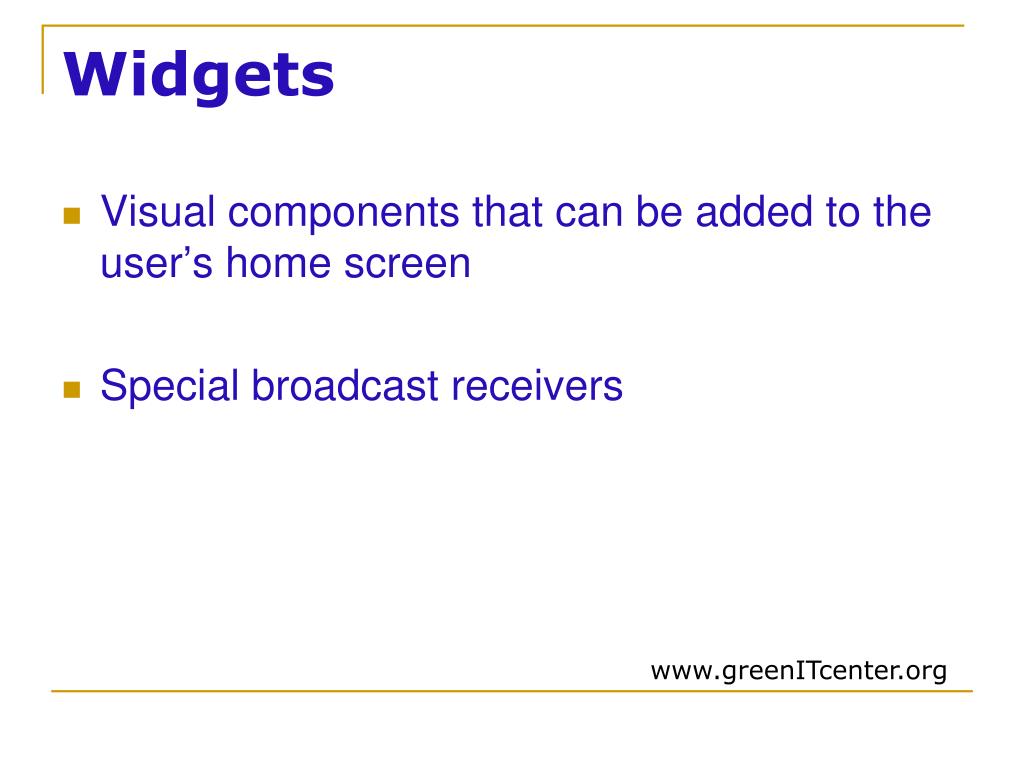

  17. Widgets • Visual components that can be added to the user’s home screen • Special broadcast receivers

  18. Notifications • Signal a user without interrupting the current activity. • Example – text message comes in. • We can trigger those notifications programmatically

  19. The Result • Think about apps as a collection of these independent pieces, passing messages to one another.

  20. Application and ActivityClasses

  21. The Application Class • Your app will extend the Application class • Your application object is a singleton (only one object may be instantiated)

  22. Application Class public class MyApplication extends Application{ private static MyApplication singleton; @Override public final void onCreate() { super.onCreate(); // call the parent singleton = this; // any other of my code } @Override public final void onTerminate() { super.onTerminate(); // call the parent // now my code }

  23. MyApplication class • I can override… • onCreate( ) • onTerminate( ) – no guarantee this gets called • onLowMemory( ) • onConfigurationChanged( ) • Need to call the superclass methods in each of your overridden methods • Sometimes the system kills your app w/ no notice

  24. Android Activity • The basis for the application • The program will start running here, and we can add user interface elements (such as Views) to the Activity • This is done in xml files in the ‘res’ folder

  25. Android Activities import android.app.Activity; import android.os.Bundle; public class MyActivity extends Activity{ // override the base class onCreate() }

  26. Activities -> Views • We need to add a view to our activity to create a GUI

  27. Resources • The /res folder contains xml files • We can specify in xml • GUI elements (using xml is preferred to using code) • String constants to be used in the program • Other resources the program needs, such as sounds or images

  28. DroidDraw • DroidDraw can help with the screen layouts • http://www.droiddraw.org/

  29. Styles and Themes • You can also create a style for all of the Activities in your app • Similar to css for web pages • http://developer.android.com/guide/topics/ui/themes.html
