  1. IPv4 over 802.16 IP CS Soohong Daniel Park Syam Madanapalli

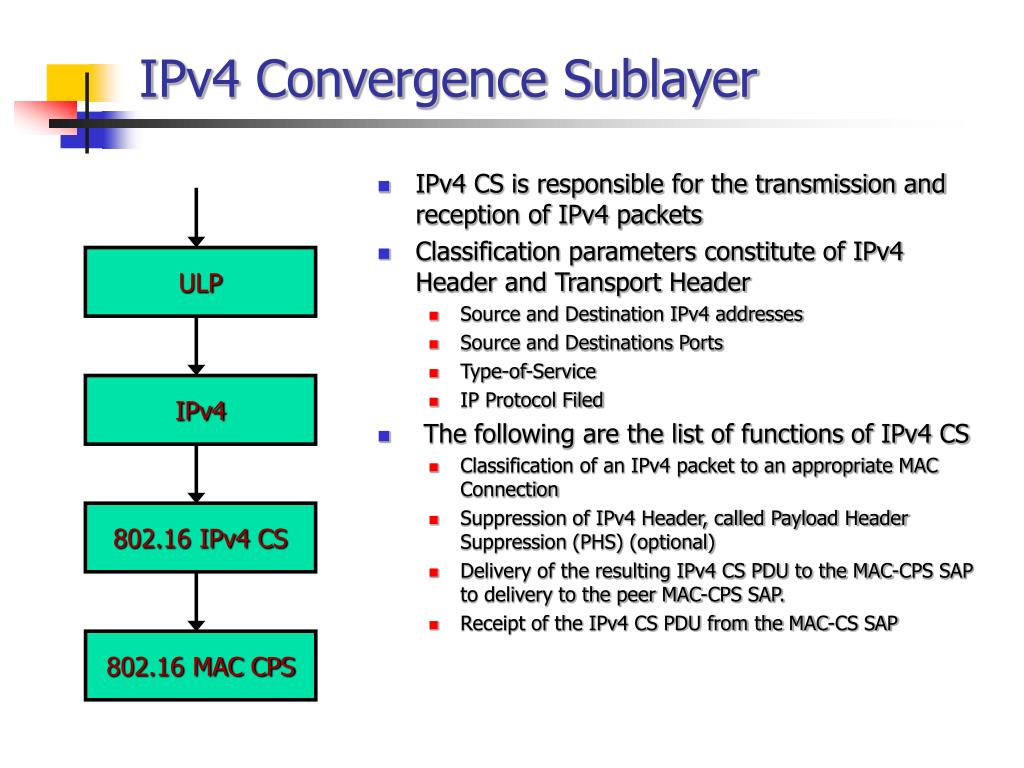

  2. IPv4 CS is responsible for the transmission and reception of IPv4 packets Classification parameters constitute of IPv4 Header and Transport Header Source and Destination IPv4 addresses Source and Destinations Ports Type-of-Service IP Protocol Filed The following are the list of functions of IPv4 CS Classification of an IPv4 packet to an appropriate MAC Connection Suppression of IPv4 Header, called Payload Header Suppression (PHS) (optional) Delivery of the resulting IPv4 CS PDU to the MAC-CPS SAP to delivery to the peer MAC-CPS SAP. Receipt of the IPv4 CS PDU from the MAC-CS SAP IPv4 Convergence Sublayer ULP IPv4 802.16 IPv4 CS 802.16 MAC CPS

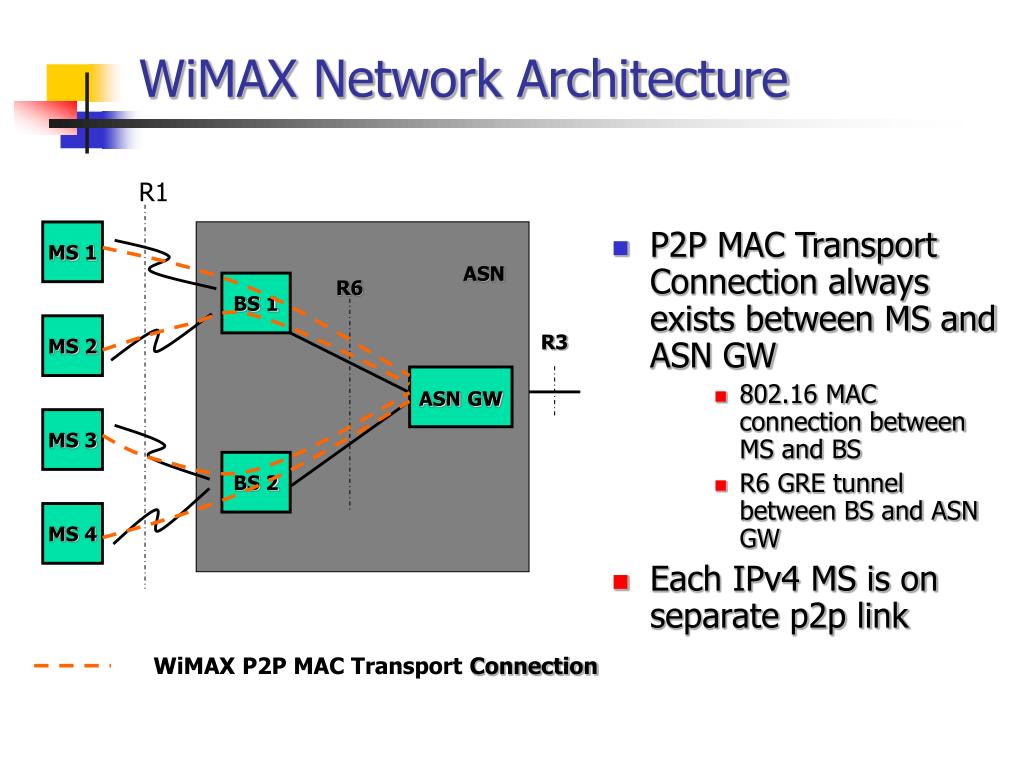

  3. P2P MAC Transport Connection always exists between MS and ASN GW 802.16 MAC connection between MS and BS R6 GRE tunnel between BS and ASN GW Each IPv4 MS is on separate p2p link WiMAX Network Architecture R1 MS 1 ASN R6 BS 1 MS 2 R3 ASNGW MS 3 BS 2 MS 4 WiMAX P2P MAC Transport Connection

  4. Frame Format • H: Header Type (1 bit), 0 - Generic MAC PDU • E: Encryption Control • R: Reserved. Shall be set to zero • C: CRC Indicator • EKS: Encryption Key Sequence • LEN: The Length in bytes of the MAC PDU including the MAC header and the CRC if present (11 bits) • CID: Connection Identifier (16 bits) • HCS: Header Check Sequence (8 bits) • CRC: An optional 8-bit field. CRC appended to the PDU after encryption. • Type: This field indicates the subheaders (Mesh subheader, Fragmentation Subheader, Packing subheader etc) and special payload types (ARQ) present in the message payload 0 10 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+|H|E| Type |R|C|EKS|R|LEN |+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+| LEN LSB | CID MSB |+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+| CID LSB | HCS |+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+| IPv4 |+- header -+| |+- and -+/ payload ... /+- -+| |+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+|CRC (optional) |+-+-+-+-+-+-+-+-+

  5. Address Assignment • Each MS is assigned an unique IPv4 address using DHCP • This may be a private IPv4 address routable only within the service provider network • NAT support for Internet Connectivity • DHCP is run over initial MAC transport connection • The initial MAC transport connection is established as soon as MS completes its network entry procedures • It is p2p connection between MS and AR, hence the DHCP packets reach AR irrespective the DHCP destination address • AR shall implement DHCP relay to forward the DHCP request to the DHCP server

  6. Address Mapping • Mapping of multicast IP address to MAC address • 802.16 MAC address is not used for the data path • Instead it uses the Connection ID (CID) • Hence no mapping is required

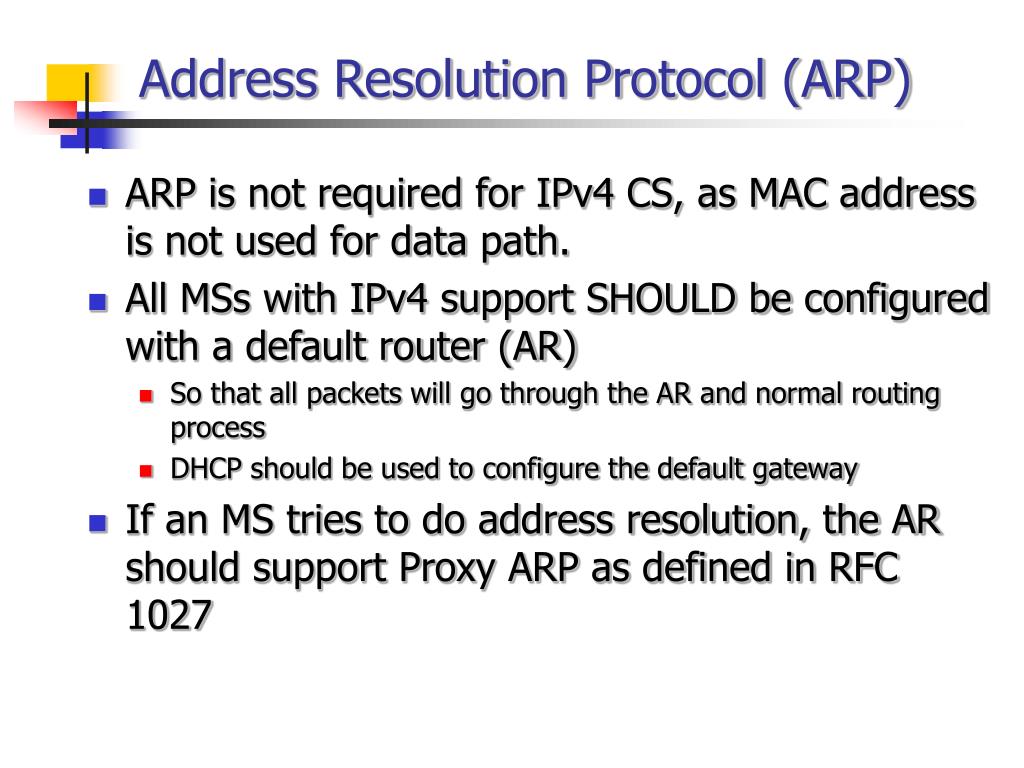

  7. Address Resolution Protocol (ARP) • ARP is not required for IPv4 CS, as MAC address is not used for data path. • All MSs with IPv4 support SHOULD be configured with a default router (AR) • So that all packets will go through the AR and normal routing process • DHCP should be used to configure the default gateway • If an MS tries to do address resolution, the AR should support Proxy ARP as defined in RFC 1027

  8. Next Step • Drafting an initial version by November • draft-xxxx-16ng-ipv4-over-ipv4cs-00 • Call for comments (November – December) • Ready for WGLC (December) • Ready for IESG (January, 2007)
