FEV’s Greatest Bloopers: False Positives in Formal Equivalence Erik Seligman CS 510, Lecture 7, January 2009 (Adapted from Seligman/Kim paper in DVCon 2007)

Agenda • Introduction: FEV and False Positives • Danger #1: Constraints • Danger #2: Libraries • Danger #3: Unreachables • Danger #4: Black Boxes • Danger #5: RTL Language Usage • Danger #6: Obscure Tool Behaviors • Advice and Conclusions

What is a False Positive? • False Positive: FEV incorrectly labels designs equivalent • Very costly • FEV typically gates next design phase • Wrong FEV answer at tapeout  silicon respin • Not just theoretical– seen in Intel processors & ASICs • Not discussing FEV tool bugs • Many dangers for misuse when tool is OK

Constraints in FEV • Constraints: Reduce set of possible values • Turn off scan • Known conditions on inputs • Eliminate unused state encodings • Numerous types can be defined • Explicit: “add pin constraint 0…” • RTL: $constraint(foo | !bar | baz); • Conformal: add ‘-define CONSTRAINT’ to read design command to enable • Within one-many mapping: “a -> b c d” • Or combo of mapping + ‘add pin eq’ in Conformal

Example Where Constraint Needed Block 1 Block 2 A C B INVERSE (A,B) needed to prove C==0 in Block 2

Bad Constraints  False Positive • Conflicting pair of constraints • INVERSE(a,b) • Mapping: “a b -> c” • Why is this a problem?

Bad Constraints  False Positive • Conflicting pair of constraints • INVERSE(a,b) • Mapping: “a b -> c”  EQUAL(a,b) • Result: no valid input space, so module passed • Vacuous pass: all inputs illegal • INVERSE(a,b) && EQUAL(a,b) ??? • Dead silicon in processor A0 stepping! • New tool feature would catch contradiction • But what if first constraint was !(A & B) ?

Recommendation #1 Review & Formally Verify Your Constraints

Library Cells and FEV • Libraries of common cells used in designs • AND, OR, Flip-Flops, etc. • Often developed by remote team • Library collateral supplied for FEV • Logic representations trusted for higher-level FEV • Analyze at transistor level every run? Too hard. • Library team FEVs logic vs. actual circuits • May come with assumptions on inputs • Must prove for library to be valid

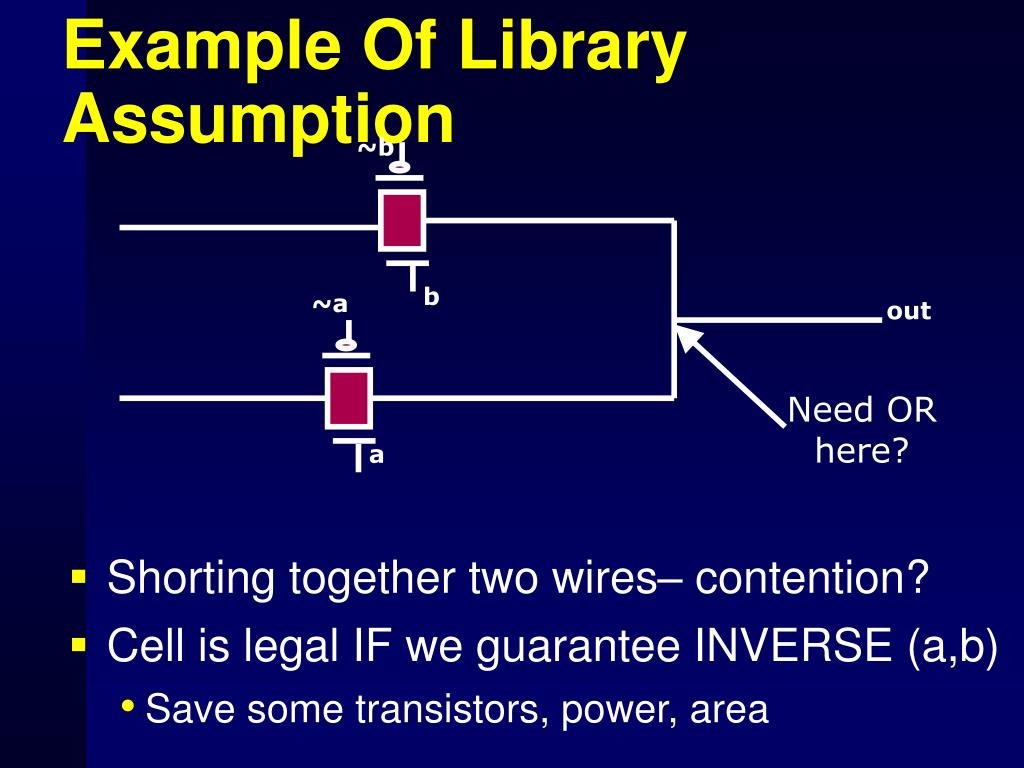

Example Of Library Assumption ~b • Shorting together two wires– contention? • Cell is legal IF we guarantee INVERSE (a,b) • Save some transistors, power, area b ~a out Need OR here? a

Unproven Assumptions  False Positive • Processor FEV flow has ‘schematic assumption’ step • Required to prove assumptions on library cell inputs • Separate step from equivalence verification • Actually an FPV run embedded in the FEV flow, since proving an assertion rather than proving equivalence • Design engineer didn’t understand requirement • Formal Property Verification (FPV) optional in other areas • Schematic Assumption step not run for one block • Another false positive & broken A0 processor silicon!

Recommendation #2 Make Sure Library Requirements are Verified and Understood

Unreachable Points in FEV • Unreachable: flop/latch that cannot affect output  can be logically ignored • Must be ignored, if not in both models • Common causes • Synthesis optimizations • Tied off no-longer-relevant logic • But be careful about backend logic • Some flows (scan, bonus cells) connect later • So ‘unreachables’ may be important!

Reachable and Unreachable Flops in1 out1 A misc logic A: Reachable in1 misc logic B B: Unreachable (logic tieoff) C C: Unreachable (bonus flop)

Unreachables in Conformal • Default: reported, not mapped/compared • Be careful: two stages for elimination • Some unreachables eliminated on load • Some eliminated & reported during mapping • My preference: do a best-effort mapping • Compare any that were mapped • Review unmapped ones & signoff • Conformal commands • read design … -keep_unreach • set mapping method … –unreach

Lost Unreachables  False Positive • Bonus logic placed in ASIC design • RTL-netlist FEV, backend net-net passed • Bonus cells lost somewhere • Intermediate FEV owners did not notice • Problem aggravated by tool feature • Two places for unreachables: loading, mapping • “Simple” bonus cells removed during loading • Missing cells discovered at late inspection

Recommendation #3 Monitor Unreachable Points Carefully

Black Boxes in FEV • Some logic usually must be excluded • IP received as-is from remote teams • Pure analog blocks • FEV tools allow black boxing • Logic to boundaries of black box is verified • But be careful! • Audit to ensure everything is verified somewhere

“Analog” Black Box?  False Positive FEV-able Glue Logic True Analog Logic Black Boxed Module

Recommendation #4 Be Very Careful About Black Boxing Logic

Odd Corners of Verilog • What does this mean if WIDTH=2? wire foo = {a, {(2-WIDTH){1’b0}}, b}; • Why is this confusing?

Odd Corners of Verilog • What does this mean if WIDTH=2? wire foo = {a, {(2-WIDTH){1’b0}}, b}; • Why is this confusing? • Does it mean • {a,b} • {a,0,b} • {}

Odd Corners of Verilog • What does this mean if WIDTH=2? wire foo = {a, {(2-WIDTH){1’b0}}, b}; • Why is this confusing? • Does it mean • {a,b} • {a,0,b} • {} • Verilog standard was ambiguous, tools disagree! • This particular issue fixed in SystemVerilog: {a,b}

Language Ambiguity  False Positive • Originally synthesized with vendor tool • FEV tool from same vendor said design fine • Both tools had same interpretation • FEV tool from other vendor revealed diff • Embedded in huge logic cone, hard debug • Pressure to waive based on vendor FEV • Finally root-caused with vendor AEs • Designer intent disagreed with synthesis!

Preventing Language Issues • RTL Coding standards • Enforce thru linting tools • Examples: Synopsys LEDA, Atrenta Spyglass • Correct linting would flag ambiguous RTL • + Avoid Synthesis & FEV from same vendor • Increases chance of catching these cases • Vendors try to push integration though!

Recommendation #5 Make sure RTL is high-quality & fully linted

Recommendation #6 Ensure Synthesis-FEV Independence

Multi-Driven Nets • Many ways to get driven in Verilog • assign statements • Input port to module • Connect to output of submodule • What if a net has multiple drivers? • Combine with some logic function (AND,OR)? • Report error?

Surprising Default • Multi-driven nets treated as Wired AND •  result is AND of all drivers • Copied from common synthesis default • But is this always the intent? • Maybe it’s an error • Maybe user expected an OR • Maybe input accidentaly defined as output • This really happened in a design near tapeout • Incorrect logic treated as AND, only caught luckily thru late inspection!

Multiple Drivers in Conformal • set wire resolution [AND|OR|WIRE] • AND, OR = use logical function • WIRE = create special node (‘E’) and report • E points become standalone key points • Usually any occurrence is an error! • Default is AND • My recommendation: set to WIRE • Unless actively intending multi-drives

Recommendation #7 Understand your FEV tool, including obscure options.

Recommendations • Review and formally verify constraints. • Make sure libraries are verified & understood. • Monitor unreachable points carefully. • Be very careful about black boxing logic. • Make sure RTL is high-quality & fully linted. • Understand your FEV tool, including obscure options. • Ensure Synthesis-FEV independence. • Sanity-check FEV with at least some GLS (gate-level simulation) runs. • See paper for details

Conclusions • FEV is a powerful tool, reliable if used correctly! • But false positives are a real danger • Issues seen in many projects at Intel • Very costly, sometimes requiring new stepping • Useful to recognize common causes • Misuse of constraints • Library misunderstandings • Excluded unreachable points • Incorrect Blackboxing • Understand your tools, library, and design!

References / Further Reading • http://www.aracnet.com/~eseligma/docs/dvcon_2007.pdf
