Session objectives

Session Objectives

  • This session will review the Command Alkon tools available to manage the quality and production processes in international markets

  • Part of the session will help you understand new COMMANDqc features that are of particular interest to countries outside North America

  • Part of the session will help you understand COMMANDseries features that are of particular interest to countries outside North America that support Production & Quality Management

  • Learn about European standardization and how those concepts can be extended to any country

  • Understand the inherent problems of applying Production and Quality Management (COMMANDqc, COMMANDseries, etc.) in different countries

  • Learn about a few special features that have been developed for individual international customers

Production & Quality Management for the International Marketplace (QC-007)


Production management

Production Management

Production Management:

Management and control of the Ready Mix production process throughout the day-to-day business lifecycle of quality management, order and dispatch control, and production control; includes tolerance management, user notification, and various cross-functional tools

Production & Quality Management for the International Marketplace (QC-007)


Benefits of production management

Benefits of Production Management

  • Controls day-to-day activity in compliance with your company’s quality and process standard

  • Efficient and effective identification of mix design and batching trends, issues and potential causes

  • Improves confidence and data integrity without micro-managing your plant operations

  • Minimize risk and cost by controlling the quality of your products (i.e. out-of-tolerance loads)

  • Identifies plant or other product related issues so they can be addressed before they negatively impact the business

  • Improved accuracy and consistency of concrete batching

  • Management by exception and proper cumulative reporting reduces the need to inspect each batch and identifies root cause

Production & Quality Management for the International Marketplace (QC-007)


Session objectives1

Session Objectives

  • This session will review the Command Alkon tools available to manage the quality and production processes in international markets

  • Part of the session will help you understand new COMMANDqc features that are of particular interest to countries outside North America

    • Where and how is COMMANDqc being used?

    • What COMMANDqc features that make it adaptable to different markets?

    • If I am a U.S. or Canadian customer, why do I care?

    • Learn about European standardization and how those concepts can be extended to any country

    • Understand the inherent problems of applying Production and Quality Management (COMMANDqc, COMMANDseries, etc.) in different countries

    • Learn about a few special features that have been developed for individual international customers

  • Part of the session will help you understand COMMANDseries features that are of particular interest to countries outside North America that support Production & Quality Management

  • Learn more about overall product integration between COMMANDqc, COMMANDseries, and COMMANDbatch that give you greater business and process flexibility

Production & Quality Management for the International Marketplace (QC-007)


What does command qc do

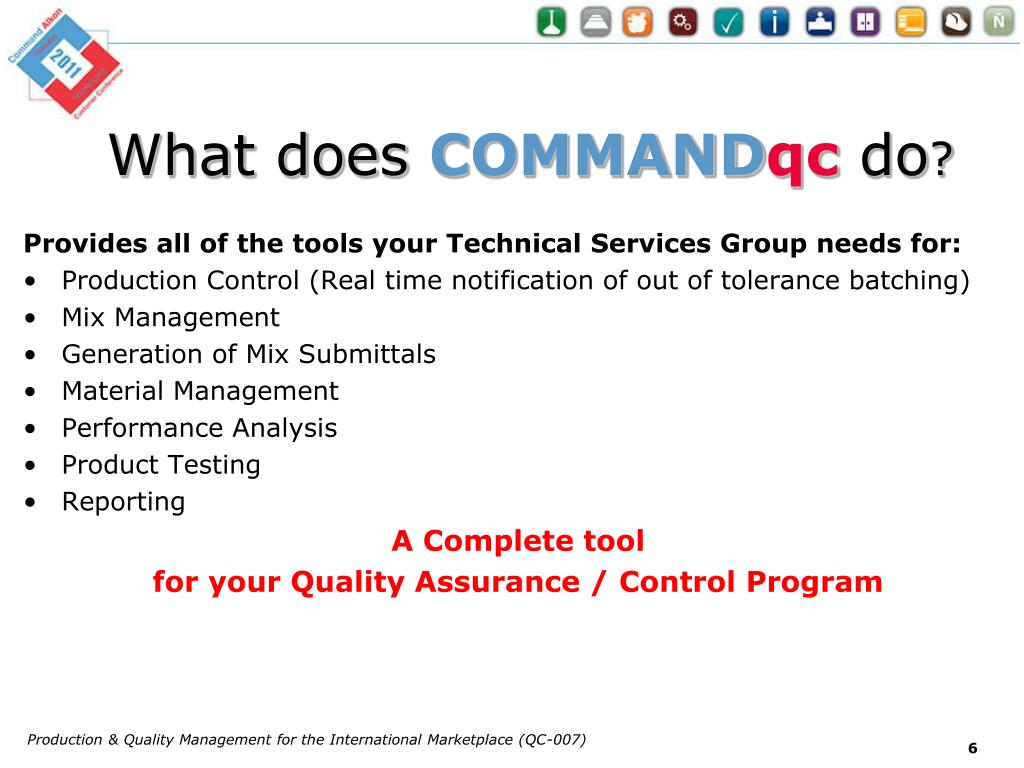

What does COMMANDqc do?

Provides all of the tools your Technical Services Group needs for:

  • Production Control (Real time notification of out of tolerance batching)

  • Mix Management

  • Generation of Mix Submittals

  • Material Management

  • Performance Analysis

  • Product Testing

  • Reporting

    A Complete tool

    for your Quality Assurance / Control Program

Production & Quality Management for the International Marketplace (QC-007)


Where has commandqc been deployed

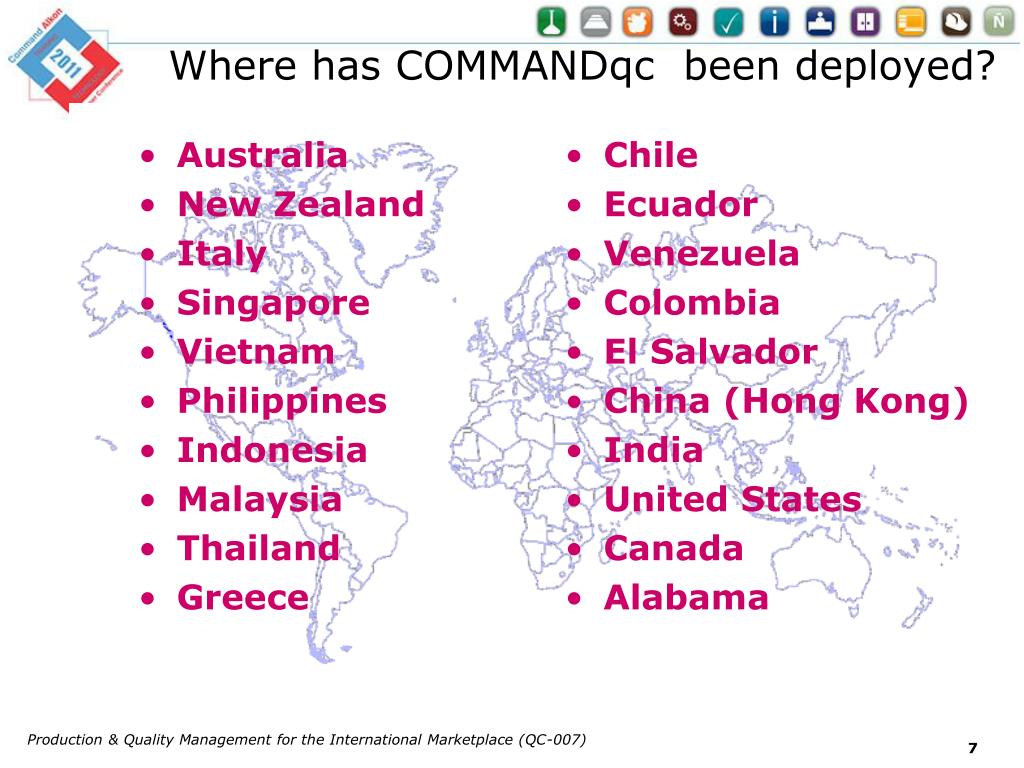

Where has COMMANDqc been deployed?

  • Australia

  • New Zealand

  • Italy

  • Singapore

  • Vietnam

  • Philippines

  • Indonesia

  • Malaysia

  • Thailand

  • Greece

  • Chile

  • Ecuador

  • Venezuela

  • Colombia

  • El Salvador

  • China (Hong Kong)

  • India

  • United States

  • Canada

  • Alabama

Production & Quality Management for the International Marketplace (QC-007)


Diversity when in rome

Diversity: “When in Rome…”

  • Different places have different languages, terminology, standards and practices. Duh.

  • Different companies have different requirements and expectations. This is driven by:

    • Local regulations and standards

    • Your company’s culture and history

    • Your customers’ expectations

Production & Quality Management for the International Marketplace (QC-007)


Diversity country company models

Diversity: Country/Company Models

COMMANDqc

Functional

Areas

Production & Quality Management for the International Marketplace (QC-007)


Diversity country company models1

Diversity: Country/Company Models

Production-

Centric

Production & Quality Management for the International Marketplace (QC-007)


Diversity country company models2

Diversity: Country/Company Models

Typical U.S. Customer

Production & Quality Management for the International Marketplace (QC-007)


Diversity country company models3

Diversity: Country/Company Models

Analytical

Production & Quality Management for the International Marketplace (QC-007)


Diversity when in rome1

Diversity: “When in Rome…”

  • COMMANDqc attempts to address these differences with:

    • “Localization” features (language, units, standards)

    • Flexible features that can be configured for different companies

    • Integration features specific to CS08 V3

    • Special features developed for specific markets

  • Let’s look at these areas one at a time

Production & Quality Management for the International Marketplace (QC-007)


Diversity when in rome2

Diversity: “When in Rome…”

1. “Localization” Features

(language, units, standards)

Production & Quality Management for the International Marketplace (QC-007)


Localization features language

Localization features - Language

  • Language

Production & Quality Management for the International Marketplace (QC-007)


Localization features language1

Localization features - Language

Production & Quality Management for the International Marketplace (QC-007)


Localization features language2

Localization features - Language

  • Multiple Language capability to:

    • Store different languages

    • Integration different languages

    • Print different languages

    • Translate different languages

    • Stronger code page support

Production & Quality Management for the International Marketplace (QC-007)


Localization features units

Localization features - Units

Production & Quality Management for the International Marketplace (QC-007)


Localization features units1

Localization features - Units

Production & Quality Management for the International Marketplace (QC-007)


Localization features units2

Localization features - Units

Production & Quality Management for the International Marketplace (QC-007)


Localization features units3

Localization features - Units

Production & Quality Management for the International Marketplace (QC-007)


Diversity when in rome3

Diversity: “When in Rome…”

2. Flexible, Configurable Features

Production & Quality Management for the International Marketplace (QC-007)


European standard en 206 1

European Standard EN 206-1

  • Standardizes many aspects of concrete usage and production across Europe:

    • Specification

    • Performance

    • Production

    • Conformity testing and reporting

  • Contains mix design organizational concepts that can be applied anywhere

Production & Quality Management for the International Marketplace (QC-007)


European standard en 206 11

European Standard EN 206-1

  • Concrete is specified by performance “Classes”

    • Compressive Strength Class

    • Consistence Class (slump, flow, etc.)

    • Dmax (Maximum Nominal Upper Aggregate Size)

    • Density Class

    • Chloride Content Class

    • Air Content

    • Exposure Class

    • … and other special characteristics

Production & Quality Management for the International Marketplace (QC-007)


En 206 strength classes

EN 206 – Strength Classes

Production & Quality Management for the International Marketplace (QC-007)


En 206 consistence classes

EN 206 – Consistence Classes

Production & Quality Management for the International Marketplace (QC-007)


En 206 exposure classes

EN 206 – Exposure Classes

Production & Quality Management for the International Marketplace (QC-007)


En 206 exposure classes1

EN 206 – Exposure Classes

Production & Quality Management for the International Marketplace (QC-007)


Commandqc product classes

COMMANDqc Product Classes

  • COMMANDqc uses configurable “Product Classes”

Production & Quality Management for the International Marketplace (QC-007)


Commandqc product classes1

COMMANDqc Product Classes

  • COMMANDqc uses configurable “Product Classes”

Production & Quality Management for the International Marketplace (QC-007)


Commandqc product classes2

COMMANDqc Product Classes

  • You can create your own Norms, Classes, and Product Entry form layouts

Production & Quality Management for the International Marketplace (QC-007)


Commandqc product classes3

COMMANDqc Product Classes

Production & Quality Management for the International Marketplace (QC-007)


En 206 k value

EN 206 “K-value”

  • Specifies the effectiveness or cement-replacing capability of “additions”

    • Flyash

    • Silica Fume

  • Effective cementitious content =

    cement + K * additions

  • Effective w/c ratio =

    water/(cement + K * additions)

  • K-value of an addition depends on

    • Cement type it is used with

    • Exposure Class (concrete usage)

  • The rules are more complicated than this!

Production & Quality Management for the International Marketplace (QC-007)


New calculated mix properties

New Calculated Mix Properties

Production & Quality Management for the International Marketplace (QC-007)


Compliance checking

Compliance checking

  • When saved, every Mix Design is checked:

    • Exposure Class minimum cement(eq)

    • Specified minimum cement(eq)

    • Exposure Class maximum w/c(eq) ratio

    • Specified w/c(eq) ratio

    • Yield (+/- tolerance setting)

    • Density from Density Class

    • Chloride Content

    • Aggregate Type

    • Maximum Aggregate Size

    • Cement Type

    • Addition Type

    • Air Content

    • Quantity of non-certified Flyash

Production & Quality Management for the International Marketplace (QC-007)


Diversity when in rome4

Diversity: “When in Rome…”

3. Special features developed for

specific markets

Production & Quality Management for the International Marketplace (QC-007)


Special features developed for specific markets

Special features developed forspecific markets

  • Incident recording and reporting

  • Mix Approval via SharePoint

  • Sample Scheduling

  • Reports

  • Etc.

Production & Quality Management for the International Marketplace (QC-007)


Incident reporting

Incident Reporting

Production & Quality Management for the International Marketplace (QC-007)


Mix approvals

Mix Approvals

Production & Quality Management for the International Marketplace (QC-007)


Sample scheduling

Sample Scheduling

Production & Quality Management for the International Marketplace (QC-007)


Special features developed for specific markets1

Special features developed forspecific markets

  • Reports

  • Reports

  • Reports

  • Reports

  • Reports

Production & Quality Management for the International Marketplace (QC-007)


Session objectives2

Session Objectives

  • This session will review the Command Alkon tools available to manage the quality and production processes in international markets

  • Part of the session will help you understand new COMMANDqc features that are of particular interest to countries outside North America

  • Part of the session will help you understand COMMANDseries features that are of particular interest to countries outside North America that support Production & Quality Management

    • Legal and Certification Text

    • Concrete Sample Testing Plan

    • Sampled Tickets

    • Product Status

    • Suggest Dosage Ranges

    • Batch Conformity and Compliance

    • Order Level Mix Design

    • Batch and Production Reporting

  • Learn more about overall product integration between COMMANDqc, COMMANDseries, and COMMANDbatch that give you greater business and process flexibility

Production & Quality Management for the International Marketplace (QC-007)


Legal and certification text

Legal and Certification Text


Legal and certification text1

Legal and Certification Text

  • Provide the ability to import images in different formats (e.g. gif, jpg, bmp) to represent the symbols for national standards

  • Provide the ability to print these images on delivery note based on certification of material and/or mix

  • Allow the user to associate a national standard image and/or text to one or more plants

Production & Quality Management for the International Marketplace (QC-007)


Legal and certification text2

Legal and Certification Text

  • Each National Standard is configured with appropriate Legal Text and Image. Depending on market, micro-market, “sales organization”, etc.

Production & Quality Management for the International Marketplace (QC-007)


Legal and certification text3

Legal and Certification Text

  • Each plant is then assigned to the National Standard logo and text that must print when a product is verified as “certified”

Production & Quality Management for the International Marketplace (QC-007)


Legal and certification text4

Legal and Certification Text

  • Configuration determines how certification should behave:

    • Allow or Do not allow, with Warning or No Warnings

Production & Quality Management for the International Marketplace (QC-007)


Legal and certification text5

Legal and Certification Text

  • Values are determined using the following logic:

    • Saleable Item (IMLB)

    • Alternative Item (ILOC)

    • Saleable Item (ILOC)

+ Constituent Level (at all times!!)

Production & Quality Management for the International Marketplace (QC-007)


Legal and certification text6

Legal and Certification Text

  • Fields Required are:

    • When the mix is certified (Certificate Number) and the certification date has not expired (or null)

    • Water is not a constituent that needs to be certified

    • Sales Product:

Production & Quality Management for the International Marketplace (QC-007)


Legal and certification text7

Legal and Certification Text

Mix Design

Raw Material

Production & Quality Management for the International Marketplace (QC-007)


Legal and certification text8

Legal and Certification Text

Logo only prints when certified!!!

Legal text only prints when ALL materials and Mix Design is certified!!!

Legal Text 1

Legal Text 2

Legal Text 3

Legal Text 4

Legal Text 5

Production & Quality Management for the International Marketplace (QC-007)


Concrete and sample testing plan

Concrete and Sample Testing Plan


Concrete sample testing plan

Concrete Sample Testing Plan

  • Ability to more tightly manage the samples required of different products at the plant, away from the lab.

  • Helps facilitate an otherwise manual process

  • Store test plans with the frequency of testing of products

  • Notify the order taker at the time of order entry or dispatcher at the time of ticketing that a sample is required or scheduled for a particular order or load

  • Management of mix designs or concrete products by Concrete Family is required

  • Must have CS in your license.

Production & Quality Management for the International Marketplace (QC-007)


Concrete sample testing plan1

Concrete Sample Testing Plan

  • Firstly, enable per user

  • Give the ability to turn On or Off based on job function:

Production & Quality Management for the International Marketplace (QC-007)


Concrete sample testing plan2

Concrete Sample Testing Plan

Testing Methods to be defined

Testing Family to be defined

Production & Quality Management for the International Marketplace (QC-007)


Concrete sample testing plan3

Concrete Sample Testing Plan

  • Testing Family:

    • Maximum – Per Year; Retrieve Tickets (for the Concrete Item or Family) for the Calendar Year

    • Maximum – Per Month; Retrieve Tickets (for the Concrete Item or Family) for the Calendar Month

    • Maximum – Per Week; Retrieve Tickets (for the Concrete Item or Family) for the Week (based on 1 Production Week Equals x days)

    • Maximum – Per Day; Retrieve Tickets (for the Concrete Item or Family) for the Day (based on 1 Production Day Equals x m3)

    • Minimum – Per Day; Retrieve Tickets (for the Concrete Item or Family) for the Day (based on 1 Production Day Equals x m3)

    • Minimum – Per Week;Retrieve Tickets (for the Concrete Item or Family) for the Week (based on 1 Production Week Equals x days)

    • Minimum – Per Month; Retrieve Tickets (for the Concrete Item or Family) for the Calendar Month

    • Minimum – Per Year; Retrieve Tickets (for the Concrete Item or Family) for the Calendar Year

    • blah

    • blah

Production & Quality Management for the International Marketplace (QC-007)


Concrete sample testing plan4

Concrete Sample Testing Plan

  • The “frequency of test” can then be assigned to the appropriate product based on:

  • Assigning Concrete Family Straight to the product’s location:

Production & Quality Management for the International Marketplace (QC-007)


Concrete sample testing plan5

Concrete Sample Testing Plan

  • The “frequency of test” can then be assigned to the appropriate product based on:

    2. OR Assigning a product specific testing plan as follows:

Production & Quality Management for the International Marketplace (QC-007)


Concrete sample testing plan6

Concrete Sample Testing Plan

  • If the user is enabled to do so, they are then prompted at the time of Order Entry, when using that product:

Production & Quality Management for the International Marketplace (QC-007)


Concrete sample testing plan7

Concrete Sample Testing Plan

  • If the user is enabled to do so, the Dispatcher will also be prompted at the time of Ticket Printing:

Production & Quality Management for the International Marketplace (QC-007)


Sampled tickets

Sampled Tickets


Sampled tickets1

Sampled Tickets

  • Manage and give indication at the plant, closer to production, when, where, and who took a sample as part of the testing plan

  • Plant operators can 1) prepare production samples for quality control at the plant when the batch is completed; or 2) may receive information returned from the job site that sampling/testing has been performed

  • The need exists to gain control over the process of concrete sampling at the plant to record the person, date, and time of a sample, while restricting access to the quality control system by the plant operator

  • User needs the ability at the time of ticketing to mark as having been sampled; controls are needed around this process

Production & Quality Management for the International Marketplace (QC-007)


Sampled tickets2

Sampled Tickets

  • Ability exists at the time of ticketing to take the sample:

  • At the time of ticketing in case the dispatcher can confirm the sample will be taken…

Production & Quality Management for the International Marketplace (QC-007)


Sampled tickets3

Sampled Tickets

  • Ability exists at the time of ticketing to take the sample:

    2. After ticketing is complete (post load, return of truck, etc.)…

Notice remaining fields are not editable

Production & Quality Management for the International Marketplace (QC-007)


Sampled tickets4

Sampled Tickets

  • Once the ticket has been logged as sampled, it is no longer available for editing by the user:

Notice remaining fields are not editable

Production & Quality Management for the International Marketplace (QC-007)


Sampled tickets5

Sampled Tickets

  • After Shipping: The user also has the ability to change as part of the Edit Orders and Tickets process:

Production & Quality Management for the International Marketplace (QC-007)


Sampled tickets6

Sampled Tickets

  • In either case, the Dispatcher or Order Taker is prompted for a Reason Code to define for example:

    • If the sample was taken at the plant post production

    • If the sample was taken at the job site

    • Other

Production & Quality Management for the International Marketplace (QC-007)


Sampled tickets7

Sampled Tickets

  • In COMMANDqc, use Ticket Register to review tickets sampled during the dispatch process:

Production & Quality Management for the International Marketplace (QC-007)


Sampled tickets8

Sampled Tickets

  • In COMMANDqc, use Sample and Specimen screen to register the sample and enter sample details:

CONFIGURABLE

Production & Quality Management for the International Marketplace (QC-007)


Item status

Item Status


Item status1

Item Status

  • Control the materials that currently used in production at a plant to reduce batch errors and for easier general system management

  • Entry of 4 different statuses for an item:

    • 0 = Active; should work as current

    • 1 = Inactive; product does not appear in item lookup and a user warning is for ticketing

    • 2 = Deleted; product does not appear in item lookup and not available for ticketing product; if entered directly in order entry the user is stopped

    • 3 = Incomplete Mix; same as deleted; important for import of mix designs

  • Takes into consideration the Sales Product, Alternative Item, and Constituent Product

Production & Quality Management for the International Marketplace (QC-007)


Item status2

Item Status

Item Level (Batching Tab)

Production & Quality Management for the International Marketplace (QC-007)


Item status3

Item Status

Item Level:

Inactive: Warning only

Deleted: Cannot be used

Mix Incomplete: Cannot be used

Helpful for running daily reports for with this status for error checking

Production & Quality Management for the International Marketplace (QC-007)


Suggested dosage range

Suggested Dosage Range


Suggested dosage range1

Suggested Dosage Range

  • Tight control to prevent over or under dosage of value add products (admixtures, additives, etc.) at the time of order entry

  • Prevent user from over or under ordering/dosing products that have a minimum or maximum set

  • Maintain the “Suggested Order Quantity” as recommended dosage by the raw material supplier

Production & Quality Management for the International Marketplace (QC-007)


Suggested dosage range2

Suggested Dosage Range

  • Set up at the Item Level (admixture or additive):

Saleable Product

Constituent Product

Production & Quality Management for the International Marketplace (QC-007)


Suggested dosage range3

Suggested Dosage Range

  • At the time of Order Entry:

When Associated Product is entered, defaults to supplier suggested dosage rate:

If user enters under Minimum or over Maximum, the user is stopped

Production & Quality Management for the International Marketplace (QC-007)


Batch conformity and compliance

Batch Conformity and Compliance


Batch confirmation configuration

“Batch Confirmation” Configuration

  • Control of Quality at point of Dispatch after Production by improved integration

    • Validation done in COMMANDseries or by Batch Control System

    • Batch Control System

      • Generic EU link supports receiving data on compliance

    • COMMANDseries

      • Validation of tolerance checking against individual components, Minimum Cement Content and Water Cement Ratio

    • Printing of ticket when weights / confirmation has been received

  • NOTE: Must have BC in license

Production & Quality Management for the International Marketplace (QC-007)


Batch conformity and compliance1

Batch Conformity and Compliance

  • Tolerance and Sequence codes between COMMANDqc and Batch Computer (BCC)

  • Water on board from the BCC

  • BCC to determine tolerance values and batching sequence to determine the batching operations

  • Hydraulic pressure from the truck mixer will be measured and entered on the BCC

  • The BCC will control batching cycles and determine manual adjustments

  • The BCC will determine if the load is in tolerance

  • The BCC will send the tolerance info, hydraulic details, etc. to COMMANDseries

  • COMMANDseries will interface ticket weight information to COMMANDqc

  • Batch cycle information is reported in COMMANDseries

  • COMMANDseries will print the ticket if marked In Tolerance or O.O.T but acceptable

  • Tickets that are outside the overall tolerance level but acceptable will be automatically suspended and reviewed by the quality department

  • The batcher will add a reason code to non complying loads prior to ticket print

Production & Quality Management for the International Marketplace (QC-007)


Batch conformity and compliance2

Batch Conformity and Compliance

Configuration

Production & Quality Management for the International Marketplace (QC-007)


Batch conformity and compliance3

Batch Conformity and Compliance

Plant Configuration

Production & Quality Management for the International Marketplace (QC-007)


Batch conformity and compliance4

Batch Conformity and Compliance

Reason Code Configuration

Production & Quality Management for the International Marketplace (QC-007)


Batch conformity and compliance5

Batch Conformity and Compliance

  • Tolerance Code

    • Comes from QC, but also must be defined on BCC

    • Tells the tolerance (Actual VS. Theoretical) that each constituent group (item type) has across the production process

    • Sent to batch computer with ticket; BCC responsible to monitor and define tolerance per mix

    • CS determines tolerance post production…double-check

  • Sequence Code

    • Works much like the Tolerance Code

    • Tells the batch computer what order to load the materials (loading criteria)

    • Identifies in which order the constituents are loaded in the plant or truck

    • Provides more detail than the plant level constituent order (per material type)

Production & Quality Management for the International Marketplace (QC-007)


Batch conformity and compliance6

Batch Conformity and Compliance

  • Tolerance Profile and Batching Sequence in COMMANDqc Mix Design:

Production & Quality Management for the International Marketplace (QC-007)


Batch conformity and compliance7

Batch Conformity and Compliance

  • Tolerance Profile and Batching Sequence in COMMANDseries Mix Design:

Production & Quality Management for the International Marketplace (QC-007)


Batch conformity and compliance8

Batch Conformity and Compliance

Batch Confirmation Screen:

BEFORE Production

Batch Confirmation Screen:

AFTER Production

Production & Quality Management for the International Marketplace (QC-007)


Batch conformity and compliance9

Batch Conformity and Compliance

Confirmation of IN TOLERANCE Load

No weights out of tolerance

Production & Quality Management for the International Marketplace (QC-007)


Batch conformity and compliance10

Batch Conformity and Compliance

Confirmation of OUT OF TOLERANCE load

Cement out of Tolerance

Production & Quality Management for the International Marketplace (QC-007)


Batch conformity and compliance11

Batch Conformity and Compliance

Changing Confirmation or Tolerance

NO, NO, NO…

and if a user tries to change what is already out of tolerance…

Production & Quality Management for the International Marketplace (QC-007)


Batch conformity and compliance12

Batch Conformity and Compliance

Batch Control Monitor: RESULTS

Production & Quality Management for the International Marketplace (QC-007)


Batch conformity and compliance13

Batch Conformity and Compliance

Batch Compliance Report

Exception Report

Production & Quality Management for the International Marketplace (QC-007)


Managing water

Managing Water

TICKETING:

Water on Board

AFTER SHIPPING:

Driver Added Water

Production & Quality Management for the International Marketplace (QC-007)


Order level mix design

Order Level Mix Design


Order level mix design1

Order Level Mix Design

  • Mix Design approved and validated before the order can be saved

  • Can manage the following data: Density, % of material, quantity, volume, % dose, etc.

  • Water management: Fresh v/s Recycled Water, Effective water, Recycling Water correction %, Rec Water Density

  • Adjustment of Water for Aggregate Absorbed Moisture

  • Recalculates the mix design based on yield

Production & Quality Management for the International Marketplace (QC-007)


Order level mix design2

Order Level Mix Design

1. User Configuration to Allows Access to Order Level Mix Design

Production & Quality Management for the International Marketplace (QC-007)


Order level mix design3

Order Level Mix Design

2. System Configuration

3. Item Type Control

Production & Quality Management for the International Marketplace (QC-007)


Order level mix design4

Order Level Mix Design

4. Plant Configuration (Recycled Water Correction)

5. Water Configuration (esp. Recycled Water)

Production & Quality Management for the International Marketplace (QC-007)


Order level mix design5

Order Level Mix Design

6. Mix Design

7. Order Level Mix Design

Production & Quality Management for the International Marketplace (QC-007)


Order level mix design6

Order Level Mix Design

Defaults in the case of updated mix from QC

Recalculate to verify no Rec. Water or other changes

Absorption of admix, aggs, etc.

Consideration of Material Density

Rec. Wtr. Density

Changes allowed based on Item Type Control

Allows addition of mix design per plant

Order: Fine Aggregates, Coarse Aggregates, Cement, Cementitious, Water, Recycled Water, Admixtures, Additions, Additions

Volume to be monitored by Dispatcher, Order Taker

Verification of Mix Design approval by QC

Production & Quality Management for the International Marketplace (QC-007)


Order level mix design7

Order Level Mix Design

  • Aggregates Adjusted

  • Volumes Adjusted

  • Cement maintained

  • Water corrected

  • YIELD MAINTAINED

Change of a

Mix Design

Raw Material

Production & Quality Management for the International Marketplace (QC-007)


Order level mix design8

Order Level Mix Design

  • Fiber/Admixture Added

  • Aggregates Adjusted

  • Cement Maintained

  • Water corrected

  • YIELD MAINTAINED

Adding an

Admixture,

Additive, Etc.

Production & Quality Management for the International Marketplace (QC-007)


Batch and production reporting

Batch and Production Reporting


Batch and production reporting1

Batch and Production Reporting

Production Report

Production & Quality Management for the International Marketplace (QC-007)


Batch and production reporting2

Batch and Production Reporting

Production Report

Production & Quality Management for the International Marketplace (QC-007)


Batch and production reporting3

Batch and Production Reporting

Batch Report

Production & Quality Management for the International Marketplace (QC-007)


Session objectives3

Session Objectives

  • This session will review the Command Alkon tools available to manage the quality and production processes in international markets

  • Part of the session will help you understand new COMMANDqc features that are of particular interest to countries outside North America

  • Part of the session will help you understand COMMANDseries features that are of particular interest to countries outside North America that support Production & Quality Management

  • Learn more about overall product integration between COMMANDqc, COMMANDseries, and COMMANDbatch that give you greater business and process flexibility

    • COMMANDqc and COMMANDseries Integration

    • COMMANDseries and COMMANDbatch Integration

    • COMMANDedx

    • Other impacting integration projects/products

Production & Quality Management for the International Marketplace (QC-007)


Commandqc commandseries integration

COMMANDqc & COMMANDseries Integration


Commandseries commandqc integration

COMMANDseries & COMMANDqc Integration

Production & Quality Management for the International Marketplace (QC-007)


Command qc benefits of commandseries integration

COMMANDqcBenefits of COMMANDseries Integration

  • Data is available in a timely manner where it is needed on all systems

  • Saves countless hours and money that would otherwise be spent on duplicate data entry

  • Reduces errors in data entry

  • Ensures data integrity and that mixes and other data are identical on all systems, reducing confusion and mistakes

  • Presents a more organized and professional image to your customers

Production & Quality Management for the International Marketplace (QC-007)


Commandseries integration

COMMANDseries Integration

  • Special Integration features with CS08 V3

    • Master Data From COMMANDseries

      • Suppliers

      • Material-Supplier-Sources

    • Mix Design To COMMANDseries

      • Product Classes

      • Constituent Supplier-Source

      • Mix Revision #

      • Batching Sequence Code

      • Batching Tolerance Code

      • Active/inactive status at Plant

    • Delivery Info From COMMANDseries

      • Constituent Supplier-Source

      • Mix Revision #

Production & Quality Management for the International Marketplace (QC-007)


Commandseries commandbatch integration

COMMANDseries & COMMANDbatch Integration


Eu link batch panel integration

EU Link Batch Panel Integration

  • Additional products

  • Additional raw materials

  • Additional ticket data

  • Legal and certification text

  • Batch Cycle Data

  • Language Control

  • Improved material receipting

  • Flexible / Configurable Batch Interface

Production & Quality Management for the International Marketplace (QC-007)


Commandedx integration platform

COMMANDedx Integration Platform


Core products as is

Core Products: As Is

CMD series

ERP

APEX

Integra

CMDqc

CMD batch

Production & Quality Management for the International Marketplace (QC-007)


Core products to be

Core Products: To Be

CMD series

CMD batch

APEX

ERP

CMDedx

KP Products

TMS Products

CMD qc

Integra

Production & Quality Management for the International Marketplace (QC-007)


What is commandedx

What is COMMANDedx?

Our new integration platform will standardize the method of transporting data across Command Alkon and 3rd party products.

COMMANDedx

Enterprise Data eXchange

Allow systems with disparate platforms and data structures to exchange information in a uniform fashion

Integrate via standard XML entities

Message bus based on ISA-95 and OAGIS models

Production & Quality Management for the International Marketplace (QC-007)


Integration standards

Integration Standards

Open Standards

Oagis V9.5 (www.oagi.org)

The Open Applications Group is not-for-profit standards development organization (SDO). Our community is focused on building process-based business standards for eCommerce, Cloud Computing, Service Oriented Architecture (SOA), Web Services, and Enterprise Integration. Our Open Applications Group Integration Specification (OAGIS) standard is the only truly cross industry business standard in the world

ISA-95 B2MML (www.isa-95.com)

ISA-95 is the international standard for the integration of enterprise and control systems. ISA-95 consists of models and terminology. These can be used to determine which information, has to be exchanged between systems for sales, finance and logistics and systems for production, maintenance and quality.

Production & Quality Management for the International Marketplace (QC-007)


What is commandedx1

What is COMMANDedx?

Why COMMANDedx

Instead of building non re-useable point to point solutions, build reusable interfaces to generic industry business object. Like this each application will have to build the interface once independent of the application providing or consuming the data

Standardizing the method of transporting data will decrease development and maintenance cost

Customizing can be easily accomplished with graphical tools without additional development

EDX Highlights

Data Integration: Ensuring that information in multiple systems is kept consistent

Process Integration: Linking business processes across applications

Common Facade: Front-end for all CAI applications, providing a single consistent access interface to these applications and shielding users from having to learn to interact with different applications

Production & Quality Management for the International Marketplace (QC-007)


What is commandedx2

What is COMMANDedx?

COMMANDedx Technical Features

Service Oriented Architecture (SOA) Approach

Publish/Subscribe: Synchronize data between different systems

Push/Pull: Process integration between different systems

XML files/streams as a means of communication with internal and external applications

Asynchronous and Synchronous communication

Support real-time and batch modes

Perform data transformation (XSLT), filtering (XPATH) and routing

Support multiple data transport mechanisms (Soap/HTTP/WCF/File)

Strong technical and security design - .NET WCF, SSL Certificates

Production & Quality Management for the International Marketplace (QC-007)


Overview key benefits

Overview Key Benefits

  • Business Benefits

    • Real-time integration of master files, ensuring data is synchronized and consistent

    • Eliminates double entry and human error

    • Ability to synchronize transactional data real time improving turnaround for billing/invoicing and decision making

    • Immediate correction of master and transactional data

    • Availability of offline processing for Production

    • Real-time Credit Checking

    • Provides capabilities to integrate process to process

    • Capability for Managers to manage KPIs real time

    • Opens the door for more process to process flexibility

Production & Quality Management for the International Marketplace (QC-007)


Overview key benefits1

Overview Key Benefits

  • IT Benefits

    • Utilize synergies of latest technologies

    • “Guaranteed Delivery”

    • Error management and logging

    • Platform for future developments

    • Platform for A2A and B2B

    • Platform for product evolution

    • Synchronization automatically after system/network outage

    • Eliminates Communication Managers

    • Supports industry standard XML-based protocols

    • Allows for data transformation, filtering and routing

    • Greater integration flexibility, with reduced maintenance time and costs

Production & Quality Management for the International Marketplace (QC-007)


Commandedx edx cpm concrete production manager

COMMANDedx(EDX-CPM):Concrete Production Manager


Concrete production manager cpm

Concrete Production Manager (CPM)

  • CPM is an enhanced communications interface between COMMANDconcrete and COMMANDbatch, built on our newest open integration platform, COMMANDedx

  • Replaces existing u-link functionality with newer technology, allowing a tighter integration, reduction of setup errors, reliability, extensibility, flexibility, conformity to industry standards, and better serviceability

Production & Quality Management for the International Marketplace (QC-007)


Concrete production manager cpm1

Concrete Production Manager (CPM)

  • Actual weights return CB

  • Mix/Material synchronization

  • Local dispatched tickets

  • Manual Event Reason Code

  • More complete results for CMDqc

Production & Quality Management for the International Marketplace (QC-007)


Commandedx

COMMANDedx

  • For a more in depth look at Integrating Command Alkon Products:

    • MGT-004 Integrating Command Alkon Products

    • Chris Strickland

    • Wednesday, November 9th, 1:00-1:50 PM

Production & Quality Management for the International Marketplace (QC-007)


Recap

RECAP


Session objectives4

Session Objectives

  • This session will review the Command Alkon tools available to manage the quality and production processes in international markets

  • Part of the session will help you understand new COMMANDqc features that are of particular interest to countries outside North America

    • Where and how is COMMANDqc being used?

    • What COMMANDqc features that make it adaptable to different markets?

    • If I am a U.S. or Canadian customer, why do I care?

    • Learn about European standardization and how those concepts can be extended to any country

    • Understand the inherent problems of applying Production and Quality Management (COMMANDqc, COMMANDseries, etc.) in different countries

    • Learn about a few special features that have been developed for individual international customers

  • Part of the session will help you understand COMMANDseries features that are of particular interest to countries outside North America that support Production & Quality Management

    • Legal and Certification Text

    • Concrete Sample Testing Plan

    • Sampled Tickets

    • Product Status

    • Suggest Dosage Ranges

    • Batch Conformity and Compliance

    • Order Level Mix Design

    • Batch and Production Reporting

  • Learn more about overall product integration between COMMANDqc, COMMANDseries, and COMMANDbatch that give you greater business and process flexibility

    • COMMANDqc and COMMANDseries Integration

    • COMMANDseries and COMMANDbatch Integration

    • COMMANDedx

    • Other impacting integration projects/products

Production & Quality Management for the International Marketplace (QC-007)


Production management1

Production Management

  • Value of Production & Quality Management

  • Where and how is CMDqc is used

  • Adaptable market features

  • Various worldwide standards

  • Production & Quality Mngt Tools within COMMANDseries

  • Batch Conformity and Compliance

  • COMMANDqc & COMMANDseries Integration

  • COMMANDseries & COMMANDbatch Integration

  • COMMANDedx

Production & Quality Management for the International Marketplace (QC-007)


Please complete your evaluation

Please Complete Your Evaluation

  • Be sure to circle the session you are evaluating on the back of your card

    • Quality Control (Track Name)

    • QC-007 (session code)

    • Production & Quality Management for the International Marketplace (session title)

  • All breakout session materials can be accessed at: www.commandalkon.com/cc2011/update/index.htm

  • Thank You!

Production & Quality Management for the International Marketplace (QC-007)


  • Login
