  1. GENI Summer Camp ProjectResilient Networks with DAG HeshamMekky Cheng Jin

  2. Agenda • Background • DAG-resilient algorithm • GENI resource • Implementation • Future work

  3. Background • Link failures cause packets loss. • Goals • Demonstrate understanding of GENI terminology, tools, and resources. • Reduce packet loss. E. M. Gafni and D. P. Bertsekas. Distributed algorithms for generating loop-free routes in networks with frequently changing topology. IEEE Transactions on Communications, 1981

  4. DAG-resilient • Boot-strapping (create DAG) • Generate a random directed acyclic graph (DAG) • Make the random DAG as destination oriented DAG

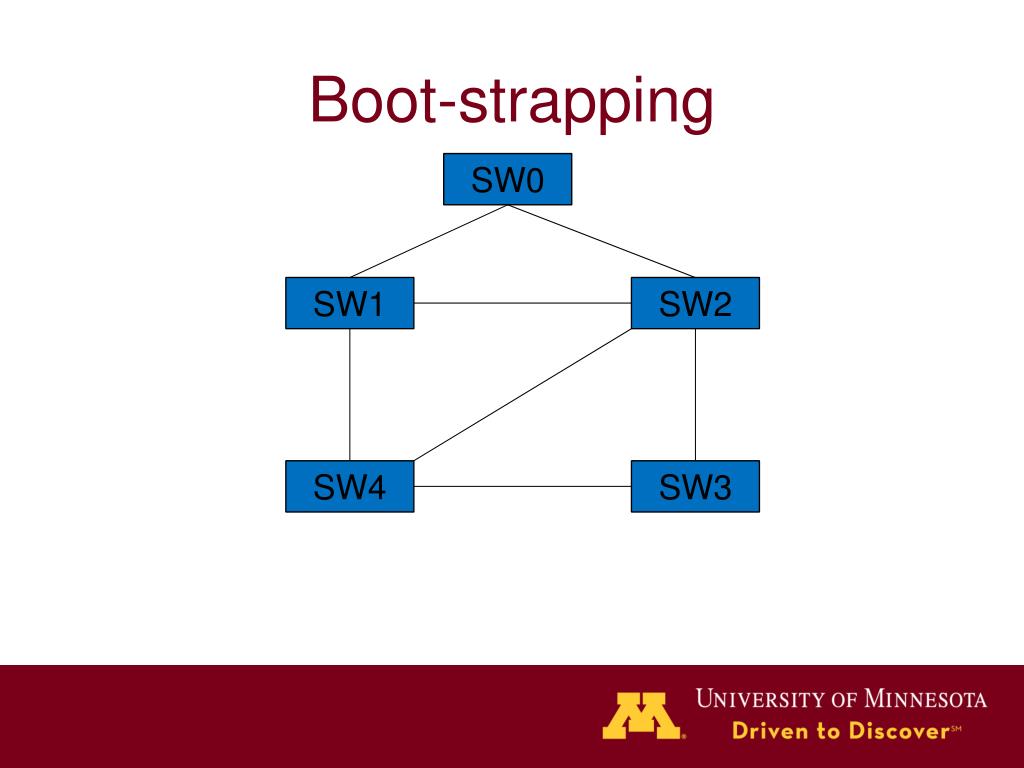

  5. Boot-strapping SW0 SW1 SW2 SW4 SW3

  6. Boot-strapping SW0 SW1 SW2 SW4 SW3

  7. Boot-strapping SW0 SW1 SW2 SW4 SW3

  8. Boot-strapping SW0 SW1 SW2 SW4 SW3

  9. Boot-strapping SW0 SW1 SW2 SW4 SW3

  10. Boot-strapping SW0 SW1 SW2 SW4 SW3

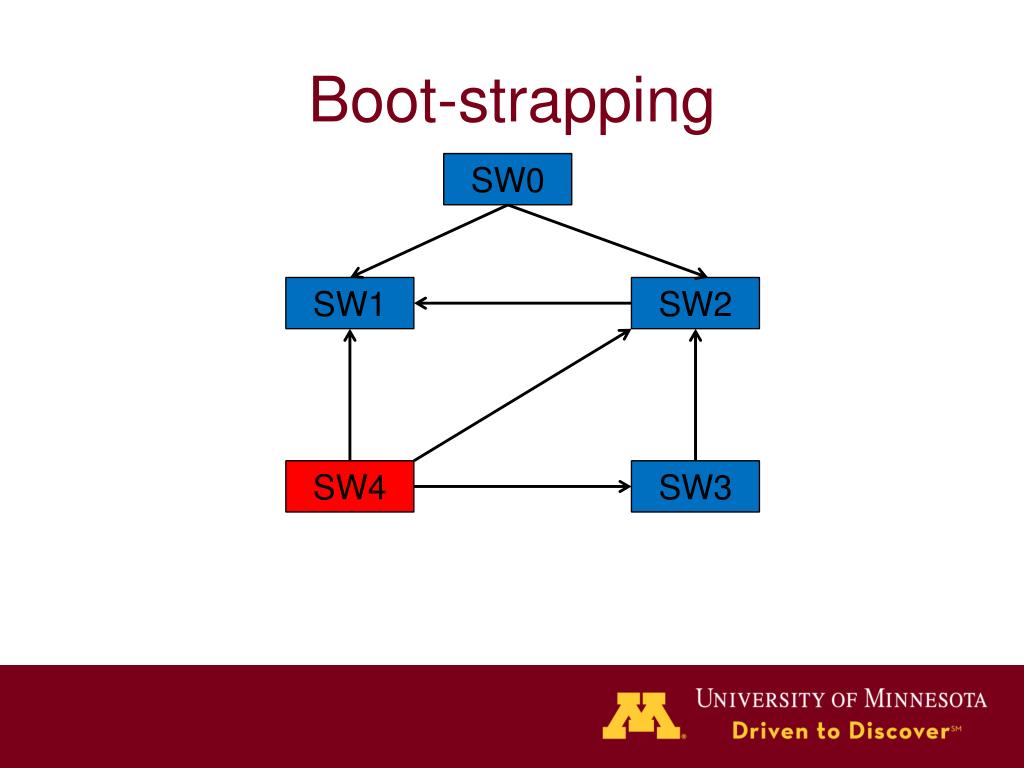

  11. Boot-strapping SW0 SW1 SW2 SW4 SW3

  12. Boot-strapping SW0 SW1 SW2 SW4 SW3

  13. Boot-strapping SW0 SW1 SW2 SW4 SW3

  14. Boot-strapping SW0 SW1 SW2 SW4 SW3

  15. Boot-strapping SW0 SW1 SW2 SW4 SW3

  16. DAG-resilient • Guarantee resilience (link failures happen) • If another outgoing link exists, take it. • If no outgoing link, reverse all incoming links.

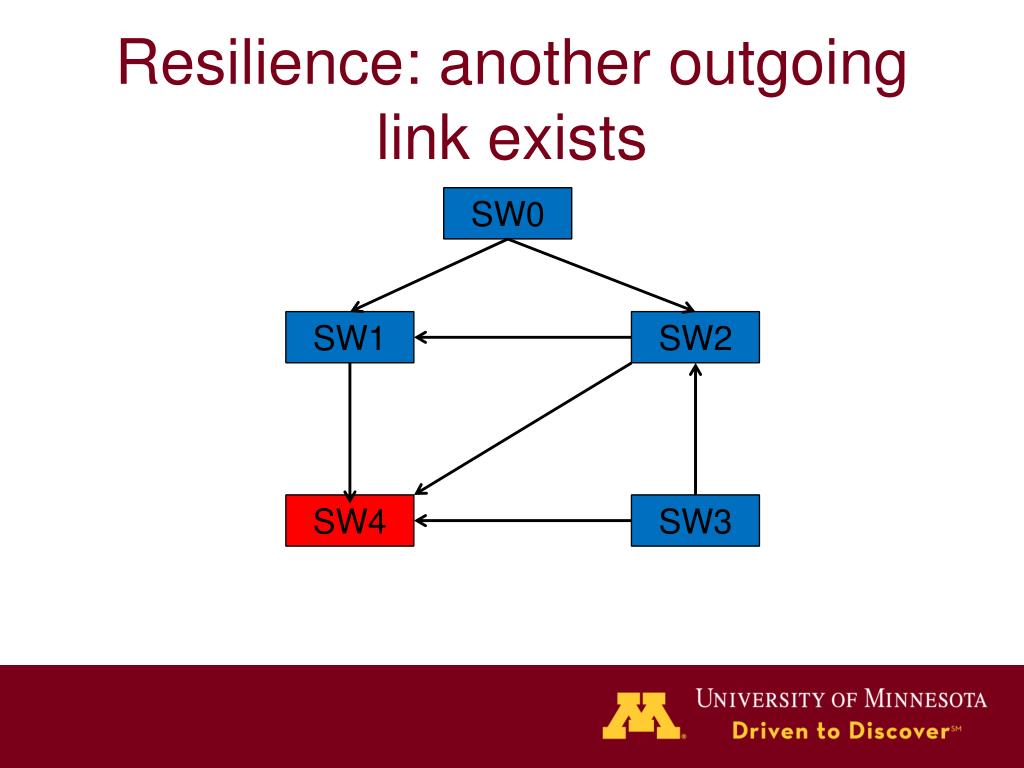

  17. Resilience: another outgoing link exists SW0 SW1 SW2 SW4 SW3

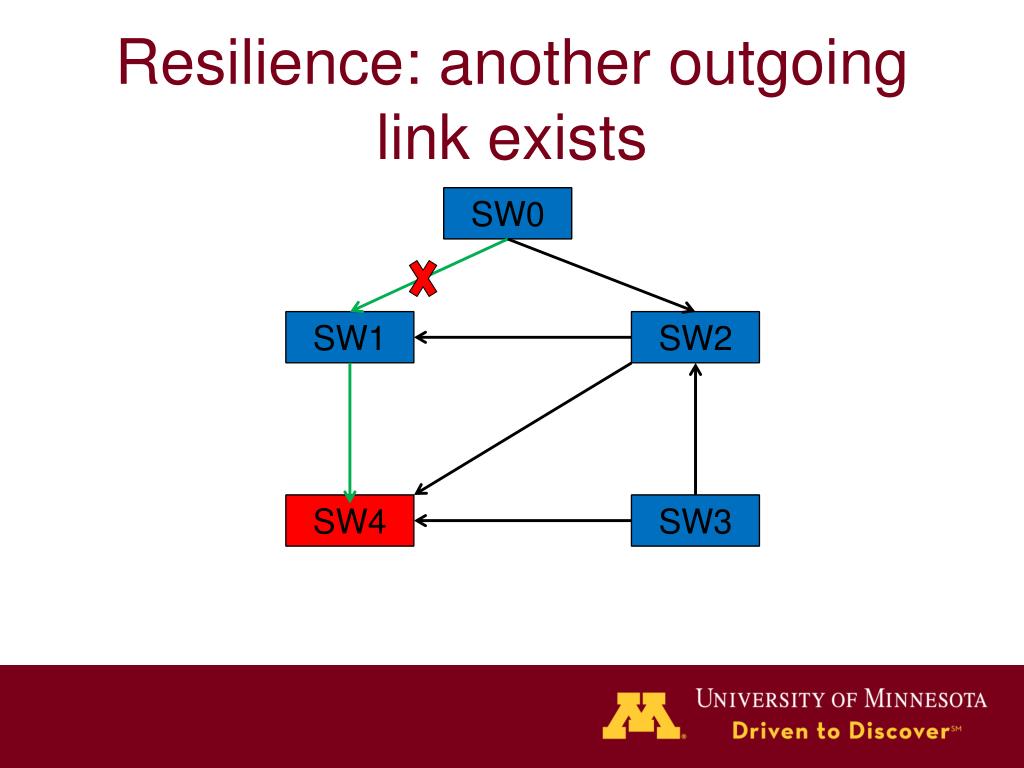

  18. Resilience: another outgoing link exists SW0 SW1 SW2 SW4 SW3

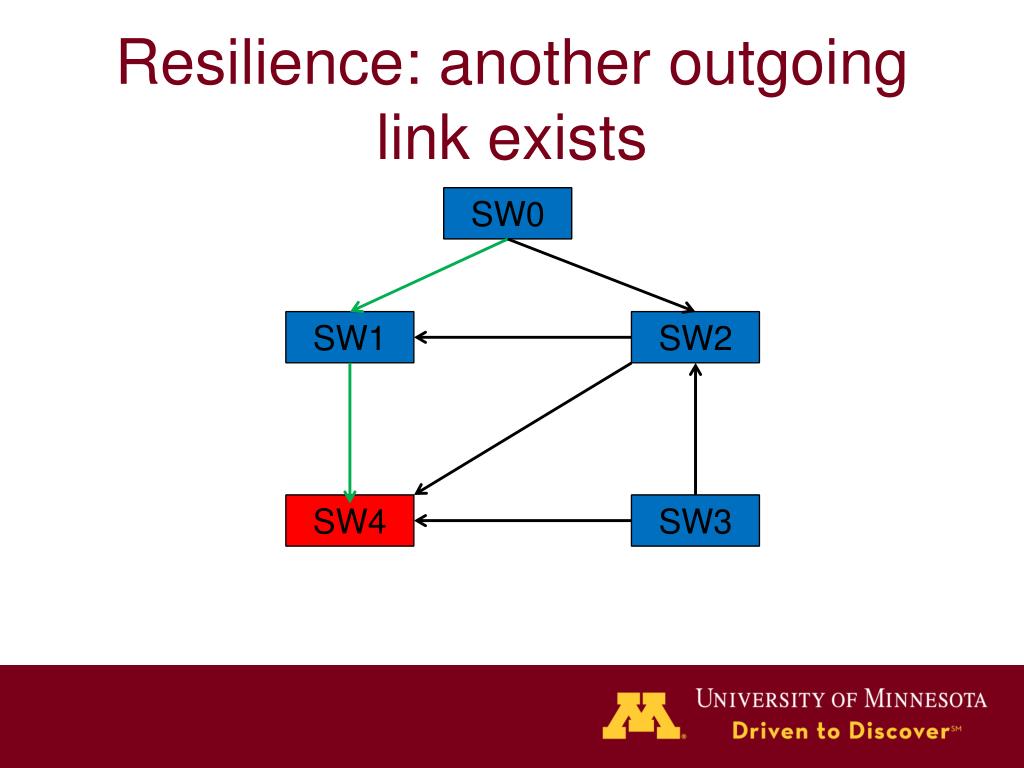

  19. Resilience: another outgoing link exists SW0 SW1 SW2 SW4 SW3

  20. Resilience: another outgoing link exists SW0 SW1 SW2 SW4 SW3

  21. Resilience: no other outgoing link exists SW0 SW1 SW2 SW4 SW3

  22. Resilience: no other outgoing link exists SW0 SW1 SW2 SW4 SW3

  23. Resilience: no other outgoing link exists SW0 SW1 SW2 SW4 SW3

  24. Resilience: no other outgoing link exists SW0 SW1 SW2 SW4 SW3

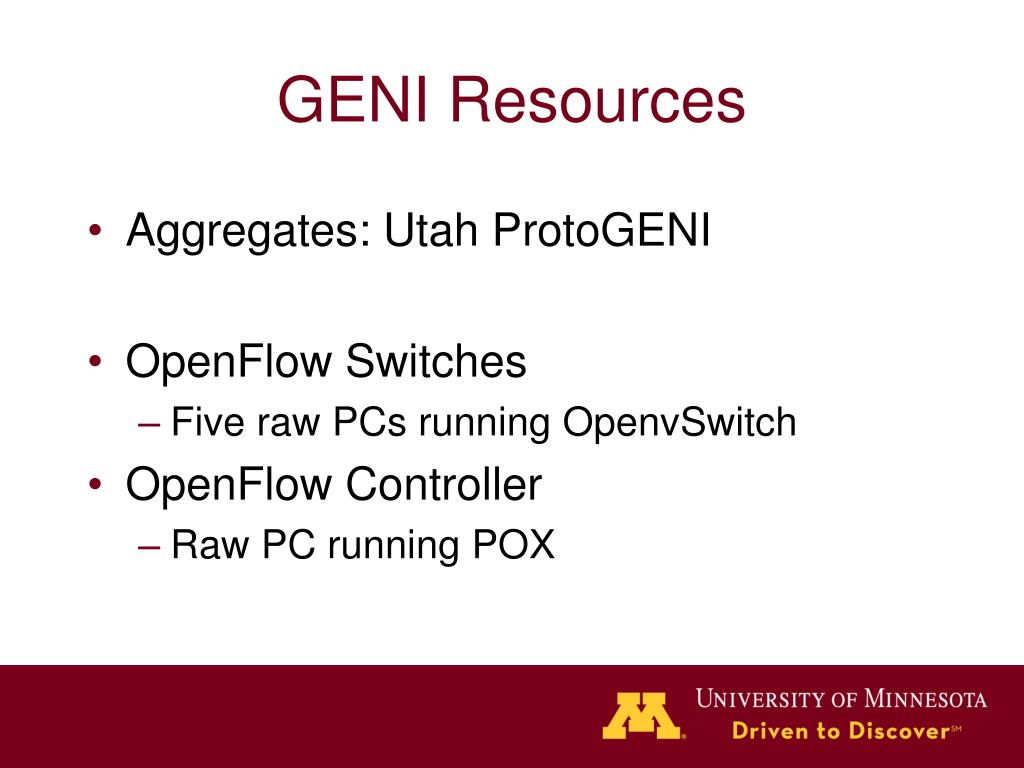

  25. GENI Resources • Aggregates: Utah ProtoGENI • OpenFlow Switches • Five raw PCs running OpenvSwitch • OpenFlow Controller • Raw PC running POX

  26. GENI Resources

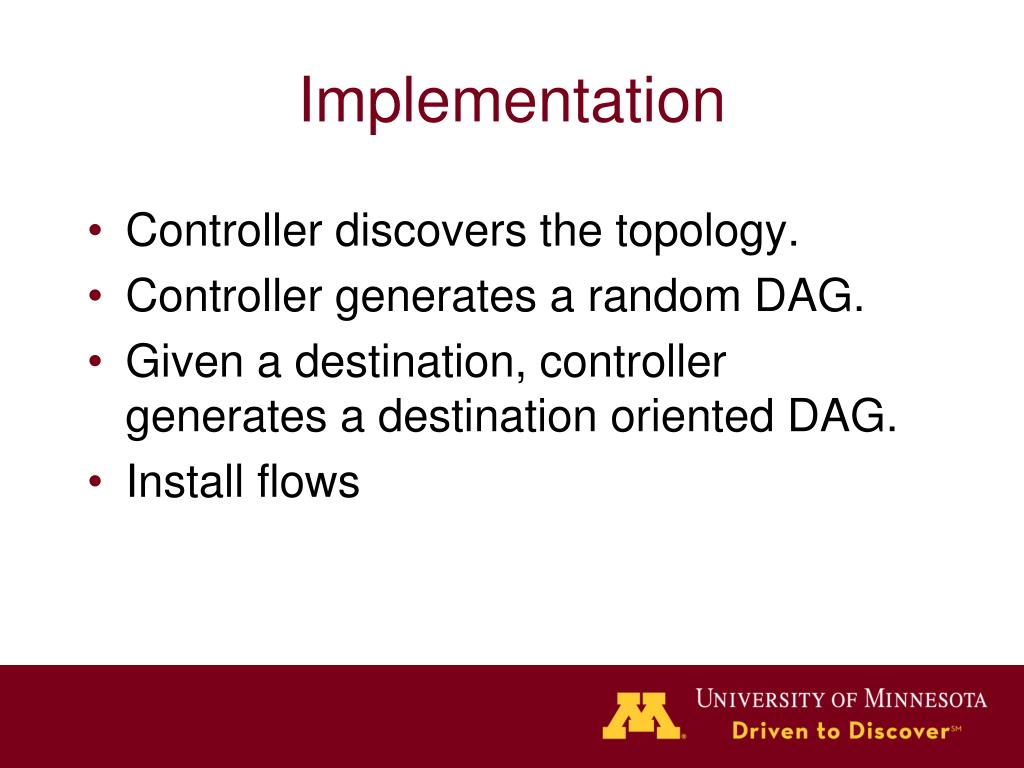

  27. Implementation • Controller discovers the topology. • Controller generates a random DAG. • Given a destination, controller generates a destination oriented DAG. • Install flows

  28. Demo

  29. Future Work • Continue to work on resilience. • Single link fails and another outgoing link exists. • Single link fails and no more outgoing link exists. • Multiple links fail (i.e. node failure).

  30. Thanks!
