Confidential

Confidential

Nakatsugawa Works

LOSSNAY Presentation

Part Control(LGH-RX5-E)


Contents

Contents

1.Lossnay controller

PZ-60DR-E

Interlocked with Air conditioner (Mr.Slim and others)

Interlocked with City Multi

MELANS

Precautions of M-NET system

Other connection method

2.Function setting by dip switch or PZ-60DR-E

3.Lossnay Usage Conditions

a) Safety Precautions ( Temperature and humidity )

b) Cold area operation

4.Troubleshooting

a)

b)

c)

d)

e)

f)


Confidential

Contents

1.Lossnay controller

PZ-60DR-E

Interlocked with Air conditioner (Mr.Slim and others)

Interlocked with City Multi

MELANS

Precautions of M-NET system

Other connection method

a)

b)

c)

d)

e)

f)


Confidential

TM4

1

2

a) PZ-60DR-E

Basic System

1 Lossnay with 1 remote controller (PZ-60DR-E)

  • Non-polar 2 wires

  • Lossnay own language

  • (No M-NET, No-A-Control)

Lossnay

LGH-RX5-E

Power

supply

PZ-60DR-E remote controller

・ON/OFF

・Fan speed setting (High / Low / Extra Low)

・Ventilation mode

(Heat exchange, By-pass, Automatic)

・Weekly timer

・Night purge


Confidential

TM4

TM4

TM4

(Factory setting: Main)

a) PZ-60DR-E

Multiple Lossnay with 1 remote controller

  • Up to 15 Lossnay units can be connected.

  • 1 Lossnay unit set to ” MAIN” and all others set to “SUB”.

  • SUB units follow to the Main unit operation.

  • Remote controller can be connected to either “MAIN” or “SUB” unit.

  • When Ventilation mode selected to “Automatic”, each Lossnay units decide its mode by own thermistor sensing.

  • <Additional Info> Refer to Lossnay technical manual page C-11 and C-68.

  • Power to PZ-60DR-E is provided from the “MAIN” Lossnay unit.

  • Power to the “SUB” Lossnay units must be provided one by one.

  • If set to “MAIN” more than 2 units --> Communication error (6608) will be indicated on the remote controller. (No damage on the product.)


Confidential

a) PZ-60DR-E

Operation with 2 remote controllers

  • The remote controller gives priority to the last touch.

  • Individual control is not possible.

  • In case of Multiple Lossnay units, please see previous page.

  • It is possible to connect remote controller to the “Sub” Lossnay, however the operation follows the “Main”.


Confidential

a) PZ-60DR-E

Function Table

  • <PZ-60DR-E Additional Info> Refer to Lossnay technical manual page C-8 and C-11.

  • When turn ON, the selection of “Ventilation mode” and “Fan speed” will return to the condition before turn off.

  • When power supply is restored after an outage, all modes will return to the condition before the power supply was interrupted.

  • Simple Timer, Night Purge, Operation Lock, Function Selection, and 24-hour Ventilation are available.


Confidential

Dot matrix display

ON/OFF button

Fan speed Adjustment button

Return button

Enter button

Filter button

Timer MENU(MONITOR/SET) button

CLEAR button

“Extra Low” fan speed button (OPERATION button)

Set timer buttonssBackrAhead

Timer ON/OFF (DAY) button

OPERATION buttons sBackrAhead

Function selector button

a) PZ-60DR-E

Display and Setting Button


Confidential

a) PZ-60DR-E

Remote Controller Compatibility

LGH-RX5-E

LGH-RX4-E

TM4

TB5

TM4

TM4

TB5

OK

OK

OK

OK

OK

NG

PZ-

41SLB-E

PZ-

52SF-E

PZ-

60DR-E

PZ-41SLB-E

PZ-52SF-E

PZ-60DR-E

RX4 Full Functions

Not connectable

Limited Functions

No Extra Low fan speed,

No weekly Timer, etc

RX5 Full Functions

  • <When the PZ-60DR-E is connected to an LGH-RX4>

  • The following restrictions (the functions that cannot be used) apply:

  • Extra low fan speed, 24-hour ventilation, and Night purge functions are not available. (Timer is available)

  • Using with M-NET is not available.

  • Fan speed setting by external signal (when CO2 sensor or other equipment is connected) , Remote/local switching and the ON/OFF input are not available.

  • Pulse signal operation is not available.

  • Function selection settings from the PZ-60DR-E is not available.

  • Display for Power Ventilation, Intermittent mode, or for Ventilation Mode Change Recommendation is not shown.

PZ-60DR-E, PZ-41SLB-E and PZ-52SF-E cannot be used at the same time.


Confidential

Contents

1.Lossnay controller

PZ-60DR-E

Interlocked with Air conditioner

(Mr.Slim, MXZ and others)

Interlocked with City Multi

MELANS

Precautions of M-NET system

Other connection method

a)

b)

c)

d)

e)

f)


Confidential

  • PZ-60DR-E can not be connected.

PZ-60DR-E

1

2

TM2

Slim-Lossnay connection cable (Lossnay Enclosed accessory)

b) Interlocked with Air conditioner (Mr.Slim)

Pattern-A: Without Lossnay remote controller

  • Mr.Slim remote controller controls both Mr.Slim and Lossnay

Mr.Slim outdoor unit

Lossnay

CN2L

Mr.Slim indoor unit

  • <Additional Info>

  • Up to 15 Lossnay units can be connected via TM2. (Refer to “part PZ-60DR-E”)

  • If there are multiple indoor-units, multiple Lossnay can be connected to each CN2L.

  • Also refer to Losssnay technical manual page C-67.

Mr.Slim remote controller


Confidential

1

3

TM2

b) Interlocked with Air conditioner (Mr.Slim)

Pattern-B: With Lossnay remote controller

  • Mr.Slim remote controller does not control Lossnay.

  • PZ-60DR-E can be connected.

Mr.Slim outdoor unit

PZ-60DR-E

Lossnay

Mr.Slim indoor unit

PAC-SF40RM-E

(Optional parts)

In case that you want control Lossnay by a Lossnay remote controller, PAC-SF40RM-E is necessary.

Mr.Slim remote controller

Please see Installation Manual of PAC-SF40RM-E.


Confidential

b) Interlocked with Air conditioner (Mr.Slim)

Function Table

  • Pattern-A: Without Lossnay remote controller

  • Pattern-B: With Lossnay remote controller


Confidential

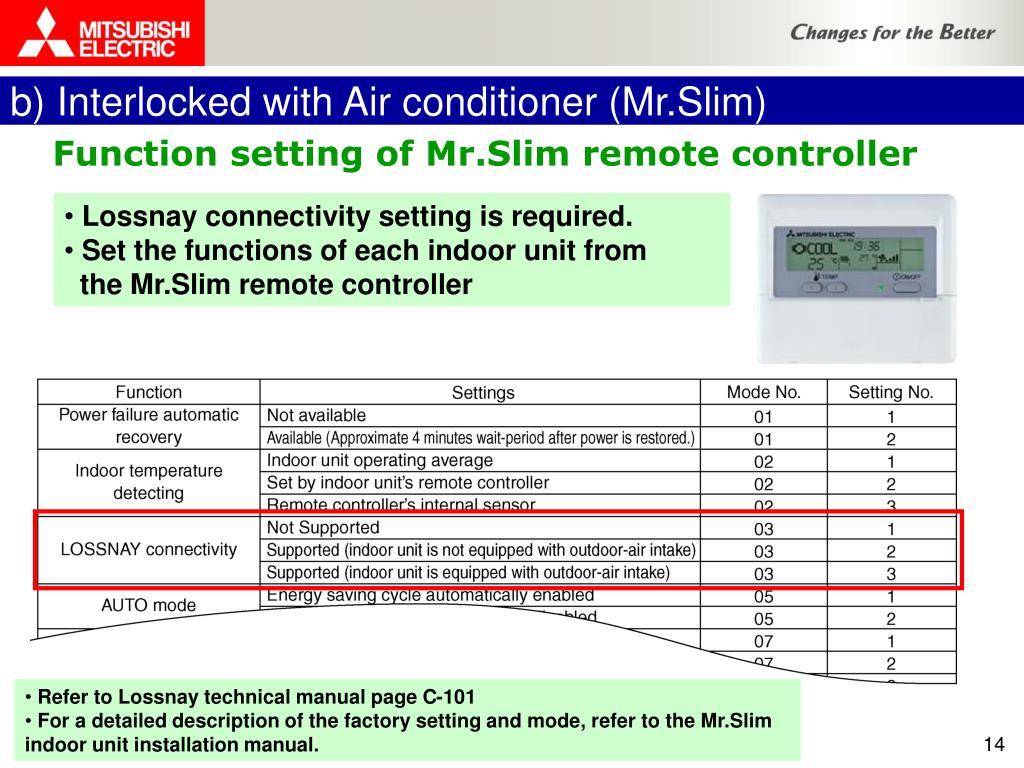

b) Interlocked with Air conditioner (Mr.Slim)

Function setting of Mr.Slim remote controller

  • Lossnay connectivity setting is required.

  • Set the functions of each indoor unit from

  • the Mr.Slim remote controller

  • Refer to Lossnay technical manual page C-101

  • For a detailed description of the factory setting and mode, refer to the Mr.Slim indoor unit installation manual.


Confidential

TM2

PZ-60DR-E can not be connected.

CN2L

1

1

1

2

2

2

Slim-Lossnay connection cable

(Lossnay Enclosed accessory)

Lossnay

PZ-60DR-E

TM2

TB580

1 . 2

PZ-60DR-E can be connected.

CN560

MAC-397IF-E

(Optional parts)

Lossnay

PZ-60DR-E

TM2

TB580

1 . 2

PZ-60DR-E can be connected.

CN560

MAC-397IF-E

(Optional parts)

Lossnay

PZ-60DR-E

b) Interlocked with Air conditioner (MXZ)

  • Inverter Multi-Split RAC(MXZ) can be connected to Lossnay RX5

SEZ-KD

MXZ

outdoor unit

SLZ,PLA

MXZ

Branch Box

MSZ,MFZ

MXZ

Indoor units

1. Model SEZ-KD has CN2L, Lossnay can be connected by using Slim-Lossnay connection cable.

2. Except SEZ-KD , Lossnay can be connected by using MAC-397IF-E. (Please see Installation Manual of MAC-397IF-E)


Confidential

b) Interlocked with Air conditioner (MXZ)

Function setting of Lossnay

1) Without PZ-60DR-E

  • Lossnay ON/OFF operation follows the Input signal from connected MXZ indoor unit.

  • Fixed to High-Fan-Speed, Ventilation Mode Automatic. (Low-Fan-Speed can be set by dip-SW)

2) With PZ-60DR-E

  • Lossnay ON/OFF operation follows the Input signal from connected MXZ indoor unit.

  • <PZ-60DR-E Additional Info> Refer to Lossnay technical manual page C-78.

  • When turn ON, the selection of “Ventilation mode”, “Fan speed ”, will return to the condition before turn off.

  • When power supply is restored after an outage, all modes will return to the condition before the power supply was interrupted.

  • Simple Timer, Night Purge, Operation Lock, and Function Selection can be set.


Confidential

1

1

2

3

and

:In case of charged operating signal of 12VDC or 24VDC

:In case of uncharged a-contact signal

TM2

and

Lossnay

b) Interlocked with Air conditioner (others)

  • Lossnay ON/OFF operation follow the input signal from external device.

  • Fixed to High-Fan-Speed,Ventilation Mode Automatic. (Fan speed can be set as Low by dip-SW)

Outdoor unit

・ Input of Level signal and Pulse signal (12VDC,24VDC, unchanged a-contact) is possible.

・ Level or pulse signal can be set by dip-SW

・ Interlocked operation mode is selectable

(Detail info please see part Other connection method)

External

device

(indoor unit)

remote controller

  • Details are explained later part


Confidential

PZ-60DR-E

TM4

1

1

1

2

2

3

b) Interlocked with Air conditioner (others)

outdoor unit

PZ-60DR-E can be connected

external device (indoor unit)

and

TM2

and

remote controller

Lossnay


Confidential

b) Interlocked with Air conditioner (others)

Function setting of Lossnay

1) Without PZ-60DR-E

  • Lossnay ON/OFF operation follows the Input signal from the external device.

  • Fixed to High-Fan-Speed, Ventilation Mode Automatic. (Low-Fan-Speed can be set by dip-SW)

2) With PZ-60DR-E

  • Lossnay ON/OFF operation follows the Input signal from the external device.

  • <PZ-60DR-E Additional Info> Refer to Lossnay technical manual page C-78.

  • When turn ON, the selection of “Ventilation mode”, “Fan speed ”, will return to the condition before turn off.

  • When power supply is restored after an outage, all modes will return to the condition before the power supply was interrupted.

  • Simple Timer, Night Purge, Operation Lock, Function Selection, and 24-hour Ventilation can be set.


Confidential

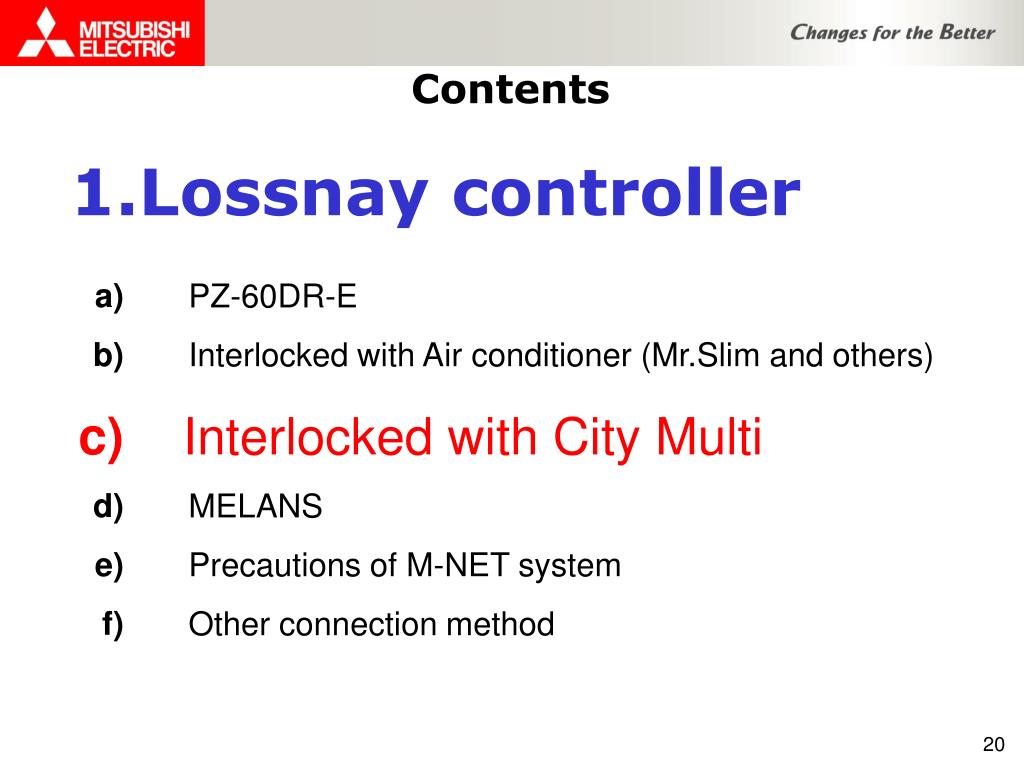

Contents

1.Lossnay controller

PZ-60DR-E

Interlocked with Air conditioner (Mr.Slim and others)

Interlocked with City Multi

MELANS

Precautions of M-NET system

Other connection method

a)

b)

c)

d)

e)

f)


Confidential

Example; ME remote controller (PAR-F27MEA)

ME remote controller

(PAR-F27MEA)

051

Indoor unit

Outdoor unit

TB3

TB5

TB5

TB5

002

003

001

Group2

Group1

102

101

TB5

TB5

TB5

004

005

006

Group5

Group4

Group3

106

105

104

154

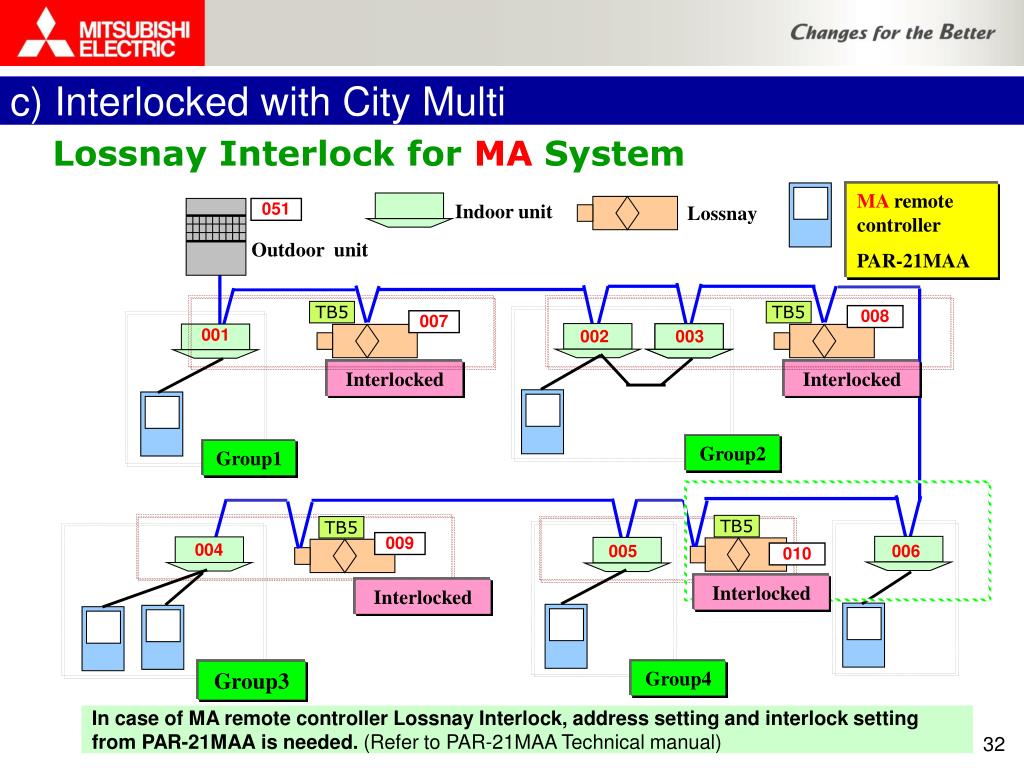

c) Interlocked with City Multi

What is M-NET System ?


Confidential

c) Interlocked with City Multi

Definition

1) Interlock

- Interlocked Lossnay units can be controlled by MA or ME remote controller and AG-150A.

- Lossnay remote controller is not necessary.

- One Lossnay unit can be interlocked with maximum 16 units of Indoor Unit.

2) Group

A) Grouping;

- Multiple Indoor-Units(Max 16 units) can be set in a Group.

- Multiple Lossnay-Units can be set in a Group.

(PZ-60DR-E: Max 15 Lossnay units, PZ-52SF-E: Max 16 Lossnay units)

- Indoor unit(s) and Lossnay-Unit(s) cannot be set in the same Group.

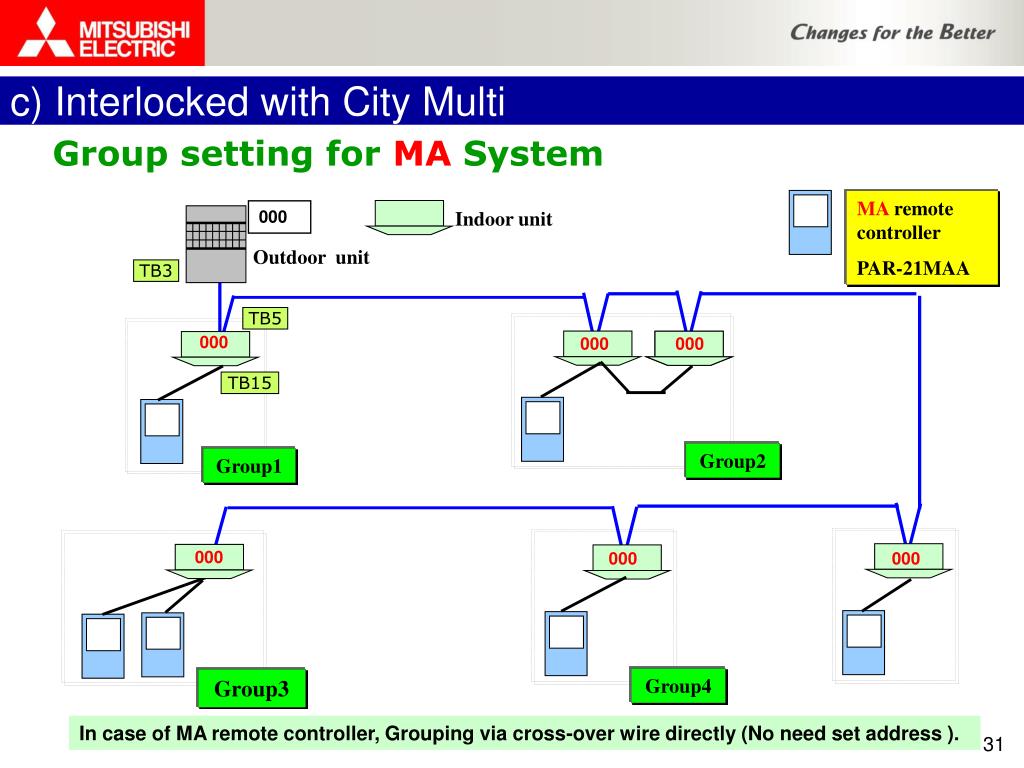

B) Group setting

B-1) Indoor units…

- MA-remote controller (PAR-F21MAA); Grouping via cross-over wire directly.

- ME-remote controller (PAR-F27MEA); Group setting by ME-remote controller is needed.

- If there is an AG-150A ; Group setting by AG-150A is needed.

B-2) Lossnay units…

- Lossnay remote controller (PZ-60DR-E) : Grouping via cross over wire directly.

- Lossnay M-NET remote controller (PZ-52SF-E); Group setting by PZ-52-remote controller is needed.

- If there is an AG-150A ; Group setting by AG-150A is needed.


Confidential

Lossnay

051

Outdoor unit

001

TB5

007

Interlocked

c) Interlocked with City Multi

Lossnay Interlock example-1

ME remote controller

(PAR-F27MEA)

Indoor unit

TB3

002

003

TB5

Group2

Group1

Group1

1 indoor unit and 1 Lossnay in interlocked operation.

Lossnay not belong to a Group.

102

101

004

005

006

Group5

Group4

Group3

105

106

104

154

  • Interlocked Lossnay (007) unit can be controlled by ME remote controller (101).

  • How to interlock is explained later.


Confidential

051

Outdoor unit

001

TB5

TB5

008

007

TB5

Interlocked

Interlocked

Group1

101

c) Interlocked with City Multi

Lossnay Interlock example-2

ME remote controller

(PAR-F27MEA)

Indoor unit

Lossnay

TB3

002

003

Group2

102

Group2

Multiple indoor units and 1 Lossnay in interlocked operation.

It is possible to operate 16 indoor units per 1 Lossnay

004

005

006

Group5

Group4

Group3

105

106

104

154

Interlocked Lossnay (008) unit can be controlled by ME remote controller (102).


Confidential

051

Lossnay

Outdoor unit

001

TB5

007

TB5

Interlocked

Group1

101

TB5

009

Interlocked

c) Interlocked with City Multi

Lossnay Interlock example-3

ME remote controller

(PAR-F27MEA)

Indoor unit

Group3

1 indoor unit with 2 remote controllers and 1 Lossnay in interlocked operation

TB5

008

002

003

Interlocked

Group2

102

004

005

006

Group5

Group4

Group3

105

106

104

154

Interlocked Lossnay (009) unit can be controlled by ME remote controller (104, 154).


Confidential

051

Lossnay

Outdoor unit

001

TB5

007

TB5

Interlocked

Group1

101

TB5

010

Interlocked

c) Interlocked with City Multi

Lossnay Interlock example-4

ME remote controller

(PAR-F27MEA)

Group4, 5

Multiple groups and 1 Lossnay unit in

interlocked operation.

It is possible to operate 16 group/unit

per 1 Lossnay.

Indoor unit

TB5

008

002

003

Interlocked

Group2

102

TB5

009

004

005

006

Interlocked

Group5

Group4

Group3

105

106

104

154

Interlocked Lossnay (010) unit can be controlled by ME remote controller (105, 106).


Confidential

051

Lossnay

Outdoor unit

TM4

TM4

TM4

TM4

Lossnay remote controller (PZ-60DR-E) can be connected by TM4.

c) Interlocked with City Multi

Lossnay Interlock example summery (ME)

ME remote controller

(PAR-F27MEA)

Indoor unit

TB3

TB5

TB5

TB5

002

003

001

007

008

Interlocked

Interlocked

Group2

Group1

102

101

TB5

TB5

004

005

006

010

009

Interlocked

Interlocked

Group4

Group3

105

106

104

154


Confidential

051

Lossnay

Outdoor unit

Lossnay M-NET remote controller (PZ-52SF-E) can be connected by TB5.

(Group setting by PZ-52SF-E is needed.)

c) Interlocked with City Multi

Lossnay Interlock example summery (ME)

ME remote controller

(PAR-F27MEA)

Indoor unit

TB3

TB5

TB5

TB5

002

003

001

007

008

Interlocked

Interlocked

108

107

Group2

Group1

102

101

TB5

TB5

004

005

006

009

010

Interlocked

Interlocked

109

110

Group4

Group3

105

106

104

154


Confidential

c) Interlocked with City Multi

Interlock registration (In case of PAR-F27MEA)

By using Initial setting mode of ME remote controller, Lossnay interlock registration is possible.

Refer to Lossnay Technical manual Page C-103.

Registration procedure is basically same both ME and MA remote controller.


Confidential

c) Interlocked with City Multi

In case of Lossnay Interlock forMA System


Confidential

c) Interlocked with City Multi

Group setting for MA System

MA remote controller

PAR-21MAA

000

Indoor unit

Outdoor unit

TB3

TB5

000

000

000

TB15

Group2

Group1

000

000

000

Group4

Group3

In case of MA remote controller, Grouping via cross-over wire directly (No need set address ).


Confidential

Lossnay

007

008

Interlocked

Interlocked

TB5

009

010

Interlocked

Interlocked

c) Interlocked with City Multi

Lossnay Interlock for MA System

MA remote controller

PAR-21MAA

Indoor unit

051

Outdoor unit

TB5

TB5

002

003

001

Group2

Group1

TB5

004

005

006

Group4

Group3

In case of MA remote controller Lossnay Interlock, address setting and interlock setting from PAR-21MAA is needed. (Refer to PAR-21MAA Technical manual)


Confidential

Lossnay

TB5

TB5

002

003

001

007

008

Interlocked

Interlocked

TM4

TM4

TB5

TB5

004

005

010

009

Interlocked

Interlocked

TM4

TM4

Lossnay remote controller (PZ-60DR-E) can be connected by TM4.

c) Interlocked with City Multi

Lossnay Interlock for MA System with PZ-60DR-E

MA remote controller

PAR-21MAA

Indoor unit

051

Outdoor unit

Group2

Group1

006

Group4

Group3


Confidential

Lossnay

Outdoor unit

Lossnay M-NET remote controller (PZ-52SF-E) can be connected by TB5. (Group setting by PZ-52SF-E is needed.)

c) Interlocked with City Multi

Lossnay Interlock for MA System with PZ-52SF-E

MA remote controller

PAR-21MAA

Indoor unit

051

TB5

TB5

002

003

001

007

008

Interlocked

Interlocked

108

107

Group2

Group1

TB5

TB5

004

005

006

010

009

Interlocked

Interlocked

109

110

Group4

Group3


Confidential

c) Interlocked with City Multi

Function Table (ME & MA)

ME remote controller

(PAR-F27MEA)

MA remote controller

(PAR-21MAA)

If the power supply was interrupted for the Indoor unit, Interlocked Lossnay will stop operation after few minutes.


Confidential

Contents

1.Lossnay controller

PZ-60DR-E

Interlocked with Air conditioner (Mr.Slim and others)

Interlocked with City Multi

MELANS

Precautions of M-NET system

Other connection method

a)

b)

c)

d)

e)

f)


Confidential

d) MELANS

Function overview PZ-52SF-E(Lossnay M-NET Remote controller)


Confidential

1

2

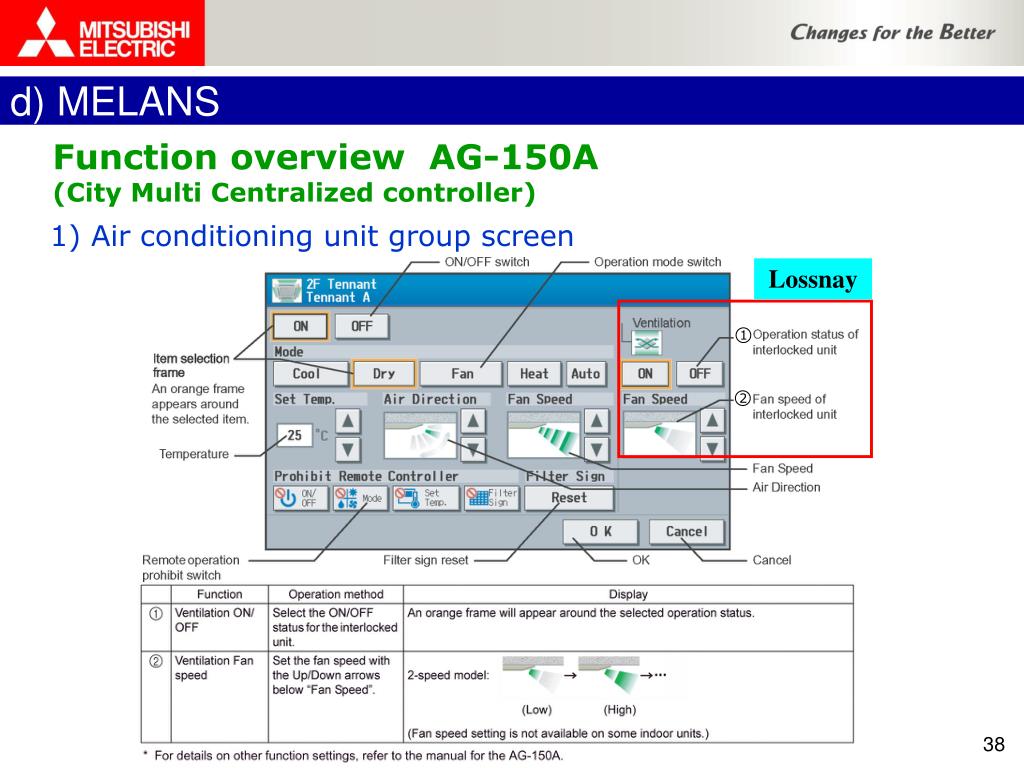

d) MELANS

Function overview AG-150A(City Multi Centralized controller)

1) Air conditioning unit group screen

Lossnay


Confidential

1

3

2

5

6

4

7

d) MELANS

Function overview AG-150A

2) Ventilation equipment (Lossnay) group screen


Confidential

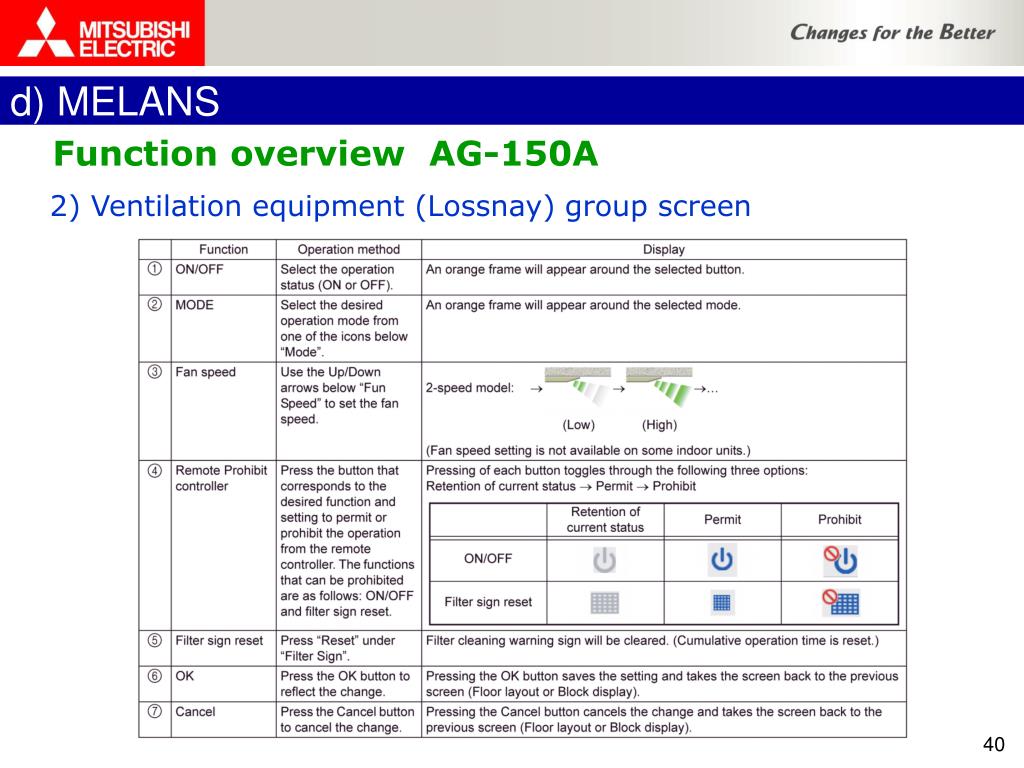

d) MELANS

Function overview AG-150A

2) Ventilation equipment (Lossnay) group screen


Confidential

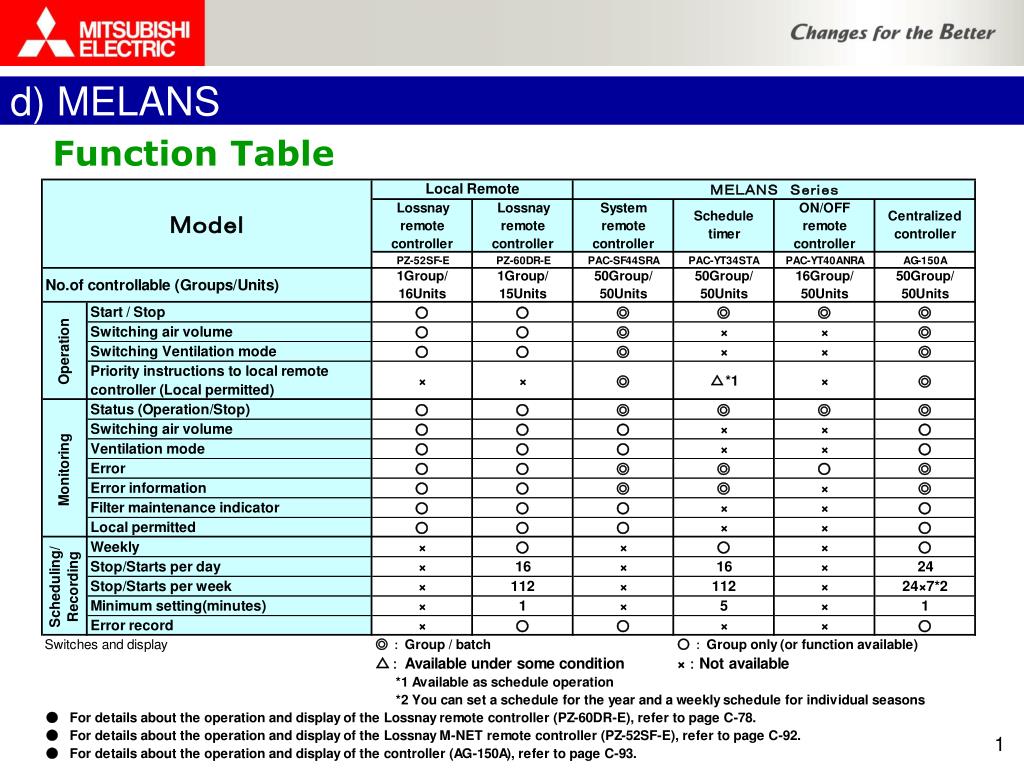

d) MELANS

Function Table


Confidential

000

Outdoor unit

TM4

d) MELANS

Lossnay Interlock and Lossnay Group System with PZ-60DR-E

System controller AG-150A

051

Indoor unit

Lossnay

ME remote controller

Lossnay remote controller PZ-60DR-E

TB5

TB5

001

003

005

004

002

Power

Supply

Unit

Interlocked

Interlocked

101

103

Group2

Group1

TB5

TB5

TB5

TB5

TB5

007

008

006

009

010

TM4

TM4

TM4

Group4

Group5

Group3

Group1 and 2; Lossnay InterlockGroup3, 4 and 5; Lossnay independent Group


Confidential

000

Outdoor unit

d) MELANS

Lossnay Interlock and Lossnay Group System with PZ-52SF-E

System controller AG-150A

051

Indoor unit

Lossnay

ME remote controller

Lossnay remote controller PZ-52SF-E

TB5

TB5

001

003

005

004

002

Power

Supply

Unit

Interlocked

Interlocked

101

103

Group2

Group1

TB5

TB5

TB5

TB5

TB5

010

006

007

008

009

106

108

158

Group4

Group5

Group3

Group1 and 2; Lossnay InterlockGroup3, 4 and 5; Lossnay independent Group


Confidential

000

Outdoor unit

TM4

TM4

d) MELANS

Lossnay Group System 1

System controller AG-150A

051

Indoor unit

Lossnay

ME remote controller

Lossnay remote controller PZ-60DR-E

Group3 (Lossnay Independent)

1 Lossnay unit and 1 PZ-60DR-E

TB5

TB5

001

003

005

004

002

Power

Supply

Unit

Interlocked

Interlocked

101

103

Group2

Group1

TB5

TB5

TB5

TB5

TB5

007

006

008

009

010

TM4

TM4

Group4

Group5

Group3

Lossnay unit (006) can be controlled by PZ-60DR-E which is connected to the Lossnay (006) and System controller (AG-150A)


Confidential

000

Outdoor unit

TM4

TM4

d) MELANS

Lossnay Group System 2

System controller AG-150A

051

Indoor unit

Lossnay

ME remote controller

Lossnay remote controller PZ-60DR-E

  • Group 4 (Lossnay Independent)

  • Lossnay unit without PZ-60DR-E

  • Group setting from System controller is required

TB5

TB5

001

003

005

004

002

Power

Supply

Unit

Interlocked

Interlocked

101

103

Group2

Group1

TB5

TB5

TB5

TB5

TB5

007

006

008

009

010

TM4

TM4

Group4

Group5

Group3

Lossnay unit (007) can be controlled by System controller (AG-150A).


Confidential

000

Outdoor unit

TM4

TM4

d) MELANS

Lossnay Group System 3

System controller AG-150A

051

Indoor unit

Lossnay

ME remote controller

Lossnay remote controller PZ-60DR-E

Group5 (Lossnay Independent)

Multiple Lossnay units and 2 PZ-60DR-E

(It is possible to set maximum of 16units in 1 Group)

TB5

TB5

TB5

001

003

005

004

002

Power

Supply

Unit

Interlocked

Interlocked

101

103

Group2

Group1

TB5

TB5

TB5

TB5

TB5

007

006

008

009

010

TM4

TM4

Group4

Group5

Group3

Lossnay units (008 - 010) can be controlled by PZ-60DR-E and System controller (AG-150A).


Confidential

000

Outdoor unit

d) MELANS

Lossnay Interlock and Lossnay Group Summery

System controller AG-150A

051

Indoor unit

Lossnay

ME remote controller

Lossnay remote controller PZ-60DR-E

TB5

TB5

001

003

005

004

002

Power

Supply

Unit

Interlocked

Interlocked

101

103

Group2

Group1

TB5

TB5

TB5

TB5

TB5

007

006

TM4

008

009

010

TM4

TM4

TM4

Group4

Group5

Group3

Group setting and Interlock setting from AG-150A are required.


Confidential

000

d) MELANS

System example

AG-150A + Lossnay-group Systems without Indoor-units

System controller

Lossnay remote controller (PZ-60DR-E)

Lossnay

TB5

TB5

TB5

TB5

TB5

TB5

001

002

005

006

003

004

TM4

Power

Supply

Unit

TM4

TM4

TM4

TM4

Group3

Group4

Group2

Group1

TB5

TB5

  • Each Lossnay Group can be controlled by

  • PZ-60DR-E in the Group.

  • Group1 to Group5 can be controlled by System

  • controller (AG-150A) independently.

  • Power supply unit is required

TM4

007

008

TM4

Group5


Confidential

Contents

1.Lossnay controller

PZ-60DR-E

Interlocked with Air conditioner (Mr.Slim and others)

Interlocked with City Multi

MELANS

Precautions of M-NET system

Other connection method

a)

b)

c)

d)

e)

f)


Confidential

e) Precautions of M-NET system

Basic rule is same as City Multi system.

Power supply of the M-NET transmission cable

The central system

The indoor unit system

TB5

TB5

TB5

TM4

Supply 24VDC signal by Power supply unit

Supply 24VDC signal by outdoor unit

Refer to Lossnay Technical manual Page C-31.


Confidential

e) Precautions of M-NET system

Length of Control Cable

Maximum power supply

cable length

: (L1+L2, L1+L3, L1+L4)

< 200m

Maximum distance between ends

: (L2+L3, L2+L4, L3+L4)

< 500m

Details information;

Refer to Lossnay Technical manual page C-36.


Confidential

e) Precautions of M-NET system

Power supply to the indoor Unit Transmission Cable

Indoor units + Remote controllers/4 + Lossnay M-NET remote controllers/4 ≦ 32

MA remote controllers and Lossnay units are not counted.


Confidential

Contents

1.Lossnay controller

PZ-60DR-E

Interlocked with Air conditioner (Mr.Slim and others)

Interlocked with City Multi

MELANS

Precautions of M-NET system

Other connection method

a)

b)

c)

d)

e)

f)


Confidential

f) Other connection method

External control operating

Mr.Slim indoor unit

Refer to Lossnay Technical manual Page C-26.


Confidential

f) Other connection method

External control operating

Charged signal of 12VDC or 24VDC

Refer to Lossnay Technical manual Page C-26.


Confidential

f) Other connection method

External control operating

Uncharged A-contact signal

Refer to Lossnay Technical manual Page C-27.


Confidential

f) Other connection method

Operation Monitor output

Refer to Lossnay Technical manual Page C-26,27,70


Confidential

f) Other connection method

Malfunction monitor output and By-pass operation Monitor output

Refer to Lossnay Technical manual Page C-26, 27, 29


Confidential

f) Other connection method

External control operating

External control operating mode selection (1/2)

1.ON/OFF interlock 2.ON Interlock

3.OFF Interlock 4.ON/OFF External priority

Refer to Lossnay Technical manual Page C-23.


Confidential

f) Other connection method

External control operating (Continue)

External control operating mode selection (2/2)

1.ON/OFF interlock 2.ON Interlock

3.OFF Interlock 4.ON/OFF External priority

Refer to Lossnay Technical manual Page C-23.


Confidential

f) Other connection method

External control operating (Continue)

How to set Level or Pulse signal for external input

* Response times to external input signals are as shown the following table

Refer to Lossnay Technical manual Page C-70, 73.


Confidential

f) Other connection method

External control operating (End)

How to set External control operating mode

Refer to Lossnay Technical manual Page C-76.


Confidential

f) Other connection method

External fan speed control High / Low / Extra-Low

●To force High fan speed externally

●To force Extra-Low fan speed externally

●To force Low fan speed externally

Refer to Lossnay Technical manual Page C-28,70.


Confidential

f) Other connection method

When switching By-pass externally

With SW1 is ‘ON’, the ventilation mode of Lossnay is changed to the By-pass ventilation regardless of the setting on the remote controller.

* When the outdoor air temperature drops lower than 8oC, it changes to the heat exchanger ventilation. (Display of the remote controller does not change.)

Refer to Lossnay Technical manual Page C-29.


Confidential

f) Other connection method

When using the remote / local switching and the ON / OFF input

The remote controller (PZ-41SLB-E) cannot be used. Insert the optional remote ON/OFF adaptor (PAC-SE55RA-E) in CN32 on the Lossnay control PCB.

SW1 : When this is ON, Lossnay cannot turn ON/OFF by the Remote Controller (PZ-60DR-E, PZ-52SF-E).

SW2 : When SW1 is ON, Lossnay can be turned ON by setting SW2 at ON or turned OFF by setting SW2 at OFF.

SW1 : Remote/local selector switch

SW2 : ON/OFF switch

X, Y : Relay (Contactor rating DC 1 mA)

Refer to Lossnay Technical manual Page C-29


Confidential

f) Other connection method

ON / OFF Power operation without using the remote controller

  • When the switch ON, the Lossnay unit will operate.

  • Lossnay Fan speed can be selected (High /Low) by dip SW 2-4 and 2-5

  • Ventilation mode (LOSSNAY/Bypass) is fixed to automatic.

Refer to Lossnay Technical manual Page C-28.


Contents1

Contents

1.Lossnay controller

a) PZ-60DR-E

b) Interlocked with Air conditioner (Mr.Slim and others)

c) Interlocked with City Multi

d) MELANS

e) Precautions of M-NET system

f) Other connection method

2.Function setting by dip switch or PZ-60DR-E

3.Lossnay Usage Conditions

a) Safety Precautions (Temperature and humidity)

b) Cold area operation

4.Troubleshooting


Confidential

9

6

7

10

2. Function setting by dip switch or PZ-60DR-E

Changing the function selection switches (SW-2 and 5)

Set the selection switches (SW-2 and 5) to perform the appropriate function.

*The function marked (*) above can be set also from the remote controller (PZ-60DR-E). If the function is switched later using the remote controller, it operates according to the setting on the remote controller.

Trial Operation

Settings for pulse input

Switching to power supply/exhaust when operation starts

Switching to the multi ventilation mode

Power supply ON/OFF function (cannot be set when PZ-41SLB-E is used)

By-pass automatic ventilation priority setting *

Setting for TM4 output

Extra High/High switch setting

Set for delay operation at heating or cooling start-up

Operation output monitor

Exhaust fan stop during defrosting, exhaust fan Low speed operation at outdoor air lower than -15oC

Settings for automatic recovery following power supply interruption (cannot be set when PZ-41SLB-E is used)

Settings for filter cleaning (cannot be set when PZ-41SLB-E is used)

Setting for TM3 output

Settings for interlock mode

Exhaust fan stop at outdoor air lower than -15oC

Refer to Lossnay Technical manual Page C-72.


Confidential

2. Function setting by dip switch or PZ-60DR-E

Setting of Fan speed

It is possible to make 9 fan speed setting by dip SW 2-4,2-5 and SW2-9,10

Refer to Lossnay Technical manual Page C-73, C-74.


Confidential

2. Function setting by dip switch or PZ-60DR-E

Setting of Fan speed (Multi ventilation mode)


Confidential

2. Function setting by dip switch or PZ-60DR-E

Power supply exhaust when operation starts

Power supply start/stop function (Cannot be set when PZ-41SLB-E is used )


Confidential

2. Function setting by dip switch or PZ-60DR-E

By-pass automatic ventilation priority setting


Confidential

2. Function setting by dip switch or PZ-60DR-E

Pattern 1. Normal ventilation mode

Refer to technical Manual Page C-42.


Confidential

2. Function setting by dip switch or PZ-60DR-E

Pattern 2. Outdoor cooling priority mode

Refer to technical Manual Page C-43.


Confidential

2. Function setting by dip switch or PZ-60DR-E

Pattern 3. Interlocked system mode


Confidential

2. Function setting by dip switch or PZ-60DR-E

Setting for delay of operation at start-up of air conditioner

(Unavailable when PZ-41SLB-E is used )

Operation output monitor


Confidential

2. Function setting by dip switch or PZ-60DR-E

Exhaust fan stop during defrosting, exhaust fan Low speed operation at outdoor air lower than -15oC

Settings for automatic recovery following power supply interruption

(Unavailable set when PZ-41SLB-E is used )


Confidential

2. Function setting by dip switch or PZ-60DR-E

Setting for filter cleaning (Unavailable when PZ-41SLB-E is used)

Exhaust fan stop at outdoor air lower than -15oC


Confidential

2. Function setting by dip switch or PZ-60DR-E

Parts Check on PCB

LGH-15 ~ 200RX5-E


Confidential

・The fan speed will revert to the last setting before the Lossnay unit was stopped.

・Night purge operation is terminated in any of the following conditions (a) to d)), and is not resumed until the start conditions of the next day are reached.

a) Between 6:00 and 0:59

b) When the operation is stopped between 1:00 and 6:00 with a deluxe remote controller or system

controller

c) When the operation is switched on or off between 1:00 and 6:00 by a scheduled timer (Weekly timer)

d) When the operation is switched on or off between 1:00 and 6:00 by an air conditioner, an external control input or a remote input

Note:

・Night purge can be performed when the clock use setting is ON (use clock) in Function Selection.

・The Function Selector cannot be switched during Night purge operation. ("Locked" 2 will blink.)

・Night Purge cannot be used with the Simple timer

・Night purge settings can be checked in the Function Selection mode.

・When more than one Lossnay units are running, the temperature is measured by the main Lossnay

・Night purge is not performed when "CENTRAL" is displayed.

・Do not use the night purge function if fog or heavy rain is expected. Rain water may enter the unit during the night.

2. Function setting by dip switch or PZ-60DR-E

Using the Night Purge (1/2)


Confidential

2. Function setting by dip switch or PZ-60DR-E

Using the Night Purge (2/2)


Confidential

2. Function setting by dip switch or PZ-60DR-E

24-hour ventilation setting


Confidential

2. Function setting by dip switch or PZ-60DR-E

Function selection for PZ-60DR-E (1/2)


Confidential

2. Function setting by dip switch or PZ-60DR-E

Function selection for PZ-60DR-E (2/2)


Confidential

2. Function setting by dip switch or PZ-60DR-E

Function selection flow chart (1/3)


Confidential

2. Function setting by dip switch or PZ-60DR-E

Function selection flow chart (2/3)


Confidential

2. Function setting by dip switch or PZ-60DR-E

Function selection flow chart (3/3)

Refer to Lossnay technical Manual Page C-88.


Confidential

2. Function setting by dip switch or PZ-60DR-E

How to Display the Temperature

Each press of the Return button switches between the display and non-display of theOA/RA inlet temperature*1 and heat-exchanged SA temperature (calculated value)*2 .

(the temperature is not displayed when the temperature display setting is set to OFF.)

*1 The temperatures displayed on the remote controller are the temperatures detected at the inlet port of the product

main unit, and may differ from the actualOA temperature and RA temperature.

*2 The calculated value for standard exchange efficiency is displayed, so the indicated temperature may differ from the actual SA

temperature. If you want to display a value that is closer to the actual temperature, perform exchange efficiency correction.

.During By-pass operation, the temperature is not displayed for the RA and SA (calculated value).

Note: If a temperature display setting is set to OFF (not displayed) in the switch display settings of the remote controller function selector, the temperature for that location is not displayed.

.If the temperature sensor detection temperature becomes 40oC or more or -10oC or less, the indications for both RA and OA become "- -", and the indication for SA also becomes "- -".

.If an error occurs, the correct temperature may not be displayed.

Refer to Lossnay technical Manual Page C-89.


Contents2

Contents

1.Lossnay controller

a) PZ-60DR-E

b) Interlocked with Air conditioner (Mr.Slim and others)

c) Interlocked with City Multi

d) MELANS

e) Precautions of M-NET system

f) Other connection method

2.Function setting by dip switch or PZ-60DR-E

3.Lossnay Usage Conditions

a) Safety Precautions (Temperature and humidity)

b) Cold area operation

4.Troubleshooting


Confidential

3. Lossnay Usage Conditions

a) Safety Precautions (Temperature and humidity)

1. Lossnay Operating Environment

Pay special attention to extreme operating conditions.

1.1 Cold Weather Area Intermittent Operation

When the OA temperature falls below -10oC during operation, the SA-fan will change to intermittent operation. OFF for 10 minutes, ON for 60 minutes.

1.2 In Cold Climates with Outdoor Temperature of -5oC or Less

Plot the Lossnay intake air conditions A and B on a Psychrometric chart (see right). If the high temperature side air B intersects the saturation curve such as at C, moisture condensation or frost will build on Lossnay. In this case, the low temperature side air A should be warmed up to the temperature indicated by Point A’ so that Point C shifts to the Point C’.


Confidential

3. Lossnay Usage Conditions

a) Safety Precautions (Temperature and humidity )

1.3 In High Humidity Conditions with Relative Humidity of 80% or More

When using the system in high humidity conditions such as heated indoor pools, bathrooms, mushroom cultivation houses, high-fog areas etc., moisture will condense inside the Core, and drainage will occur. General-purpose Lossnay units that use treated paper cannot be installed in those types of environments.

1.4 Other Special Conditions

・Lossnay units cannot be installed in locations where toxic gases and corrosive elements such as acids, alkalis, organic solvents, oil mist or paints exist.

・Cannot be installed where heat is recovered from odiferous air and supplied to another area.

・Avoid installing in a location where unit could be damaged by salt or hot water.

2. Sound Levels of Lossnay Units with Built-in Fans

The sound levels specified for Lossnay units are generated from tests conducted in an anechoic chamber. The sound levels may increase by 8 to 11 dB according to the installation construction material and room contents.

When using Lossnay units in a quiet room, it is recommended silencer duct, silencer intake/exhaust grill or silencer box be installed.


Confidential

3. Lossnay Usage Conditions

a) Safety Precautions (Temperature and humidity )

3. Attaching Air Filters

An air filter must be mounted to both the intake and exhaust air inlets to clean the air and to prevent the Core from clogging. Periodically clean the filter for optimum Lossnay unit performance.

4. Constructing the Ductwork

・ Always add insulation to the two ducts on the outdoor side (outdoor air intake and exhaust outlet) to prevent frost or condensation from forming.

・ The outdoor duct gradient must be 1/30 or more (to wall side) to prevent rain water from going into the system.

・ Do not use standard vent caps or round hoods where those may come into direct contact with rain water.(A deep hood is recommended.)

5. Bypass Ventilation

Do not operate “bypass ventilation” when heating during winter. Frost or condensation may form on the main unit.

6. Night purge function

Do not use the night purge function if fog or heavy rain is expected. Rain water may enter the unit during the night.


Confidential

●External device and damper position

3. Lossnay Usage Conditions

b) Cold area operation

(Use of external device unit-1 at OA side)

●Wire connection diagram with external device

Relay

Caution in External Device Selection

Be careful not to have damage on LOSSNAY

TM1

TM3

LGH-RX5-E

6

7

8

TM4

1

2

External device

PZ-60DR-E

Refer to Lossnay Technical manual Page U-52.


Confidential

7

6

3. Lossnay Usage Conditions

b) Cold area operation

(Use of external device unit-1 at OA side)

●Setting for TM3 output

Refer to Lossnay Technical manual Page C-75.


Confidential

3. Lossnay Usage Conditions

b) Cold area operation (Use of external device unit-1 at OA Side)

When Toa2 goes down below -5 oC,

contact 6 and 7 of TM3 would become ON.

When Toa2 goes up over 15 oC,

contact 6 and 7 of TM3 would become OFF.

Toa2

Toa1

TM3

6

7

Relay

Refer to Lossnay Technical manual Page C-75.


Confidential

3. Lossnay Usage Conditions


Confidential

3. Lossnay Usage Conditions

b) Cold area operation (Use of external device unit-1 at OA Side)

Cautions for selecting external device unit

  • Actual air volume is calculated by ductwork pressure loss. Select the capacity of external device considering calculated air volume.

Calculating air volume should be at Low fan speed air volume.

Temperature deference between before and after external device should be less than 20 oC.

If capacity is calculated at high fan speed air volume, after-device temperature might rise too high (ex. over 20 oC) during low fan speed operation. Then, after-device temp. repeats going down to -5 oC and going up to 15 oC. In this case, contact may be broken by repetitive switching ON and OFF of the external device contactor.


Confidential

3. Lossnay Usage Conditions

b) Cold area operation (Use of external device unit-1 at OA Side)

Cautions for selecting external device unit

2. Select the capacity of external device to ensure Toa2 is always above -10 oC.

If Lossnay OA thermistor measure less than -10 oC at 60 minutes after operating, intermittence operation of SA fan stops operation for 10 minutes and normal operation for 60 minutes.

External device is stopped by Lossnay PCB.


Confidential

3. Lossnay Usage Conditions

b) Cold area operation (Use of external device unit-1 at OA Side)

Cautions for selecting external device unit

3. Considering external device safety

・ Always Ensure that local regulations are adhered to for installation of external device.

・ External device should be separated from Lossnay as possible to prevent the fire spread.


Confidential

10

9

3. Lossnay Usage Conditions

b) Cold area operation (Use of external device unit-1 at SA Side)

Setting for TM4 output

Refer to Lossnay Technical manual Page C-43.


Confidential

TM3

9

10

Relay

3. Lossnay Usage Conditions

b) Cold area operation (Use of external device unit-1 at SA Side)

Refer to Lossnay Technical manual Page C-41.


Confidential

3. Lossnay Usage Conditions


Confidential

3. Lossnay Usage Conditions

Installation example

1. Lossnay LGH-100RX type 2 units and City multi-2-system .

2. Lossnay OA has an external device.


Contents3

Contents

1.Lossnay controller

a) PZ-60DR-E

b) Interlocked with Air conditioner (Mr.Slim and others)

c) Interlocked with City Multi

d) MELANS

e) Precautions of M-NET system

f) Other connection method

2.Function setting by dip switch or PZ-60DR-E

3.Lossnay Usage Conditions

a) Safety Precautions (Temperature and humidity)

b) Cold area operation

4.Troubleshooting


Confidential

4.Troubleshooting

Refer to Technical Manual C-44 to C-63

Item to Check

Table1-1-2 No6, No8

Table1-1-3 No8, No10

Table1-2-1 No1

Table1-2-2 No4, No8, No9


Confidential

4.Troubleshooting

Refer to Technical Manual C-77

Skill Practice

Case 1) “HO” sign flashing,no operation

→ Check the M-NET setting

(Address setting,cable

connecting etc.)

Other case ) Will be showed on the

demonstration

following C-77 11.5.4


Troubleshooting the error codes

Troubleshooting The error codes

4.Troubleshooting

Refer to Technical Manual C-52 to C-55

The Error Codes check

→ Check the code sign on remote

controller display by skill practice


To be continued

To Be Continued…


  • Login
