Workflow ServicesIntegration of WCF and WF

PhaniKumar M T

Technical Architect | BrainScale Consulting

[email protected]


Session objectives and takeaways l.jpg

Session Objectives and Takeaways

  • Why Workflow Services?

  • Architectural overview of Workflow Services

  • Features

    • Context Exchange

    • Durable Services

    • Duplex Workflow Services

    • Conversations


Agenda l.jpg

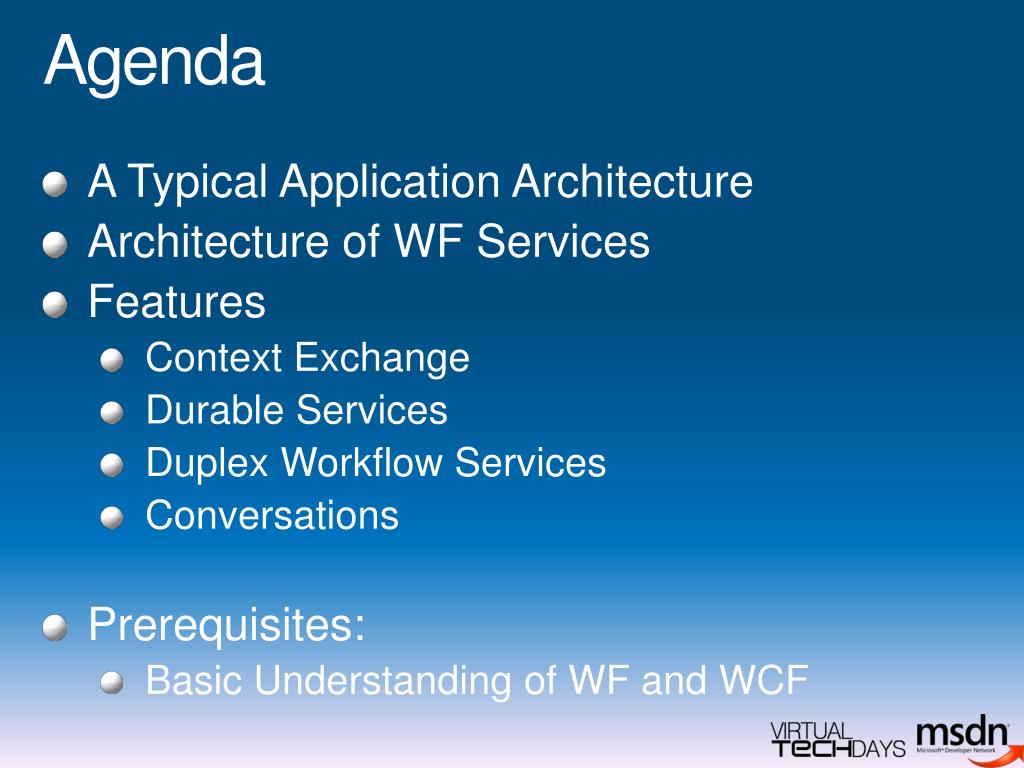

Agenda

  • A Typical Application Architecture

  • Architecture of WF Services

  • Features

    • Context Exchange

    • Durable Services

    • Duplex Workflow Services

    • Conversations

  • Prerequisites:

    • Basic Understanding of WF and WCF


A typical application architecture l.jpg

A Typical Application Architecture


Windows workflow foundation l.jpg

Windows Workflow Foundation

What is Workflow?

Visual Studio Designer

A Workflow

Workflow is the organization of work

Activity

Activity Library

What’s the value of Workflow?

Long Running Logic

Workflow Runtime Engine

Flexibility

Runtime Services

Transparency

Host Process


Workflow services advantages l.jpg

Workflow ServicesAdvantages

  • Service implemented as Workflow

    • Leverage Workflow development experience

    • Enforces application protocol by default

    • Allows long-running, durable Services

  • Workflow hosted as Service

    • ServiceContract provides typed interface for integrating with the Workflow

    • Messages enforce by-value, serializable data

    • Workflows can be message-activated


First look at workflow services l.jpg

DEMO

First Look at Workflow Services


Bindings l.jpg

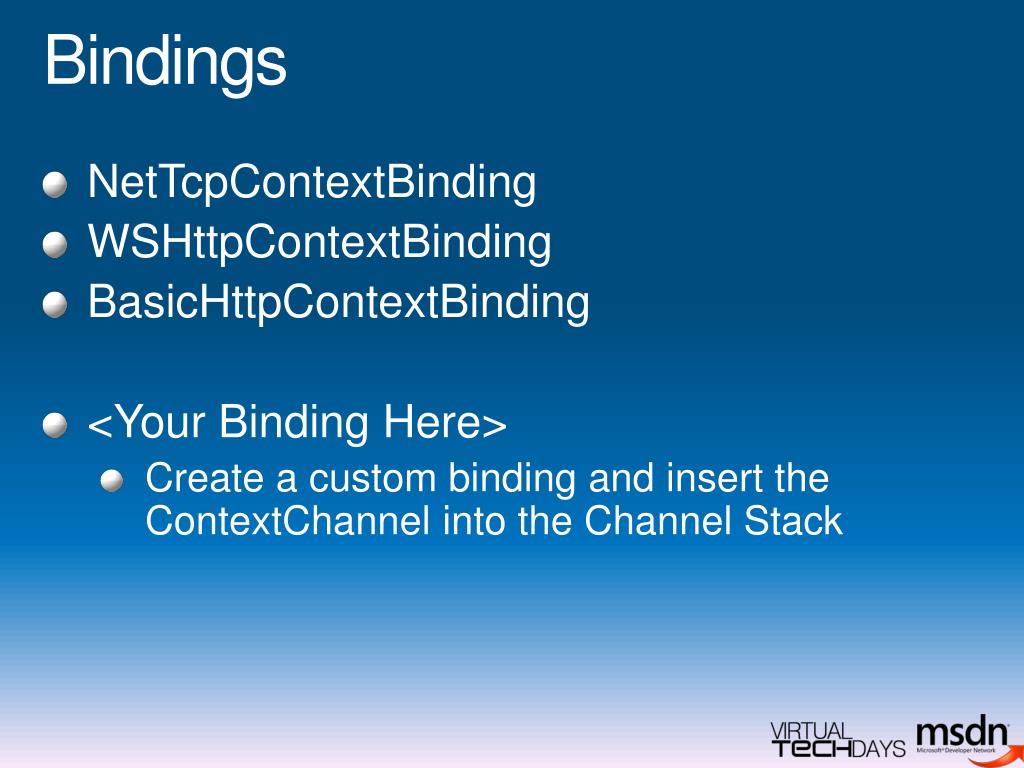

Bindings

  • NetTcpContextBinding

  • WSHttpContextBinding

  • BasicHttpContextBinding

  • <Your Binding Here>

    • Create a custom binding and insert the ContextChannel into the Channel Stack


Custom context binding l.jpg

Custom Context Binding

<customBinding>

<binding name="namedPipeWithContext">

<context />

<binaryMessageEncoding />

<namedPipeTransport />

</binding>

</customBinding>


Session objectives and takeaways12 l.jpg

Session Objectives and Takeaways

  • Why Workflow Services?

  • Architectural overview of Workflow Services

  • Features

    • Context Exchange

    • Durable Services

    • Duplex Messaging

    • Conversations


Context exchange architecture l.jpg

Context Exchange Architecture

  • ContextChannelimplemention

  • Receive

    • Extract context to ContextMessageProperty

    • Apply context on response to activating request

  • Send

    • Add context to all outgoing messages

  • Representation of context

    • SOAP header <wsc:Context />

    • HTTP cookie

    • In code:

      IDictionary<XmlQualifiedName, string>

WorkflowOperationInvoker

Service Runtime

DurableInstanceProvider

MessageContextInspector

OperationInvoker

OperationSelector

ContextChannel

ListenerChannel

InstanceProvider

MessageInspector


Setting outgoing context l.jpg

Setting Outgoing Context

  • // inside wf code application

  • IDictionary<XmlQualifiedName, string> context;

  • // context = … obtain context from store

  • sendActivity.Context = context;

  • //also, to dynamically set send address

  • sendActivity.CustomAddress =

  • “net.tcp://140.141.2.5/service.svc”;


Context exchange persistence and management l.jpg

demo

Context Exchange, Persistence and Management


Non wf client access to context l.jpg

Non WF Client Access to Context

  • // my wpf application

  • IDictionary<XmlQualifiedName, string> context;

  • // context = … obtain context from store

  • IContextManager cm =

  • proxy.InnerChannel.GetProperty<IContextManager>();

  • if (null != cm)

  • cm.SetContext(context);

  • // need to use a channel stack which includes the

  • // context channel, or write the headers directly into

  • // the message (non-WCF) client


Session objectives and takeaways18 l.jpg

Session Objectives and Takeaways

  • Why Workflow Services?

  • Architectural overview of Workflow Services

  • Features

    • Context Exchange

    • Durable Services

    • Duplex Messaging

    • Conversations


Durable services l.jpg

Durable Services

Architecture

Persistence Provider

Service.cs

Service Instance

Service Runtime

App.config

ServiceHost

DurableInstanceProvider

Operation 1

OperationInvoker

MessageContextInspector

Operation 2

OperationSelector

InstanceProvider

ContextChannel

ListenerChannel

MessageInspector

DurableServiceBehavior

ServiceDescription

DurableOperationBehavior

ServiceBehavior

OperationBehavior


Durable services20 l.jpg

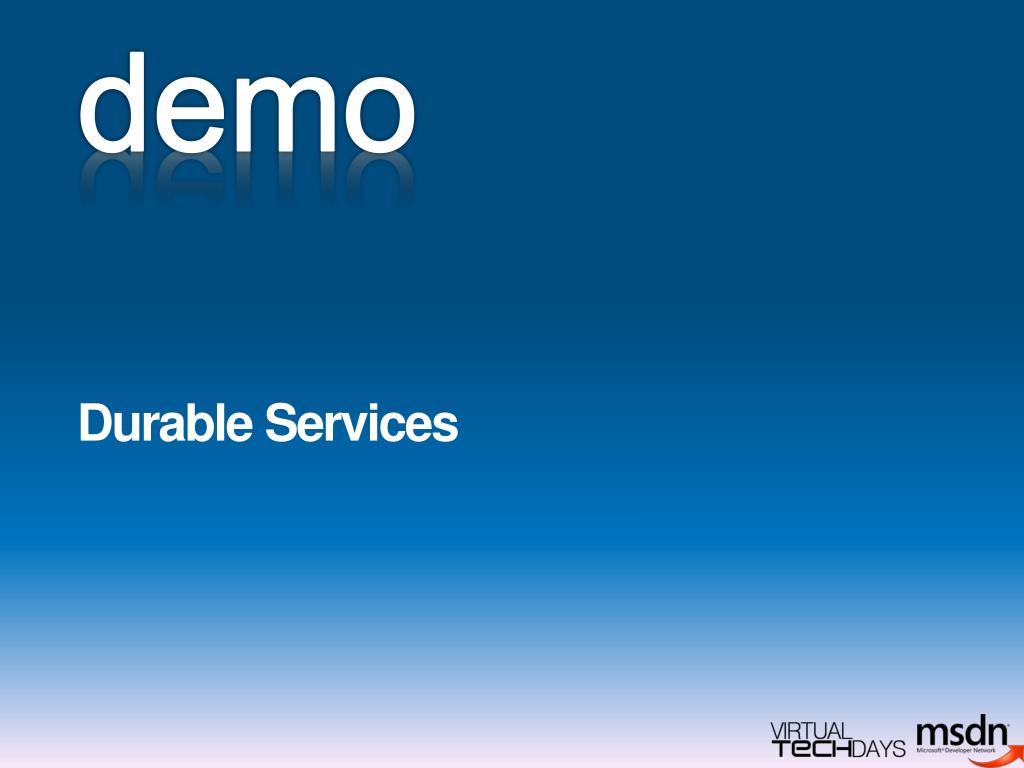

demo

Durable Services


Session objectives and takeaways21 l.jpg

Session Objectives and Takeaways

  • Why Workflow Services?

  • Architectural overview of Workflow Services

  • Features

    • Context Exchange

    • Durable Services

    • Duplex Messaging

    • Conversations


Duplex messaging l.jpg

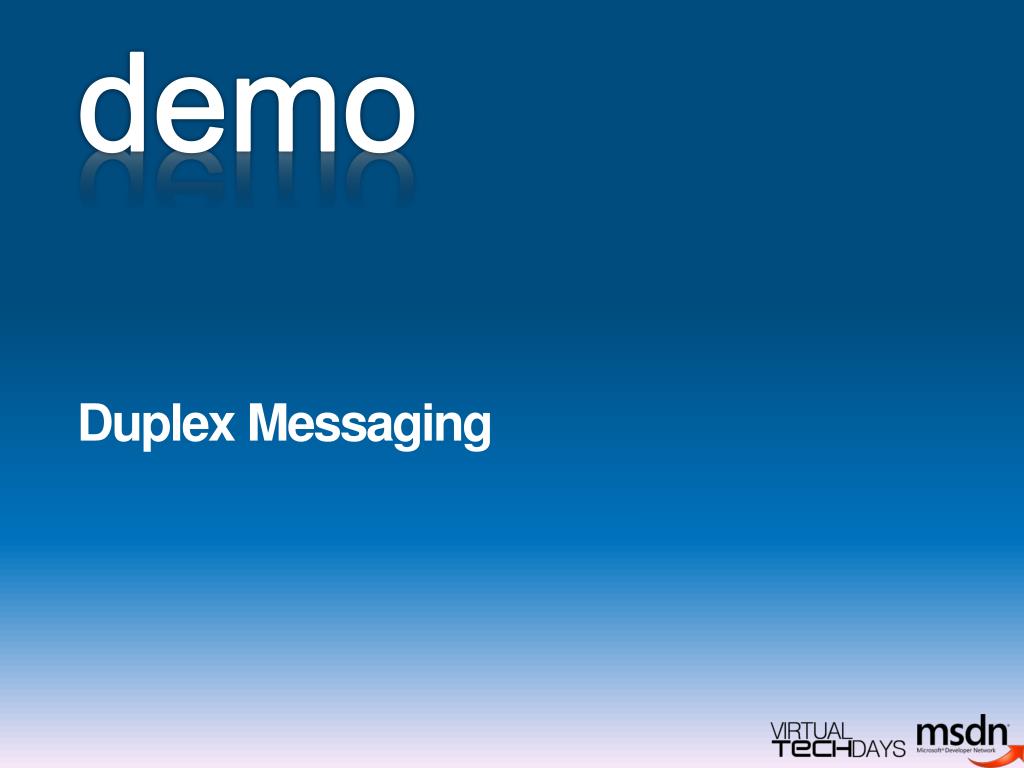

demo

Duplex Messaging

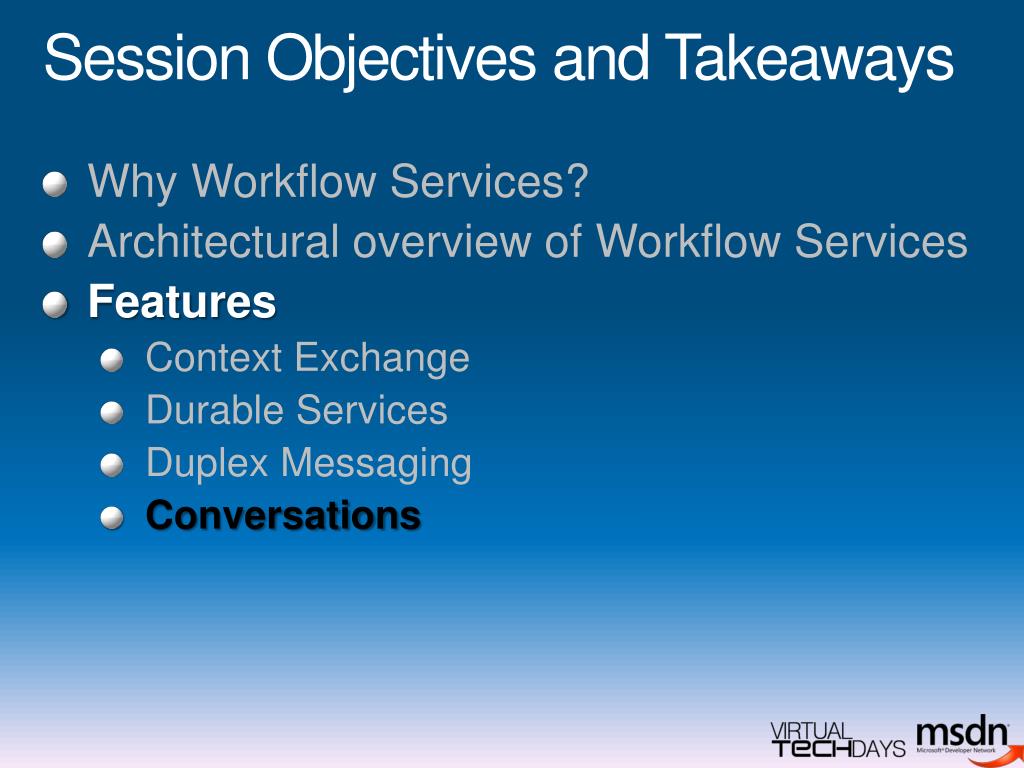

Session objectives and takeaways24 l.jpg

Session Objectives and Takeaways

  • Why Workflow Services?

  • Architectural overview of Workflow Services

  • Features

    • Context Exchange

    • Durable Services

    • Duplex Messaging

    • Conversations


Conversations l.jpg

Conversations

  • Multiple messages arriving for the same operation

  • Receives operating in parallel

  • Scenarios

    • Bidding

    • Coordinating approvals


Conversations29 l.jpg

demo

Conversations


So does the integration make sense l.jpg

So, does the integration make sense?


Summary l.jpg

Summary

  • WF and WCF developers benefit from these two worlds coming together

  • Workflow Services provide a natural way to model services

  • With an understanding of context, advanced communication patterns can be implemented across many parties.


Feedback qna l.jpg

Feedback / QnA
