Presentation Transcript


Slide1 l.jpg

THE VISUAL SYSTEM IN FLIGHT


Terminal learning objective l.jpg

TERMINAL LEARNING OBJECTIVE

  • Action: Manage the effects of visual limitations during flight

  • Conditions: While performing as an aircrew member

  • Standards : IAW FM 3-04.301, FM 8-50, AR 40-501, and AR 40-8


Anatomy of the human eye l.jpg

ANATOMY OF THE HUMAN EYE

  • CORNEA: The clear outer portion of the eye through which light passes.

  • IRIS: The colored portion of the eye which controls the diameter of the pupil.

  • Pupil: The dark center of the eye which allows light to pass through to the lens.


Slide4 l.jpg

ANATOMY OF THE HUMAN EYE

CORNEA


Slide5 l.jpg

ANATOMY OF THE HUMAN EYE

IRIS


Slide6 l.jpg

ANATOMY OF THE HUMAN EYE

PUPIL


Anatomy of the human eye7 l.jpg

ANATOMY OF THE HUMAN EYE

  • LENS: Located behind the pupil it focuses light on the retina.

  • RETINA: Composed of many tiny photosensitive cells called rods and cones.

  • FOVEA CENTRALIS: Contains a very high concentration of cone cells but no rod cells.


Slide8 l.jpg

ANATOMY OF THE HUMAN EYE

LENS


Slide9 l.jpg

ANATOMY OF THE HUMAN EYE

RETINA

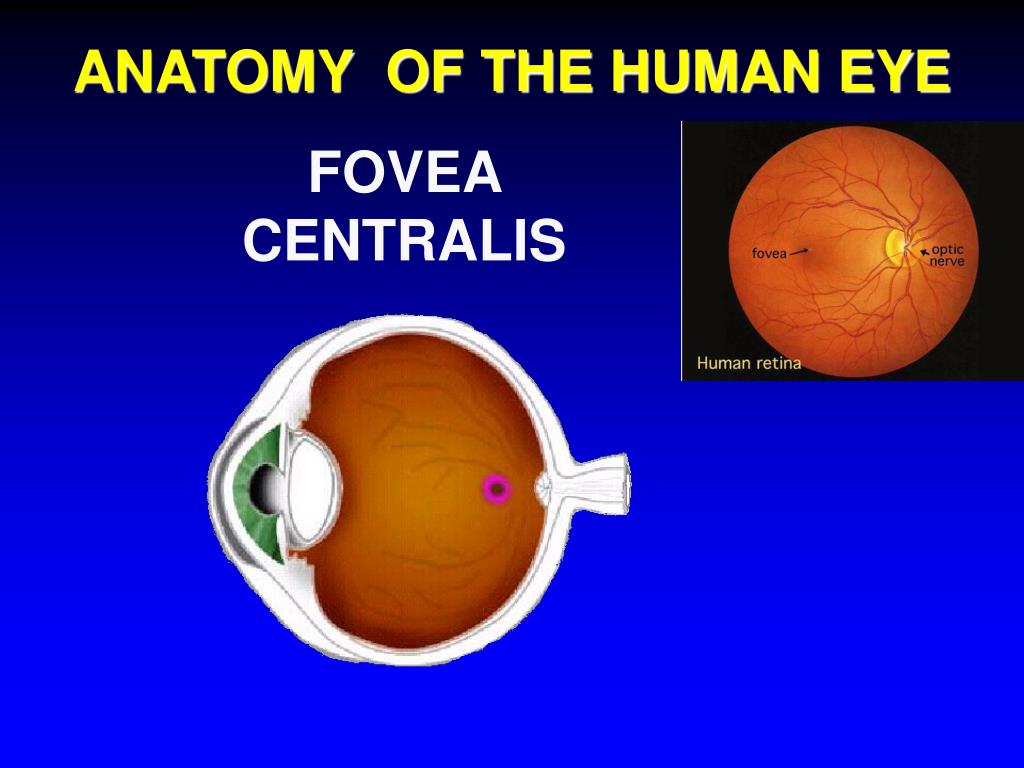

Slide10 l.jpg

ANATOMY OF THE HUMAN EYE

FOVEA

CENTRALIS


Anatomy of the human eye11 l.jpg

ANATOMY OF THE HUMAN EYE

RODS & CONES

  • Named because of their shape

  • Rods are used for night and low-intensity light vision (Scotopic Vision)

  • Cones are used for day or high-intensity light vision (Photopic Vision)

  • Both used at Dusk or Dawn (Mesopic Vision)


Anatomy of the human eye12 l.jpg

ANATOMY OF THE HUMAN EYE

RODS

  • Contains rhodopsin also known as vision purple

  • Rhodopsin bleached out by light making rod cells inactive

  • Extremely light sensitive (Scotopic Vision)

  • 30 to 45 minutes required to build up Rhodopsin (Dark Adapt)


Slide13 l.jpg

ANATOMY OF THE HUMAN EYE

CONES

  • Contains iodopsin

  • Identifies colors

  • Sharp visual acuity and color sense (Photopic Vision)

  • 7 million in fovea and parafovea regions

  • 1:1 ratio of cone cells to neuron cells

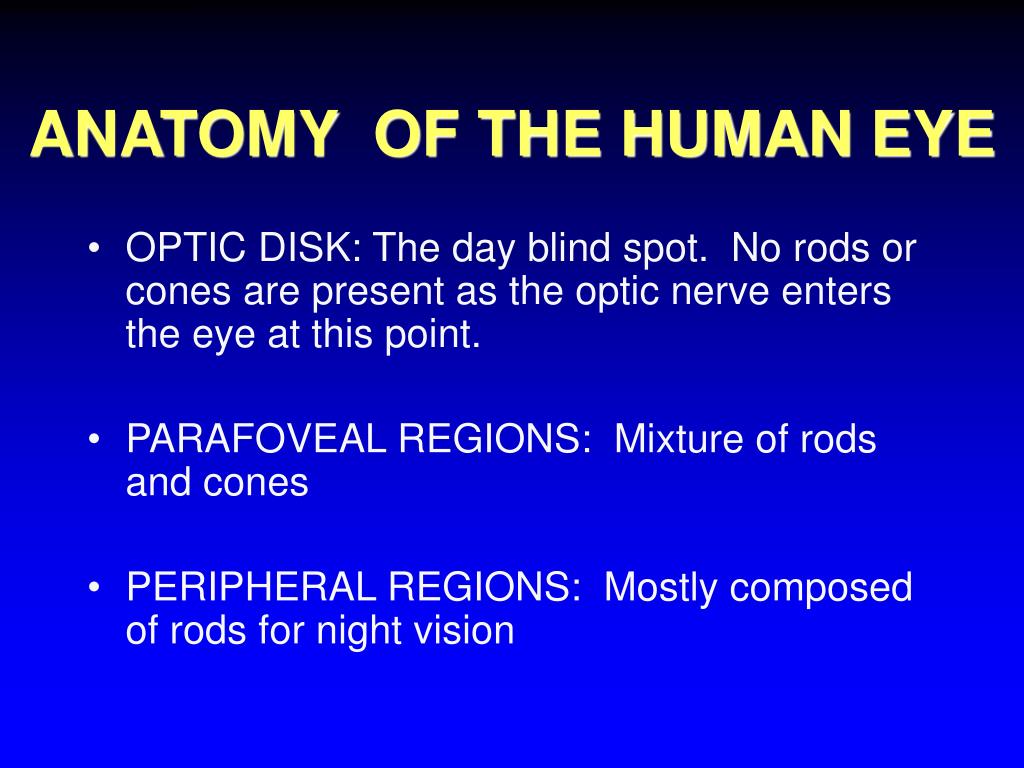

Anatomy of the human eye14 l.jpg

ANATOMY OF THE HUMAN EYE

  • OPTIC DISK: The day blind spot. No rods or cones are present as the optic nerve enters the eye at this point.

  • PARAFOVEAL REGIONS: Mixture of rods and cones

  • PERIPHERAL REGIONS: Mostly composed of rods for night vision


Slide15 l.jpg

ANATOMY OF THE HUMAN EYE

OPTIC DISK

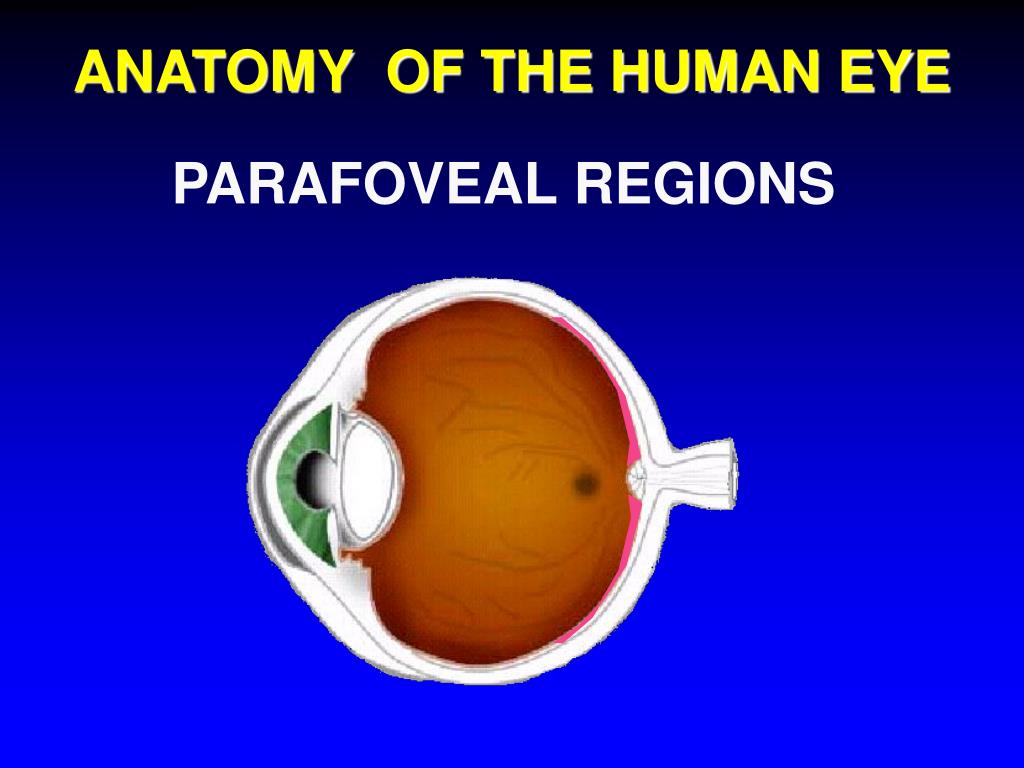

Slide16 l.jpg

ANATOMY OF THE HUMAN EYE

PARAFOVEAL REGIONS


Slide17 l.jpg

ANATOMY OF THE HUMAN EYE

PERIPHERAL REGIONS


Visual deficiencies l.jpg

VISUAL DEFICIENCIES

  • ASTIGMATISM

  • MYOPIA

  • HYPEROPIA

  • PRESBYOPIA

  • RETINAL RIVALRY


Astigmatism l.jpg

ASTIGMATISM

  • This condition is caused by an unequal curvature of the cornea or lens of the eye

  • Astigmatism is defined as the inability to focus different meridians simultaneously.

  • If, for example, astigmatics focus on power poles (vertical), the wires (horizontal) will be out of focus for most of them, as shown on the next slide.


Astigmatism20 l.jpg

ASTIGMATISM


Visual deficiencies21 l.jpg

VISUAL DEFICIENCIES

Myopia: Nearsightedness

Hyperopia: Farsightedness

Presbyopia: (aging)Hardening of lens, loss of elasticity


Retinal rivalry l.jpg

RETINAL RIVALRY

  • This condition is caused when the eyes attempt to simultaneously perceive two dissimilar objects independent of each other.

  • Quite often the dominant eye will override the nondominant eye, possibly causing information to be missed.

  • This phenomenon may occur when pilots are viewing objects through the heads-up displays found in the optical systems of the AH-64.


Corrective surgery l.jpg

CORRECTIVE SURGERY

  • RADIAL KERATOTOMY

  • LASER IRIDOTOMY

  • PHOTO REFRACTIVE KERATECTOMY

  • LASER IN SITU KERATOMILEUSIS


Radial keratotomy l.jpg

RADIAL KERATOTOMY

  • Flattening of the cornea by the creation of spoke like incisions

  • Performed to correct abnormal curvature of the cornea


Laser iridotomy l.jpg

LASER IRIDOTOMY

  • A lazed opening of the iris to open ocular fluid passageways

  • Performed for the treatment of glaucoma

  • Creates artificial pupil (Lost peripheral vision non-correctable)


Slide26 l.jpg

PHOTO REFRACTIVE KERATECTOMY

(PRK)

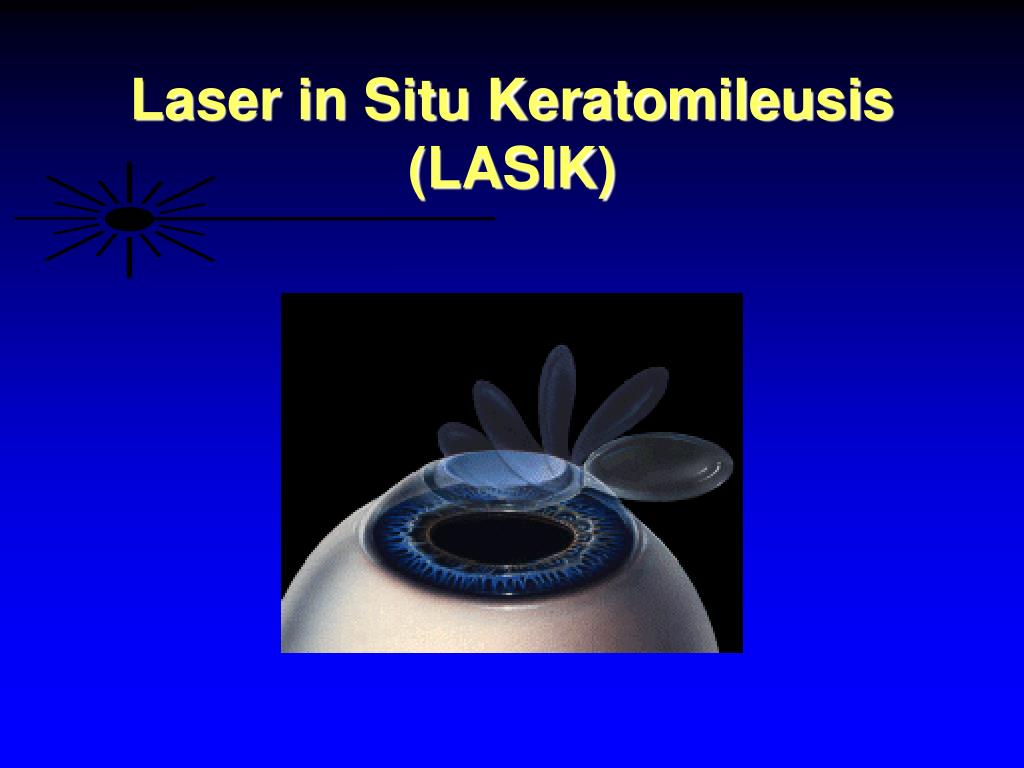

Slide27 l.jpg

Laser in Situ Keratomileusis(LASIK)


Slide28 l.jpg

PHOTOPICVISION

  • Daylight or bright light

  • Central vision

  • Color sense and image sharpness

  • Visual acuity 20/20

  • Involves cones only


Mesopic vision l.jpg

MESOPIC VISION

MESOPIC VISION

  • Occurs at dawn, dusk and in full moonlight

  • Reduces color vision and decreases visual acuity

  • Involves both rods and cones

  • Greater emphasis should be placed on off-center vision as cones become less effective


Scotopic vision l.jpg

SCOTOPIC VISION

SCOTOPIC VISION

  • Occurs on dimly lit nights

  • Decreases visual acuity 20/200 or less

  • Causes loss of color perception

  • Causes night blind spot

  • Requires use of peripheral vision and recognition of objects by silhouettes

  • Involves the rods only


Binocular cues l.jpg

BINOCULAR CUES

  • Valuable only when object is close

  • Each eye has a slightly different view

  • Operates subconsciously


Monocular cues gram l.jpg

MONOCULAR CUES(GRAM)

  • Object seen as one picture

  • Are derived from experience

  • Subject to interpretation


Geometri c perspective l.jpg

GEOMETRIC PERSPECTIVE

OBJECTS have different shapes when viewed at varying distances and altitudes


Geometric perspectives l.jpg

GEOMETRIC PERSPECTIVES

Linear

perspectives

Apparent

foreshortening

Vertical position

in the field


Retinal image size l.jpg

RETINAL IMAGE SIZE

  • Known size of objects

  • Increasing or decreasing size of objects

  • Terrestrial association

  • Overlapping contours


Slide36 l.jpg

5 Degrees

30 Ft

10 Degrees

KNOWN SIZE OF OBJECTS

1000 FT

30 Ft

500 FT


Slide37 l.jpg

DECREASE IN SIZE

INCREASE IN SIZE


Slide38 l.jpg

TERRESTRIAL ASSOCIATION

EYE


Slide39 l.jpg

OVERLAPPING CONTOURS


Aerial perspective l.jpg

AERIAL PERSPECTIVE

  • Distant information gained by clarity of object viewed or by the shadow it casts


Slide41 l.jpg

FADING OF COLORS AND

SHADES


Loss of detail or texture l.jpg

LOSS OF DETAIL OR TEXTURE


Slide43 l.jpg

LIGHTS AND SHADOWS


Slide44 l.jpg

MOTION PARALLAX

  • Very important cue to depth perception

    • Stationary objects

  • Rate depends on the distance of the object


Flight hazards l.jpg

FLIGHT HAZARDS

  • SOLAR GLARE

  • BIRD STRIKES

  • LASERS

  • NERVE AGENTS


Solar glare l.jpg

SOLAR GLARE


Laser l.jpg

LASER

  • LASER

    Light

    Amplification by a

    Stimulated

    Emission of

    Radiation


Laser49 l.jpg

LASER

  • Intense, narrow beam of light, less than 1 inch in diameter

  • Widens with distance: 2km-diameter is 2 meter

2Meters

2 Km


Laser injuries l.jpg

LASER INJURIES

  • Lens: Focuses and concentrates light rays entering the eye

  • Concentration of energy through the lens is intensified 100,000 times greater than the normal light entering the eye


Laser injuries51 l.jpg

LASER INJURIES

  • Amount of damage depends on laser type, exposure time, and distance from the laser

  • Types of injuries:

    • Tiny lesions on the back of the eye

    • Flash blindness

    • Impaired night vision

    • Severe burns effecting vast body portions


Slide52 l.jpg

Hemorrhage

in to the vitreous

Multiple retinal laser burns


Slide53 l.jpg

Corneal burns

Subretinal hemorrhage


Laser protective measures l.jpg

Passive:

Take cover

NVD’S

Squinting

Protective goggles

Active:

Counter measures taught or directed

Evasive action

Scanning with one eye or monocular optics

LASER PROTECTIVE MEASURES


Nerve agents l.jpg

NERVE AGENTS

  • Threat present both day and night at low level flight

  • Direct or minute exposure will cause miosis (pupil constriction)

  • Severity of miosis depends on agent concentration and cumulative effects of repeated exposure


Nerve agent symptoms l.jpg

NERVE AGENT SYMPTOMS

  • Range from minimal to severe (dosage to eye?)

  • Severe miosis may persist for 48 hrs

  • Complete recovery may take up to 20 days

  • Consult flight surgeon immediately


Self imposed stresses l.jpg

SELF-IMPOSED STRESSES

  • Drugs

  • Exhaustion

  • Alcohol

  • Tobacco

  • Hypoglycemia


Slide58 l.jpg

QUIZ

Click on the link below to access the

VISION IN AVIATION Quiz

http://ang.quizstarpro.com

Log-in and Click “Search” Tab

Class Name = VISION IN AVIATION


Slide59 l.jpg

SUMMARY
