Abstract Shade Trees

Morgan McGuire1 George Stathis2

Hanspeter Pfister2,3 Shriram Krisnamurthi1

1Brown University 2Harvard Extension School 3MERL


Shaders

[Proudfoot01]

Shaders

  • Programs that color (“shade”) a pixel

  • Often execute on a graphics card

  • Pervasive in film and game rendering


Shaders1

[Proudfoot01]

Shaders

  • Programs that color (“shade”) a pixel

  • Often execute on a graphics card

  • Pervasive in film and game rendering



Shading language
Shading Language

(Renderman, RTSL, HLSL, GLSL, Cg)

// glass_ball.glsl

uniform float etaRatio;

uniform float fresnelPower;

uniform samplerCube environmentCubeMap;

varying vec3 objectSpaceIncomingVector;

varying vec3 n, b,t;

uniform sampler2D normalMap;

varying vec3 tangentSpaceViewVector;

varying vec2 textureCoordinates;

void main(void) {

float bump = ((texture2D(heightFieldTexture, textureCoordinates).a) + bumpBias) * bumpScale;

vec2 bumpCoords = bump * vec2(tangentSpaceViewVector.x, tangentSpaceViewVector.y) + textureCoordinates;

vec3 tangentSpaceNormalVector = texture2D(normalMap, vec2(bumpCoords.x,bumpCoords.y)).xyz * 2.0 - 1.0;

mat3 tangentObjectSpaceMat = mat3(t,b,n);

vec3 objectSpaceNormalVector = tangentObjectSpaceMat*tangentSpaceNormalVector;

vec3 objectSpaceReflectedVector = normalize(reflect(objectSpaceIncomingVector,objectSpaceNormalVector));

vec4 color1 = textureCube(environmentCubeMap, objectSpaceReflectedVector);

float fresnelRatio = max(0.0,min(1.0, fresnelBias + fresnelScale* pow(1.0 +

dot(normalize(objectSpaceIncomingVector),

normalize(objectSpaceNormalVector)),fresnelPower)));

vec3 objectSpaceRefractedVector =

normalize(refract(objectSpaceIncomingVector,objectSpaceNormalVector,etaRatio));

vec4 color2 = textureCube(environmentCubeMap, objectSpaceRefractedVector);

vec4 mixedColorOutput = mix(color1,color2,fresnelRatio);

gl_FragColor = mixedColorOutput;

}

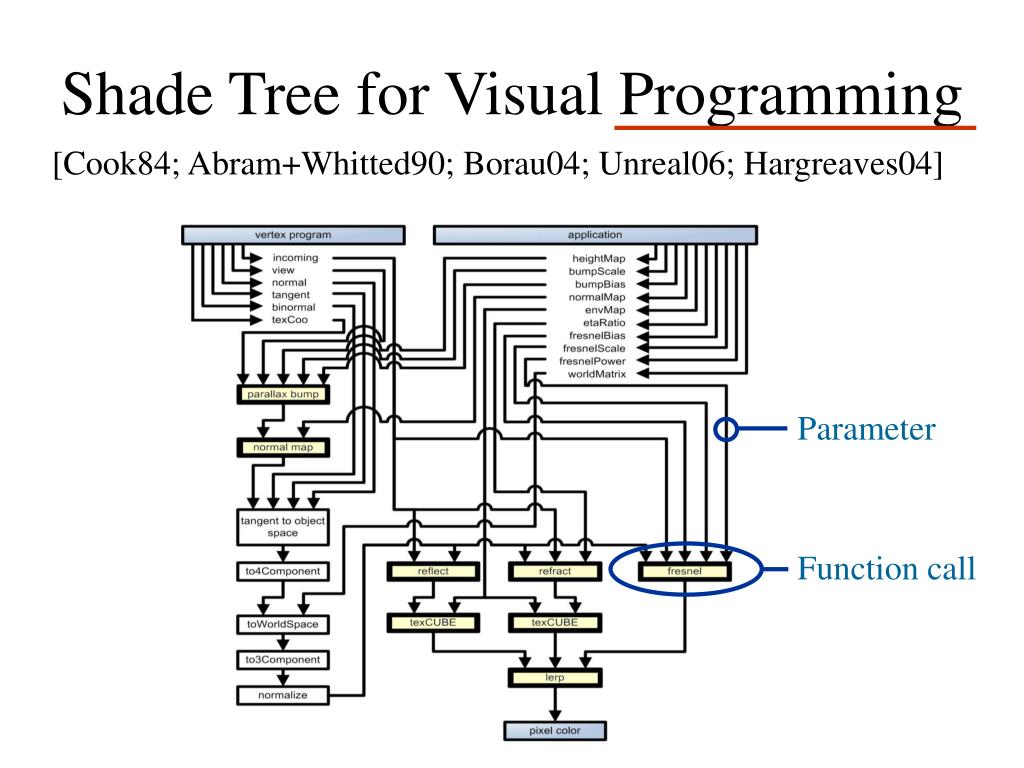

Shade tree for visual programming

Parameter

Function call

Shade Tree for Visual Programming

[Cook84; Abram+Whitted90; Borau04; Unreal06; Hargreaves04]


Authoring in a production context

Authoring in a production context…


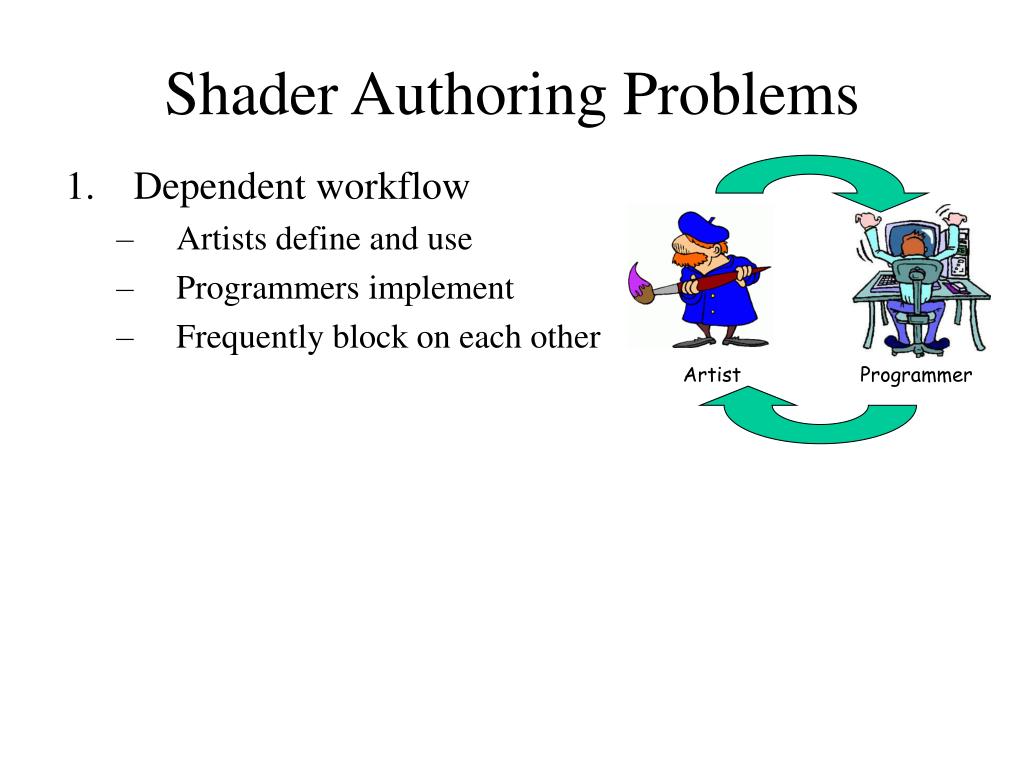

Shader authoring problems

Artist

Programmer

Shader Authoring Problems

  • Dependent workflow

    • Artists define and use

    • Programmers implement

    • Frequently block on each other

  • Shaders are rarely modular

    • Overlapping features [Dijkstra76]

    • Exacerbated by restrictive execution environments

    • Programmers frequently rewrite from scratch


Shader authoring problems1

Artist

Programmer

Shader Authoring Problems

  • Dependent workflow

    • Artists define and use

    • Programmers implement

    • Frequently block on each other

  • Shaders are rarely modular

    • Overlapping features [Dijkstra76]

    • Exacerbated by restrictive execution environments

    • To combine features, programmers frequently rewrite both from scratch

void main() {



Abstract

Parallax Bump Mapping

Reflection

Refraction

Superposition

Abstract Shade Tree

Abstract…

Shade Tree


Abstract shade tree

Parallax Bump Mapping

Reflection

Refraction

Superposition

Abstract Shade Tree

  • Node = Code atom

    • Like functions with funny scopes

      (See the paper for details)

  • Arrow = Dependency

    • Not parameters!

  • Outline = Feature

    • Note the overlap at Fresnel

  • Requires a weaver to convert into executable code


New workflow

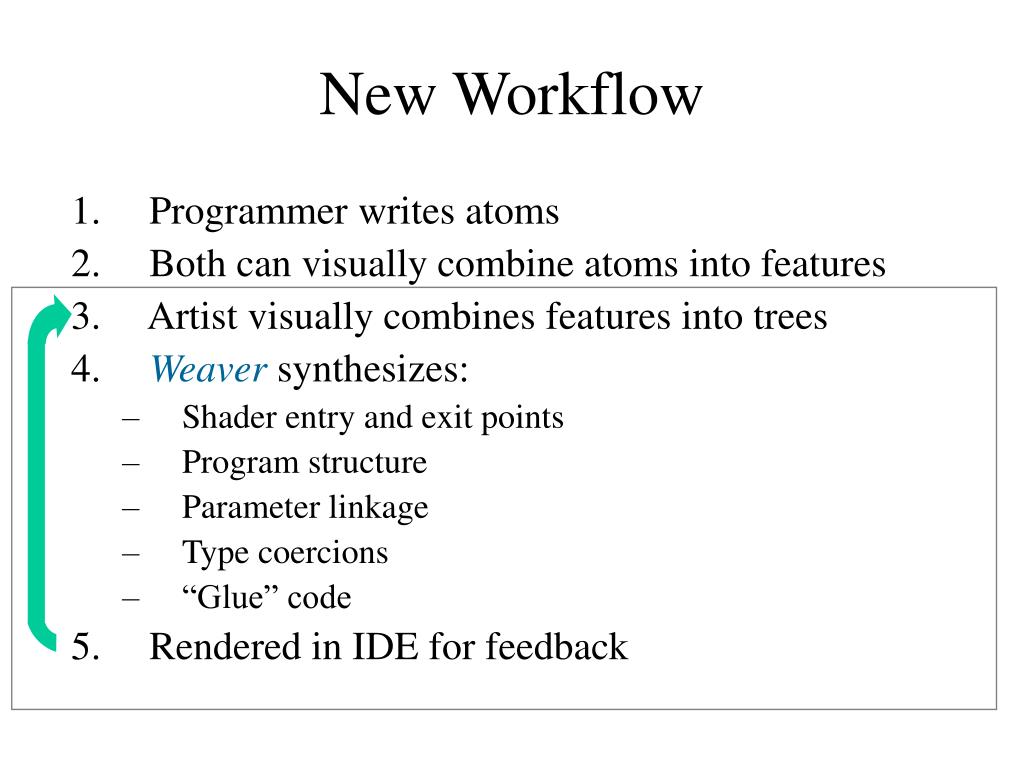

New Workflow

  • Programmer writes atoms

  • Both can visually combine atoms into features

  • Artist visually combines features into trees

  • Weaver synthesizes:

    • Shader entry and exit points

    • Program structure

    • Parameter linkage

    • Type coercions

    • “Glue” code

  • Rendered in IDE for feedback


Problems addressed
Problems Addressed

  • Workflow dependency reduced

    • Programmer writes atoms once

    • Artist can independently generate many shaders

    • Abstract Tree is independent of atom signatures

  • Modularity improved

    • Visualized feature interaction

    • Weaver resolves overlapping features

    • Abstract Tree is independent of atom signatures


Related feature work
Related Feature Work

  • Features as abstractions

    [Parnas72; Dijkstra76; Turner99]

  • Feature/Aspect-oriented programming

    [Batory92; Kiczales97; Batory04]

  • Software product lines

    [Clements02]

  • Sh Language, Combining shaders

    [McCool et al. 02, McCool et al. 04]

  • Über-Shader alternative

    [Barzel97/Gritz98; Pellacini+Vidimce04; McGuire05]



Weaving algorithm

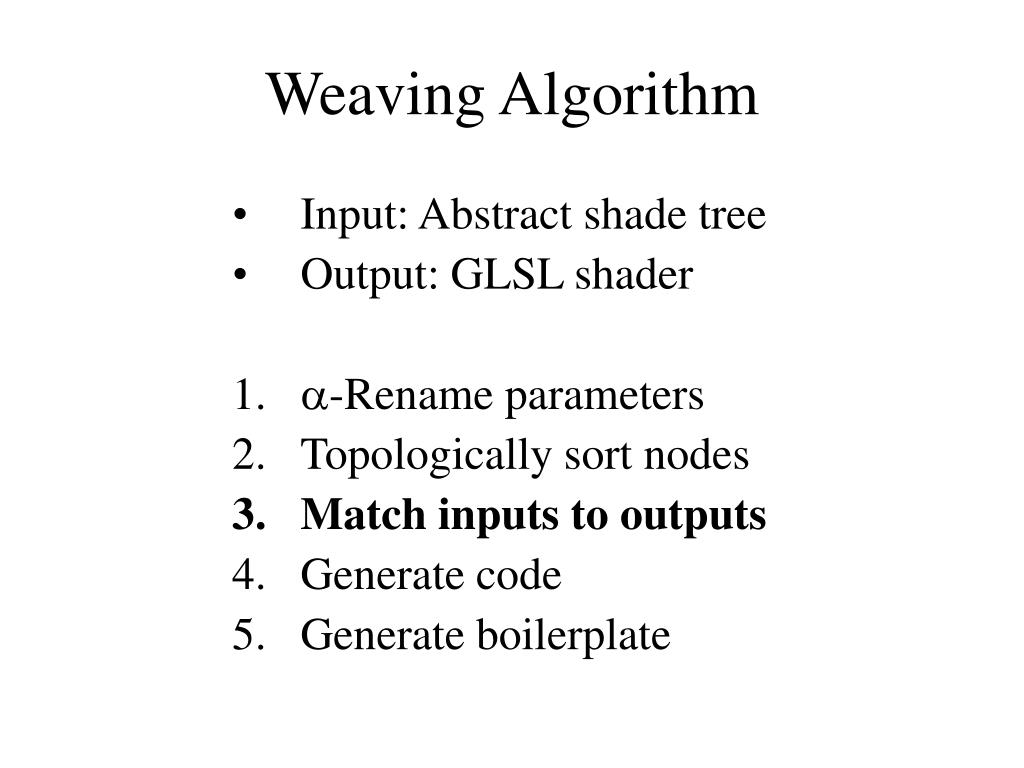

Weaving Algorithm

  • Input: Abstract shade tree

  • Output: GLSL shader

  • -Rename parameters

  • Topologically sort nodes

  • Match inputs to outputs

  • Generate code

  • Generate boilerplate


Match inputs to outputs

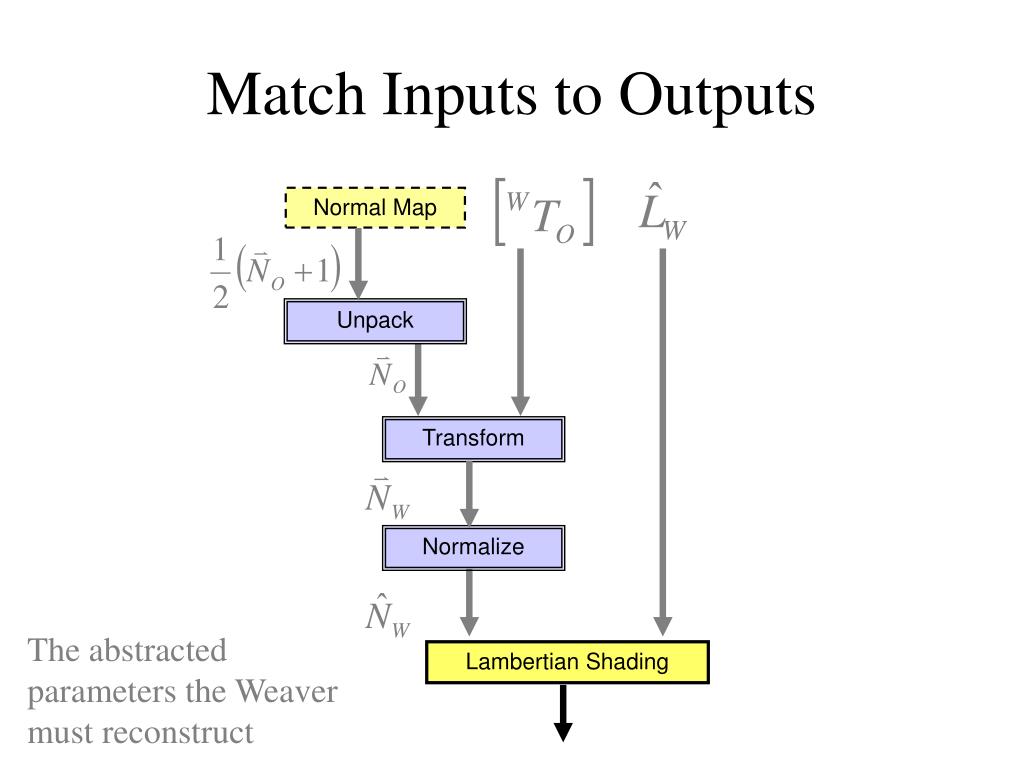

Match Inputs to Outputs

Normal Map

Some node in the middle of an Abstract Shade Tree

Lambertian Shading


Match inputs to outputs1

Normal Map

Unpack

Transform

Normalize

Lambertian Shading

Match Inputs to Outputs

The abstracted parameters the Weaver must reconstruct


Match inputs to outputs2

Upstream Output

Globals

Normal Map

Storage Class Change

Unpack

Basis Change

Transform

Normalize

Lambertian Shading

Match Inputs to Outputs

The abstracted parameters the Weaver must reconstruct


Matching algorithm
Matching Algorithm

  • Bind each input parameter to the “closest” matching output parameter of some ancestor node

  • “Closest” = shortest/fastest type coercion

  • Typical GLSL types are just storage classes

    • e.g., float3  vector  color  point  …

    • float LambertianShading(float3 normal, float3 light)

    • Not much information in “float3”

  • Need a richer type system…


Semantic types
Semantic Types

TLK

C/GLSL

Java

Semantic Types

  • Encode information like “world-space vector” in types

  • Two variables with precisely the same semantic type are likely semantically interchangeable

1

Number of types

Too general  Useful Too specific


Some semantic types for shading
Some Semantic Types for Shading

Dimension: {2, 3, 4, any }

Length: {Unit, any }

Basis: {Tangent, Object, World, Screen, any }

Interpretation: {Color, Texcoord, Normal, Point, Vector, any}

Precision: {float32, int32, Boolean, any }

  • Type coercion now includes normalization, basis change, unpacking, storage change, etc.

  • “any” allows polymorphism

  • Could add “meters,” “non-negative,” etc.

Float1 LambertianShading( UnitWorldNormalFloat3 normal, UnitWorldVectorFloat3 light)


Parameter matching is semantic coercion tree search
Parameter Matching is Semantic Coercion Tree Search


Weaver properties

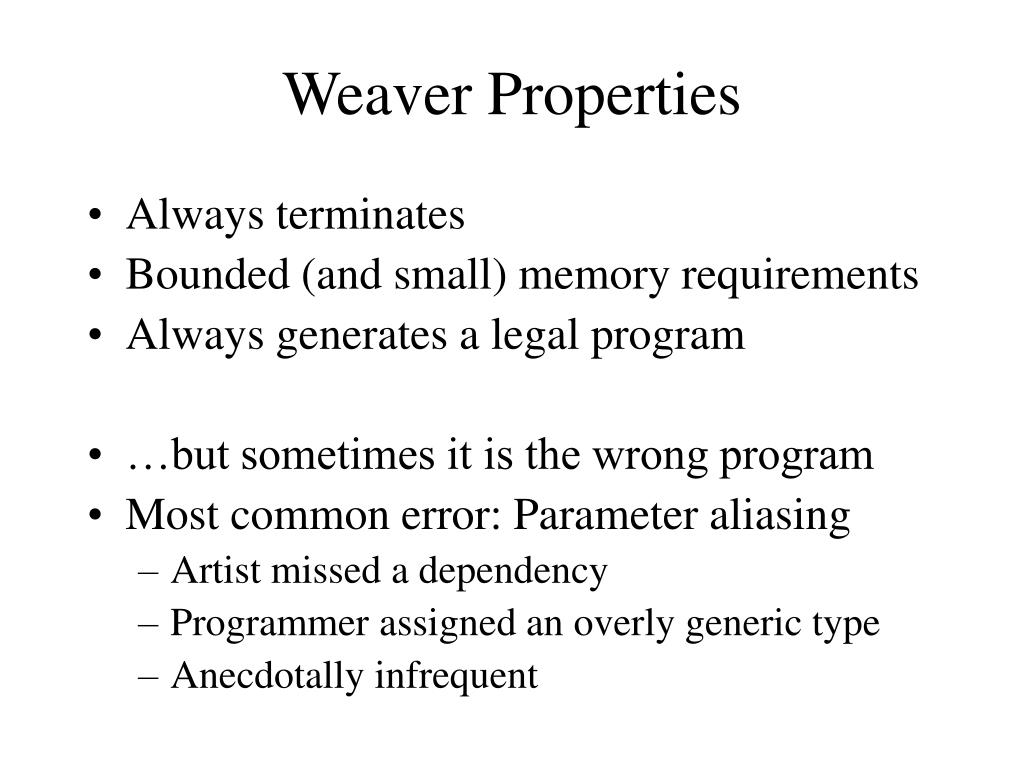

Weaver Properties

  • Always terminates

  • Bounded (and small) memory requirements

  • Always generates a legal program

  • …but sometimes it is the wrong program

  • Most common error: Parameter aliasing

    • Artist missed a dependency

    • Programmer assigned an overly generic type

    • Anecdotally infrequent




Bumpy glass1

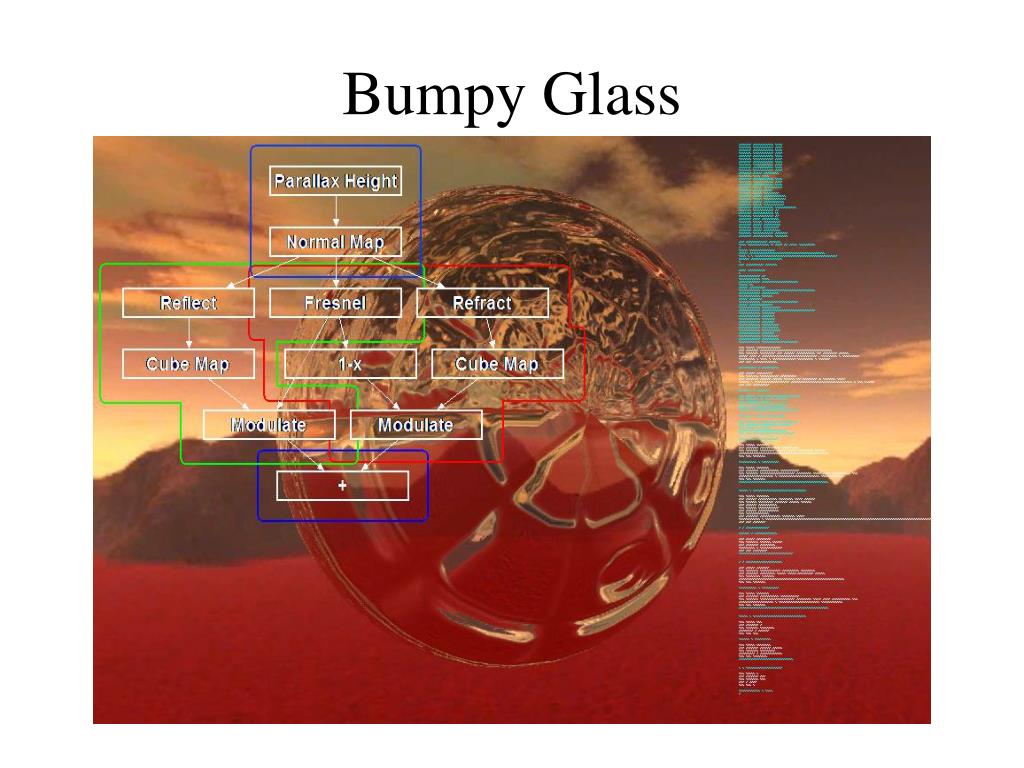

Bumpy Glass

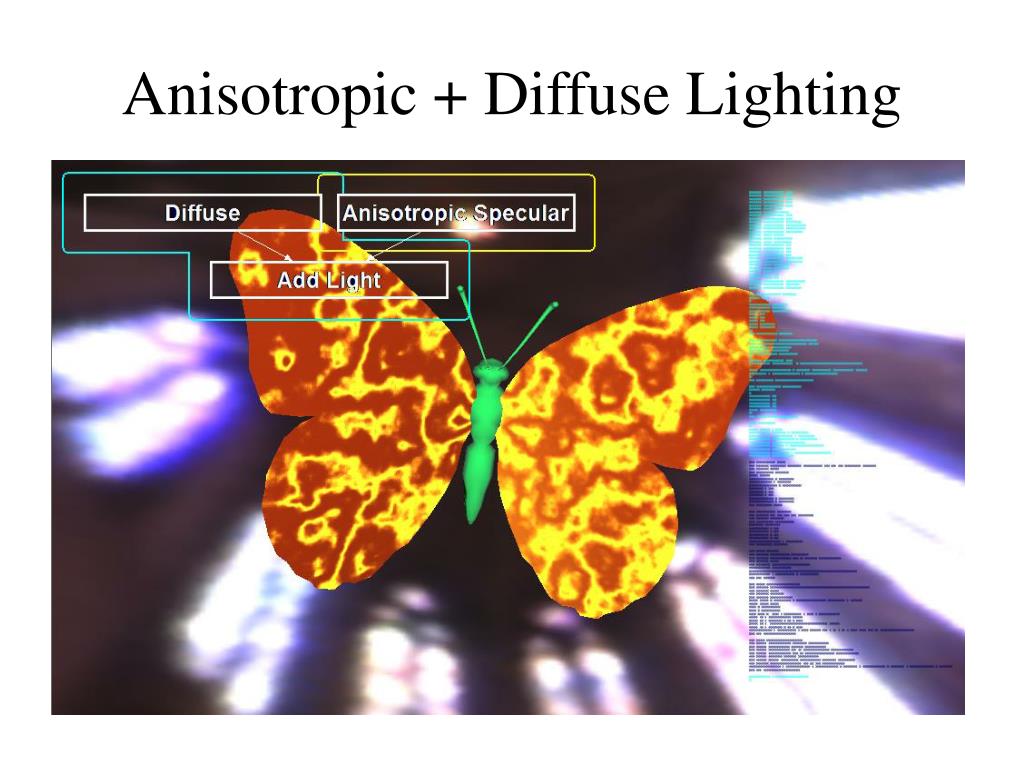

User experience?






Summary of contributions
Summary of Contributions

  • Abstract shade trees

  • Semantic type system

  • Weaver for shader synthesis

  • Visual editor


Future directions
Future Directions

  • Consider performance model during parameter matching

  • Beyond pixel shaders

  • Other interesting semantic types

  • How do you debug abstract trees?

  • Applications to general scripting


Thanks

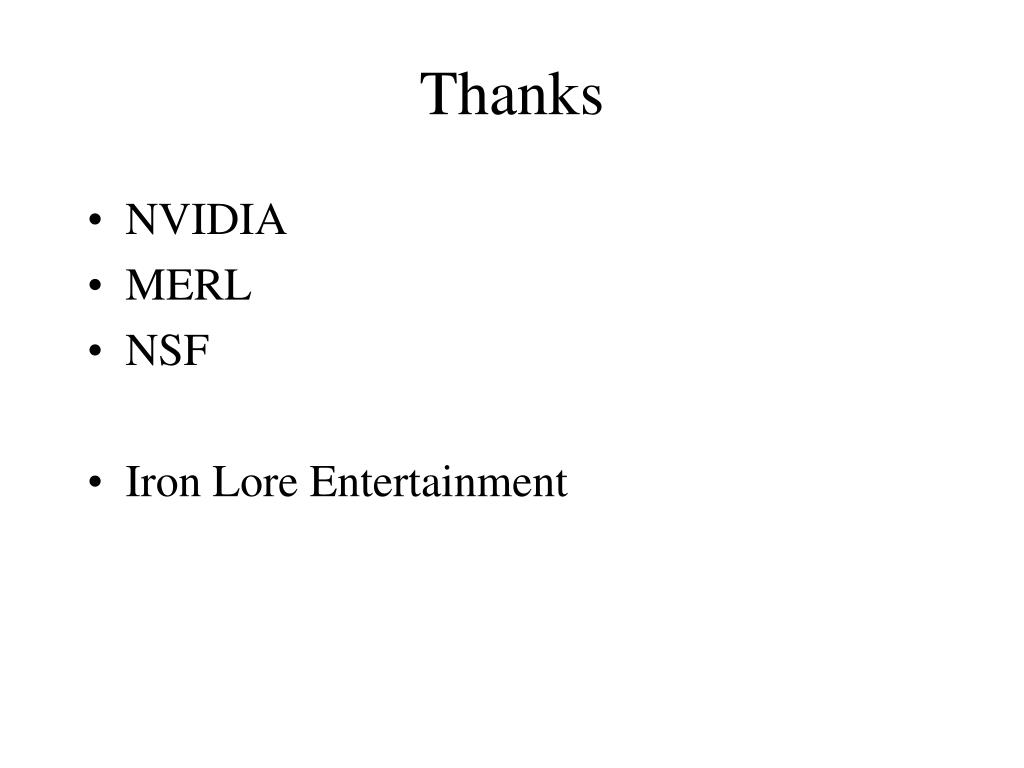

Thanks

  • NVIDIA

  • MERL

  • NSF

  • Iron Lore Entertainment
