Presentation Transcript
Table of contents l.jpg
Table of Contents

  • The Nature of Sound

  • Properties of Sound

  • Music

  • How You Hear Sound

  • Using Sound


Sound waves l.jpg

- The Nature of Sound

Sound Waves

  • Sound is a disturbance that travels through a medium as a longitudinal wave. As a gong vibrates, it creates sound waves that travel through the air.


Interactions of sound waves l.jpg

- The Nature of Sound

Interactions of Sound Waves

  • Sound waves reflect off objects, diffract through narrow openings and around barriers, and interfere with each other.


The speed of sound l.jpg

- The Nature of Sound

The Speed of Sound

  • The speed of sound depends on the elasticity, density, and temperature of the medium the sound travels trough.


Temperature and the speed of sound l.jpg

- The Nature of Sound

Temperature and the Speed of Sound

  • The speed of sound in dry air changes as the temperature changes. The graph shows data for the speed of sound in air at temperatures from –10ºC to 20ºC.


Temperature and the speed of sound6 l.jpg

The speed at –10ºC is325 m/s.

Reading Graphs:

What is the speed of sound in air at –10ºC?

- The Nature of Sound

Temperature and the Speed of Sound


Temperature and the speed of sound7 l.jpg

The speed of sound increases as air temperature increases.

Interpreting Data:

Does the speed of sound increase or decrease as temperature increases?

- The Nature of Sound

Temperature and the Speed of Sound


Temperature and the speed of sound8 l.jpg

At 30ºC, the speed of sound might be 349 m/s.

Predicting:

What might be the speed of sound at 30ºC?

- The Nature of Sound

Temperature and the Speed of Sound


Elasticity l.jpg

- The Nature of Sound

Elasticity

  • Elasticity is the ability of a material to bounce back after being disturbed. You can model elasticity by representing the particles in a medium as being held together by springs.


Density l.jpg

- The Nature of Sound

Density

  • Density is how much mass there is in a give volume. The volumes of the cubes are the same, but the brass has more mass.


Identifying main ideas l.jpg

- The Nature of Sound

Identifying Main Ideas

  • As you read the section “Interactions of Sound Waves,” write the main idea–the biggest or most important idea–in a graphic organizer like the one below. Then write three supporting details that further explain the main idea.

Main Idea

Sound waves interact with objects and with other sound waves.

Detail

Detail

Detail

Reflection occurs when sound waves strike a surface.

Sound waves can diffract around corners and through openings.

The interference of sound waves can be constructive or destructive.


Links on sound l.jpg

- The Nature of Sound

Links on Sound

  • Click the SciLinks button for links on sound.


End of section the nature of sound l.jpg
End of Section:The Nature of Sound


Loudness l.jpg

- Properties of Sound

Loudness

  • The loudness of different sounds is compared using a unit called the decibel (dB).


Pitch l.jpg

- Properties of Sound

Pitch

  • The pitch of a sound that you hear depends on the frequency of the sound wave.


Changing pitch l.jpg

- Properties of Sound

Changing Pitch

  • When you sing, you change pitch using your vocal cords. Your vocal cords are located in your voice box, or larynx.

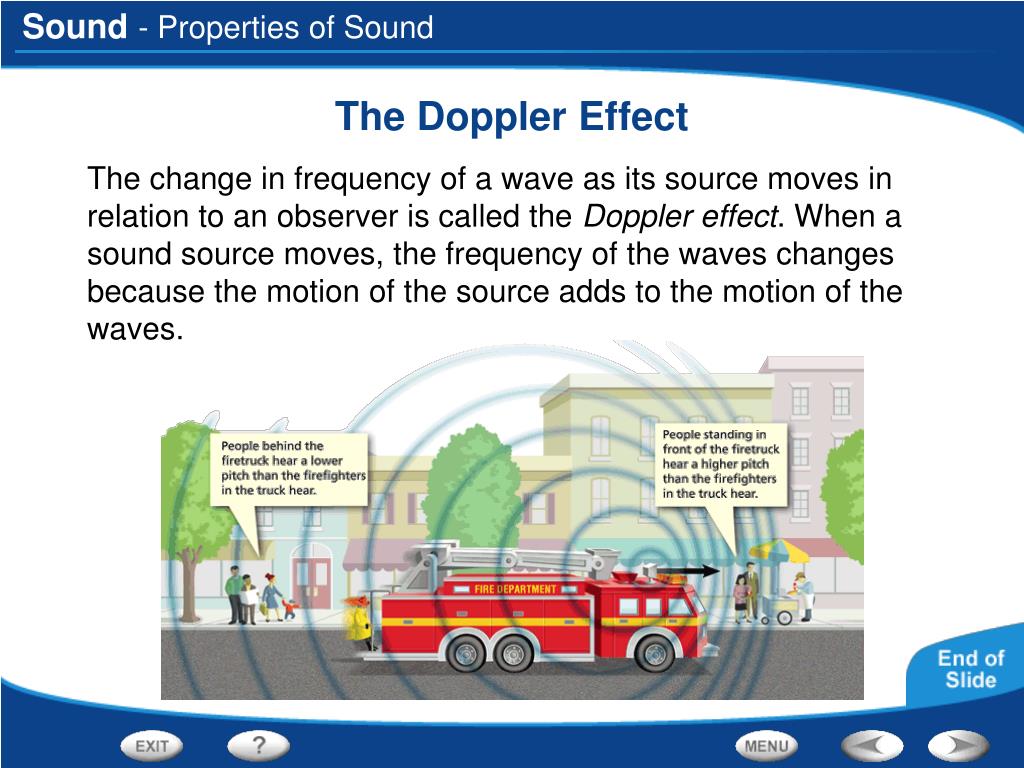

The doppler effect l.jpg

- Properties of Sound

The Doppler Effect

  • The change in frequency of a wave as its source moves in relation to an observer is called the Doppler effect. When a sound source moves, the frequency of the waves changes because the motion of the source adds to the motion of the waves.


The doppler effect18 l.jpg

- Properties of Sound

The Doppler Effect

  • When the plane travels almost as fast as the speed of sound, the sound waves pile up in front of the plane. This pile up is the “sound barrier.”


Outlining l.jpg

- Properties of Sound

Outlining

Properties of Sound

  • An outline shows the relationship between main ideas and supporting ideas. As you read, make an outline about the properties of sound. Use the red headings for the main ideas and the blue headings for the supporting ideas.

  • Loudness

    • Energy of a Sound Source

    • Distance From a Sound Source

    • Measuring Loudness

  • Pitch

    • Pitch and Frequency

    • Changing Pitch

  • Doppler Effect

    • What Causes the Doppler Effect?

    • What Causes Shock Waves?


More on the properties of sound l.jpg

- Properties of Sound

More on the Properties of Sound

  • Click the PHSchool.com button for an activityabout the properties of sound.


End of section properties of sound l.jpg
End of Section:Properties of Sound


Sound quality l.jpg

- Music

Sound Quality

  • The sound quality of musical instruments results from blending a fundamental tone with its overtones. Resonance also plays a role in sound quality.


Groups of musical instruments l.jpg

- Music

Groups of Musical Instruments

  • There are three basic groups of musical instruments: stringed instruments, wind instruments, and percussion instruments.


Previewing visuals l.jpg

- Music

Previewing Visuals

  • When you preview, you look ahead at the material to be read. Preview Figure 15. Then write two questions that you have about the diagram in a graphic organizer like the one below. As you read, answer your questions.

Musical Instruments

Q. How is pitch changed in each type of instrument?

A. By changing the frequency of the vibrations

Q. How is the loudness changed in each type of instrument?

A. By changing the energy of the vibrations



The human ear l.jpg

- How You Hear Sound

The Human Ear

  • The outer ear funnels sound waves, the middle ear transmits the waves inward, and the inner ear transforms sound waves into a form that travels to your brain.


Sequencing l.jpg

- How You Hear Sound

Sequencing

  • Sequence is the order in which the steps in a process occur. As you read, make a flowchart that shows how you hear sound. Put the steps of the process in separate boxes in the order in which they occur.

How You Hear Sound

The outer ear funnels sound waves into the ear canal.

Sound waves make the eardrum vibrate.

Tiny bones in the middle ear transmit vibrations to the inner ear.

Vibrations in the cochlea of the inner ear send messages to the brain.


End of section how you hear sound l.jpg
End of Section:How You Hear Sound


Echolocation l.jpg

- Using Sound

Echolocation

  • Some animals, including bats and dolphins, use echolocation to navigate and to find food.


Sonar l.jpg

- Using Sound

Sonar

  • A sonar device sends out ultrasound waves and then detects the reflected waves.


Comparing and contrasting l.jpg

- Using Sound

Comparing and Contrasting

  • As you read, compare and contrast echolocation and sonar by completing a table like the one below.

Using Sound

Feature

Echolocation

Sonar

Ultrasound

Ultrasound

Type of wave

Water

Air, water

Medium(s)

Find water depth, sunken objects,

schools of fish

Navigate, find food

Purposes


More on sonar l.jpg

- Using Sound

More on Sonar

  • Click the PHSchool.com button for an activity about sonar.


End of section using sound l.jpg
End of Section:Using Sound


Graphic organizer l.jpg
Graphic Organizer

Sound

travels as

has properties

Longitudinal waves

Intensity

Frequency

speed depends on

is heard as

is heard as

Elasticity

Density

Temperature

Loudness

Pitch


End of section graphic organizer l.jpg
End of Section:Graphic Organizer
