Presentation Transcript
Post field processing l.jpg
Post-field Processing

Collect Data

DNR Garmin

Transfer Data & Save Shapefile

Edit Shapefile & Make Map



Connect garmin to computer l.jpg
Connect Garmin to Computer

  • Connect GPS to PC with download cable

Connect cable to Serial Port

  • No serial port?

  • Use USB adaptor cable


Turn garmin on turn gps off l.jpg
Turn Garmin On, Turn GPS Off

Press Menu

Press Enter

- Eliminates status messages

- Saves battery power





View splashscreen l.jpg
View Splashscreen

Note Version



Arcmap dnr garmin connect l.jpg
ArcMap/DNR Garmin Connect

Note Banner Title (it changed)

DNR Garmin Toolbar Opened in ArcMap


Arcmap window l.jpg
ArcMap Window

Docked DNRGarmin Toolbar

Table

of

Contents

Map

Legend

or

Key


Viewing a map l.jpg
Viewing a Map

Layout View

Data View

prepare print version

manipulate data




Data frame l.jpg
Data Frame

Collection of Layers

- Default name “Layers”

- Can rename

- Minimum of one required


Rename data frame l.jpg
Rename Data Frame

highlight

click inside again

type new name


Open data frame properties window l.jpg
Open Data Frame Properties Window

right-click

or double-click on Data Frame





Apply selection l.jpg
Apply Selection

Note information

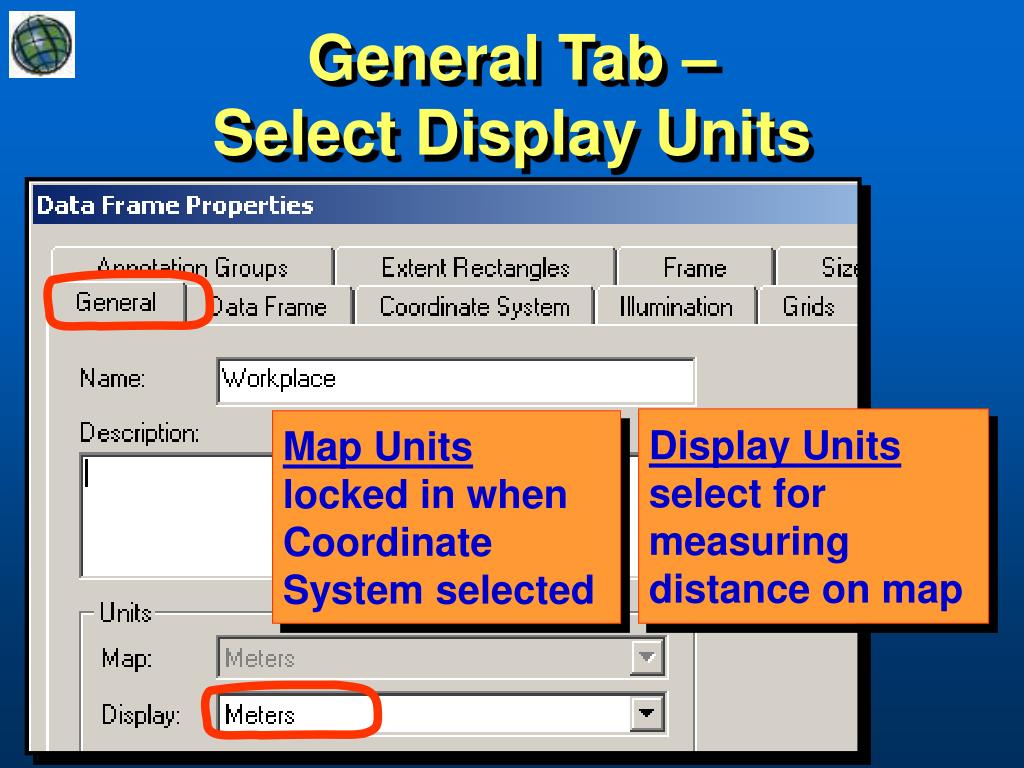

General tab select display units l.jpg
General Tab – Select Display Units

Display Units select for measuring distance on map

Map Units

locked in when Coordinate System selected

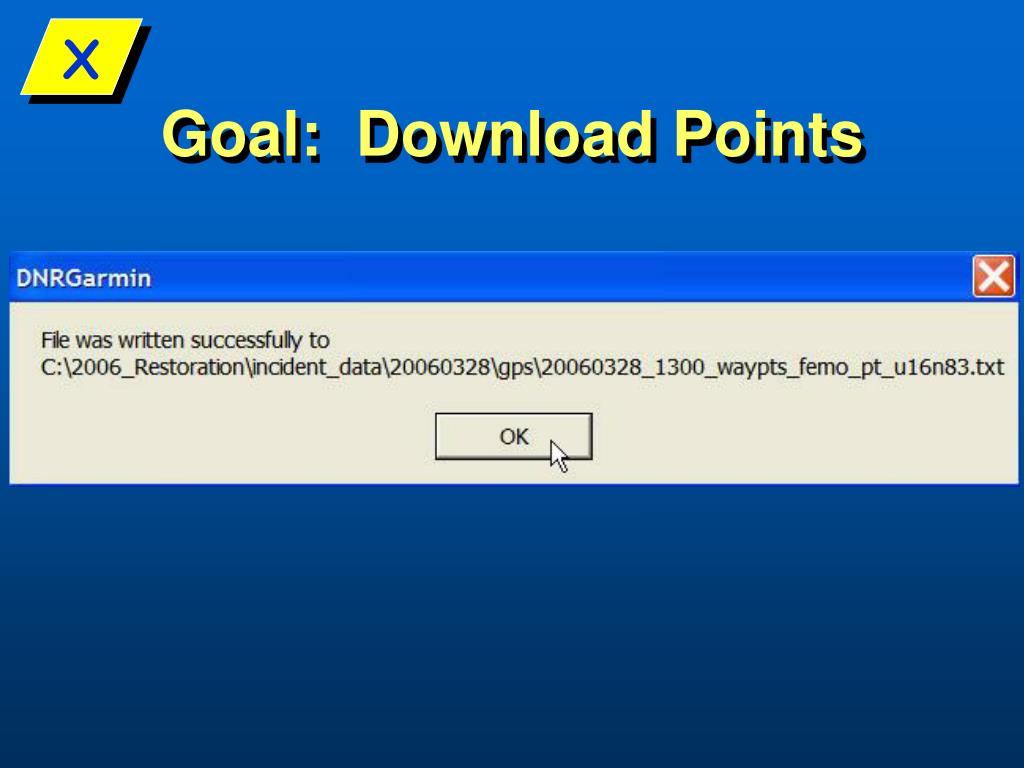

Goal download points l.jpg

X

Goal: Download Points


Select waypoint download l.jpg

X

Select Waypoint Download

Download – transfers a copy of data, does not remove data from receiver


View waypoint data table l.jpg

X

View Waypoint Data Table

show/hide data table

scrollbar


Note total of waypoints l.jpg

X

Note: Total # of Waypoints

“ident” lists waypoint names

lists all waypoints

4 waypoints total,

0 selected


Note waypoint coordinates l.jpg

X

Note: Waypoint Coordinates

Latitude/Longitude

WGS84

Projected X/Y

(NAD83 UTM Zone 16N)


Select files and l.jpg

X

Select Files and...

highlight all records to be saved

verify all records selected

Saving Strategy

All rows highlighted – all rows saved

No rows highlighted – all rows saved

Some rows highlighted – those rows saved


Slide29 l.jpg

X

...Save...


As text file first l.jpg

X

...As Text File First!

A Text File should always be saved First

as a back up file to the ESRI (ArcView) Shapefile


Status window l.jpg

X

Status Window


Save again l.jpg

X

...Save Again...


As arcview shapefile l.jpg

X

...As ArcView Shapefile

Projected shapefile uses projected coordinates.

Unprojected shapefile uses WGS84 coordinates.


Shapefile added to arcmap l.jpg

X

Shapefile Added To ArcMap

Automatically Adds to TOC

Automatically

Adds to Map


Locate point shapefile s on computer l.jpg

X

Locate Point Shapefile(s) on Computer

Note file path

Note additional files



Select track download l.jpg
Select Track Download

Download – transfers a copy of data, does not remove data from receiver

verify Coordinate System


View track data table l.jpg
View Track Data Table

show/hide data table

scrollbar

scrollbar

resize window

watch download


Track information l.jpg
Track Information

# points from active track log

“ident” lists track name.

Saved track has name, unsaved tracks called “Active Log”

blue -start of new track segment

55 track points total

0 selected


Note track point coordinates l.jpg
Note: Track Point Coordinates

Latitude/Longitude

WGS84

Projected X/Y

(NAD83 UTM Zone 16N)



Remember l.jpg
Remember...

highlight all records to be saved

Saving Strategy

All rows highlighted – all rows saved

No rows highlighted – all rows saved

Some rows highlighted – those rows saved



As text file first44 l.jpg
...As Text File First!

A Text File should always be saved First

as a back up file to the ESRI Shapefile

Note waypoints file already there

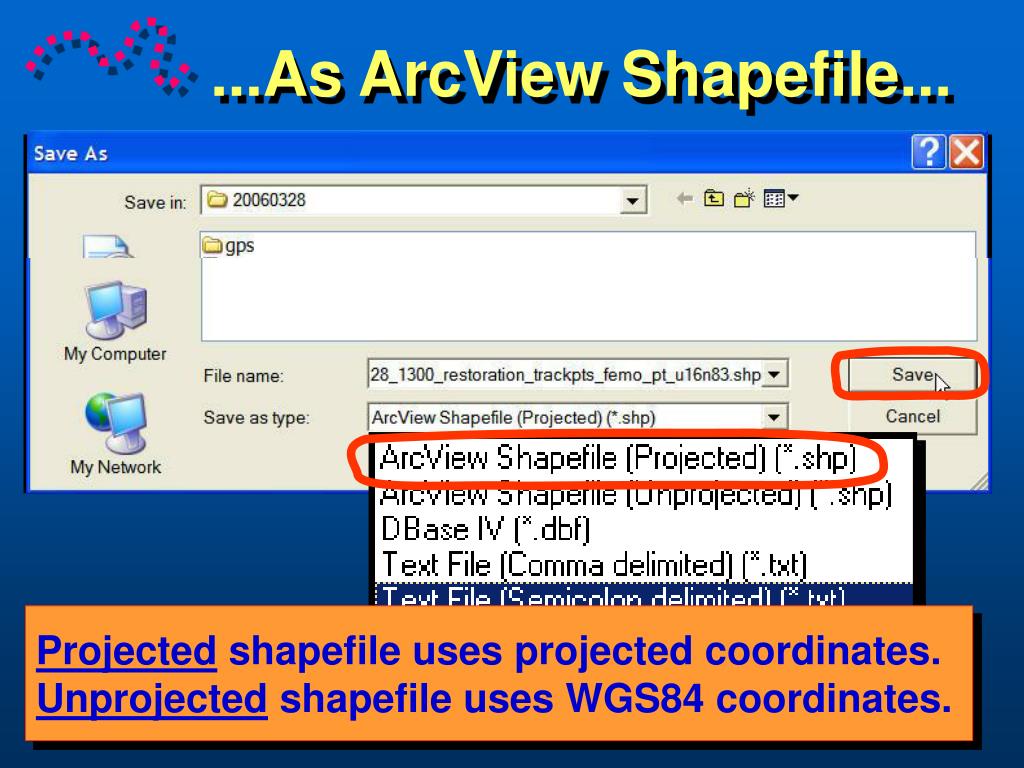

As arcview shapefile47 l.jpg
...As ArcView Shapefile...

Note points files already there

Projected shapefile uses projected coordinates.

Unprojected shapefile uses WGS84 coordinates.



Shapefile added to arcmap49 l.jpg
Shapefile Added To ArcMap

Automatically Adds to TOC

Automatically

Adds to Map


Locate track shapefile s on computer l.jpg
Locate Track Shapefile(s) on Computer

Note file path

Note additional files


Slide51 l.jpg

X

Review of Topics

  • - Setup GPS Receiver

  • Setup DNR Garmin

  • Setup ArcMap

  • - Download Waypoints

  • - Download Tracks



Objective l.jpg
Objective

Create a map


Summary of topics l.jpg
Summary of Topics

  • Add Background Data

  • Edit GPS Data

  • Create polygons or lines from points

  • Calculate Acres/Perimeter Miles

  • Edit Symbols & Names

  • Make Map





Select data file s59 l.jpg
Select Data File(s)

Background Image (Raster)




Select data file s62 l.jpg
Select Data File(s)

Background Feature Data (Vector)

Hold Ctrl Key to Select Multiple Files




Turn on editor toolbar l.jpg
Turn on Editor Toolbar

View | Toolbars | Editor


Start editing l.jpg
Start Editing

  • Editor | Start Editing

  • Choose Folder

  • Choose Target Layer


Select point l.jpg
Select Point

OR

Hold Shift Key for Multiple




Save edits l.jpg
Save Edits

Editor | Stop Editing




Zoom to fire perimeter points l.jpg
Zoom to Fire Perimeter Points

Click on Zoom In Button

Click and Drag Around Points



Select features l.jpg
Select Features

Selected Points in Blue

Click and Drag Box


Select features76 l.jpg
Select Features

Make a Mistake?

-Click Outside Feature to Unselect All

  • Or…

  • Select Individual Points

  • Hold Shift for Multiple


Alaskapak points to polygon l.jpg
AlaskaPak: Points to Polygon

  • Points Selected

  • AlaskPak Toolbar

  • Points to Polyline/Polygon


Alaskapak points to polygon78 l.jpg
AlaskaPak: Points to Polygon

  • Select Feature Type

  • Name and Save File


Alaskapak points to polygon79 l.jpg
AlaskaPak: Points to Polygon

Polygon Added To Map



Alaskapak calculate acres l.jpg
AlaskaPak: Calculate Acres

  • Click on Polygon Shapefile in TOC

  • AlaskaPak Toolbar

  • Add Acres/Miles

  • Set Data Map Units


View acres l.jpg
View Acres

  • Click Identify Button

  • Choose Layer for Identify Results Box

  • Click in Polygon

  • Acres

  • Perimeter Miles


View acres83 l.jpg
View Acres

  • Right-Click on Layer in TOC

  • Open Attribute Table

  • Attribute Table:

  • Acres

  • Miles


Alaskapak points to line l.jpg
AlaskaPak: Points to Line

  • Select Points

  • AlaskPak Toolbar

  • Points to Polyline/Polygon


Alaskapak points to line85 l.jpg
AlaskaPak: Points to Line

  • Select Feature Type

  • Name and Save File


Alaskapak points to line86 l.jpg
AlaskaPak: Points to Line

Line Added To Map


How many miles of dozer line l.jpg
How Many Miles of Dozer Line?

  • Click on Layer Name in TOC

  • AlaskaPak | Add Acres/Miles


How many miles of dozer line88 l.jpg
How Many Miles of Dozer Line?

UTM Data = Meters

Attribute Table


Remove trackpoints shapefile l.jpg
Remove Trackpoints Shapefile

  • Right-click on Layer

  • Remove

*Note…Only removes Layer from TOC/Map. Shapefile still saved on computer



Edit waypoint symbology l.jpg
Edit Waypoint Symbology

Double-click on Waypoint Layer

Single Symbol Change


Edit waypoint symbology92 l.jpg
Edit Waypoint Symbology

  • Click on Symbol Button

  • Change Symbol, Color, Size


Unique value symbology l.jpg
Unique Value Symbology

Double-click on Waypoint Layer

Click on Categories


Unique value symbology94 l.jpg
Unique Value Symbology

  • Click on Unique Values

  • Select Value Field


Unique value symbology95 l.jpg
Unique Value Symbology

  • Add All Values

  • Uncheck <all other values>

  • Apply


Unique value symbology96 l.jpg
Unique Value Symbology

Double-click on symbol to change each point symbol individually


Unique value symbology97 l.jpg
Unique Value Symbology

  • Click on More Symbols Button

  • Forestry Palette


Unique value symbology98 l.jpg
Unique Value Symbology

Category: Fire Fighting




Edit polygon symbology101 l.jpg
Edit Polygon Symbology

  • Display Tab

  • Set Transparency


Edit legend names l.jpg
Edit Legend Names

  • Click twice slowly on name

  • Type in new name



Set label properties l.jpg
Set Label Properties

  • Right-click on Layer

  • Properties

  • Layer Properties: Layer Tab


Set label properties105 l.jpg
Set Label Properties

  • Label Field: IDENT

  • Select Size

  • Select Color


Lable features l.jpg
Lable Features

  • Right-click on Layer

  • Label Features


Convert labels to annotation l.jpg
Convert Labels to Annotation

  • Right-click on Layer

  • Convert Labels to Annotation…

Annotation Allows Manual Label Changes


Goal add labels108 l.jpg
Goal: Add Labels

  • In the map

  • All features

  • Convert unplaced labels to unplaced annotation

  • Convert


Goal add labels109 l.jpg
Goal: Add Labels

  • Use Pointer to Select Label

  • Move Label Position



Set up data view l.jpg
Set up Data View

Zoom In/Out

Pan

Turn Layers On/Off


Page and print setup l.jpg
Page and Print Setup

Modify Settings



Add stand map elements l.jpg
Add STAND Map Elements

Scale Bar, Title, Author, North Arrow, Date


Scale bar l.jpg
Scale Bar

  • Insert | Scale Bar

  • Choose Format

  • Double-click on Map to Edit Properties


Title l.jpg
Title

  • Insert | Title

  • Type in Text

  • Double-click on Map to Edit Properties

  • Change Symbol Button


North arrow l.jpg
North Arrow

  • Insert | North Arrow

  • Choose Style

  • Double-click on Map to Edit Properties

  • Change Symbol Button


Author date l.jpg
Author & Date

  • Insert | Text

  • Type in Text

  • Double-click on Map to Edit Properties

  • Change Symbol Button


Logo optional l.jpg
Logo (optional)

  • Insert | Picture

  • Resize/Position on Map


Legend l.jpg
Legend

  • Insert | Legend

  • Legend Wizard Opens

  • All Layers added by default

  • Add or Remove Layers

  • Change Order in Legend


Legend wizard l.jpg
Legend Wizard

  • Change Legend Title

  • Edit Font Color, Size or Justification


Legend wizard122 l.jpg
Legend Wizard

  • Border

  • Background

  • Drop Shadow


Legend wizard123 l.jpg
Legend Wizard

  • Line Style

  • Area Shape


Legend wizard124 l.jpg
Legend Wizard

  • Spacing

  • Accept Defaults


Finished legend l.jpg
Finished Legend

  • Double-click to Edit

  • Legend Properties



Review of topics l.jpg
Review of Topics

  • Added Background Data

  • Edited GPS Data

  • Created polygons or lines from points

  • Calculated Acres/Perimeter Miles

  • Edited Symbols & Names

  • Made Map


ad
