Presentation Transcript


Dna it s not just for college anymore l.jpg

DNAIt’s not just for college anymore!


Web sites l.jpg

Web Sites

  • DNA structure and replication animation

  • Overview of gene expression

  • DNA Models & Translation model

http://207.207.4.198/pub/flash/24/menu.swf

http://www.genomicseducation.ca/animations/gene_expression.asp

http://www.indigo.com/models/dna-models.html


Learning goals for dna genetics l.jpg

Learning Goals for DNA & Genetics

  • Know structure/function of DNA

  • Know DNA is genetic material

  • Illustrate how DNA specifies traits

  • Understand mutations are change in DNA sequence

  • Understand relationship between mutations in DNA and expressed phenotype


What is dna l.jpg

What Is DNA

  • Deoxyribonucleic acid

    • Everyone knows this?

  • Molecule of heredity

    • Constitutes our genes

    • Genes are stretches of DNA sequence

    • DNA is present in each cell

    • Passed on to gametes and into progeny


What is dna really l.jpg

What is DNA, Really

  • Polymer of nucleotides

  • Polymer? Nucleotides?

  • Polymer

    • A large molecule that is a series of joined smaller molecules

  • Nucleotides

    • The small molecules that make up the large DNA polymer


Dna concepts l.jpg

DNA Concepts

  • Genes

  • Chromosomes

  • Complementary base-paired double helix

  • Polymer of nucleotides

  • The sequence of nucleotides is the information of DNA


Dna concepts7 l.jpg

DNA Concepts

  • DNA controls traits of organism

  • Traits pass from parent to offspring

  • DNA is copied during cell division

  • DNA is present in sex cells

  • DNA is passed from parent to offspring


Why are dna concepts difficult l.jpg

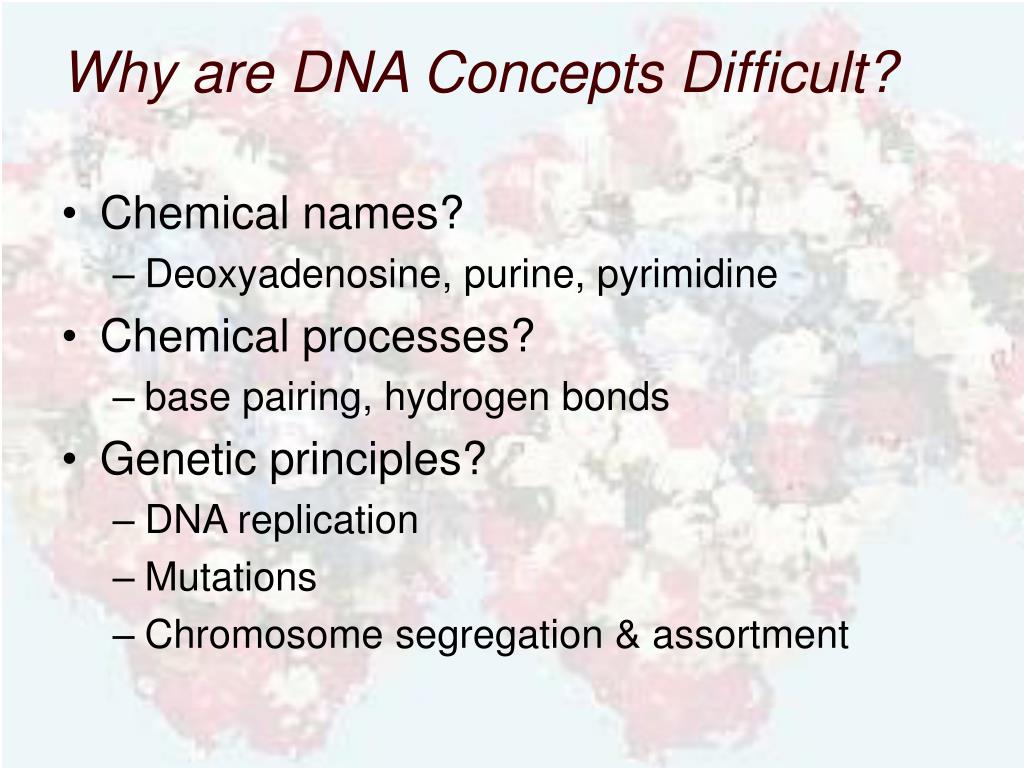

Why are DNA Concepts Difficult?

  • Chemical names?

    • Deoxyadenosine, purine, pyrimidine

  • Chemical processes?

    • base pairing, hydrogen bonds

  • Genetic principles?

    • DNA replication

    • Mutations

    • Chromosome segregation & assortment


Why is dna so difficult l.jpg

Why is DNA So Difficult?

  • Chemical Names

    • Deoxyadenosine monophosphate

    • Pyrimidine

  • Persons Names

    • Martina Navratilova

    • Hakeem Olajuwon


How about pictures names l.jpg

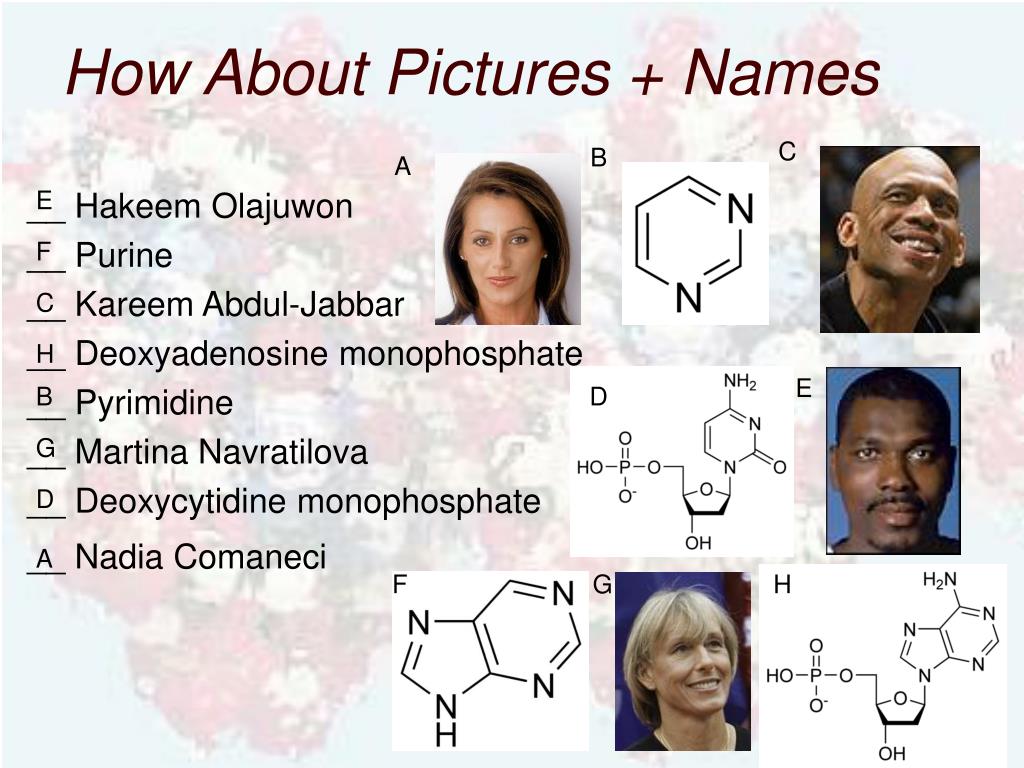

How About Pictures + Names

C

B

A

E

__ Hakeem Olajuwon

__ Purine

__ Kareem Abdul-Jabbar

__ Deoxyadenosine monophosphate

__ Pyrimidine

__ Martina Navratilova

__ Deoxycytidine monophosphate

__ Nadia Comaneci

F

C

H

E

B

D

G

D

A

F

G

H


Nucleotides the building blocks of dna l.jpg

NucleotidesThe building blocks of DNA


Nucleotide structure l.jpg

Base always attached here

Phosphates are attached there

Nucleotide Structure


Nucleotides l.jpg

Nucleotides

Adenosine monophosphate

Cytidine monophosphate

Guanosine monophosphate

Uridine monophosphate

Deoxyadenosine monophosphate

Deoxycytidine monophosphate

Deoxyguanosine monophosphate

Deoxythymidine monophosphate


Nucleotide polymerization reaction phosphodiester bond formation l.jpg

Nucleotide Polymerization Reaction: Phosphodiester Bond Formation


Order of nucleotides l.jpg

AGTCCGATCGTAACTGGGTCACATCGTAAGTGTACACGTA

||||||||||||||||||||||||||||||||||||||||

TCAGGCTAGCATTGACCCAGTGTAGCATTCACATGTGCAT

Order of Nucleotides

  • As nucleotides join the strand they generate a sequence

  • Inherent fidelity of DNA replication

TAAGTGTACACGTA

ATTCACATGTGCAT

TAAGTGTACACGTA

TCACATCG

TAAGTGTACACGTA

TCACATCG

TCACATCG

TCACATCG

TAAGTGTACACGTA

AGTCCGATCGTAACTGGG

||||||||||||||||||||||

||||||||||||||||||

AGTGTAGC

ATTCACATGTGCAT

TCAGGCTAGCATTGACCC

AGTGTAGC

AGTGTAGC

ATTCACATGTGCAT

TAAGTGTACACGTA

ATTCACATGTGCAT


Dna sequence l.jpg

DNA Sequence

  • Human Genome Project

    • sequencing the human genome

  • What does “sequencing” mean?

    • To determine the order of the nucleotides in the human DNA molecules

    • Human DNA molecules are our chromosomes

    • Each chromosome is a DNA double helix

    • Each DNA double helix is two single DNA molecules intertwined

    • Each single DNA molecule is a chain of nucleotide units

    • Sequencing is the method to determine what the exact order of units is in this chain


Gene expression l.jpg

DNA

Gene

Transcription

RNA (messenger RNA)

Translation

Protein

(sequence of

amino acids)

Functioning of proteins within living

cells influences an organism’s traits.

Gene Expression


A gene is a transcription unit l.jpg

A Gene is a Transcription Unit

Promoter & Regulatory

sequences

Terminator

Coding sequences

DNA

Transcription

mRNA 5¢

Open reading frame

Start

codon

Stop

codon

Ribosome binding site


Transcription l.jpg

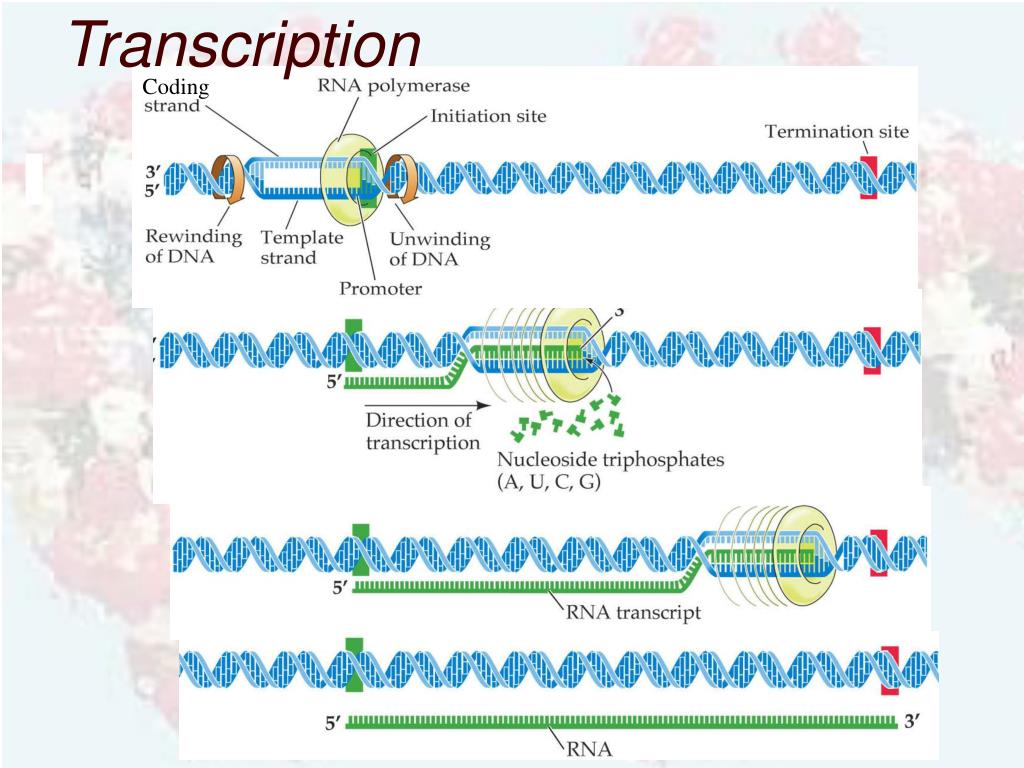

Transcription

Coding


Overview of gene expression l.jpg

A C

Overview of gene expression


Translation l.jpg

Translation


Translation elongation l.jpg

TranslationElongation

aa-tRNA entry

Peptidyl transferase

Termination

Translocation


Translation23 l.jpg

Translation


The code is 3 letter words but what about punctuation l.jpg

a

b

b

c

The code is 3 letter words, but what about punctuation?

GROWANDNOWTHECATSAWTHEDOGBUTDIDNOTRUNENDSEW

  • Code written in three letter words - codons

  • Ribosomes must start at the right place to read the message

  • There are three frames, but only one is read to give an intelligible message

  • Need a start codon (NOW) and a stop codon (END) to define the frame to use

  • frame b

    • NOW THE CAT SAW THE DOG BUT DID NOT RUN


Reading frames mutation types l.jpg

ROWANDNOWTHECATSAWTHEDOGBUTDIDNOTRUNENDSEW

a

b

c

^

ROWNDNOWTHECATSAWTHEDOGBUTDIDNOTRUNENDSEW

a

b

c

Reading Frames & Mutation Types

  • Frame shift mutations

    • Original reading frame is frame a

    • Insertions or deletions shift the reading frame


Reading frames mutations l.jpg

ROWANDNOWTHECATSAWTHEADOGBUTDIDNOTRUNENDSEW

a

b

c

Reading Frames & Mutations

ROWANDNOWTHECATSAWTHEDOGBUTDIDNOTRUNENDSEW

a

b

c

  • Once a ribosome begins translation in a particular frame (a) it does not shift frames

  • Therefore, if a mutation shifts the reading frame in the mRNA, the ribosome will read the wrong frame.

^

NOW THE CAT SAW THE ADO GBU TDI DNO TRU NEN DSE W..


Reading frames mutations27 l.jpg

ROWANDNOWTHECATSAWTHEDOGBUTENDNOTRUNENDSEW

a

Reading Frames & Mutations

ROWANDNOWTHECATSAWTHEDOGBUTDIDNOTRUNENDSEW

a

  • A change that creates a stop codon is a non-sense mutation

  • Generates a truncated protein

^

^

NOW THE CAT SAW THE DOG BUT END


Reading frames mutations28 l.jpg

^

ROWANDNOWTHECATSAWTHEHOGBUTDIDNOTRUNENDSEW

a

Reading Frames & Mutations

ROWANDNOWTHECATSAWTHEDOGBUTDIDNOTRUNENDSEW

a

  • A change that creates a different codon is a mis-sense mutation

  • Generates a protein with an altered sequence

NOW THE CAT SAW THE HOG BUT DID NOT RUN END


Molecular basis of phenotype l.jpg

Molecular Basis of Phenotype


Effect of mutations l.jpg

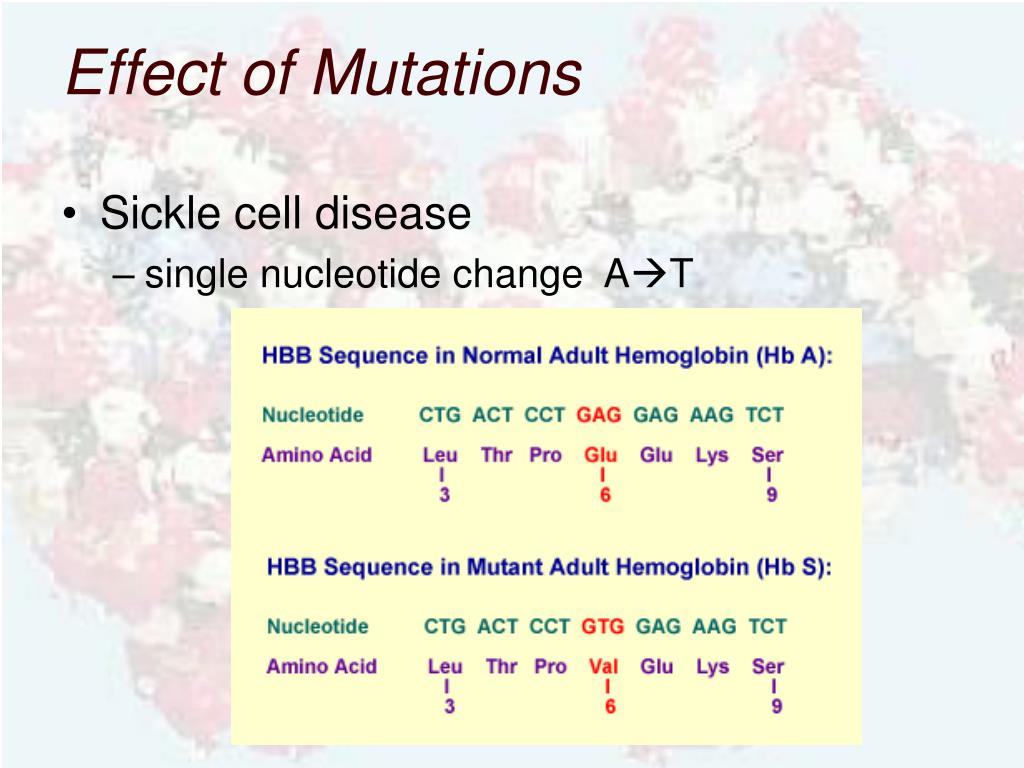

Effect of Mutations

  • Sickle cell disease

    • single nucleotide change AT
