CCU Spring SchoolRadio Astronomy for Chemists

Lucy M. Ziurys

Department of Chemistry

Department of Astronomy

Arizona Radio Observatory

University of Arizona

slide2

Our Galaxy in Molecules

Columbia-CfA Project

CO 1-0 All Sky Survey

Chemistry and Interstellar Molecules

  • Molecular Astrophysics: 35 Years of Investigation
  •  Universe is truly MOLECULAR in nature
  • Molecular Gas is Widespread in the Galaxy and in External Galaxies

Our Galaxy at Optical Wavelengths

  • 50% of matter in inner 10 kpc of Galaxy is MOLECULAR (~1010 M)
  • Molecular clouds largest well-defined objects in Galaxy (1 -106 M)
  • Unique tracers of chemical/physical conditions in cold, dense gas
  •  New window on astronomical systems - no longer realm of atoms
slide3

CRL 2688

Post-AGB Star

From Interstellar Molecules..

Protostars in

Orion: HCN

  • Galactic Structure (Milky Way, others)
  • - Galaxy Morphology
  • - Galactic Chemical Evolution
  • Early Star Formation
  • - Life Cycles of Molecular Clouds
  • - Creation of Solar Systems
  • Late Stages of Stellar Evolution
  • - Properties of Giant Stars, Planetary Nebulae
  • - Mass Loss and Processing of Material in ISM
  • - Nucleosynthesis and Isotope Ratios
  • Molecular Compositionof ISM
  • - Remarkably Active and Robust Chemistry
  • - Molecules present in extreme environments
  • Implications for Astrobiology/Origins of Life
  • - Limits of Chemical Complexity Unknown

CO in M51

slide5

Orion

Molecular Clouds

CRL 2688

Circumstellar Envelopes of Evolved Stars

Physical Characteristics of Molecular Gas

  • Primarily Found in Two Types of Objects
  • Characteristics of Molecular Regions
    • Cold: T ~ 10 -100 K
    • Dense: n ~ 103-107 particles/cm3 (OR 10-13-10-9 mtorr)
    • Clouds Collapse to Form Stars/Solar Systems
    • Chemistry occurs primarily via 2-body ION-MOLECULE reactions
    • Kinetics governs the chemistry, NOT thermodynamics
    • Timescales for chemistry: 103 - 106 years
slide6

r

Molecular Energy Levels

Electronic ~ 10,000 cm-1

Vibrational ~ 100-1000 cm-1

Rotational ~ 10 cm-1

Rotational Spectroscopy: How Molecules are Detected

  • Cold Interstellar Gas: Rotational Levels Populated via
  • Collisions
  • Spontaneous Decay Produces Narrow Emission Lines
  • Resolve Individual Rotational Transitions (Gas-Phase)
  • Rotational energy levels
  •  Depend on Moments of Inertia

I = μ r2

Erot = B J(J+1)

  • Identification by “Finger Print” Pattern
  • Unique to a Given Chemical Compound
slide7

Spectra obtained with Radio Telescopes

C

N

  • High Resolution Spectral Data
  • Many transitions measured
  • High signal-to-noise
  • Resolve fine, hyperfine structure

N =2→1 rotational transition:

15 hyperfine components

slide8

Radio Telescopes: Some Technical Aspects

  • Radio Telescope:
  • - Consists of two main components
  • - Telescope (antenna) itself with control system
  • - Receiver plus associated detection electronics
  • Antenna:
  • - Panels on a super structure
  • (aluminum with carbon fiber)
  • - Power pattern or gain function g(θ,φ)
  • - Pencil beam on sky with circular aperture
  • Gain pattern is Airy pattern
  • - First null at 1.22 λ/D: “diffraction-limited”
  • - Describes HPBW (θb) of antenna
  • - At 12 m, θb ~ 75″ – 40″

SMT

HPBW

slide9

Antenna response in terms of Antenna TemperatureTA

  • TA = 1/4π ∫ g(θ,φ) TB (θ,φ) d
  • - convolution of source and antenna properties
  • - imbed antenna in Blackbody at TBB
  • TA = T/4π ∫ g(θ,φ) d = TBB
  • Various Efficiencies for Antenna response
  • Aperture Efficiency ηA
  • - Response to a point source
  • - ηA ~ 0.5
  • - a measure of surface accuracy of dish (as good as 15 microns rms)
  • Main Beam Efficiency ηB
  • - Percent of power in main beam vs. side lobes
  • - Response to extended source
  • TA = 1/4π∫ gTB d ~ <TB>
  • - ηB ~ 0.7 – 0.9
slide10

Directed to

Sub-reflector

Signals

reflected from primary

Into a radio

Receiver

To central selection mirror

Radio signals come

From sky

Radio Telescope Optics

  • - Cassegrain systems
  • f/D ratio of primary is ~ 0.4 -0.6
slide11

Dewar window

Lens

Feedhorn

Coupler

Mixer

Bias

Isolator

HEMT

amplifier

Millimeter Telescope Receivers

sky

  • HETERODYNE RECEIVERS with
  • MULTIPLEXING SPECTROMETERS
  • Sky signal (sky) arrives at mixer
  • SIS junction in a dewar, cooled to 4.2 K
  • At Mixer, local oscillator (LO) signal (LO) is mixed with sky signal
  • Generates a signal at frequency difference
  • (intermediate frequency), IF
  •  IF = sky - LO or LO- sky
  • IF frequency detected by HEMT amplifier
  • IF Signal sent to the spectrometer (Backend)
  • Not single signal but range IF 0.5 GHz = sky 0.5 GHz

LO

To spectrometer backend

IF

COMPLEX SYSTEMS

slide12

Mixer, amplifier, LO coupler etc built into “Insert”

  • One insert per mixer
  • Two mixers per frequency band (one for each orthogonal polarization)
  • Frequency coverage determined by Waveguide Band (WR 10, WR 8, etc)
  • Inserts into Dewar; cooled to 4.2 K

Mixer Block

Incorporation

into “Insert”

“Insert” put into Dewar

slide13

A Complete Receiver…

Optics

Card Cage

Cryo lines

cabling

slide14

Heterodyne Receivers and Image Rejection

  • With Mixers: observe two frequencies simultaneously
  • Upper sideband (USB): IF = sky- LO
  • Lower sideband (LSB): IF = LO- sky
  • Reject unwanted sideband to avoid confusion (SSB mixer or optics)
  • “Single” vs. “Double” sideband receiver (SSB vs. DSB)

Typical rejection:

> 15 - 20 db

EXAMPLE: NGC7027

12CO: J=2 →1 line TA*~ 8 K

- reduced to 0.1 K in image  20.6 db

rejection

- LO shift

NGC 7027

13CO in LSB

(signal sideband)

12CO image from USB

slide15

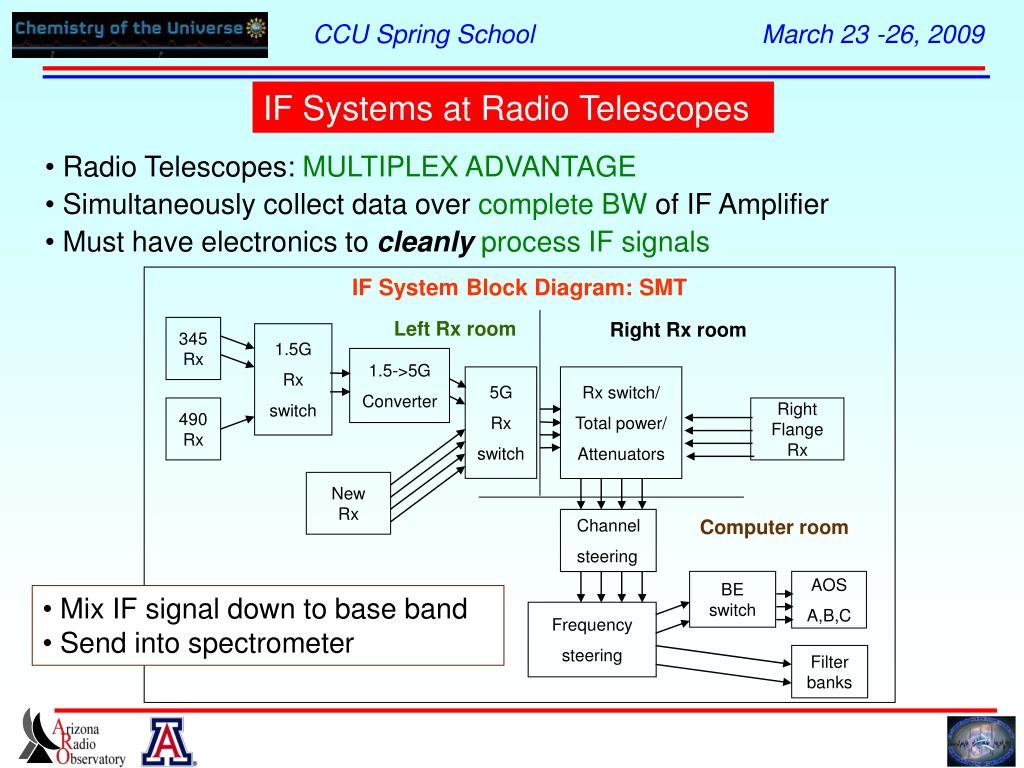

IF System Block Diagram: SMT

Left Rx room

Right Rx room

345

Rx

1.5G

Rx

switch

1.5->5G

Converter

5G

Rx

switch

Rx switch/

Total power/

Attenuators

490

Rx

Right

Flange

Rx

New

Rx

Channel

steering

Computer room

BE

switch

AOS

A,B,C

Frequency

steering

Filter

banks

IF Systems at Radio Telescopes

  • Radio Telescopes: MULTIPLEX ADVANTAGE
  • Simultaneously collect data over complete BW of IF Amplifier
  • Must have electronics to cleanlyprocess IF signals
  • Mix IF signal down to base band
  • Send into spectrometer
slide16

Spectrometer “Backends”

  • Backend separates out signal as a function of frequency
  •  A spectrum is created…

 = 178.323 MHz

Filter Banks at the SMT

  • TYPES of BACKENDS
  • Filter banks: Complex set of capacitors, filters, etc.
  • Acousto-optic spectrometers (AOS)
  • Autocorrelators: Digital devices (MAC)
slide17

Square law detector

Integrator

Mux

BPF

Zero DAC

Filter Card for 16 channels:

1 MHz resolution filters

Filter Card Block Diagram

(one channel)

slide18

Telescope Control System

  • Sophisticated Control System
  • Coordinates telescope motion with
  • data collection and electronics
  • Fast data acquisition/processing
  • Distributed nature of system
  • Each task controlled by

separatecomputers

  • Computer for telescope tracking,

focus position, each backend, etc.

  • Efficient, synchronous

operation

  • Remote Observing
  •  Trained operators at site

ARO Control System

slide19

Observing Techniques

  • Continuum methods: Observe over broad band: 1.2 GHz (Digital Backend)
  • 1) Pointing
  • - Small corrections for gravitational deformation of dish
  • - one in azimuth, one in elevation
  • 2) Focus
  • - Move sub-reflector axially to best position
  • Spectral Line methods
  • - Observe spectral lines
  • - Background noise subtracted out with a switching technique
  • Telescope Calibration
  • - Measure a voltage from mixer
  • - Convert to Temperature Scale (TR*) using “Calibration Scan”
  • - Voltage on sky (Tsky) and ambient load (Tamb)
  • - Intrinsic “noise” of system (Tsys), including electronics, antenna, sky
slide20

Pointing scan or continuum 5-point: done on planet Jupiter

Establish pointing constants in az and elv

slide21

FOCUS scan on Jupiter

Determine optimal position of sub-reflector

slide22

Astronomical Sources

  • Various sources “visible” at different times of day
  • Matter of position in sky”, i.e. Celestial Coordinates
  • Right Ascension (RA or α) and Declination (dec or δ)
  • Source overhead when RA = LST (Local Sidereal Time)

“Catalog Tool”

at ARO

slide23

Spectral Line Techniques

  • Position switching
  • Switch telescope position between the source and blank sky

(“off position”: 10-30 arcmin away in azimuth)

    • Subtract “(ON – OFF)/OFF” to remove background
    • Calibrate the intensity scale (voltage) by doing a
    • “Cal scan” :Tscale=TA*( in K)
    • Beam-switching
    • Nutatesub-reflector to get ON/OFF positions
    •  Also begin with Cal Scan
    • Frequency switching
    • Change frequency of LO ± 1-2 MHz

Blank sky

Molecular cloud

  • (ON-OFF)/OFF and calibration all done instantly in software
slide24

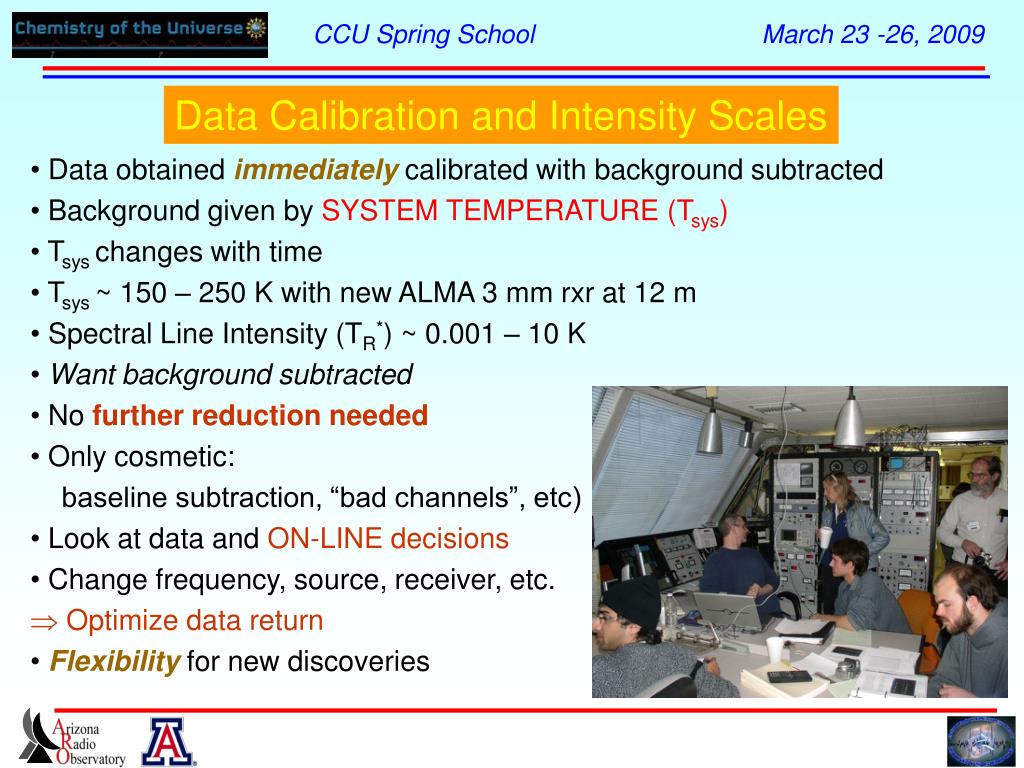

Data Calibration and Intensity Scales

  • Data obtained immediately calibrated with background subtracted
  • Background given by SYSTEM TEMPERATURE (Tsys)
  • Tsys changes with time
  • Tsys ~ 150 – 250 K with new ALMA 3 mm rxr at 12 m
  • Spectral Line Intensity (TR*) ~ 0.001 – 10 K
  • Want background subtracted
  • No further reduction needed
  • Only cosmetic:
  • baseline subtraction, “bad channels”, etc)
  • Look at data and ON-LINE decisions
  • Change frequency, source, receiver, etc.
  • Optimize data return
  • Flexibility for new discoveries
slide25

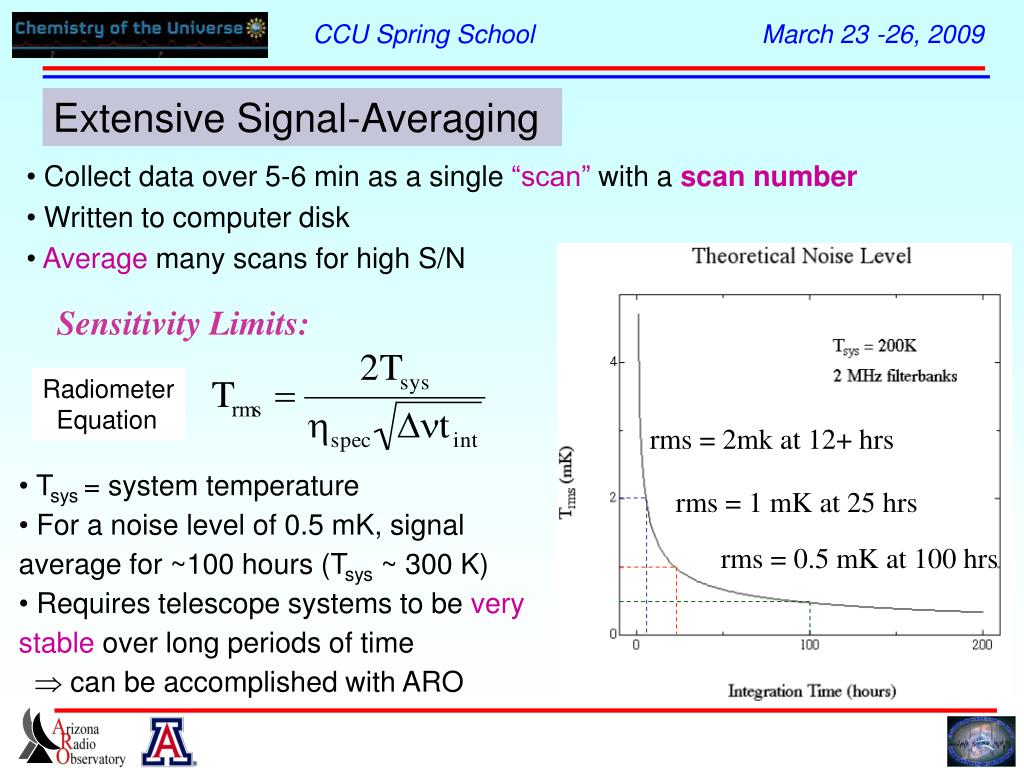

rms = 2mk at 12+ hrs

rms = 1 mK at 25 hrs

rms = 0.5 mK at 100 hrs

Extensive Signal-Averaging

  • Collect data over 5-6 min as a single “scan” with ascan number
  • Written to computer disk
  • Average many scans for high S/N

SensitivityLimits:

Radiometer

Equation

  • Tsys = system temperature
  • For a noise level of 0.5 mK, signal average for ~100 hours (Tsys ~ 300 K)
  • Requires telescope systems to be very stable over long periods of time
  •  can be accomplished with ARO
slide26

Signal Averaging: An Illustration

  • Searching for KCN: new molecule
  • J(Ka,Kc) = 16(0,16)  15(0,15)
  • at 150.0433 GHz

IRC+10216

Spectrum after 15 hours

Trms = 0.0014 K

MOSTLY NOISE

Spectrum after 30 hours

rms = 0.0010 K

MAYBE A LINE ???

KCN

U

U

Spectrum after 60 hours

rms = 0.0007 K

LINES APPEAR

slide27

Dual Polarization Capabilities

Orthogonal linear polarizations for 12 m receivers: Two

independent measurements of the spectra

Then average

two spectra

together for

increased S/N

J=2-1 line of HCO+ near 178 GHz

slide28

From a Spectrum to an Abundance

  • Spectrum gives Intensity (TR*)
  • Convert TR* to TR (in K) via telescope efficiencies
  • TR related to the opacity τ
  • TB (or TL) = f Tex (1 – e-τ)
  • Thin limit: TB (or TL) = f Texτ
  • Thick limit: TB (or TL) = f Tex
  • f = beam filling factor (assume f = 1)
  • Column Density (in cm-2)
  • - Unsure of distance along line of sight
  • - Estimate an abundance along a column N (in cm-2)
  • - Column diameter given by telescope beam size θb
  • - NJ ~ TB in thin limit
  • - Ntot = gJ NJe-ΔEg’d/ζrot
slide29

Rotational Diagrams

  • Measure many transitions
  • More accurate picture of abundance and excitation
  • Population in the levels governs the intensity of the transitions
  • By considering multiple transitions, column density (abundance) and temperature governing level population can be derived

Trot = 27 ± 8 K

Ntot = 1.1 ± 0.4 x1011 cm-2

KCN/H2 ~ 3 x10-11

  • Create “Rotational Diagram”
  • Also model with more sophisticated excitation code:
  • LVG, Monte Carlo formalism, etc.
slide32

Spatial Mapping of Molecular Lines

(125, 185)

(-15, 270)

(-120, 240)

HCO+

J = 1 → 0:

Helix Nebula

(390, -30)

(-372, 0)

Beam Size

(130, -180)

(-240, -100)

(-300, -200)

slide33

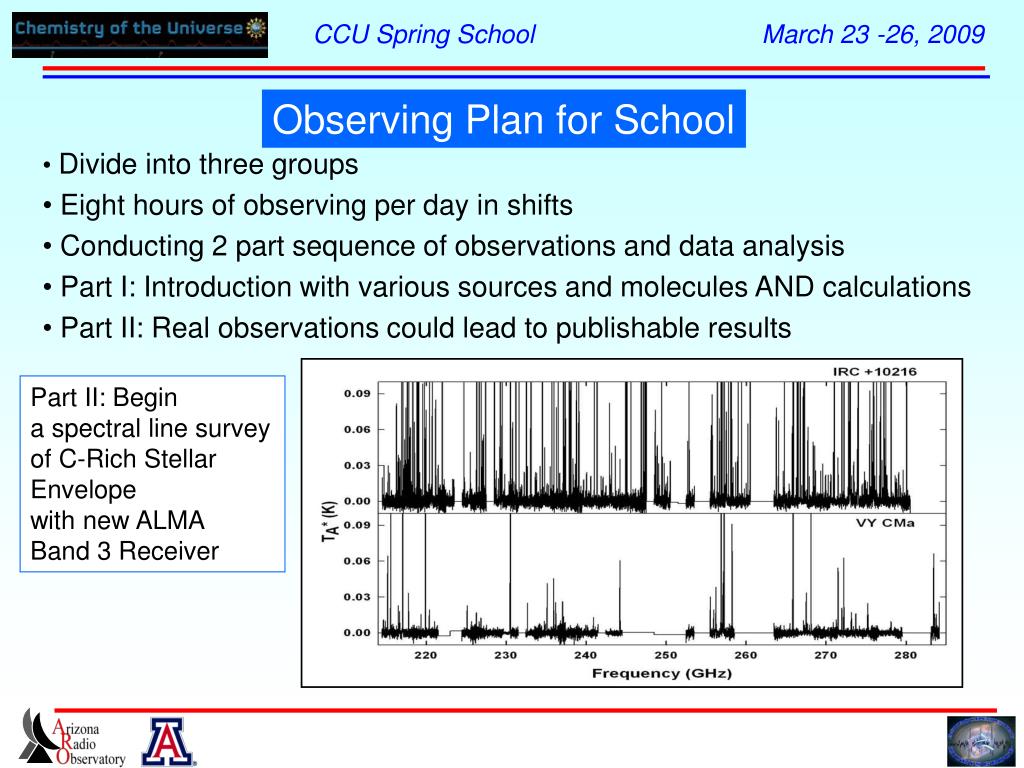

Observing Plan for School

  • Divide into three groups
  • Eight hours of observing per day in shifts
  • Conducting 2 part sequence of observations and data analysis
  • Part I: Introduction with various sources and molecules AND calculations
  • Part II: Real observations could lead to publishable results

Part II: Begin

a spectral line survey

of C-Rich Stellar

Envelope

with new ALMA

Band 3 Receiver

ad
