The internet technology and applications course 635 413 31 l.jpg

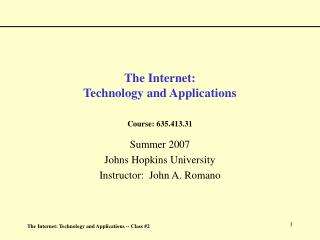

The Internet: Technology and ApplicationsCourse: 635.413.31

Summer 2007

Johns Hopkins University

Instructor: John A. Romano


Internetworking review l.jpg
Internetworking Review

  • The Goals of the Internet

    • Hide technological details from the user

    • Refrain from mandating a specific network interconnection technology or topology

    • Utilize a universal address space

  • Internet Architecture & Routers

    • The key piece of equipment in the internet are routers

      • Special systems that attach to two or more networks and forward packets between them

      • Can separate networks of different technologies

    • The key protocol (the ‘glue’ to the Internet) is called IP, or the Internet Protocol


Internetworking l.jpg
Internetworking

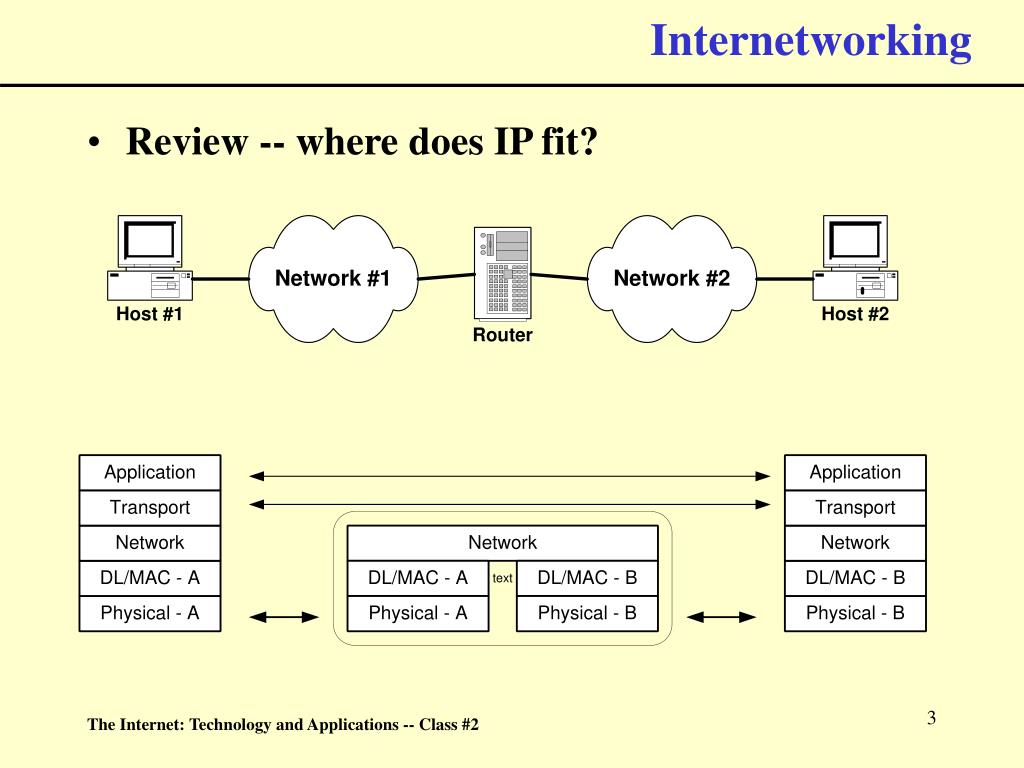

  • Review -- where does IP fit?


The internet protocol l.jpg
The Internet Protocol

  • Why IP?

    • Creates a seamless virtual network

    • Provides global address space

    • Defines a connectionless, packet-oriented protocol

    • Provides “best effort” delivery; up to higher layer protocols to detect & recover from failures

    • Core definition in RFC 791 (with several extensions and amendment RFCs)

  • What we cover in this class

    • IP Addressing

    • ARP: how IP addresses translate to Hardware addresses

    • IP Packet (Datagram) Structure & Operation

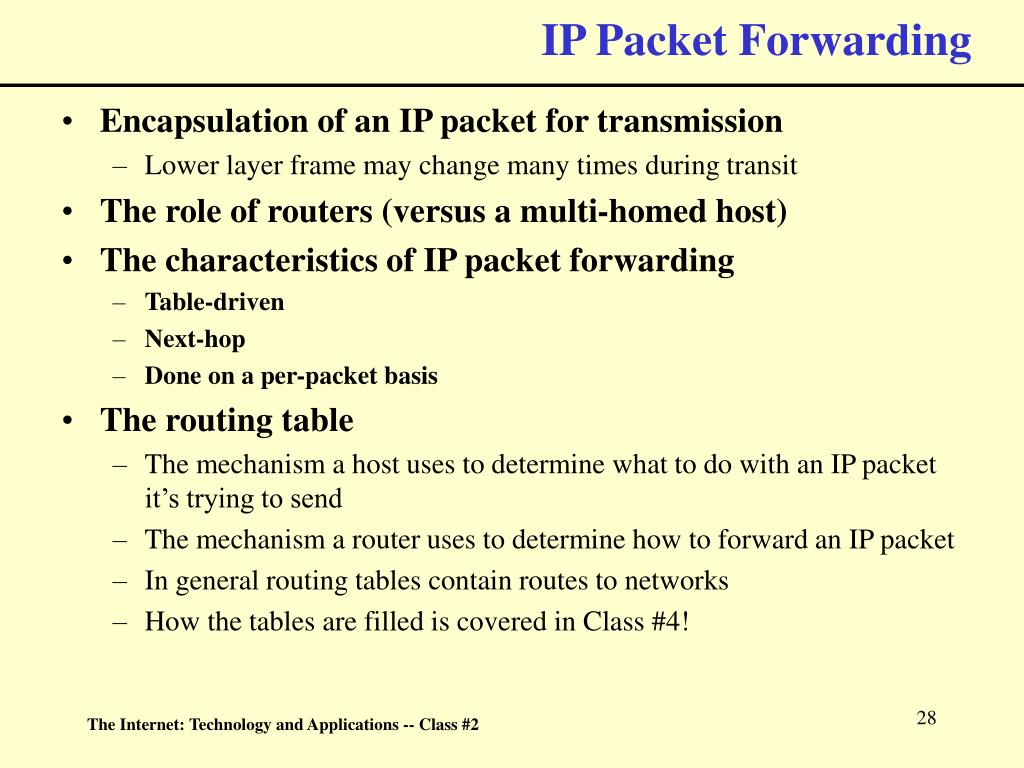

    • IP Packet Forwarding

    • ICMP: Error & Status Reporting


Classful ip addressing l.jpg
Classful IP Addressing

  • IP Addresses

    • Hierarchical versus Flat Addressing

    • IP Address Hierarchy: Host part vs. network part

      • Allows for smaller routing tables

      • Allows for distributed control and distribution of addresses

      • Can cause inefficient allocation of addresses

    • Classful Addressing Scheme: 5 different ‘classes’

      • BIG Networks: Class A

        • Network mask is eight bits (high order address bit is zero)

        • 127 possible networks (actually 125)

      • Medium Networks: Class B

        • Network mask is 16 bits (high order address bits are ‘10’)

      • Small Networks: Class C

        • Network mask is 24 bits (high order address bits are ‘110’)


Classful ip addressing6 l.jpg
Classful IP Addressing

  • Multicast Addresses: Class D

    • High order address bits are ‘1110’

    • The rest of the address has no inherent structure like the ‘primary’ addresses; each address defines a multicast ‘group’ (think channels stations “tune” into)

    • Some multicast IP addresses are reserved as ‘well-known’ addresses

  • Experimental Addresses: Class E

    • High order address bits are ‘11110’

    • Used for research; example -- the development of ‘Anycast’ services

  • The Classful Scheme has been largely replaced by a “Classless” Scheme that is much more flexible

    • The newer scheme requires the transmission of a ‘mask’ value to determine which part of the address is ‘network’ and which is ‘host’

    • Classful & Classless Examples


Classful ip addressing7 l.jpg
Classful IP Addressing

  • IP Address Field Details


Subnetting l.jpg
Subnetting

  • Allows a single network address to span multiple physical networks

    • Adds another hierarchical level to the IP address scheme

    • Instead of dividing the address into network & host parts, it is divided into network and local parts (Figure 9.3 in textbook)

    • A 32 bit subnet mask denotes what portion of the address is the host part

  • So important that support of subnetting is now a required part of the IP standard

  • Reasons for subnetting

    • Better control and security of network traffic

    • Allows for more efficient routing within an organization’s network (particularly a large network)

    • Allows for distributed control and distribution of addresses, but can contribute to inefficient address allocation if improperly used


Subnetting9 l.jpg
Subnetting

  • Variable-length Subnet Masking (VLSM)

    • A enhancement to subnetting that allows the flexible allocation of different size subnets to physical networks

    • Allows for even more efficient allocation of addresses

    • Requires the use & exchange of subnet masks for proper network operation (e.g. – in routing protocols)

  • Calculation of netmask with subnetting (Regular & VLSM)


Special ip addresses l.jpg
Special IP Addresses

  • Multicast

    • Allows for more efficient use of network bandwidth

    • Important for one-to-many services

      • Video

      • Software distribution

      • Newsfeeds

    • Used in several routing protocols

    • Relationship between Multicast IP and Ethernet addresses

      • Ethernet HW address range 01:00:5e:00:00:00 to 01:00:5e:7f:ff:ff reserved for multicast

      • Low order 23 bits of IP Multicast address map to an ethernet HW multicast address

    • Well-known Multicast Addresses (RFC 1700)

      • 224.0.0.5 – All OSPF routers

      • 224.0.0.102 – HSRP (Hot Standby Router Protocol)


Special ip addresses11 l.jpg
Special IP Addresses

  • Broadcast

    • Another one-to-many means of communication related to multicast

    • Important in many host’s initialization process

    • If managed carelessly can severely degrade network performance (or worse!)

    • Two classes of broadcast:

      • Local Broadcast

        • Local uses IP address of all ones (255.255.255.255)

        • Broadcasts to the network physically connected to the host interface

        • Local broadcast not forwarded by routers

      • Directed Broadcast

        • Allows a host to send a broadcast to a ‘remote’ network or subnet

        • Network/Subnet part of address is the real address while the host part is all ones (example 128.220.255.255)

        • CAREFUL!!! This feature may not make you many friends


Special ip addresses12 l.jpg
Special IP Addresses

  • Loopback

    • Whole Class A (127.x.y.z) allocated to this function

    • Allows the testing of a host’s protocol stack without affecting the network

    • Similar in function to addressing something to the local host’s ‘real’ IP address (though differences can be implementation dependent)

  • ‘Network’ & Special Host Addresses

    • An IP address specifying a network has all zeros in the host field

    • Typically see network addresses in routing tables

    • During startup a host may need to use a temporary IP address; typically 0.0.0.0 is used for this purpose


Special ip addresses13 l.jpg
Special IP Addresses

  • ‘Private’ IP Addresses (Non-routable)

    • The IETF has declared several blocks of addresses as private or nonroutable

    • Internet routers should be configured to block/filter these addresses

    • Commonly used with DSL, Cable Modems, and behind Firewalls in conjunction with NAT (Network Address Translation)

    • Reserved Blocks

      • 10.0.0.0/8

      • 172.16.0.0/12

      • 192.168.0.0/16

  • Other Special IP Addresses (RFC 3330)

    • 169.254.0.0/16: ‘Link Local’ addresses for use across a single link

    • 198.18.0.0/15: Used for network benchmarking [per RFC 2544]

    • 192.0.2.0/24: A ‘test network’ block of addresses


Address resolution protocol arp l.jpg
Address Resolution Protocol (ARP)

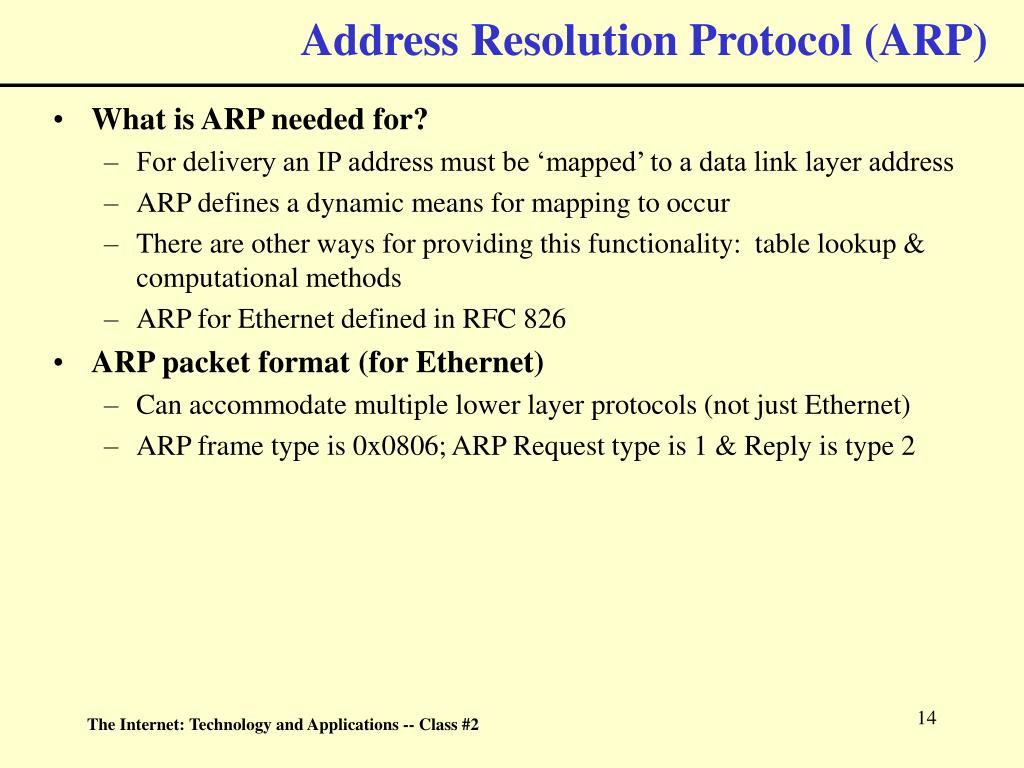

  • What is ARP needed for?

    • For delivery an IP address must be ‘mapped’ to a data link layer address

    • ARP defines a dynamic means for mapping to occur

    • There are other ways for providing this functionality: table lookup & computational methods

    • ARP for Ethernet defined in RFC 826

  • ARP packet format (for Ethernet)

    • Can accommodate multiple lower layer protocols (not just Ethernet)

    • ARP frame type is 0x0806; ARP Request type is 1 & Reply is type 2


Address resolution protocol arp15 l.jpg
Address Resolution Protocol (ARP)

  • The ARP cache

    • Reduces network traffic by storing recently used address ARP data

    • Entries typically time out after 20 minutes

    • Newer ARP information replaces older information in the ARP cache

  • Automatic ARP Cache Revalidation

    • Minimizes the ‘jitter’ in network traffic flow after an ARP entry expires

  • The Address Resolution process

    • ARP requests are broadcast while a reply is typically unicast

    • ARP example


Address resolution protocol arp16 l.jpg
Address Resolution Protocol (ARP)

  • Variations of ARP

    • Proxy ARP

      • Allows a router to answer ARP requests on one interface for a host on a different router interface

      • Proxy ARP examples

    • Gratuitous ARP

      • Denotes a host broadcasting an ARP request for its own IP address

      • Contains a new or updated IP to HW address binding; other hosts update their cache

      • Sometimes used to provide faster recovery from system outages

      • Not implemented on all operating system network protocol stacks


Address resolution protocol arp17 l.jpg
Address Resolution Protocol (ARP)

  • ARP’s relative: RARP (the Reverse Address Resolution Protocol)

    • Allows a host (particularly diskless workstations) to obtain IP address automatically

    • RARP packet format

      • Same as ARP except the Ethernet frame type is 0x8035

      • RARP Request =3 and Reply = 4

  • There are better ways of providing this information and more (e.g. – BOOTP & DHCP) which we will learn about later!


Ip packet format structure l.jpg
IP Packet Format & Structure

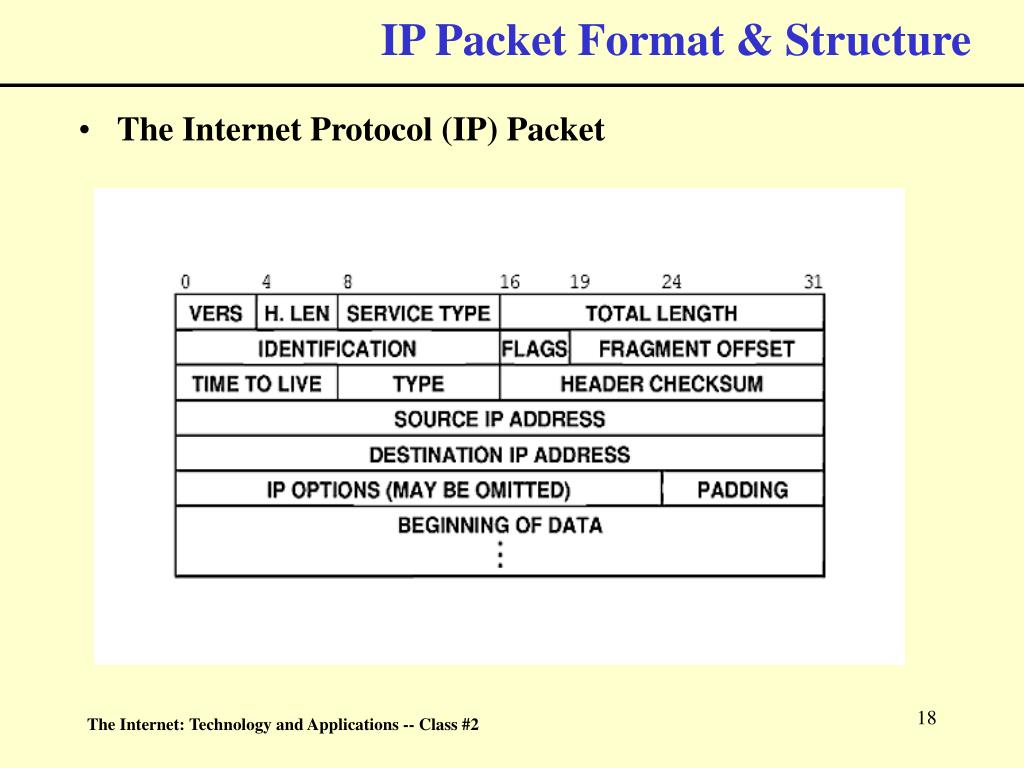

  • The Internet Protocol (IP) Packet


Ip packet structure mandatory fields l.jpg
IP Packet Structure – Mandatory Fields

  • Protocol Field

    • Version 4 (current) and Version 6 (future)

  • IP packet header length field (4 bits)

    • Header size is not fixed; there can be options

    • Field counts the number of four byte ‘words’ in the header

    • Maximum header size: 60 bytes

  • Type of Service (TOS) field (8 bits)

    • Original definition: 3 bits for precedence and 3 bits for TOS

    • TOS bits: Minimize delay, maximize throughput, & maximize reliability

    • The original specification has been superseded by the “Diff-Serv” specs

      • New definitions in RFC 2474 redefine the use of the field

      • Backwards compatible with older definitions

      • A whole new set of ‘codepoints’ defined to help apply QoS to IP networks

      • Finding wider use because of VoIP and other real-time streaming services


Ip packet structure mandatory fields20 l.jpg
IP Packet Structure – Mandatory Fields

  • IP packet length field (16 bits)

    • Some IP packets can be smaller than the minimum data link frame size

      • Example: minimum Ethernet frame size is 46 bytes

      • Tiny IP packets are padded out to the minimum frame size with zeros

    • Maximum packet size: 65535 bytes

  • IP packet identification field (16 bits)

    • Uniquely identifies each IP packet; very important for fragmentation

    • Hosts typically use an internal counter to set this field which is incremented each time an IP packet is sent

  • Fragmentation Flags and Offset fields

    • DF (Don’t Fragment) bit

    • MF (More Fragments) bit

    • Offset field (13 bits) - specifies the offset in 8 byte units of the fragment from the beginning of the original IP packet


Ip packet structure mandatory fields21 l.jpg
IP Packet Structure – Mandatory Fields

  • Time-to-Live (TTL) field (8 bits)

    • Used to limit the lifetime of an IP packet

    • Decremented every time the IP packet transits a router

    • TTL set by the source host; value is OS and application dependent

  • Protocol field (8 bits)

    • Identifies the higher layer protocol payload encapsulated in the IP packet

    • Allows IP layer to determine what higher layer process should receive the data

  • Header Checksum field (16 bits)

    • Checks for errors in the IP header ONLY

    • One’s complement addition used to calculate checksum

    • Errored IP packets are silently discarded; recovery is up to higher layers

    • Source & destination IP address fields (32 bits each)


Ip packet structure optional fields l.jpg
IP Packet Structure – Optional Fields

  • Header Option Fields

    • Header options can take up an additional 40 bytes in the IP header

    • Provide a variety of services used in special circumstances

    • First byte specifies option type – some options are only one byte while others are variable length

  • Generic Structure of Header Options


Ip packet structure optional fields23 l.jpg
IP Packet Structure – Optional Fields

Record Route Option

  • Used to detect and record the path being taken by a particular IP packet

  • Code field: Record Route option specified by a value of 7 in this 8 bit field

  • Length Field: contains total length of the option header (usually 39 bytes)

  • At maximum length option can store nine IP addresses in the list, after that the list is full and routers ignore the option

  • Pointer Field: shows the router where to store the next IP address; points to the first empty byte (i.e.– ptr=4 if no IP addresses have been recorded)

  • Routers typically record the outgoing interface of the IP packet


Ip packet structure optional fields24 l.jpg
IP Packet Structure – Optional Fields

  • Timestamp Option (Code field = 44)

    • Allows a host to query another system for its current time

    • Same fields at the Record Route option plus two additional 4 bit fields

    • Overflow (OF) field- 4 bit counter incremented by routers after option header is full

    • Flags (FL) field specifies whether routers record a timestamp only or a timestamp and its IP address.

    • Time returned is number of milliseconds past midnight UTC

    • There are now better ways of time synchronization (NTP, OSF DCE, etc)

  • Security Options

    • Defined in RFC 1108; rarely used today

    • Allowed the labeling of IP packets with classification information

    • Provided no inherent protection; relied on routers to read labels and route packets through paths of the appropriate security level


Ip packet structure optional fields25 l.jpg
IP Packet Structure – Optional Fields

  • Source Routing Options

    • Allows a source host to specify the path IP packets will take through the Internet

    • Option header fields (code, length, pointer) and maximum size are the same as the Record Route option

    • Code is 0x83 for loose source routing and 0x89 for strict source routing

    • Two varieties: Loose and Strict

      • Strict Source Routing: the EXACT path is specified in the IP packet

      • Loose Source Routing: the IP packet contains a list of IP addresses that it must traverse but it can traverse others not listed.

    • Source Route Examples


Ip fragmentation and reassembly l.jpg
IP Fragmentation and Reassembly

  • Concept -- Maximum Transmission Unit (MTU)

    • Based on underlying transmission protocol

    • Cannot be violated (includes the frame headers & trailers)

    • MTU example

    • Fragmentation

      • Allows IP to deal with physical networks that have different MTUs

      • IP header fields and flags important during IP Fragmentation

      • IP Fragmentation example

    • Reassembly

      • Done at destination host

      • Eases processing burden on routers

      • Allows IP fragments to traverse different routes in the network

      • Example illustrating different routing of IP packet fragments

      • Example for reassembly at destination host


Ip fragmentation and reassembly27 l.jpg
IP Fragmentation and Reassembly

  • Concept -- Maximum Transmission Unit (MTU)

    • Loss of a fragment can & does occur (just like any other IP packet)

    • Two things that can go wrong

      • Fragment gets corrupted and are discarded

      • Upon receipt of the first fragment destination host sets a timer; if any fragment fails to make it into the reassembly buffers before the timer expires ALL fragments are discarded.

    • Multiple Fragmentations & Example


Ip packet forwarding l.jpg
IP Packet Forwarding

  • Encapsulation of an IP packet for transmission

    • Lower layer frame may change many times during transit

  • The role of routers (versus a multi-homed host)

  • The characteristics of IP packet forwarding

    • Table-driven

    • Next-hop

    • Done on a per-packet basis

  • The routing table

    • The mechanism a host uses to determine what to do with an IP packet it’s trying to send

    • The mechanism a router uses to determine how to forward an IP packet

    • In general routing tables contain routes to networks

    • How the tables are filled is covered in Class #4!


Ip packet forwarding29 l.jpg
IP Packet Forwarding

  • IP Forwarding example


Ip packet forwarding30 l.jpg
IP Packet Forwarding

  • Example routing table from a Cisco Router

    a-tserver>sh ip route

    Codes: C - connected, S - static, I - IGRP, R - RIP, M - mobile, B - BGP

    D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area

    E1 - OSPF external type 1, E2 - OSPF external type 2, E - EGP

    i - IS-IS, L1 - IS-IS level-1, L2 - IS-IS level-2, * - candidate default U - per-user static route

    Gateway of last resort is 128.244.12.1 to network 0.0.0.0

    128.244.0.0/16 is variably subnetted, 126 subnets, 8 masks

    O E2 128.244.219.160/27 [110/1] via 128.244.12.1, 16:03:32, Ethernet0

    O E1 128.244.102.0/24 [110/34] via 128.244.12.1, 16:03:32, Ethernet0

    O IA 128.244.77.32/27 [110/27] via 128.244.12.1, 16:03:32, Ethernet0

    O 128.244.149.252/30 [110/75] via 128.244.12.1, 16:03:32, Ethernet0

    O IA 128.244.84.0/24 [110/17] via 128.244.12.1, 16:03:32, Ethernet0

    O 128.244.148.192/28 [110/21] via 128.244.12.1, 16:03:32, Ethernet0

    O E2 128.244.86.0/24 [110/20] via 128.244.12.1, 16:03:32, Ethernet0

    O 128.244.76.0/24 [110/11] via 128.244.12.1, 16:03:42, Ethernet0

    C 128.244.12.64/26 is directly connected, Ethernet0


Internet message control protocol icmp l.jpg
Internet Message Control Protocol (ICMP)

  • What is ICMP used for?

    • Provides rudimentary error reporting capability

    • Provides a basic informational and troubleshooting mechanism

  • ICMP Mechanics

    • Required part of IP

    • Defined in RFC 792

    • Generic ICMP Message Format

      • Type and Code fields

      • Header Checksum

      • Additional header bytes


Internet message control protocol icmp32 l.jpg
Internet Message Control Protocol (ICMP)

  • ICMP Error Messages

    • Sent in response to a problem delivering an IP packet

    • Includes the IP header plus eight bytes of payload from the packet causing the error (contains the TCP or UDP port numbers so the source application can be notified)

    • NOT sent under the following conditions:

      • in response to any other Network layer protocol besides IP

      • in response to an errored ICMP packet

      • in response to an IP multicast or broadcast source


Internet message control protocol icmp33 l.jpg
Internet Message Control Protocol (ICMP)

  • ICMP Error Messages

    • Major Error Types

      • Destination Unreachable (Type 3)

        • Network Unreachable (Code 0)

        • Host Unreachable (Code 1)

        • Protocol Unreachable (Code 2)

        • Port Unreachable (Code 3)

        • Fragmentation required but the DF bit set (Code 4)

      • IP Redirect (Type 5)

        • Used by routers to ‘correct’ hosts

      • Time Exceeded (Type 11)

        • Either a TTL or a Destination Reassembly Issue

      • Parameter Problem (Type 12)

        • The ‘catch-all’ error message


Internet message control protocol icmp34 l.jpg
Internet Message Control Protocol (ICMP)

  • ICMP Informational & Troubleshooting Messages

    • Echo Request (Type 8) and Echo Reply (Type 0)

      • Used to tell whether a host’s network interface card is functioning

      • Payload typically empty but certain implementations will allow you to specify the ICMP payload

  • Older Messages no longer in use

    Timestamp Request (Type 13) and Timestamp Reply (Type 14)

    • Allows a host to query another for the current time

    • Returns the number of milliseconds past midnight UTC; stills requires the receiving host to calculate the current time

    • There are better ways of doing this: NTP, RPC time functions

  • Address Mask Request (Type 17) & (Type 18)

    • Allows a host to determine its address mask from it’s neighbors

    • Sometimes good (if the mask is right) and sometimes bad!


Internet message control protocol icmp35 l.jpg
Internet Message Control Protocol (ICMP)

  • PING

    • A fundamental troubleshooting tool based on ICMP

    • PING Example:

      > ping www.digex.net

      PING www.digex.net (207.87.16.116): 56 data bytes

      64 bytes from 207.87.16.116: icmp_seq=0 ttl=117 time=94.168 ms

      64 bytes from 207.87.16.116: icmp_seq=1 ttl=117 time=73.961 ms

      64 bytes from 207.87.16.116: icmp_seq=2 ttl=117 time=63.667 ms

      64 bytes from 207.87.16.116: icmp_seq=3 ttl=117 time=57.443 ms

      64 bytes from 207.87.16.116: icmp_seq=4 ttl=117 time=65.453 ms

      64 bytes from 207.87.16.116: icmp_seq=5 ttl=117 time=85.126 ms

      64 bytes from 207.87.16.116: icmp_seq=6 ttl=117 time=69.730 ms

      64 bytes from 207.87.16.116: icmp_seq=7 ttl=117 time=67.107 ms

      ^C

      --- www.digex.net ping statistics ---

      10 packets transmitted, 10 packets received, 0% packet loss

      round-trip min/avg/max/stddev = 57.004/70.505/94.168/11.062 ms


Review of class 2 l.jpg
Review of Class #2

  • The Key Conclusions to Class #2

    • The Network Interconnection ‘model’ from Class #1 is used in the Internet

    • The Internet Protocol is the key to internetworking; it is a flexible and feature-rich base to the family of internet protocols

    • ARP provides a dynamic & standard means to map between MAC and network layer addresses

    • IP forwarding is a datagram-based, next-hop, table-driven process

    • ICMP provides error reporting, informational, & troubleshooting mechanism for IP


Reading and homework l.jpg
Reading and Homework

  • Reading

    • Comer: Chapters 4 through 9 (except sections 9.20 and 9.21)

  • First Homework Assignment is due in a week (see Class #1 slides for the problems)

  • Next Monday: Transport Layer (TCP & UDP) Protocols


ad
