  1. Lattice-based Cryptography Oded Regev Tel-Aviv University

  2. Introduction to lattices • Survey of lattice-based cryptography • Hash functions [Ajtai96,…] • Public-key cryptography [AjtaiDwork97,…] • Construction of a simple lattice-based hash function • Open Problems Outline

  3. Lattice • For vectors v1,…,vn in Rn we define the lattice generated by them as • L={a1v1+…+anvn| aiintegers} • We call v1,…,vna basis of L v1+v2 2v2 2v1 2v2-v1 v1 v2 2v2-2v1 0

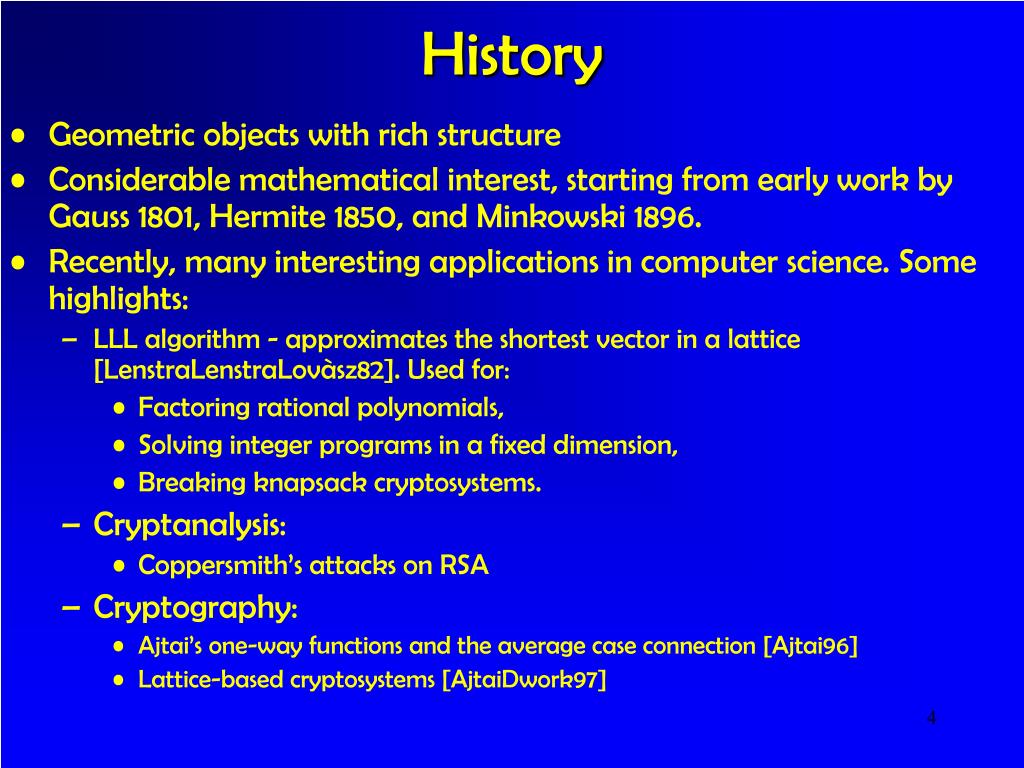

  4. History • Geometric objects with rich structure • Considerable mathematical interest, starting from early work by Gauss 1801, Hermite 1850, and Minkowski 1896. • Recently, many interesting applications in computer science. Some highlights: • LLL algorithm - approximates the shortest vector in a lattice [LenstraLenstraLovàsz82]. Used for: • Factoring rational polynomials, • Solving integer programs in a fixed dimension, • Breaking knapsack cryptosystems. • Cryptanalysis: • Coppersmith’s attacks on RSA • Cryptography: • Ajtai’s one-way functions and the average case connection [Ajtai96] • Lattice-based cryptosystems [AjtaiDwork97]

  5. Shortest Vector Problem (SVP) v2 • SVP: given a lattice, find a shortest (nonzero) vector • -approximate SVP: given a lattice, find a vector of length at most  times the shortest • Other lattice problems: SIVP, SBP, etc. v1 3v2-4v1 0

  6. Lattice Problems Seem Hard • Conjecture: for any =poly(n), -approximate SVP is hard • Best known algorithm runs in time 2n [AjtaiKumarSivakumar01] • On the other hand, not believed to be NP-hard [GoldreichGoldwasser00, AharonovR04] • Best poly-time algorithm solves for =2nloglogn/logn[LLL82, Schnorr85] • NP-hard for sub-polynomial  [Ajtai97,Micciancio01,Khot04,HavivR07] 2log1-²n 1 n n 2n loglogn/logn  crypto NP∩coNP P NP-hard

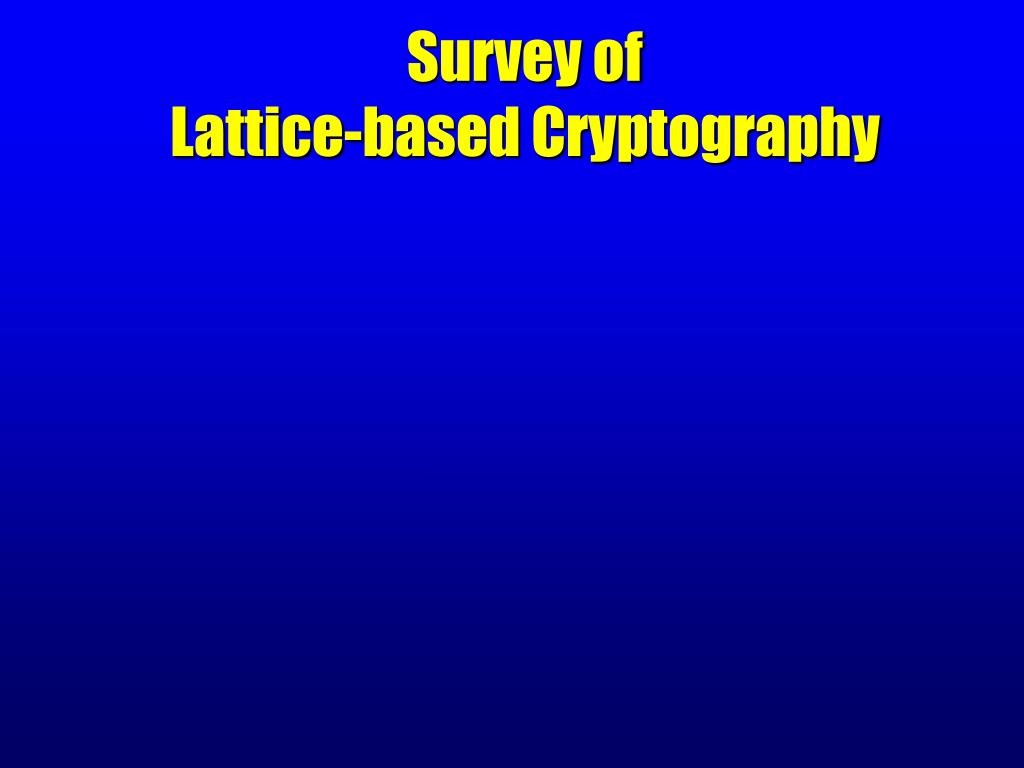

  7. Survey of Lattice-based Cryptography

  8. Why use lattice-based cryptography • Lattice-based cryptography • Provably secure • Security based on a worst-case problem • Based on hardness of lattice problems • (Still) Not broken by quantum algorithms • Very simple computations • Can do more things • ‘Standard’ cryptography • Not always provable… • Security based on an average-case problem • Based on hardness of factoring, discrete log, etc. • Broken by quantum algorithms • Require modular exponentiation etc.

  9. Provable Security • Reduce solving a hard problem to breaking the cryptographic function • A security proof gives a strong evidence that our cryptographic function has no fundamental flaws • Can also give hints as to choice of parameters • Example: One-wayness of modular squaring • Somehow choose N=pq for two large primes p,q • f(x)=x2 mod N • If we can compute square roots then we can factor N

  10. Average-case hardness is not so nice… • How do you pick a “good” N in RSA? • Just pick p,q as random large primes and set N=pq? • (1978) Largest prime factors of p-1,q-1 should be large • (1981) p+1 and q+1 should have a large prime factor • (1982) If the largest prime factor of p-1 and q-1 is p' and q', then p'-1 and q'-1 should have large prime factors • (1984) If the largest prime factor of p+1 and q+1 is p' and q', then p'-1 and q'-1 should have large prime factors • Bottom line: currently, none of this is relevant

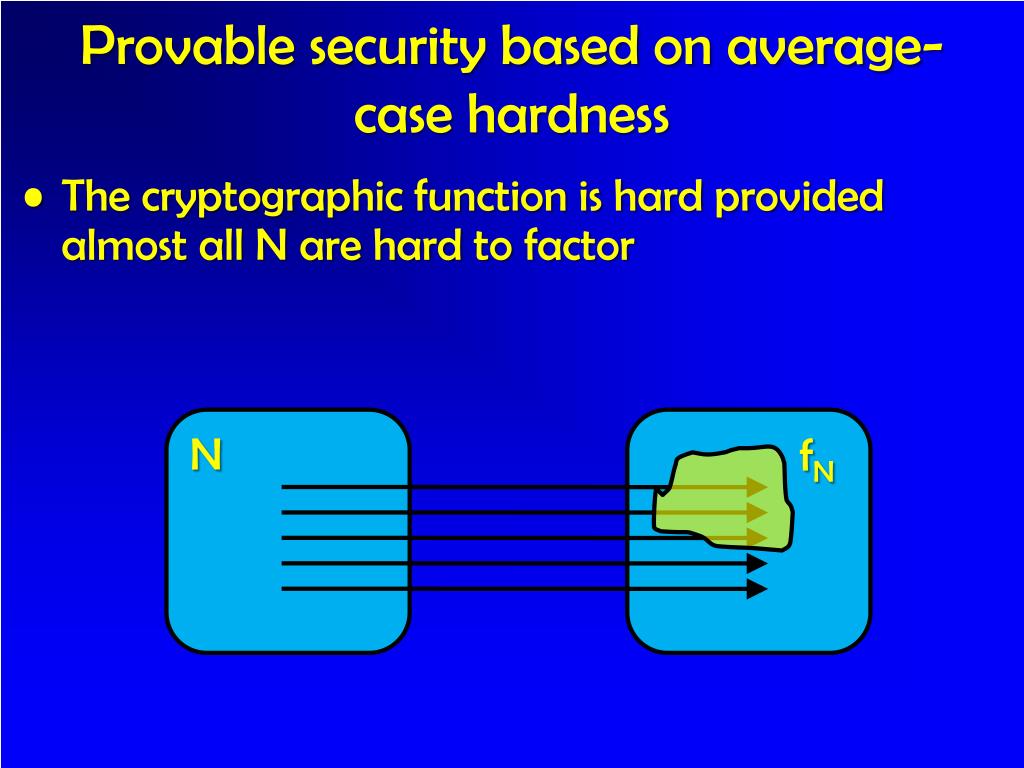

  11. Provable security based on average-case hardness • The cryptographic function is hard provided almost all N are hard to factor N fN

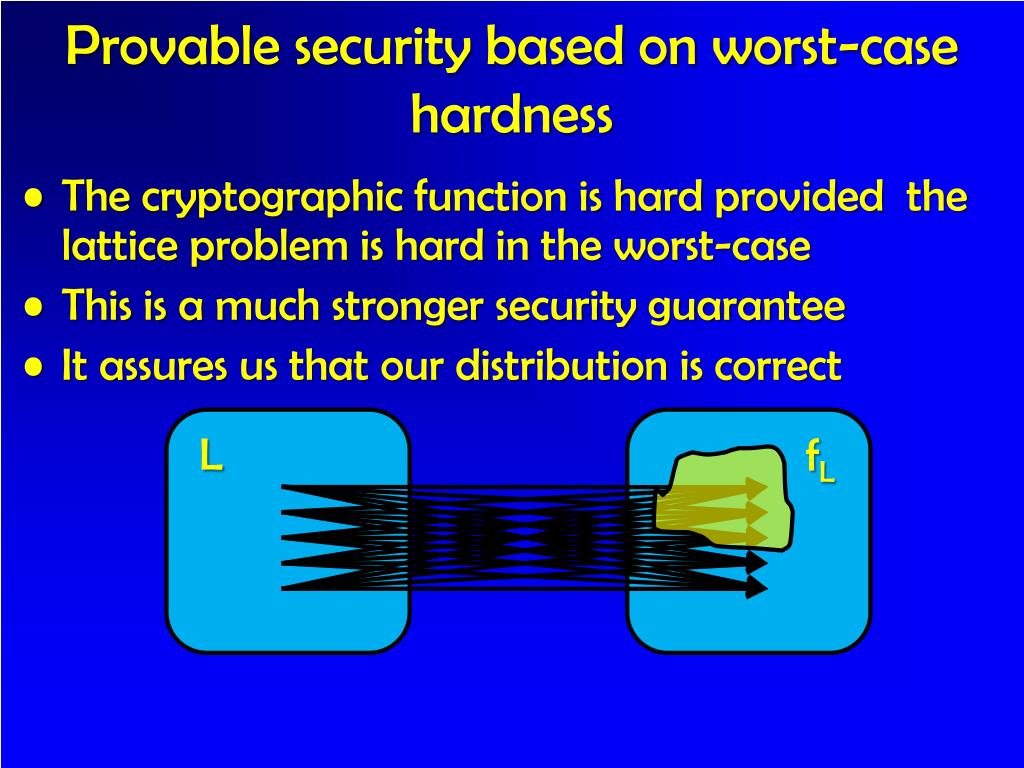

  12. Provable security based on worst-case hardness • The cryptographic function is hard provided the lattice problem is hard in the worst-case • This is a much stronger security guarantee • It assures us that our distribution is correct L fL

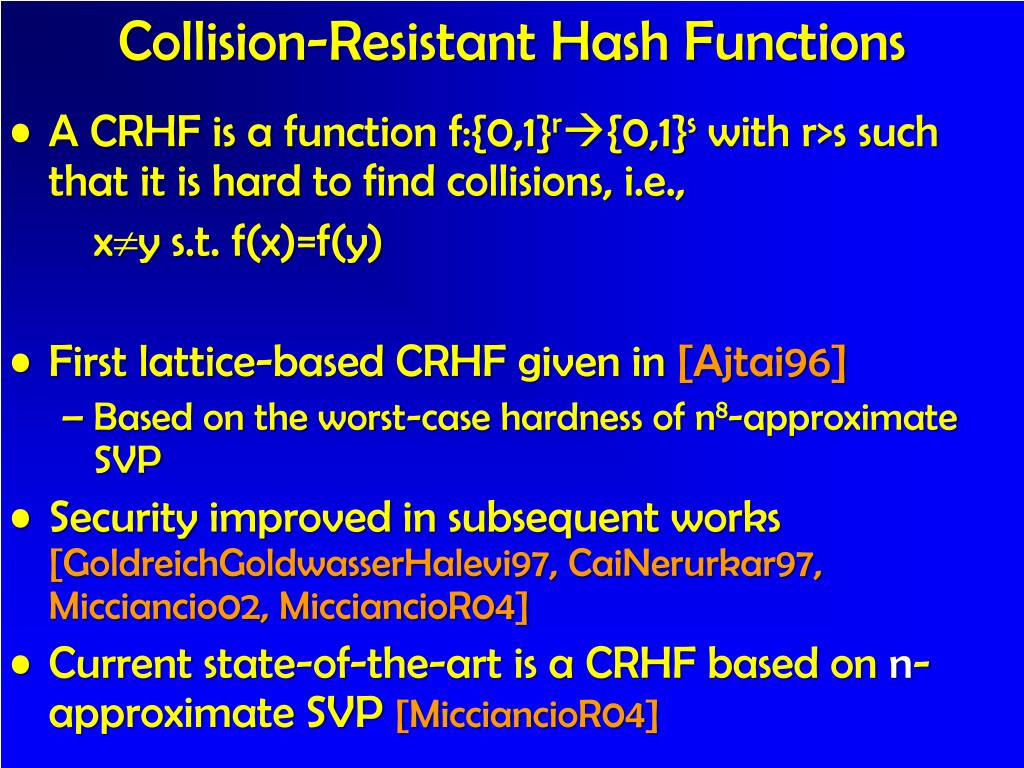

  13. Collision-Resistant Hash Functions • A CRHF is a function f:{0,1}r{0,1}s with r>s such that it is hard to find collisions, i.e., xys.t. f(x)=f(y) • First lattice-based CRHF given in [Ajtai96] • Based on the worst-case hardness of n8-approximate SVP • Security improved in subsequent works [GoldreichGoldwasserHalevi97, CaiNerurkar97, Micciancio02, MicciancioR04] • Current state-of-the-art is a CRHF based on n-approximate SVP [MicciancioR04]

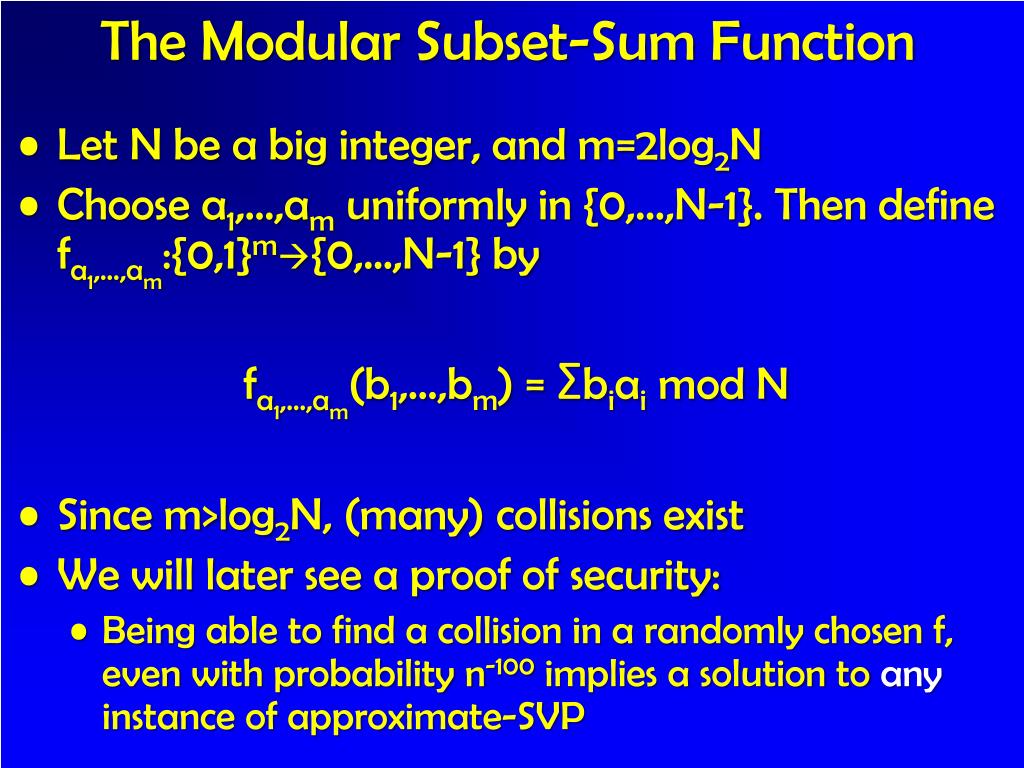

  14. The Modular Subset-Sum Function • Let N be a big integer, and m=2log2N • Choose a1,…,am uniformly in {0,…,N-1}. Then define fa1,…,am:{0,1}m{0,…,N-1} by • fa1,…,am(b1,…,bm) = Σbiai mod N • Since m>log2N, (many) collisions exist • We will later see a proof of security: • Being able to find a collision in a randomly chosen f, even with probability n-100 implies a solution to any instance of approximate-SVP

  15. Recent Work: More Efficient CRHFs • In the constructions above, for security based on n-dimensional lattices, O(n2) bits are necessary to specify a hash function • More efficient constructions were given in [Micciancio04, LyubashevskyMicciancio06, PeikertRosen06] • Essentially the same subset-sum function except over a different ring • Only O(n) bits needed to specify a hash function • Based on worst-case hardness of approximate-SVP on a restricted class of lattices (e.g., cyclic or ideal lattices)

  16. Public-key Cryptosystem • A PKC allows parties to communicate securely without having to agree on a secret key beforehand • First lattice-based PKC presented in [AjtaiDwork97] • Some improvements [GoldreichGoldwasserHalevi97, R03,Peikert08] • Advantages: • Worst-case hardness • Based on lattice problems (GapSVP) • Main disadvantage: impractical! (think of n as 100): • Public key size O(n4) • Encryption expands by O(n2)

  17. A Recent Public-key Cryptosystem[R05] • Advantages: • Worst-case hardness • Based on the main lattice problems (SVP, SIVP) • Main advantage: practical! (think of n as 100): • Public key size O(n) • Encryption expands by O(n) • One (minor?) disadvantage: • Breaking the cryptosystem implies an efficient quantum algorithm for lattices • Introduced the LWE problem (used in [PVW08, PW08, Pei09a, Pei09b, AGV09, ACPS09, KS06, CHK09, ...])

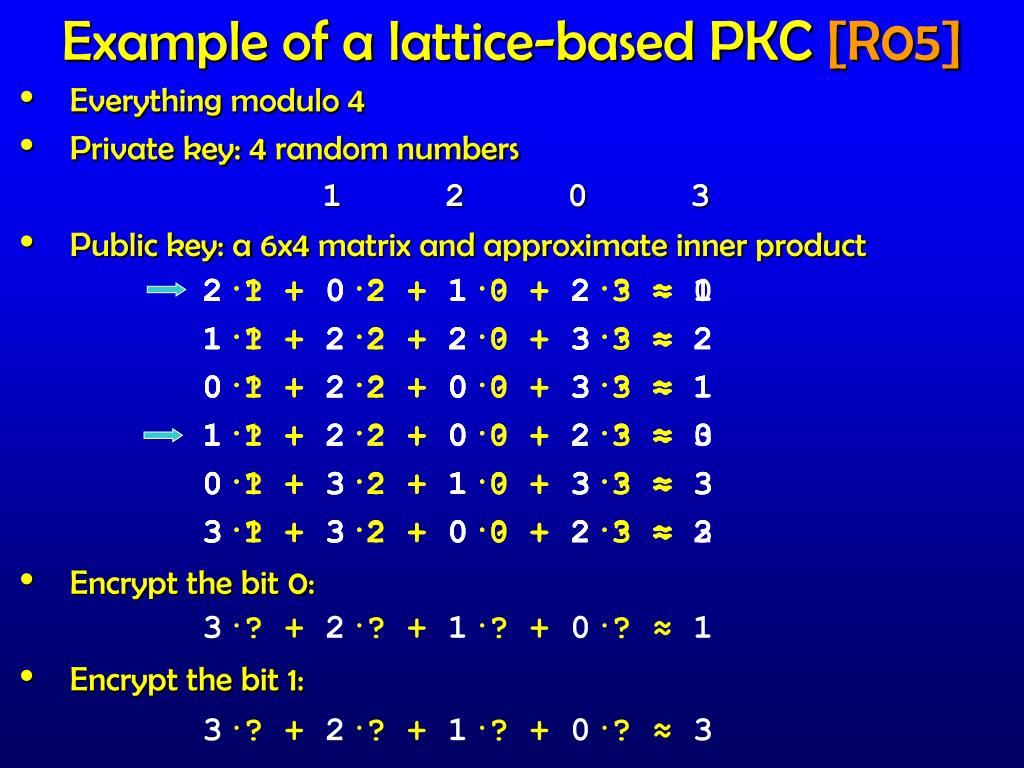

  18. Everything modulo 4 • Private key: 4 random numbers 1203 • Public key: a 6x4 matrix and approximate inner product • Encrypt the bit 0: • Encrypt the bit 1: 3·? + 2·? + 1·? + 0·? ≈1 Example of a lattice-based PKC [R05] 2·1 + 0·2 + 1·0 + 2·3 ≈1 1·1 + 2·2 + 2·0 + 3·3 ≈2 0·1 + 2·2 + 0·0 + 3·3 ≈1 1·1 + 2·2 + 0·0 + 2·3 ≈0 0·1 + 3·2 + 1·0 + 3·3 ≈3 3·1 + 3·2 + 0·0 + 2·3 ≈2 2 0 1 2 1 2 2 3 0 2 0 3 1 2 0 2 0 3 1 3 3 3 0 2 2·? + 0·? + 1·? + 2·? ≈1 1·? + 2·? + 2·? + 3·? ≈2 0·? + 2·? + 0·? + 3·? ≈1 1·? + 2·? + 0·? + 2·? ≈0 0·? + 3·? + 1·? + 3·? ≈3 3·? + 3·? + 0·? + 2·? ≈2 2·1 + 0·2 + 1·0 + 2·3 =0 1·1 + 2·2 + 2·0 + 3·3 =2 0·1 + 2·2 + 0·0 + 3·3 =1 1·1 + 2·2 + 0·0 + 2·3 =3 0·1 + 3·2 + 1·0 + 3·3 =3 3·1 + 3·2 + 0·0 + 2·3 =3 3·? + 2·? + 1·? + 0·? ≈3

  19. Construction of a Lattice-based Collision Resistant Hash Function

  20. Blurring a Picture

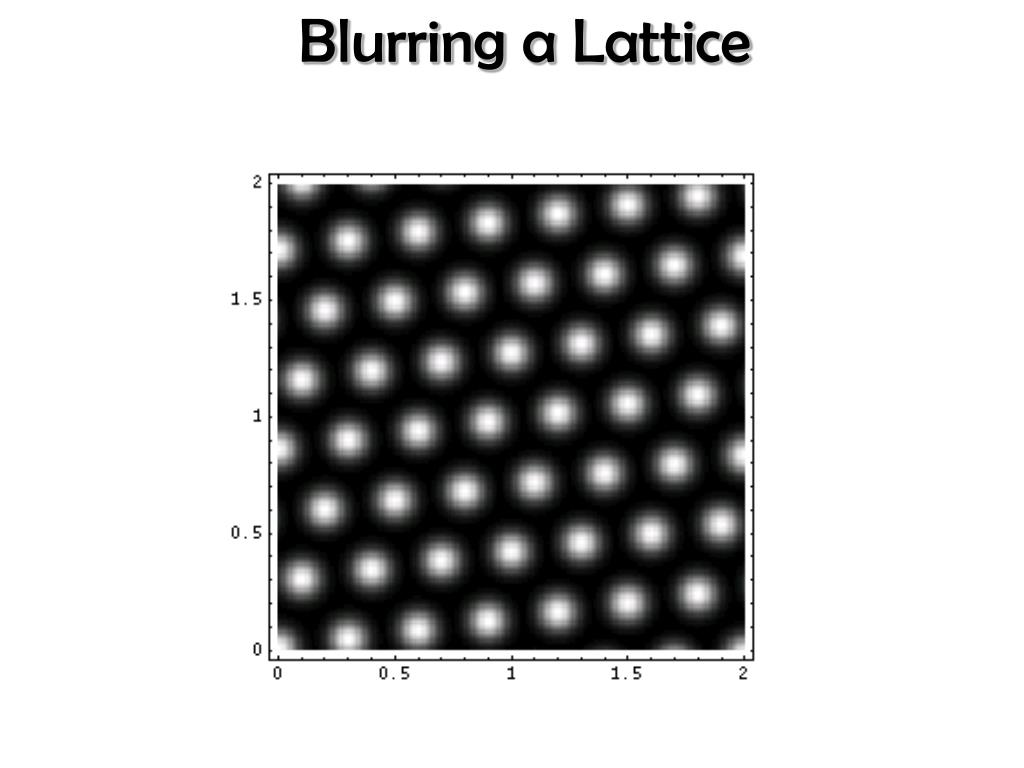

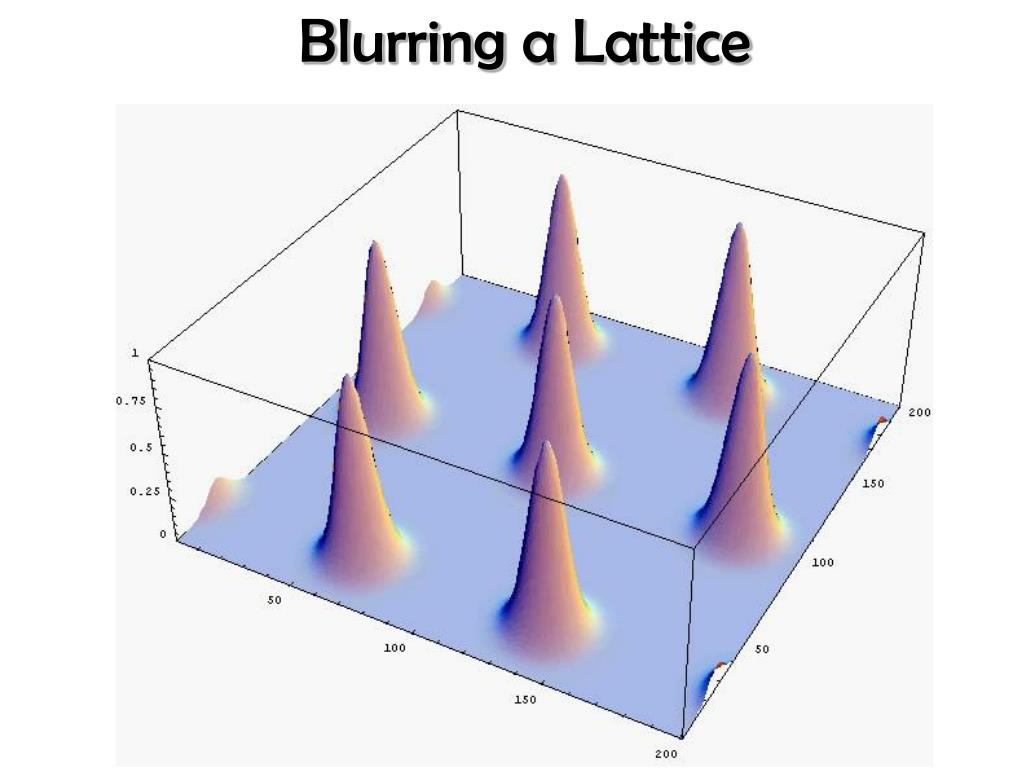

  21. Blurring a Lattice

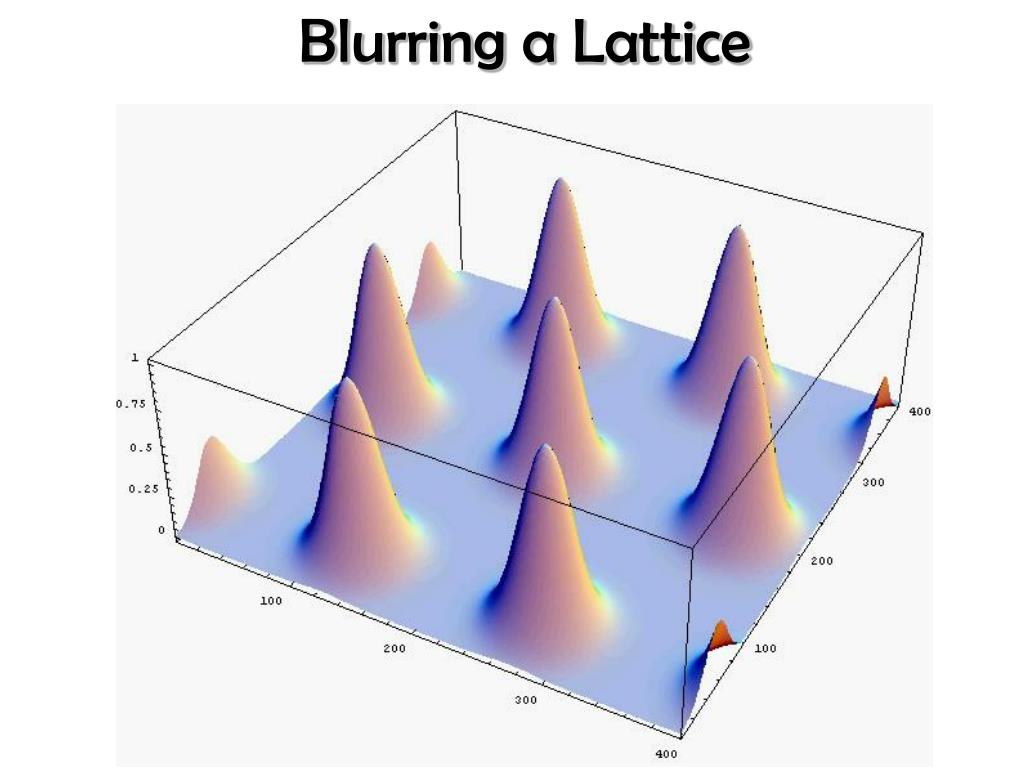

  22. Blurring a Lattice

  23. Blurring a Lattice

  24. Blurring a Lattice

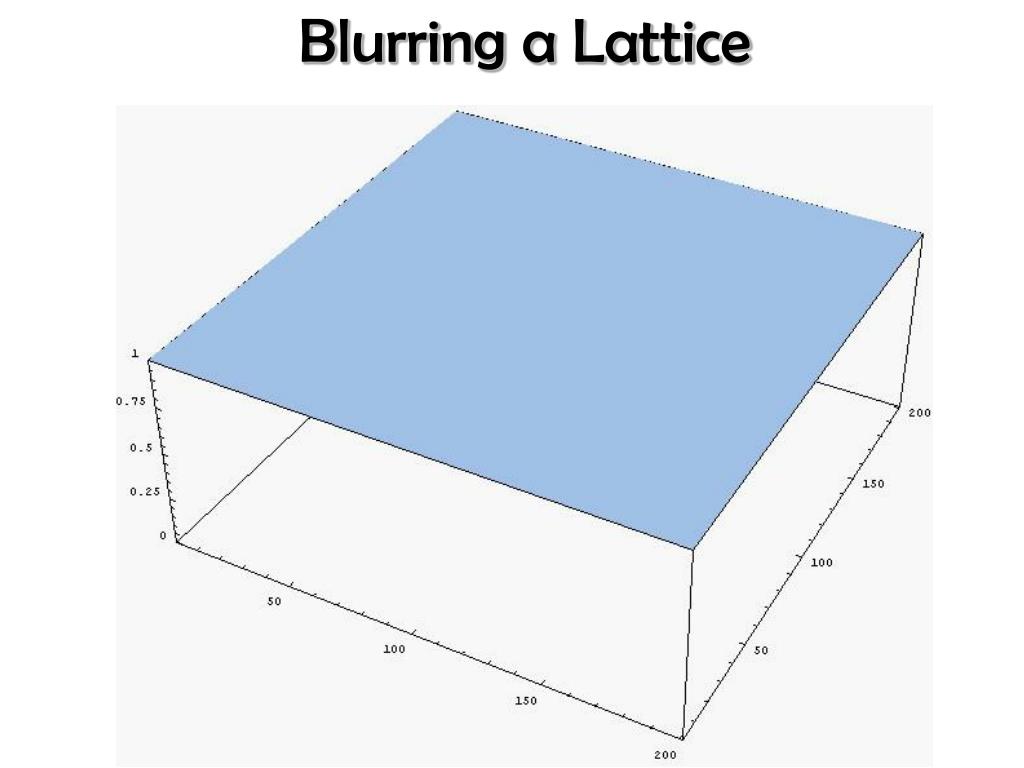

  25. Blurring a Lattice

  26. The Smoothing Radius • Define the smoothing radius=(L)>0 as the smallest real such that adding Gaussian blur of radius  to L yields an essentially uniform distribution • The radius  was analyzed in [MicciancioR04] based on Fourier analysis and [Banaszczyk93] • It was shown that  is ‘small’ in the sense that finding vectors of length poly(n)(L) implies solution to poly(n)-approximate SVP

  27. An Alternative Definition • Define h:Rn![0,1)n that maps any x=Σivi to • h(x)=(1,…,n) mod 1. • E.g., any xL has h(x)=(0,…,0) • Then an alternative way to define  is as: • The smallest real such that if x is sampled from a Gaussian distribution centered around 0 of radius , then h(x) is ‘essentially’ uniform on [0,1)n

  28. x2 x1 x4 x3 Rn [0,1)n (1,1) (0,1) h(x2) h(x3) 0 h(x1) h(x4) (0,0) (1,0)

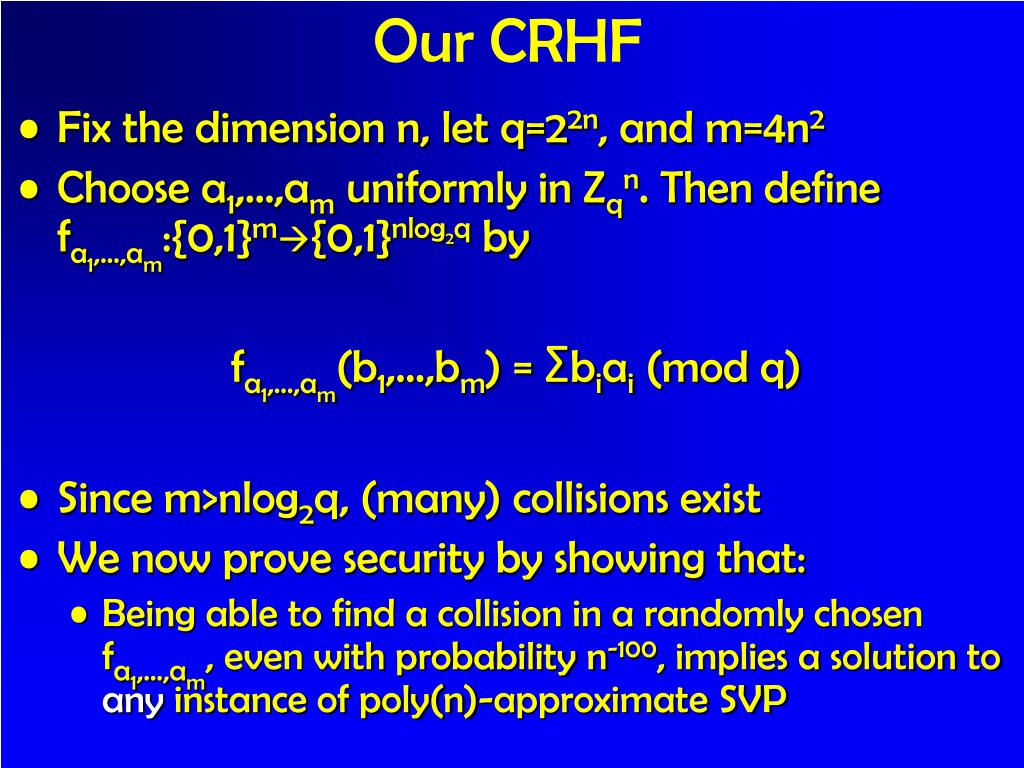

  29. Our CRHF • Fix the dimension n, let q=22n, and m=4n2 • Choose a1,…,am uniformly in Zqn. Then define fa1,…,am:{0,1}m{0,1}nlog2q by • fa1,…,am(b1,…,bm) = Σbiai (mod q) • Since m>nlog2q, (many) collisions exist • We now prove security by showing that: • Being able to find a collision in a randomly chosen fa1,…,am, even with probability n-100, implies a solution to any instance of poly(n)-approximate SVP

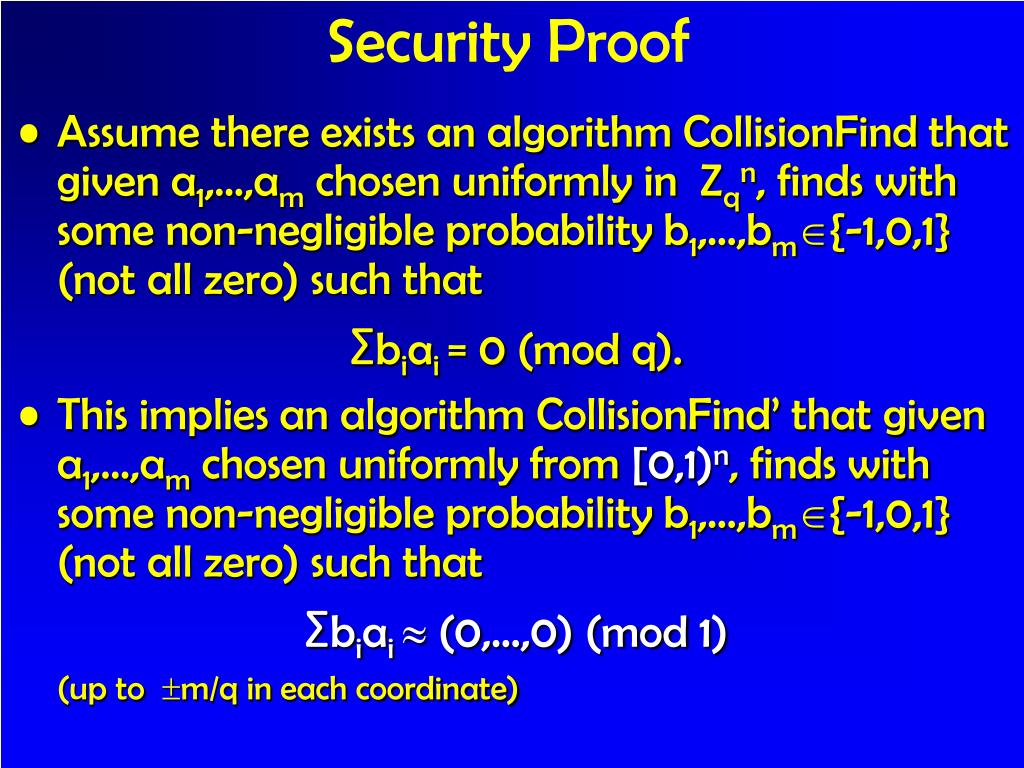

  30. Security Proof • Assume there exists an algorithm CollisionFind that given a1,…,am chosen uniformly in Zqn, finds with some non-negligible probability b1,…,bm{-1,0,1} (not all zero) such that • Σbiai = 0 (mod q). • This implies an algorithm CollisionFind’ that given a1,…,amchosen uniformly from [0,1)n, finds with some non-negligible probability b1,…,bm{-1,0,1} (not all zero) such that • Σbiai  (0,…,0) (mod 1) • (up to m/q in each coordinate)

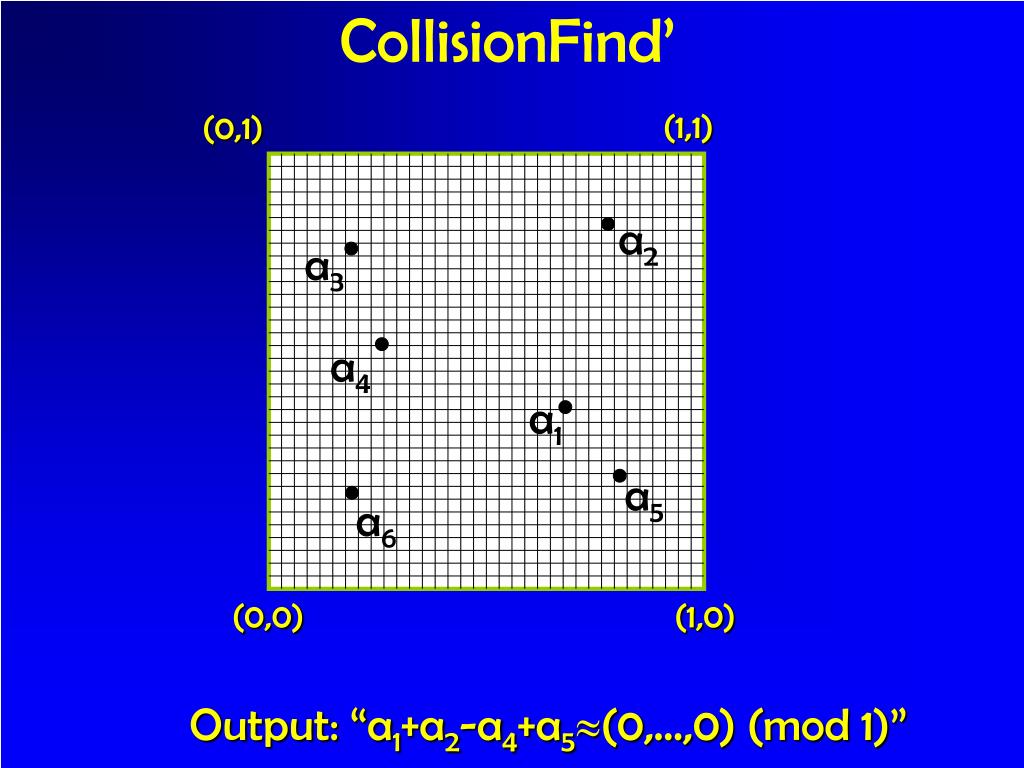

  31. CollisionFind’ (1,1) (0,1) a2 a3 a4 a1 a5 a6 (0,0) (1,0) Output: “a1+a2-a4+a5(0,…,0) (mod 1)”

  32. Security Proof • Our goal is to show that using CollisionFind’ we can find a nonzero vector of length at most poly(n)(L) in any given lattice L • So let L be a given lattice with basis v1,…,vn • By using the LLL algorithm, we can assume that v1,…,vn are not ‘unreasonably’ long: say, of length at most 2n(L)

  33. Security Proof – Main Procedure • Sample m vectors x1,…,xm from the Gaussian distribution around 0 of radius  • Compute a1:=h(x1),…,am:=h(xm) • Each ai is uniformly distributed in [0,1)n • Apply CollisionFind’ to obtain b1,…,bm {-1,0,1} such that • Σbih(xi) (m/q,…,m/q) (mod 1) • Define y=Σbixi. Then, • y is short (of length m) • y is extremely close to a lattice point since h(y)=Σbih(xi)(m/q,…,m/q) (mod 1)

  34. Security Proof – Main Procedure • Write y=Σivi for some reals1,…,n • So each iis within m/q of an integer • Define the lattice vector y’=Σivi • The distance • So y’ is a lattice vector of length at most (m+1)

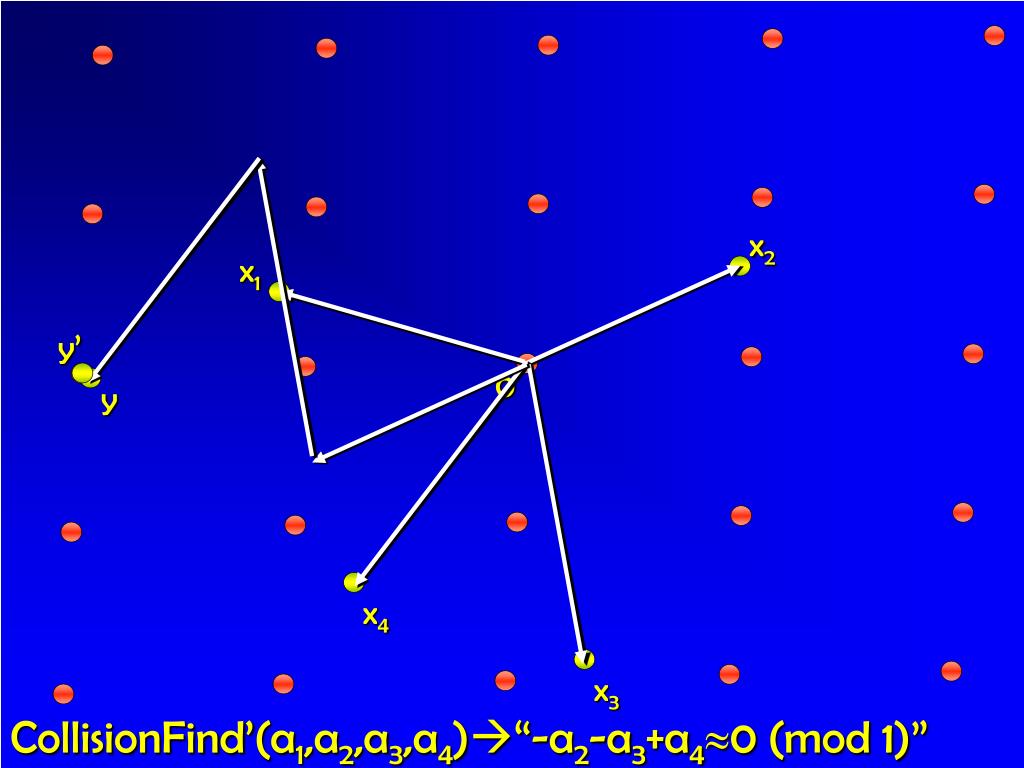

  35. x2 x1 x4 x3 y’ 0 y CollisionFind’(a1,a2,a3,a4)“-a2-a3+a40 (mod 1)”

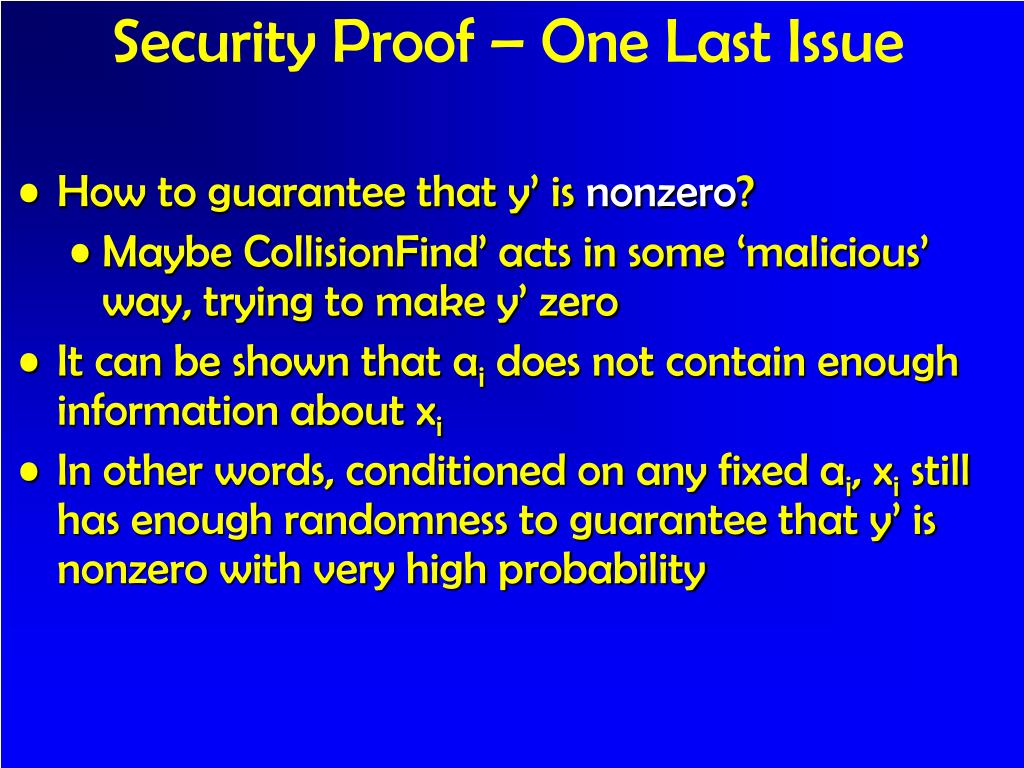

  36. Security Proof – One Last Issue • How to guarantee that y’ is nonzero? • Maybe CollisionFind’ acts in some ‘malicious’ way, trying to make y’ zero • It can be shown that ai does not contain enough information about xi • In other words, conditioned on any fixed ai, xi still has enough randomness to guarantee that y’ is nonzero with very high probability

  37. Security Proof – Conclusion • By a single call to the collision finder, we can find in any lattice, a nonzero vector of length at most (m+1) with some non-negligible probability • By repeating this procedure we can obtain such a vector with very high probability • The essential idea: All lattices look the same after adding some small amount of blur

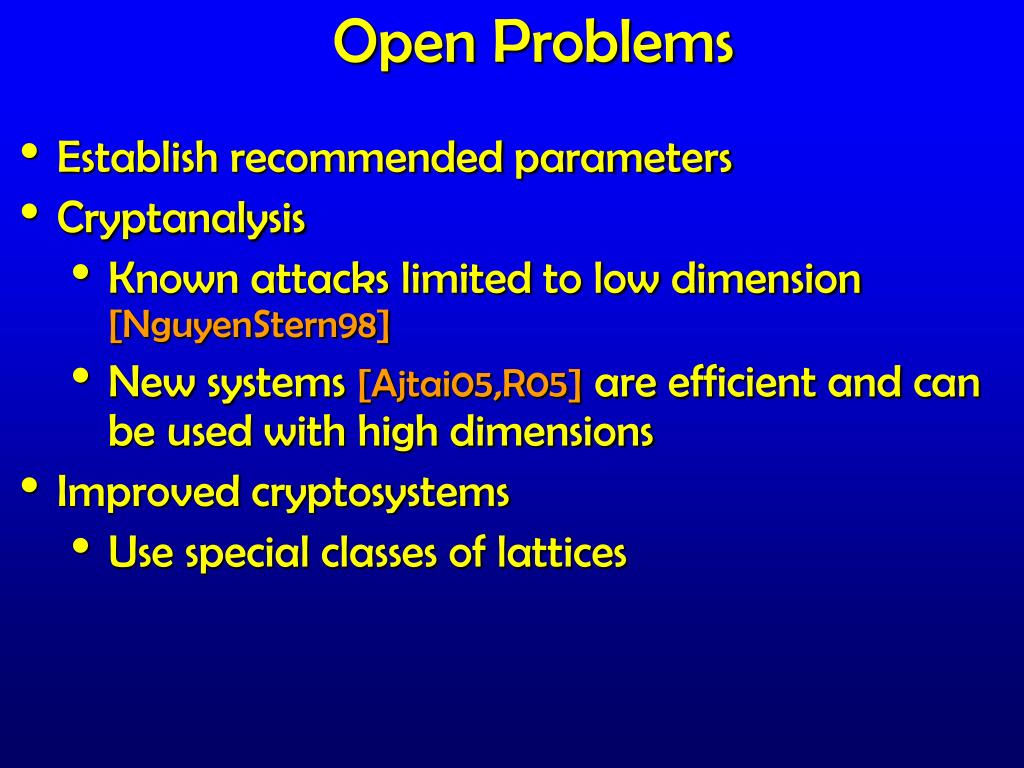

  38. Open Problems • Establish recommended parameters • Cryptanalysis • Known attacks limited to low dimension [NguyenStern98] • New systems [Ajtai05,R05] are efficient and can be used with high dimensions • Improved cryptosystems • Use special classes of lattices
