Presentation Transcript


Gy 112 earth history

GY 112: Earth History

Proterozoic Fossils


Agenda

Agenda

Key Events of the Proterozoic

Proterozoic Plate Tectonics

Proterozoic Glaciation

Background

Proterozoic Life Forms

Evidence of Proterozoic Life

Factors Affecting Development of Proterozoic Life

Implications of Proterozoic Info

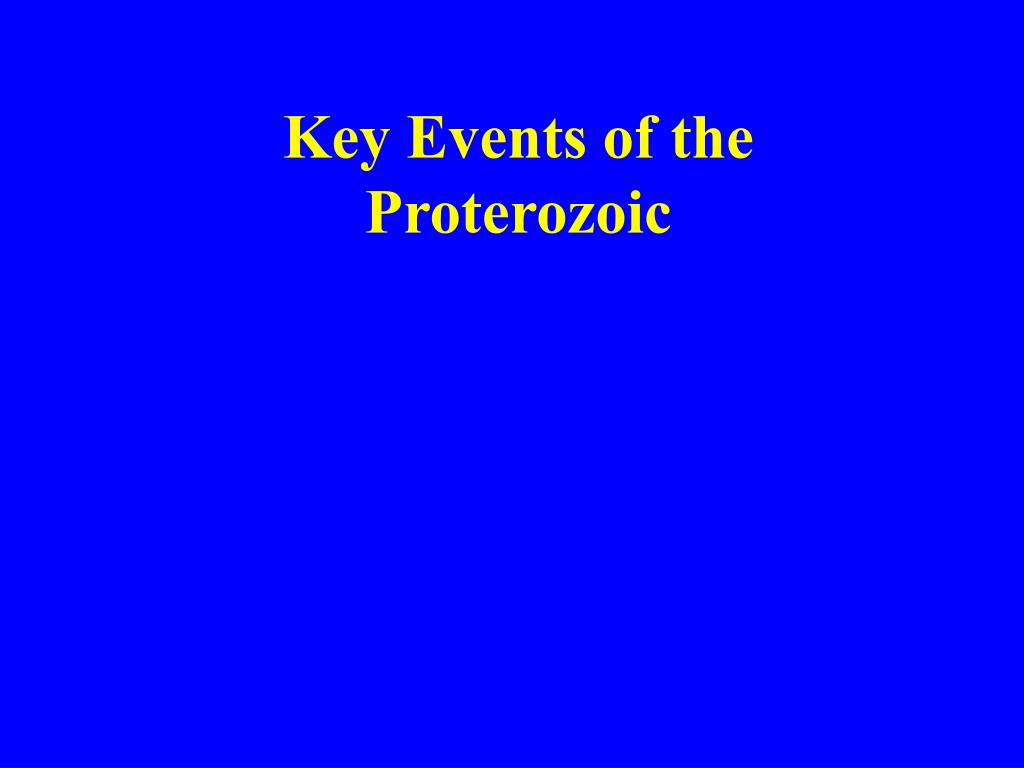

Key events of the proterozoic

Key Events of the Proterozoic


F03 01 pg29

f03_01_pg29

f03_01_pg29

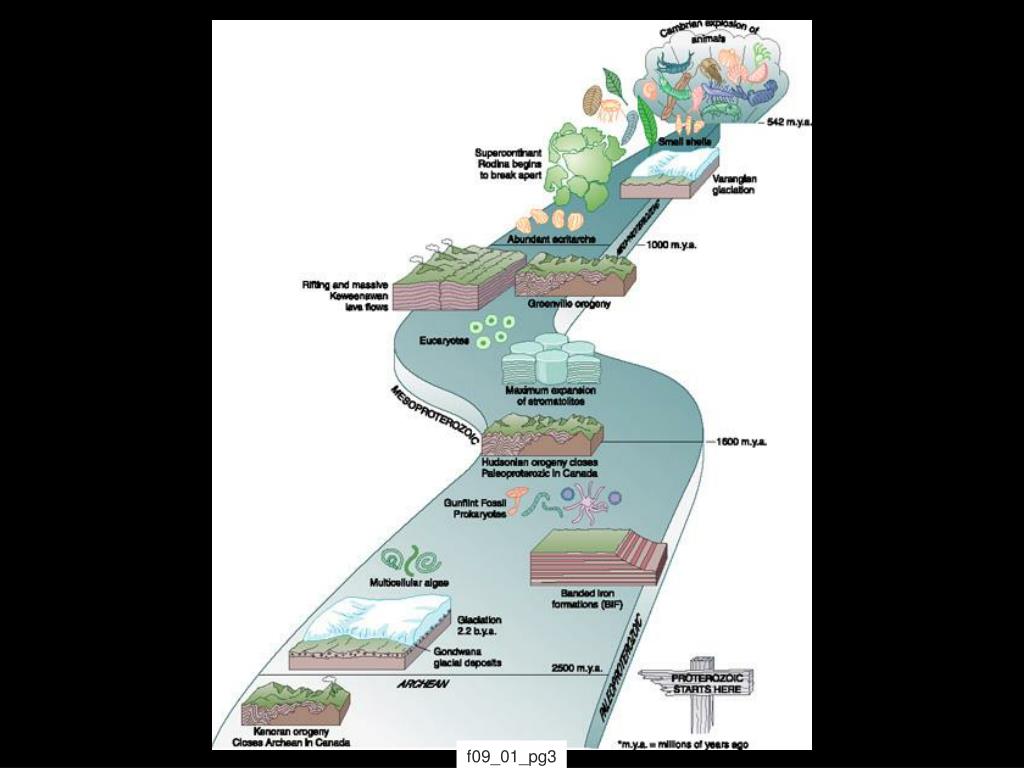

F09 01 pg3

f09_01_pg3

f09_01_pg3


Key events

Key Events

  • 2 Supercontinent Episodes

  • 3 Glacial Episodes (Snowball Earth)

  • Change from O2 Poor to O2 Rich

  • 2 Major Meteor Impacts

  • BIFs (Major Source of Iron)

  • Major Copper Deposits

  • Evolution of Life from One Cell to Multi-Cell


Proterozoic super continent episodes

Proterozoic Super Continent Episodes

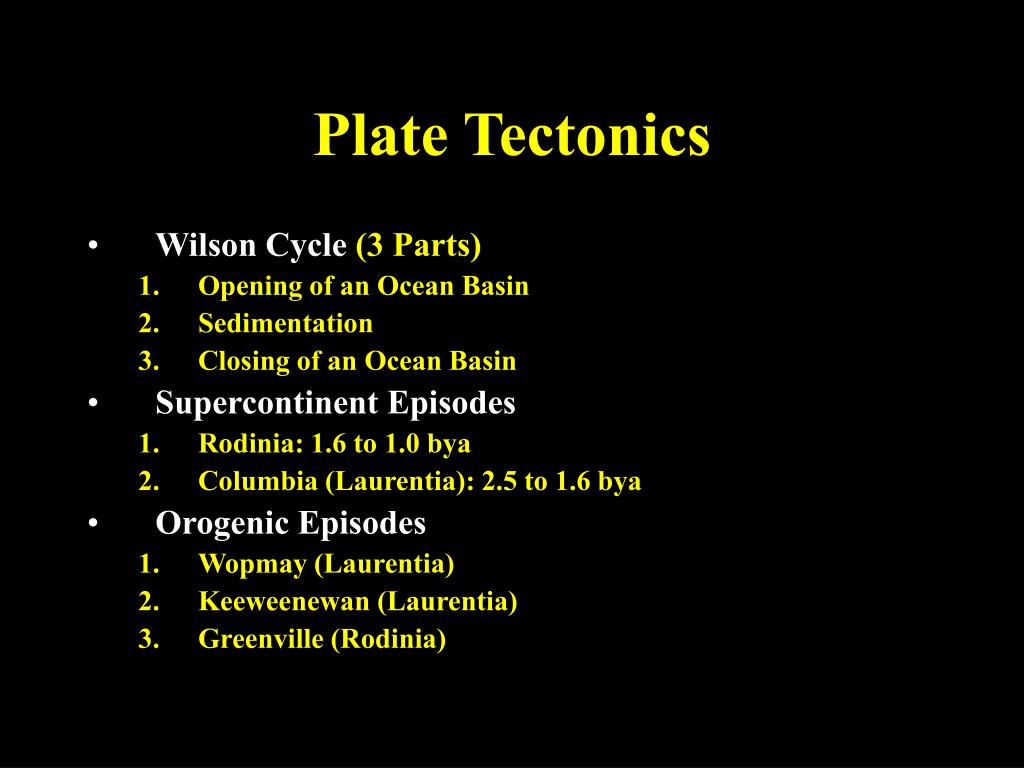

Plate tectonics

Plate Tectonics

  • Wilson Cycle (3 Parts)

    • Opening of an Ocean Basin

    • Sedimentation

    • Closing of an Ocean Basin

  • Supercontinent Episodes

    • Rodinia: 1.6 to 1.0 bya

    • Columbia (Laurentia): 2.5 to 1.6 bya

  • Orogenic Episodes

    • Wopmay (Laurentia)

    • Keeweenewan (Laurentia)

    • Greenville (Rodinia)


Proterozoic glaciation

Proterozoic Glaciation


Glaciation

Glaciation

Snowball Earth (635 – 750 MA)

  • Marinoan (635 – 700 MA)

  • Sturtian (700 – 750 MA)

  • Huronian (2.5 – 1.6 GA)

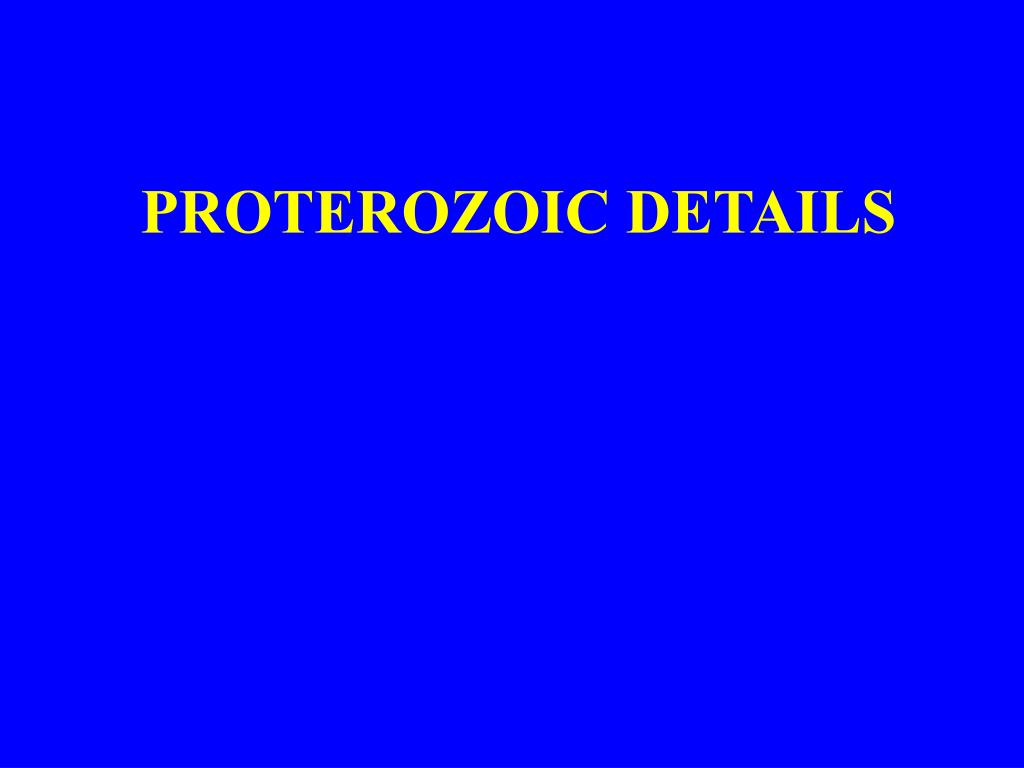

Proterozoic details

PROTEROZOIC DETAILS

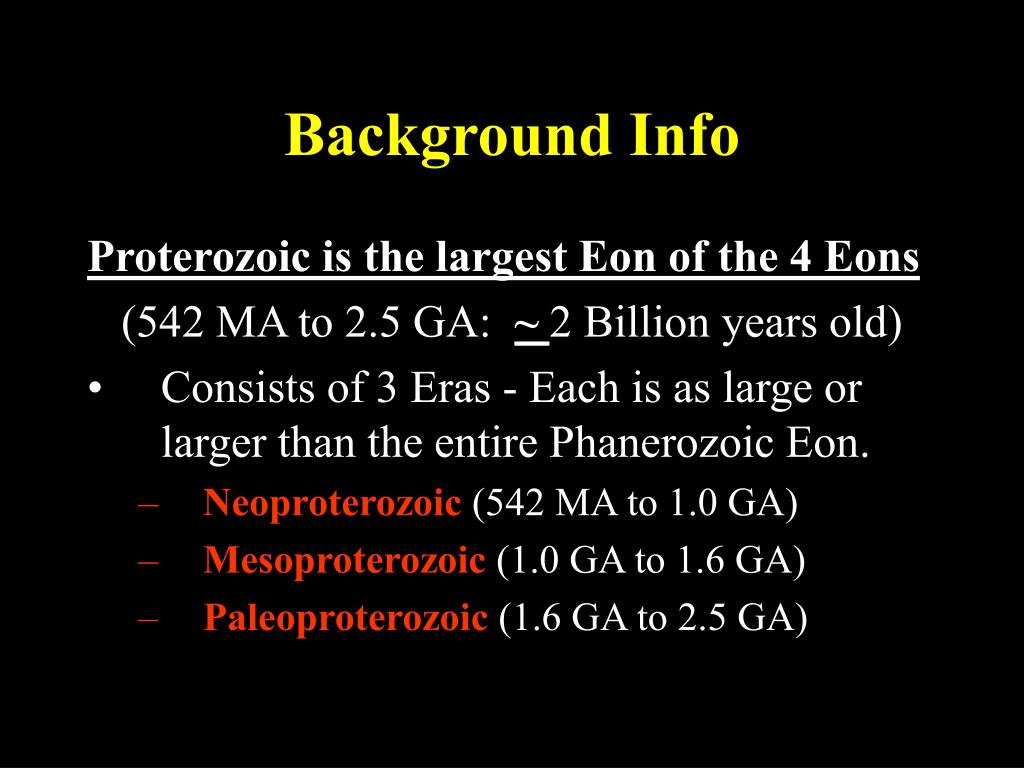

Background info

Background Info

Proterozoic is the largest Eon of the 4 Eons

(542 MA to 2.5 GA: ~ 2 Billion years old)

  • Consists of 3 Eras - Each is as large or larger than the entire Phanerozoic Eon.

    • Neoproterozoic (542 MA to 1.0 GA)

    • Mesoproterozoic (1.0 GA to 1.6 GA)

    • Paleoproterozoic (1.6 GA to 2.5 GA)

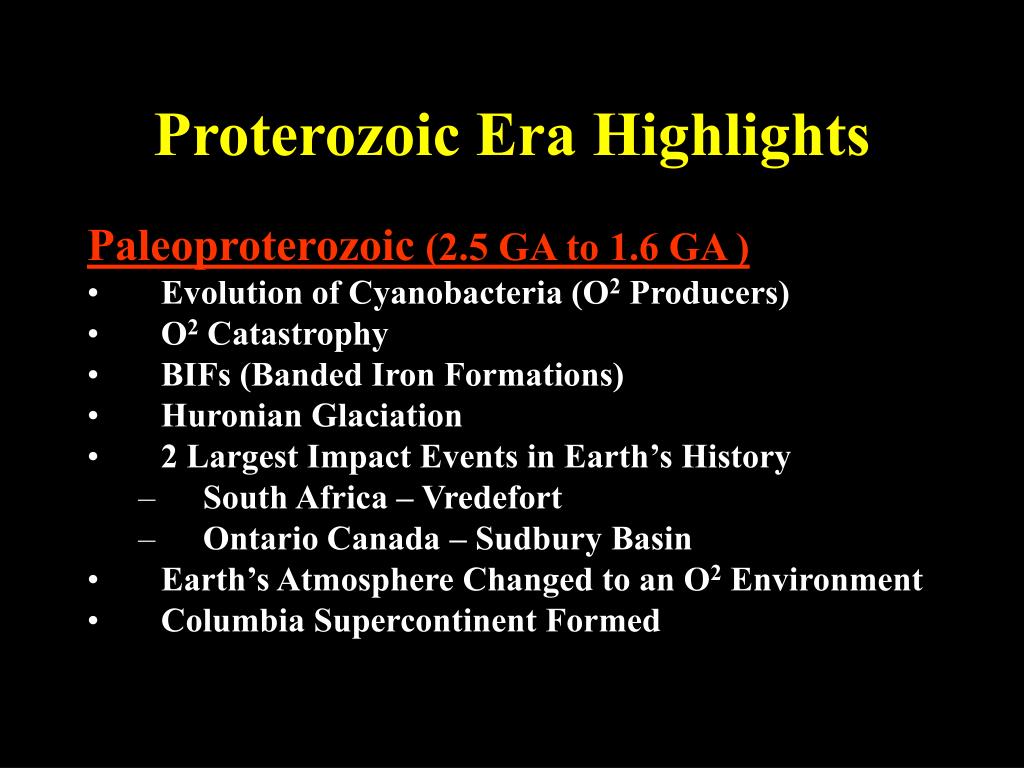

Proterozoic era highlights

Proterozoic Era Highlights

Paleoproterozoic (2.5 GA to 1.6 GA )

  • Evolution of Cyanobacteria (O2 Producers)

  • O2 Catastrophy

  • BIFs (Banded Iron Formations)

  • Huronian Glaciation

  • 2 Largest Impact Events in Earth’s History

    • South Africa – Vredefort

    • Ontario Canada – Sudbury Basin

  • Earth’s Atmosphere Changed to an O2 Environment

  • Columbia Supercontinent Formed


F09 05a pg7

f09_05a_pg7

f09_05a_pg7

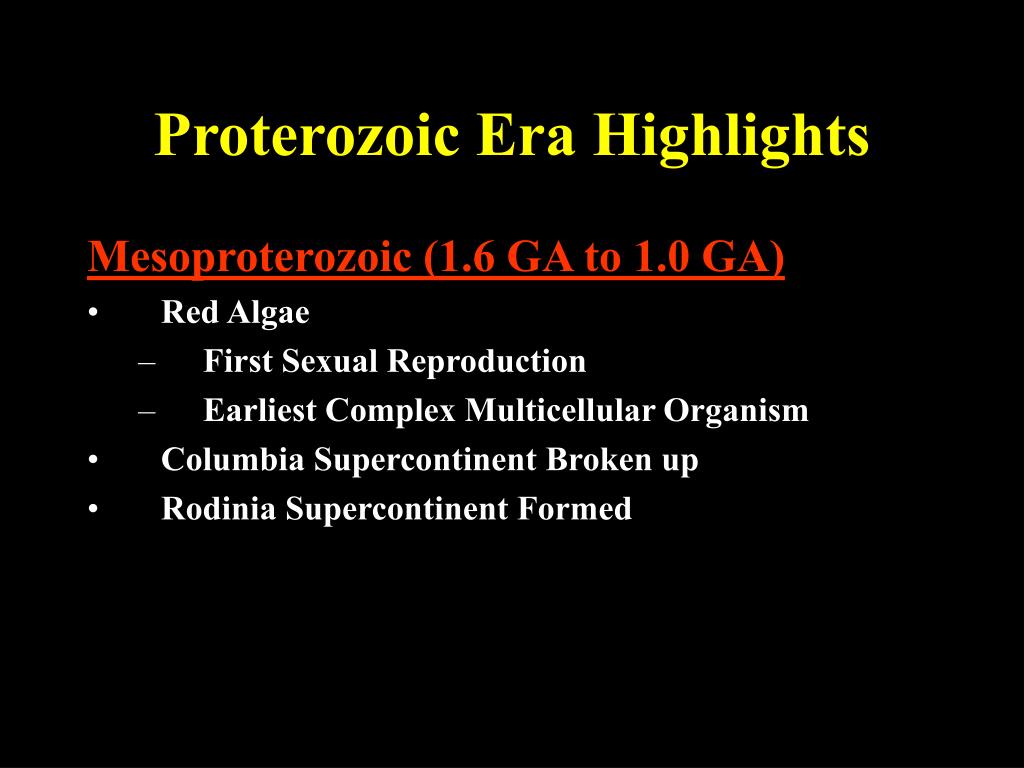

Proterozoic era highlights1

Proterozoic Era Highlights

Mesoproterozoic (1.6 GA to 1.0 GA)

  • Red Algae

    • First Sexual Reproduction

    • Earliest Complex Multicellular Organism

  • Columbia Supercontinent Broken up

  • Rodinia Supercontinent Formed


F09 10 pg10

f09_10_pg10

f09_10_pg10


Proterozoic era highlights2

Proterozoic Era Highlights

Neoproterozoic (1.0 GA to 542 MA)

  • Extreme Glaciation (Snowball Earth)

  • Earliest Multicellular Organisms (Ediacaren)

  • Break-up of Rodinia Supercontinent

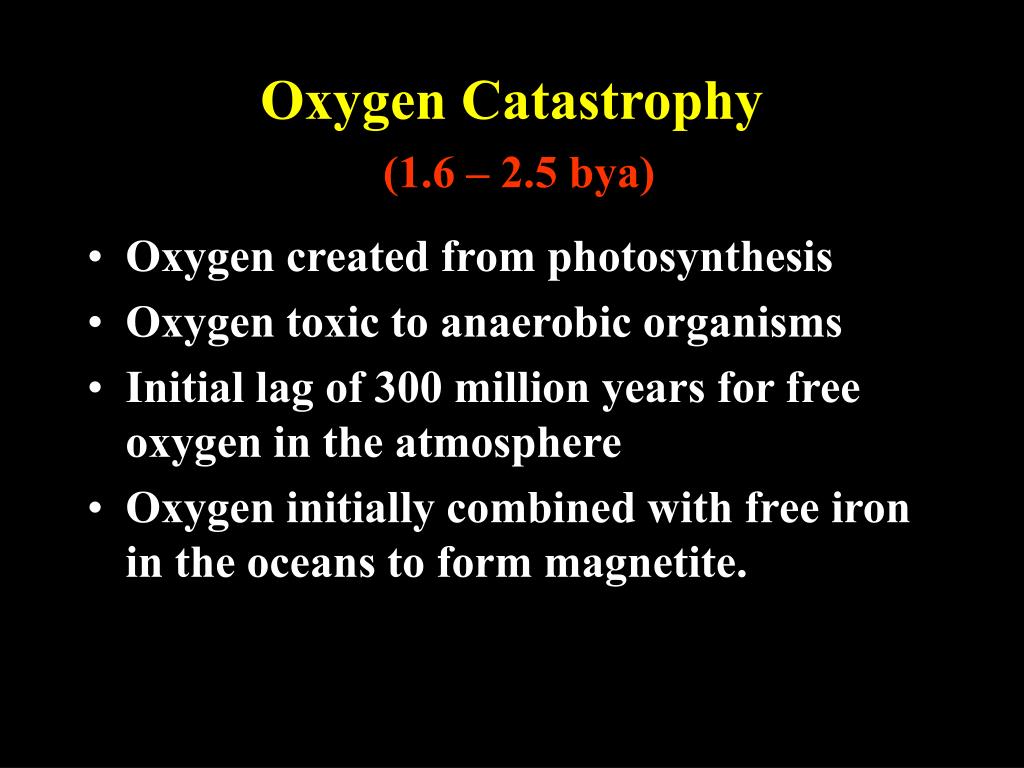

Oxygen catastrophy 1 6 2 5 bya

Oxygen Catastrophy(1.6 – 2.5 bya)

  • Oxygen created from photosynthesis

  • Oxygen toxic to anaerobic organisms

  • Initial lag of 300 million years for free oxygen in the atmosphere

  • Oxygen initially combined with free iron in the oceans to form magnetite.

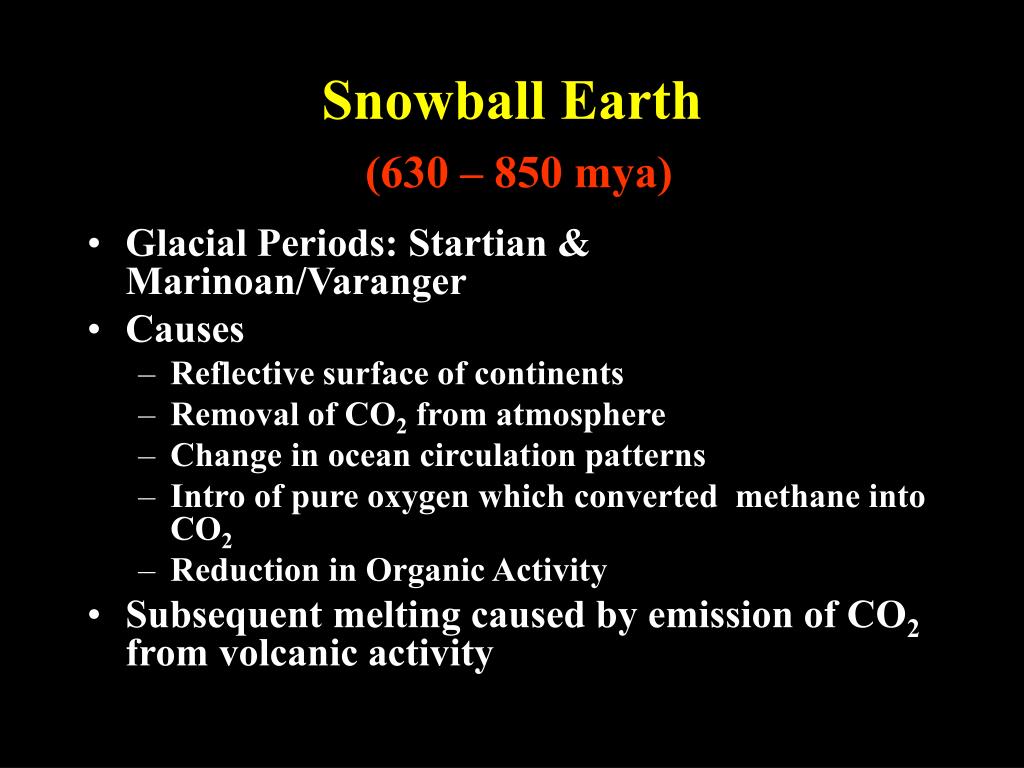

Snowball earth 630 850 mya

Snowball Earth(630 – 850 mya)

  • Glacial Periods: Startian & Marinoan/Varanger

  • Causes

    • Reflective surface of continents

    • Removal of CO2 from atmosphere

    • Change in ocean circulation patterns

    • Intro of pure oxygen which converted methane into CO2

    • Reduction in Organic Activity

  • Subsequent melting caused by emission of CO2 from volcanic activity


Gy 112 earth history

ICE THICKNESSES


Proterozoic life forms

Proterozoic Life Forms


Proterozoic life forms1

Proterozoic Life Forms


Proterozoic life forms2

Proterozoic Life Forms

  • Life Forms

    • Acritiarchs (Single Celled)

    • Ediacarens (Multi-Celled)

  • Evolutionary Development

    • From Prokaryotic to Eukaryotic

    • Onset of Sexual Reproduction

    • From Single Cell to Multi-Cell

    • Soft-Bodied to Shell Covering


Proterozoic life forms3

Proterozoic Life Forms

  • During the Archean, we saw the rise of the prokaryotes:

  • Small

  • No nucleus

  • DNA spread throughout the cell

  • Asexual reproduction

  • Could only be single-celled


Proterozoic life forms4

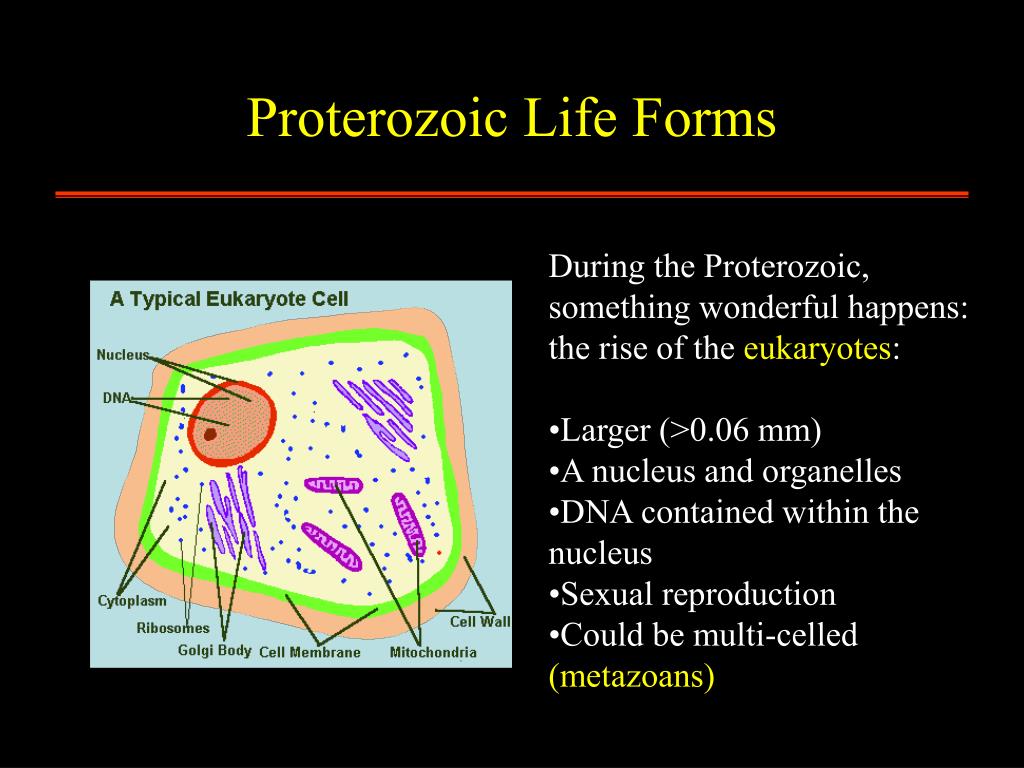

Proterozoic Life Forms

  • During the Proterozoic, something wonderful happens:

  • the rise of the eukaryotes:

  • Larger (>0.06 mm)

  • A nucleus and organelles

  • DNA contained within the nucleus

  • Sexual reproduction

  • Could be multi-celled (metazoans)


Proterozoic life forms5

Proterozoic Life Forms

The first eukaryotes appeared around 2 GA. Archritarchs were small, single celled silica beasties that floated in the oceans (pelagic). They peaked in abundance at 750 MA and then went away…

0.1mm


Proterozoic life forms6

Proterozoic Life Forms

… or did they? They might in fact be ancestors to equally small single celled organisms that are around today called dinoflaggelates.

0.1mm

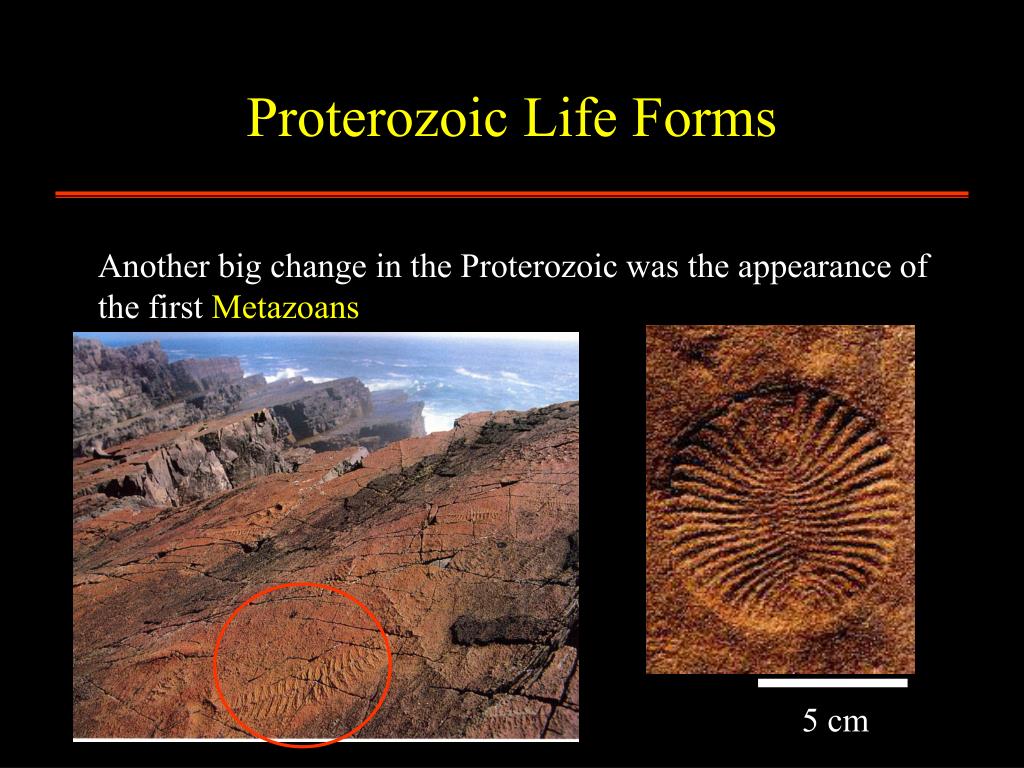

Proterozoic life forms7

Proterozoic Life Forms

Another big change in the Proterozoic was the appearance of the first Metazoans

5 cm


Proterozoic life forms8

Proterozoic Life Forms

They are known as the Ediacarin Fauna

http://www.snowballearth.org/end.html

http://www.cartage.org.lb/en/themes/Sciences


Proterozoic life forms9

Proterozoic Life Forms

They are known as the Ediacarin Fauna

And they are found around the world

http://www.snowballearth.org/end.html

http://www.cartage.org.lb/en/themes/Sciences

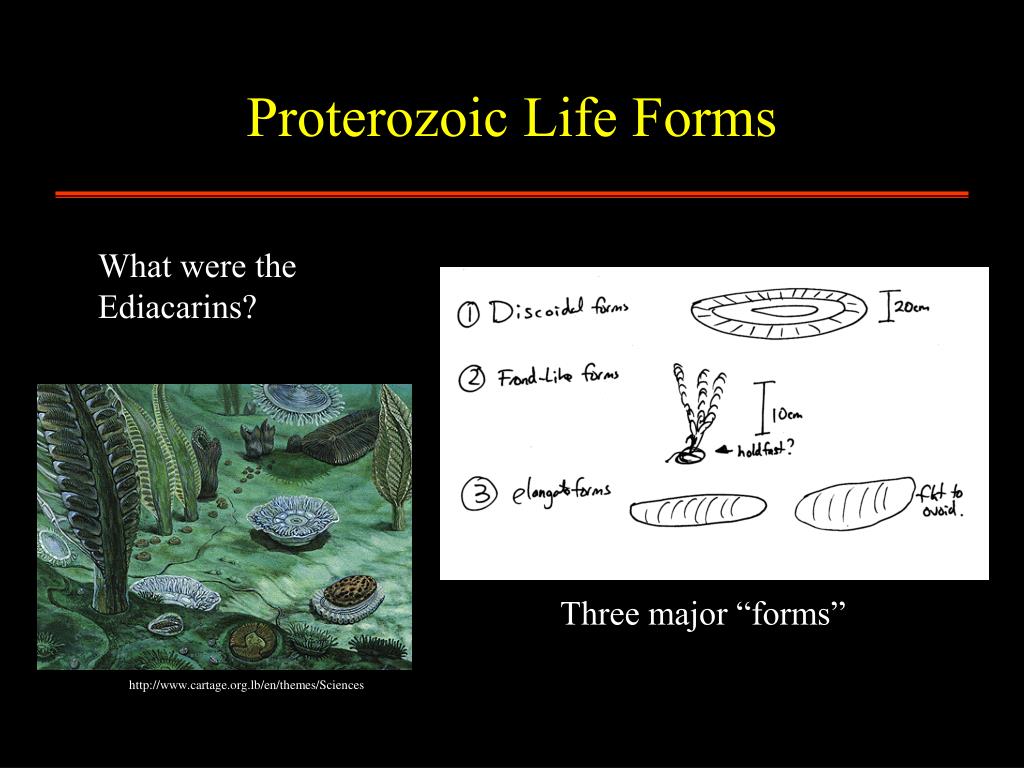

Proterozoic life forms10

Proterozoic Life Forms

What were the Ediacarins?

Three major “forms”

http://www.cartage.org.lb/en/themes/Sciences


Proterozoic life forms11

Proterozoic Life Forms

What happened to them?


Proterozoic life forms12

Proterozoic Life Forms

What happened to them?

1) a now extinct line of beasties


Proterozoic life forms13

Proterozoic Life Forms

What happened to them?

1) a now extinct line of beasties

2) ancestors to living phyla

Kimberella sp.

http://www.ucmp.berkeley.edu/vendian/kimberella.jpg

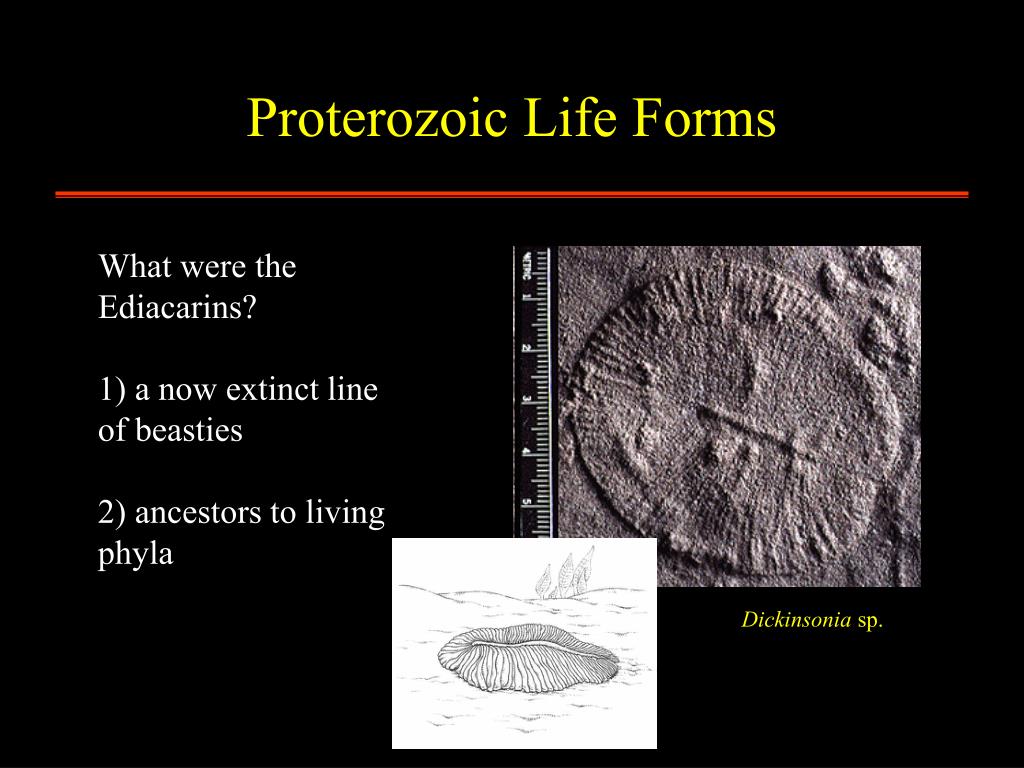

Proterozoic life forms14

Proterozoic Life Forms

What were the Ediacarins?

1) a now extinct line of beasties

2) ancestors to living phyla

Dickinsonia sp.


Proterozoic life forms15

Proterozoic Life Forms

Whatever they were, they “exploded” onto the scene immediately after the last Snowball Earth.

http://pharyngula.org/index/science/2004/08/


Evidence of proterozoic life

Evidence of Proterozoic Life


Evidence of proterozoic life1

Evidence of Proterozoic Life

Direct Evidence

Fossils

Trace Fossils

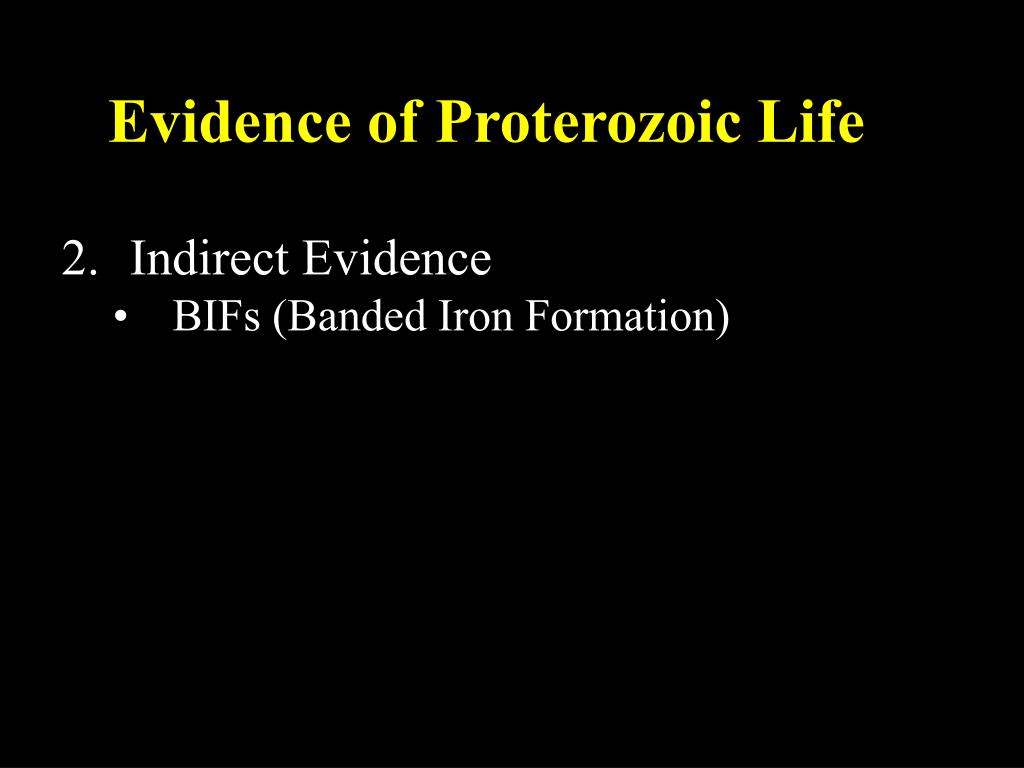

Evidence of proterozoic life2

Evidence of Proterozoic Life

Indirect Evidence

BIFs (Banded Iron Formation)


Factors affecting development of proterozoic life

Factors Affecting Development of Proterozoic Life


Proterozoic fossils

Proterozoic Fossils

Severe environmental changes drives evolutionary adaptation.

http://www.snowballearth.org/end.html

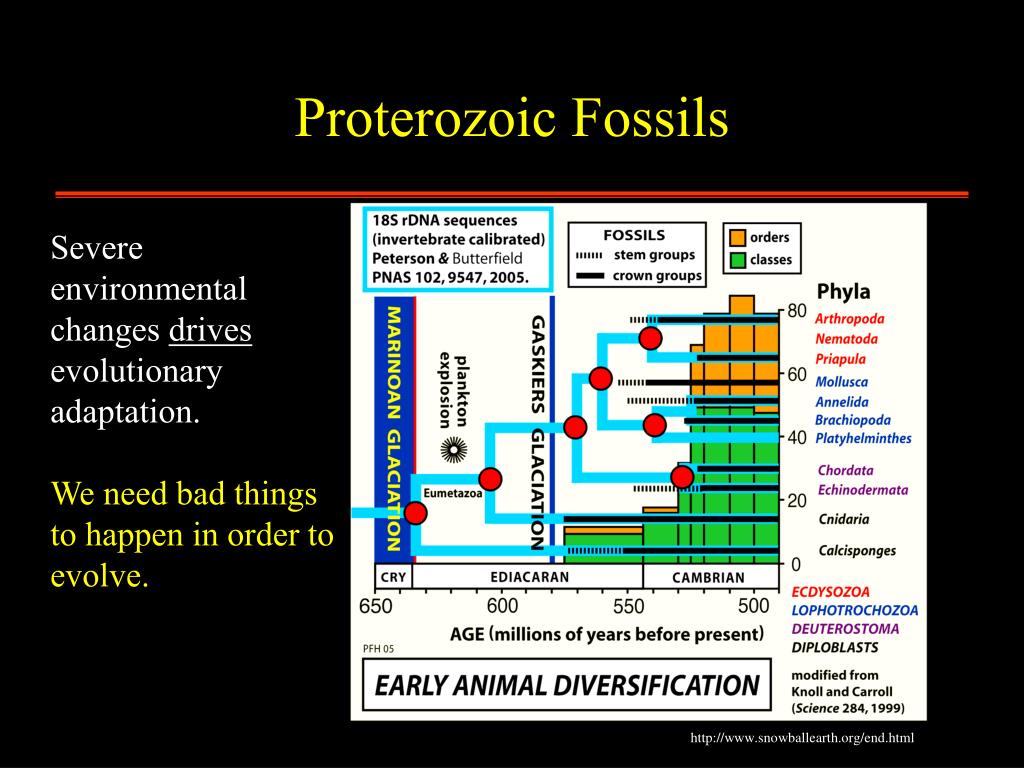

Proterozoic fossils1

Proterozoic Fossils

Severe environmental changes drives evolutionary adaptation.

We need bad things to happen in order to evolve.

http://www.snowballearth.org/end.html


Factors affecting development of proterozoic life1

Factors Affecting Development of Proterozoic Life

Terrestrial

Atmospheric Changes

Climate

Geography


Gy 112 earth history

Factors Affecting Development of Proterozoic Life

“Atmospheric Changes”


Gy 112 earth history

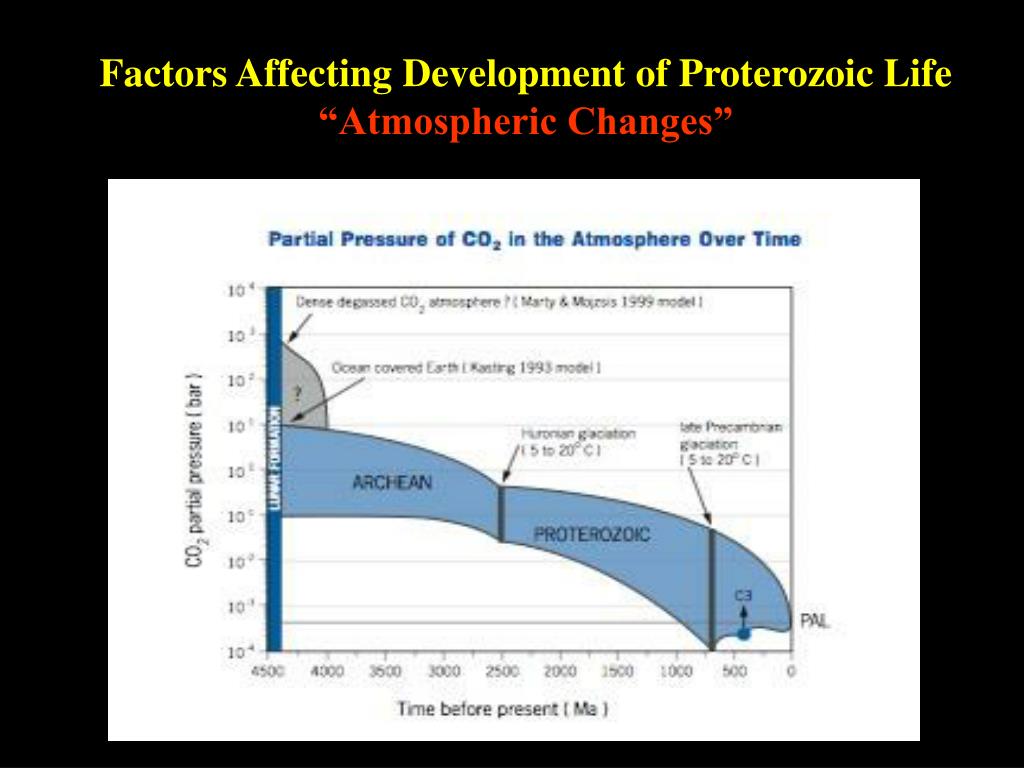

Factors Affecting Development of Proterozoic Life

“Atmospheric Changes”


Gy 112 earth history

Factors Affecting Development of Proterozoic Life

“Climatic Changes”

We now recognize three major Earth phases

1) Greenhouse Earth

(no continental glaciers present)

2) Icehouse Earth

(continental glaciers present)

3) Snowball Earth

(Frozen oceans at equator)

http://www.snowballearth.org/end.html

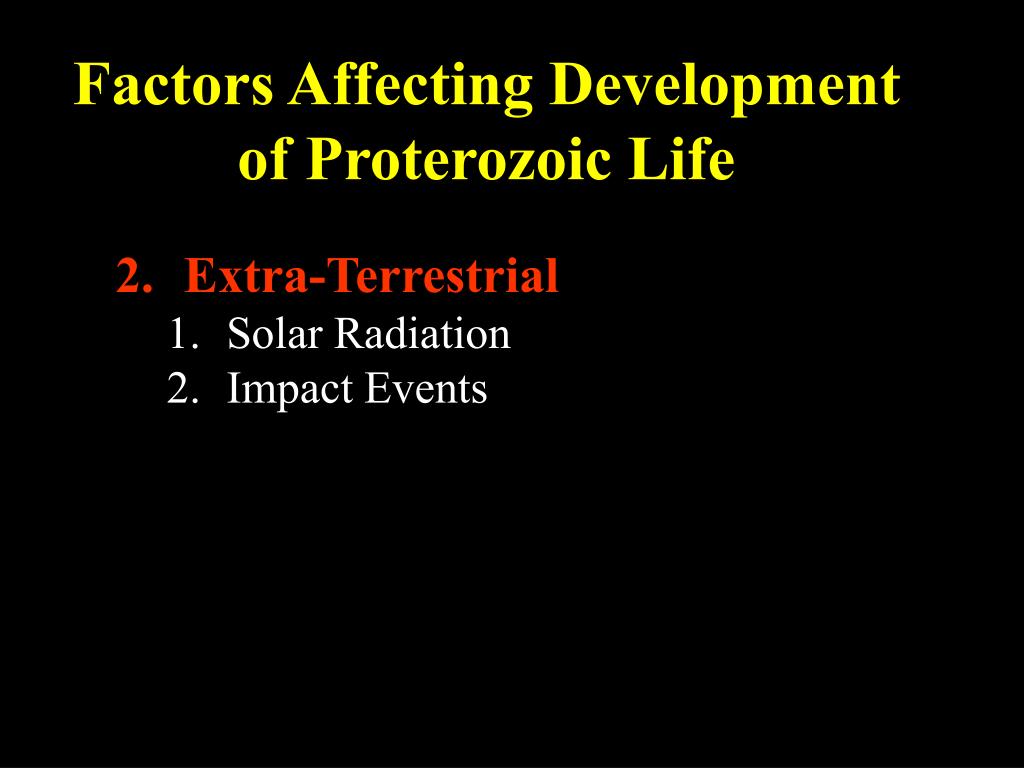

Factors affecting development of proterozoic life2

Factors Affecting Development of Proterozoic Life

Extra-Terrestrial

Solar Radiation

Impact Events

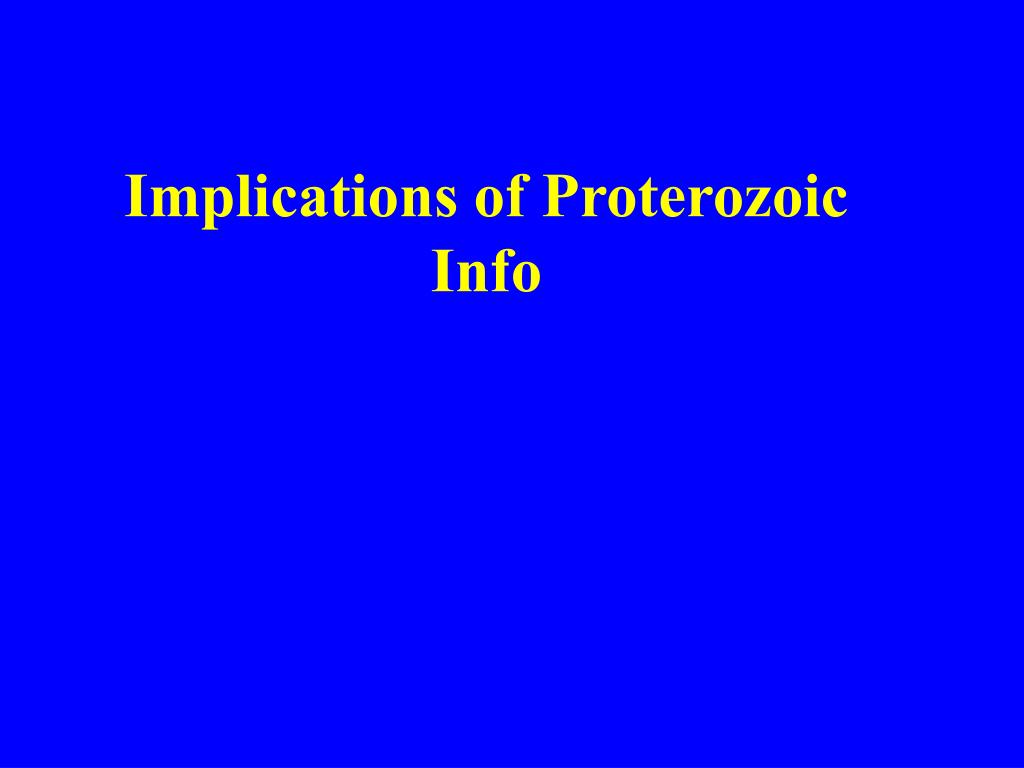

Implications of proterozoic info

Implications of Proterozoic Info


Implications of proterozoic info1

Implications of Proterozoic Info

Ediacarin Evolutionary Development

Diversity of Life

Present Day Global Warming


The end

THE END
