Digital IP Addressable Network Audio System for Train Station

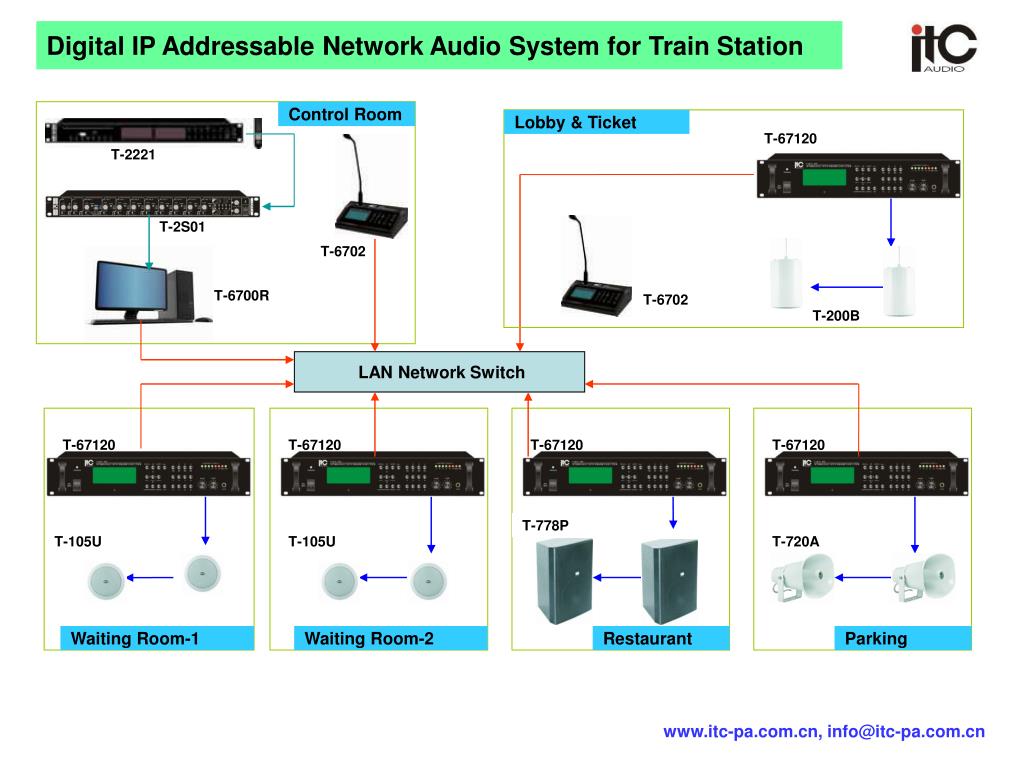

Digital IP Addressable Network Audio System for Train Station. Control Room. Lobby & Ticket. T-67120. T-2221. T-2S01. T-6702. T-6700R. T-6702. T- 200B. LAN Network Switch. T-67120. T-67120. T-67120. T-67120. T- 778P. T- 105U. T- 105U. T- 720A. Waiting Room -1.

olympia-kirkland
Download Presentation

Digital IP Addressable Network Audio System for Train Station

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Digital IP Addressable Network Audio System for Train Station Control Room Lobby & Ticket T-67120 T-2221 T-2S01 T-6702 T-6700R T-6702 T-200B LAN Network Switch T-67120 T-67120 T-67120 T-67120 T-778P T-105U T-105U T-720A Waiting Room-1 Waiting Room-2 Restaurant Parking www.itc-pa.com.cn, info@itc-pa.com.cn

  2. Digital IP Addressable Network Audio System for Metro Station www.itc-pa.com.cn, info@itc-pa.com.cn

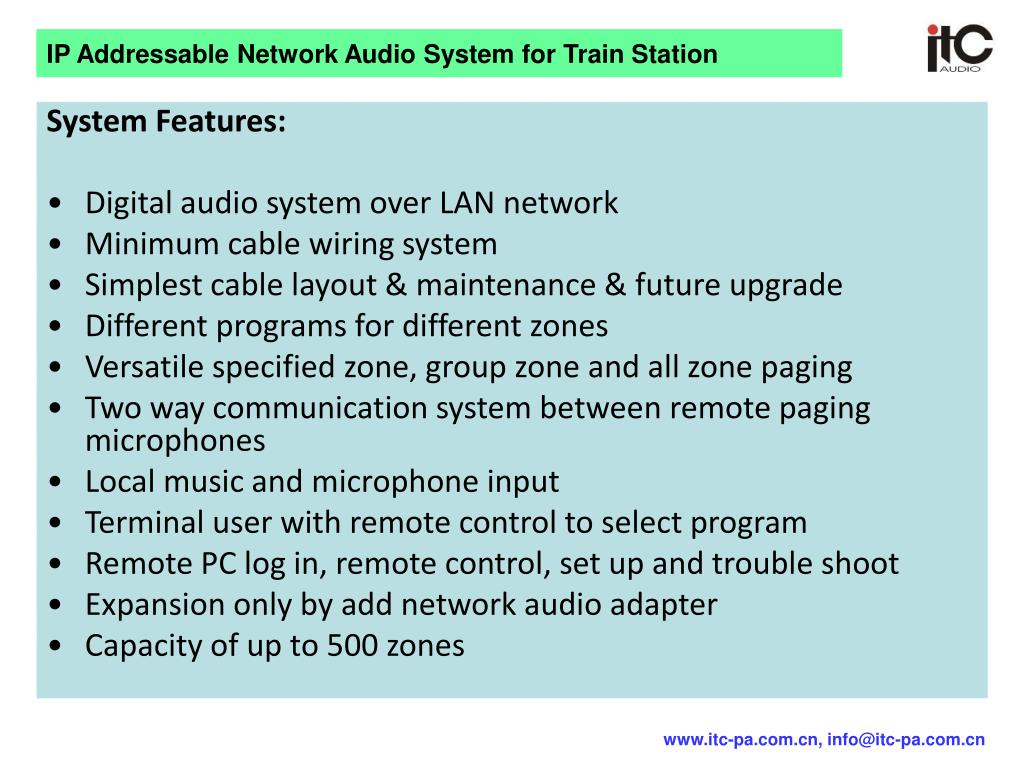

  3. IP Addressable Network Audio System for Train Station System Features: • Digital audio system over LAN network • Minimum cable wiring system • Simplest cable layout & maintenance & future upgrade • Different programs for different zones • Versatile specified zone, group zone and all zone paging • Two way communication system between remote paging microphones • Local music and microphone input • Terminal user with remote control to select program • Remote PC log in, remote control, set up and trouble shoot • Expansion only by add network audio adapter • Capacity of up to 500 zones www.itc-pa.com.cn, info@itc-pa.com.cn

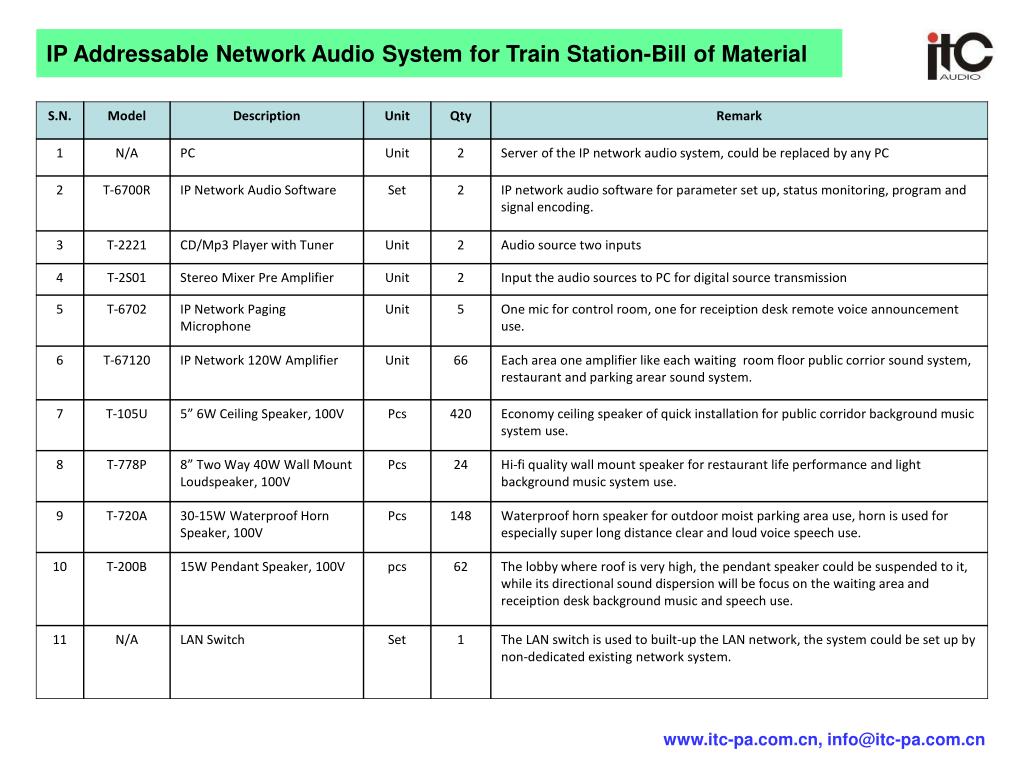

  4. IP Addressable Network Audio System for Train Station-Bill of Material www.itc-pa.com.cn, info@itc-pa.com.cn

  5. Digital IP Network Audio System for CRH3 in Beijing Tianjin Intercity Railway • The Beijing–Tianjin Intercity Railway is a high-speed rail, passenger-only line between Beijing and Tianjin in China. The 117 km line was built to accommodate trains traveling at a maximum speed of 350 km/h (217 mph), and currently carries CRH high-speed trains running speeds up to 330 km/h (205 mph). When the line opened on August 1, 2008, it set the record for the fastest conventional train service in the world by top speed, and reduced travel time between the two largest cities in northern China from 70 to 30 minutes • Our ITC Network audio system had been successfully installed to manage and control the background music system and deliver network speech or paging system to every stop and digital voice evacuation system for security and fire alarm use. • System features: 1) Most advanced IP/TCP network audio streaming technology; 2) Minimum cost of speaker cable and cable layout labor; 3) Versatile music programs to different areas at the same time; 4) Remote system status monitoring and maintenance; 5) High integration of audio streaming decoder & amplifier together www.itc-pa.com.cn, info@itc-pa.com.cn

  6. IP Network Audio System Software-T-6700R • Compatible with Windows 2000, Windows XP and Windows 7 system • Full duplex communication system software • Compatible of network audio system and intercom two systems • Standard TCP/IP communication protocol for industrial applications • Parameters set up center and administrator management center • Built-in decoder to transfer analog signal through sound card into digital • Head of the network audio system • Collect and delivery sound over the internet • Built-in weekly timer to program over music or sound files to automatically broadcast to designated zone at pre-set time • Built-in system status display to surveillance each unit is working conditions • Direct manual selected priority music broadcast or zone paging • License code registration software • Password protection to change configuration and log in • Remote set up and easy maintenance • Support more than 1,00 tasks transmitted simultaneously • Nine priority levels for different users • Customized-mapped connection diagram is available • Easy to inter-work with third party system like CCTV, door access system and home automation system www.itc-pa.com.cn, info@itc-pa.com.cn

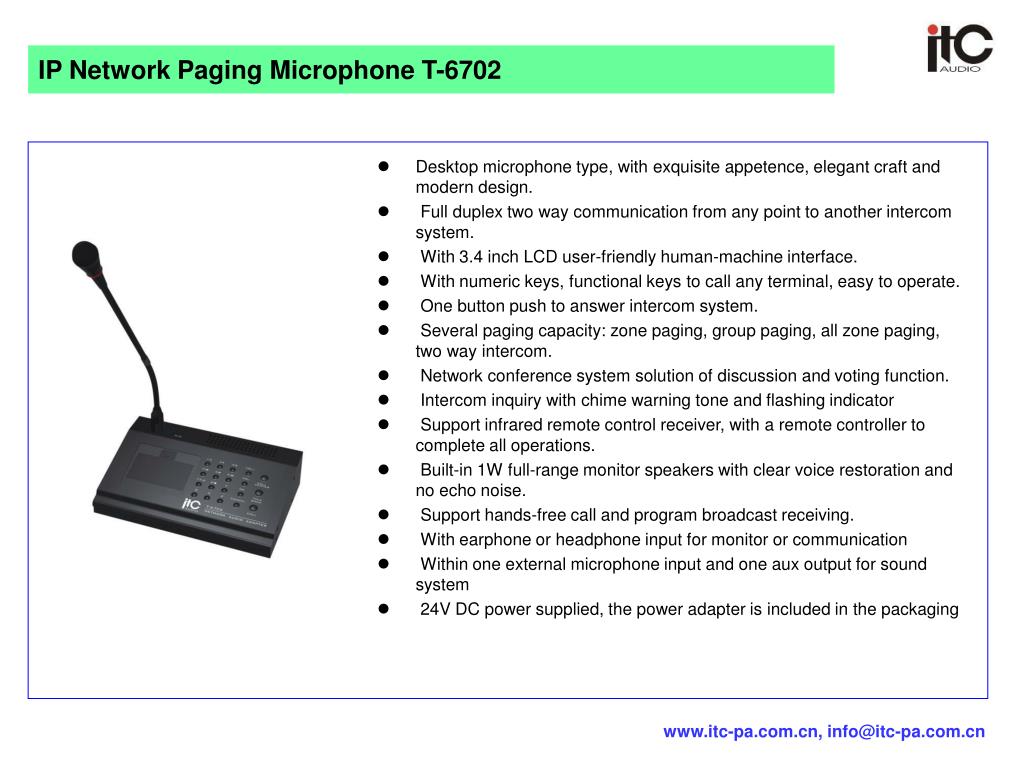

  7. IP Network Paging Microphone T-6702 • Desktop microphone type, with exquisite appetence, elegant craft and modern design. • Full duplex two way communication from any point to another intercom system. • With 3.4 inch LCD user-friendly human-machine interface. • With numeric keys, functional keys to call any terminal, easy to operate. • One button push to answer intercom system. • Several paging capacity: zone paging, group paging, all zone paging, two way intercom. • Network conference system solution of discussion and voting function. • Intercom inquiry with chime warning tone and flashing indicator • Support infrared remote control receiver, with a remote controller to complete all operations. • Built-in 1W full-range monitor speakers with clear voice restoration and no echo noise. • Support hands-free call and program broadcast receiving. • With earphone or headphone input for monitor or communication • Within one external microphone input and one aux output for sound system • 24V DC power supplied, the power adapter is included in the packaging www.itc-pa.com.cn, info@itc-pa.com.cn

  8. IP Network Amplifier 120 Watts- T-67120 • IP network audio adapter built-in 120W amplifier • Direct to receive internet audio source and transmit to 70V, 100V and low impedance loudspeakers. • Non-dedicated network system solution. • Could be installed anywhere of the LAN network. • Economy network audio solution for multiple speaker applications. • With 5 inch LCD screen humanized operation interface. • Zone definition is done through software, each network audio adapter could be regard as one zone, or several audio adapters could be taken as one zone, moreover, several zones could be defined as group for synchronous operation. • One Aux input and one local microphone input, both with volume control. • A remote control over IP address change and write in, volume control and local program selection from server. • Voice evacuation system with higher priority and local input with secondary priority. Moreover, the local input and program source priority could be customized. www.itc-pa.com.cn, info@itc-pa.com.cn

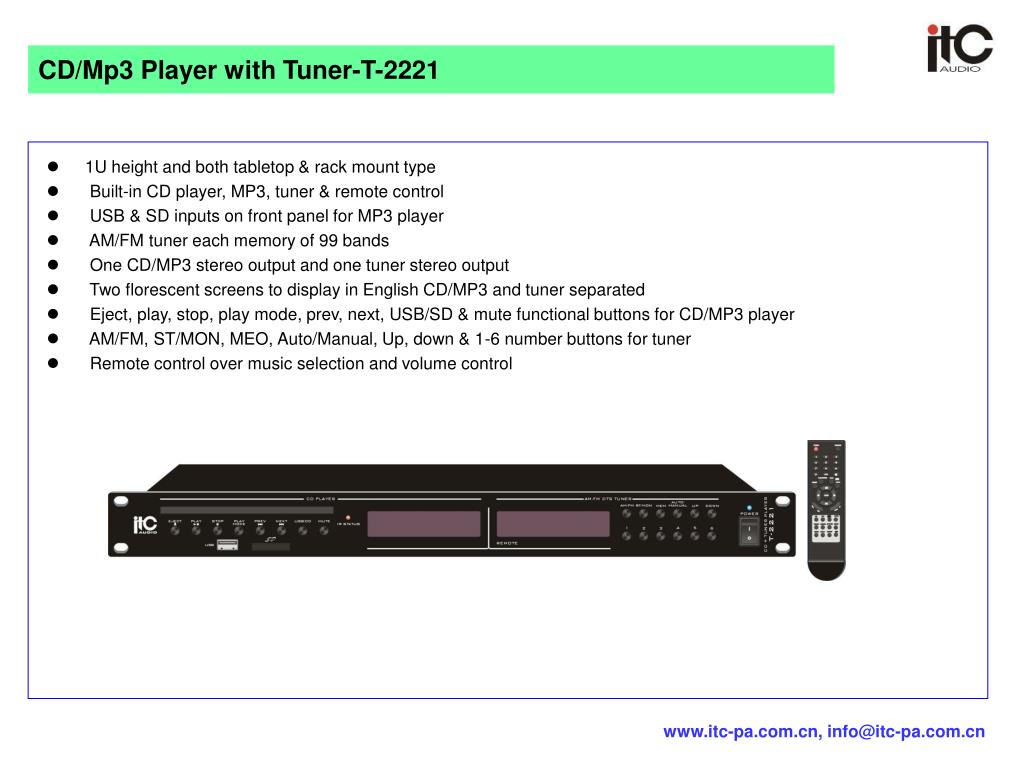

  9. CD/Mp3 Player with Tuner-T-2221 • 1U height and both tabletop & rack mount type • Built-in CD player, MP3, tuner & remote control • USB & SD inputs on front panel for MP3 player • AM/FM tuner each memory of 99 bands • One CD/MP3 stereo output and one tuner stereo output • Two florescent screens to display in English CD/MP3 and tuner separated • Eject, play, stop, play mode, prev, next, USB/SD & mute functional buttons for CD/MP3 player • AM/FM, ST/MON, MEO, Auto/Manual, Up, down & 1-6 number buttons for tuner • Remote control over music selection and volume control www.itc-pa.com.cn, info@itc-pa.com.cn

  10. Stereo Mixer Pre Amplifier-T-2S01 • 2 channel mixer of 10 inputs • Remote paging console T-319 as mic 1 with highest input priority • Mic 2-4 with VOX selector over inputs 5-10 and phantom power • All the 10 inputs with mic, line and high pass filtering selector • Inputs 7-10 either by XLR mic inputs or by dual RCA line inputs • Dual channel XLR line outputs • All inputs include inputs1-10, MIC (remote paging console T-319), chime could be selected to have channel1, channel 2 and channel 1+2 outputs. • Built-in 2/4 tone pre-set chime, remote chime trigger and local trigger on front panel • Volume controls are provided over chime, MIC1, inputs 2-10, channel 1 and channel 2 masters. Bass and treble tone control are provided for both channel 1 and channel 2. • Indicators for input 1-10, power and 2 channel level meters • AC 110 or 230V and DC 24V operation www.itc-pa.com.cn, info@itc-pa.com.cn

  11. Ceiling Speaker-T-105U • Built-in 100v/70v transformer • In-ceiling type loudspeaker • 5” speaker unit • Power taps 1.5W, 3W & 6W @100V • Metal grille & ABS baffle • Paint in RAL9016 white • Power Taps @100V 1.5W, 3W, 6W • Power Taps @70V 0.75W, 1.5W, 3W • Impedance Black:Com Red:6.7KΩ Green:3.3KΩ White:1.7KΩ • SPL(1W/1M) 89dB • Max.SPL (Rated W/1M) 96dB • Frequency Response (-10dB) 80-16KHz • Finish Baffle:ABS, White Grille:Steel, White • Speaker Driver 5" ×1 • Cutout Size 145mm • Dimensions 170 ×80mm • Weight 0.75Kg • Mounting Spring-clip www.itc-pa.com.cn, info@itc-pa.com.cn

  12. Waterproof Horn Speaker-T-720A • Built-in 100v/70v transformer • Waterproof projector type loudspeaker • IP66 waterproof level • Power taps15w-30w @100V • ABS enclosure and metal bracket • Power Taps @100V 30W, 15W • Power Taps @70V 15W, 7.5W • Impedance Black: Com White:330KΩ Green:670Ω • SPL(1W/1M) 103dB ±3dB • Max.SPL (Rated W/1M) 118dB • Frequency Response (-10dB) 300-13KHz • Finish Baffle: ABS, White • IP Rate IP ×6 • Dimensions 282×210×290mm • Weight 2.1Kg • Mounting With mounting bracket fixed by screw www.itc-pa.com.cn, info@itc-pa.com.cn

  13. Wall Mount Speaker-T-778P • Built-in 100v/70v transformer • Wall mount type loudspeaker • 8” +2” two ways speaker unit • Power taps 5w-10w-20w-40w-80w @100V • Metal grille, ABS enclosure and stainless mounting kit • Power Taps @100V 5W, 10W, 20W, 40W, 80W • Power Taps @70V 2.5W, 5W, 10W, 20W, 40W • Impedance Balck: Com Red: 2KΩ/1KΩ/500Ω/250Ω/125Ω • SPL(1W/1M) 94dB • Max.SPL (Rated W/1M) 113dB • Frequency Response (-10dB) 100-17KHz • Finish Baffle: ABS, Black/White Grille: Steel, Black/White • Speaker Driver 8" ×1 2" ×1 • Dimensions 280×225×375mm • Weight 6.2Kg • Mounting With mounting bracket fixed by screw www.itc-pa.com.cn, info@itc-pa.com.cn

  14. Pendant Speaker-T-200B • Built-in 100v/70v transformer • Pendant type loudspeaker • 6” full range speaker driver • Power taps at 3.75w-7.5w-15w @100V • Aluminum enclosure & metal grille of white color • Power Taps @100V 15W, 7.5W, 3.75W • Power Taps @70V 7.5W, 3.75W, 1.85W • Impedance Yellow: 1.3KΩ Red:670KΩ Green: 2.6KΩ • SPL(1W/1M) 92dB • Max. SPL (Rated W/1M) 104dB • Frequency Response (-10dB) 150—14KHz • Finish Baffle: Aluminum, White Grille: Aluminum, White • Speaker Driver 6" ×1 • Dimensions 172×250mm • Weight 2.6Kg • Mounting With mounting bracket fixed by screw www.itc-pa.com.cn, info@itc-pa.com.cn
