Chapter 14 introduction to the standard template library

Chapter 14 Introduction to the Standard Template Library

§14.1 Introduction

§14.2 Containers

§14.3 Iterators

§14.4 Algorithms

§14.5 Function Objects


14 1 introduction

§14.1 Introduction

  • Standard Template Library (STL) 标准模板库

    • A software library included in the C++ Standard Library

  • Purpose

    • To standardize commonly used components

  • History

    • Originally developed by Alexander Stepanov in 1980s

    • Accepted as part of C++ standard in Feb. 1994


Components of stl

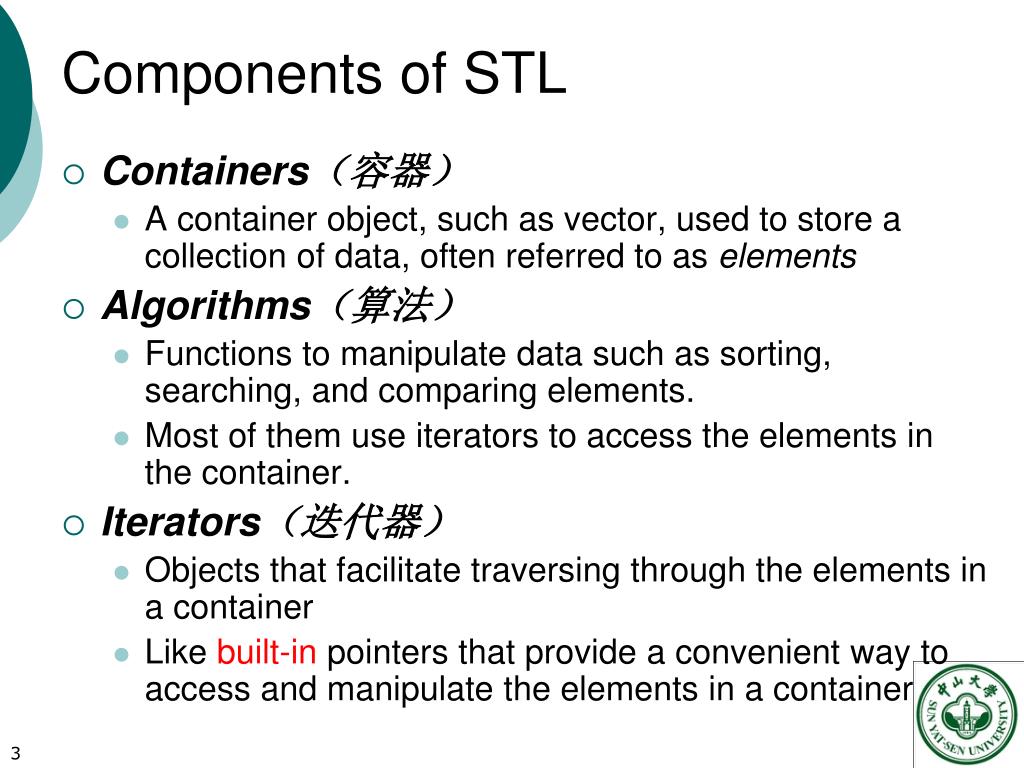

Components of STL

  • Containers(容器)

    • A container object, such as vector, used to store a collection of data, often referred to as elements

  • Algorithms(算法)

    • Functions to manipulate data such as sorting, searching, and comparing elements.

    • Most of them use iterators to access the elements in the container.

  • Iterators(迭代器)

    • Objects that facilitate traversing through the elements in a container

    • Like built-in pointers that provide a convenient way to access and manipulate the elements in a container


Components of stl1

Components of STL

Algorithm 1

Algorithm 2

Object 1

Object 2

Iterator 2

Iterator 1

Container

Object 3

Iterator 3

Algorithm 3


14 2 containers

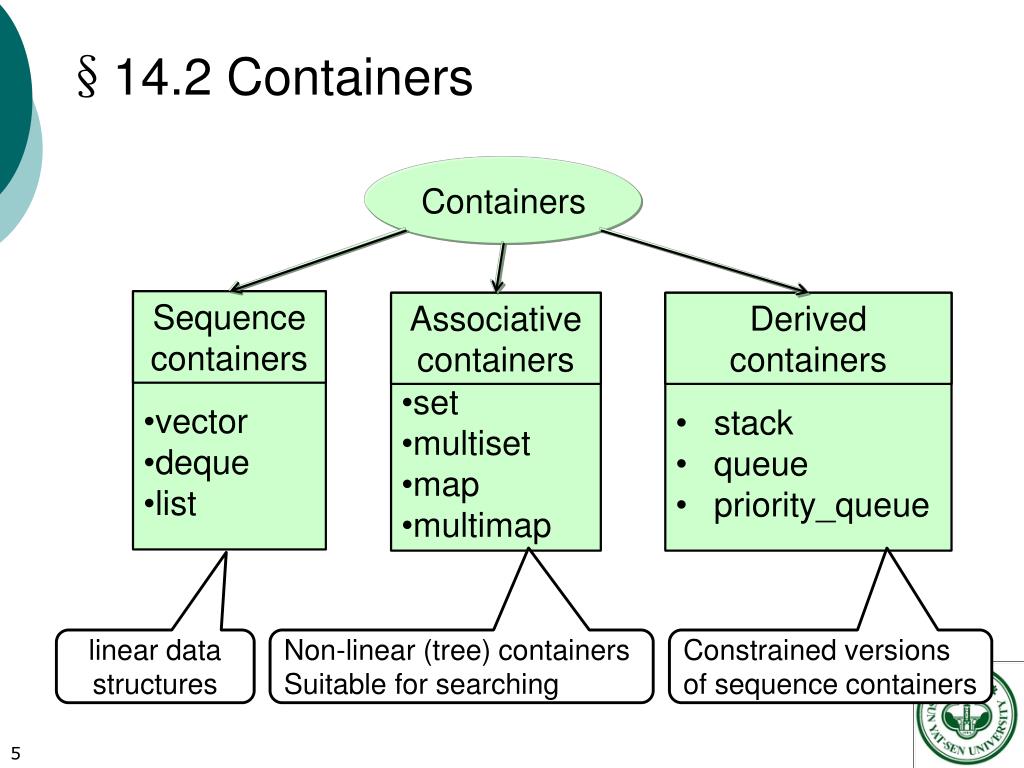

§14.2 Containers

Containers

  • vector

  • deque

  • list

Sequence containers

  • set

  • multiset

  • map

  • multimap

Associative containers

  • stack

  • queue

  • priority_queue

Derived containers

linear data structures

Non-linear (tree) containers

Suitable for searching

  • Constrained versions of sequence containers


Sequence containers

Sequence Containers

  • Represent linear data structures

  • Three sequence containers

    • vector 向量, list 表, and deque 双端队列

  • Differ only in performance

Element 0

Last Element

Element 2

Element 1

iterator

Begin()

end()

int values[] = {1, 2, 3, 4 };

list<int> intList(values, values + 4);


Sequence containers1

Sequence Containers


Associative containers

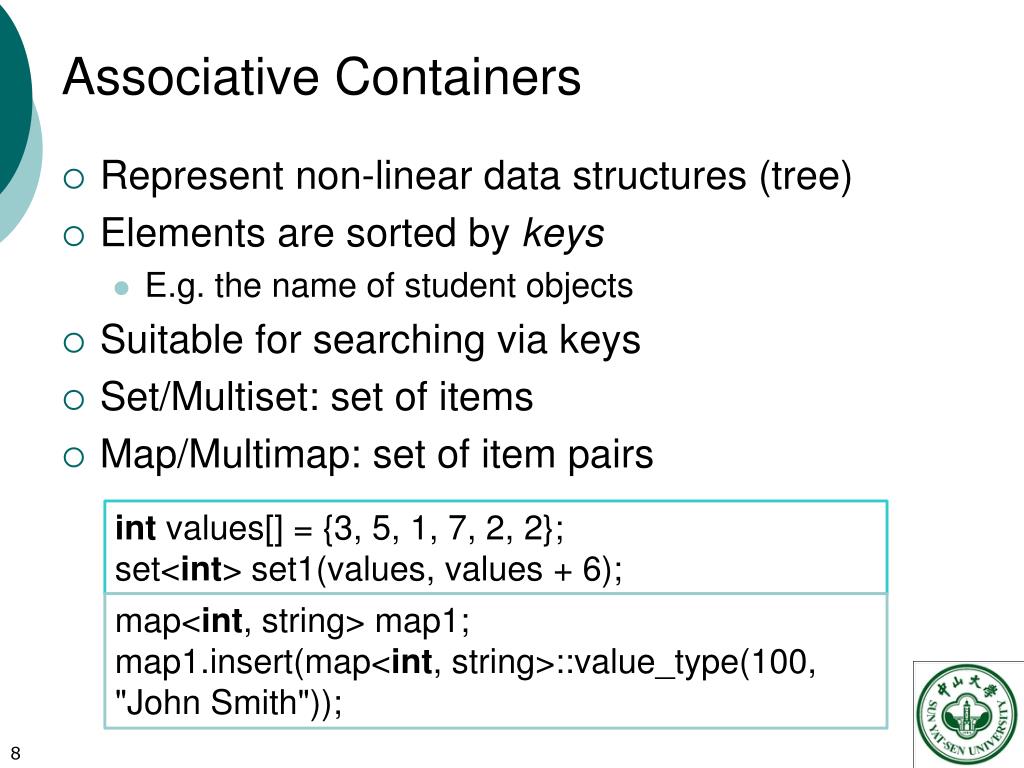

Associative Containers

  • Represent non-linear data structures (tree)

  • Elements are sorted by keys

    • E.g. the name of student objects

  • Suitable for searching via keys

  • Set/Multiset: set of items

  • Map/Multimap: set of item pairs

int values[] = {3, 5, 1, 7, 2, 2};

set<int> set1(values, values + 6);

map<int, string> map1;

map1.insert(map<int, string>::value_type(100, "John Smith"));


Derived containers

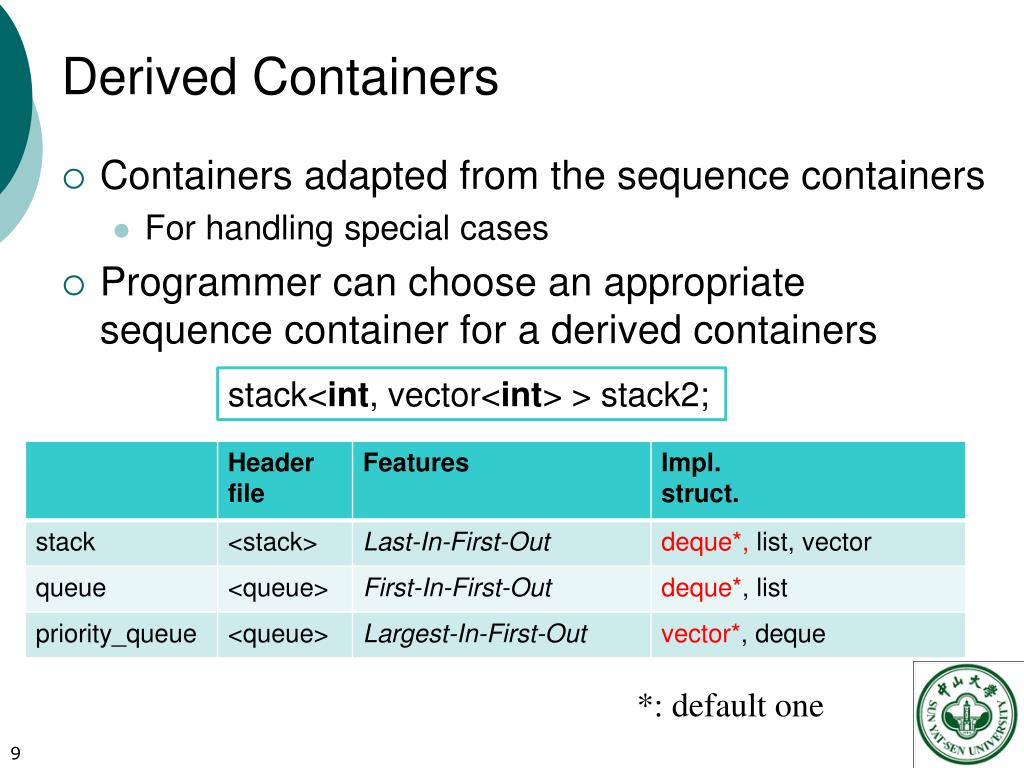

Derived Containers

  • Containers adapted from the sequence containers

    • For handling special cases

  • Programmer can choose an appropriate sequence container for a derived containers

stack<int, vector<int> > stack2;

*: default one


Containers supported by the stl

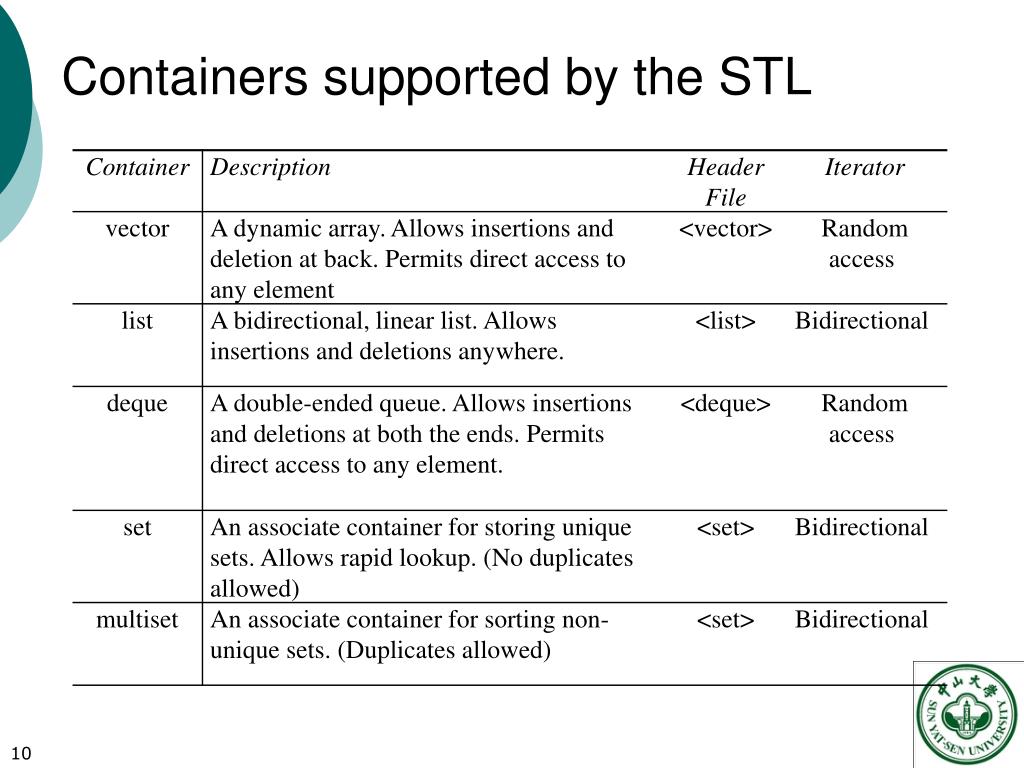

Containers supported by the STL


Containers supported by the stl1

Containers supported by the STL


Common functions in all containers

Common Functions in All Containers


Common functions in sequence associative containers

Common Functions in Sequence/Associative Containers


Common functions in sequence container

Common Functions in Sequence Container


Common functions in associative containers

Common Functions in Associative Containers


14 3 iterators

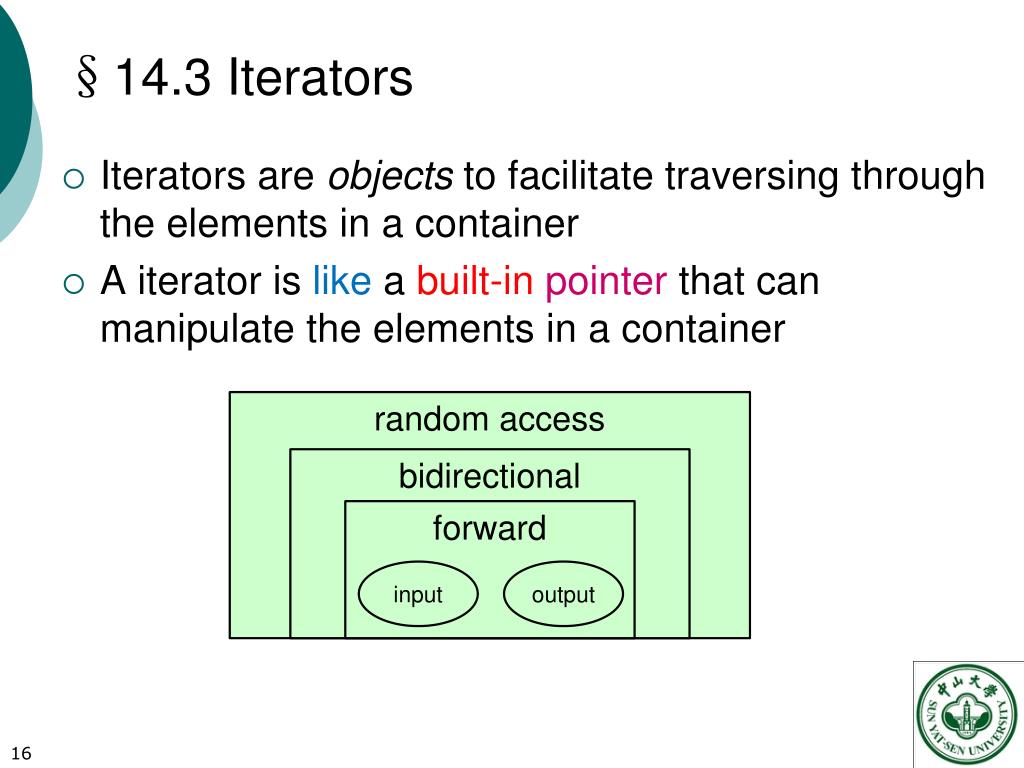

§14.3 Iterators

  • Iterators are objects to facilitate traversing through the elements in a container

  • A iterator is like a built-inpointer that can manipulate the elements in a container

random access

bidirectional

forward

input

output


Iterators and characteristics

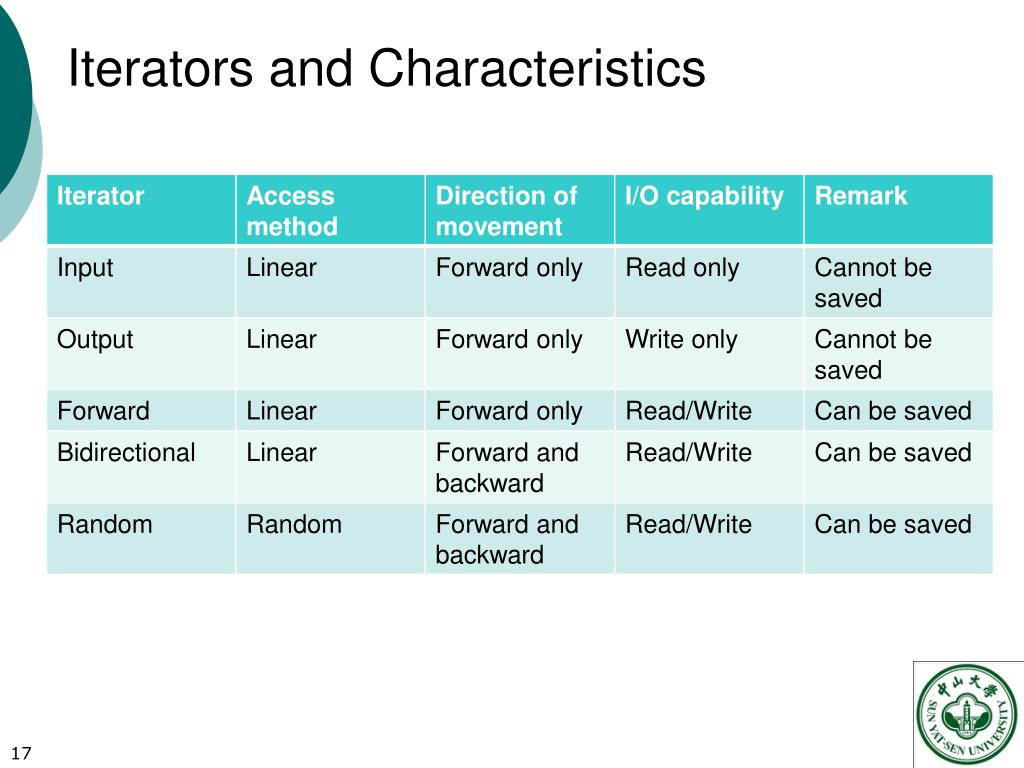

Iterators and Characteristics


Iterator operations

Iterator Operations


Iterator types supported by containers

Iterator Types Supported by Containers


Iterator demo

Iterator Demo

vector<int> intVector;

intVector.push_back(10);

intVector.push_back(20);

intVector.push_back(30);

intVector.push_back(40);

intVector.push_back(50);

intVector.push_back(60);

vector<int>::iterator p1 = intVector.begin();

for (; p1 != intVector.end(); p1++){

cout << *p1 << " ";

}

cout << endl << *(--p1) << endl;

cout << *(p1 - 3) << endl;

cout << p1[-3] << endl;

*p1 = 1234;

cout << *p1 << endl;

IteratorDemo


14 4 algorithms

§14.4 Algorithms

  • More than sixty algorithms in STL

  • Five groups

    • Retrieve or non-mutating Algorithms

    • Mutating Algorithms

    • Sorting Algorithms

    • Set Algorithms

    • Relational Algorithms


The copy algorithm

The copy Algorithm

template <typename InputIterator, typename OutputIterator>

copy(InputIterator beg, InputIterator end, OutputIterator targetPostition)

int values[] = {1,2,3,4,5,6};

vector<int> intVector(5);

list<int> intList(5);

copy(values+2, values+4, intVector.begin());

copy(values, values+5, intList.begin());

#include <algorithm>

#include <vector>

#include <list>

#include <iterator>


Copy to output stream

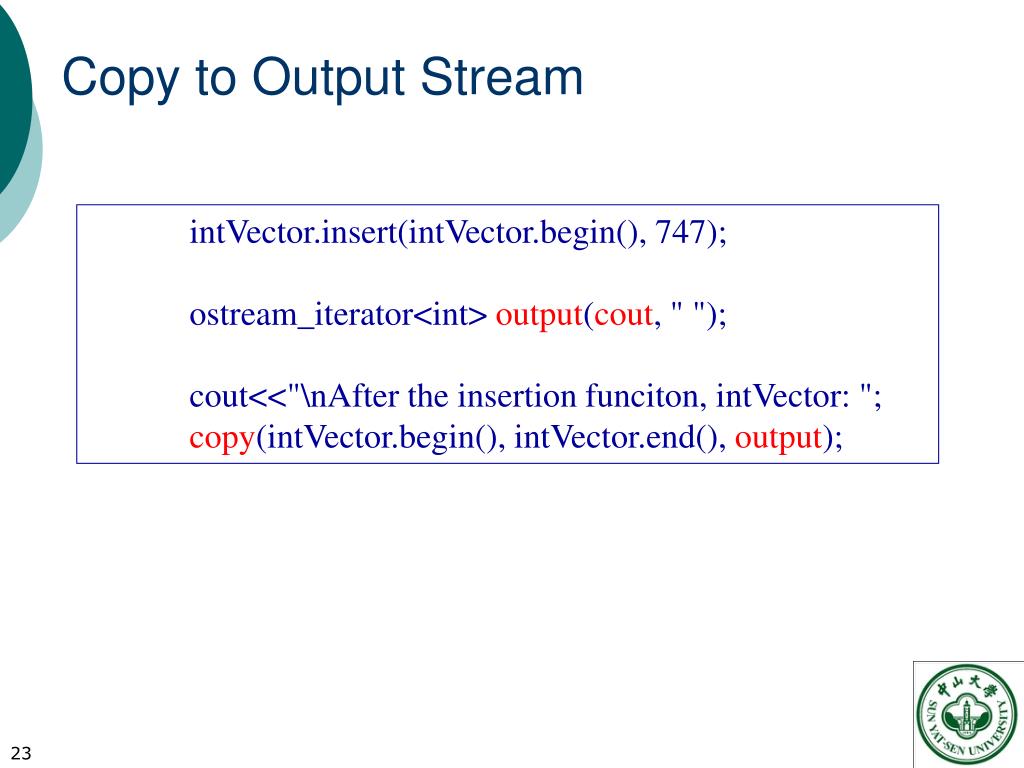

Copy to Output Stream

intVector.insert(intVector.begin(), 747);

ostream_iterator<int> output(cout, " ");

cout<<"\nAfter the insertion funciton, intVector: ";

copy(intVector.begin(), intVector.end(), output);


The copy demo

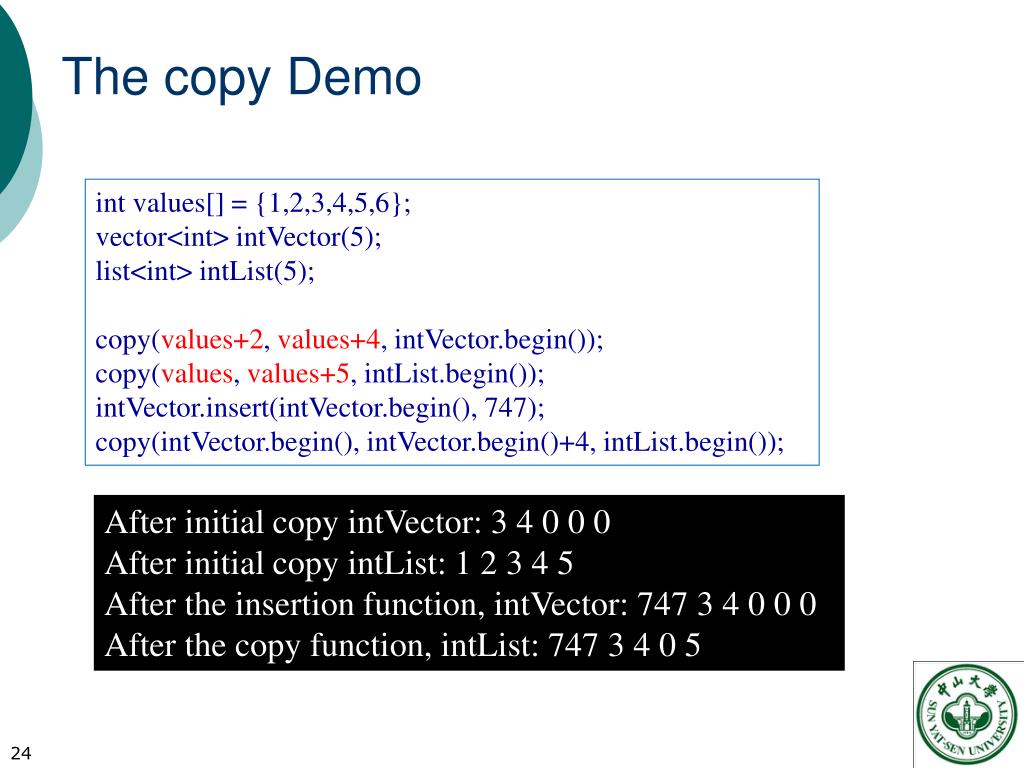

The copy Demo

int values[] = {1,2,3,4,5,6};

vector<int> intVector(5);

list<int> intList(5);

copy(values+2, values+4, intVector.begin());

copy(values, values+5, intList.begin());

intVector.insert(intVector.begin(), 747);

copy(intVector.begin(), intVector.begin()+4, intList.begin());

After initial copy intVector: 3 4 0 0 0

After initial copy intList: 1 2 3 4 5

After the insertion function, intVector: 747 3 4 0 0 0

After the copy function, intList: 747 3 4 0 5


Caution

Caution

  • The target container in copying must contains enough elements to store the values from the source container

int values[] = {1,2,3,4,5}

vector<int> intVector;

copy(values+2, values+4, intVector.begin());


Sort and binary search

“sort” and “binary_search”

template <typename RandomAccessIterator>

void sort(RandomAccessIterator beg, RandomAccessIterator end)

template <typename RandomAccessIterator, typename relationalOperator>

void sort(RandomAccessIterator beg, RandomAccessIterator end, relationalOperator op)

template <typename ForwardIterator, typename T>

bool binary_search(ForwardIterator beg, ForwardIterator end, const T &value)

template <typename ForwardIterator, typename T, typename strickWeakOrdering>

bool binary_search(ForwardIterator beg, ForwardIterator end, const T &value, strickWeakOrdering op)

SortDemo


Demo of sort binary search

Demo of sort, binary_search

int array1[] = {1, 7, 3, 4, 3, 3, 1, 2};

sort(array1, array1 + 8);

binary_search(array1, array1 + 8, 4)

sort(array1, array1 + 8, greater_equal<int>());

binary_search(array1, array1 + 8, 4, greater_equal<int>())

A function operator!


14 5 function objects

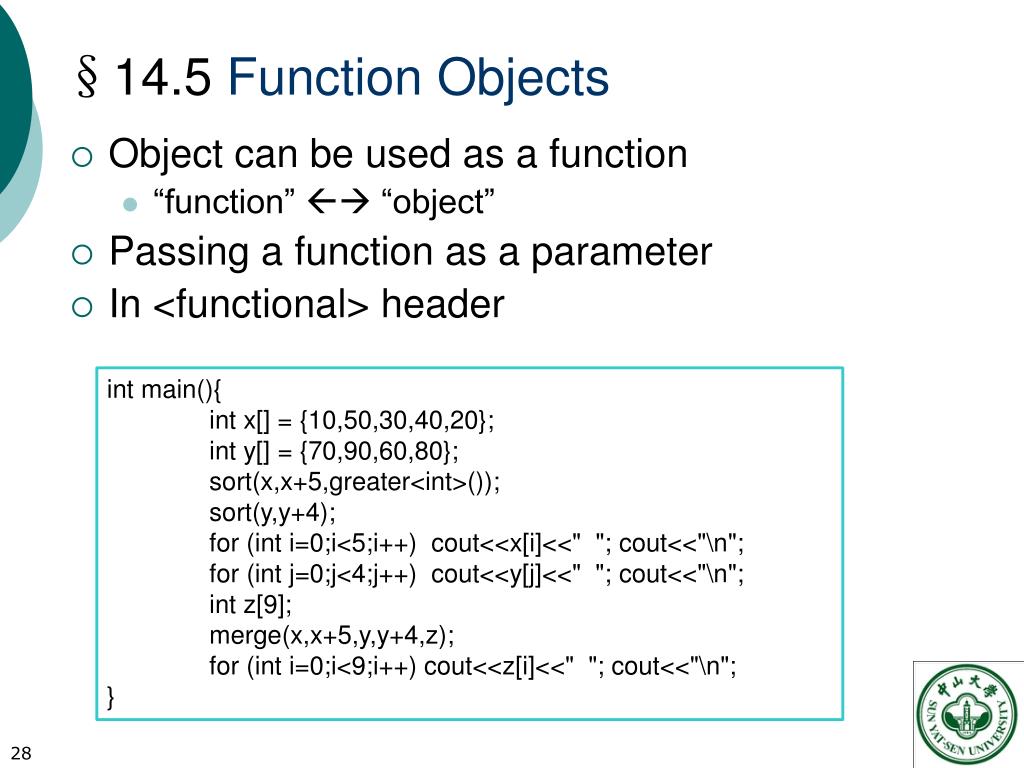

§14.5 Function Objects

  • Object can be used as a function

    • “function”  “object”

  • Passing a function as a parameter

  • In <functional> header

int main(){

int x[] = {10,50,30,40,20};

int y[] = {70,90,60,80};

sort(x,x+5,greater<int>());

sort(y,y+4);

for (inti=0;i<5;i++) cout<<x[i]<<" "; cout<<"\n";

for (int j=0;j<4;j++) cout<<y[j]<<" "; cout<<"\n";

int z[9];

merge(x,x+5,y,y+4,z);

for (inti=0;i<9;i++) cout<<z[i]<<" "; cout<<"\n";

}


Functors in functional

Functors in <functional>


Customized function objects

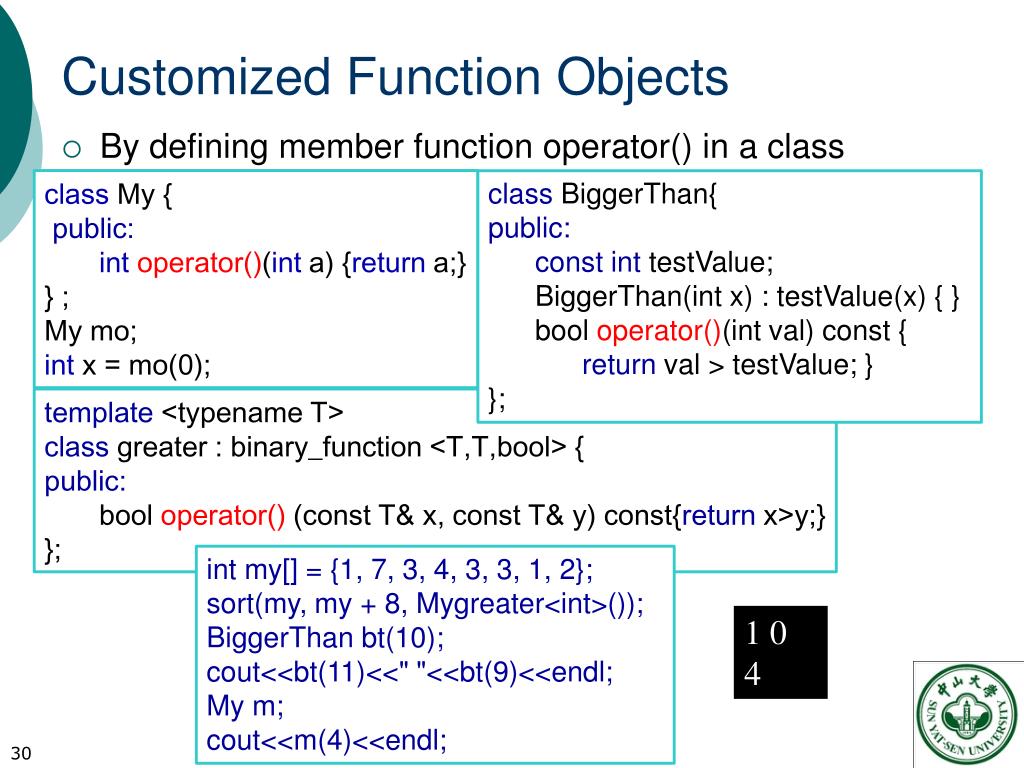

Customized Function Objects

  • By defining member function operator() in a class

class My {

public:

intoperator()(int a) {return a;}

} ;

My mo;

int x = mo(0);

class BiggerThan{

public:

const int testValue;

BiggerThan(int x) : testValue(x) { }

bool operator()(int val) const {

return val > testValue; }

};

template <typename T>

class greater : binary_function <T,T,bool> {

public:

bool operator() (const T& x, const T& y) const{return x>y;}

};

int my[] = {1, 7, 3, 4, 3, 3, 1, 2};

sort(my, my + 8, Mygreater<int>());

BiggerThan bt(10);

cout<<bt(11)<<" "<<bt(9)<<endl;

My m;

cout<<m(4)<<endl;

1 0

4


A summary

A Summary

  • Concepts

    • STL, Container, Iterator, Algorithm

    • Three types of containers

    • Function, Operation, Algorithm

    • Functional object

  • Features of different containers

  • Main functions of containers

  • Features of STL algorithm

  • Use of functional object
