  1. Contros HydroCMethane Sensorat MC118 Presented by Ken Sleeper Seabed Technology Research Center Mississippi Mineral Resources Institute University of Mississippi October 26, 2010

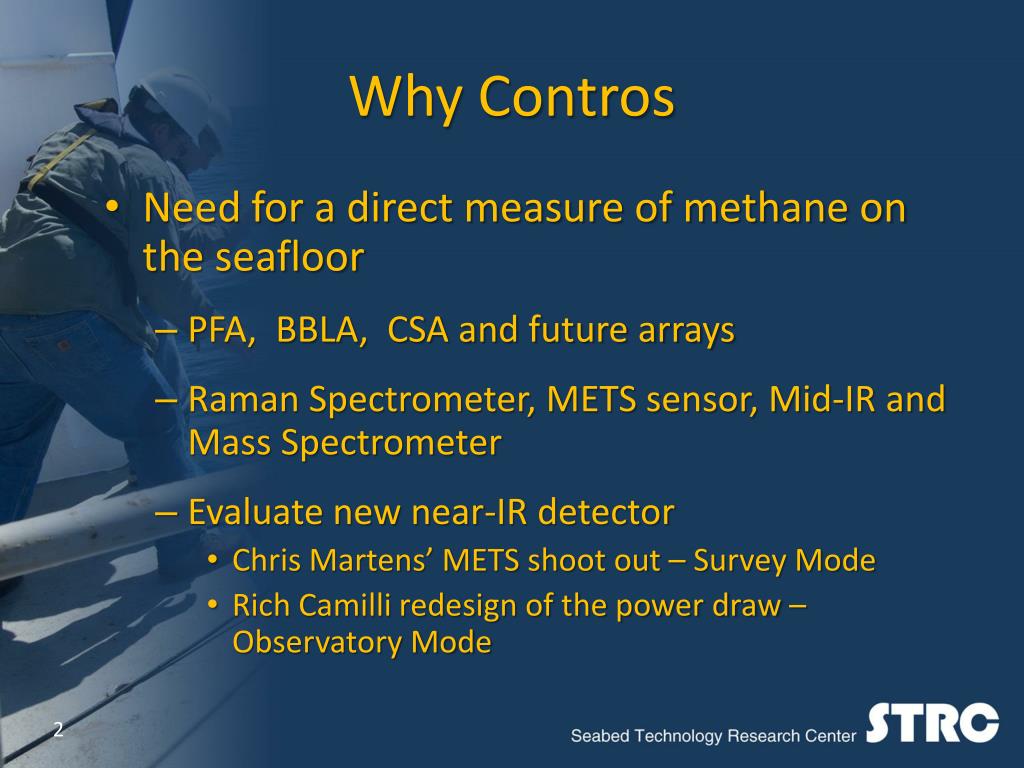

  2. Why Contros • Need for a direct measure of methane on the seafloor • PFA, BBLA, CSA and future arrays • Raman Spectrometer, METS sensor, Mid-IR and Mass Spectrometer • Evaluate new near-IR detector • Chris Martens’ METS shoot out – Survey Mode • Rich Camilli redesign of the power draw – Observatory Mode

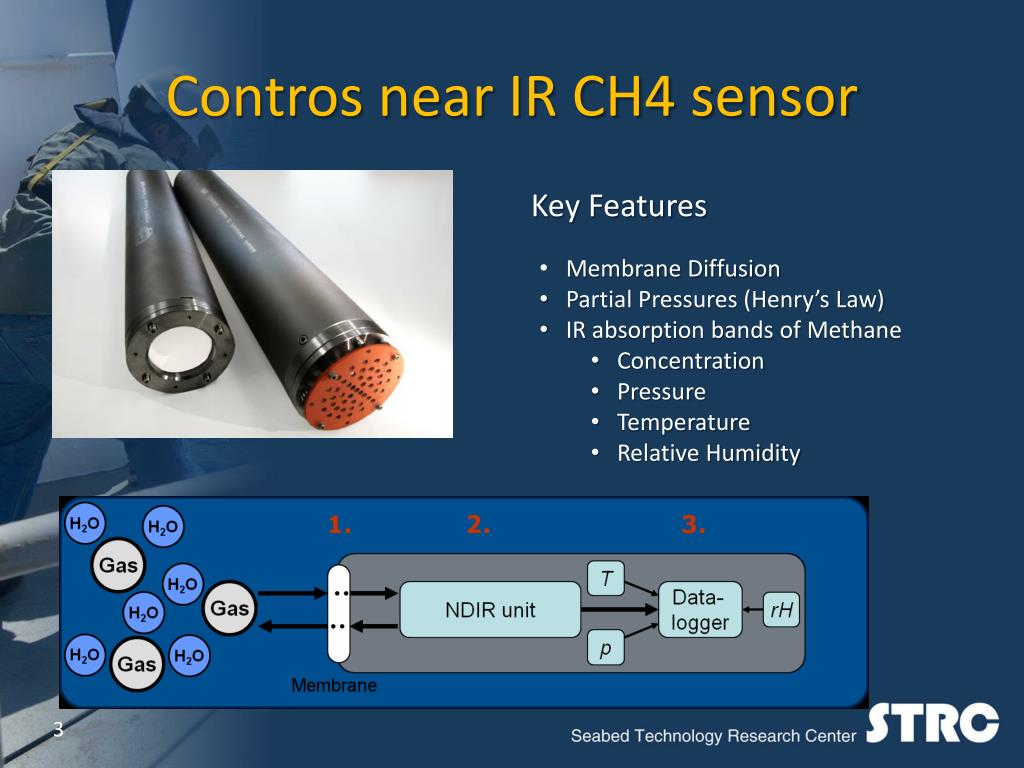

  3. Contros near IR CH4 sensor Key Features • Membrane Diffusion • Partial Pressures (Henry’s Law) • IR absorption bands of Methane • Concentration • Pressure • Temperature • Relative Humidity

  4. June 2010 MC118 Cruise • 15 CTD CASTS with CDOM and Transmissometer • 5 Casts with the Contros • 3 with pump cowling • 1 with no pump cowling • 1 with pump operational • 3 with bottles & GC work • 4 separate Mass Spec casts

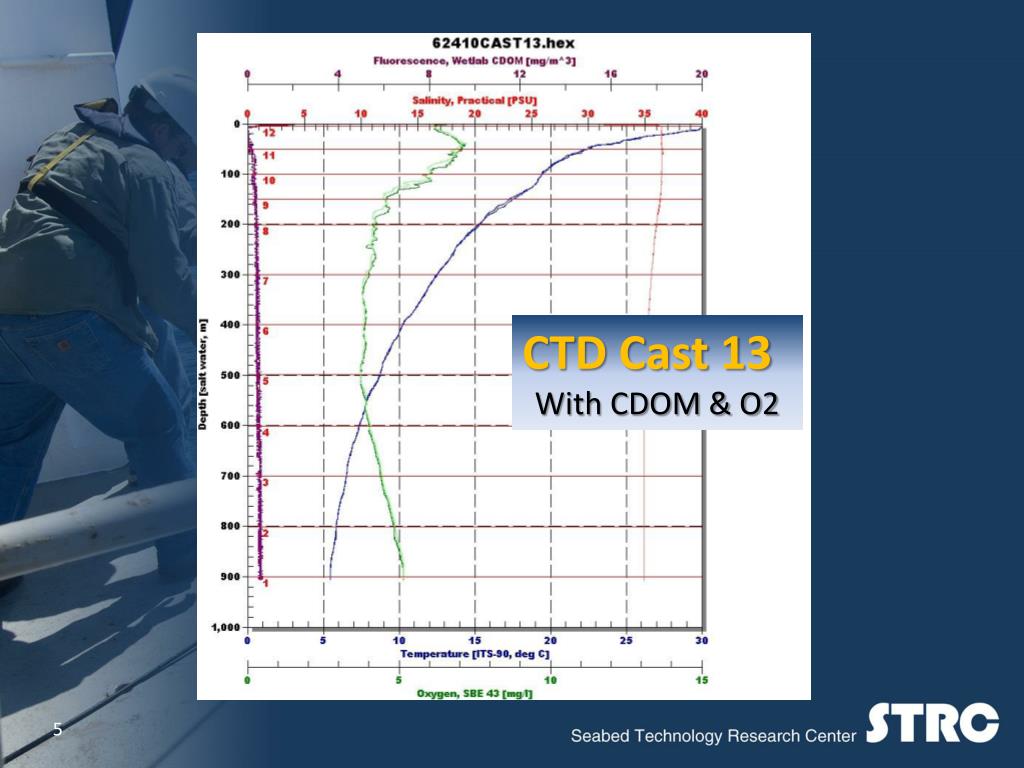

  5. CTD Cast 13 With CDOM & O2

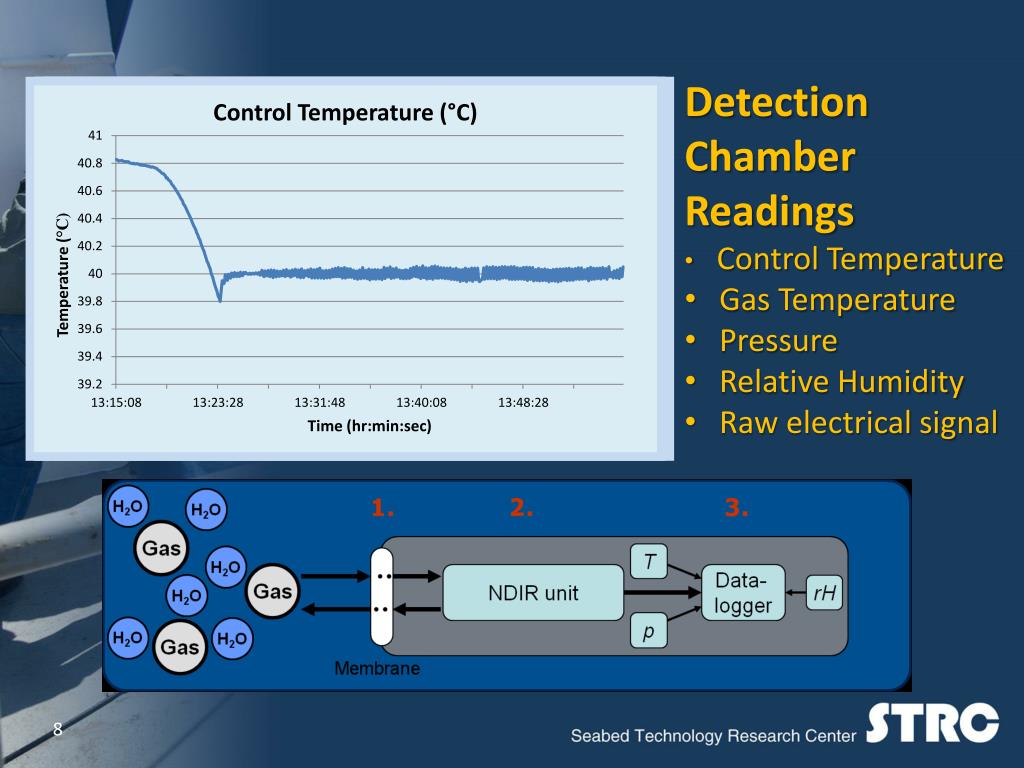

  6. Detection Chamber Readings • Control Temperature • Gas Temperature • Pressure • Relative Humidity • Raw electrical signal

  7. CAST 13 Raw Voltage Output

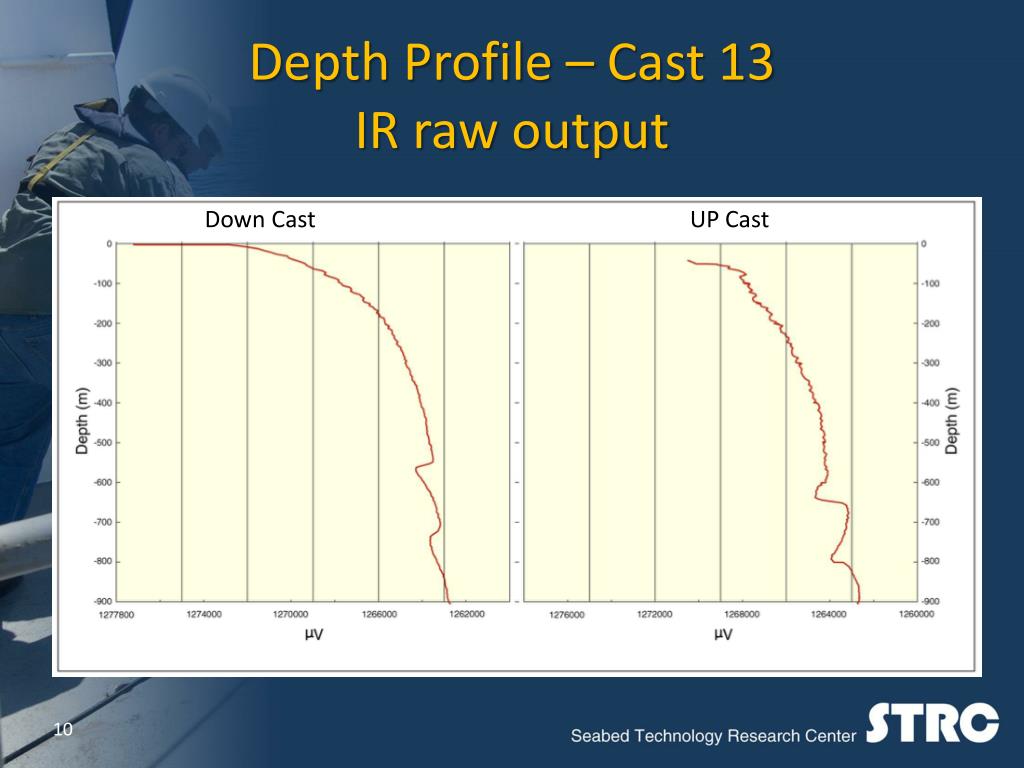

  8. Depth Profile – Cast 13IR raw output Down Cast UP Cast

  9. Depth ProfilesMass Spec Casts Cast 1 Cast 2 Cast 3

  10. Future Directions • AUV Surveys • Mid-Atlantic Ridge • Geochemical Array - BBLA • Duty cycle vs reconfigure power draw • Post deployment follow up • Sensor development • Shorten response time • Lower detection levels

  11. Funding for this project is generously provided by NOAA/OER, NIUSTDOI/BOEMRE (MMS)andDOE/NETL Special thanks to Andy Gossett, Matt Lowe, Brian Noakes, Larry Overstreet and the crew of the Pelican for handling the at-sea operations of the equipment
