  1. Rx Tx DUT Agilent Solutions for Certified Wireless USB based on WiMedia Technology Advanced Design System Simulation Signal Capture Agilent Infiniium DSO 81204BOscilloscope Agilent E8267D PSG Series Vector Signal Generator Agilent N7619A Signal Studio for Multiband OFDM UWB Agilent N6030A Arbitrary Waveform Generator Agilent 89601A VSA Software Base Band Modulation Signal Generation Spectrum Testing Agilent E4440A Spectrum Analyzer

  2. Connecting the last 5 meters • Certified High Speed USB • Most successful interface standard, about 3 billion ports • 480 MBit data rates • Certified Wireless USB: • High speed USB replacement (480 MBits/s), Any other questions? • Based on WiMedia Alliance OFDM UWB Technology • Not just wireless USB (low speed mice and keyboards) • Low power, short range, high data rates • Bluetooth: • Headsets, the current “killer” application (1 MBit/s) • Bluetooth now planning to use WiMedia UWB for higher data rates • Years away, must find an application space

  3. The Drive Towards Short Range Wireless: Customer frustration with cables Potential Certified Wireless USB products for 2006/2007 • PCs and Peripherals • External Hard Drives, CD/DVD burners • Printers • MP3 • Digital Cameras

  4. What makes Ultra Wideband so special? WLAN Band Band Band #1 #2 #3 -40dBm f 2400 3432 3960 4488 MHz MHz MHz MHz UWB is sometimes called an underlay technology, because it can transmit in the “noise floor” of narrow band signals. More BW translates to higher data rates even with simple modulation techniques

  5. UWB Bands and WW Regulations Band Group Band Group Band Group Band Group Band Group # 1 # 2 # 3 # 4 # 5 Band Band Band Band Band Band Band Band Band Band Band Band Band Band # 3 # 6 7 8 # 12 # 14 # 1 # 2 # 4 # 5 # # # 9 # 10 # 11 # 13 US DAA EU After 2010 ? ? DAA Japan After 2008 Asia 3432 3960 4488 5016 5544 6072 6600 7128 7656 8184 8712 9240 9768 10296 MHz MHz MHz MHz MHz MHz MHz MHz MHz MHz MHz MHz MHz MHz 10560 3168 MHz MHz (NO Detect And Avoid) Usable bands (DDA) Usable bands Unusable bands ? May open with DAA Undetermined

  6. 312.5ns 528 MHz Time 1 Symb 4488 MHz 4488 MHz 4488 MHz 3960 MHz 3960 MHz 3960 MHz 122 subcarriers 3432 MHz 3432 MHz 3432 MHz Frequency OFDM with Frequency Switching1st Generation, Mode 1 (3.1-4.9 GHz)

  7. Rx Tx DUT UWB/WiMediaRF Measurement Solution Custom components on UWB Library support WiMedia Today WiMedia Compliant Library Advanced Design System Simulation Custom components on UWB Library support WiMedia Today WiMedia Compliant Library Analogue IQ Agilent Infiniium DSO 81204B12GHz,40GSaOscilloscope Agilent E8267D PSG Series Vector Signal Generator Agilent N7619A Signal Studio for Multiband OFDM UWB Agilent N6030A Arbitrary Waveform Generator Agilent 89601A VSA Software Demodulation Base Band Modulation Signal Generation UWB Signal Verification, EVM measurement UWB Signal Creation Spectrum Testing Agilent E4440A PSA Series 26.5GHz Spectrum Analyzer Regulatory Test, FCC

  8. RF tests applicable to WiMedia based radios • PHY Compliance Tests • Transmit center frequency • Power Spectral Density Mask • EVM • Receiver Power Sensitivity • Receiver Frequency Offset Sensitivity

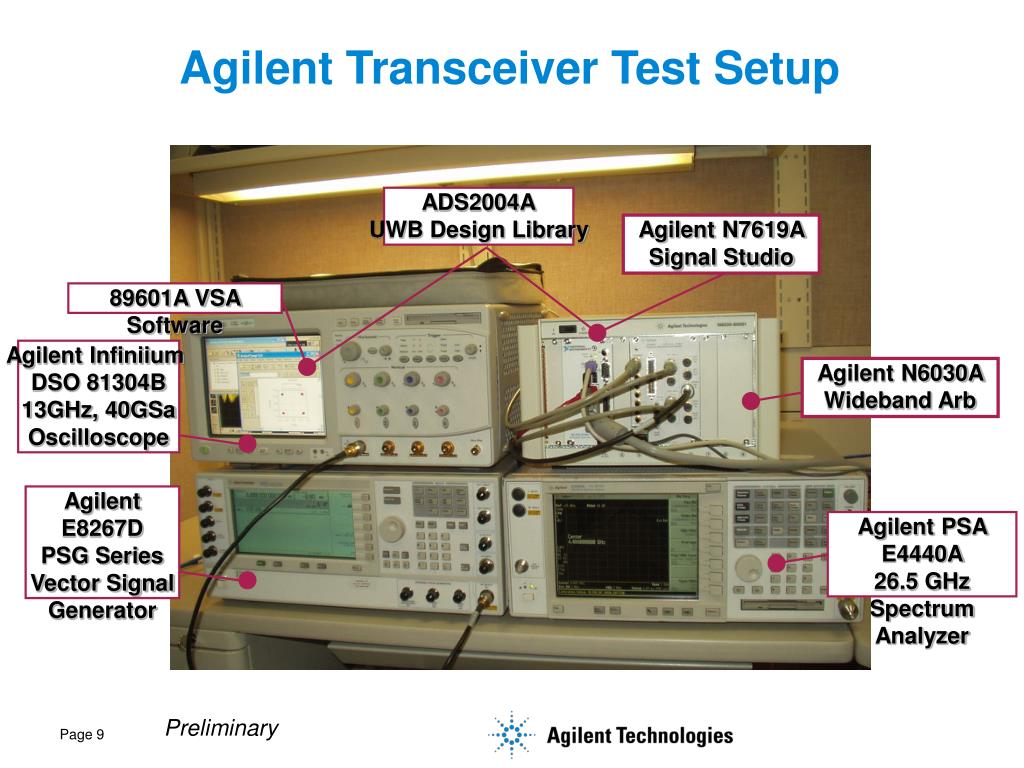

  9. Agilent Transceiver Test Setup ADS2004AUWB Design Library Agilent N7619A Signal Studio 89601A VSASoftware Agilent Infiniium DSO 81304B13GHz, 40GSaOscilloscope Agilent N6030A Wideband Arb Agilent E8267D PSG Series Vector Signal Generator Agilent PSA E4440A 26.5 GHz Spectrum Analyzer Preliminary

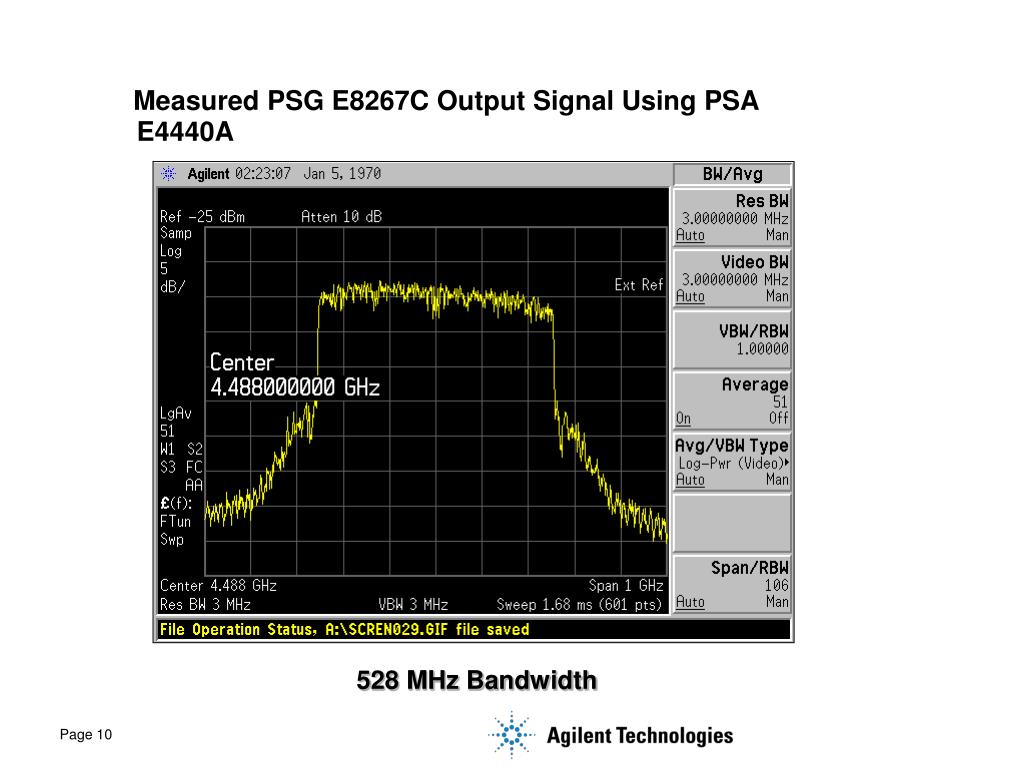

  10. Measured PSG E8267C Output Signal Using PSA E4440A 528 MHz Bandwidth

  11. Packet Data using Intel PDK and UWB radio

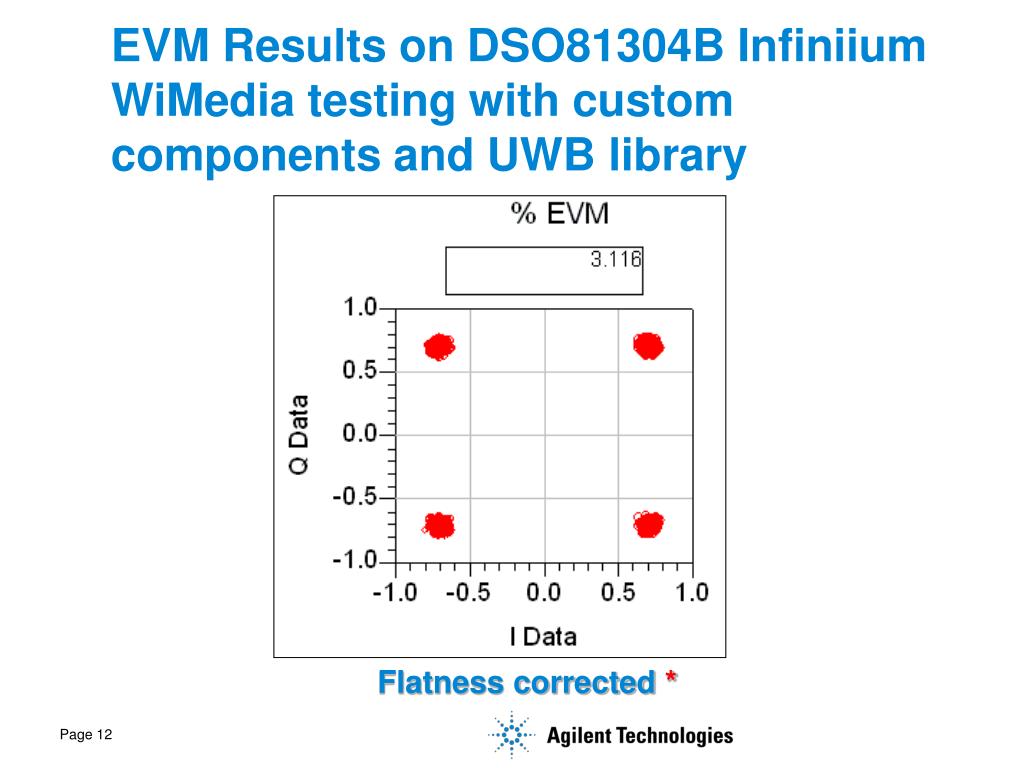

  12. EVM Results on DSO81304B InfiniiumWiMedia testing with custom components and UWB library Flatness corrected *

  13. WiMedia UWB Demodwith 89601A

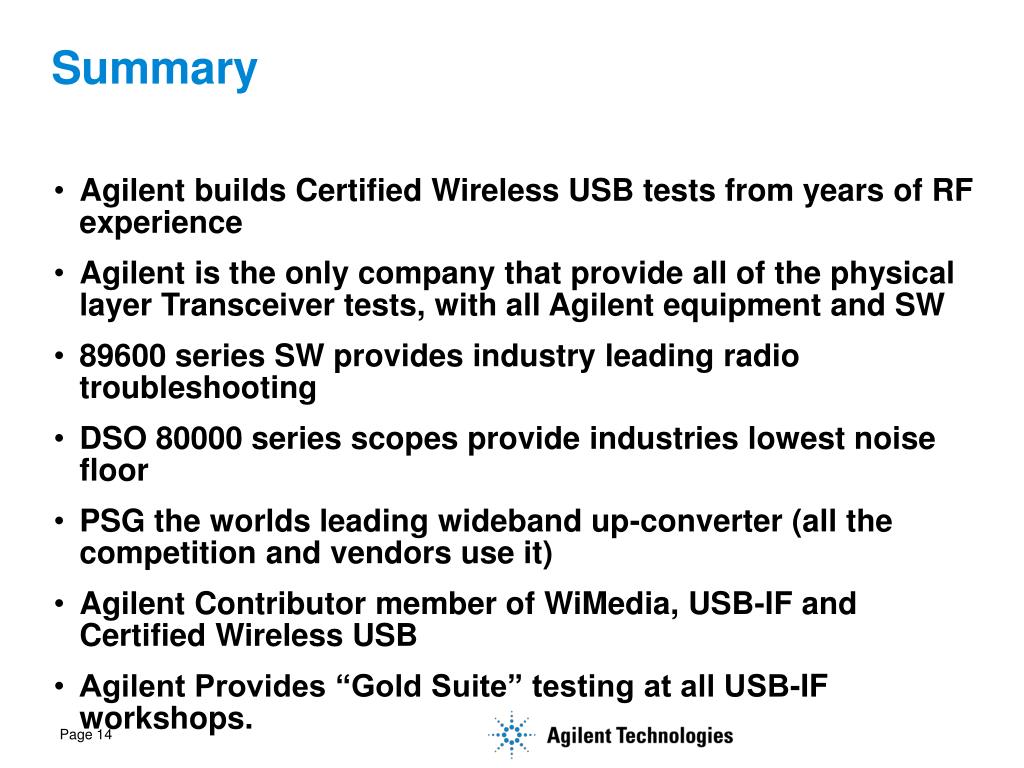

  14. Summary • Agilent builds Certified Wireless USB tests from years of RF experience • Agilent is the only company that provide all of the physical layer Transceiver tests, with all Agilent equipment and SW • 89600 series SW provides industry leading radio troubleshooting • DSO 80000 series scopes provide industries lowest noise floor • PSG the worlds leading wideband up-converter (all the competition and vendors use it) • Agilent Contributor member of WiMedia, USB-IF and Certified Wireless USB • Agilent Provides “Gold Suite” testing at all USB-IF workshops.

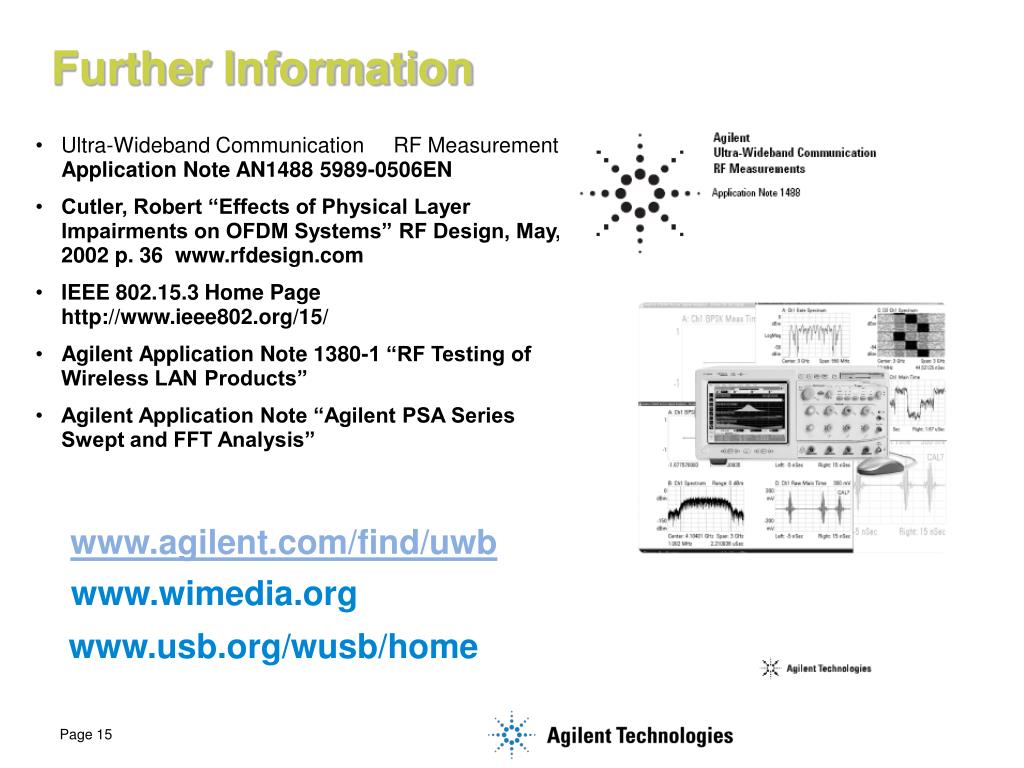

  15. Further Information • Ultra-Wideband Communication RF Measurements Application Note AN1488 5989-0506EN • Cutler, Robert “Effects of Physical Layer Impairments on OFDM Systems” RF Design, May, 2002 p. 36 www.rfdesign.com • IEEE 802.15.3 Home Page http://www.ieee802.org/15/ • Agilent Application Note 1380-1 “RF Testing of Wireless LAN Products” • Agilent Application Note “Agilent PSA Series Swept and FFT Analysis” www.agilent.com/find/uwb www.wimedia.org www.usb.org/wusb/home
