Infinity Project Laboratory Setup


Lab requirements

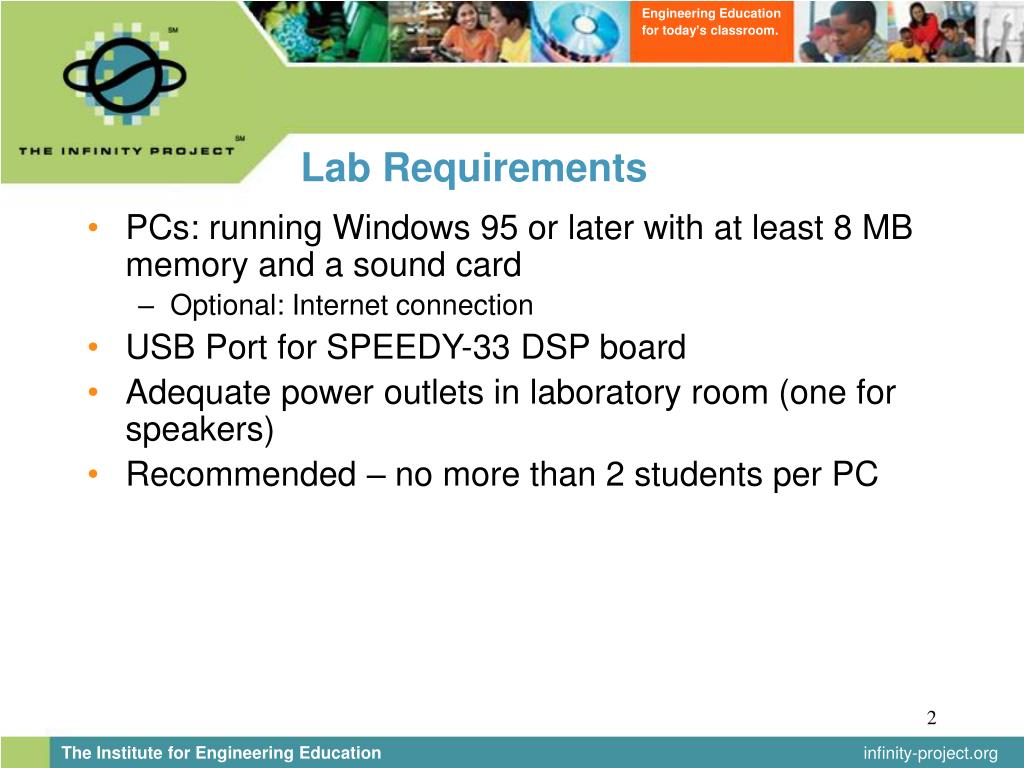

Lab Requirements

  • PCs: running Windows 95 or later with at least 8 MB memory and a sound card

    • Optional: Internet connection

  • USB Port for SPEEDY-33 DSP board

  • Adequate power outlets in laboratory room (one for speakers)

  • Recommended – no more than 2 students per PC


Setting up overview

Setting Up – Overview

  • Check for equipment in Infinity Technology Kit

  • Install software

  • Connect SPEEDY-33 board to PC via USB

  • Make power connection

  • Make speaker/microphone connections

  • Make camera connection

  • …and you’re ready to roll!


Installing software

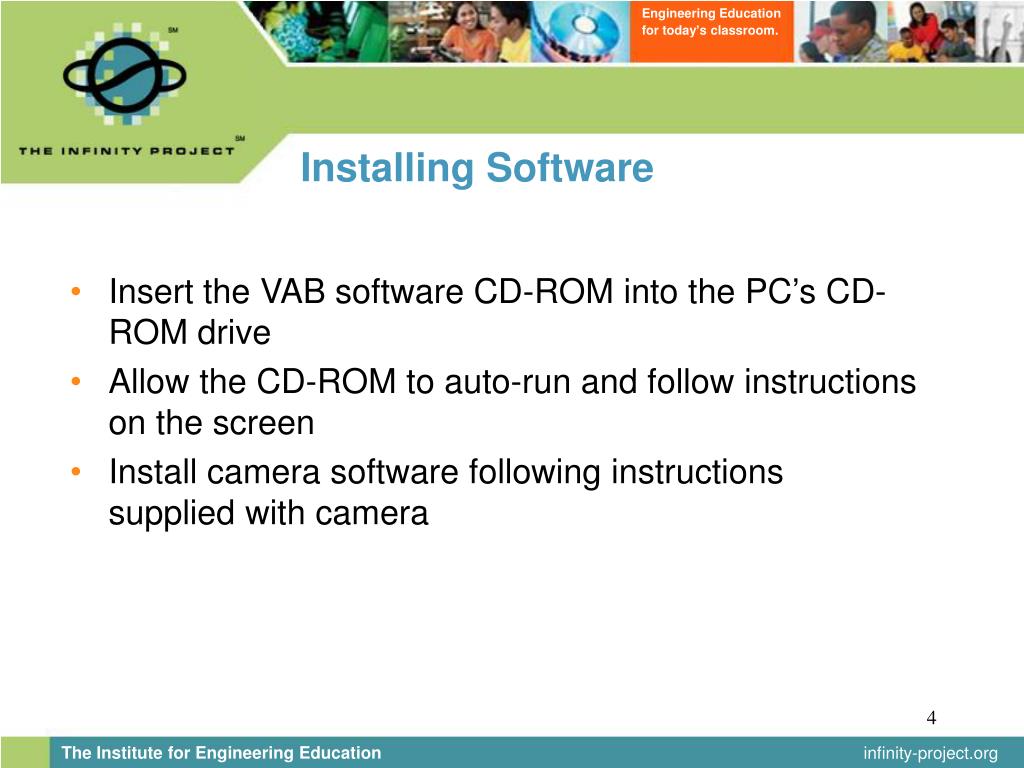

Installing Software

  • Insert the VAB software CD-ROM into the PC’s CD-ROM drive

  • Allow the CD-ROM to auto-run and follow instructions on the screen

  • Install camera software following instructions supplied with camera


Installing hardware

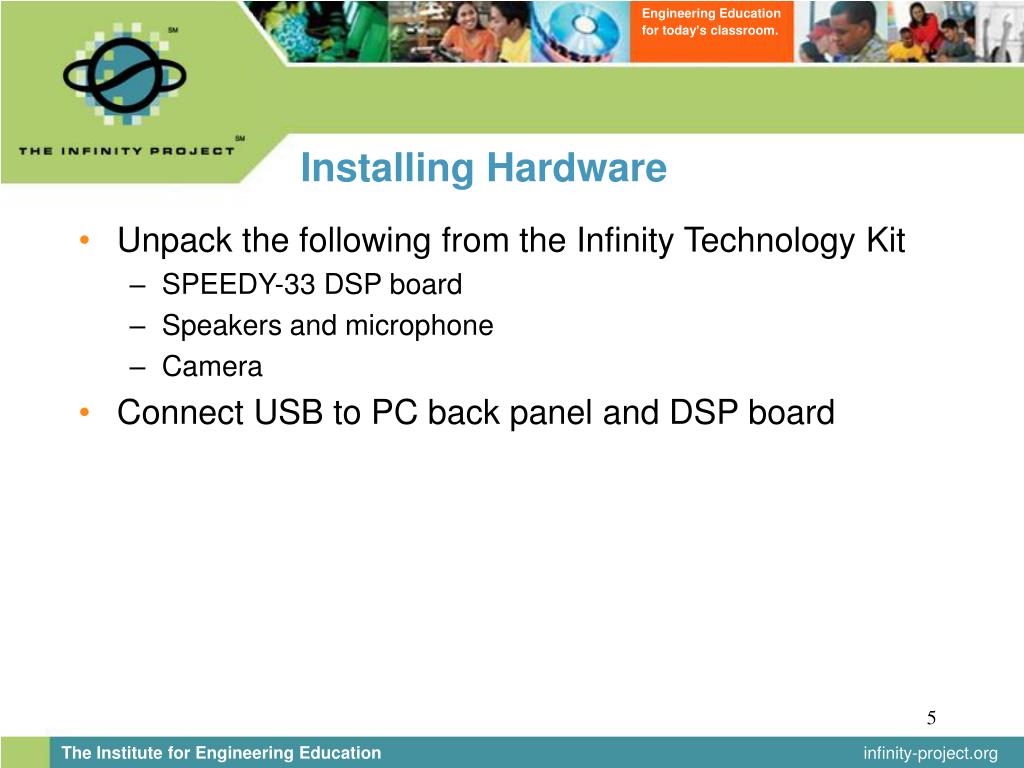

Installing Hardware

  • Unpack the following from the Infinity Technology Kit

    • SPEEDY-33 DSP board

    • Speakers and microphone

    • Camera

  • Connect USB to PC back panel and DSP board


Installing hardware cont

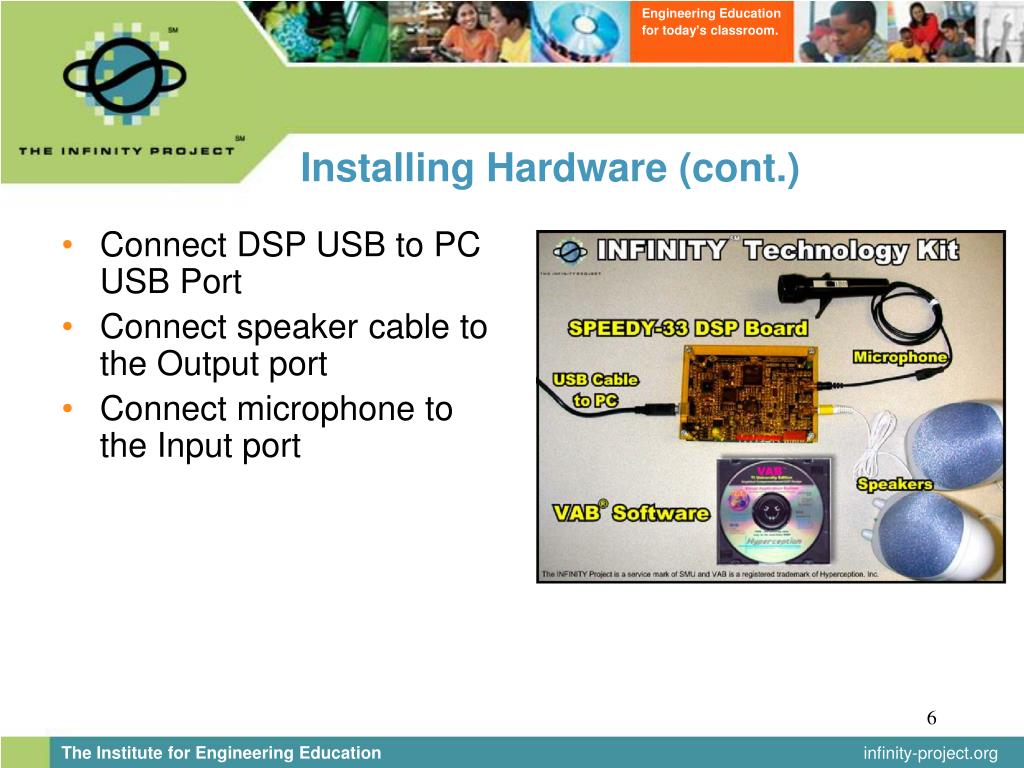

Installing Hardware (cont.)

  • Connect DSP USB to PC USB Port

  • Connect speaker cable to the Output port

  • Connect microphone to the Input port


Infinity project laboratory setup

The SPEEDY-33TM DSP Board

Floating Point DSP

Memory: 34kW On-chip

Performance: 150 MFLOPS

USB interface to PC

Stereo Channel A/D, D/A

Sample rate to 48 kHz

Two on-board microphones

CD/stereo line-in interface jacks

8 software-controlled LEDs and software-readable switches

Flash memory for self-standing operation

Battery power possible

Low Cost


This is what it should look like

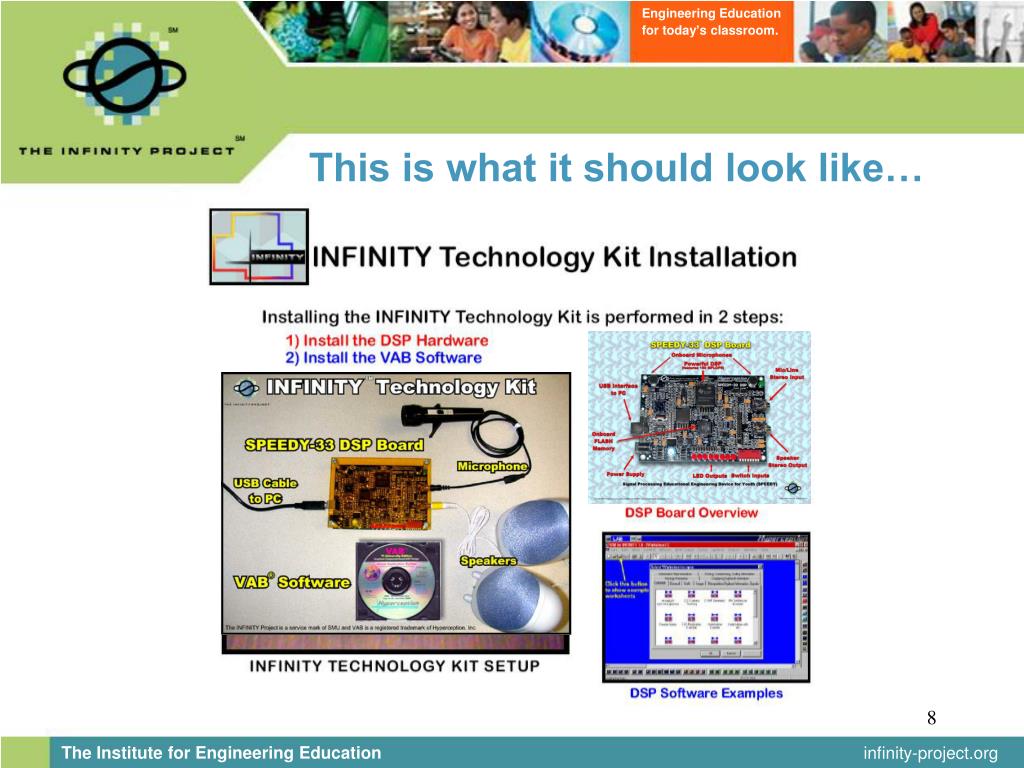

This is what it should look like…


Finalizing the installation

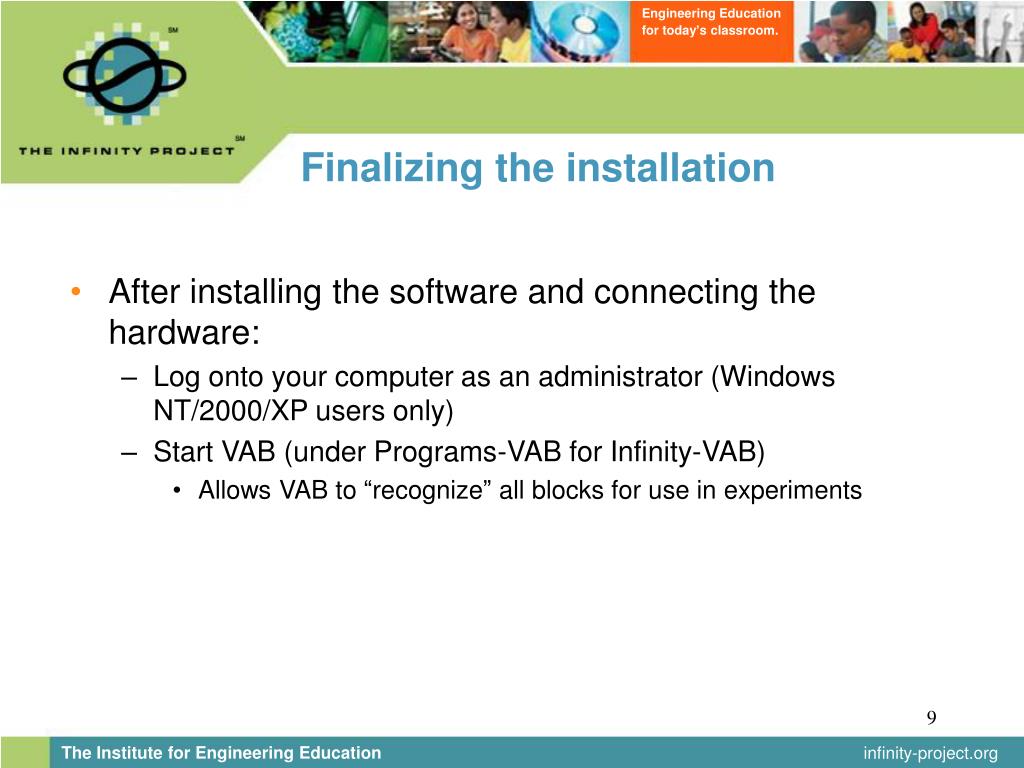

Finalizing the installation

  • After installing the software and connecting the hardware:

    • Log onto your computer as an administrator (Windows NT/2000/XP users only)

    • Start VAB (under Programs-VAB for Infinity-VAB)

      • Allows VAB to “recognize” all blocks for use in experiments


Testing the system

Testing the System

  • On computer, start VAB (under Programs-VAB for Infinity-VAB)

  • Go to “Testing the System” Laboratory

  • Open and go through lab worksheets (e.g. Mic and Cosine test) and make sure everything works as indicated

  • If you have problems, post questions on the Discussion Board at the Infinity Project website


Digital music setup

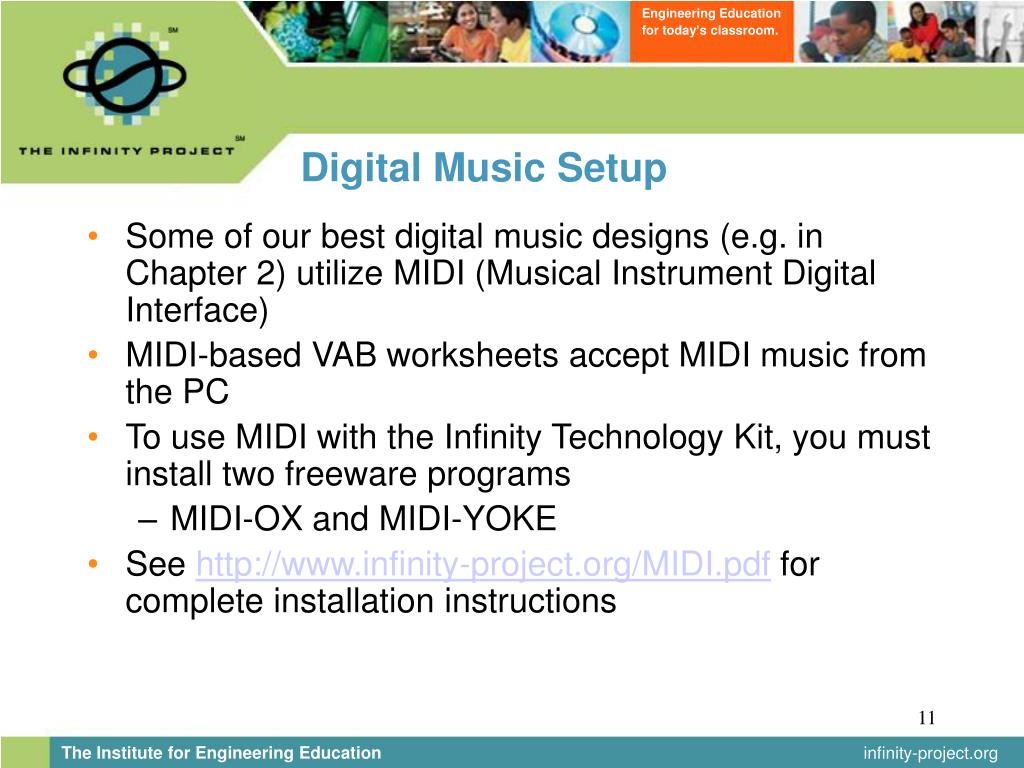

Digital Music Setup

  • Some of our best digital music designs (e.g. in Chapter 2) utilize MIDI (Musical Instrument Digital Interface)

  • MIDI-based VAB worksheets accept MIDI music from the PC

  • To use MIDI with the Infinity Technology Kit, you must install two freeware programs

    • MIDI-OX and MIDI-YOKE

  • See http://www.infinity-project.org/MIDI.pdf for complete installation instructions


Further installation support

Further Installation Support

  • The Infinity Technology Kit is designed for ease of use and installation

  • If you do have technical questions, use the message forum at

    http://www.infinity-project.org/tech_kit_discuss.html


  • Login
