  1. CONCRETE PAVEMENT PERFORMANCE Rigid Pavement Design Course

  2. Outline Structural Related Functional Related Material Related Rigid Pavement Design Course

  3. Primarily Traffic Load Caused Primarily Climate/Materials Caused Distress Type 1. Blow up X 2. Corner Break X 3. Depression X 4. Durability “D” Cracking X 5. Faulting of Transverse Joints and Cracks X 6. Joint Load Transfer Associated Distress X X 7. Jt. Seal Damage of Trans. Jts. X 8. Lane/Shoulder Dropoff or Heave X 9. Lane/Shoulder Jt. Separation X 10.Longitudinal Cracks X 11.Longitudinal Jt. Faulting X X 12.Patch Deterioration X (M, H) X (L) Rigid Pavement Design Course

  4. Primarily Traffic Load Caused Primarily Climate/Materials Caused Distress Type 13. Patch Adjacent Slab Det. X X 14. Popouts X 15. Pumping and Water Bleeding X (M, H) X (L) 16. Reactive Agg. Dur. Dist. X 17. Scaling, Map Cracking and Crazing 18. Spalling (Trans. and Long Jts.) X (M, H) X (L, M,H) 19. Spalling (Corner) X 20. Swell X 21. Trans. and Diagonal Cracks X (L, M, H) X (L) *General categorization of jointed concrete pavement distress Rigid Pavement Design Course

  5. Primarily Traffic Load Caused Primarily Climate/Materials Caused Distress Type 1. Asphalt Patch Deterioration X 2. Blow up X 3. Concrete Patch Deterioration X (M, H) X (L) 4. Construction Jt. Distress X 5. Depression X 6. Durability “D” Cracking X 7. Edge Punchout X 8. Lane/Shoulder Dropoff or Heave X 9. Lane/Shoulder Jt. Separation X 10.Localized Distress X 11.Longitudinal Cracking X 12.Longitudinal Jt. Faulting X X 13.Patch Adjacent Slab Det. X X 14.Popouts X 15.Pumping and Water Bleeding X (M, H) X (L) Rigid Pavement Design Course

  6. Primarily Traffic Load Caused Primarily Climate/Materials Caused Distress Type 16. Reactive Agg. Distress X 17. Scaling, Map Cracking and Crazing X 18. Spalling X X 19. Swell X 20. Transverse Cracking X (M, H) X (L, M) *General categorization of continuously reinforced concrete pavement. Rigid Pavement Design Course

  7. Low Severity Transverse Crack Rigid Pavement Design Course

  8. Medium Severity Diagonal Crack Rigid Pavement Design Course

  9. Medium Severity Transverse Crack Rigid Pavement Design Course

  10. High Severity Transverse Crack Rigid Pavement Design Course

  11. High Severity Transverse Crack Rigid Pavement Design Course

  12. Low Severity Longitudinal Crack Rigid Pavement Design Course

  13. High Severity Longitudinal Crack in Center Lane Rigid Pavement Design Course

  14. Low Severity Corner Break Rigid Pavement Design Course

  15. High Severity Corner Break Rigid Pavement Design Course

  16. Low Severity Pumping (Water Bleeding) Rigid Pavement Design Course

  17. Medium Severity Rigid Pavement Design Course

  18. High Severity Pumping Rigid Pavement Design Course

  19. Low Severity Joint Load Transfer Failure Rigid Pavement Design Course

  20. Medium Severity Joint Load Transfer Failure Rigid Pavement Design Course

  21. High Severity Joint Load Transfer Failure Rigid Pavement Design Course

  22. High Severity Joint Load Transfer Failure Rigid Pavement Design Course

  23. High Severity Buckling Type Blow-up Rigid Pavement Design Course

  24. High Severity Shattering Type Blow-up Rigid Pavement Design Course

  25. Outline Structural Related Functional Related Material Related Rigid Pavement Design Course

  26. Crack Faulting Rigid Pavement Design Course

  27. Joint Faulting Rigid Pavement Design Course

  28. Longitudinal Joint Faulting Rigid Pavement Design Course

  29. Low Severity Spalling Rigid Pavement Design Course

  30. Low Severity Spalling Rigid Pavement Design Course

  31. Medium Severity Spalling Rigid Pavement Design Course

  32. High Severity Spalling Rigid Pavement Design Course

  33. High Severity Spalling Rigid Pavement Design Course

  34. High Severity Spalling Rigid Pavement Design Course

  35. Medium Severity Corner Spall Rigid Pavement Design Course

  36. High Severity Corner Spall Rigid Pavement Design Course

  37. High Severity Corner Spall Rigid Pavement Design Course

  38. Swell Due to Frost Heave Rigid Pavement Design Course

  39. Swell Die to Expansive Soil Rigid Pavement Design Course

  40. Lane/Shoulder Drop-off Rigid Pavement Design Course

  41. Lane/Shoulder Heave Rigid Pavement Design Course

  42. Lane/Shoulder Separation (Asphalt Shoulder) Rigid Pavement Design Course

  43. Lane/Shoulder Separation (PCC Shoulder) Rigid Pavement Design Course

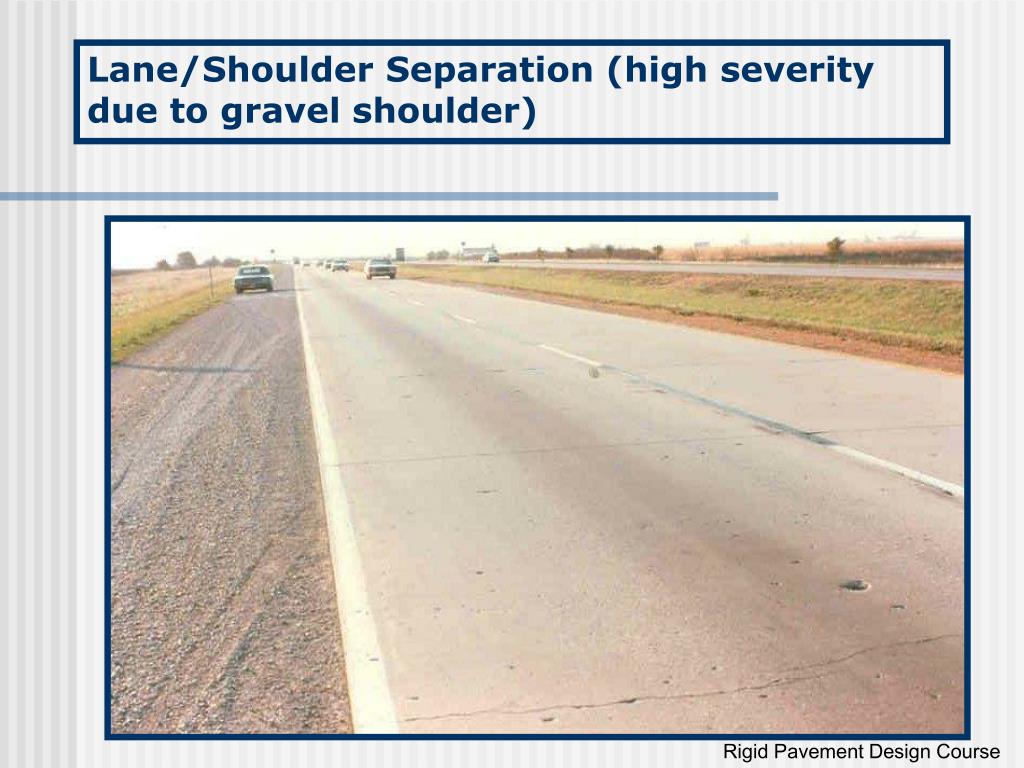

  44. Lane/Shoulder Separation (high severity due to gravel shoulder) Rigid Pavement Design Course

  45. Low Severity Asphalt Patch Deterioration Rigid Pavement Design Course

  46. High Severity Asphalt Patch Deterioration Rigid Pavement Design Course

  47. Low Severity Concrete Patch Deterioration Rigid Pavement Design Course

  48. Medium Severity Concrete Patch Deterioration Rigid Pavement Design Course

  49. High Severity concrete Patch Deterioration Rigid Pavement Design Course

  50. Outline Structural Related Functional Related Material Related Rigid Pavement Design Course
