Overload Scheduling in Real-Time Systems

1. Overload Scheduling in Real-Time Systems Dr. Pedro Mejía Alvarez Sección de Computación. CINVESTAV-IPN, México

2. Outline • Motivation • Related Work • Methodology • The INCA Server Algorithm • The Approximate Algorithm • Analysis of the INCA Server • Simulation Results

3. Many systems are provisioned incorrectly Correctly provisioned systems have: Changes in the environment, Many arrivals of asynchronous events or Faults of peripheral devices. Overloads occur when safety is at stake  need efficient algorithm Motivation

4. Best effort scheduling algorithm (Locke and Jensen): The RED (Robust Earliest Deadline) algorithm (Buttazzo): Imprecise Computations Skip Model The (m,k) Model The Elastic Task Model The Incremental Server Model. Related Work

5. Rejection policy for overloaded systems based on removing tasks with the minimum value density (introduced time valued functions). Best effort scheduling algorithm U U U (b) (c) (a) d t d t d t

6. aperiodic tasks in overloaded systems. Combines criticality-based scheduling and deadline tolerance. Remove the task with least value on overload. The RED (Robust Earliest Deadline) algorithm task Scheduling policy Planning Ready queue RUN Reclaiming policy Rejection policy Reject queue

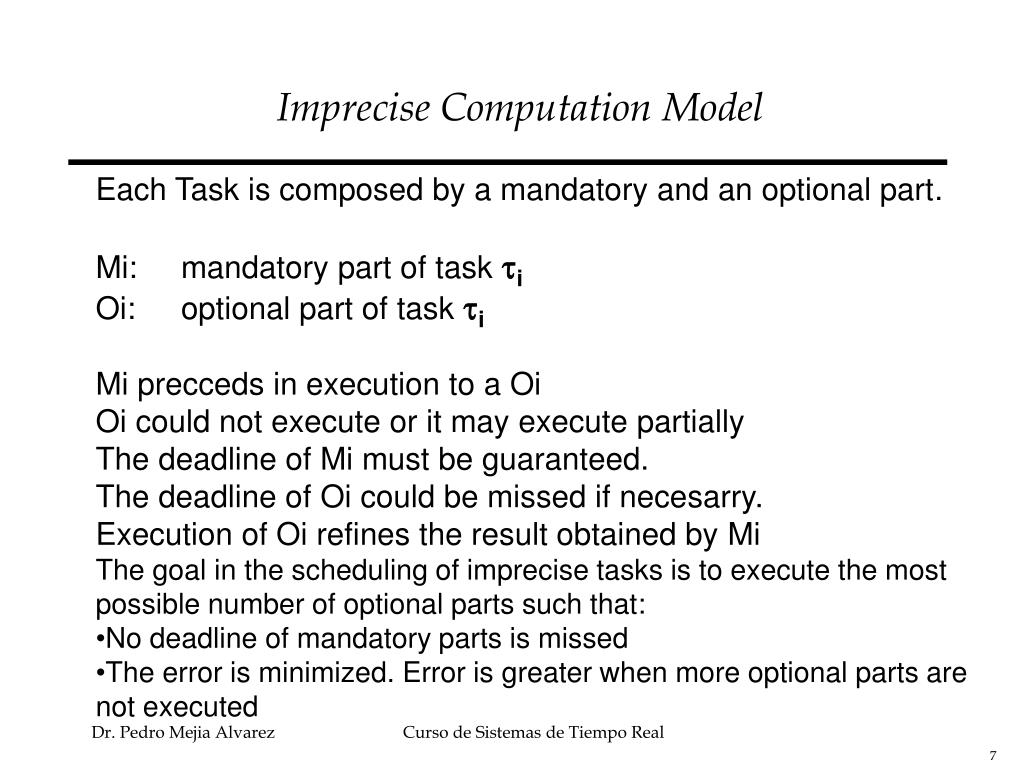

7. Imprecise Computation Model • Each Task is composed by a mandatory and an optional part. • Mi: mandatory part of taski • Oi: optional part of taski • Mi precceds in execution to a Oi • Oi could not execute or it may execute partially • The deadline of Mi must be guaranteed. • The deadline of Oi could be missed if necesarry. • Execution of Oi refines the result obtained by Mi • The goal in the scheduling of imprecise tasks is to execute the most possible number of optional parts such that: • No deadline of mandatory parts is missed • The error is minimized. Error is greater when more optional parts are not executed

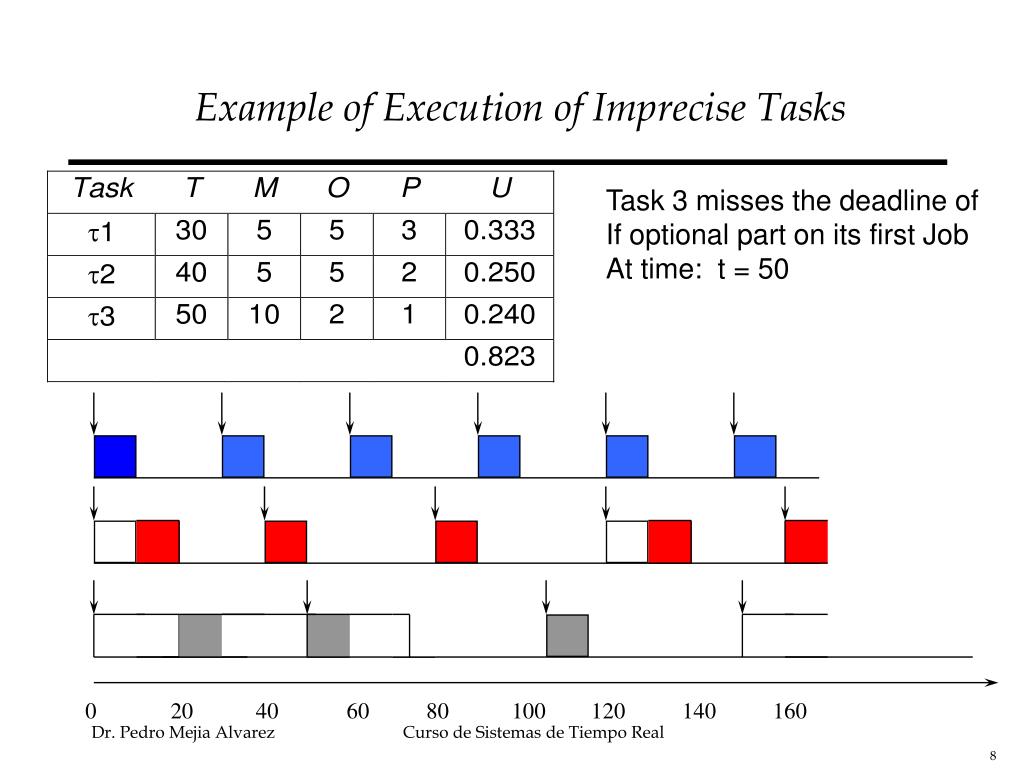

8. Example of Execution of Imprecise Tasks Task 3 misses the deadline of If optional part on its first Job At time: t = 50 0 20 40 60 80 100 120 140 160

9. The Skip Model • Some Jobs can be skipped, ocassionally • On-line guarantee • A job is either executed within its deadline or it is rejected. • Each Task is characterized by (Ci,Ti,Di,Si) • Si is the minimum number of Jobs that must be executed • between two consecutive skips

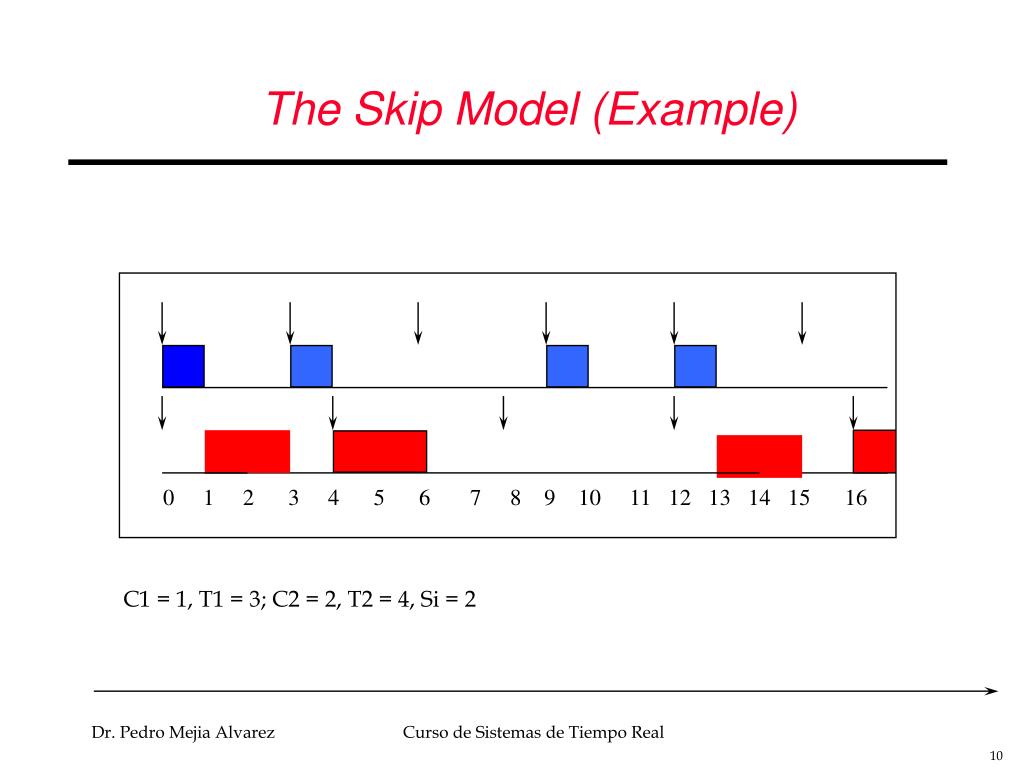

10. The Skip Model (Example) 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 C1 = 1, T1 = 3; C2 = 2, T2 = 4, Si = 2

11. The Elastic Tasks Model • The idea is to control the processor load by tuning the task periods • Task utilization are variable with given elastic coefficients • A periodic task is characterized by: (Cu, Ti0, Timin, Timax, Ei) • The actual period Ti Є [Timin,Timax] Ei Ri Timin Ti0 Timax

12. Criteria for rejection = discard the lesser-valued tasks. The time valued functions: difficult to obtain performance may be degraded if the system designers are not familiar with these functions. How far from optimal is the performance of the algorithms? Discarding “less critical” tasks during overload requires: exploration of a large search space (combination of tasks) to discard  solution not practical. Problems with Related Work

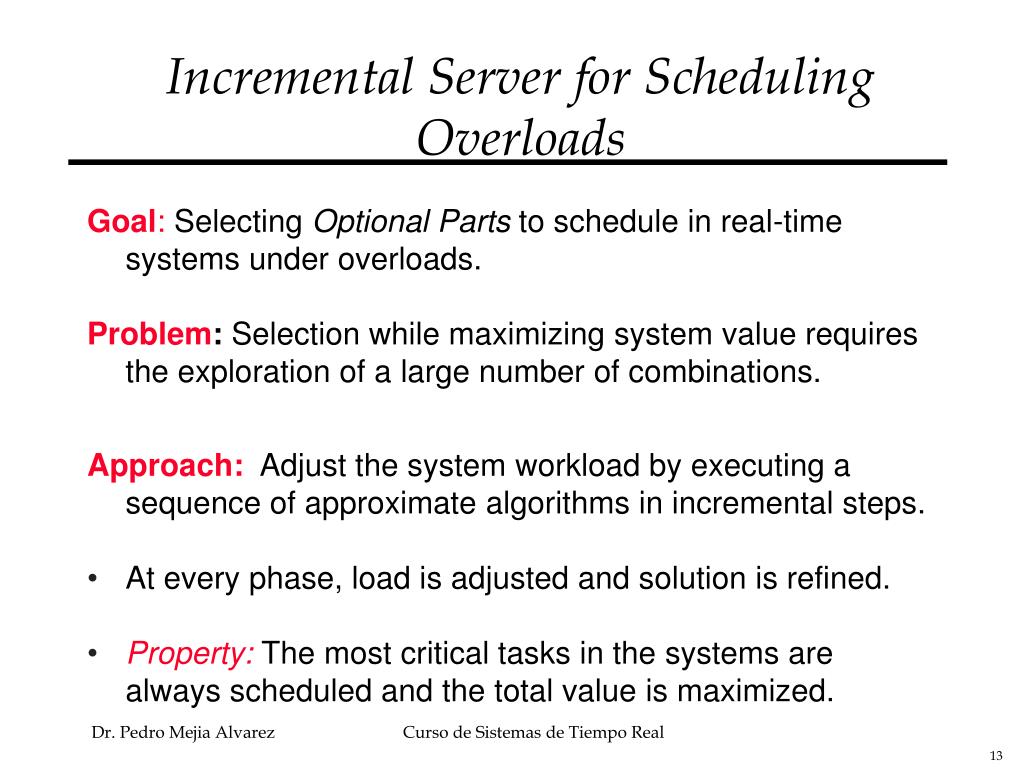

13. Goal: Selecting Optional Parts to schedule in real-time systems under overloads. Problem: Selection while maximizing system value requires the exploration of a large number of combinations. Approach: Adjust the system workload by executing a sequence of approximate algorithms in incremental steps. At every phase, load is adjusted and solution is refined. Property: The most critical tasks in the systems are always scheduled and the total value is maximized. Incremental Server for Scheduling Overloads

14. OVERLOADED SYSTEM M1 M3 O1 O2 M2 O4 M4 O3 M5 O5 M6 O6 Optional Parts Mandatory Parts

15. OVERLOADED SYSTEM M1 M3 O1 O2 M2 O4 M4 O3 M5 O5 M6 O6 • Optimal Solution • High Complexity Mandatory Parts Optional Parts

16. OVERLOADED SYSTEM M1 M3 M2 M4 M5 M6 • Low Cost • Poor Solution Mandatory Parts Optional Parts

17. INCREMENTAL EXECUTION OF A SEQUENCE OF APPROXIMATE ALGORITHMS Solutions O1 O2 O1 O6 O3 O4 O2 O4 [...AP(0)][....................AP(1)] .............. [..........AP(k)] • Solution is Refined • Complexity Increases

18. INCREMENTAL EXECUTION OF A SEQUENCE OF APPROXIMATE ALGORITHMS Overload 1 Slack U 0 Time AP(0)][...............AP(1)][.......................................AP(k)] • AP(1) runs on the Slack Time recovered by AP(0)

19. Imprecise periodic tasks: 0/1 constraints The arrival of each task is aperiodic (riinstances per task). Overload is caused by optional parts. Overloads only due to new task arrivals (comp times are fixed) Optional parts may be discarded under overloaded conditions. Each task has an associated criticality valuevi. Earliest Deadline First (EDF) dispatching. Task Model

20. Define the search space and the objective functions, Define the conditions for the feasibility of a solution, Find a feasible element within the search space that satisfies an optimality criteria. Execute the Approximate Algorithms in an incremental fashion, during system idle times. Methodology Proposed

21. Search Space Set Search Space S4{1,1,1,1} S3{1,1,1,0}{1,1,0,1}{1,0,1,1}{0,1,1,1} S2{1,1,0,0}{1,0,1,0}{1,0,0,1}{0,1,1,0}{0,1,0,1}{0,0,1,1} S1{1,0,0,0} {0,1,0,0} {0,0,1,0} {0,0,0,1} S0{0,0,0,0} • Each element in S denotes either a Feasible or Non-Feasible Solution • Xi = 1, optional part i is chosen for execution.

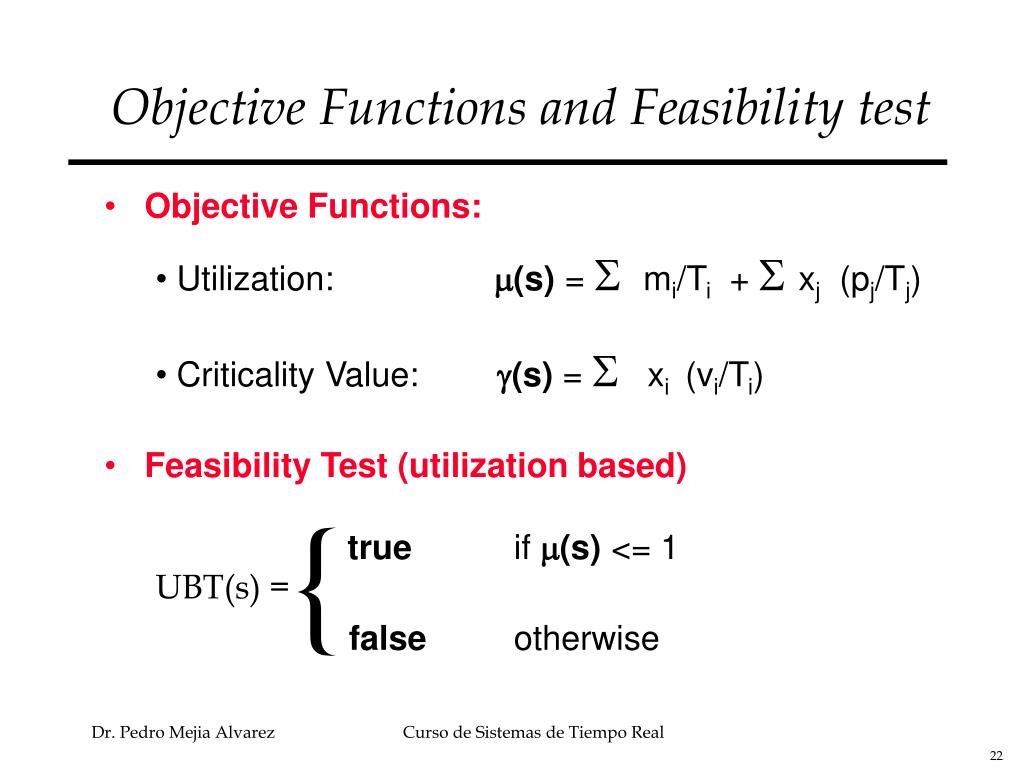

22. Objective Functions and Feasibility test • Objective Functions: • Utilization:(s) =  mi/Ti +  xj (pj/Tj) • Criticality Value:(s) =  xi (vi/Ti) • Feasibility Test (utilization based) • true if (s) <= 1 • UBT(s) = • false otherwise {

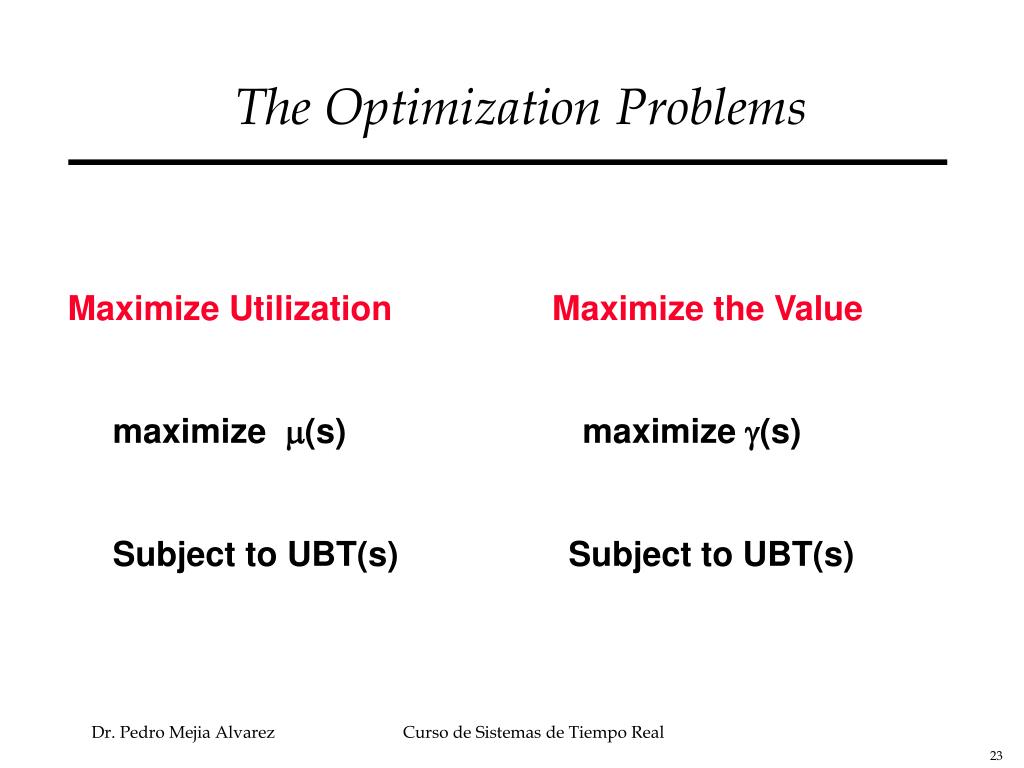

23. The Optimization Problems • Maximize Utilization Maximize the Value • maximize(s) maximize(s) • Subject to UBT(s) Subject to UBT(s)

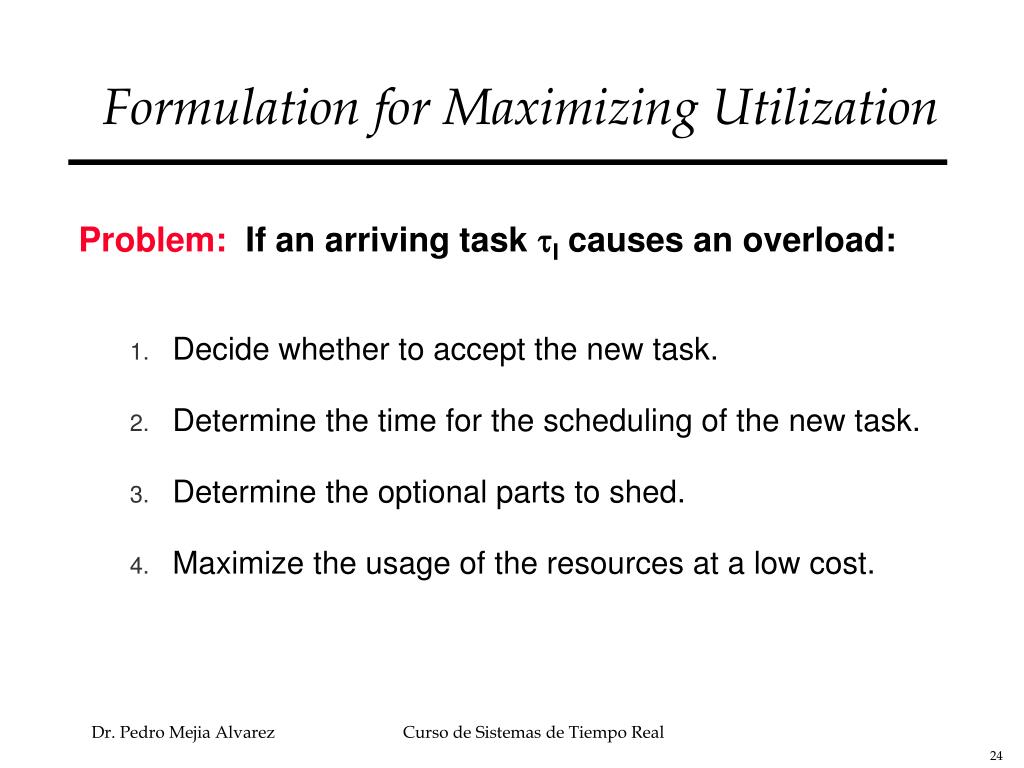

24. Problem:If an arriving task I causes an overload: Decide whether to accept the new task. Determine the time for the scheduling of the new task. Determine the optional parts to shed. Maximize the usage of the resources at a low cost. Formulation for Maximizing Utilization

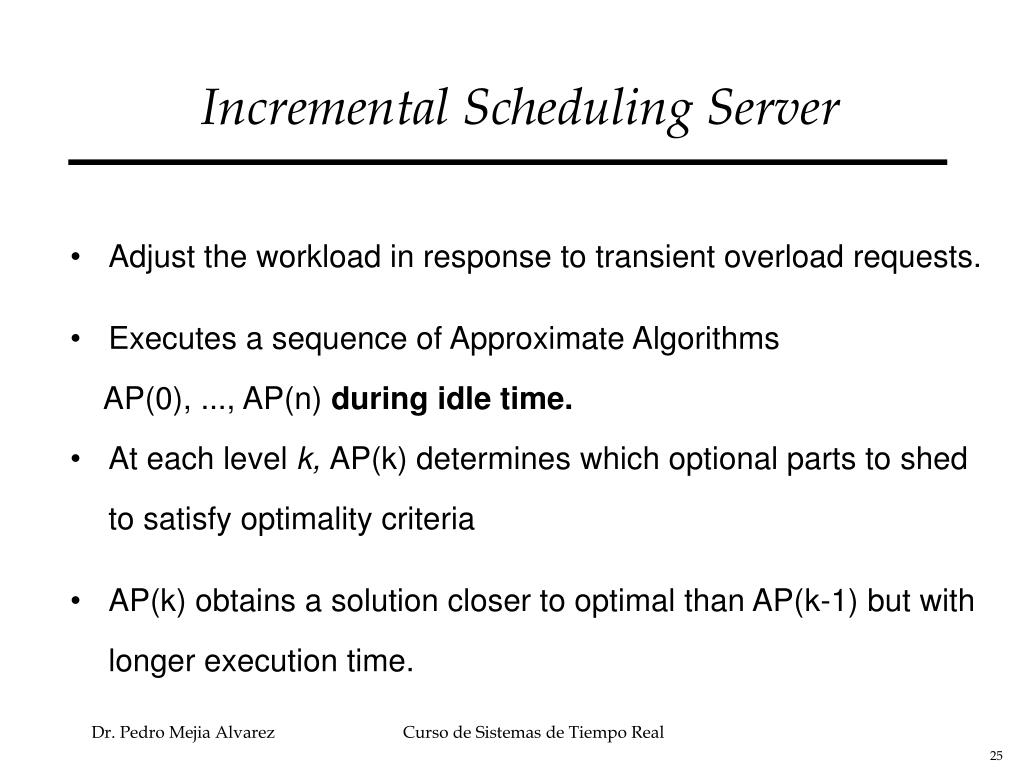

25. Adjust the workload in response to transient overload requests. Executes a sequence of Approximate Algorithms AP(0), ..., AP(n) during idle time. At each level k, AP(k) determines which optional parts to shed to satisfy optimality criteria AP(k) obtains a solution closer to optimal than AP(k-1) but with longer execution time. Incremental Scheduling Server

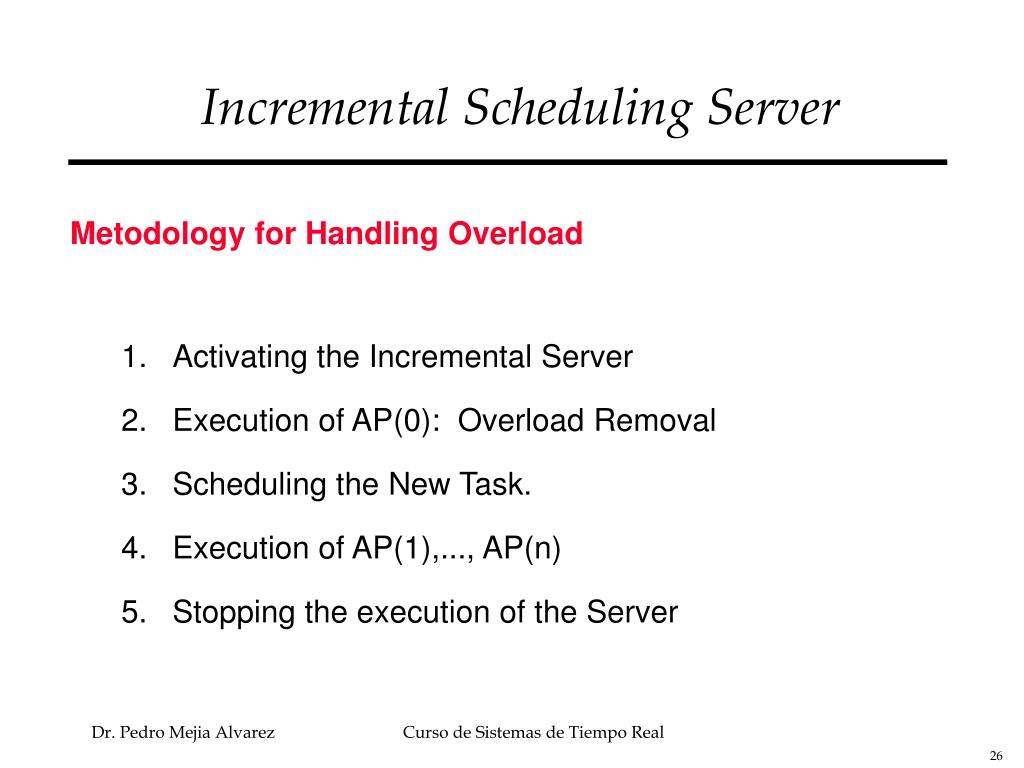

26. Incremental Scheduling Server • Metodology for Handling Overload • Activating the Incremental Server • Execution of AP(0): Overload Removal • Scheduling the New Task. • Execution of AP(1),..., AP(n) • Stopping the execution of the Server

27. Incremental Scheduling Server • Triggers for activating the INCA Server: • A new task arrives and causes an overload: UBT Test • A task leaves the system. • While waiting for new tasks, the INCA server do not cause overhead in the system.

28. Incremental Scheduling Server • Execution of AP(0) yields Overload Removal: • “shed the less critical optional parts” • AP(0) is a greedy algorithm O(n)  finds a sub-optimal solution. • If overload persists after AP(0) the new task is rejected. • Optional Tasks are temporarily suspended, not discarded.

29. Incremental Scheduling Server • Scheduling the New Task occurs only at the end of the longest period of all preempted tasks. • The resulting utilization can not be immediately subtracted.

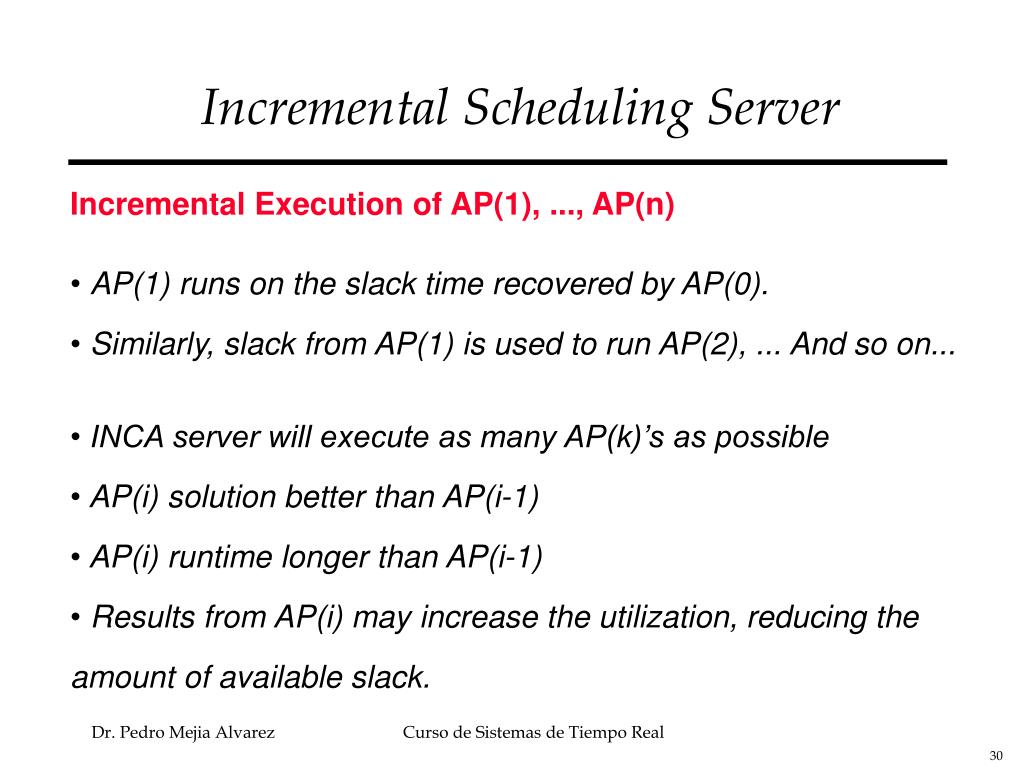

30. Incremental Scheduling Server • Incremental Execution of AP(1), ..., AP(n) • AP(1) runs on the slack time recovered by AP(0). • Similarly, slack from AP(1) is used to run AP(2), ... And so on... • INCA server will execute as many AP(k)’s as possible • AP(i) solution better than AP(i-1) • AP(i) runtime longer than AP(i-1) • Results from AP(i) may increase the utilization, reducing the amount of available slack.

31. Incremental Scheduling Server • Triggers for stopping the execution of the INCA Server • There is no slack in the schedule to execute AP(k)  stop server • AP(k) gives a solution no better than AP(k-1)  stop server • After AP(n) is executed  stop server • Another task arrives in the system  stop and re-start server • A Task leaves the system stop and re-start server

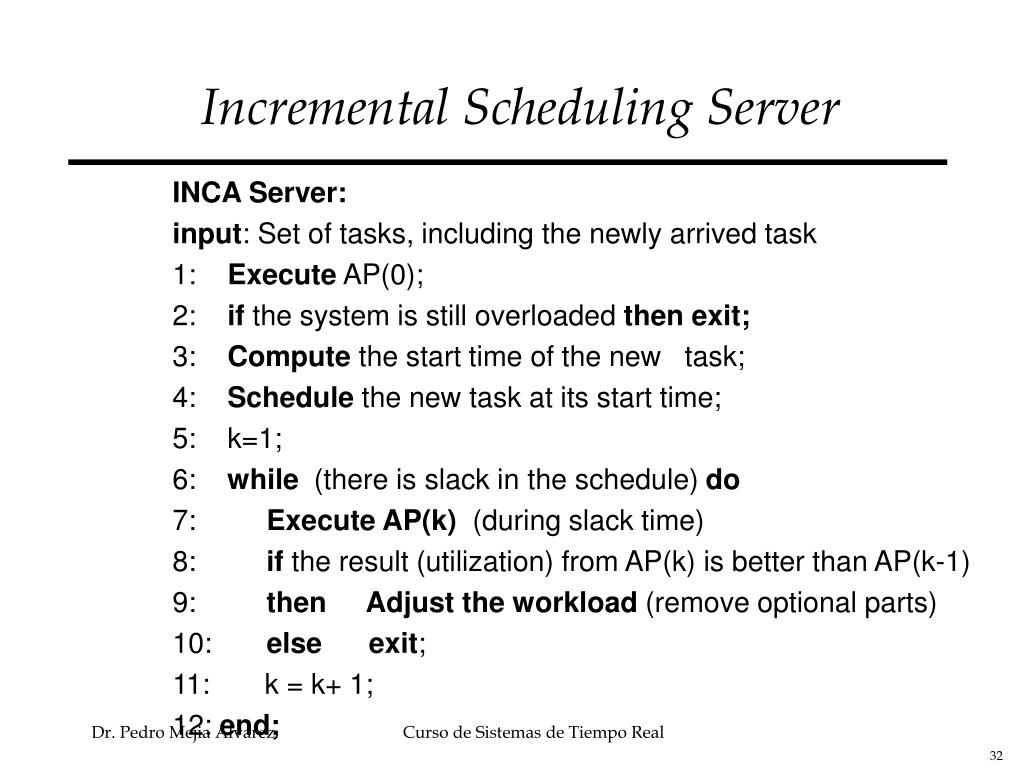

32. Incremental Scheduling Server INCA Server: input: Set of tasks, including the newly arrived task 1: Execute AP(0); 2: if the system is still overloaded then exit; 3: Compute the start time of the new task; 4: Schedule the new task at its start time; 5: k=1; 6: while (there is slack in the schedule) do 7: Execute AP(k) (during slack time) 8: if the result (utilization) from AP(k) is better than AP(k-1) 9: thenAdjust the workload (remove optional parts) 10: elseexit; 11: k = k+ 1; 12: end;

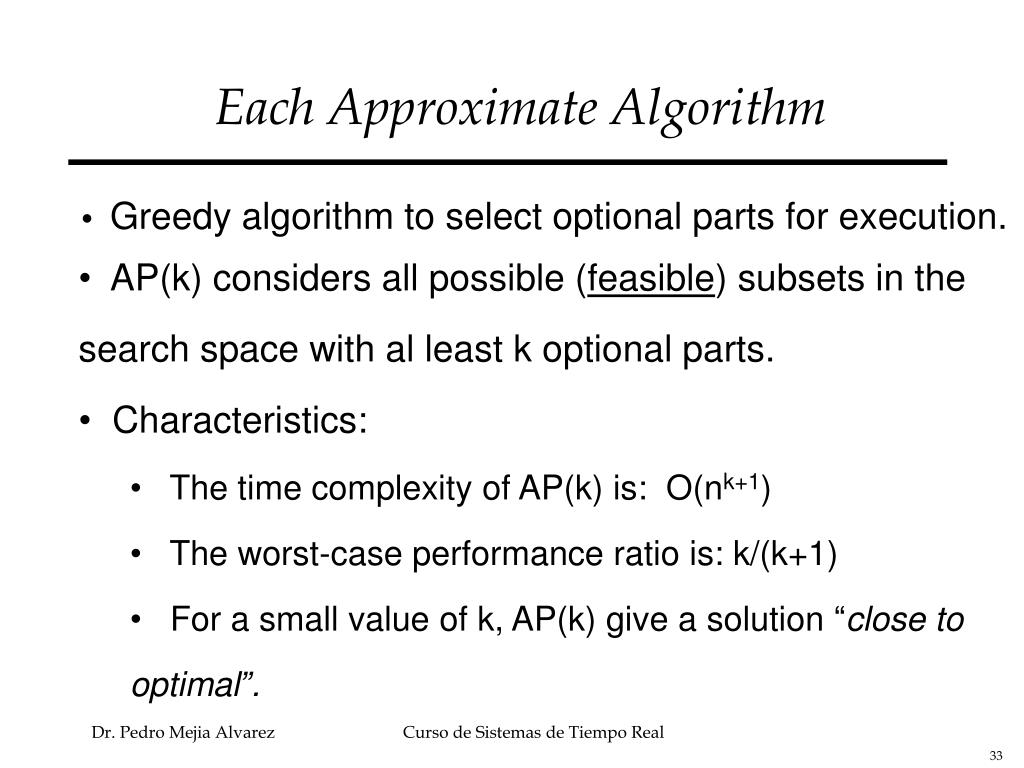

33. Each Approximate Algorithm • Greedy algorithm to select optional parts for execution. • AP(k) considers all possible (feasible) subsets in the search space with al least k optional parts. • Characteristics: • The time complexity of AP(k) is: O(nk+1) • The worst-case performance ratio is: k/(k+1) • For a small value of k, AP(k) give a solution “close to optimal”.

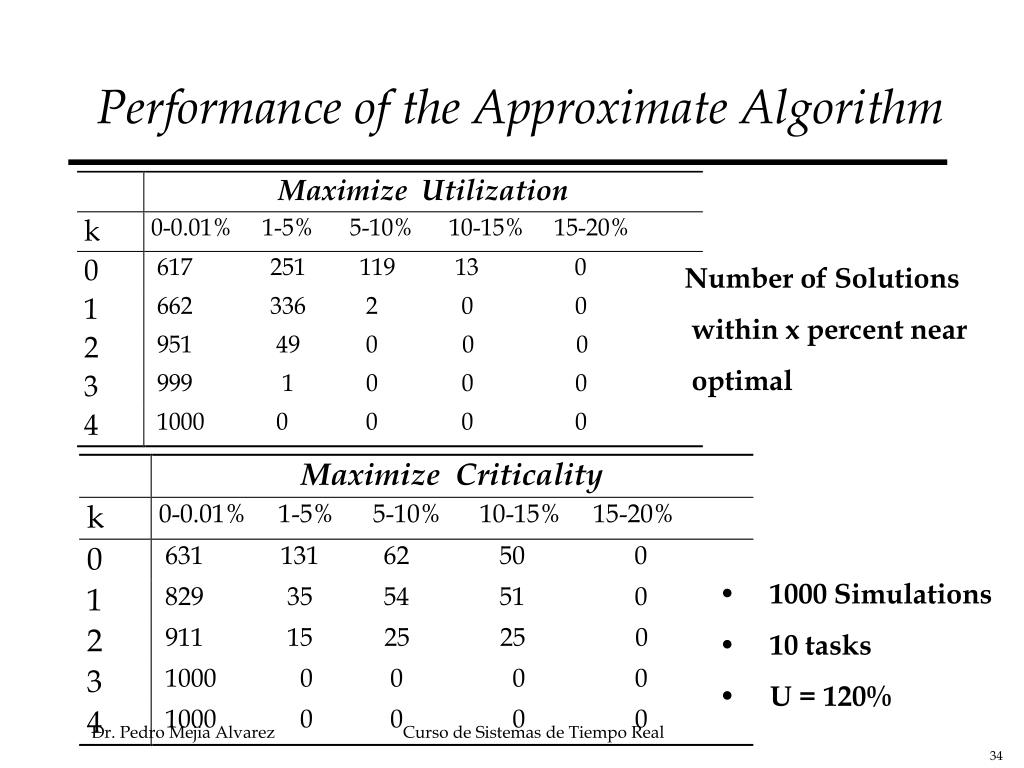

34. Performance of the Approximate Algorithm Number of Solutions within x percent near optimal • 1000 Simulations • 10 tasks • U = 120%

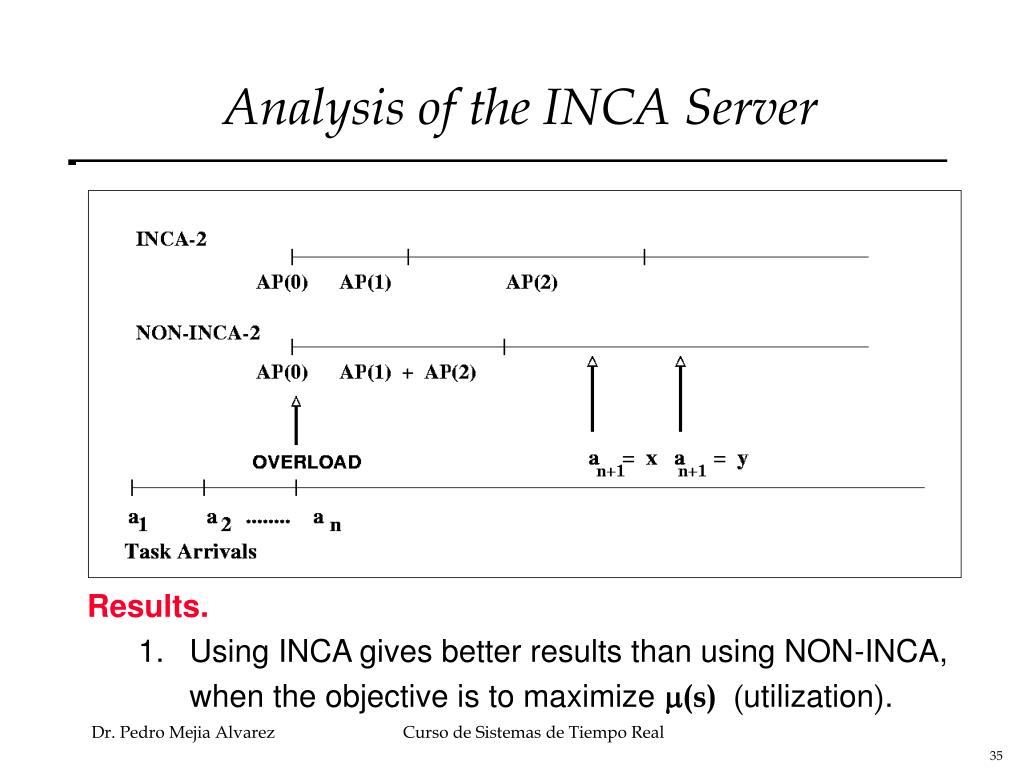

35. Analysis of the INCA Server • Results. • Using INCA gives better results than using NON-INCA, when the objective is to maximize (s) (utilization).

36. Simulation Experiments: setup • Measure the quality of results over a set of dynamic tasks. • Measure and compare the performance among several stages of our different optimality criteria • 100 independent simulations (first 5 stages of AP(k)) • 5,000 tasks (life time of each task: 400-600 instances)

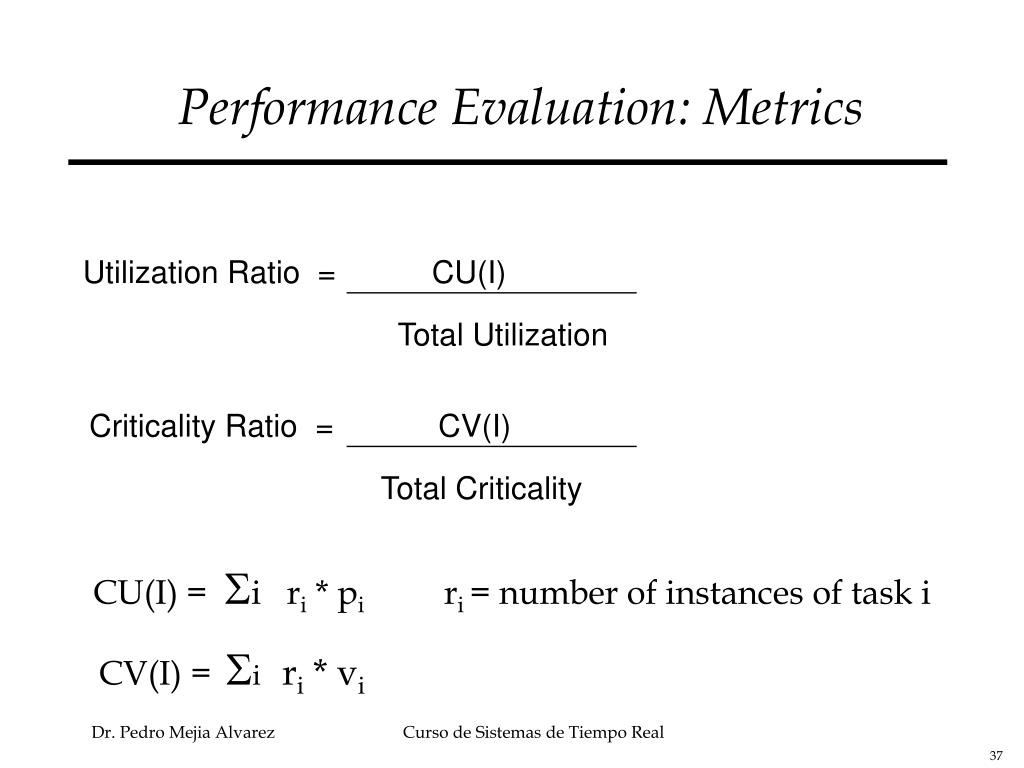

37. Performance Evaluation: Metrics Utilization Ratio = CU(I) Total Utilization Criticality Ratio = CV(I) Total Criticality CU(I) = i ri * pi ri = number of instances of task i CV(I) =i ri * vi

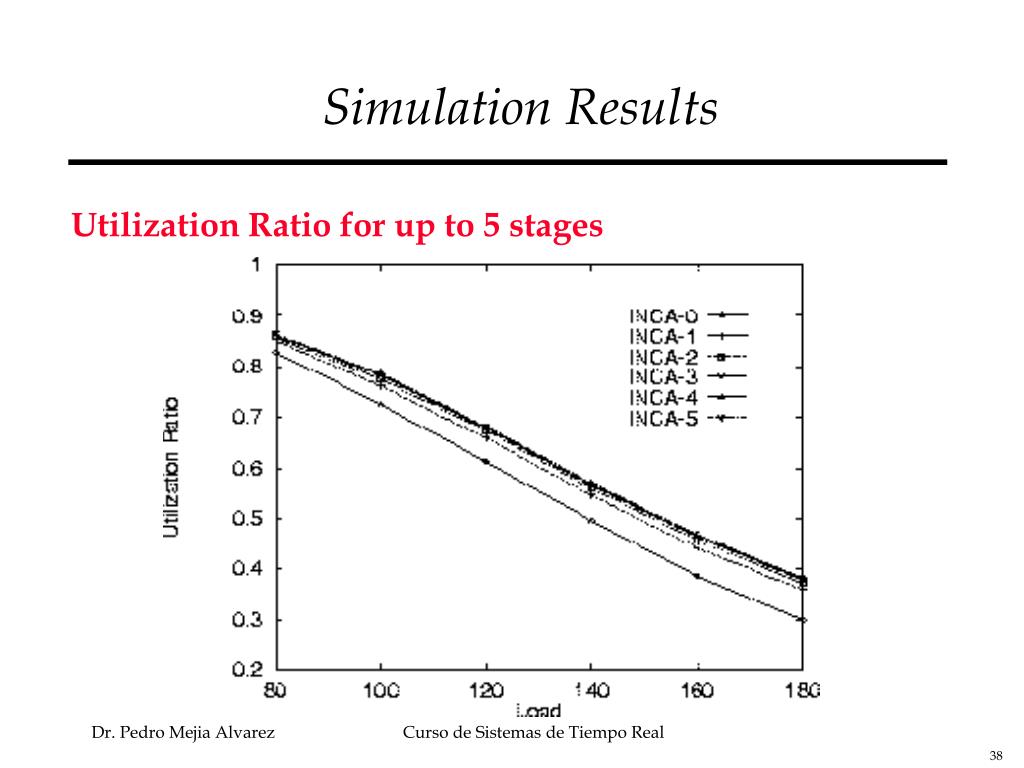

38. Simulation Results Utilization Ratio for up to 5 stages

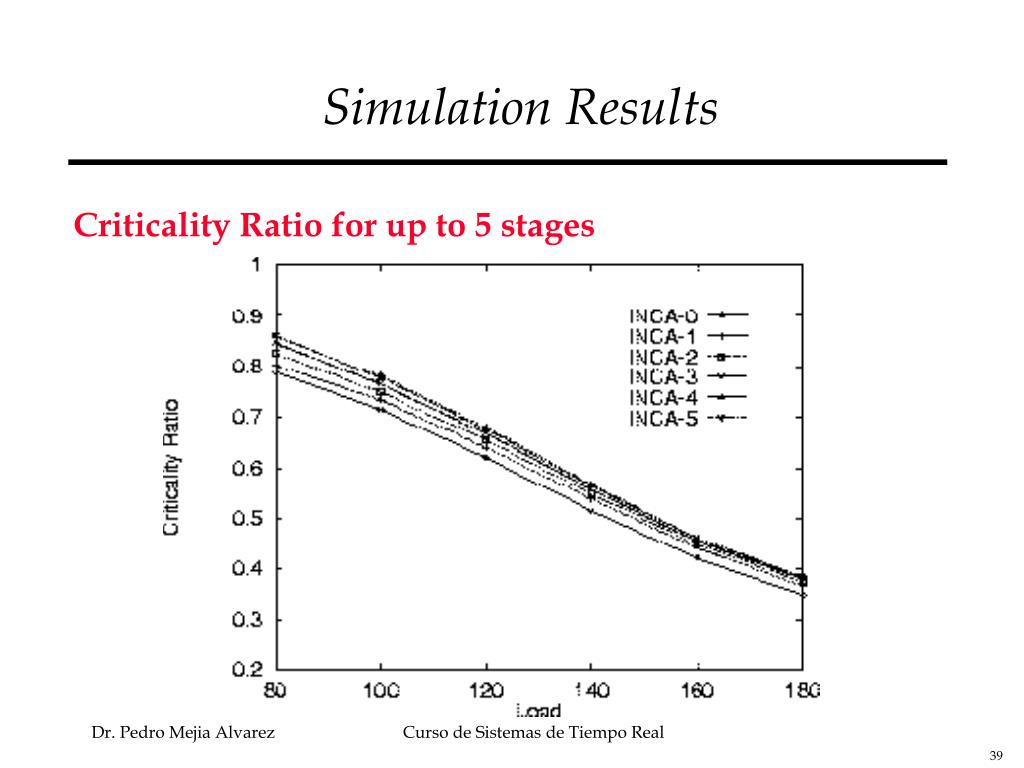

39. Simulation Results Criticality Ratio for up to 5 stages

40. Conclusion on the INCA Server • Only few stages of the INCA server are necessary for achieving near-optimal results. • INCA Algorithm is easy to implement. • Performance metrics (utilization and criticality) are easy to obtain for system designers.
