1963-1967 Corvette Assembly Process

1963-1967 Corvette Assembly Process. Chassis And Final Assembly NCRS National Convention July 20, 2011 John Hinckley. Chassis To Final Sequence. Chassis Line - Elevated Floor Conveyor Final Line - Flat-Top Strand Conveyor Final Process - Driven On Wheels Final Trim Line - Strand Conveyor.

olesia
Download Presentation

1963-1967 Corvette Assembly Process

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. 1963-1967 Corvette Assembly Process Chassis And Final Assembly NCRS National Convention July 20, 2011 John Hinckley

  2. Chassis To Final Sequence • Chassis Line - Elevated Floor Conveyor • Final Line - Flat-Top Strand Conveyor • Final Process - Driven On Wheels • Final Trim Line - Strand Conveyor

  3. Chassis Line • Gas Tank, Gas & Brake Lines • Frame VIN Derivative Stamp • Exhaust System • Engine/Transmission/Driveshaft • 4-Speed Shift Linkage • Brake Bleed & Test, Install Battery • Chassis Blackout & Body Mount Shims

  4. Final Assembly • Body Drop To End Of Final Line • Roll Test & Toe-In • Water Test • Final Paint Repair • Final Trim Line • Headlight Aim, Inspection & Ship

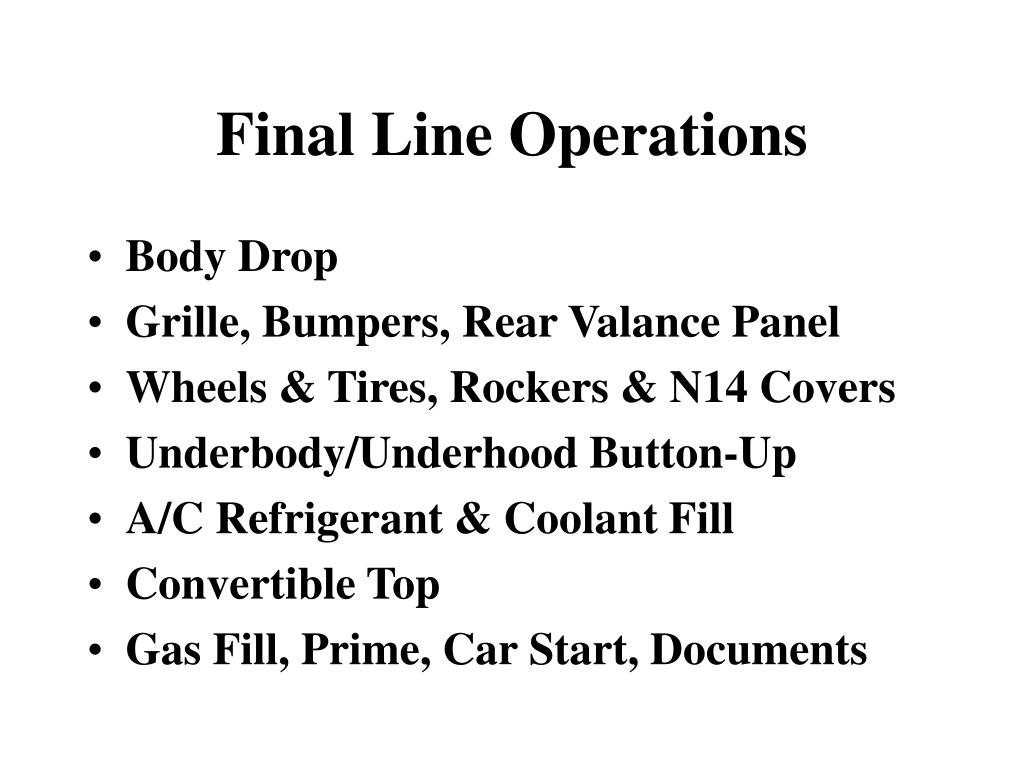

  5. Final Line Operations • Body Drop • Grille, Bumpers, Rear Valance Panel • Wheels & Tires, Rockers & N14 Covers • Underbody/Underhood Button-Up • A/C Refrigerant & Coolant Fill • Convertible Top • Gas Fill, Prime, Car Start, Documents
