S/K Challenge Demonstration Information and Planning Makeup Meeting

1. S/K Challenge Demonstration Information and Planning Makeup Meeting US Army Dugway Proving Ground Presented 03 Jun 2014 Unclassified

2. S/K Challenge 2 Unclassified

3. Purpose • The purpose of the Dugway Proving Ground S/K Challenge I event is to enable the chemical and biological defense community, both government and industry, to gain early insight into system capabilities in a real world threat scenario. • As the Nation’s Chemical and Biological Proving Ground, DPG recognizes the need to continue advancing the collaborative efforts of National and International chemical and biological partners. • We offer a Test Tube to Battlefield capability, with world-class information and services for Test and Evaluation within a collaborative cost environment. 3 Unclassified

4. S/K Challenge S/K Challenge is a collaborative demonstration Objective: To allow early involvement in threat relevant environments to support system, process, and procedure development All participants receive the same support/services Systems are not undergoing formal test/evaluation 4 Unclassified

5. S/K ChallengeFee Schedule Field Participants ($15K) Field Site Tours Basic Logistics support System Exposed to Threat Relevant Challenges; opportunity to collect and analyze samples Exercise your COTs equipment Test Drive your prototype under development Referee Data Package compare your data to ours Analytical Package ($5K) No need to attend or participate Stand Alone Referee Data Package Observers ($2K) Command & Control Live Data Feed Distributed Test Control Center (DTCC) Networking Opportunity Field Site Tours *O6, GS-15 and equivalent or above full access to VIP observation opportunity 5 Unclassified

6. S/K Challenge Schedule Planning 20 Mar 14 15 May 14 (03 Jun 14 makeup) 10 Jul 14 Execution 08-18 Sep 14 Scenarios Logistics Data collection Post Execution Retrograde 19 Sep 14 After Action Review 19 Sep 14 Data package delivery 16 Oct 14 S/K Challenge II Summer 15 6 Unclassified

7. Expectations Customer Requirements Dugway Requirements Data Package - Referee data collection On-site Logistics Scenario design and execution to include: Chemical and Biological simulants Threat scenarios Test Grid setup Aerosols/Vapors Explosive dissemination Non-Disclosure of proprietary information Planning a minimum of 30 trials Both quick-look and detailed sample data package provided Participate in planning Participation Fee Coordinate customer logistics Travel and Equipment Shipping cost 7 Unclassified

8. Ideal Testing Environment • Environmental permits • Pristine air quality • No encroachment (physical or electronic) • No endangered species • Low precipitation (<8 inches/year) Granite Mountain Elevation: 7080 feet Salt Flats Elevation: 4230 feet 8 Unclassified

9. Dugway Multi-use Test Range Complex of 27 instrumented ranges, grids, test sites & impact areas C/B, munitions, smoke & obscurants, and illumination testing Outfitted with dissemination, referee, meteorological sensors and communication technology Environmental permits for outdoor open air testing with all appropriate C/B simulants 4 major impact areas, 9 drop zones, 91 artillery firing points Most heavily-instrumented C/B test site in the world 9 Unclassified Approved for Public Release—Distribution Unlimited

10. Test Grid Location 10 Unclassified

11. Test Grid Layout 11 Unclassified

12. Release Types Wet Biological Dry Biological Explosive Wet Chemical Dry Chemical Chemical Vapor 12 Unclassified

13. S/K Challenge Schedule 13 Unclassified

14. S/K Challenge Master Events List 14 Unclassified

15. S/K Challenge Master Events List(Continued) 15 Unclassified

16. S/K Challenge Master Events List(Continued) 16 Unclassified

17. S/K Challenge Master Events List(Continued) 17 Unclassified

18. Execution Process Customer Requirements Dugway Requirements Execute trials as weather allows. Maintain range safety Limited Access to range after start of the evening Participants will be allowed access before start of trials and at the end of trials each evening Understand individual system troubleshooting cannot delay execution 18 Unclassified 18

19. Data Sources* Bio Point Aerodynamic Particle Sizer (APS) Standoff Light Detection and Ranging (LIDAR**) Chem Point Gasmets Standoff Chemical Cloud Tracking System (CCTS)Orion Cameras *Meteorological PWIDS Data Applicable to All Releases **LIDAR also available for ChemAerosol 19 Unclassified

20. APS Data Files 20 Unclassified

21. APS Summary Tables 21 Unclassified

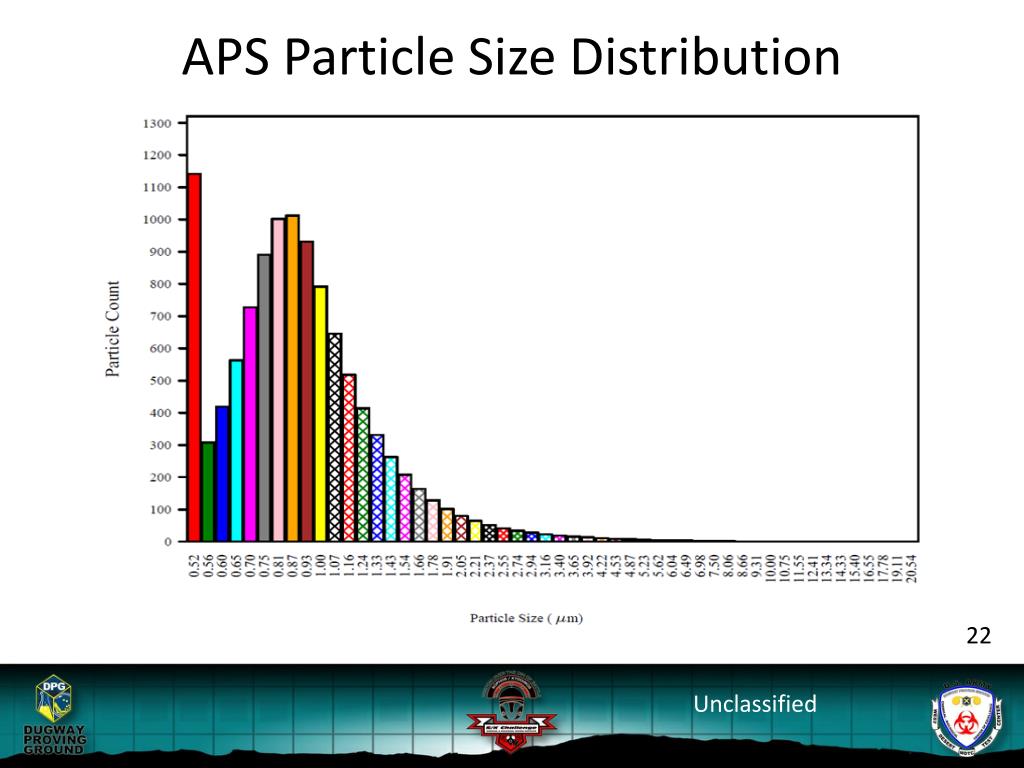

22. APS Particle Size Distribution 22 Unclassified

23. APS Plots *Similar Plots Available for Gasmet Data 23 Unclassified

24. APS Overlay Plots *Similar Plots Available for Gasmet Data 24 Unclassified

25. Gasmet Data Files 25 Unclassified

26. Gasmet Summary Tables 26 Unclassified

27. LIDAR Data Files 27 Unclassified

28. LIDAR Data Maps 28 Unclassified

29. CCTS Data Files 29 Unclassified

30. Orion 3DCAV Data Files 30 Unclassified

31. 3DCAV Data Maps 31 Unclassified

32. PWIDS Data Files 32 Unclassified

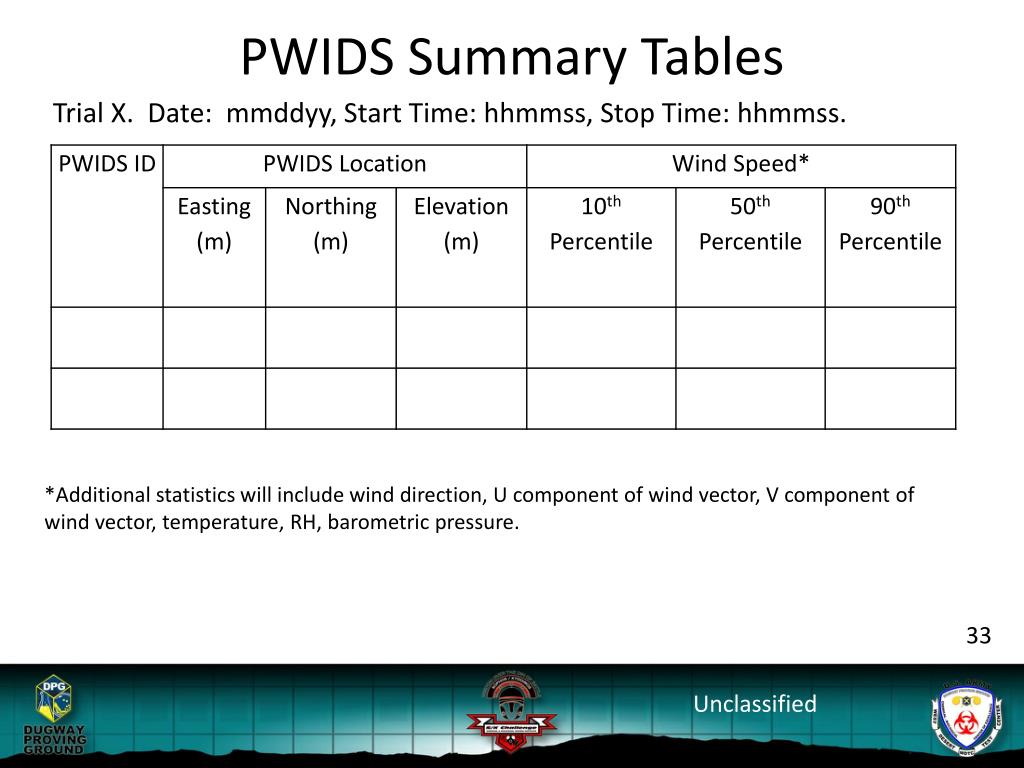

33. PWIDS Summary Tables Trial X. Date: mmddyy, Start Time: hhmmss, Stop Time: hhmmss. *Additional statistics will include wind direction, U component of wind vector, V component of wind vector, temperature, RH, barometric pressure. 33 Unclassified

34. PWIDS Plots 34 Unclassified

35. Modeled Cloud 35 Unclassified

36. Modeled Cloud 36 Unclassified

37. Modeled Cloud Sensor Locations Variable Sensor Heights GB Dispersion TEP Dispersion 37 Unclassified

38. Google Earth KML Files and AVI Files Visualization of: Gasmet and APS Concentration Readings Over Time Location of Cloud, Represented by LIDAR, CCTS, and IR Cameras PWIDS Wind Direction Location and Concentration of Modeled Cloud 38 Unclassified

39. Quick Look Data Quick Look Data from Point Sensors, available night following a given release Orion Camera 3DCAV Data, Also Typically Available. 39 Unclassified

40. Details and Registration Website www.Dugway.army.mil 40 Unclassified

41. S/K Challenge Fee Payment Non US Government Customers: Please send payment via check made out to ‘Department of Treasury’ and mailed to DPG at the following: U.S. Army Dugway Proving Ground WDTC Resource Management Office ATTN: Cynthia Rowe or Angie Child Building 4531 (Kuddes), B-Street Room 140 Dugway, UT 84022-5000 Government customers: Please make sure the following statement is on the MIPR: Issued as a reimbursable economy act service order IAW DFAS-IN 37-1, Chapter 12 and 31 U.S.C 1535 or issued as a reimbursable project order IAW DFAS-IN 37-1, Chapter 12 and 41 U.S.C 23. Please include the project number 2014-DT-DPG-ARSPT-F9492. Deadline: 01 July 2014 41

42. Additional Information Personal Protective Equipment TAP Laundry Foreign Nationals Mobile phone service – AT&T Attire Camera restrictions Additional Information is available in the Welcome Packet. 42 Unclassified

43. Points of Contact Project Manager Dr Michael Hurley Email: john.m.hurley34.civ@mail.mil Systems POC Dr Petr Serguievski Email: petr.serguievski.civ@mail.mil General Information Mrs Paula Thomas Email: paula.a.thomas23.civ@mail.mil Ms Jean Baker Email: jean.m.baker42.civ@mail.mil 43 Unclassified
