ns (from network simulator) is a name for series of  discrete event network simulators, specifically

ns-1, ns-2 and ns-3. All of them are discrete-event network simulator, primarily used in researchand teaching.

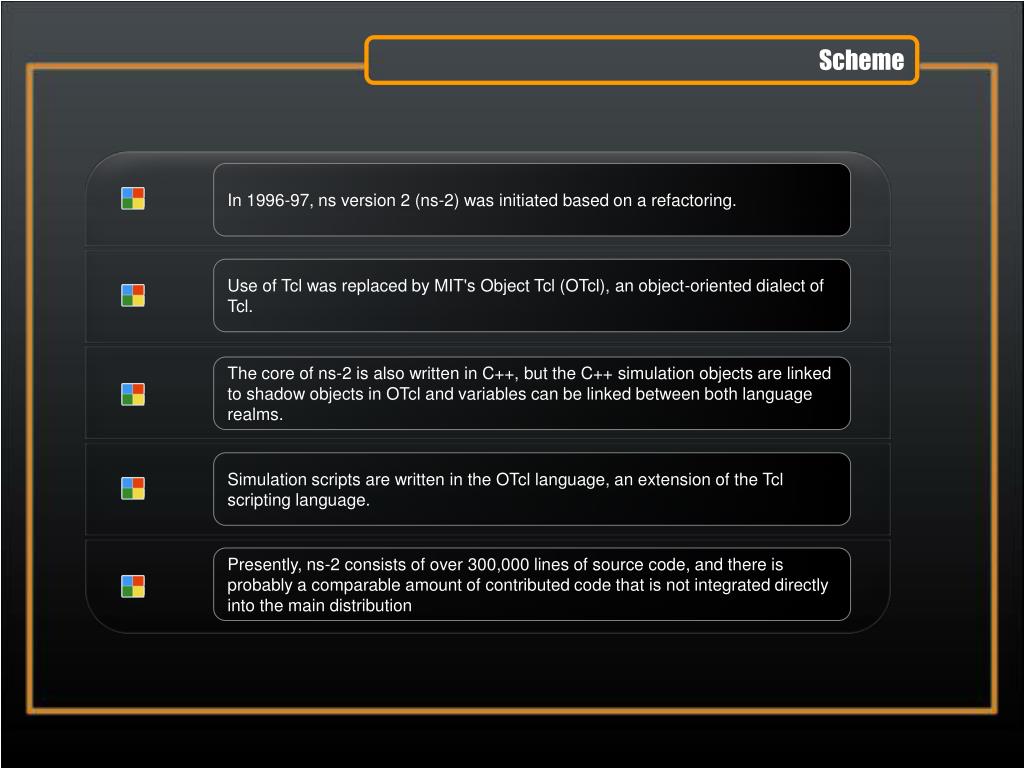

In 1996-97, ns version 2 (ns-2) was initiated based on a refactoring.

Use of Tcl was replaced by MIT's Object Tcl (OTcl), an object-oriented dialect of Tcl.

The core of ns-2 is also written in C++, but the C++ simulation objects are linked to shadow objects in OTcl and variables can be linked between both language realms.

Simulation scripts are written in the OTcl language, an extension of the Tcl scripting language.

Presently, ns-2 consists of over 300,000 lines of source code, and there is probably a comparable amount of contributed code that is not integrated directly into the main distribution

Two Languages: C++, OTcl

  • C++

  • Most important and kernel part of the NS2

  • To implement the kernel of the architecture of the

  • protocol designs

  • From the packet flow view, the processes run on

  • a single node

  • To change or “comment out” the existing protocols

  • running in NS2

  • Details of your research scheme.

Two Languages: C++, OTcl

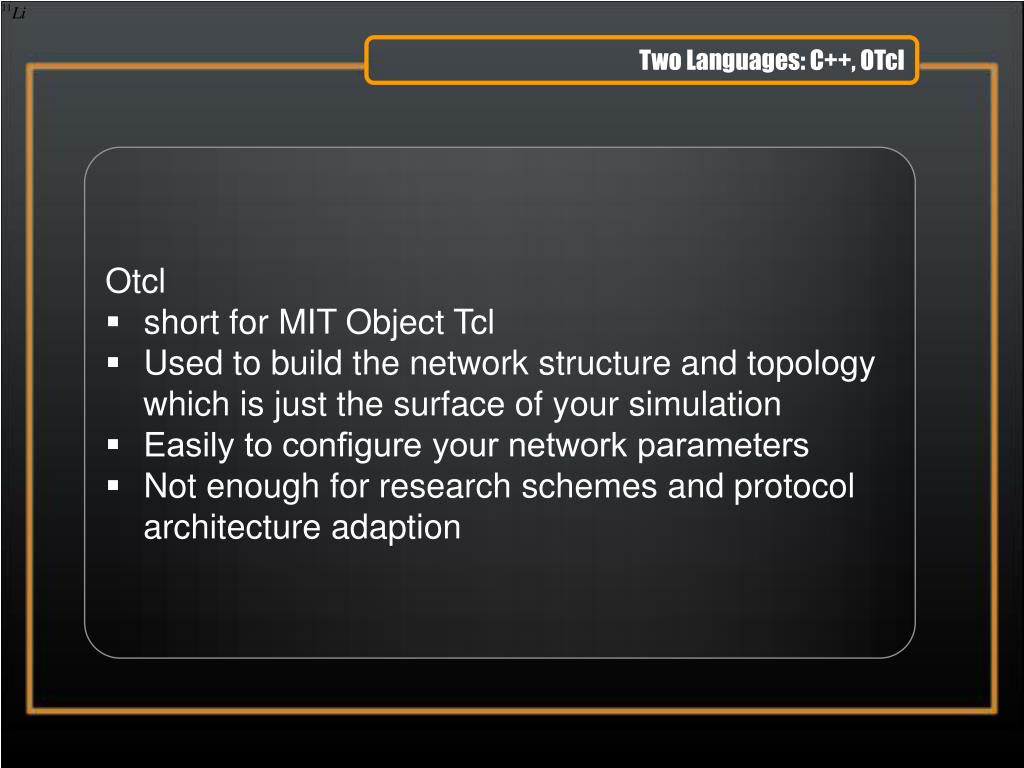

  • Otcl

  • short for MIT Object Tcl

  • Used to build the network structure and topology

  • which is just the surface of your simulation

  • Easily to configure your network parameters

  • Not enough for research schemes and protocol

  • architecture adaption


Existing core ns-2 capability

Application: ping, vat, telnet,

FTP, multicast FTP, HTTP,

Probabilistic and trace-driven

Traffic generators, web cache.

Existing ns-3

On/Off Application, asynchronous

Socket API, packet sockets.


Existing core ns-2 capability

Transport: TCP, UDP, SCTP, XCP


Multicast: PGM, SRM, RLM, PLM.

Existing ns-3



Existing core ns-2 capability

Network: Unicast, IP, MobileIP,

Generic dist, vector and link state,

Multicast: SRM, generic centralized.

Existing ns-3

IPv4, global, static routing

Multicast: static routing


NS 2 FTP example.
