Piano

Piano

Games and Simulations

O-O Programming in Java

The Walker School

The Walker School – Games and Simulations - 2010


Piano world

Piano World

What are the Java keywords in this class?

Piano

Class

Method that specifies the size and resolution of the world

Piano

Constructor


Java key words

Java Key Words

Keywords are words which have a predefined meaning in the language; because of this, programmers cannot use keywords as names for variables, methods, classes, or as any other identifier.

The Walker School – Games and Simulations - 2010


Animating keys

Animating Keys

Key

Constructor

Key

Method

The Walker School – Games and Simulations - 2010


Piano

Animated White Key

Switches between two images: white-key and white-key down.

The Walker School – Games and Simulations - 2010


Piano

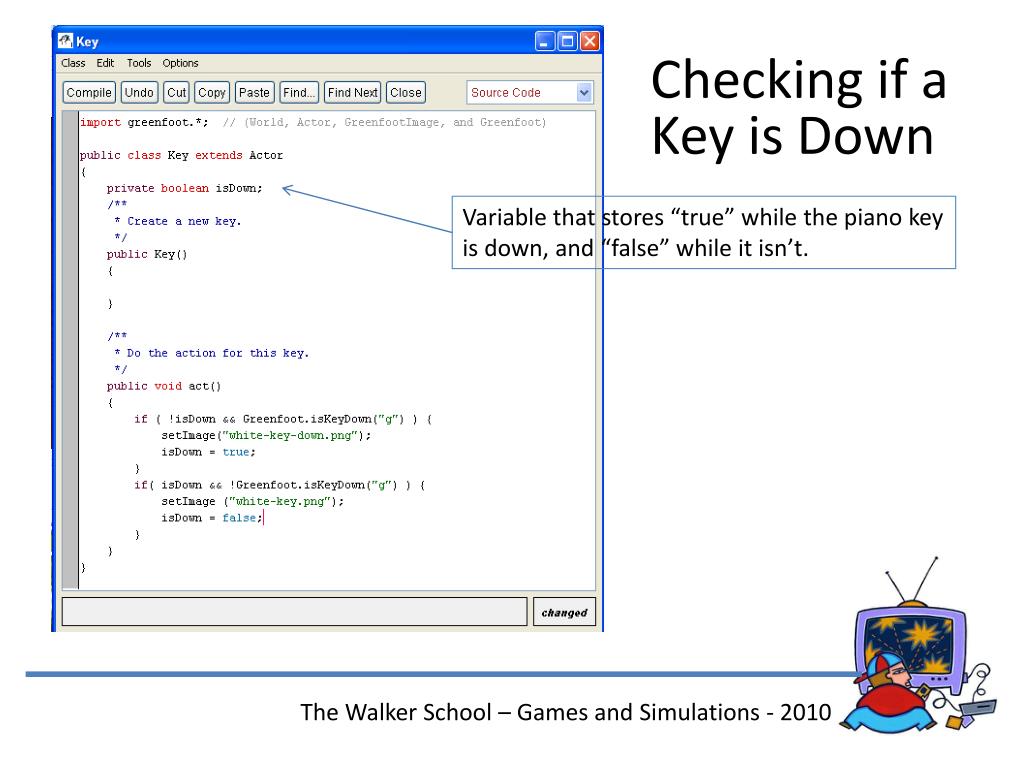

Checking if a Key is Down

Variable that stores “true” while the piano key is down, and “false” while it isn’t.

The Walker School – Games and Simulations - 2010


Piano

Producing the Sound

Calls the play method.

Creates a play method.

The Walker School – Games and Simulations - 2010


Abstraction

Abstraction

  • A concept or idea not associated with any specific instance. In the case of the piano, we are creating a general Key class that will act the same with each key, i.e. play a sound when a key is pressed.

  • Thus, we avoid repeating many lines of code.

The Walker School – Games and Simulations - 2010


Piano

Step #1 - Create Instance Variables

Create a variable to hold the name of the key.

Create a variable to hold the sound file.

The Walker School – Games and Simulations - 2010


Step 2 assignment

Step #2 - Assignment

Add parameters to the constructor, so that bits of information can be passed in when the object is constructed.

The Walker School – Games and Simulations - 2010


Arguments and parameters

Arguments and Parameters

Arguments are values that control how the function does its job.

Some functions can take more than one argument.

How many parameters can a constructor take?

Values that are passed from one function to another get assigned to variables called parameters.

The Walker School – Games and Simulations - 2010


Programming challenge

Programming Challenge

What needs to be added in our play() method to pass a sound from the constructor to the play method which activates a key?

The Walker School – Games and Simulations - 2010


One possible solution

One Possible Solution

The Walker School – Games and Simulations - 2010


Step 3 construct piano

Step #3 – Construct Piano

Places a key at the top of the keyboard.

The Walker School – Games and Simulations - 2010


Programming challenge1

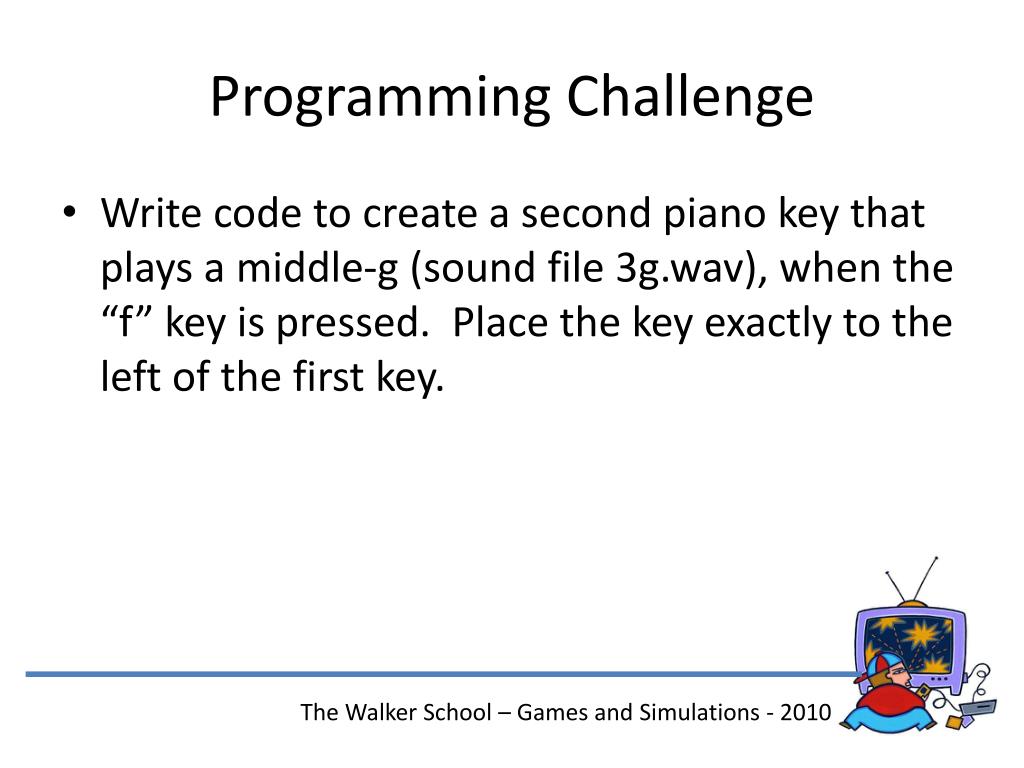

Programming Challenge

  • Write code to create a second piano key that plays a middle-g (sound file 3g.wav), when the “f” key is pressed. Place the key exactly to the left of the first key.

The Walker School – Games and Simulations - 2010


One possible solution1

One Possible Solution

The Walker School – Games and Simulations - 2010


Loops

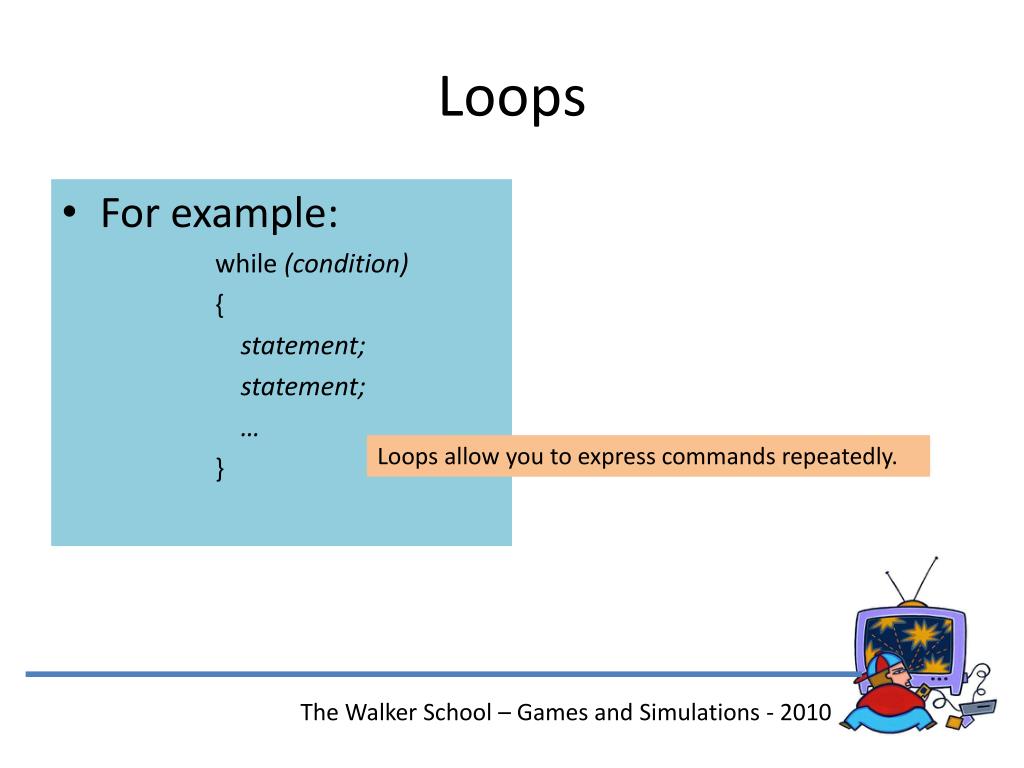

Loops

  • For example:

    while (condition)

    {

    statement;

    statement;

    }

Loops allow you to express commands repeatedly.

The Walker School – Games and Simulations - 2010


Creating piano keys w loop

Creating Piano Keys w/ Loop

What is the local variable here?

What is the problem here when you run it?

The Walker School – Games and Simulations - 2010


Local variables

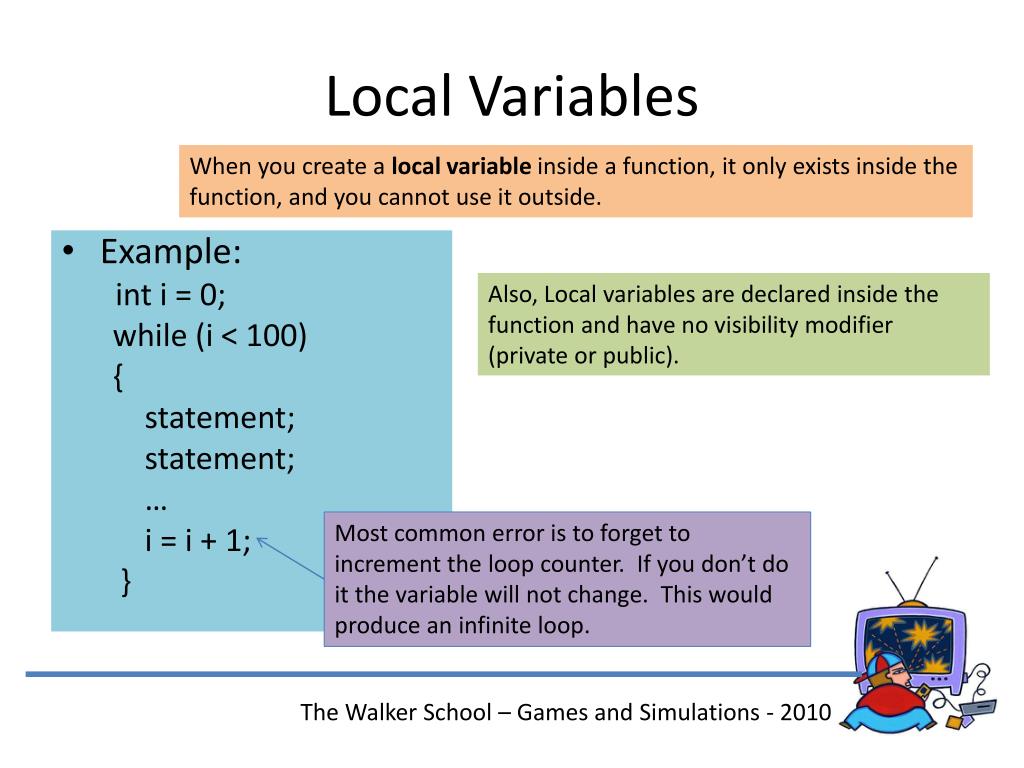

Local Variables

When you create a local variable inside a function, it only exists inside the

function, and you cannot use it outside.

  • Example:

    inti = 0;

    while (i < 100)

    {

    statement;

    statement;

    i = i + 1;

    }

Also, Local variables are declared inside the function and have no visibility modifier (private or public).

Most common error is to forget to increment the loop counter. If you don’t do it the variable will not change. This would produce an infinite loop.

The Walker School – Games and Simulations - 2010


Programming challenge2

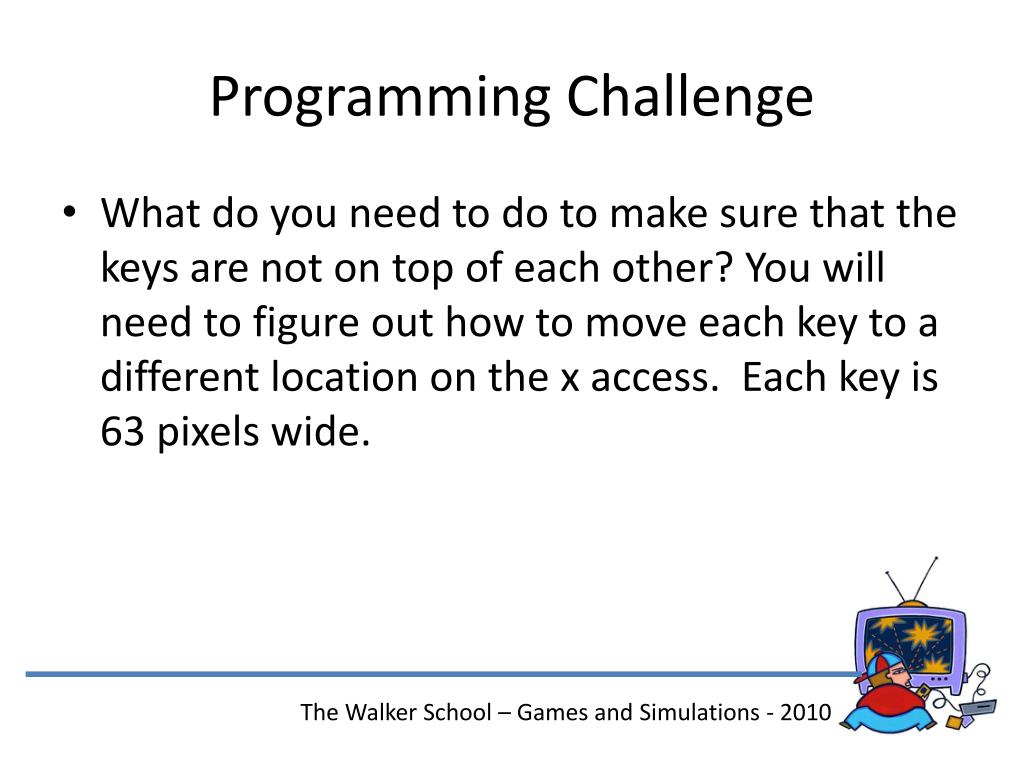

Programming Challenge

  • What do you need to do to make sure that the keys are not on top of each other? You will need to figure out how to move each key to a different location on the x access. Each key is 63 pixels wide.

The Walker School – Games and Simulations - 2010


One possible solution2

One Possible Solution

You only have to change the x variable in the coordinates, as all of the keys need to be the same distance from the top.

But this causes us another problem. What is it and what’s the solution?

The Walker School – Games and Simulations - 2010


One possible solution3

One Possible Solution

Greenfoot refers to the center point of an object, so the first key is placed at x-coordinates 0 and half the key is off the board.

The Walker School – Games and Simulations - 2010


One big problem

One Big Problem

The problem here is that all of our keys now play middle “g” sound. This is because the are created with a loop and then placed in different positions.

The Walker School – Games and Simulations - 2010


Arrays

Arrays

  • Data structures that hold information. It can hold many variables and thus can store many values. Sometimes lists are used, rather than arrays.

  • Elements in the array can be accessed using an index (the number inside the [ ] brackets).

The Walker School – Games and Simulations - 2010


White key arrays

White-Key Arrays

2D array (list) used for white keys

2D array (list) used for white key notes

The Walker School – Games and Simulations - 2010


Lists

Lists

A list is an ordered set of values, where each value is identified by an index. The values that make up a list are called its elements.

[10, 20, 30, 40] (a list of ints)

["spam", "bungee", "swallow"] (a list of strings)

Lists and strings—and other things that behave like ordered sets—are called sequences.

A list within another list is said to be nested.

The Walker School – Games and Simulations - 2010


White key method w while loop

White-Key Method w/ While Loop

Execution always begins at the first statement of the program. Statements are executed one at a time, in order from top to bottom.

Creates a local variable “I” and sets it’s initial value to “0”

As long as “i” < the length of our white-key array, do the following…

String concatenation

Create a new white key and associate it with the sound file in the whiteNotes list then append “.wav”

Add the key to a location on the keyboard.

Count up by 1 each time through the loop…required.

The Walker School – Games and Simulations - 2010


Key method w for loop

Key Method w/ For Loop

What is the structural difference between these 2 loops?

Is one loop structure better than the other for what we need we need to create the keys for our piano?

The Walker School – Games and Simulations - 2010


Programming challenge3

Programming Challenge

  • The sounds folder of the program contains the key sounds from other octaves on the piano. How would you change the octave played by the piano?

The Walker School – Games and Simulations - 2010


One possible solution4

One Possible Solution

Changes the key sounds down one octave.

The Walker School – Games and Simulations - 2010


Activity

Activity

  • Find different sound files online or use audio recorder software (e.g. Audacity) to record sounds from every day life. Move these into the sound folder of your program. Substitute these sounds for the piano sounds in your array. Create a piece of music with these sounds.

The Walker School – Games and Simulations - 2010


Creating the black keys

Creating the Black Keys

The Walker School – Games and Simulations - 2010


The issue

The Issue

  • We could go back and create everything over for the black keys that we did for the white keys, but that would not be very efficient. What we want is a Key class that will play either a white key or a black key. This is also abstraction, as we can use this method for either type of key. If we have a general Key class, the we can extend it to playing the keys for other types of instruments, say a set of trombone notes.


Step 1 instance variable

Step #1 – Instance Variable

Here we have a variable that will hold the key name of type String for either a white or black key. We also have a variable that will hold a sound. So we don’t need to make any changes from before.

The Walker School – Games and Simulations - 2010


Step 2 assignment1

Step #2 – Assignment

You will need to add 2 parameters to pass the variables each time you create an instance of a key, whether it is black or white.

The Walker School – Games and Simulations - 2010


Programming challenge4

Programming Challenge

What is the problem here?

The Walker School – Games and Simulations - 2010


One possible solution step 1 instance variable

One Possible Solution (Step #1 – Instance Variable)

Create 2 more variables to show an “upImage” or a “downImage” whether it is a white or black key.

The Walker School – Games and Simulations - 2010


One possible solution step 2 assignment

One Possible Solution (Step #2 – Assignment)

Assign these variables to the constructor so they are created each time a white or black key is created.

Why do we need setImage(upImage)?

The Walker School – Games and Simulations - 2010


Possible compile error

Possible Compile Error

Cannot find symbol – constructor Key(java.lang.String, java.lang.String, int, int)

The Walker School – Games and Simulations - 2010


For loop to create black keys

For Loop to Create Black Keys

How can we use the white key array list to create our black keys?

The Walker School – Games and Simulations - 2010


One possible solution step 3 methods

One Possible Solution (Step #3 –Methods)

Check to see that your methods reflect these changes.

The Walker School – Games and Simulations - 2010


Programming challenge5

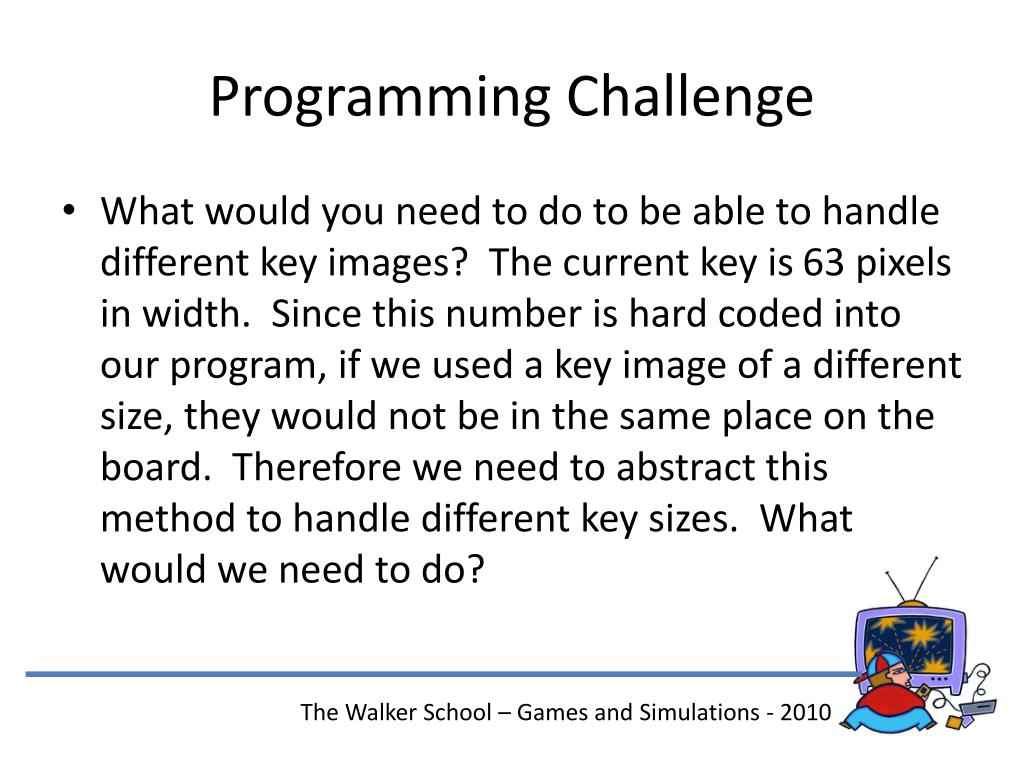

Programming Challenge

  • What would you need to do to be able to handle different key images? The current key is 63 pixels in width. Since this number is hard coded into our program, if we used a key image of a different size, they would not be in the same place on the board. Therefore we need to abstract this method to handle different key sizes. What would we need to do?

The Walker School – Games and Simulations - 2010


Making the white key width unfixed part i

Making the White Key Width “Unfixed” (Part I)

Create methods to return the actual width and height of a key in the Key class.

The Walker School – Games and Simulations - 2010


Making the white key width unfixed part ii

Making the White Key Width “Unfixed” (Part II)

Call your “width” method in the White Key loop and change the fixed number “63” to the variable “actualWidth”.

What would you do for the black keys?

The Walker School – Games and Simulations - 2010


Show a message on the board

Show A Message on the Board

Step #1 – At the top of the Piano class

Step #2 – At the bottom of the Piano class, under the last method.

The Walker School – Games and Simulations - 2010


Show a message board cont

Show a Message Board (cont.)

Step #3 – Call method, in constructor.

The Walker School – Games and Simulations - 2010


Activity1

Activity

  • Go back to the Crab World project. Add a message that appears when the game is won. How would you make the font size bigger, or a different font? Research the java.awt.Font library.

Steps for this are in the Crab World Project.

The Walker School – Games and Simulations - 2010


Advanced challenge

Advanced Challenge

  • Using fixed numbers in your code, such as 140 and 63 in the above statement is usually not the best solution. It makes your code vulnerable to breading when things change. For example is we replaced our keys with nicer keys made in PhotoShop that were of a different size, our code would not place them correctly. How would you abstract the makeKeys() method to allow for different key images.

The Walker School – Games and Simulations - 2010


Solution step 1 get height and width of keys

Solution – Step 1 (get height and width of keys)

In the Key class write a method to return the width and height of your key image.

The Walker School – Games and Simulations - 2010


Solution step 2 develop a formula

Solution - Step 2 (develop a formula)

b

How can handled the missing black key in the 4th and 8th positions on the keyboard?

h

Greenfoot determines position from the middle of the key.

h2

h1

w

What mathematical formula could be used to model key placement?

H

The Walker School – Games and Simulations - 2010


Key positions

Key Positions

White Keys

1st Key Position

2nd Key Position

3rd Key Position

4th Key Position

(x, y)

(x, y)

(x, y)

(x, y)

w / 2, h1/2

w / 2 + w, h1/2

w / 2 + 2w, h1/2

w / 2 + 3w, h1/2

Black Keys

1st Key Position

2nd Key Position

3rd Key Position

4th Key Position

(x, y)

(x, y)

(x, y)

(x, y)

w, h2/2

2w, h2/2

3w, h2/2

4w, h2/2

The Walker School – Games and Simulations - 2010


Solution step 2 cont develop a formula

Solution - Step 2 (cont.) (develop a formula)

b

h

How can we handled the missing black key in the 3rd, 7th, and 10th positions on the keyboard?

h2

h1

Greenfoot determines position from the middle of the key.

w

H

The Walker School – Games and Simulations - 2010


One possible solution step 3

One Possible Solution – Step 3

Create a variable to hold the width of the key.

Set the width to 0.

Call the width from the Key class.

Multiplies the actual with of the key with location of the key and adds 54 which is needed to place the first key a proper distance from the edge.

The Walker School – Games and Simulations - 2010


One possible solution step 4

One Possible Solution – Step 4

Gets the width of the key.

Needed because the black keys are not the same size as the white keys.

The Walker School – Games and Simulations - 2010


Extended programming challenge

Extended Programming Challenge

  • Create a piano keyboard that plays different instrument sounds like a synthesizer. Collect icons of various instruments, add them to the bottom of the Piano image. When you click on one of these icons, it should change the array lists and play the set of sounds associated with that instrument, rather than the piano.

The Walker School – Games and Simulations - 2010


  • Login
