  1. Physical Health Hazards - Noise PUBH 3310 October 20, 2010 1

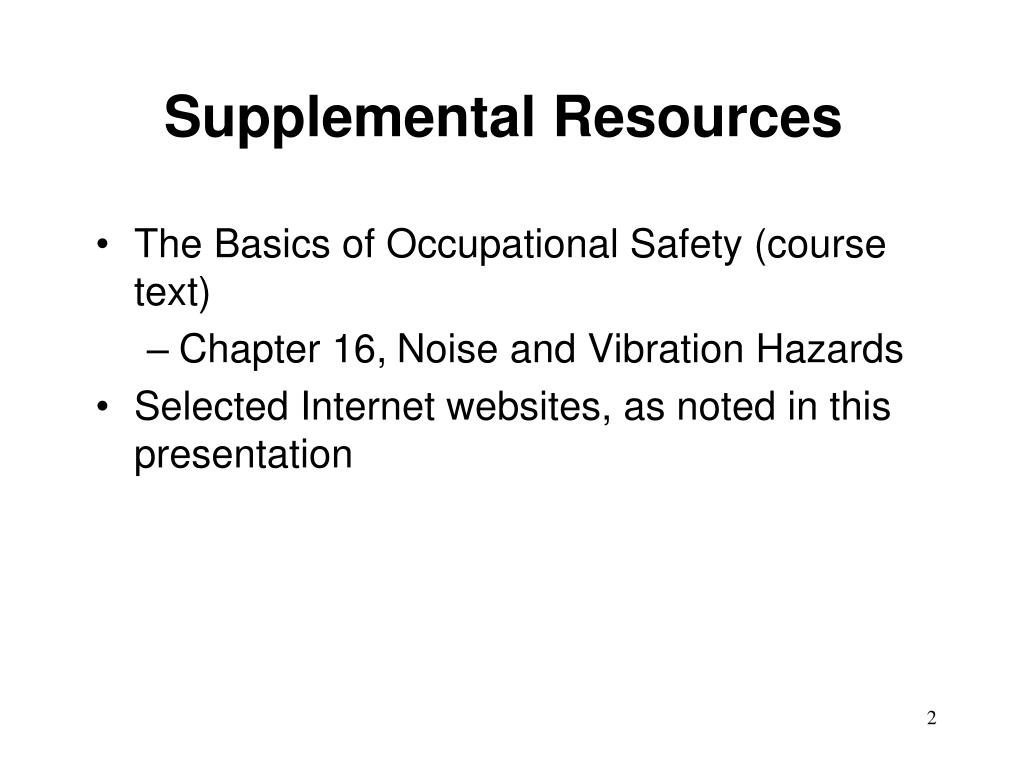

  2. Supplemental Resources The Basics of Occupational Safety (course text) Chapter 16,Noise and Vibration Hazards Selected Internet websites, as noted in this presentation

  3. Objectives • Know basics of sound • Definitions, physics of sound • Understand decibels (dB) • Be familiar with ear anatomy and physiology • Know about hearing loss, causes and effects • Know how noise exposure is evaluated • Be aware of controls basics, especially: • Adding dB • NRR calculations • Hearing Conservation Program requirements 3

  4. Outline • Introduction • Physics of sound • Anatomy and physiology of hearing • Hearing loss • Evaluating noise • Controlling noise • Hearing conservation 4

  5. Introduction • Extent of the problem • 30 million US workers exposed to hazardous noise levels on the job • 1 in 4 will develop permanent hearing loss • Noise Induced Hearing Loss (NIHL) has a significant impact on quality of life • Diminished ability to hear and understand speech and other high-frequency sounds • Noise is a growing social problem, too • Widespread lack of concern • Noise pollution, amplified music, sporting events, etc 5

  6. Introduction • What is Noise? • Unwanted sound • Annoyance • Interfere with speech or communication • Hearing impairment 6

  7. Physics of Sound • Sound • Disturbance that propagates as a wave of compressions and rarefactions through an elastic medium • Vibrating source creates a pressure wave 7

  8. Physics of Sound • Sound (cont.) • The sound wave is a pressure wave C = Compression, R = Rarefaction 8

  9. Physics of Sound • Sound properties: • Velocity, c • Sound travels about 1100 feet per second through the air • More dense materials transmit sound waves a higher velocity • Frequency, f • Vibrations per second • 1 cycle per second = 1 Hertz, Hz • Frequency determines the pitch of the sound • The “A” above Middle “C” = 440 Hz 9

  10. Physics of Sound • Sound properties: (cont.) • Amplitude • The maximum absolute value attained by the disturbance of a wave • Wavelength, λ • The distance for one complete cycle 10

  11. Physics of Sound 11

  12. Decibels • Sound pressure • Our ears can detect changes in atmospheric pressure (sound waves) from < 20 µPa to >20 Pa • Because of this wide range, sound pressure level is expressed in decibels (dB), a logarithmic scale • Io is the reference value, 20 Pa (the threshold of hearing) for sound pressure, where 1 Pa = 1 N/m2 • 3 dB increase is twice the sound level 12

  13. Decibels • “Weighting” • Our ears are more sensitive to frequencies in the 1000 to 10,000 Hz range • Human hearing has evolved to be more sensitive to the frequencies of human speech • Decibel scales are “weighted” to compensate for this increased sensitivity • Instruments used to evaluate noise exposure use the “A” weighted scale • “A” weighting is required by OSHA 13

  14. Weighting 14

  15. Decibels 15

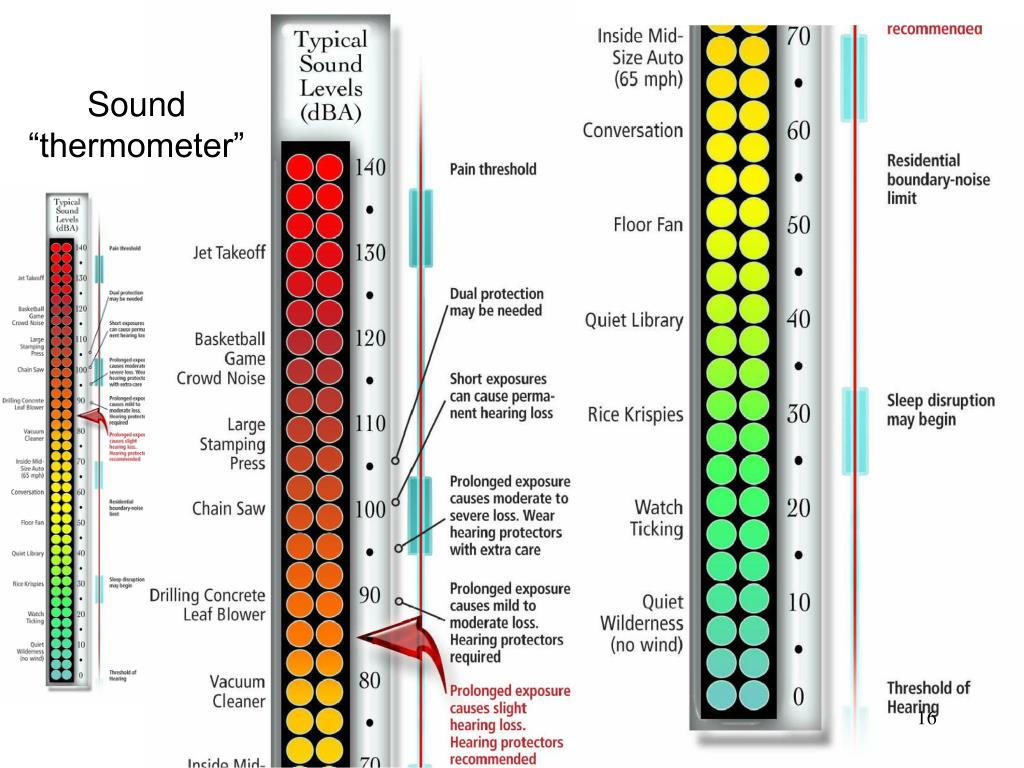

  16. Sound “thermometer” 16

  17. http://www.cdc.gov/niosh/topics/noise/abouthlp/noisemeter_html/hp90.htmlhttp://www.cdc.gov/niosh/topics/noise/abouthlp/noisemeter_html/hp90.html NIOSH Sound Meter

  18. Anatomy and Physiology • Outer ear • Pinna, external auditory canal (ear canal), tympanic membrane (eardrum) • Middle ear • Ossicles (bones) • Maleus (hammer), incus (anvil), stapes (stirrup) • Eustachian tube • Inner ear • Semicircular canals • Cochlea 18

  19. Anatomy and Physiology Outer ear Middle ear Inner ear 19

  20. Anatomy and Physiology • Sound waves are transmitted to the inner ear • Hair cells in the cochlea respond to sound to produce nerve signals 20

  21. Anatomy and Physiology 21

  22. Hearing Loss • Noise-induced hearing loss (NIHL) is a sensorineural hearing deficit • Begins at the higher frequencies (3,000 to 6,000 Hz) • Develops gradually as a result of chronic exposure to excessive sound levels • Hair cells in the cochlea are damaged • Permanent, irreversible 22

  23. Healthy Cochlea The cilia ( sensory hairs) appear normal 23

  24. Damaged Cochlea Loss of cilia as a result of Noise 24

  25. Hearing Loss • Audiometric testing measures hearing loss • Audiograms show dBA loss by sound frequency • “Dip” or notch at 4000 Hz is a typical sign of NIHL • Higher frequency loss affects the ability to understand speech (consonant sounds) • The “notch” may occur from 3000 Hz to 6000 Hz 25

  26. Hearing Loss • A person suffering from Noise Induced Hearing Loss can understand you if you simply speak louder. • True • False B. False. NIHL primarily affects higher frequencies, which makes difficult to hear consonants in speech. Lower-frequency vowel sounds are not affected nearly as much. 26

  27. Hearing Loss • A typical audiogram comparing normal and impaired hearing. The dip or notch at 4 kHz as shown, or at 6 kHz, is a symptom of noise-induced hearing loss 27

  28. Hearing Loss • Noise Induced Temporary Threshold Shift (NITTS) • Hearing loss caused by neural fatigue from excessive noise • Hearing sensitivity generally returns after a few hours or days • Long-term noise exposure leads to permanent hearing loss 28

  29. Hearing Loss • Tinnitus • Ringing of the ears • Most commonly caused by excess noise exposure • Acoustic trauma • Caused by sudden intense noise • Perforated eardrum, damaged ossicles 29

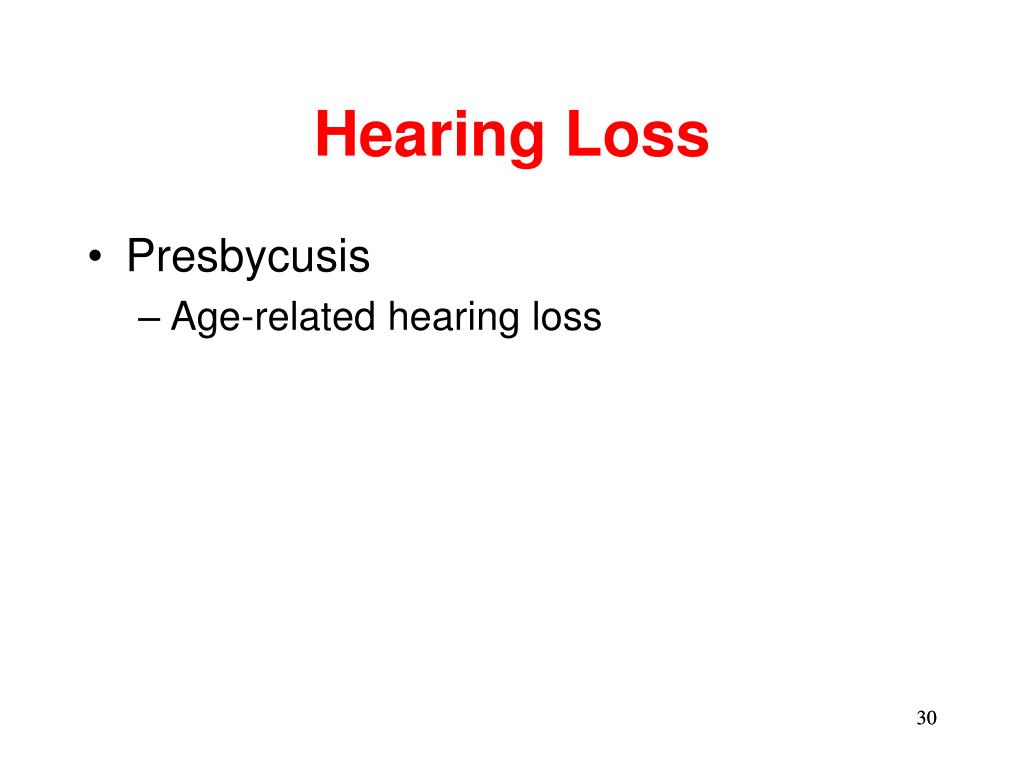

  30. Hearing Loss • Presbycusis • Age-related hearing loss 30

  31. Evaluating Exposure • Sound Level Meter (SLM) • Hand-held instruments • Real-time display • dBA and (usually) dBC • Must be calibrated to assure accuracy • Uses: • Evaluate noise sources • Determine where hearing protection is required 31

  32. Evaluating Exposure • Noise dosimeter • Direct-reading instrument • Worn by employees to determine TWA exposure • Display/download TWA noise levels • Often with datalogging • Must be calibrated to assure accuracy 32

  33. Evaluating Exposure • Background sound level can be estimated by the difficulty of spoken communication • When noise levels are above 80 decibels (dB), people have to speak very loudly. • When noise levels are between 85 and 90 dB, people have to shout. • When noise levels are greater than 95 dB, people have to move close together to hear each other at all. 33

  34. Evaluating Exposure • OSHA PEL • 90 dBA 8-hr TWA, 5 dBA exchange rate (doubling rate) • Exposure at the OSHA PEL will result in hearing loss

  35. Evaluating Exposure • ACGIH Threshold Limit Value • The TLV is more protective (1994) • 85 dBA limit • 3 dBA “exchange rate” • Acceptable exposure duration doubles every 3 dBA (the OSHA PEL is based on a 5 dBA exchange rate) • Exposure at this level should prevent most hearing loss • Employers have a legal requirement to comply with the OSHA PEL • Responsible employers wanting to control employee hearing loss should also comply with the more protective TLV 35

  36. Controlling Noise • Engineering controls (most desirable method of control) • Substituting new quieter equipment for old • Modifying (reducing) the sound creating energy • Change the orientation between the (work on the quiet side) • Isolate the vibrating equipment • Attenuate noise energy as it leaves the surface via insulation • Enclose the source or the personnel • Line surfaces with sound absorbing material • Shield workers with sound barriers 36

  37. Controlling Noise • Isolation of secondary surfaces 37

  38. Controlling Noise • Reduce vibrating surface area 38

  39. Controlling Noise • Sound absorbing materials 39

  40. Controlling Noise • Multiple methods 40

  41. Controlling Noise • Adding noise • “Easy” method • Based on dB difference between two noise sources • Add 3 dB if noise sources are equal • Add 1-2 dB for 0-10 dB difference • Add 0 dB for  10 dB difference 41

  42. Controlling Noise • Adding noise • Example: add 90 dBA and 90 dBA • Equation: • “Easy” method • Difference = 0, so add 3 dBA • 90 + 3 = 93 42

  43. Adding Decibels • 90 dB + 80 dB = ? • 85 dB • 90 dB • 93 dB • 170 dB B. 90 dB (add 0 dB for  10 dB difference)

  44. Controlling Noise • Administrative controls (less desirable) • Restrict number of hours workers are allowed in noisy areas • Train workers to reduce noise 44

  45. Controlling Noise • Personal Protective Equipment (least desirable method of control) • Mandatory PPE for noise  90 dBA • PPE must be available for noise  85 dBA • Estimating noise dose when PPE is used • Hearing protectors are labeled with the NRR (noise reduction rating) • Equation: dBA – (NRR-7) = employee dose while wearing the protector 45

  46. Controlling Noise • Personal Protective Equipment • NRR example: • What is the employee dose where exposure is 95 dBA while wearing earplugs with 29 NRR? • In practice, PPE performance often is not as good as the NRR • OSHA strongly recommends applying a 50% safety factor to the NRR: • dBA – ((NRR-7) x .5) = employee dose dBA – (NRR-7) = employee dose while wearing the protector 95 – (29-7) = 73 dBA dose 46

  47. Controlling Noise • Personal Protective Equipment • Ear plugs • Usually best for continuous exposure situations • Formable (foam) • Premolded • Custom molded • Canal cap protectors • Convenient when noise areas are frequently entered and exited 47

  48. Controlling Noise • Personal Protective Equipment • Ear muffs • May be better for high frequencies • Can be combined with ear plugs for extra protection • Extra protection for combining ear muffs and ear plugs is limited to about 5 additional dBA due to bone conduction 48

  49. Hearing Conservation • OSHA Hearing Conservation Program • Required when exposures reach 85 dBA • Monitoring • Employee notification • Audiometric testing • Additional requirements if “standard threshold shift” (10 dBA hearing change from baseline) • Recorded as “hearing loss” on OSHA form 300 • Hearing protectors • Training • Recordkeeping • Noise exposure • Audiometric tests 49

  50. Conclusions • Noise (unwanted sound) causes hearing loss • The logarithmic “A” weighted decibel scale, dBA, is used to measure noise exposure • NIHL is sensorineural hearing loss caused by cumulative noise damage to the inner ear • NIHL is typified by an audiogram “notch” at 4000 Hz • SLM and noise dosimeter instruments are used to evaluate noise • The PEL is 90 dbA, 8-hour TWA , but this level is not protective • Hearing Conservation Program required at 85 dbA • Doubling noise adds 3 dB • NRR is a measure of the PPE performance
