Native mode in microsoft system center configuration manager

Native Mode in Microsoft System Center Configuration Manager

Jason Sandys

Senior Lead Consultant

Catapult Systems, Inc.

Session Code: MGT312


Native mode setup dialogs

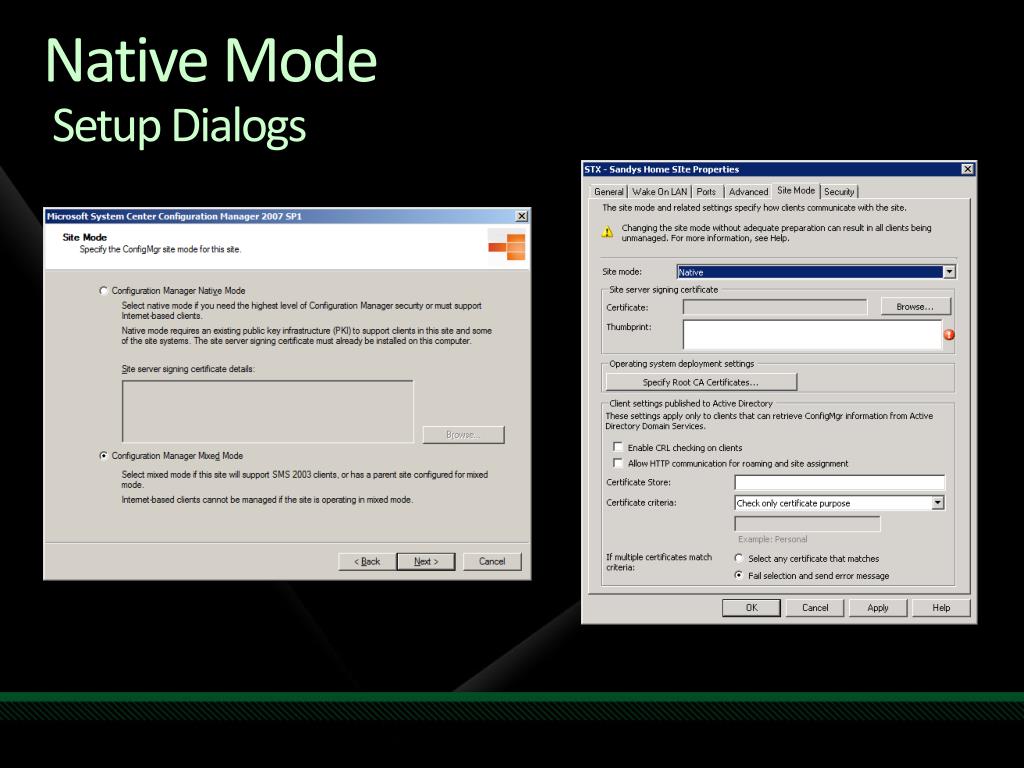

Native Mode Setup Dialogs


Overview

Overview

  • What Is Native Mode

  • Benefits

  • Pre-requisites

  • PKI Refresher

  • Misperceptions

  • Certificate Deployment & Demo

  • Implications

  • Notes from the Field


What is native mode

What Is Native Mode?

  • A site mode for Configuration Manager that dictates key client to site system communication

DP*

MP

SUP

SMP

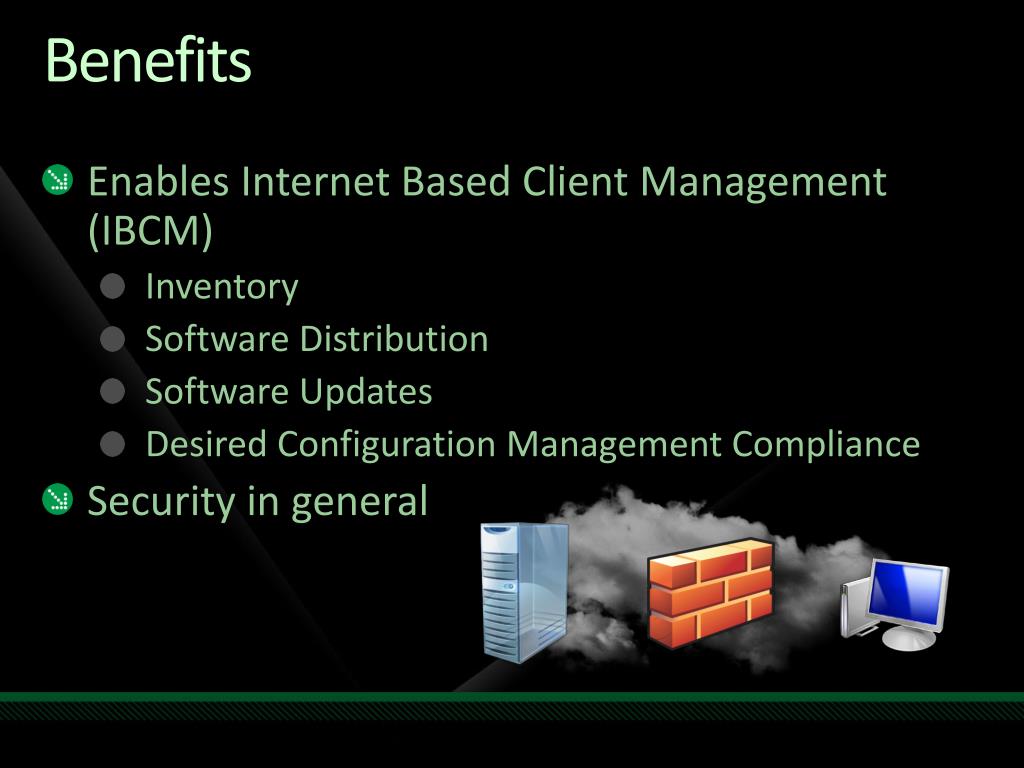

Benefits

Benefits

  • Enables Internet Based Client Management (IBCM)

    • Inventory

    • Software Distribution

    • Software Updates

    • Desired Configuration Management Compliance

  • Security in general

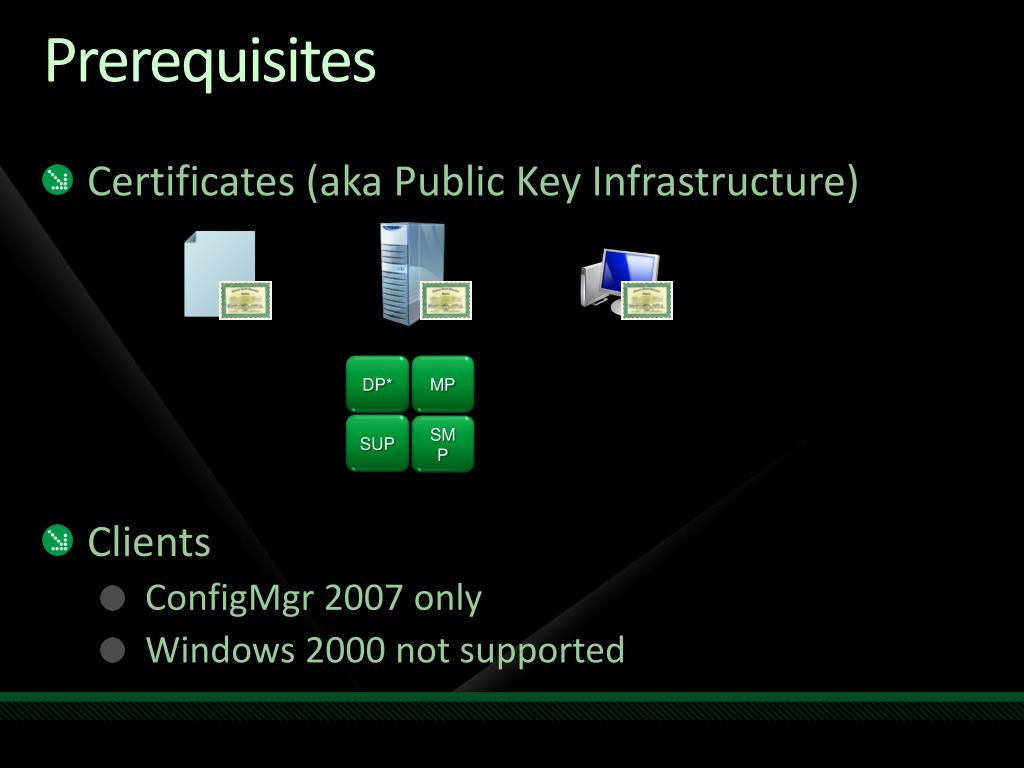

Prerequisites

Prerequisites

  • Certificates (aka Public Key Infrastructure)

  • Clients

    • ConfigMgr 2007 only

    • Windows 2000 not supported

DP*

MP

SUP

SMP


Pki refresher key distribution

PKI Refresher Key Distribution

  • How do I get your Public Key?

    • Trusted source

  • Certificates

  • Trust


Pki refresher certificate revocation lists crl certificate distribution points cdp

PKI RefresherCertificate Revocation Lists (CRL)Certificate Distribution Points (CDP)

CRL

CDP

LDAP

FTP

SMB

HTTP


Misperceptions

Misperceptions

  • PKI is Easy

  • You must use a Microsoft PKI

  • AMT takes advantage of Native Mode


Misperceptions enterprise edition enterprise ca

MisperceptionsEnterprise Edition = Enterprise CA

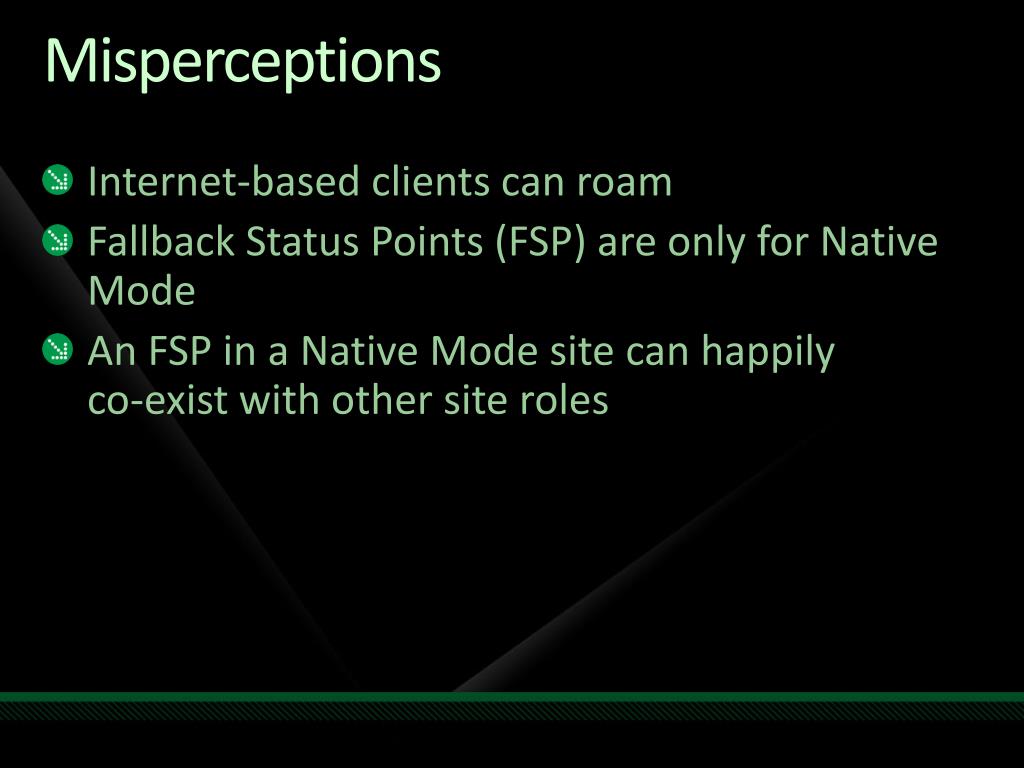

Misperceptions1

Misperceptions

  • Internet-based clients can roam

  • Fallback Status Points (FSP) are only for Native Mode

  • An FSP in a Native Mode site can happily co-exist with other site roles

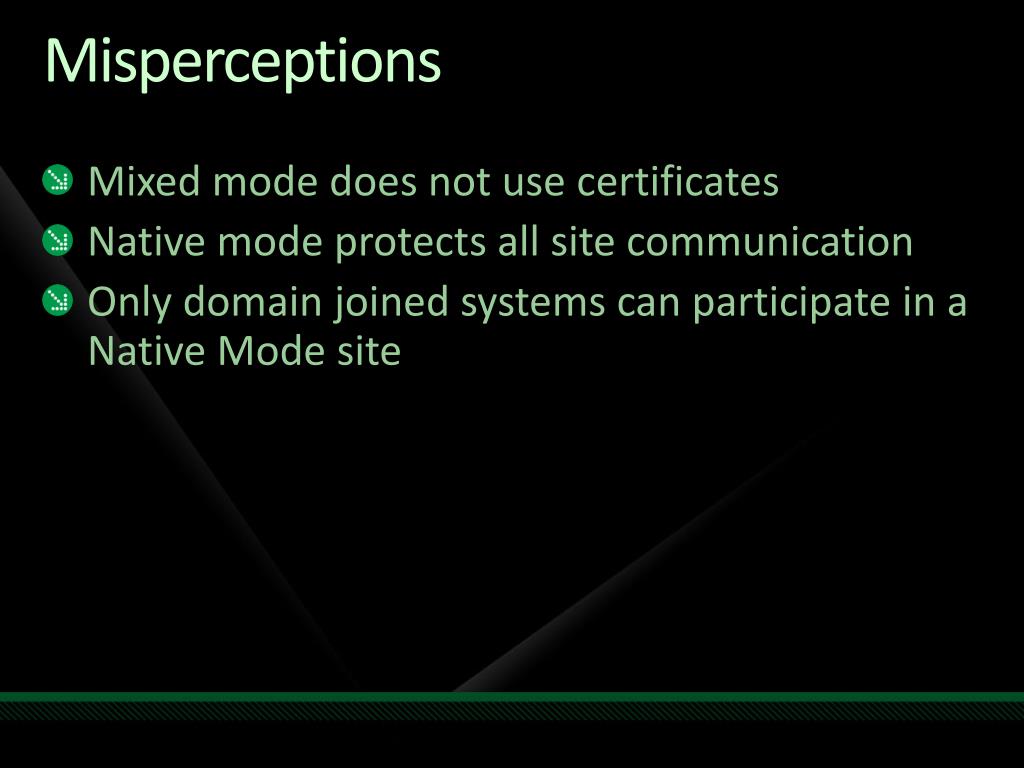

Misperceptions2

Misperceptions

  • Mixed mode does not use certificates

  • Native mode protects all site communication

  • Only domain joined systems can participate in a Native Mode site

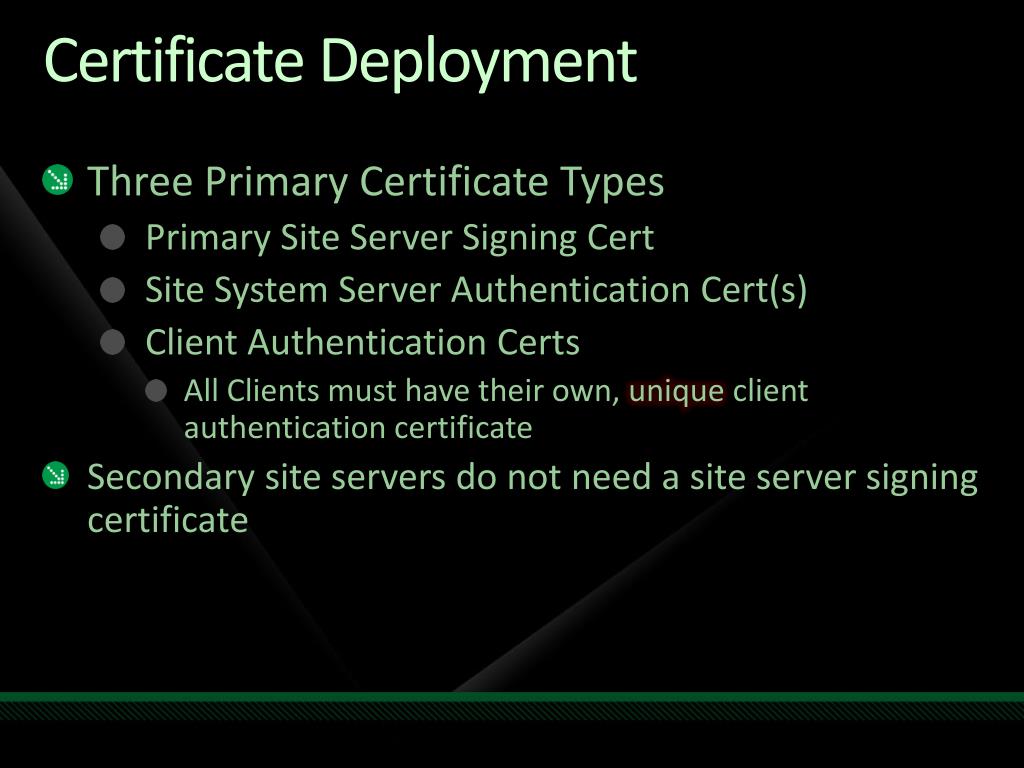

Certificate deployment

Certificate Deployment

  • Three Primary Certificate Types

    • Primary Site Server Signing Cert

    • Site System Server Authentication Cert(s)

    • Client Authentication Certs

      • All Clients must have their own, unique client authentication certificate

    • Secondary site servers do not need a site server signing certificate


Certificate deployment1

demo

Certificate Deployment


Implications agent deployment

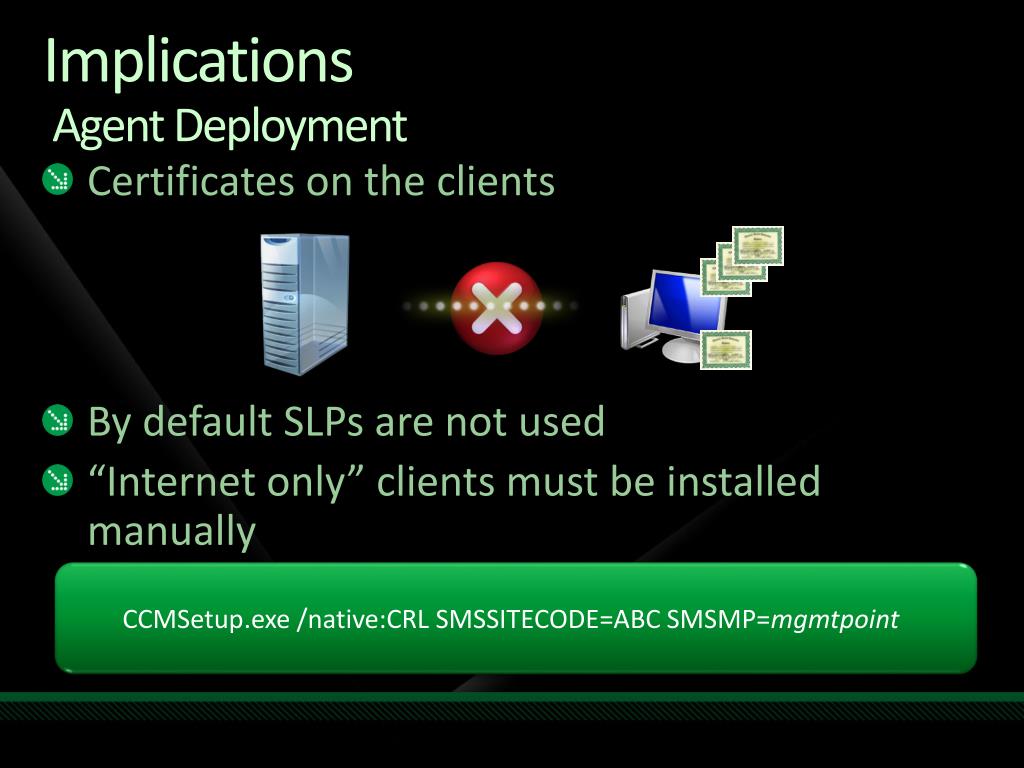

ImplicationsAgent Deployment

  • Certificates on the clients

  • By default SLPs are not used

  • “Internet only” clients must be installed manually

  • CCMSetup.exe /native:CRL SMSSITECODE=ABC SMSMP=mgmtpoint


Implications wsus sup

ImplicationsWSUS/SUP

  • Must manually add the Web server cert in IIS

  • Must manually configure IIS for SSL

  • Require SSL on virtual directories

    • APIRemoting30, ClientWebService, DSSAuthWebService, ServerSyncWebService, and SimpleAuthWebService

<WSUS Installation Folder>\Tools: WSUSUtil.exe configuressl <Intranet FQDN of the software update point site system>


Implications osd

ImplicationsOSD

  • Boot Images require client certificatesand a copy of the Root CA certificate

  • Build and Capture reference systems are not on the domain

    • CDP must be available

PXE


Notes from the field initial installation

Notes from the FieldInitial Installation

  • Install in mixed mode and migrate

    • Easier to troubleshoot

    • Better when no PKI in place already

    • Better for organizations unfamiliar with ConfigMgr

  • Install in native mode

    • Requires PKI

    • Compounding issues


Notes from the field pki decisions

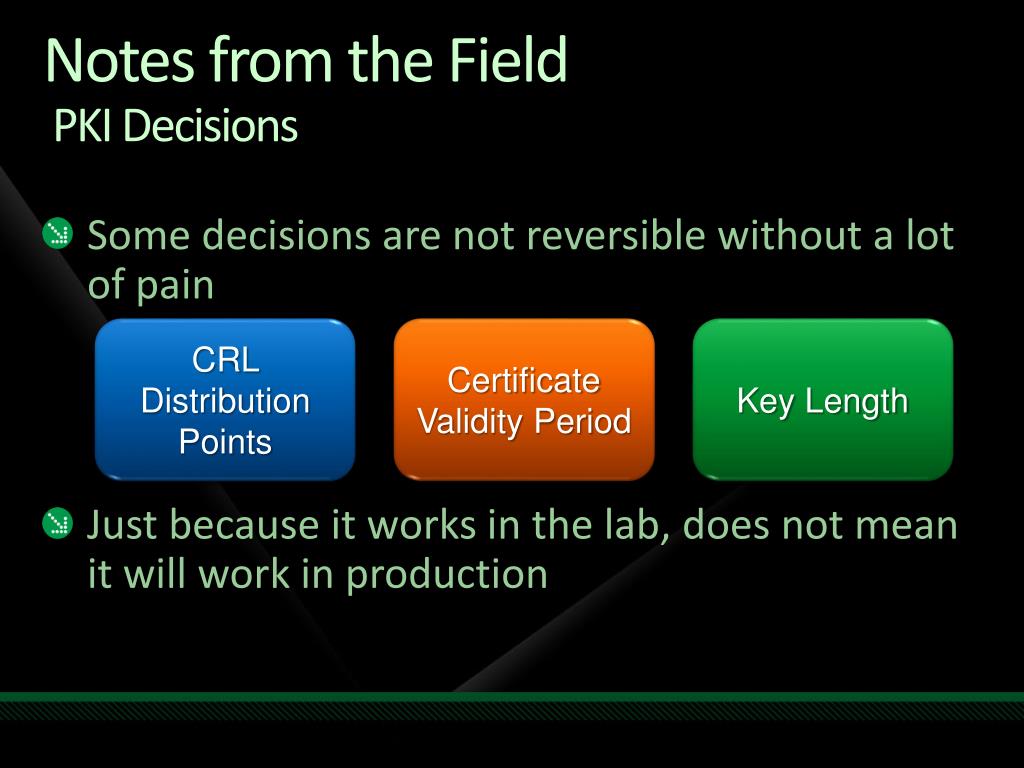

Notes from the FieldPKI Decisions

  • Some decisions are not reversible without a lot of pain

  • Just because it works in the lab, does not mean it will work in production

CRL Distribution Points

Certificate Validity Period

Key Length

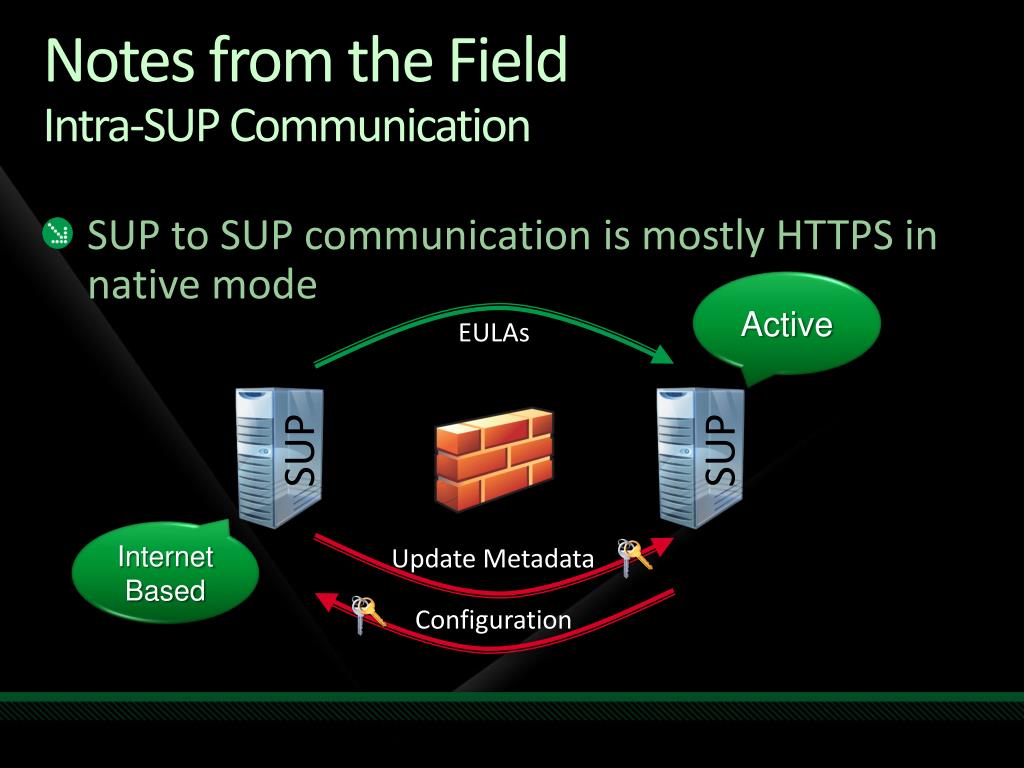

Notes from the field intra sup communication

Notes from the FieldIntra-SUP Communication

  • SUP to SUP communication is mostly HTTPS in native mode

Active

EULAs

SUP

SUP

Internet Based

Update Metadata

Configuration


Notes from the field pki timing

Notes from the FieldPKI Timing

  • Certificate deployment is not instantaneous

    • Templates are stored in AD

    • Clients must be active and have connectivity to request a certificate

  • Plan for this delay


Other notables

Other Notables

  • Native Mode is not a one-way choice

  • Parent sites must be migrated first

    • Mixed mode parent sites do not support Native Mode child sites

  • Secondary site modes are dictated by their parent site’s mode

  • Native Mode Readiness Toolhttp://technet.microsoft.com/en-us/library/bb680986.aspx


Links

Links

  • MS Internet Clients & Native Mode Forumhttp://social.technet.microsoft.com/Forums/en/configmgribcm/threads/

  • System Center ConfigMgrTechCenter Libraryhttp://technet.microsoft.com/en-us/library/bb735860.aspx

  • Configuration Manager Team Bloghttp://blogs.technet.com/configmgrteam/

  • My Blog http://myitforum.com/cs2/blogs/jsandys


Resources

Resources

  • www.microsoft.com/teched

    Sessions On-Demand & Community

  • www.microsoft.com/learning

  • Microsoft Certification & Training Resources

  • http://microsoft.com/technet

    • Resources for IT Professionals

  • http://microsoft.com/msdn

    Resources for Developers

www.microsoft.com/learning

Microsoft Certification and Training Resources


Related content

Related Content

MGT304 Deploying Microsoft System Center Configuration Manager 2007, Part 1: Site Deployment

MGT305 Deploying Microsoft System Center Configuration Manager 2007, Part 2: Client Deployment

MGT306 Deploying Microsoft System Center Configuration Manager 2007, Part 3: Hierarchy Design and Implementation Best Practices

MGT02-HOL Microsoft System Center Configuration Manager: Migrating from Mixed Mode to Native Mode

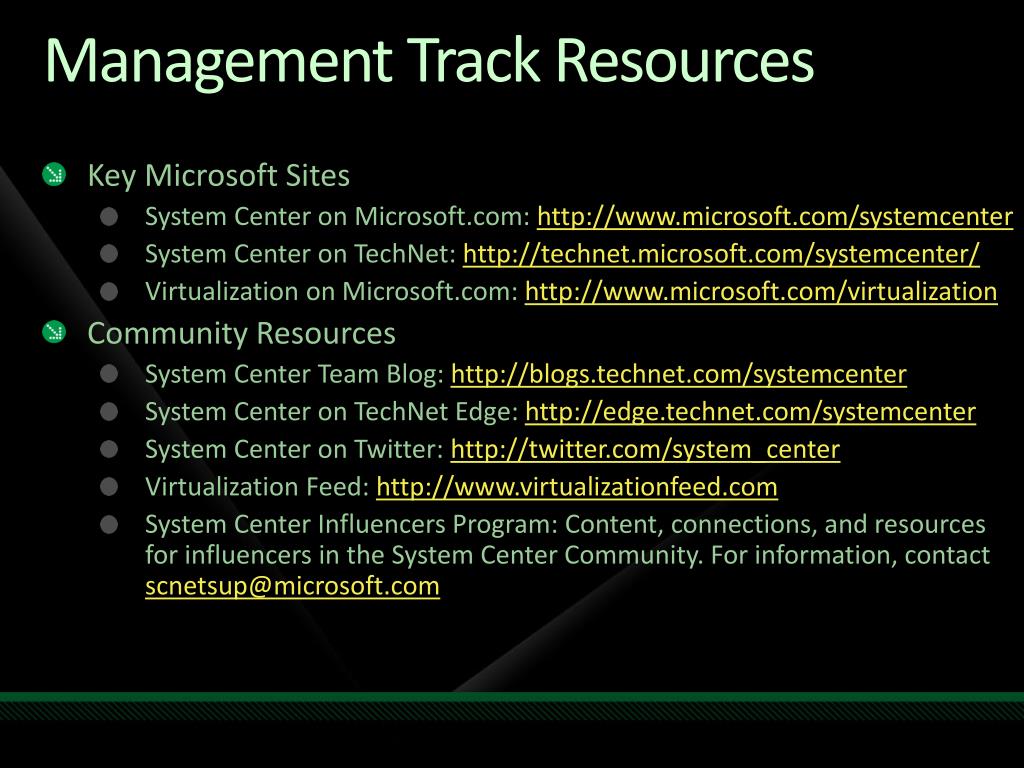

Management track resources
