  1. Example from Wang group Work of Jiasheng Lu

  2. Starting material

  3. UV: Postulated Reaction +

  4. H-NMR: Mesitylene

  5. H-NMR: Aliphatic region Me-A New compound *: Starting material Me-B *

  6. H-NMR: Aromatic region *: Starting material * * * *

  7. COSY: Full SW Me  Aromatic

  8. COSY expansion: Me vs aromatic Methyl groups have long range coupling with ortho aromatic protons Starting material H-C= H-C= H-C= Me Me Me Me New compound Me

  9. Ms Ms Ms 1 A 3 2 4 D COSY: aromatic C B Most deshielded Py: 1 – 2 – 3 – 4 Other ring : A – B – C – D Not sure which proton is H-7 Start with a doublet (can be either H7 or H10) then go To the next proton to identify the suite. We will assign later with NOESY which one is H7

  10. NOESY: Choosing the Mixing time • You cannot use too short mixing time: it takes time to develop NOE. It takes T1 • too short mixing time would not show any cross peaks between protons! • You cannot use too long mixing time. If you use too long mixing time, you can loose the labels of the chemical shifts that you record carefully during the evolution time (t1) • For small molecules, the best mixing time is ~ 80% of the T1 value. (this is where the signal goes to null intensity in inversion recovery

  11. Measuring relaxation time: Inversion recovery

  12. Prepare for NOESY: evaluate relaxation time Inversion recovery: Aromatic region A 4 HA relax fast at ~ same rate as H4: same type of neighbors: may be H7 ? D 3 C 2 1 Ms Why different rate? Dipole Relaxation depends on the distance between protons and on the mobility of the molecule Py: 1 – 2 – 3 – 4 Ms 12 ? Other: A – B – C – D In Pyridine ring, H4 has faster relaxation: it has one ortho neighbor (H3) and it’s close to H7on other ring. In fact, H7 must be very close to H4 because H3 and H2 (which has 2 ortho neighbors) relax slower than H4 Ms is the smallest molecule: fast motion, not efficient T1 longest relaxation time Ms

  13. H-NMR Inversion recovery: Methyl region Starting material Ms Ms Ms Ms CH2-12 Newcompound Ms is the smallest molecule: fast motion, not efficient T1 longest relaxation time Ms

  14. NOESY: Choosing the mixing time • You cannot use too short mixing time: it takes time to develop NOE. It takes T1 • too short mixing time would not show any cross peaks between protons! • You cannot use too long mixing time. If you use too long mixing time, you can loose the labels of the chemical shifts that you record carefully during the evolution time (t1) • For small molecules, the best mixing time is ~ 80% of the T1 value. (this is where the signal goes to null intensity in inversion recovery In our case, MIXING = 2 sec. will do good job according to T1

  15. Ms Ms 12 ? Ms D A 3 C 4 2 NOESY : mix time 2sMethyl vs aromatic 1 Py B Starting material Me Me Me Me Py: 1 – 2 – 3 – 4 Other: A – B – C – D Me New compound

  16. Ms Ms 12 Ms 3 4 A D 2 NOESY :mix time 2sAromatic 1 C B Py: 1 – 2 – 3 – 4 Other: A – B – C – D 7 – 8 – 9 – 10 D A  12 C D

  17. What’s left? Assign C13 Use HSQC to assign carbons that are directly attached to protons  1JCH (HSQC : HeteronuclearSingle Quantum Correlation) Use HMBC to assign carbons that are further away from protons  nJCH (HMBC: HeteronuclearMultiple Bond Correlation)

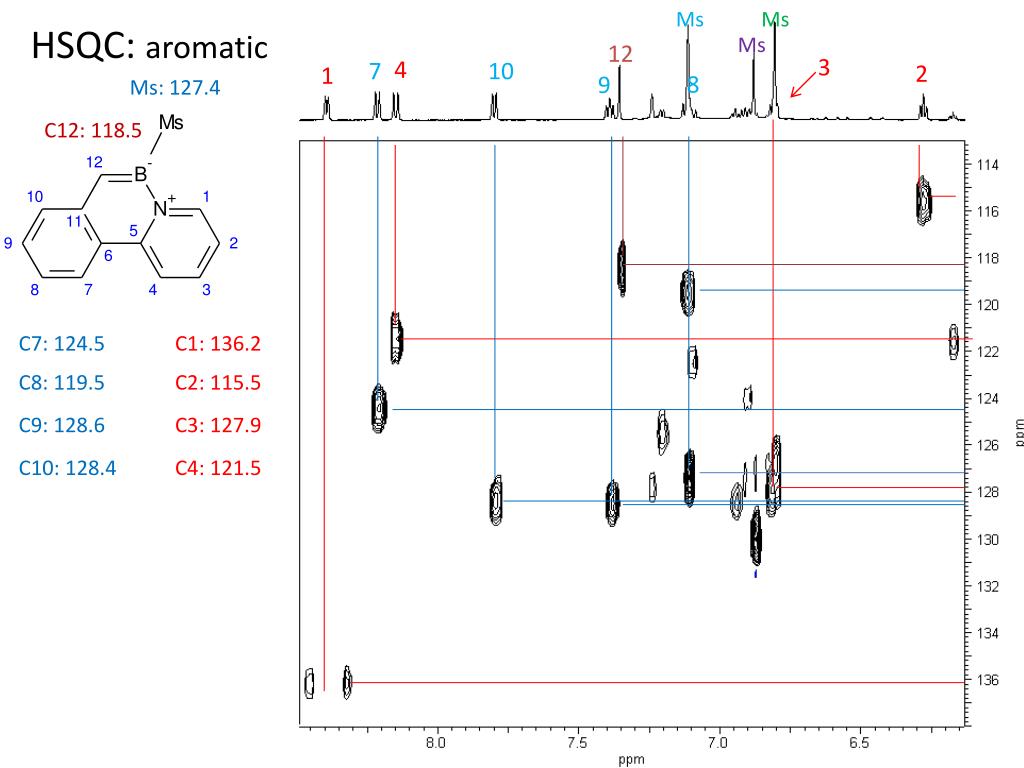

  18. Ms Ms Ms HSQC: aromatic 12 3 4 7 10 2 1 8 9 Ms: 127.4 C12: 118.5 C7: 124.5 C1: 136.2 C8: 119.5 C2: 115.5 C9: 128.6 C3: 127.9 C10: 128.4 C4: 121.5

  19. Ms Ms HSQC: Methyl Ms Ms Ms CH2 21.0 Starting material 20.6 25.2 New compound 21.1 22.5

  20. Ms Ms HMBC: Methyl Ms Ms Ms CH2 21.0 Starting material 20.6 25.2 New compound 21.1 136.7 127.5 140.2 22.5 138.9

  21. Ms Ms Ms HMBC: aromatic 12 4 7 10 3 2 1 8 9 C12: 118.5 2 6 C6: 118.8 C7: 124.5 C1: 136.2 C8: 119.5 C2: 115.5 9 10 C9: 128.6 C3: 127.9 C10: 128.4 C4: 121.5 C11: 145.6 C5: 142.3 11 11 21.1 136.7 127.5 140.2 22.5 138.9
