1. Ranking Multimedia Databases via Relevance Feedback with History and Foresight Support DBRank 08, April 12th 2008, Cancún, Mexico Marc Wichterich, Christian Beecks, Thomas Seidl

2. Outline • Motivation • Ranking DB according to Earth Mover’s Distance • Search for suitable ground distance via user interaction • Relevance Feedback • The MindReader approach • Challenges in multimedia context • History – Change of user preferences over time • Foresight – Fast exploration • Conclusion and Outlook

3. Motivation: Ranking accordingto Earth Mover‘s Distance • Transform object features to match those of other object • Minimum work for transformation: EMD[1] • Feature signatures: {(center1, weight1), (c2,w2), …} signature of object 1 signature of object 2 EMD weight assignment [1] Rubner, Tomasi, Guibas, “A metric for distributions with applications to image databases,” in IEEE ICCV 1998.

4. Motivation: Ranking accordingto Earth Mover‘s Distance • Requires ground distance gd in feature space • gd(“blue/left”, “purple/right”) vs. gd(“blue/left”, “red/middle”) ?gd? gd? • Possibly complex gd: “Blue may move horizontally at low cost if at top of image (sky)” • Idea: Find gd according to user preferences

5. Motivation: Ranking accordingto Earth Mover‘s Distance • Collecting preference information on feature space • Utilize histogram-based Relevance Feedback system • Histogram dimensions correspond to points in feature space • System has to deliver information on histogram dimension pairs • Define gdon feature space • Rank DB according to EMDgdon signatures featurespace histogram

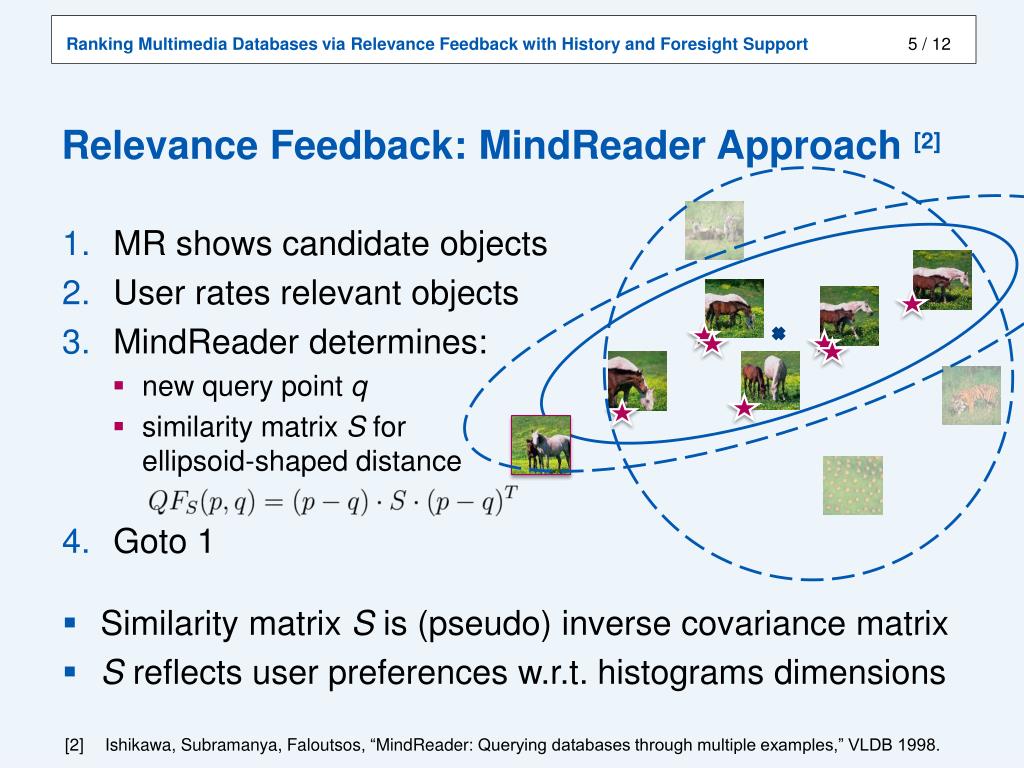

6. Relevance Feedback: MindReader Approach [2] • MR shows candidate objects • User rates relevant objects • MindReader determines: • new query point q • similarity matrix S for ellipsoid-shaped distance • Goto 1 • Similarity matrix S is (pseudo) inverse covariance matrix • S reflects user preferences w.r.t. histograms dimensions [2] Ishikawa, Subramanya, Faloutsos, “MindReader: Querying databases through multiple examples,” VLDB 1998.

7. MindReader: Challenges in multimedia context • Multimedia object histograms usually high-dimensional • Number of rated candidates << histogram dimensionality • Pseudo inverse results in open ellipsoid search region • MindReader implicitly assumes: no info from user  maximum preference • Solution: close the query ellipsoid • Ask user for many more object ratings • Replace assumption: no info from user  as preferred as least preferred direction [3] • Avoid assumptions by tackling “no info from user” [3] Ye, Xu, “Similarity measure learning for image retrieval using feature subspace analysis,” ICCIMA 2003.

8. Relevance Feedback with History (1) • “No information” only true within single iteration • Idea: save information from previous rounds + = iteration k-1 iteration k result • Technique: • Incrementally compute weighted covariance matrix • Exponential aging for ratings of previous iterations • Include relevant points from all previous iterations

9. Relevance Feedback with History (2) = 0.1  = 0.3

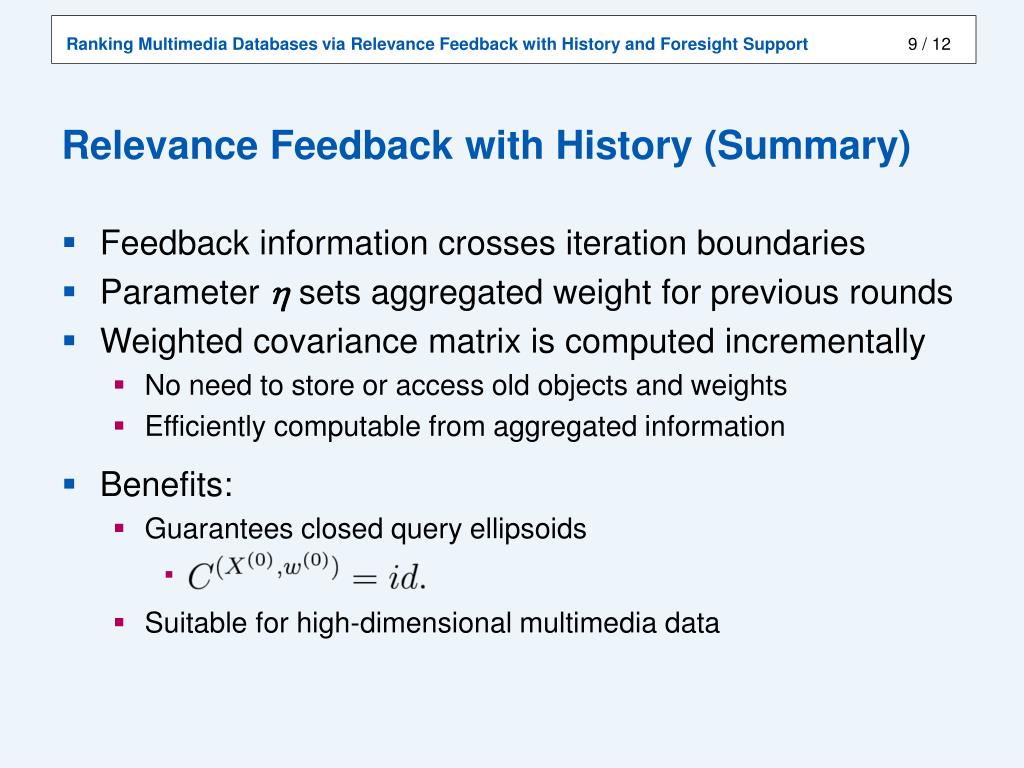

10. Relevance Feedback with History (Summary) • Feedback information crosses iteration boundaries • Parameter  sets aggregated weight for previous rounds • Weighted covariance matrix is computed incrementally • No need to store or access old objects and weights • Efficiently computable from aggregated information • Benefits: • Guarantees closed query ellipsoids • Suitable for high-dimensional multimedia data

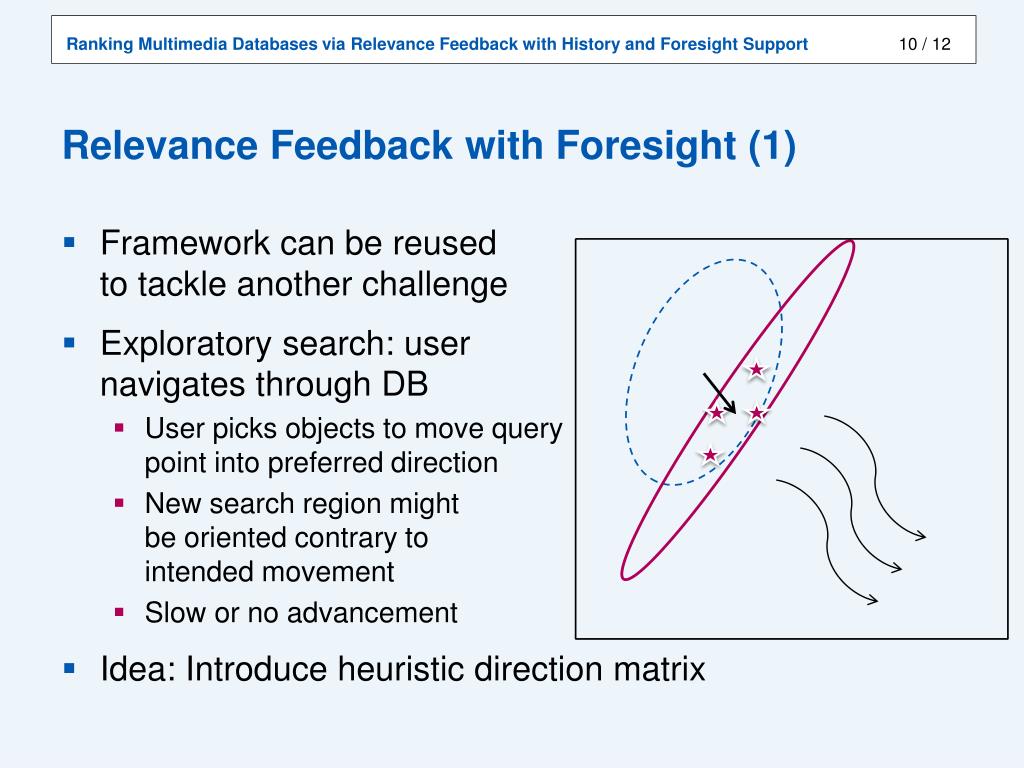

11. Relevance Feedback with Foresight (1) • Framework can be reused to tackle another challenge • Exploratory search: user navigates through DB • User picks objects to move query point into preferred direction • New search region mightbe oriented contrary to intended movement • Slow or no advancement • Idea: Introduce heuristic direction matrix

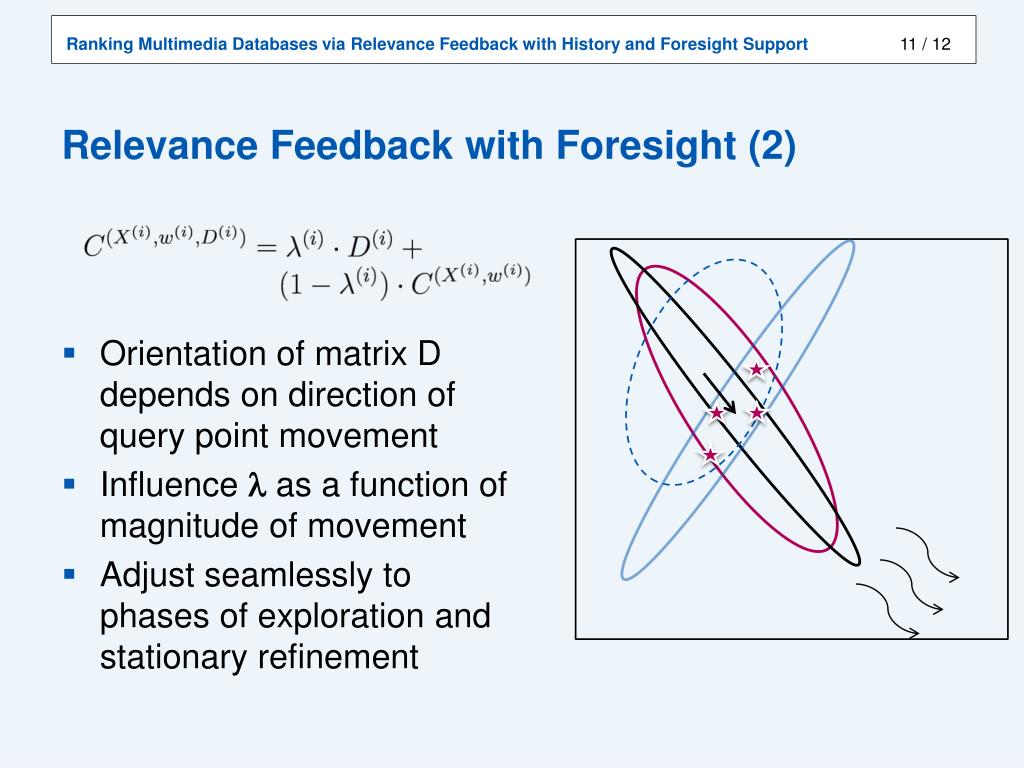

12. Relevance Feedback with Foresight (2) • Orientation of matrix D depends on direction of query point movement • Influence  as a function of magnitude of movement • Adjust seamlessly to phases of exploration and stationary refinement

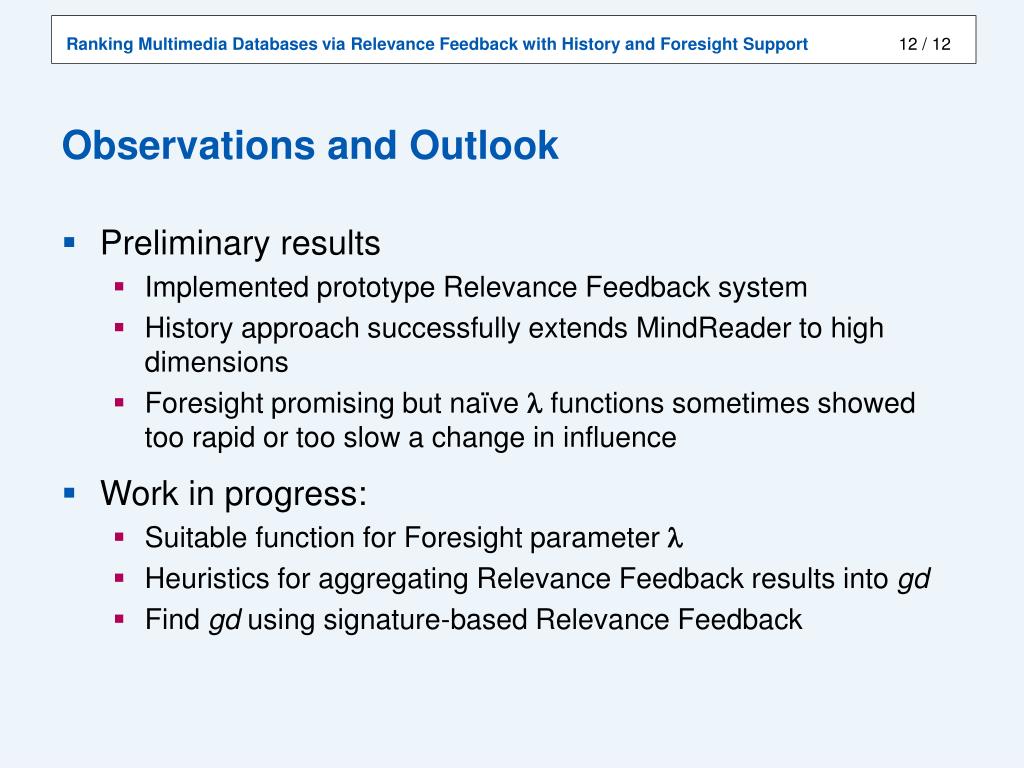

13. Observations and Outlook • Preliminary results • Implemented prototype Relevance Feedback system • History approach successfully extends MindReader to high dimensions • Foresight promising but naïve  functions sometimes showed too rapid or too slow a change in influence • Work in progress: • Suitable function for Foresight parameter  • Heuristics for aggregating Relevance Feedback results into gd • Find gd using signature-based Relevance Feedback
