  1. SecurityCenter & Palo Alto Configuration Guide

  2. About this Guide • This guide provides an overview of how to get the most from Palo Alto firewalls when using SecurityCenter, Nessus, and Log Correlation Engine (LCE). • Covered in this Guide: • Audit Scanning • Log Configuration on PAN-OS (Palo Alto Firewalls) • Netflow Configuration (PAN-OS & LCE) • LCE Normalized Logs • SecurityCenter Dashboard & Reporting

  3. Audit Scanning SecurityCenter & PAN-OS

  4. PAN-OS Configuration Tasks • Create a service account for SecurityCenter to use. • Allow SecurityCenter to connect to management interface. • Set up SNMP allowed by local security policies.

  5. Service Account • Login to PAN-OS and navigate to the Device tab. • On the left hand side, in the menu items, select Administrators • Click the “ADD” button at the bottom of the screen • Fill out the fields accordingly

  6. PAN-OS Management Interface • Login to PAN-OS and navigate to the Device tab. • On the left hand side, in the menu items, select “Setup” & Management Tab • Click on the icon located in the “Management Interface Settings” • Configure HTTPS/Ping/SNMP management services. • Assign the Permitted IP Addresses as necessary

  7. SNMP Configuration • Login to PAN-OS and navigate to the Device tab. • On the left hand side, in the menu items, select “Setup” & Operations Tab • Click the icon to enter SNMP Configuration. • Configure the SNMP Settings according to local security policy.

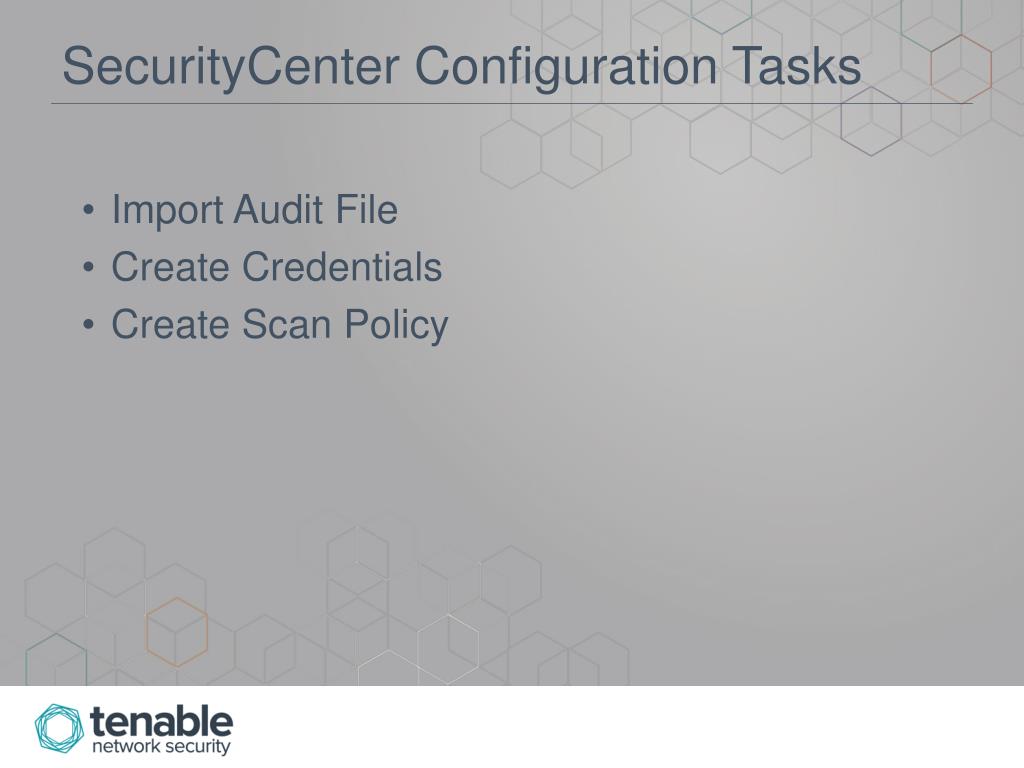

  8. SecurityCenter Configuration Tasks • Import Audit File • Create Credentials • Create Scan Policy

  9. Import Audit File • Login to SecurityCenter and select Support > Audit Files • Click the button. • Provide a name and description for the Audit File setting. • Browse the audit file location and select the appropriate file. • Click submit to save the file.

  10. Create Credentials • Login to SecurityCenter and select Support > Credentials • Click the button. • SNMP credentials are added here. • The API credentials are part of the scan policy.

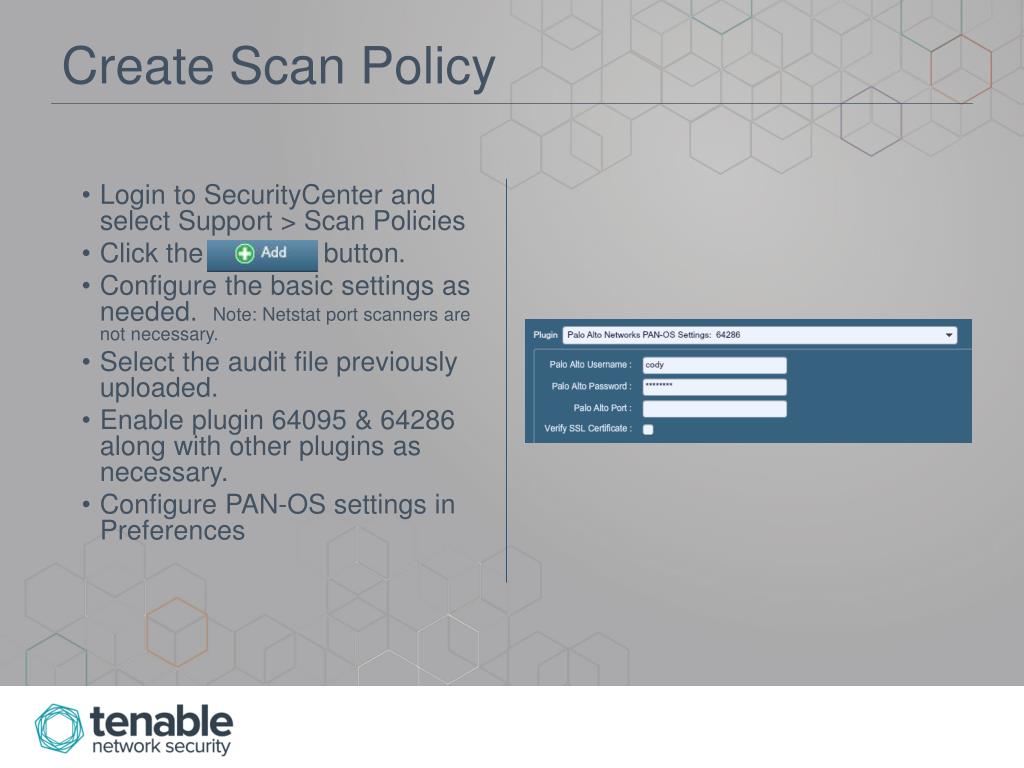

  11. Create Scan Policy • Login to SecurityCenter and select Support > Scan Policies • Click the button. • Configure the basic settings as needed. Note: Netstat port scanners are not necessary. • Select the audit file previously uploaded. • Enable plugin 64095 & 64286 along with other plugins as necessary. • Configure PAN-OS settings in Preferences

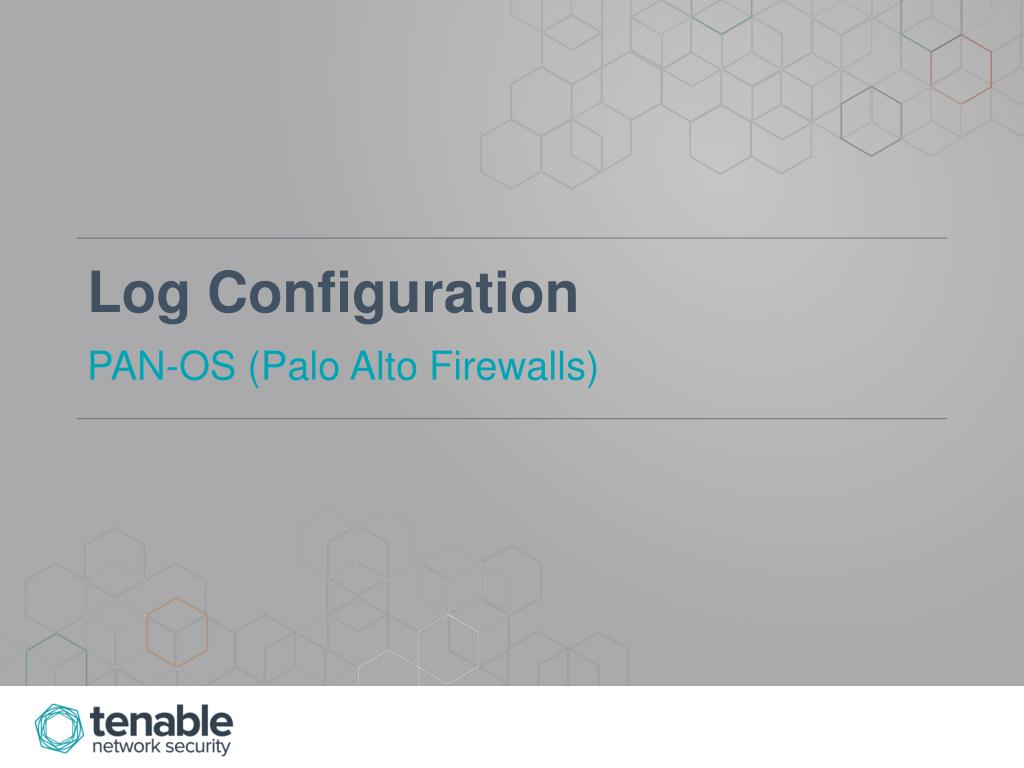

  12. Log Configuration PAN-OS (Palo Alto Firewalls)

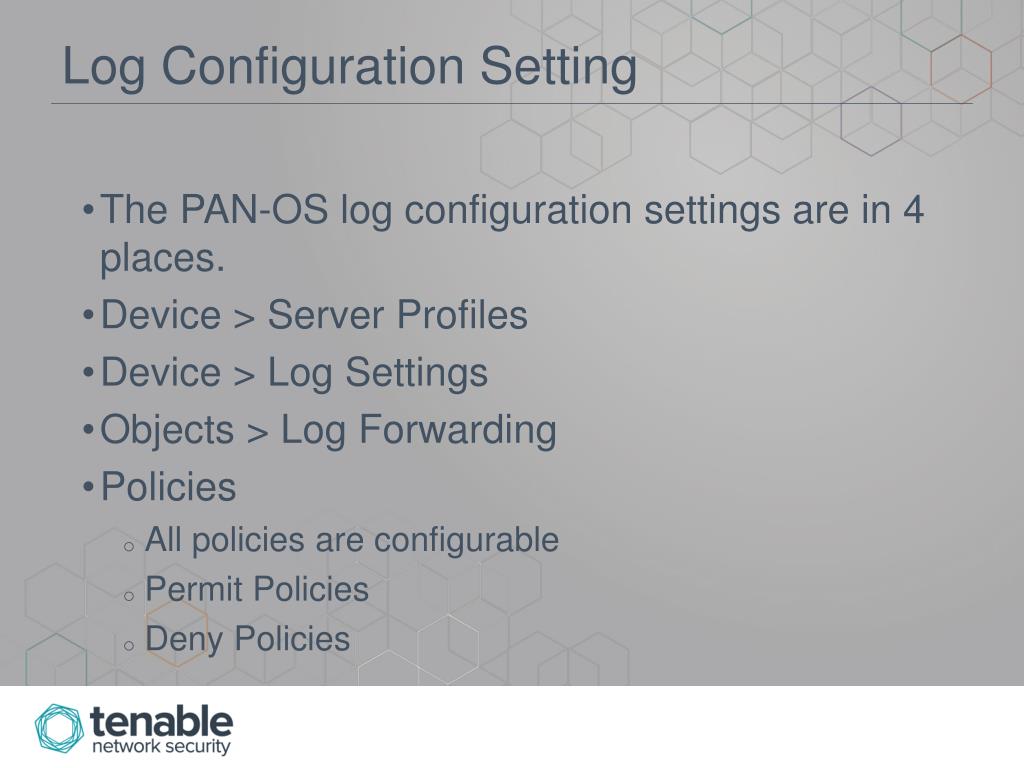

  13. Log Configuration Setting • The PAN-OS log configuration settings are in 4 places. • Device > Server Profiles • Device > Log Settings • Objects > Log Forwarding • Policies • All policies are configurable • Permit Policies • Deny Policies

  14. Device > Server Profiles • Configure the LCE as the Syslog Server. • Login to PAN-OS and navigate to the Device tab. • On the left hand side, in the menu items, select Server Profiles > Syslog • Create the syslog profile • Set the IP, port, log level

  15. Device > Log Settings • Set up LCE to collect device level syslog events. • Login to PAN-OS and navigate to the Device tab. • On the left hand side, in the menu items, select Log Settings • System = Severity Setting • Select the syslog server profile for each severity level.

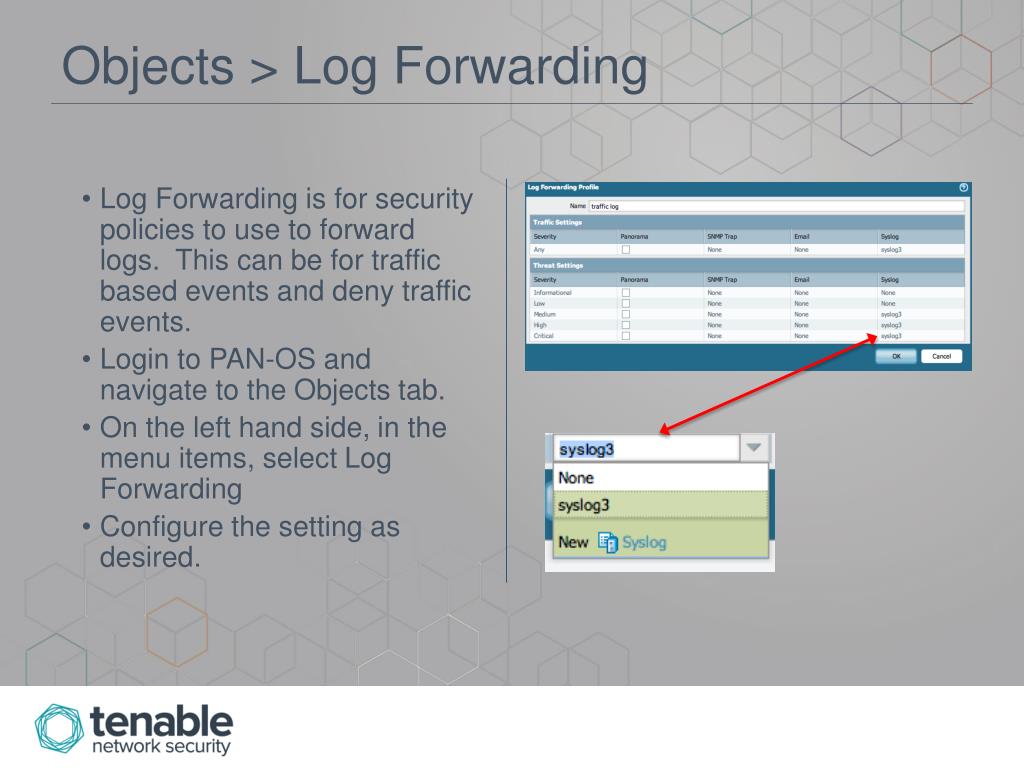

  16. Objects > Log Forwarding • Log Forwarding is for security policies to use to forward logs. This can be for traffic based events and deny traffic events. • Login to PAN-OS and navigate to the Objects tab. • On the left hand side, in the menu items, select Log Forwarding • Configure the setting as desired.

  17. Policies • Login to PAN-OS and navigate to the Policies tab. • Note: In this example we will use “Security” policies, but the same concept applies to all types • On the left hand side, in the menu items, select Security. • Double click a Permit policy • Check Log at Session Start|End • Select the Log Forwarding Service • Double click a Deny policy • Check Log at Session Start|End • Select the Log Forwarding Service

  18. NetflowConfiguration PAN-OS & LCE

  19. PAN-OS Settings • Configure the LCE as the Syslog Server. • Login to PAN-OS and navigate to the Device tab. • On the left hand side, in the menu items, select Server Profiles > Netflow Server • Apply the applicable server settings • Ex: 172.26.32.65 : 9995 • Navigate to the Network tab. • On the left hand side, select Interfaces • Choose interface to capture network. • Apply Netflow profile

  20. Netflow Client • Download and install Netflow client • The lab was built with the following version: TenableNetFlowMonitor-4.0.1-es6.x86_64.rpm • Set the LCE Server in the config file • /opt/netflow_monitor/tfm.conf

  21. LCE Policy Configuration • Login to SecurityCenter as “admin” • Select Resources > LCE Clients. • Authorize the new client, then click Assign Policy • Ensure the port is configured the same on the Palo Alto firewall • More detailed Netflow policies are supported, but are beyond the scope of this guide.

  22. Normalized Logs LCE

  23. Normalized Logs • The Tenable LCE team has normalized a series of log events to support Palo Alto. • Paloalto-Allow_TCP_Start • Paloalto-Allow_TCP_End • Paloalto-Allow_UDP_Start • Paloalto-Allow_UDP_End • Paloalto-Allow_ICMP_Start • Paloalto-Allow_ICMP_End • Paloalto-Deny_TCP • Paloalto-Deny_UDP • Paloalto-Deny_ICMP • Paloalto-Deny_TCP • Paloalto-Deny_UDP • Paloalto-Deny_ICMP • Paloalto-Configuration_Edit • Paloalto-Configuration_Delete • Paloalto-Configuration_Commit • Paloalto-System_General_Msg • Paloalto-Threat_Spyware • Paloalto-Threat_URL • Paloalto-Threat_Vulnerability • Paloalto-Threat_File • Paloalto-Threat_Virus • Paloalto-Authentication_Failed • Paloalto-Authentication_Failed_Threshold_Reached

  24. Sample Normalized Events

  25. Dashboard SecurityCenter

  26. Dashboard (Published 17 Oct 2013)

  27. Dashboard Components Palo Alto Status - Device Audit Vulnerabilities - This component displays a pass/fail indicator by check type.  The Tenable_Palo_Alto_PAN-OS_Best_Practices.audit file has 5 check types, each focusing on a separate part of the configuration audit. • Device: The firewall management and base operation settings • Users:  Lists local users in the device • Security: Verifies the security setting of the configuration • Update: Verifies the update server is configured • Reports:  The output from several report commands to display the report status Palo Alto Status - NetflowSummary - This component displays a summary of the top 10 TCP ports identified by Palo Alto native network collector. Palo Alto Status - NetflowBy Port - This component displays the session count of the top 10 TCP ports identified by Palo Alto native network collector. Palo Alto Status - Top 10 Events - This component displays count of the top 10 Palo Alto syslog events. Palo Alto Status - Event Trend Summary - This component displays a trend line for the top 10 Palo Alto syslog events. Palo Alto Status - Event Indicator - This indicator component displays a series of Palo Alto syslog event indicators.

  28. For Questions Contact Cody Dumont cdumont@tenable.com
